V-ZUG Adora 60 SL User manual

Dishwasher
Design integrated Adora SL
Operating instructions
V-ZUG Ltd

2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appli-
ance at the time these operating instructions went to press. The right to make
technical modifications for the purpose of the further development of the
appliance is reserved.
Symbols used
AIndicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
䡲Indicates a list.
Validity
The model number corresponds to the first three digits on the identification
plate. These operating instructions apply to the following model:
© V-ZUG Ltd, CH-6301 Zug, 2009
Denotes important safety precautions. Failure to observe said pre-
cautions can result in injury or damage to the appliance or fittings!
Denotes useful tips for the user.
Model Type Model no.
Adora 60 SL GS60SLZ-Gdi 967

3
Contents
Safety precautions 5
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . 5
Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Your appliance 10
Appliance description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operating and display elements . . . . . . . . . . . . . . . . . . . . . 12
Programme overview 14
Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fondue/Raclette programme . . . . . . . . . . . . . . . . . . . . . . . 17
User settings 19
Language selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3in1detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Childproof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Water hardness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Rinse agent dosage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Operation 26
Preparing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Loading the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Loading tips for the upper basket . . . . . . . . . . . . . . . . . . . . 28
Loading tips for the lower basket . . . . . . . . . . . . . . . . . . . . 33
Adding detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Programme selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Selecting additional functions . . . . . . . . . . . . . . . . . . . . . . . 40
Delayed start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Aborting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
End of programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Operation with childproof lock activated . . . . . . . . . . . . . . . 45

… Contents
4
Care and maintenance 47
General cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Cleaning the exterior of the appliance . . . . . . . . . . . . . . . . . 47
Cleaning the filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Cleaning the spray arms . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . 50
Filling with regeneration salt . . . . . . . . . . . . . . . . . . . . . . . . 51
Filling with rinse agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Trouble-shooting 53
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Interruption in power supply . . . . . . . . . . . . . . . . . . . . . . . . 58
Dishwashing tips 59
Technical data 60
Accessories and spare parts . . . . . . . . . . . . . . . . . . . . . . . . 62
Note for testing institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Disposal 67
Index 68
Repair service 71
Quick instructions 72

5
Safety precautions
In accordance with the requirements of IEC 60335-1:
䡲This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
Before using for the first time
䡲The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. The necessary work
should be carried out by a qualified fitter or electrician.
䡲Fill the salt reservoir of the water softener with approximately 1.5 l water
and 1 kg regeneration salt.
䡲Mix the salt solution well using a wooden spoon.
䡲It is advisable to run a wash programme without any dishes ( pro-
gramme with detergent) in order to remove traces of grease left behind
from the manufacturing process.
The appliance corresponds to recognised technology standards
and the relevant safety regulations. Proper use of the appliance is
however essential to avoid damage and accidents. Please there-
fore follow the precautions given in these operating instructions.
For hygiene reasons, regeneration salt is also recommended for use
with low water hardness and 3in1 detergents.
The appliance was tested with water before being shipped. There may
therefore still be traces of water left in the appliance.

… Safety precautions
6
Correct use
䡲The appliance is only suitable for washing household dishes and cutlery
with water and standard dishwasher detergent. It is designed for use in the
home and the above-mentioned purpose only. No liability is assumed for
any damage caused by improper or incorrect use.
䡲Any repairs, modifications or manipulations to the appliance, especially
any electrical parts, should only be carried out by the manufacturer, its Cus-
tomer Services or similarly qualified persons. Repairs if carried out incor-
rectly may cause serious injury, damage to the appliance and fittings, as
well as affect the functioning of the appliance. If the appliance is not work-
ing properly or in case of a repair order, follow the instructions given in the
'Repair service' section. If necessary, please contact Customer Services.
䡲Use original accessories and spare parts only.
䡲Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating instruc-
tions accompany the appliance, together with the instructions on installa-
tion. In this way, the new owner can inform themselves about how to use
the appliance correctly and read the pertinent safety precautions.

… Safety precautions
7
Children in the home
䡲Packaging material (e.g. plastic, polystyrene) can be dangerous for chil-
dren. Danger of suffocation! Keep packaging material away from children.
䡲The appliance is designed for use by adults who are familiar with these op-
erating instructions. Children are often unable to recognise the danger of
electrical appliances. Ensure proper supervision and do not allow children
to play with the appliance – there is a danger that children could get locked
inside.
䡲The water in the appliance is not to be used as drinking water. Detergent
residue in the appliance could cause eye or skin irritation! Keep children
away from open appliance.
䡲Detergents can irritate the eyes, mouth and throat and even cause choking!
Keep detergents, regeneration salt and rinse agents out of the reach of
children.
䡲Use the childproof locking facility.

… Safety precautions
8
Note on use
䡲Do not use the appliance if visibly damaged or any of the connections are
damaged. Contact Customer Services.
䡲In the event of any defects or faults, contact Customer Services.
䡲If the appliance is not operating properly, turn off the water tap and discon-
nect the appliance from the electricity supply immediately.
䡲Do not sit or lean on the appliance door. After loading or unloading the ap-
pliance, do not leave the appliance door open as it can pose a risk – dan-
ger of tripping and bruising!
䡲Due to risk of injury, place knives and cutlery with sharp edges or points
into the cutlery basket in such a way that they do not stick out (points facing
downwards). Knives and cutlery may also be placed horizontally in the up-
per basket.
䡲Do not lean on the upper basket – risk of accident!
䡲Keep animals away from the appliance.
䡲To protect your dishes and cutlery, read the 'Dishwashing tips' section.
䡲Only use detergent, rinse agent and regeneration salt explicitly recom-
mended for use with your appliance by the manufacturer in the operating
instructions. Follow the directions for use carefully.
䡲Do not use the appliance without any or too little detergent – risk of causing
damage to the appliance.
䡲Do not use washing-up liquid as it can cause excessive foaming, causing
your appliance to malfunction.
䡲Store detergent and regeneration salt in a cool, dry place. Lumpy detergent
can cause problems. Please follow the safety warnings issued by the de-
tergent and rinse agent manufacturers carefully.
Switching off the power to the appliance disables the built-in over-
flow protection system.
Dishwasher detergents are strongly alkaline. They can be extreme-
ly dangerous if swallowed. Avoid contact with the skin and eyes
and keep children away from the dishwasher when the door is
open. Check that the detergent receptable is empty after comple-
tion of the wash cycle.

… Safety precautions
9
䡲Never fill the rinse agent reservoir or the regeneration salt reservoir with de-
tergent. If this were to happen, however, do not operate the appliance un-
der any circumstances, as this could cause expensive damage to it. Please
contact our service centre, which can be found in the 'Repair service'
section.
䡲After filling the salt reservoir, run the «Pre-rinsing» programme.
䡲Do not wash objects that are soiled with inflammable or corrosive solvent,
paint, wax, chemicals (acids or bases) or iron chippings or that can shed
fibres in the appliance.
䡲Do not use solvents (e.g. turpentine, benzine) instead of, or in addition to,
water in the appliance – fire or explosion hazard!
䡲Before closing the appliance door and starting a programme ensure that
there are no foreign objects or pets in the appliance. Foreign objects which
can rust, such as nails and paper clips, can damage parts of the appliance
as well as the dishes.
䡲Avoid opening the appliance door during operation. The dishes and water
may be hot – scalding hazard! The steam that escapes can damage wood
combination fascias. Spectacles can steam up, impairing your vision.
䡲Do not leave the premises for a longer period of time when the appliance
is in operation.
䡲During longer absences, always turn off the water tap before cutting the
power going to the appliance by pulling out the plug or switching off the
fuse. Never pull the plug out of the mains socket by the cable. The mains
socket and the water connection are generally located in the cabinet adja-
cent to the appliance (under the kitchen sink, behind the waste bin).
䡲Do not spray the outside of the appliance with water. Do not use a steam
cleaner.
䡲From time to time, check the drain hose for tears, kinks, twists, bends, etc.

10
Your appliance
Appliance description
䡲Capacity: 12 place settings

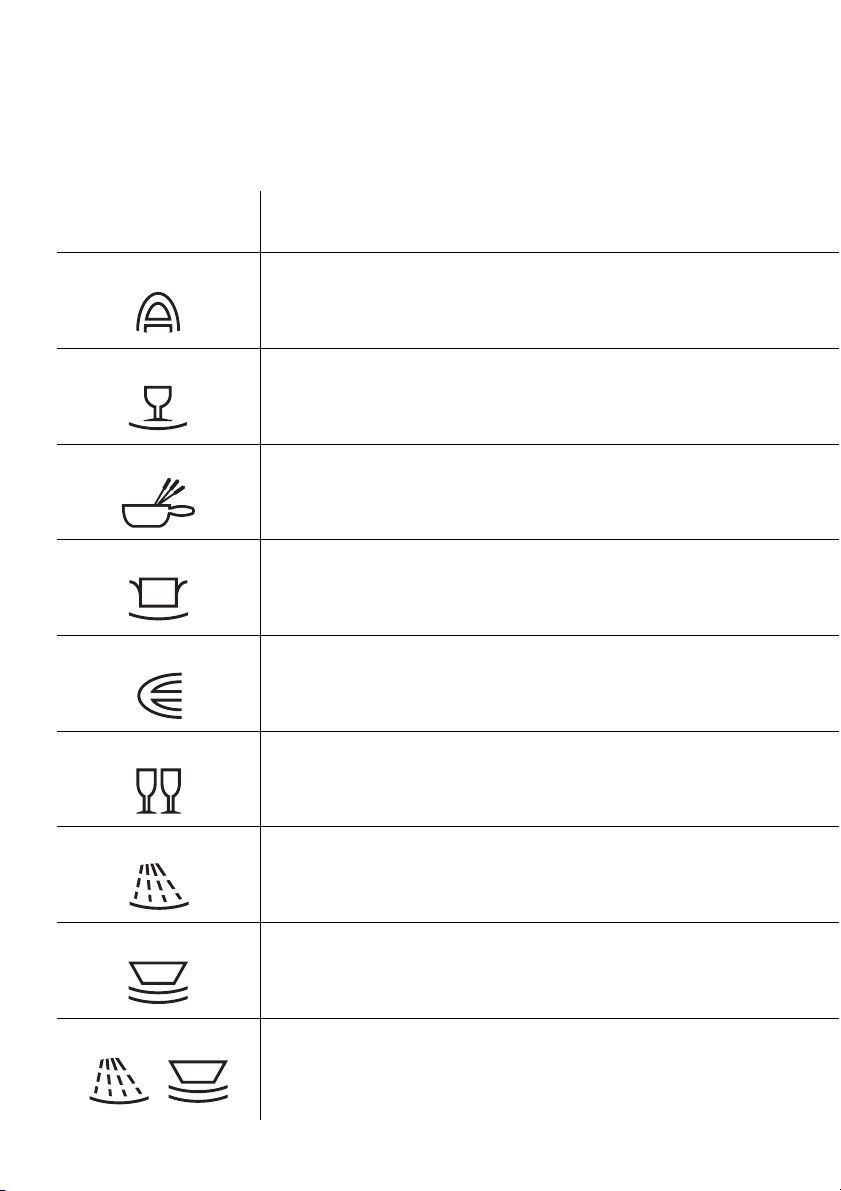

䡲9 programmes
«Automatic»
«Sprint»
«Fondue/Raclette»
«Intensive»
«Eco»
«Glass»
«Pre-rinsing»
«Norm/Standard»
«Hygiene»
䡲Additional functions
«Delayed start»
«Upper rack only»
䡲Language selection
䡲3in1 detergent
䡲Childproof lock
䡲Acoustic signal
䡲Operation indicator on glass panel
䡲Overflow protection
䡲Plain text display
䡲Automatic limescale sensor/Water hardness sensor
䡲Automatic rinse agent dosage
䡲Soil sensor
䡲Air fan drying

… Your appliance
11

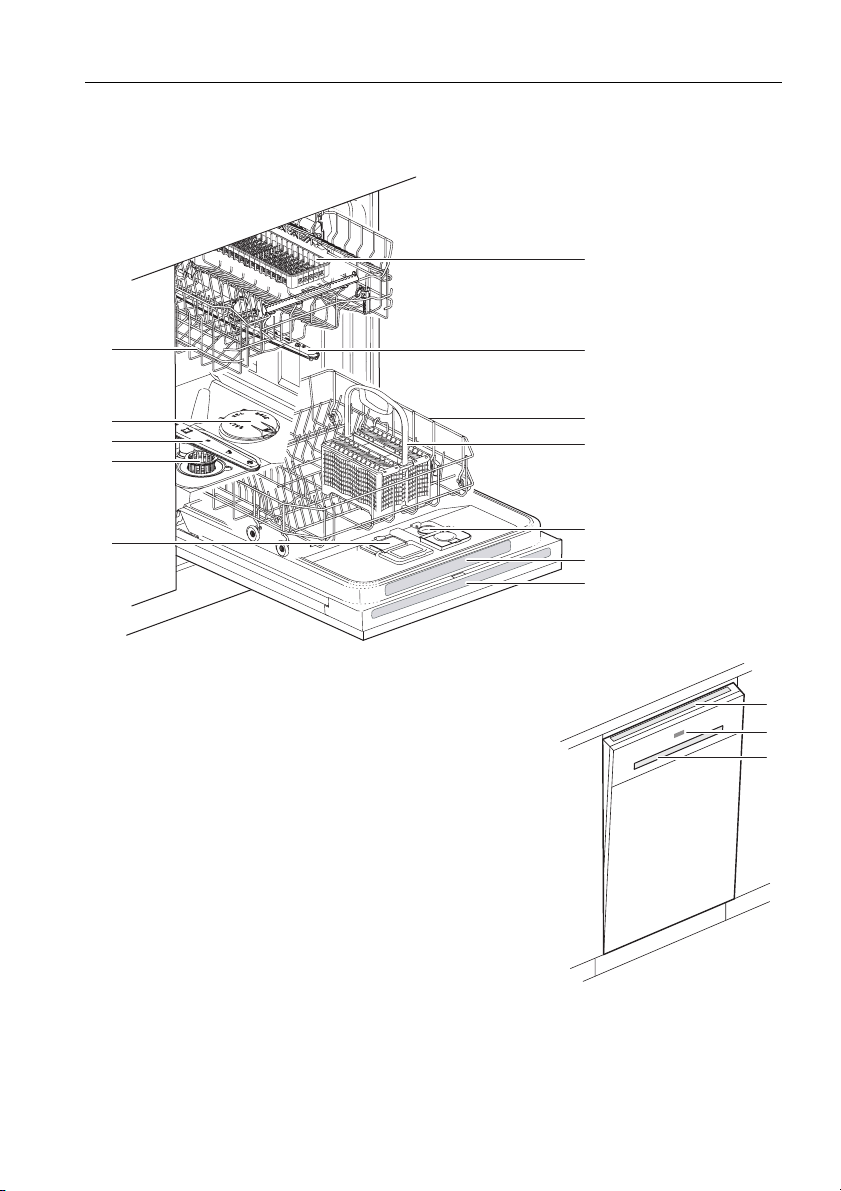

Construction
1Appliance door
2Door handle
3Operation indicator on glass panel
4Operating and display elements
5Racks
6Salt reservoir
7Coarse and fine filters
8Rinse agent reservoir
9Detergent dispenser
10 Quick programme guide
11 Cutlery basket
12 Vario cutlery basket insert
13 Spray arms
4
10
8
11
13
12
5
5
13
6
7
9
1
4
2
3

… Your appliance
12
Operating and display elements
Programme selection buttons
Plain text display
Programme and indicator symbols with indicator lights
Operation indicator on glass panel
1Automatic programme with indicator light
2Selection of programmes with indicator light
3Delayed start
4Upper rack only with indicator light
5End of programme with indicator light
6Display for
䡲Programme/Programme sequence/Programme duration/Programme
time remaining
䡲Delayed start
䡲Childproof lock
䡲Wash temperature (during the «Cleaning» phase)
䡲Hints and error messages
7Display for:
Automatic Intensive Pre-rinsing
Sprint Eco Norm/Standard
Fondue/Raclette Glass Hygiene
Salt refill indicator
Rinse agent refill indicator
3in1 detergent indicator
Operation status indicator
12 3456
7
Automatic max. 1h25

… Your appliance
13
Indicator lights
Operation indicator on glass panel
Acoustic signals
Different acoustic signals are emitted for trouble-shooting and «End of pro-
gramme». These are described in the 'User settings' section.
Indicator lights flash
Select programme(s) or function(s).
Indicator light for «End of programme» flashes
The programme has finished.
Indicator lights are illuminated
Programme(s) or function(s) is (are) active.
Indicator lights are not illuminated
Programme(s) or function(s) is (are) inactive.
Operation indicator is flashing
The programme has finished.
Operation indicator is on
Programme is active.
Operation indicator is off
Programme is inactive.

14
Programme overview
Programme/Symbol Type of soiling
Automatic For varying soiling and variable load. Not suitable for burned-on or
dried-on food.
Sprint For light soiling, aperitif dishware and coffee cups. Not suitable for
slowly dissolving tabs. If the 3in1 detergent setting is activated, the
programme will be extended by 10 minutes.
Fondue/Raclette For heavy soiling and burned-on food, especially cheese (fondue and
raclette pans), casserole and gratin dishes.
Intensive For heavy soiling. Particularly suitable for dried-on starchy food (e.g.
rice, mashed potato).
Eco Economy programme with integrated soaking phase. For stubborn
soiling.
Glass Gentle programme for glassware, light soiling, and drinking glasses in
particular.
Pre-rinsing
To prevent food drying on if intending to start a wash programme later.
Norm/Standard
Declaration programme for normal soiling at full load.
Hygiene For sanitizing the appliance and the water outlet. Where hygiene
requirements are high (e.g. for baby bottles, cutting boards, etc.),
items can be cleaned at a higher temperature. Clean the filters before
starting the hygiene programme.

… Programme overview
15
Programme sequence/Consumption data
Pre-
rinsing
Clean-
ing
Intermed.
rinsing
Rinsing
with agent
Dry-
ing
Dura-
tion
Wa-
ter Energy
If
required
50–
60 °C
If
required 70 °C Yes 0h50– 1h35
9–
23 l
0.9–1.4
kWh
No 55 °C No 60 °C Yes 0h24 9 l 0.8
kWh
If
required 65 °C Yes 65 °C Yes 2h23 16– 19 l
1.6
kWh
If
required 65 °C Yes 70 °C Yes 1h34 19– 23 l
1.4–1.55
kWh
No 45 °C Yes 60 °C Yes 2h32 12 l 0.98
kWh
No 45 °C Yes 60 °C Yes 0h49 12 l 0.9
kWh
Yes No No No No 0h07 4 l 0.05
kWh
Yes 50 °C No 45 °C Yes 1h35 11 l 0.61
kWh
60 °C 70 °C Yes 70 °C Yes 1h44 14 l 1.3
kWh

… Programme overview
16

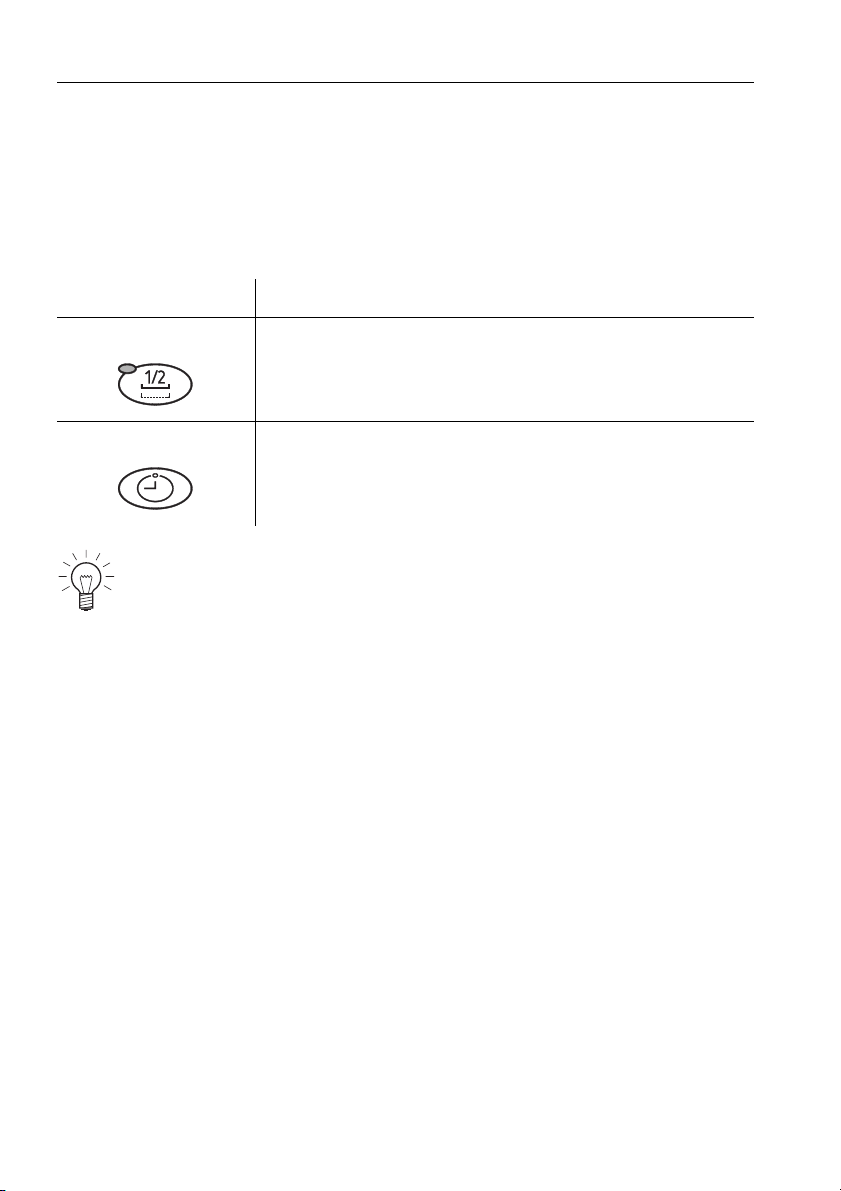

Additional functions
The two additional functions «Upper rack only» and/or «Delayed start» can
be used in combination with the programmes.
Only the additional function «Delayed start» can be selected in combination
with the «Automatic programme».
Function/Symbol Use
Upper rack only Uses only the upper spray arm for washing. Load the upper basket
only.
Cannot be selected in combination with «Automatic programme».
Delayed start
The start of the wash programme can be delayed by between one hour
and maximum 24 hours. The previous delayed start time is shown.
Using the «Upper rack only» function shorts the duration of a
programme.

… Programme overview
17
0
Fondue/Raclette programme
Uses
䡲Removes cheese which tends to stubbornly stick to fondue and raclette
pans and dishes.
䡲Removes food burned on to gratin dishes.
䡲Can be used to clean all other dishes.
Tips for best results

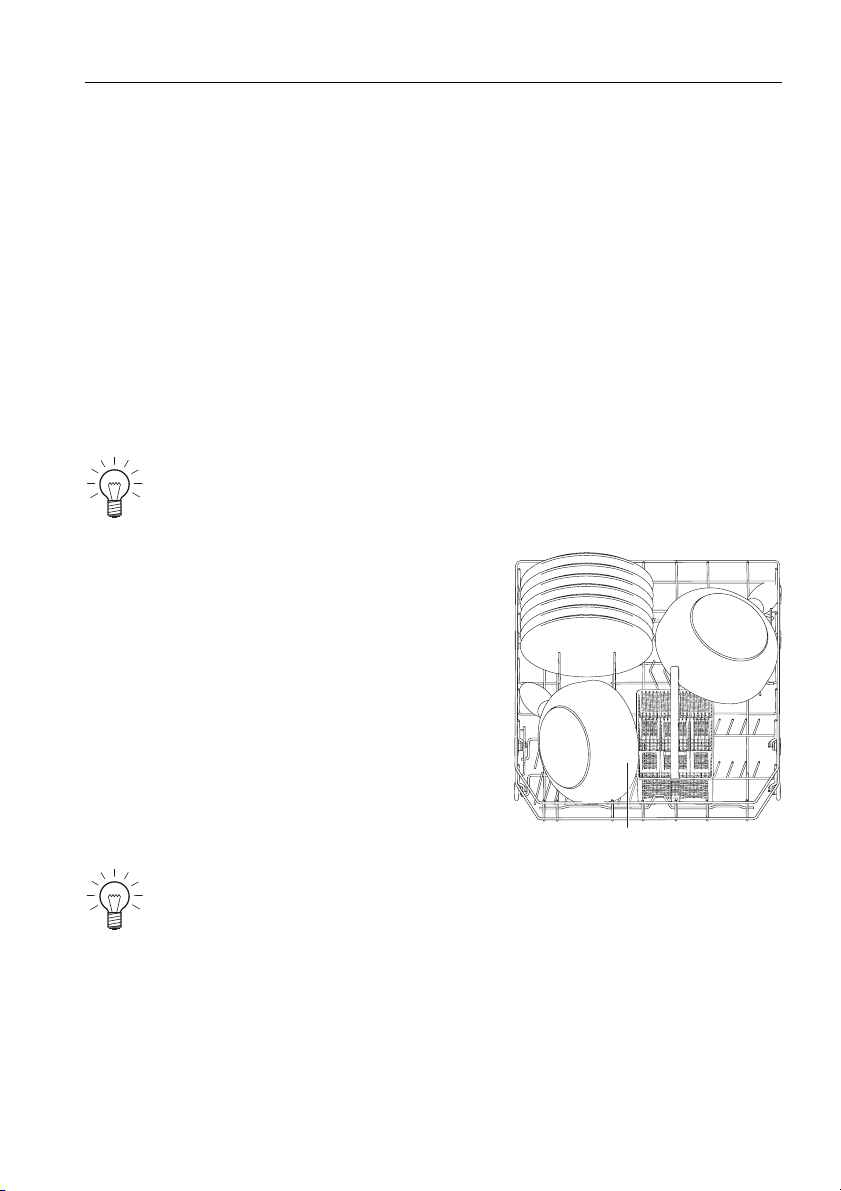

䡲Fondue pans made of enamelled metal or stoneware may be cleaned in
the appliance.
APlace the fondue pan 1facing downwards
so that the water can drain away.
Fondue pans made of earthenware (red-brown colour) should not be
washed in the appliance as these absorb water.
Fondue pans with a large opening in the handle are suitable for wash-
ing in the appliance.
1

… Programme overview
18

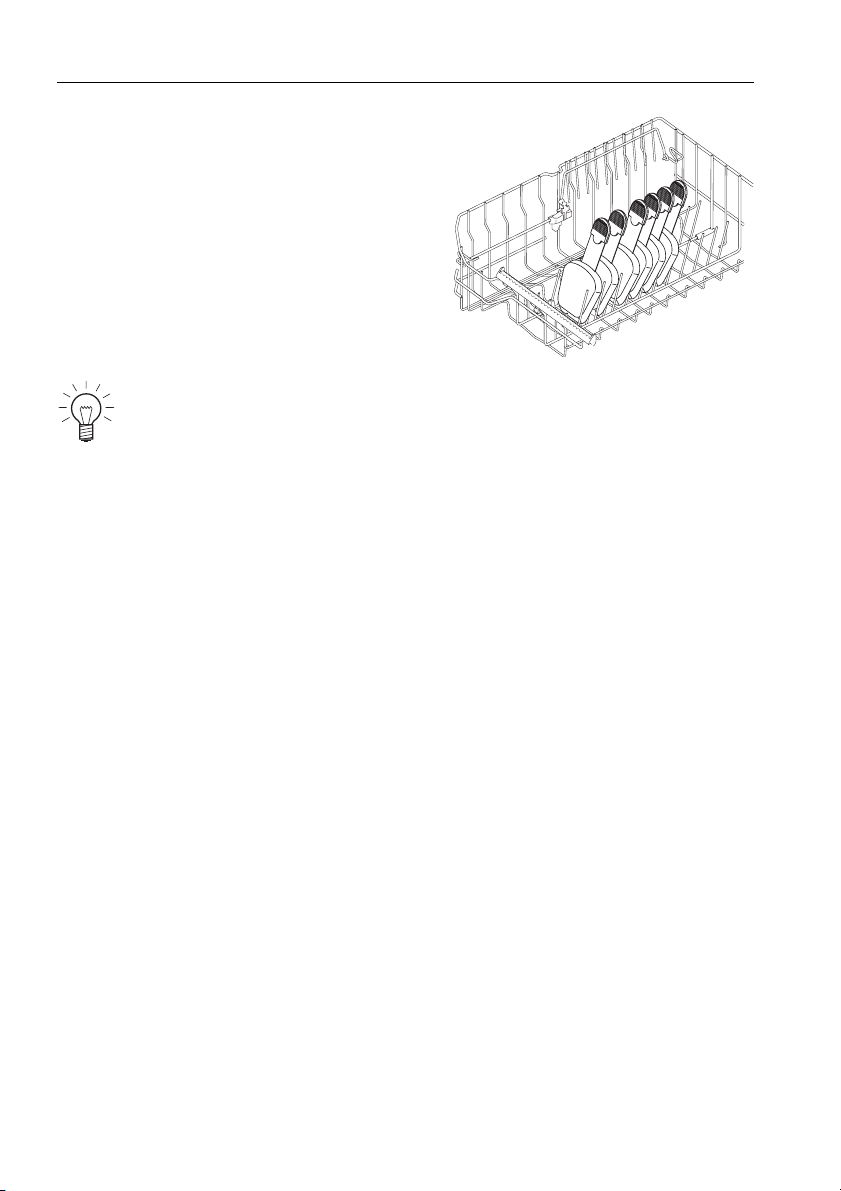

ALoad raclette dishes in the upper
basket as shown in the diagram.
Add about a tablespoon of detergent to the pre-rinsing compartment
in addition to the detergent in the detergent dispenser. This will im-
prove the wash results for heavily burned-on food.
Use an aluminium heat distribution plate between the burner and the
fondue pan to protect the fondue pan and to help prevent food from
burning on.
The appliance cannot, however, remove very heavily burned-on food
completely.

19

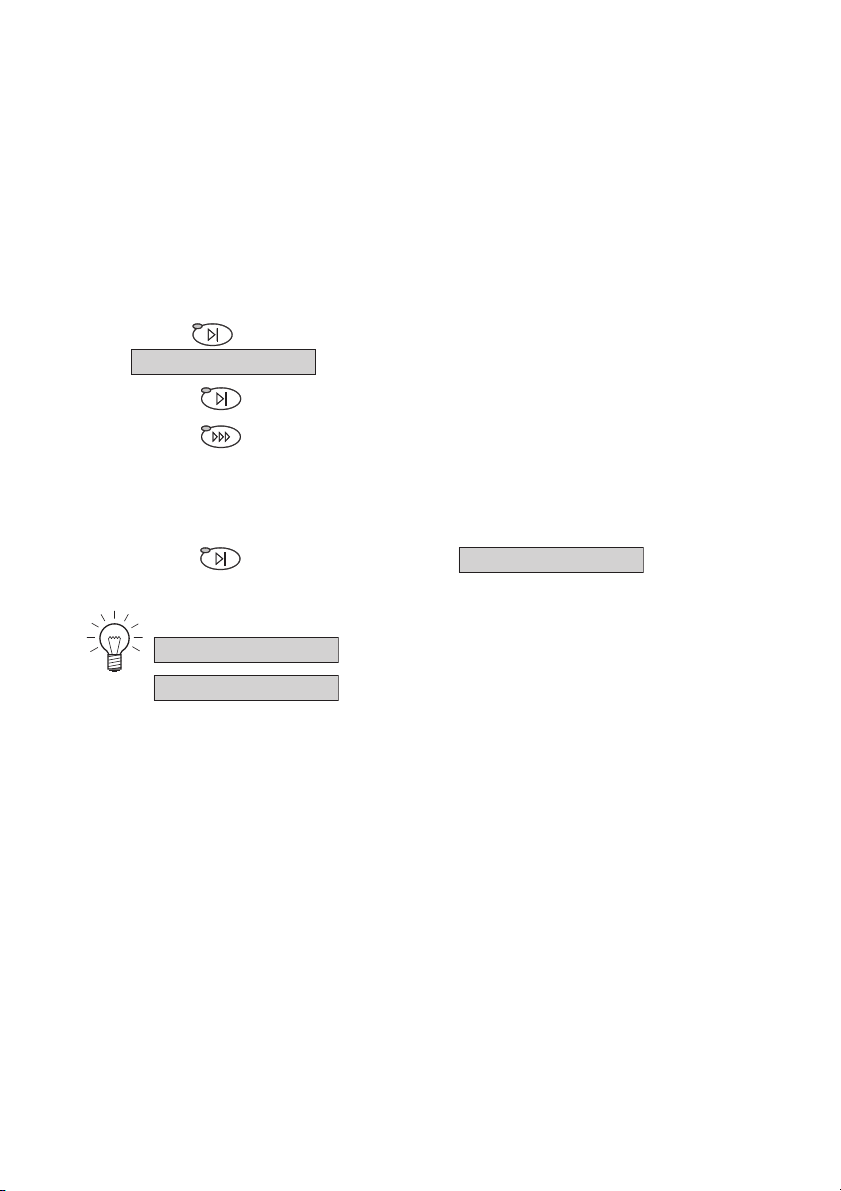

User settings
You can change certain user settings to suit your own preferences. Settings
can only be changed when there is no programme running. The procedure is
the same for all settings.
Accessing the configuration mode
AHold the button depressed for 5 seconds.
– appears in the plain text display.
APress the button repeatedly to see the various settings.
APress the button to change the configuration.
– Any changes are taken over automatically and must not be confirmed.
Exiting the configuration mode
APress the button repeatedly until appears in the
plain text display.
If no buttons are pressed within the next 15 seconds, then
appears in the plain text display.
only appears if the configuration has been
changed.
User settings
Configuration saved
Configuration saved
Configuration saved

… User settings
20

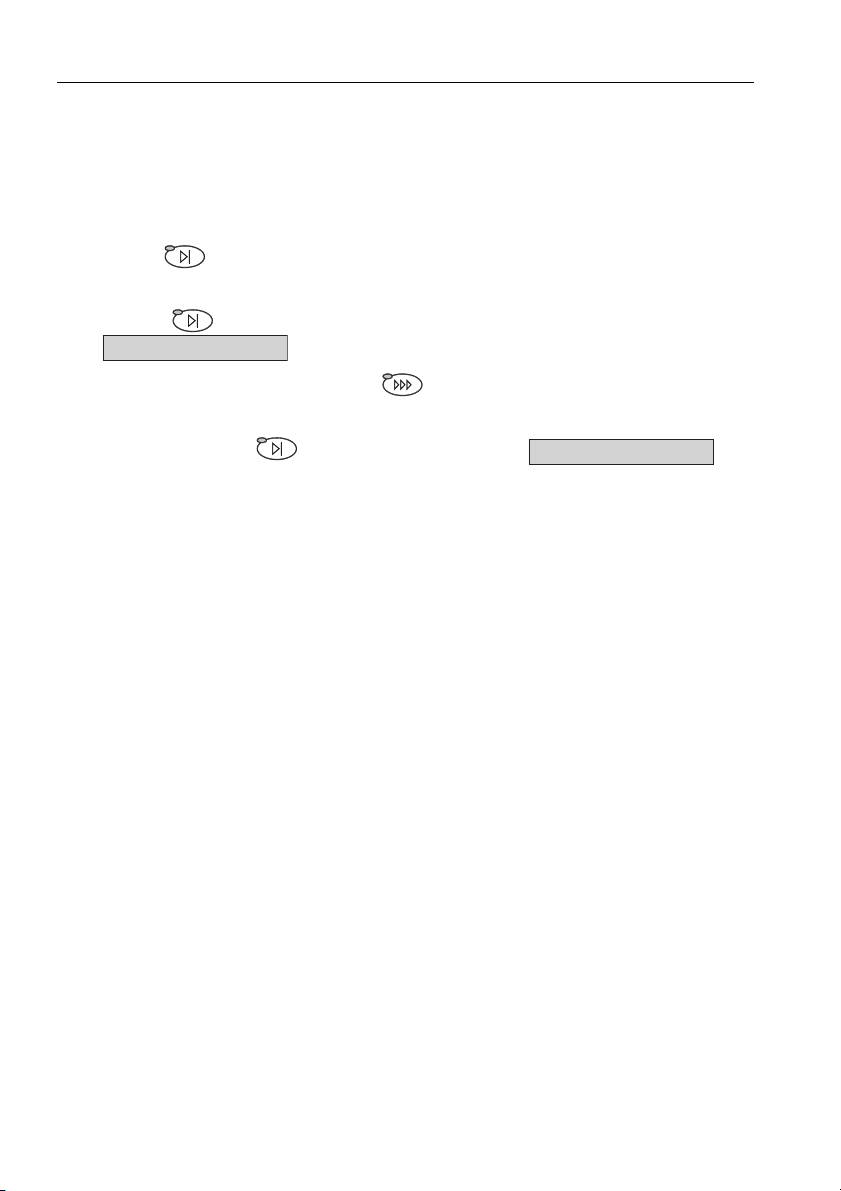

Language selection
The language version in the plain text display can be changed.
Changing the language
AHold the button depressed for 5 seconds (to enter the configuration
mode).
APress the button 1×.
– appears in the plain text display (factory setting).
ATo change the setting, press the button until the desired language
appears.
ATo exit, press the button repeatedly until ap-
pears in the plain text display.
Text in English
Configuration saved
