V-ZUG Adora N User manual

Operating instructions
Adora N integrated, design-integrated, fully
integrated
Dishwasher

2
1 Safety precautions
Read the operating instruc-
tions before using the appli-
ance for the first time.
1.1 General safety
precautions
▪This appliance can be used
by children aged8 and
above and by persons with
reduced physical, sensory
or mental capabilities, or
lack of experience and/or
knowledge, provided they
are supervised or have
been instructed on the safe
use of the appliance and
have understood the haz-
ards involved. Children must
not play with the appliance.
Cleaning and user mainten-
ance shall not be under-
taken by children without su-
pervision.
▪If an appliance is not
equipped with a mains
cable and a plug or other
means for disconnecting
from the mains with a con-
tact opening on each pole
complying with the condi-
tions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-
ently installed electrical in-
stallation in accordance with
the installation regulations.
▪If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manu-
facturer or its Customer Ser-
vices or a similarly qualified
person in order to avoid
hazard.
1.2 Appliance-specific
safety precautions
▪Never use a steam cleaner
to clean the appliance.
▪If the appliance is installed
on a carpeted floor ensure
that the ventilation openings
on the base of the appli-
ance are not obstructed.
▪Only leave the appliance
door open in the at-rest pos-
ition. An open appliance
door poses a danger of trip-
ping or injury. Do not sit or
rest on the appliance door
or use it as a storage sur-
face.
▪CAUTION: Knives and other
items with sharp points
must be placed with the
point downwards or placed
horizontally in the basket.
▪CAUTION: Do not drop or
insert knives, forks or other
© V-ZUG Ltd, CH-6301 Zug, 2017

1 Safety precautions
3
sharp items in the opening
of the door lock.
▪No detergent must enter the
opening of the door lock.
This can cause the door
lock to malfunction.
▪The appliance is only suit-
able for washing household
dishes and cutlery with wa-
ter and standard dishwasher
detergent. The appliance is
for use in the home and for
the intended purpose only.
No liability is assumed for
any damage caused by im-
proper or incorrect use.
▪Capacity: 12 international
place settings (SMS 55). 13
international place settings
(EURO 60).
▪This appliance is designed
to be used for household
and similar purposes such
as: staff kitchens in shops,
offices and other commer-
cial premises; agricultural
properties; by customers in
hotels, motels and other res-
idential facilities; in bed-and-
breakfast hotels.
1.3 Correct use
▪Any repairs, modifications or manipula-
tions to the appliance, especially any
electrically live parts, may only be car-
ried out by the manufacturer, its Cus-
tomer Services or a similarly qualified
person. Repairs if carried out incorrectly
may cause serious injury, damage to
the appliance and fittings, as well as af-
fect the functioning of the appliance. If
the appliance is not working properly or
in case of a repair order, follow the in-
structions given in the «Service & Sup-
port» section. Please contact our Cus-
tomer Services if necessary.
1.4 Instructions for use
▪If the appliance is visibly damaged, do
not use it. Contact our Customer Ser-
vices.
▪If the appliance is not operating prop-
erly, disconnect it from the power sup-
ply immediately.
▪Use original spare parts only.
▪Retain these operating instructions for
future reference.
▪Avoid opening the appliance door unne-
cessarily during operation. The dishes
and water may be hot – scalding haz-
ard! The steam that escapes can dam-
age wood combination fascias. Spec-
tacles can steam up, impairing your vis-
ion.
▪Do not wash objects that are soiled with
inflammable or corrosive solvent, paint,
wax, chemicals (acids or alkaline solu-
tions) or iron chippings or that can shed
fibres in the appliance.
▪Packaging material, e.g. plastic film and
polystyrene, can be dangerous for chil-
dren. Danger of suffocation! Keep pack-
aging material away from children.

1 Safety precautions
4
1.5 Transport and
installation
Front
Do not tilt more than 90° to
the right!
Transport the appliance in an upright posi-
tion only! Transporting it in any other posi-
tion will result in damage to the appliance!
When carried carefully without being
shaken, the appliance may be tilted a max-
imum of 90° to the left (viewed from the
front).
1.6 How to avoid damaging
the appliance
▪Before closing the appliance door and
starting a programme ensure that there
are no foreign objects (e.g. nails or pa-
per clips) or pets in the appliance. For-
eign objects can damage parts of the
appliance as well as the dishes.
▪Never fill the rinse agent reservoir or the
regeneration salt reservoir with deter-
gent! If this were to happen, however,
do not operate the appliance under any
circumstances, as this could cause ex-
pensive damage to it. Call Customer
Services.
▪Do not lean on any part of the appli-
ance – risk of accident!
▪Turn off the water tap during longer ab-
sences.
▪The appliance must be connected to
the mains supply to ensure appliance
protection (overflow protection, among
other things).
1.7 Using for the first time
The appliance must be in-
stalled and connected to the
electricity supply by a quali-
fied fitter/electrician in ac-
cordance with the separate
installation instructions.
Before operating the newly installed appli-
ance for the first time, the following steps
should be taken:
Before using for the first time
▸ Switch on the power and turn on the
water tap.
▸ Set (see page 23) the water hardness.
▸ Fill the salt reservoir with approximately
1.0l water and 1 kg regeneration salt.
Wipe away any excess salt on the edge
of the salt reservoir.
▸ Fill the rinse agent reservoir with rinse
agent.
▸ Run the programme without dishes
to protect the appliance from corrosion
from any excess salt and to remove
traces of grease left behind from the
manufacturing process.
The refill indicator can flash during the
first few wash cycles. goes out when the
salt concentration in the reservoir is evenly
distributed.

1 Safety precautions
5
1.8 Notes on using the
operating instructions
Graphical operating instructions can be
downloaded on the internet from
www.vzug.ch.
Symbols used
Denotes important safety
precautions.
Failure to observe said precautions can
result in injury or in damage to the appli-
ance or fittings!
Validity
The product family (model number) corres-
ponds to the first alphanumerics on the
identification plate. These operating in-
structions apply to:
Model Type Product family
Adora
55 N
(SMS 55)
GS55Ni
GS55Ndi
GS55NVi
GS55NGi
GS55NGVi
GS55NGdi
41051
41064
41067
41068
41069
41070
Adora
60 N
(EURO
60)
GS60Ni
GS60Ndi
GS60NVi
GS60NGi
GS60NGVi
GS60NGdi
41052
41063
41075
41076
41077
41078
Variations depending on the model are
noted in the text.
Modifications
Text, diagrams and data correspond to the
technical standard of the appliance at the
time these operating instructions went to
press. The right to make technical modific-
ations for the purpose of the further devel-
opment of the appliances is reserved.

Contents
1 Safety precautions 2
2 Appliance description 7
2.1 Construction.....................................................7
2.2 Operating and display elements..................8
3 Programme overview 9

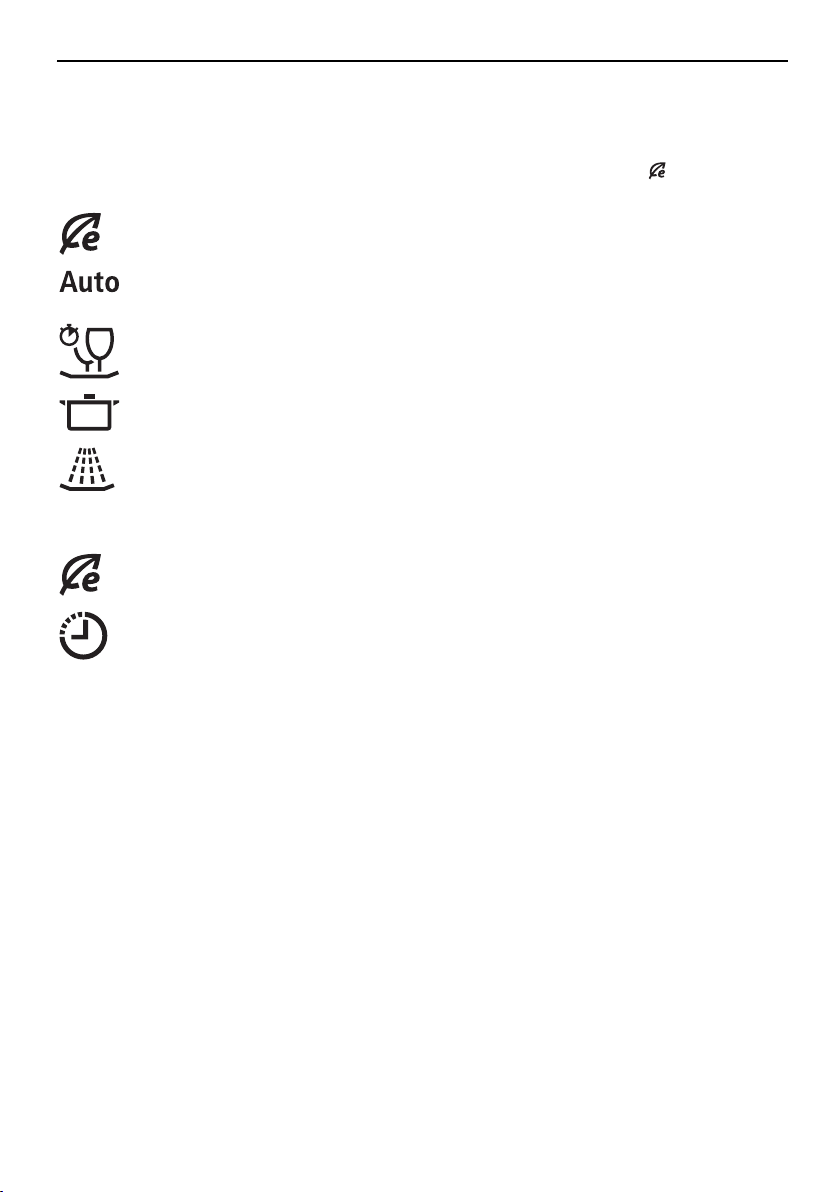

3.1 Programme ......................................................9
3.2 Additional functions ........................................9
4 Operation 10
4.1 Preparing the appliance ............................. 10
4.2 Dish washing tips......................................... 10

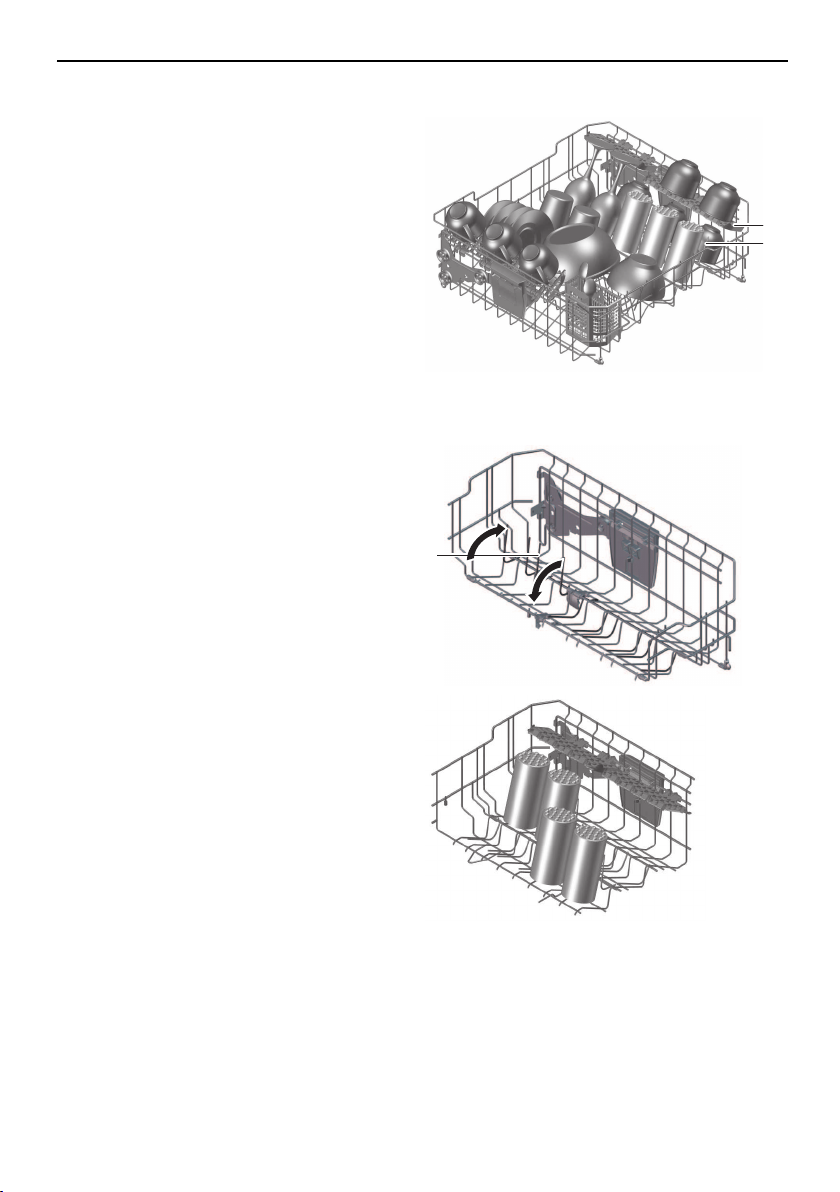

4.3 Loading tips for the upper basket ............ 11

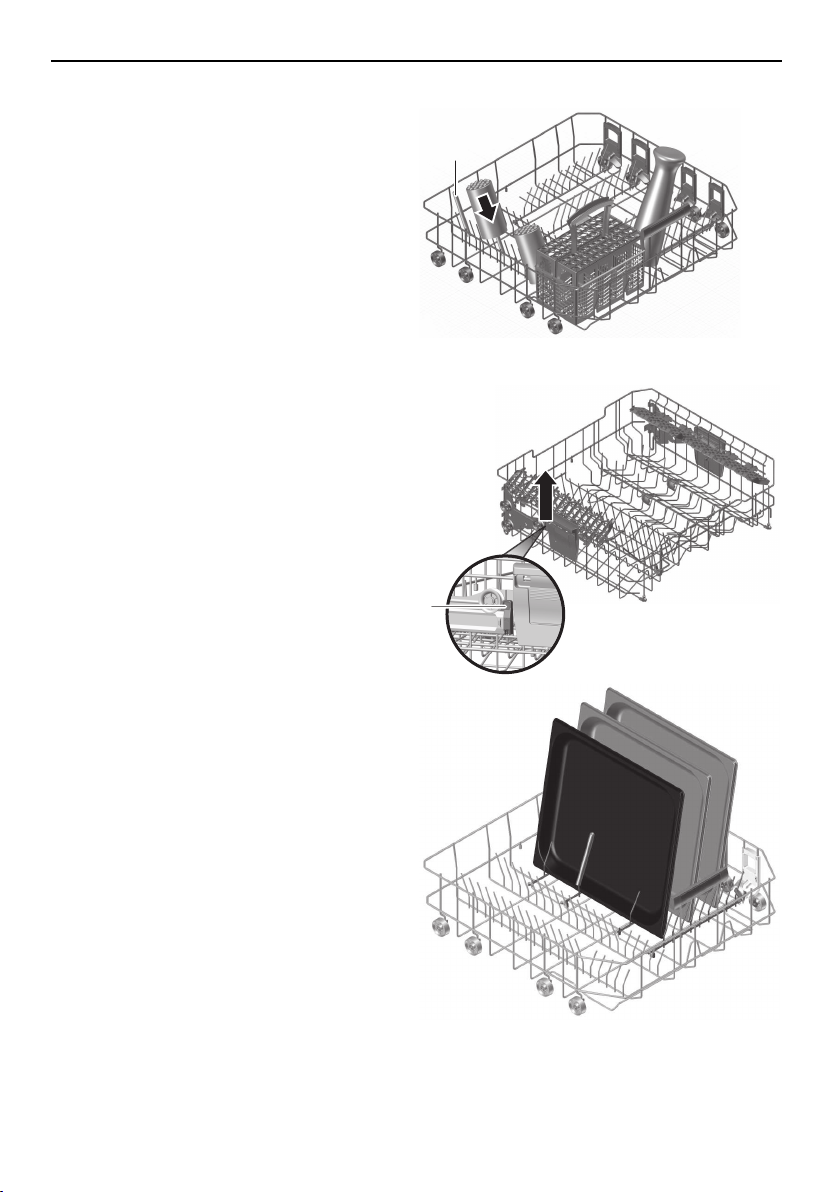

4.4 Loading tips for the lower basket ............. 13
4.5 Detergent....................................................... 16

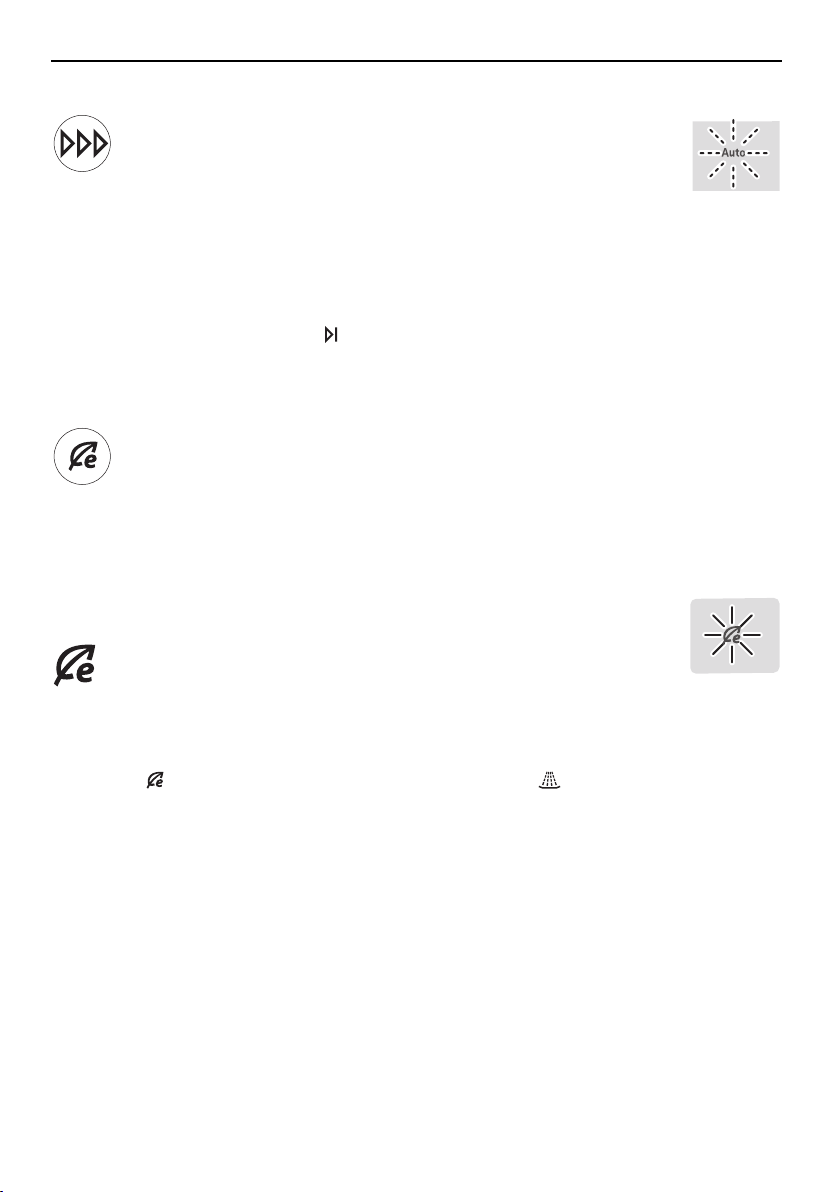

4.6 Selecting a programme .............................. 18
4.7 Delayed start................................................. 19
4.8 Interrupting a programme .......................... 20
4.9 Aborting a programme before time.......... 20
4.10 End of programme ...................................... 21
5 User settings 22
5.1 Overview of user settings........................... 22
5.2 Changing user settings............................... 22
5.3 Acoustic signal ............................................. 23
5.4 All in 1............................................................ 23
5.5 Water hardness ............................................ 23
5.6 Rinse agent dosage .................................... 23
5.7 DryPlus........................................................... 24
5.8 RinsePlus....................................................... 24
5.9 Hot water connection .................................. 24
5.10 Automatic standby....................................... 24
5.11 Factory setting .............................................. 24
6 Care and maintenance 25
6.1 Cleaning the interior and exterior ............. 25
6.2 Cleaning the spray arms ............................ 25
6.3 Cleaning the filter system........................... 26
6.4 Refilling with regeneration salt .................. 26
6.5 Filling with rinse agent ................................ 27
7 Trouble-shooting 28
7.1 Error messages............................................ 28
7.2 Other possible problems............................ 30
7.3 Unsatisfactory washing results.................. 30
7.4 In the event of a power failure................... 31
8 Accessories and spare parts 32
9 Technical data 34
9.1 Product fiche..................................................35
9.2 Consumption data ........................................36
9.3 Note for testing institutes ............................36
9.4 Noise measurement .....................................36
10 Disposal 37
11 Notes 38
6

2 Appliance description
2.1 Construction
2
2
3
1
4
8
7
6
9
5
1
1Baskets
2Spray arms
3Cutlery basket
4Rinse agent reservoir
5Operating and display elements *
6Quick operating instructions
7Detergent dispenser
8Salt reservoir
9Filter system
Integrated appliances
(operating elements are located on the outside of the appliance door):
11
10
10 Door handle
11 Operating and display elements
Fully integrated and design integrated appliances
(operating elements are located on the inside of the appliance door):
11 10
12
10 Door handle
11 Operation indicator on glass panel *
12 Function light *
* Depending on model
7

2 Appliance description

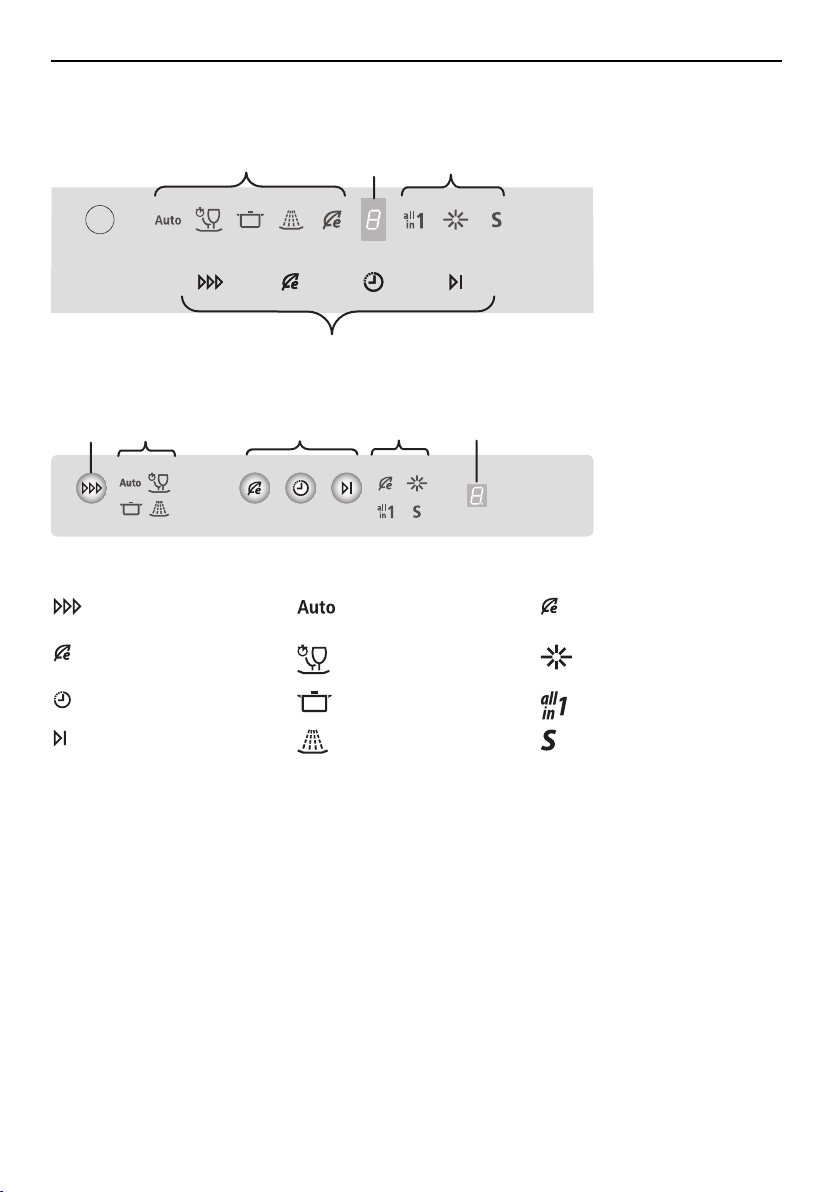

2.2 Operating and display elements
Integrated appliances:
1
23 4
Fully integrated and design integrated appliances:
13
12 4
1 Buttons 2 Programme symbols 3 Additional function sym-
bols /Indicator symbols
Programme selec-
tion
Automatic Energy saving
Eco programme Quick wash/
Glass care
Rinse agent
refill indicator
Delayed start Intensive «All in 1» detergent
End of programme Pre-rinsing Salt refill indicator
4 Display Acoustic signal
(depending on model)
Function light
(depending on model)
▪Delayed start
▪Error messages
An acoustic signal is emit-
ted at the end of the pro-
gramme and in the event
of a malfunction.
▪Illuminates during the pro-
gramme sequence.
▪Flashes during the final dry-
ing phase.
8

3 Programme overview
3 Programme overview
3.1 Programme
Programme time and energy consumption can be reduced by selecting the additional
function.
Eco programme: The most efficient programme in terms of water and energy
consumption for normally dirty dishes (declaration programme).
Automatic: Optimum cleaning with minimal water and energy consumption. Not
for burnt-on or dried leftovers.
Quick wash/Glass care: For slightly dirty dishes such as drinks glasses or cof-
fee cups and saucers. Not suitable for slowly dissolving tabs.
Intensive: For very dirty dishes, particularly with starchy leftovers (mashed
potato, rice etc.).
Pre-rinsing: Prevents dirt drying on if the wash programme is not going to be
started until later.
3.2 Additional functions
Energy saving: The rinsing temperature is reduced by 5 °C for around 10 %
less energy consumption Gentle on glasses.
Delayed start: Allows you to wash during off-peak hours (e.g. at off-peak
electricity rates). A delayed start of between 1 and 9 hours can be set.
9

4 Operation
4 Operation
4.1 Preparing the appliance
▸ Remove any coarse or hard pieces of food or foreign objects (such as toothpicks) left on
the dishes.
▸ Load the baskets. After loading, check that the spray arms can turn freely.
4.2 Dish washing tips
General notes
▪Do not overload the baskets.
▪Dishes, pots and pans with heavily burned-on food debris stuck to them should be soaked
in water first.
▪Load beverage and food containers such as cups, glasses, pots, etc. with the opening fa-
cing downwards so that the water can drain off.
▪When loading, ensure glasses do not touch so as to prevent damage and water spots.
▪When cleaning range hood grease filters, select the programme and use the max-
imum amount of detergent.
Dishes
Not all table- and kitchenware are dishwasher safe.
▪Clean wooden or plastic parts that are sensitive to damage from heat and detergent suds
by hand.
▪Pottery has a tendency to crack or chip.
▪The printing on glass and porcelain is hard-wearing only to a point and eventually over
time can wear off.
▪Glassware, depending on the type and the detergent being used, can become cloudy.
Check with your glassware supplier as to whether your glassware is dishwasher safe.
▪Stress and tension in thick cut crystal glasses and dishes can cause cracking.
▪Do not wash dishes with adhesive labels on them. Adhesive labels can come off and clog
up the filter system.
▪Objects made of silver, copper and tin tend to discolour, turning brown or black.
▪Spots tend to form on aluminium. Wash aluminium separately or by hand.
10

4 Operation
4.3 Loading tips for the upper basket
▸ Arrange smaller items such as saucers,
glasses, cups and dishes.
▸ If using the fold-down racks 1, stagger the
items.
▸ Rest glasses on the fold-down glass holder
2.
1
2
Glass holder
Particularly suitable for tall glasses.
▸ Push the glass holders 1 gently down or,
alternatively, pull them up until they en-
gage.
1
11

4 Operation
Easy prongs
For placing drinking glasses, baby bottles,
vases and carafes anywhere in the basket.
▸ Put easy prong 1 over basket prongs.
▸ Use 2 easy prongs for wider vessels.
1
Racks
The racks 1 can also be used as glass hold-
ers. Remove the racks to accommodate tall
glasses.
1
Dismantling/Adjusting the height of the racks
Push the rack 1 up by the hooks 2.
Push the rack inward and then out.
▸ Hook the rack in the higher position 3, if
required.
2.
1.
3
2
1
12

4 Operation
Adjusting the upper basket
The height of the upper basket can be adjusted by around 2–4 cm (depending on model). It
can be inclined in various ways.
▸ To raise: Hold the upper basket at the
sides by the grips 1 and raise it into the
position required.
1
▸ To lower: Hold the upper basket at the
sides by the grips 1.
▸ Raise the upper basket slightly and press
the button 2 at the same time. The locking
device is released.
▸ Lower the upper basket into the position
required, release the button and engage
the basket.
▸ Put plastic bowls in the upper basket.
1
2
4.4 Loading tips for the lower basket
▸ Load larger items such as plates, bowls,
platters, pots and pans.
▸ Load wide items (soup plates, lids, etc.) at
the back on the right.
13

4 Operation
Easy prongs
For placing drinking glasses, baby bottles,
vases and carafes anywhere in the basket.
▸ Put easy prong 1 over basket prongs.
▸ Use 2 easy prongs for wider vessels.
1
Cleaning baking and steaming trays
The upper basket has to be removed for lar-
ger trays.
▸ Slide the upper basket out as far as pos-
sible.
▸ Remove the basket safety lock 2 by push-
ing it upwards.
▸ Pull the upper basket out of its guides.
▸ Load baking trays, using easy prongs for
greater stability.
2
▸ When the upper basket is put back, the basket safety lock 2 must be returned to the lock-
ing position.
14

4 Operation
Cutlery basket
To avoid injury, place knives and cutlery with sharp edges or points
into the cutlery basket in such a way that they do not stick out (points
facing downwards).
Do not drop or insert knives, forks or other sharp items in the opening
of the door lock. Risk of damage to the appliance!
Knives and cutlery with sharp edges or points may also be placed horizontally in the upper
basket.
▸ Place the cutlery basket over the folded-
down prongs anywhere in the basket.
▸ Distribute cutlery loosely in the basket, with
handles pointing down (except for knives
and the like). Spoons should not be stuck
together.
▸ To prevent items of cutlery sticking to-
gether, water spots during drying, and
smaller items slipping through the basket,
put the inserts 1 supplied on the cutlery
basket.
1
When closing the appliance door, ensure no items of cutlery are stick-
ing out of the tub or are trapped. The leak tightness of the appliance
cannot otherwise be assured.
15

4 Operation
4.5 Detergent
Choice of detergent
Never use washing-up liquid. Heavy foaming can cause malfunctions.
Strictly observe the dosage instructions printed on the packaging and
contact the detergent manufacturer if you have any questions. Using
too high or low a dosage can cause damage to the appliance.
▸ Only use detergent specially formulated for dishwashers.
Tabs may not dissolve properly at a wash temperature of below 55 °C, affecting the cleaning
performance of the appliance.
Combination cleaning products ( tabs/powder)
Continue to use regeneration salt and rinse agent for a good cleaning performance.
▸ Set «All in 1» to in the user settings. The programmes and displays are adapted to suit
the detergent.
When the or refill indicators flash, continue to refill with regenera-
tion salt or rinse agent.
▸ If, after washing and drying, the results are not satisfactory, use conventional cleaning
products. Set «All in 1» to in the user settings. For complaints, contact the detergent
manufacturer.
16

4 Operation
Adding the detergent
No detergent must enter the opening of the door lock. This can cause
the door lock to malfunction.
Powder
▸ Open the detergent dispenser by pushing
the release catch in the direction of the ar-
row.
▸ Add the detergent to the detergent com-
partment. For dosage, follow the detergent
manufacturer’s instructions.
▸ Observe the «20 and 30 ml» level marks 1.
▸ For heavier soiling, add approximately 1
teaspoon of detergent to the
pre-rinsing compartment 2.
▸ Close the cover.
1
2
Tabs
▸ Place the tab 3 flat in the detergent com-
partment.
3
17

4 Operation
4.6 Selecting a programme
▸ Press the button repeatedly until the required pro-
gramme symbol flashes.
▸ Select any additional function(s), if required.
▸ Close the appliance door.
Integrated appliances: The programme starts in 15 seconds.
Fully integrated and design integrated appliances: The programme starts im-
mediately. The function light illuminates (depending on model).
If the appliance door is not closed within 15 seconds, all entries, symbols and the display
are cleared; a 2× acoustic signal is also emitted (depending on model). The programme
must be selected again. Press the button at any time to cancel the programme selected.
NOTE! Integrated appliances can also be operated with the appliance door closed.
Selecting the Eco programme
▸ With the appliance switched off, press the button.
▸ Close the appliance door.
The programme starts.
Selecting additional function
Additional functions can be selected within 15 seconds of selecting a programme.
e.g. ▸ Press the required additional function button. The cor-
responding symbol illuminates.
▸ Close the appliance door.
The programme starts.
NOTE! The additional function cannot be selected with the programme.
Saving additional functions
When an additional function is saved, it is automatically active during programme selection.
▸ Select the programme.
▸ Press the additional function button for 5 seconds. The selection is saved.
▸ To cancel the additional function, press the additional function button for 5
seconds.
The symbol flashes briefly and an acoustic signal sounds (depending on
the model) to confirm that the additional function has been saved or
deselected.
18

4 Operation
4.7 Delayed start
The delayed start allows you to wash during off-peak hours (e.g. at off-peak electricity rates).
It can be set within 15 seconds of selecting a programme.
A delayed start of between 1 and 9 hours can be set.
Setting
▸ Select a programme.
▸ Repeatedly press or hold down the button until the required delayed start
duration appears in the display.
▸ Close the appliance door.
The display and symbols go dark *. The countdown to the set delayed start
begins. When the delayed start duration is up, the programme selected
starts automatically. No acoustic signal is emitted at the end of the pro-
gramme.
Dishes can be loaded at any time during the delayed start.
* Depending on model
Cancelling a delayed start
▸ Open the appliance door.
▸ Repeatedly press or hold down the button until the delayed start is cleared.
▸ Close the appliance door.
The programme starts.
19

4 Operation
4.8 Interrupting a programme
The dishes and water may be hot. Scalding hazard!
▸Integrated appliances: First press the button.
The programme is interrupted for 5 seconds.
▸ Carefully open the appliance door.
The programme symbol flashes.
At higher water temperatures, noise from the pump
switching on and off up to 5 times with short pauses
in between may be heard after the appliance door is
closed. During this phase, temperature equalization
takes place.
▸Fully and design-integrated appliances: Carefully
open the appliance door.
This interrupts the programme. The programme sym-
bol flashes.
At higher water temperatures, noise from the pump
switching on and off up to 5 times with short pauses
in between may be heard after the appliance door is
closed. During this phase, temperature equalization
takes place.
4.9 Aborting a programme before time
The dishes and water may be hot. Scalding hazard!
▸Integrated appliances: Press the button first.
The programme is interrupted for 5 seconds.
▸ Open the appliance door carefully.
The programme symbol flashes.
▸Fully integrated and design integrated appliances: Open the appliance
door carefully.
This interrupts the programme.
The programme symbol flashes.
▸All appliances: Depress the button for 2 seconds.
The water is pumped off. The following appears in
the display:
A 5× acoustic signal is emitted *. The display and symbols go out.
* Depending on model
20
