V-ZUG DW-SL6 User manual

Range hood
DW-SL6 / DW-SL9 / DI-SL9
Operating instructions
V-ZUG Ltd

2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appli-
ance at the time these operating instructions went to press. The right to make
technical modifications for the purpose of the further development of the
appliance is reserved.
Symbols used
AIndicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
䡲Indicates a list.
Validity
The model number corresponds to the first three digits on the identification
plate. These operating instructions apply to the models:
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2009
Denotes important safety precautions. Failure to observe said pre-
cautions can result in injury or damage to the appliance or fittings!
Denotes useful tips for the user.
Type Model no. Size system
DW-SL6 374 60
DW-SL9 379 90
DI-SL9 391 90

3
Contents
Safety precautions 4
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . 4
Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Appliance description 8
Extraction model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Recirculation model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Fitted with . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating and display elements . . . . . . . . . . . . . . . . . . . . . 11
Use 12
Care and maintenance 14
Cleaning the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning the grease filter . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Changing the halogen light . . . . . . . . . . . . . . . . . . . . . . . . . 17
Changing the standard activated charcoal filter . . . . . . . . . 18
Cleaning and replacing the long-life activated
charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Trouble-shooting 21
What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Accessories and spare parts 22
Technical data 23
Disposal 24
Index 25
Repair service 27
Quick instructions 28

4
Safety precautions
In accordance with the requirements of IEC 60335-1:
䡲This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
Before using for the first time
䡲The appliance must be installed and connected up to the electricity supply
according to the separate installation instructions. The necessary work
should be carried out by a qualified fitter or electrician.
䡲Dispose of the packaging material in accordance with local regulations.
The appliance corresponds to recognised technology standards
and the relevant safety regulations. Proper use of the appliance is
however essential to avoid damage and accidents. Please there-
fore follow the precautions given in these operating instructions.

… Safety precautions
5
Correct use
䡲The appliance is designed for use in the home for extracting cooking fumes
and smells from above the cooking surface.
䡲Any repairs, modifications or manipulations to the appliance, especially
any electrically live parts, should only be carried out by the manufacturer,
its Customer Services or similarly qualified persons. Repairs if carried out
incorrectly may cause serious injury, damage to the appliance and fittings,
as well as affect the functioning of the appliance. If the appliance is not
working properly or in case of a repair order, follow the instructions given
in the 'Repair service' section. Please contact our Customer Services if
necessary.
䡲Use original spare parts only.
䡲Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating instruc-
tions, together with the installation instructions, accompany the appliance.
In this way, the new owner can inform themselves about how to use the
appliance correctly and read the pertinent safety precautions.
Children in the home
䡲Packaging material e.g. plastic and polystyrene can be dangerous for chil-
dren. Danger of suffocation! Please keep packaging material away from
children.
䡲The appliance is designed for use by adults who are familiar with these op-
erating instructions. Children are often unable to recognise the danger of
electrical appliances. Ensure proper supervision and do not allow children
to play with the appliance – there is a danger that children can hurt
themselves.

… Safety precautions
6
Note on use
䡲If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
䡲If the appliance is not operating properly, disconnect it from the electricity
supply immediately.
䡲Caution: Accessible parts may become hot when used with cooking
appliances.
䡲Do not flambé food underneath the hood as the grease filters if laden with
grease could catch fire.
䡲If frying on the cooking surface, do not leave the frying appliance unattend-
ed. The cooking oil in the frying appliance could overheat and catch fire.
Constantly monitor the temperature of the cooking oil, keeping it below the
temperature at which it can catch fire. Change the cooking oil regularly –
dirty oil catches fire more easily than clean oil.
䡲Clean the filters regularly. Failure to do so can increase the fire hazard due
to the build-up of grease in the grease filter.
䡲Do not operate the individual cooking zones of the cooking surface without
a pan on them or with an empty pan on them so as to avoid damaging the
appliance or the kitchen fittings through a build-up of heat. Avoid open fires
with oil, gas, wood and coal fired cookers.
䡲Ensure there is adequate ventilation when the extraction fan is on so as to
avoid creating a disturbing underpressure in the kitchen and to achieve op-
timal air extraction.
䡲Avoid a cross-current of air, which could blow the cooking vapours over
the cooking area.

… Safety precautions
7
䡲If another appliance – fuelled by gas or other fuels – is being used at the
same time, ensure that there is a sufficient supply of fresh air. This does
not apply to air recirculation units.
䡲With the simultaneous operation of firing (e.g. wood, gas, oil or coal-fired
heating systems), safe operation is only possible providing a room nega-
tive pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the ap-
pliance. Risk of toxic fumes! An adequate flow of fresh air must be
guaranteed, e.g. via non-closable openings in doors and windows and
combined with ventilation wall bricks for incoming and exhaust air or by
other technical means.
䡲When carrying out maintenance work on the appliance, including replacing
the light bulb, cut off the electricity supply to the appliance (remove the
screw fuse from the holder or switch the circuit breaker off, or disconnect
from the mains supply).
䡲When cleaning the appliance make sure no water gets inside the appli-
ance. Use a moderately damp cloth. Do not spray the inside or outside of
the appliance with water. Do not use a steam cleaner. If water gets inside
the appliance, it can cause damage.

8
Appliance description
The appliance is designed to extract cooking fumes and smells from the
cooking area. This particular model can be used to extract or to recirculate
air.
Extraction model
The integrated fan extracts cooking fumes and smells from above the cook-
ing surface. The air is cleaned through the grease filter and then fed through
the exhaust air conduit to the outside.
Recirculation model
The cooking fumes and smells above the cooking area after being filtered
through the metal grease filter are passed through an activated charcoal filter.
The filtered air is then circulated back into the room through the side
openings.
When the appliance is in use, ensure there is a sufficient supply of
fresh air to replace the air that is being extracted.
If activated charcoal filters are not supplied with the appliance, these
should be ordered and installed before using the appliance. Further-
more, the saturation indicator for the activated charcoal filters must
also be activated.

… Appliance description
9
Fitted with
䡲1extractionfan
䡲Illumination
䡲1 metal grease filter
䡲1 activated charcoal filter (not included in scope of delivery)
The extraction fan has 4 power levels.
䡲1 = low, 2 = medium, 3 = high and intensive level.
䡲Power levels 1–3 can be used for longer periods of operation.
䡲The intensive level is for shorter bursts of intensive extraction of the cook-
ing fumes and smells, e.g. when searing meat. The intensive level runs for
a maximum of 5 minutes at a time.

… Appliance description
10

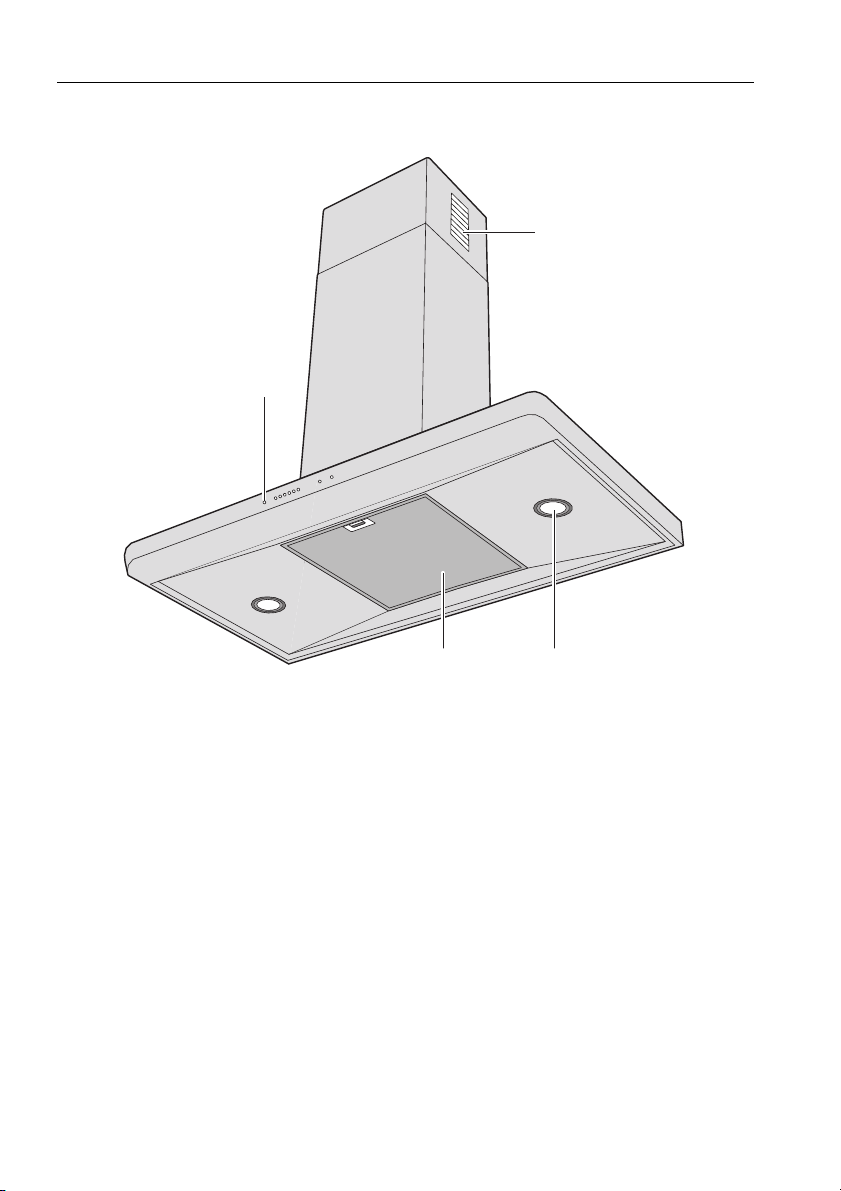

Construction
1Operating elements
2Metal grease filter
3Illumination
4Air recirculation with recirculation model
1
23
4

… Appliance description
11

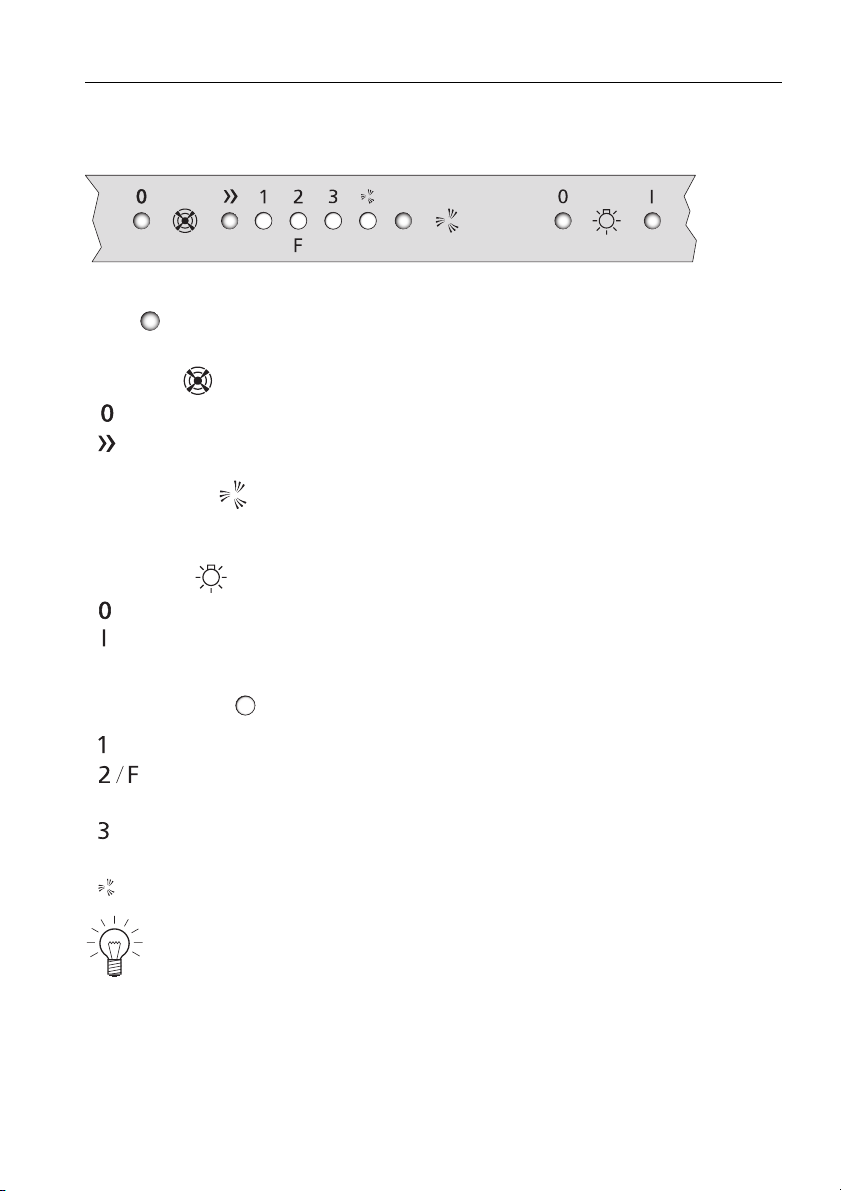

Operating and display elements
Keys
Indicator lights
Operation
Switching off / resetting saturation indicator
Switching on / power level
Intensive level
Intensive level
Illumination
Off
On
Extraction level 1
Extraction level 2 / saturation indicator for metal grease filter
and long-life activated charcoal filter
Extraction level 3 / saturation indicator for standard activated
charcoal filter
Intensive level
Depending on the model and features, the specification of the
appliance may differ from the standard specification described herein.

12
Use
Switching the appliance on / Selecting the power level
APressing the button switches the appliance on at power level 1.
ATo select power levels 2 or 3, repeatedly press the button.
– The indicator light shows which power level is currently being used.
Intensive level
APress the button to switch the intensive level on for 5 minutes.
– After this time has elapsed, the appliance switches back to the
previously selected extraction level. If no extraction level was selected,
the appliance switches off.
– The indicator light shows that the intensive level is activated.
APress the or button to stop the intensive level before the 5 minutes is
up.
Switching off the appliance
APress the button to switch off the extraction functions.
We recommend switching the appliance on at power level 1 some
5 minutes before cooking. After you have finished cooking, allow the
appliance to run for another 15 minutes. Use a low power level for
normal cooking fumes and a higher power level for very strong
cooking fumes and smells.
After you have finished cooking, allow the appliance to run for another
15 minutes so that the cooking smells can be extracted.

… Use
13
Illumination
AUse the and button to switch the illumination off or on.
Saturation indicator for metal grease filter and long-life activated charcoal
filter
The indicator light flashes after 40 operating hours. The saturation level
has been reached and the grease filter must be cleaned.
Saturation indicator for standard activated charcoal filter
The indicator light flashes after 160 operating hours. The saturation level
has been reached and the standard activated charcoal filter must be
replaced.
To activate the saturation indicator
ADepress the and buttons at the same time for 3 seconds.
– The indicator light flashes.
– After 3 seconds the indicator light flashes.
– The saturation indicator is activated.
To deactivate the saturation indicator
ADepress the and buttons at the same time again.
– After 3 seconds the indicator light flashes.
– The saturation indicator is deactivated.
The illumination can be used on its own.
The saturation indicator is deactivated at the factory. If the appliance
is being used as a recirculation model, the saturation indicator must
first be activated.

14
Care and maintenance
Cleaning the housing
Cleaning the outside / inside
AClean the outside using a slightly damp cloth – and detergent if necessary
– and wipe dry.
Grease and condensate water can build up around the grease filter on the
inside.
AClean using a slightly damp cloth – and detergent if necessary – and wipe
dry.
Take care that no water gets into the housing! If water gets into the
housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool etc. to clean
the appliance as they can damage the surface.

… Care and maintenance
15
Cleaning the grease filter
The grease filter must be cleaned at least once a month with normal use or
whenever the indicator light flashes. If properly cared for, the grease fil-
ter should provide unlimited years of service.
AClean the grease filter in the dishwasher.
ASelect an «intensive» – or «heavy» – wash programme with a warm pre-
wash.
If you do not have a dishwasher:
AClean the grease filter in the sink with hot water and detergent.
AThen soak the grease filter in hot water in the sink for about 2 hours and
finally clean with a washing-up brush.
Cleaning may cause the grease filter to become discoloured. Howev-
er, this will not affect the functioning of the filter in any way.

… Care and maintenance
16
Removing the grease filter
APush the grip 1toward the back on the grease filter.
APull the grease filter down and out of the fixture. Take care not to damage
the grease filter.
Installing the grease filter
AInsert the grease filter.
AHold the button depressed for at least 3 seconds until an acoustic signal
sounds.
– The indicator light goes out.
1

… Care and maintenance
17

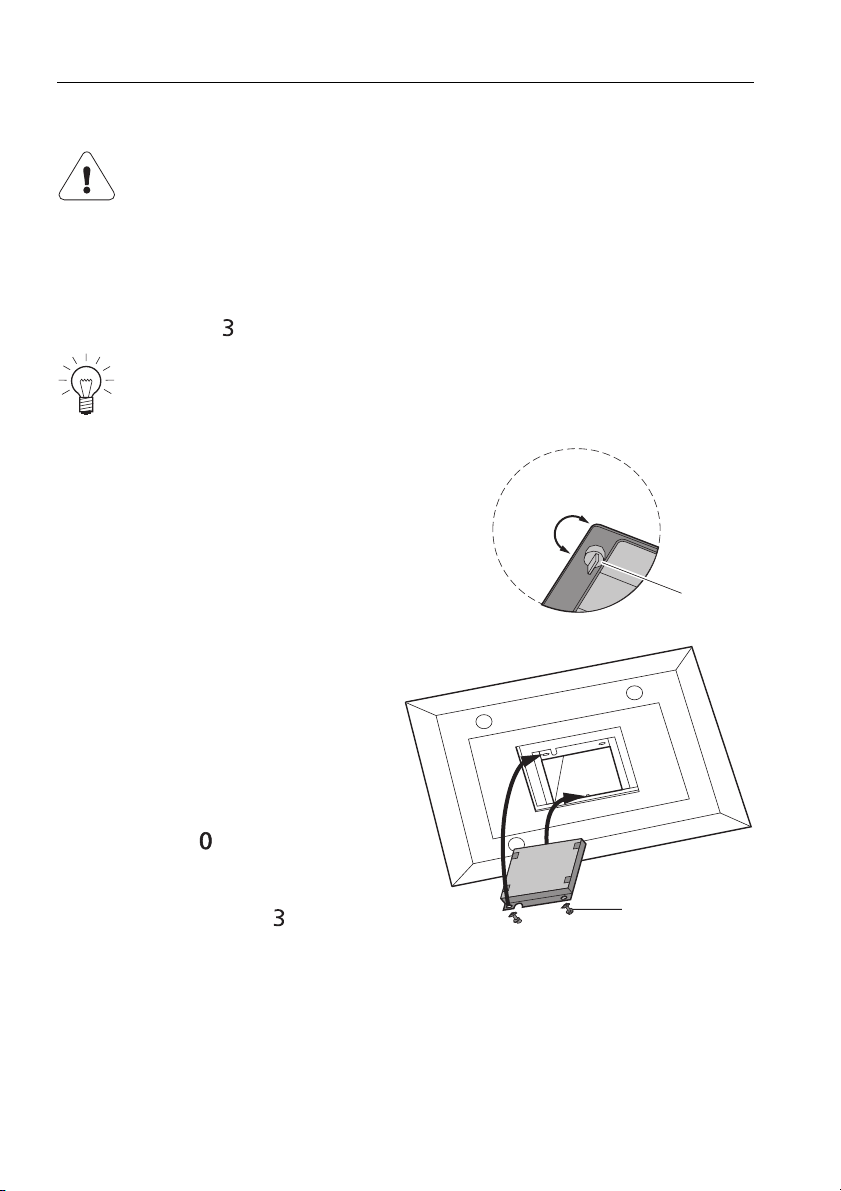

Changing the halogen light
AUsing a small screw driver, carefully re-
move the ring.
AReplace the defective halogen light with a
bulb of the same type (max. 20 watts).
AClean the ring and the glass.
AFit the ring and the glass back into the
openings.
APut screw fuse back in or switch circuit
breaker on again.
Remove screw fuse or switch off circuit breaker.
Halogen lights get hot during operation! Allow to cool down first.
Avoid touching the new halogen
light with bare hands. Use a soft, dry
and grease-free cloth.

… Care and maintenance
18
Changing the standard activated charcoal filter
Standard activated charcoal filters are only used in the recirculation model.
Standard activated charcoal filters become less effective with use. With
normal use, they have to be changed at least every 4 months or whenever
the indicator light flashes. They cannot be washed or regenerated.
ARemove and clean the metal
grease filter.
ATurn the two locking knobs Aby
90° and remove the standard
activated charcoal filter by pulling
it down.
AInsert the new standard activated
charcoal filter until it latches at the
back and secure it in the front
with the locking knobs.
AReplace the metal grease filter.
AReplace the fuse or switch the
circuit breaker back on again.
ADepress the button for at least
3 seconds.
– An acoustic signal sounds.
– The indicator light goes out.
Remove the appliance’s fuse or switch the circuit breaker off.
The dirty standard activated charcoal filter can be disposed of with the
household waste.
90˚
A
A

… Care and maintenance
19
Cleaning and replacing the long-life activated charcoal filter
Long-life activated charcoal filters are only used in the recirculation model.
In contrast to the standard activated charcoal filter, the long-life activated
charcoal filter can be cleaned and reactivated. With normal use of the
appliance, the long-life activated charcoal filter should be cleaned each
month or whenever the indicator light flashes. It can be cleaned in the
dishwasher at 65 °C (select an «intensiv» or «heavy» wash programme). It
should be cleaned separately so that no food remnants can harden on the
filter. If no other options are available, the filter can also be soaked for an hour
at 60 °C in a sink with a standard detergent. Afterward, rinse well. To
reactivate the activated charcoal, the filter must be dried without its frame in
an oven.
ASelect top or bottom heating element or 100 °C hot air and allow the filter
to dry 60 minutes on the wire shelf.
Remove the appliance’s fuse or switch the circuit breaker off.
After about 3 years, the long-life activated charcoal filter must be re-
placed since its ability to absorb odours is reduced. The dirty long-life
activated charcoal filter can be disposed of with the household waste.

… Care and maintenance
20

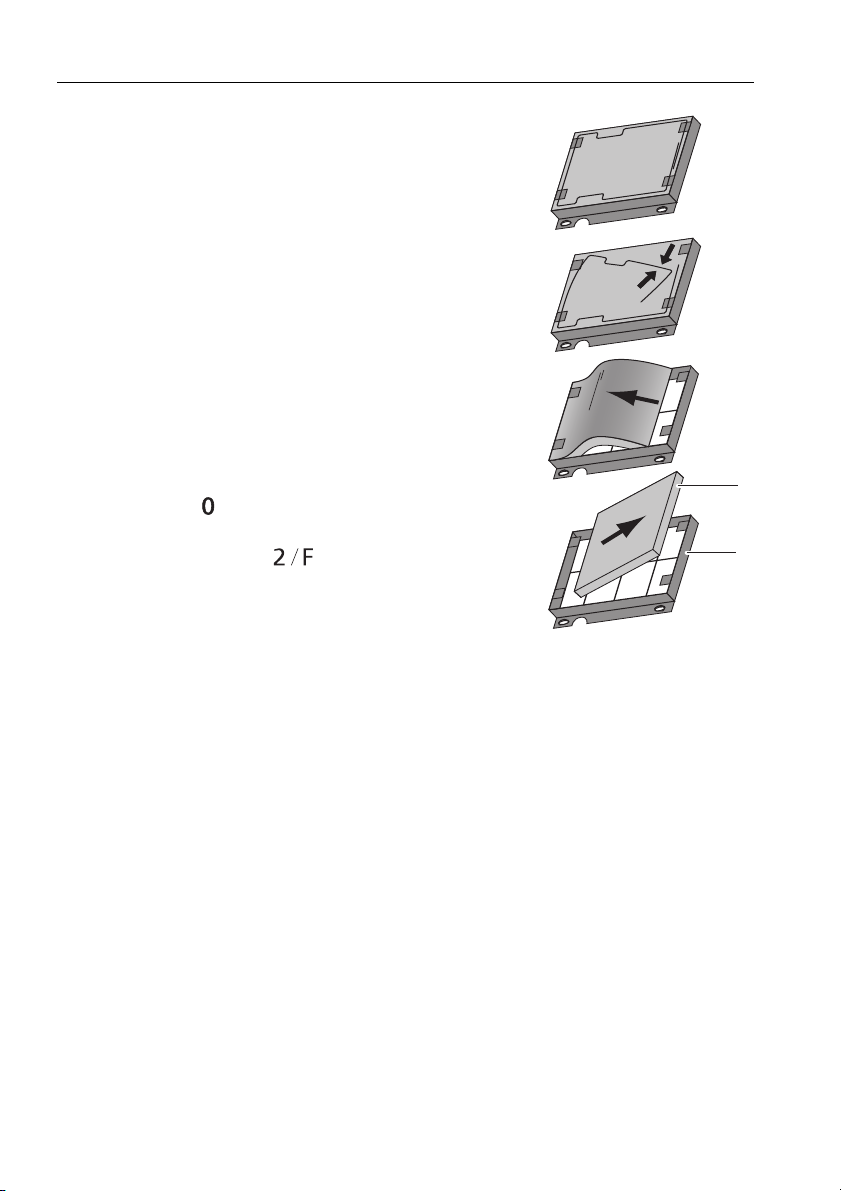

ARemove and clean the metal grease filter.
ATurn the two locking knobs by 90° and remove the
long-life activated charcoal filter by pulling it down.
ATake out the filter 1, clean it, reactivate it and insert
it back in the frame 2. Be careful not to damage
the filter. If necessary, exchange the used long-life
activated charcoal filter for a new one.
AReinsert the long-life activated charcoal filter until
it latches at the back and secure it in front with the
locking knobs.
AReplace the metal grease filter.
AScrew in the fuse or switch the circuit breaker on.
ADepress the button for at least 3 seconds.
– An acoustic signal sounds.
– The indicator light goes out.
1
2
