V-ZUG Adora SLQ WP User manual

V-ZUG Ltd
Washing machine
Adora SLQ WP
Operating instructions

Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarize yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make tech-
nical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Model Type Product family
Adora SLQ WA-SLQ WP 11004
Variations depending on the model are noted in the text.
Colour operating instructions can be downloaded from the internet from
www.vzug.com
© V-ZUG Ltd, CH-6301 Zug, 2013
2

Contents
1Safety precautions 6
1.1 Symbols used ......................................................................................... 6
1.2 General safety precautions .................................................................. 7
1.3 Appliance-specific safety precautions ................................................ 9
1.4 Instructions for use ................................................................................ 10
2Disposal 13
3Using for the first time 14
3.1 Where is the identification plate? ........................................................ 14
4Appliance description 15
4.1 Appliance overview ................................................................................ 15
4.2 Appliance construction.......................................................................... 16
4.3 Operating and display elements ......................................................... 17
5Programme overview 19
5.1 Main wash programmes ....................................................................... 19
5.2 2 programmes for normally soiled cotton load ................................ 21
5.3 Extra programmes ................................................................................. 21
5.4 Further fabric types ................................................................................ 22
5.5 Additional programmes ......................................................................... 25
5.6 Bio and soap wash ................................................................................ 28
5.7 Separate rinsing / Separate spinning ................................................ 29
5.8 Additional functions ............................................................................... 30
5.9 Favourites ............................................................................................... 31
6User settings 33
6.1 Adjusting user settings .......................................................................... 33
6.2 Language ................................................................................................. 34
6.3 Time .......................................................................................................... 34
6.4 Hybrid Eco ............................................................................................... 34
6.5 Spin speed .............................................................................................. 34
6.6 AquaPlus .................................................................................................. 35
6.7 Degree of soiling .................................................................................... 35
6.8 Automatic door opener ......................................................................... 36
6.9 Childproof lock ....................................................................................... 36
6.10 Hygiene recommendation .................................................................... 36
6.11 Soft water ................................................................................................. 37
6.12 Multi-component detergent ................................................................... 37
3

6.13 Loosening up the washing ................................................................... 37
6.14 Brightness ................................................................................................ 37
6.15 Button tone .............................................................................................. 38
6.16 Background image ................................................................................ 38
6.17 Silent ......................................................................................................... 38
6.18 Restoring factory settings ..................................................................... 38
7Washing 39
7.1 Preparing the appliance ........................................................................ 39
7.2 Loading the appliance ........................................................................... 40
7.3 Adding washing detergent ................................................................... 41
7.4 Selecting a programme ........................................................................ 44
7.5 Selecting whites and coloureds programmes .................................. 45
7.6 Selecting another main programme ................................................... 46
7.7 Selecting programmes for normally soiled cotton load .................. 47
7.8 Selecting additional programmes ....................................................... 48
7.9 Opening the appliance door during operation ................................. 51
7.10 Changing selection ................................................................................ 52
7.11 Programme selection with childproof lock activated ...................... 53
7.12 End of programme ................................................................................. 54
7.13 At the end of the wash day .................................................................. 55
8Care and maintenance 56
8.1 Cleaning the detergent dispenser drawer ......................................... 56
8.2 Cleaning the water inlet filter ................................................................ 57
8.3 Emergency draining ............................................................................... 58
8.4 Cleaning the foreign body trap ............................................................ 59
9Trouble-shooting 60
9.1 What to do if … ....................................................................................... 60
9.2 Opening the appliance door in the event of a power failure ......... 69
10 Washing tips 70
10.1 Fabric care symbols .............................................................................. 70
10.2 Washing detergent ................................................................................. 70
10.3 General tips ............................................................................................. 70
10.4 Net curtains ............................................................................................. 71
10.5 Saving energy and water ..................................................................... 72
10.6 Unsatisfactory wash results .................................................................. 73
4

11 Spare parts 77
12 Technical data 78
12.1 Dimensions .............................................................................................. 78
12.2 Plumbing in .............................................................................................. 78
12.3 Electrical connection ............................................................................. 78
12.4 Spin speed .............................................................................................. 78
12.5 Consumption data .................................................................................. 79
12.6 Note for testing institutes ...................................................................... 81
12.7 VAS Vibration Absorbing System ........................................................ 81
12.8 Water and energy economy ................................................................. 82
12.9 Automatic energy-saving stand-by ...................................................... 82
13 Notes 83
14 Index 86
15 Repair service 91
5

1Safety precautions
1.1 Symbols used
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in
damage to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
•Indicates a list.
6

1.2 General safety precautions
•Read the operating instructions before using
the appliance for the first time!
•This appliance can be used by children aged
8 and above and by persons with reduced
physical, sensory or mental capabilities, or
lack of experience and/or knowledge,
provided they are supervised or have been
instructed on the safe use of the appliance
and have understood the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be
undertaken by children without supervision.
1 Safety precautions
7

•If an appliance is not equipped with a mains
cable and a plug or other means for discon-
necting from the mains with a contact opening
on each pole complying with the conditions of
overvoltage category III for full isolation, an
isolating device must be incorporated into the
permanently installed electrical installation in
accordance with the installation regulations.
•If the mains cable of this appliance is
damaged, it must be replaced by the manu-
facturer or its Customer Services or a similarly
qualified person in order to avoid hazard.
1 Safety precautions
8

1.3 Appliance-specific safety precautions
•Children under 3 years of age must be kept
away unless constantly supervised.
•The appliance is only to be used with the
recommended vaporizing medium. The use of
other substances may give rise to a toxic or
fire risk.
•The appliance has a maximum dry load
capacity of 8 kg.
CAUTION
•If this appliance is supplied from a cord exten-
sion set or electrical portable outlet device,
the cord extension set or electrical portable
outlet device must be positioned so that it is
not subject to splashing or ingress of mois-
ture.
1 Safety precautions
9

1.4 Instructions for use
Before using for the first time
•The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
•Ensure access to the place of disconnection (e.g. socket outlet, wall switch,
fuse) and the water tap.
•The transportation lock must be removed. Failure to remove the transporta-
tion locks can result in damage to the appliance or apartment or laundry
room fittings.
Correct use
•The appliance is suitable for washing home textiles with water and regular
washing machine detergent. It is designed for use in the home and for the
above-mentioned purpose only. No liability is assumed for any damage
caused by improper or incorrect use.
•Any repairs, modifications or manipulations to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its
Customer Services or a similarly qualified person. Repairs if carried out
incorrectly could cause serious injury or damage to the appliance and
fittings as well as affect the functioning of the appliance. If the appliance is
not working properly or in case of a repair order, follow the instructions
given in the 'Repair service' section. If necessary, please contact our
Customer Services.
•Use original spare parts only.
Note on use
•If the appliance is not operating properly, disconnect it from the power
supply immediately.
•To protect your washing, follow the fabric care symbols and the hints and
advice in the 'Washing tips' section.
1 Safety precautions
10

Caution: Burns hazard!
•Textiles that have been cleaned, treated or soaked with flammable chemi-
cals, detergents or solvents such as benzene, alcohol, stain remover, oil,
paint, wax, etc. are not to be washed in the appliance. Fire or explosion
hazard! Wash materials containing such substances first by hand with water
or allow the solvent to evaporate completely.
Caution: Risk of injury!
•Ensure the washing drum has stopped moving before reaching inside. Do
not touch the washing drum while it is still in motion – risk of serious injury!
•Disconnect the appliance from the mains before carrying out maintenance
work.
Caution: Risk to life!
•Packaging material, e.g. plastic film and polystyrene, can be dangerous for
children. Danger of suffocation! Keep packaging material away from chil-
dren.
1 Safety precautions
11

How to avoid damaging the appliance
•Close the appliance door carefully.
•Before closing the appliance door and starting a programme, ensure that
there are no foreign objects or pets in the washing drum, detergent
dispenser drawer or around the foreign body trap. Foreign objects such as
coins, nails, paper clips, etc. can damage parts of the appliance, as well as
the washing.
•During longer periods of absence, turn off the water tap before switching off
the power by pulling out the mains plug. Never pull the mains plug out by
the cable. Please note: the built-in overflow protection is rendered inactive
when the power is switched off.
•When cleaning the appliance make sure no water gets inside it. Use a
moderately damp cloth. Do not spray the outside or the inside of the appli-
ance with water. If water gets inside the appliance, it will cause damage.
•Textiles with metal reinforcements are not to be washed in the appliance
(risk of damage).
•Trainers, diving suits, rucksacks, carpets, etc. are not to be washed in the
appliance.
1 Safety precautions
12

2Disposal
Packaging
•All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))
are marked and should, if possible, be collected for recycling and disposed
of in an environmentally friendly way.
Disconnection
•Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
•Disable the appliance to prevent accidents caused by improper use, espe-
cially through children playing.
•Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
•Remove or disable the lock on the appliance door.
Disposal
•The old appliance should not be discarded as worthless rubbish. If
disposed of correctly, the raw materials can be recovered for recycling.
•The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
•The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recy-
cling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
Note on heat pump
This appliance is CFC-free (the cold circuit contains R134a).
13

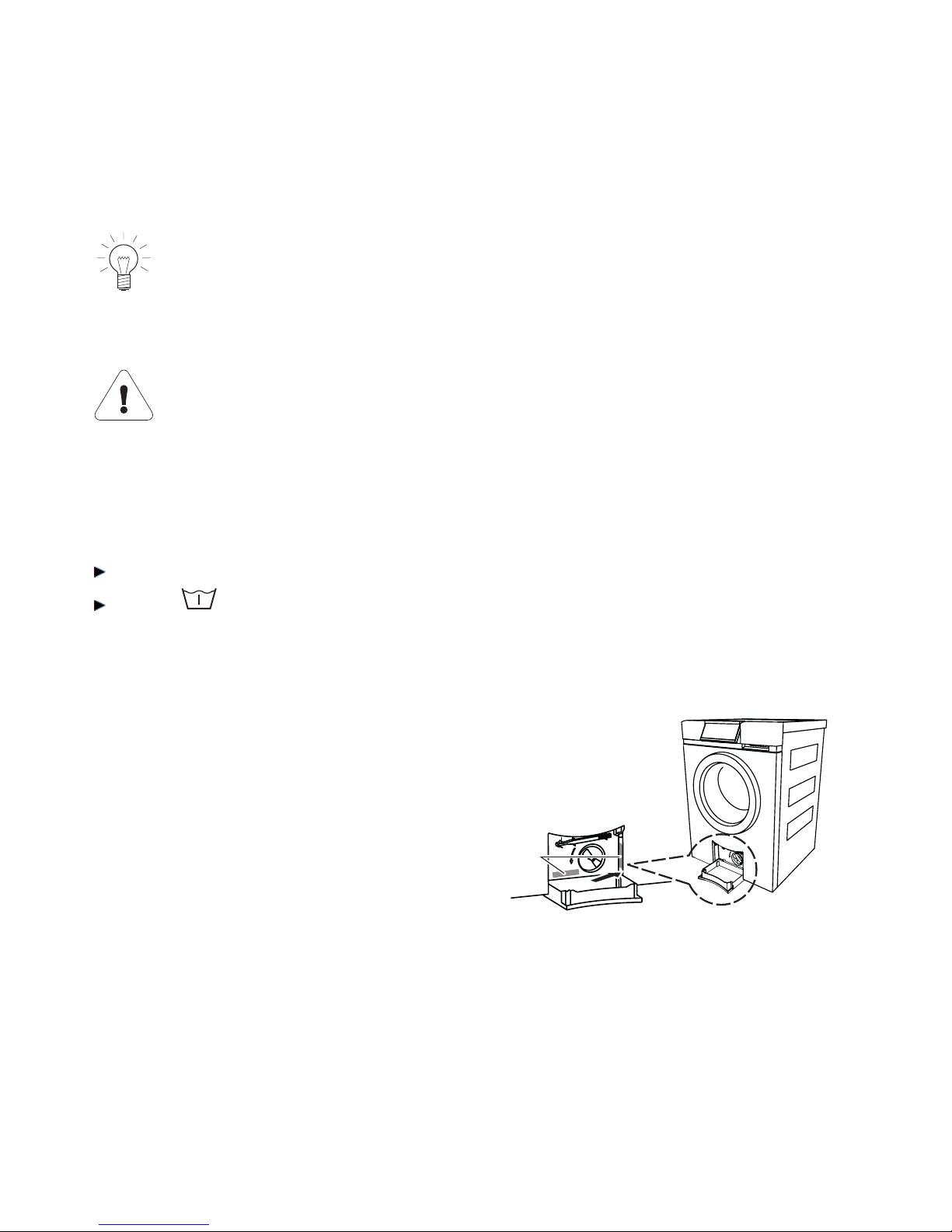

3Using for the first time
The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
The appliance was tested with water before being shipped. There may
therefore still be traces of water left in the appliance.
Transport lock
Before using the appliance for the first time, the transportation lock
must be removed (3 screws with washers at the back of the appli-
ance), in order to avoid damage to the appliance.
Running the first wash cycle without any washing
Run an empty wash cycle to remove any residues from the manufacturing
process.
Add a little washing detergent to compartment II.
Select coloureds 60 °C with pre-wash.
3.1 Where is the identification plate?
1Identification plate with serial number
(FN)
1*
* Depending on the serial number (FN)
Note down the serial number (FN) of your appliance on the back page of
these operating instructions.
14

4Appliance description
4.1 Appliance overview
•Load capacity: 8 kg dry washing
•Programmes for 14 different types of textiles
•2 programmes for normally soiled cotton load
•4 extra programmes
•6 favourite programmes
•Additional programmes
– Hybrid Eco – Anti-mite
– Sprint – AquaPlus including skin protection
– Easy care – Delayed start
– Pre-wash – Soaking
– Steam anti-crease – Soap wash
– Spin-speed setting including
stop after rinsing
– Bio wash
– Programmes for lightly to
heavily soiled washing
•Additional functions
•Sensors for optimizing the wash cycle
•Automatic energy-saving stand-by
•TouchDisplay
•Automatic door opener
•Language selection
•Childproof lock
•Aquastop with anti-leak protection
•Heat pump heater
Being equipped with a heat pump, the appliance is exceptionally energy effi-
cient. It sounds different to traditional washing machines and this is solely due
to innovative technology.
15

4.2 Appliance construction
The appliance door can be set to open to the left or to the right. Our
Customer Services can make the necessary adjustments to the appli-
ance.
1Operating and display elements
(pivoting operating panel)
1
2
3
4
5
6
7
8*
2Detergent dispenser drawer
3Appliance door
4Drain tray
5Foreign body trap
6Emergency door release tool
7Emergency door release
8Identification plate / Serial number (FN)
* Depending on the serial number (FN)
Detergent dispenser drawer
9Pre-wash detergent, compartment I
10
9
13
12 11
10 Main wash detergent, compartment II
11 Liquid detergent flap
12 Siphon for fabric conditioner (softener)
13 Fabric conditioner (softener), compartment
4 Appliance description
16

4.3 Operating and display elements
*
TouchDisplay
All available functions are displayed on the TouchDisplay and can be selected
directly by pressing the corresponding symbol or text
•Programme name with duration •Delayed start
•Programme end time •User settings
•Programme progress with time
remaining
•Hints and trouble-shooting
•Additional functions •Further information
Programmes for normally soiled cotton load
•40 °C Coloureds normal
•10 °C Coloureds normal
Extra programmes
•Steam anti-crease
•Proofing
•Appliance hygiene
•Spinning
Favourites
4 Appliance description
17

Additional function/Additional programmes
Hybrid Eco Delayed start
Fast forward /
End of programme /* Pause / Door opener or Door opener
* Depending on the serial number (FN)
Button state
The buttons arranged on the TouchDisplay have three different operating
states.
Symbol Background
Bright Dark Selectable function
Programme or function can be selected.
Bright Blue Function selected/changed
Programme or function is active.
Dark Dark Non-selectable function
Programme or function is switched off.
Indicator lights
Certain of the buttons to the left and right of the TouchDisplay are equipped
with an indicator light.
Indicator light flashes
Programme or function can be selected.
Indicator light is illuminated
Programme or function is active.
Indicator light is dark
Programme or function is switched off.
4 Appliance description
18

5Programme overview
5.1 Main wash programmes
To select the right programme, follow the fabric care symbols on the
labels of the wash items, e.g.
40
.
95
Whites 95 °C 1–8 kg
White cottons, linens with the
95
fabric care symbol e.g. bed and
table linen, towels, white or colour-fast underwear.
70
Coloureds 70 °C 1–8 kg
Energy-saving programme for coloured cottons with the
95
fabric
care label.
60
Coloureds 60 °C 1–8 kg
Coloured cottons with the
60
fabric care symbol e.g. bright blouses,
overalls, shirts, bed linen.
40
Coloureds 40 °C 1–8 kg
Coloured cottons and mixed washing with the
40
fabric care symbol
e.g. coloured sweatshirts, t-shirts.
19

30
Coloureds 30 °C 1–8 kg
Coloured cottons and mixed fabrics with the
30
fabric care symbol
e.g. t-shirts.
20
Coloureds 20 °C 1–8 kg
Energy-saving programme for lightly soiled textiles with fabric care
symbols
30
,
40
,
60
or
95
.
cold
Coloureds cold 1–8 kg
Refresh programme without heat. Suitable for washing new textiles
with the
30
,
40
,
60
or
95
fabric care label for the first time.
Favourites
Six programmes that can be freely put together and saved
1– 6
.
5 Programme overview
20
