V-ZUG Adora SLQ User manual

Washing machine
Adora SLQ
Operating instructions
V-ZUG Ltd

2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appli-
ance at the time these operating instructions went to press. The right to make
technical modifications for the purpose of the further development of the
appliance is reserved.
Symbols used
AIndicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
䡲Indicates a list.
Validity
The model number corresponds to the first 3 digits on the identification plate.
These operating instructions apply to the model:
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2010
Denotes important safety precautions. Failure to observe said pre-
cautions can result in injury or damage to the appliance or fittings!
Denotes useful tips for the user.
Model Type Model no.
Adora SLQ WA-ASLQZ 269

3
Contents
Safety precautions 5
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . 5
Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Your appliance 9
Appliance description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

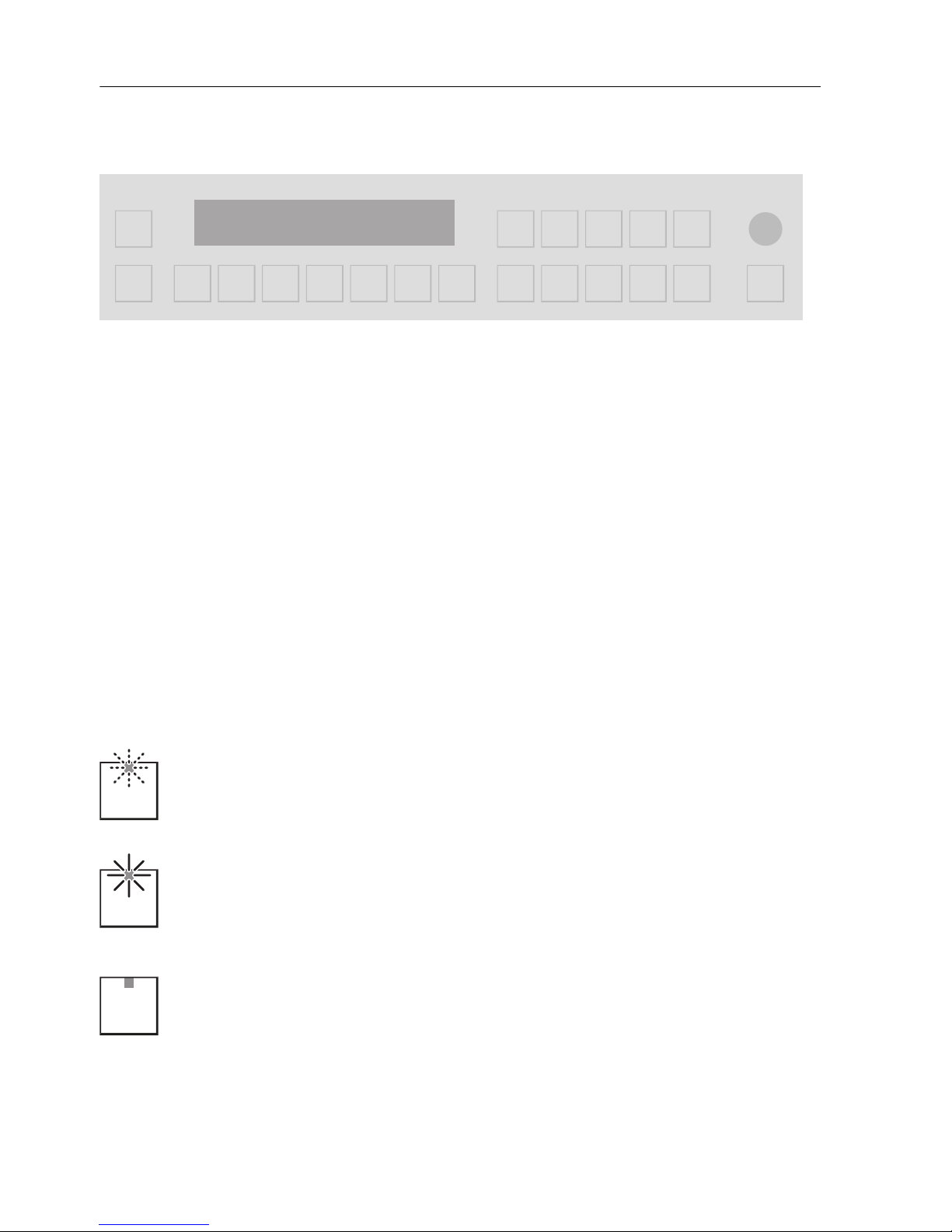

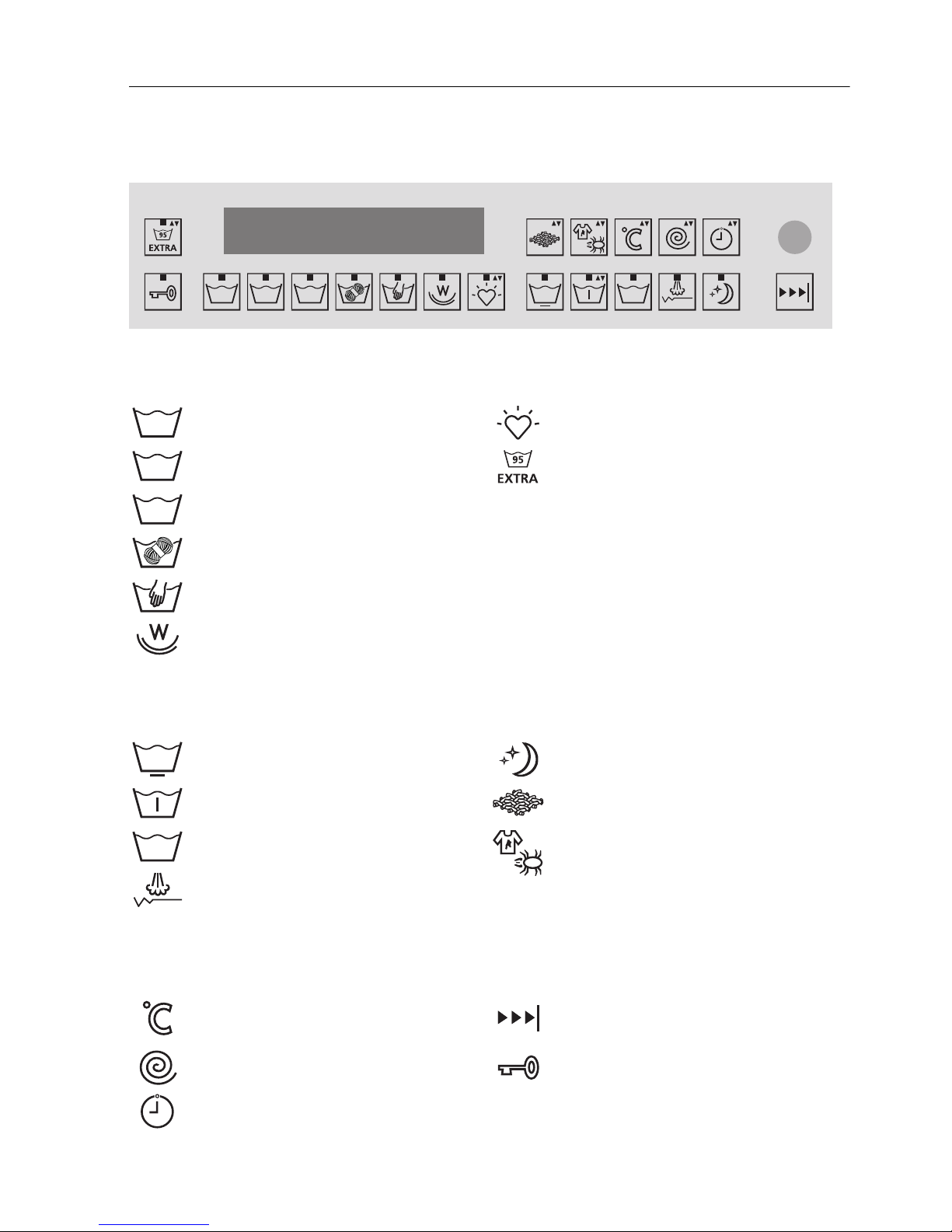

Operating and display elements . . . . . . . . . . . . . . . . . . . . . 11
Using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

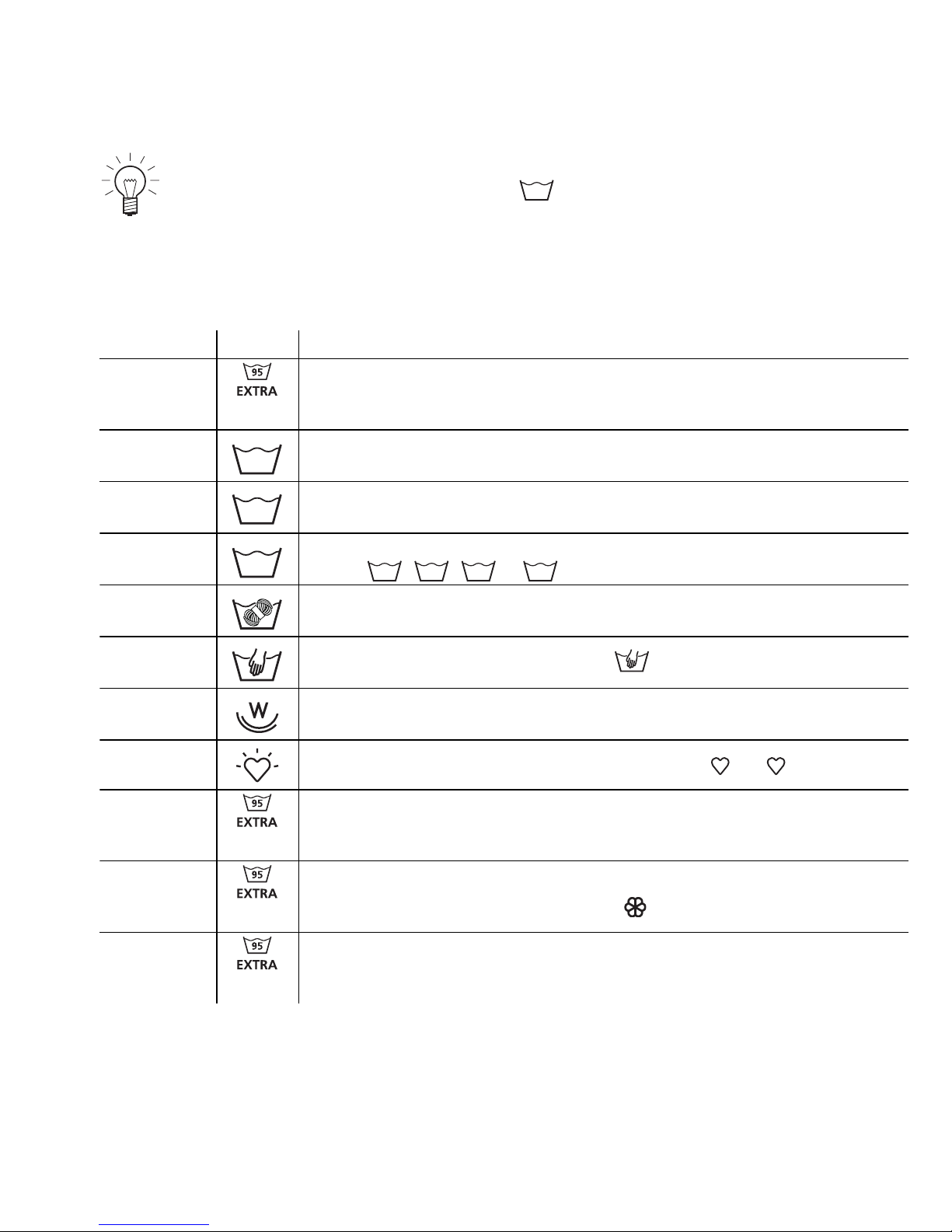

Programme overview 14
Main programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Additional programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Favourites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
User settings 26
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Time / Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Rinsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Soft water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Hygiene recommendation . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Childproof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Automatic door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Restoring factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Washing 38
Adding washing detergent . . . . . . . . . . . . . . . . . . . . . . . . . 40
Programme selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Changing selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Programme selection with childproof lock activated . . . . . . 49
End of programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
End of the wash day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

… Contents
4
Care and maintenance 52
Cleaning the detergent dispenser drawer . . . . . . . . . . . . . . 52
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . 52
Emergency draining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Cleaning the foreign body trap . . . . . . . . . . . . . . . . . . . . . . 54
Trouble-shooting 55
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Opening the appliance door in the event of a power
failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Washing tips 67
Unsatisfactory wash results . . . . . . . . . . . . . . . . . . . . . . . . . 69
Spare parts 73
Technical data 74
Note for testing institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
VAS Vibration Absorbing System . . . . . . . . . . . . . . . . . . . . 76
Water and energy economy . . . . . . . . . . . . . . . . . . . . . . . . 76
Turbidity sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Automatic energy-saving stand-by . . . . . . . . . . . . . . . . . . . . 76
Disposal 77
Notes 78
Index 79
Repair service 83
Quick instructions 84

5
Safety precautions
In accordance with the requirements of IEC 60335-1:
䡲This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
Before using for the first time
䡲The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. The necessary work
should be carried out by a qualified fitter or electrician.
䡲Dispose of the packaging material in accordance with local regulations.
䡲Ensure access to the place of disconnection (e.g. socket outlet, wall switch,
mains fuse) and the water tap.
䡲The transport lock must be removed. Failure to remove the transport lock
can result in damage to the appliance or apartment or laundry room
fittings.
䡲Before using the newly installed appliance for the first time, please follow
the precautions given in the 'Using for the first time' section.
The appliance corresponds to recognised technology standards
and the relevant safety regulations. Proper use of the appliance is
however essential to avoid damage and accidents. Please there-
fore follow the precautions given in these operating instructions.

… Safety precautions
6
Correct use
䡲The appliance is suitable for washing home textiles with water and regular
washing machine detergent. The appliance is designed for use in the home
and for the above-mentioned purpose only. No liability is assumed for any
damage caused by improper or incorrect use.
䡲Any repairs, modifications or manipulations to the appliance, especially
any electrically live parts, should only be carried out by the manufacturer,
its Customer Services or similarly qualified persons. Repairs if carried out
incorrectly may cause serious injury, damage to the appliance and fittings,
as well as affect the functioning of the appliance. If the appliance is not
working properly or in case of a repair order, follow the instructions given
in the 'Repair service' section. If necessary, please contact Customer
Services.
䡲Use original spare parts only.
䡲Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating
instructions accompany the appliance, together with the instructions on
installation. In this way, the new owner can inform themselves about how
to use the appliance correctly and read the pertinent safety precautions.
Do not use the appliance to wash the following:
䡲Textiles that have been cleaned, treated or soaked with flammable
chemicals, detergents or solvents such as benzene, alcohol, stain remover,
oil, paint, wax, etc. Fire or explosion hazard! Wash materials containing
such substances first by hand with water or allow the solvent to evaporate
completely.
䡲Textiles with metal reinforcements (risk of damage).
䡲Trainers, diving suits, rucksacks, carpets, etc.

… Safety precautions
7
Children in the home
䡲Packaging material (e.g. plastic, polystyrene) can be dangerous for
children. Danger of suffocation! Keep packaging material away from
children.
䡲The appliance is designed for use by adults who are familiar with these
operating instructions. Children are often unable to recognise the danger
of electrical appliances. Ensure proper supervision and do not allow
children to play with the appliance – there is a danger that children could
get locked inside.
䡲Washing detergent can irritate the eyes, mouth and throat and even cause
choking! Keep washing detergent out of the reach of children.
䡲Use the childproof locking facility.
Note on use
䡲If the drain hose leads into a sink (wash trough), check that it is fastened
securely. Make sure that the water can drain off fast enough. Flooding
hazard!
䡲From time to time, check the drain hose for tears, kinks, twists, bends, etc.
䡲Do not use the appliance if visibly damaged or if the inlet pipes are
damaged. Contact Customer Services.
䡲If the appliance is not operating properly, disconnect it from the electricity
supply immediately.
䡲If the mains cable of the appliance is damaged, it must be replaced by
Customer Services in order to avoid hazard.
䡲Keep pets away from the appliance.
䡲To protect your washing, follow the fabric care symbols and the hints and
advice in the 'Washing tips' section.
䡲Do not use solvents (e.g. turpentine, benzene) instead of, or in addition to,
water, washing detergent or additives in your appliance. Fire or explosion
hazard!
Do not use the pivoting operating panel to lift or move the
appliance.

… Safety precautions
8
䡲Only use water softener, dye / bleach or other additives expressly
recommended by the manufacturer for use in the appliance. Follow the
manufacturer’s instructions carefully.
䡲Store washing detergents, washing additives and other additives in a cool,
dry place. Lumpy washing detergent can cause problems. Keep all
washing detergents and additives out of the reach of children.
䡲Before closing the appliance door and starting a programme, ensure that
there are no foreign objects or pets in the washing drum, detergent
dispenser drawer or around the foreign body trap. Foreign objects such as
coins, nails, paper clips, etc. can damage parts of the appliance, as well
as the washing.
䡲During longer periods of absence, turn off the water tap before switching
off the power by pulling out the mains plug. Never pull the mains plug out
by the cable. Please note: the built-in overflow protection is rendered
inactive when the power is switched off.
Maintenance
䡲Disconnect the appliance from the mains before carrying out maintenance
work.
䡲Do not spray the outside of the appliance with water. Do not use a steam
cleaner.
䡲Do not sit, lean or rest on the appliance door.
䡲Do not climb on to the appliance. Danger of tipping!
䡲Opening the water inlet and outlet while the appliance is in operation could
pose a scalding hazard.
䡲Use original spare parts only.
Ensure the washing drum has stopped moving before reaching
inside. Do not touch the drum while it is still in motion – risk of
serious injury!

9
Your appliance
Appliance description
䡲Capacity: 8 kg dry washing
䡲6 main programmes
䡲4 extra programmes
䡲5 favourite programmes
䡲Additional programmes
–Easycare
–Pre-wash
–Sport
– Steam anti-crease
– Night-time economy programme
– Programme for various types of textiles
– Programmes for lightly to heavily soiled washing
–Anti-mite
–Soaking
–Soapwash
–Biowash
– Skin protection
䡲Additional functions
–Temperatureselection
– Spin speed selection
– Delayed start
– Stop after rinsing
– Deselect parts of programmes
䡲Sensors for optimizing the wash cycle
䡲Automatic energy-saving stand-by
䡲Graphic display
䡲Automatic door opener
䡲Language selection
䡲Childproof lock
䡲Aqua-Stop with anti-leak protection

… Your appliance
10
Construction
1Operating and display elements
(pivoting operating panel)
2Detergent dispenser drawer
3Appliance door
4Drain tray
5Foreign body trap
6Emergency door release tool
7Emergency door release
8Identification plate / Serial number (FN)
9Circulation nozzle
Detergent dispenser drawer
10 Pre-wash detergent, compartment I
11 Main wash detergent, compartment II
12 Liquid detergent flap
13 Siphon for fabric conditioner (softener)
14 Fabric conditioner (softener),
compartment
15 Quick operating instructions
The appliance door can be set to open to the left or to the right. Our
Customer Services can make the necessary adjustments to the
appliance.
The operating panel can be set in one
of three positions.
Front:
Back:
German / French
English / Italian
6
8
7
5
3
4
2
1
9
13 12 11 10
15
M
A
X
14

… Your appliance
11
Operating and display elements
Main programmes
Additional programmes
Additional functions
Coloureds 60 °C Favourites
Coloureds 40 °C Extra programmes
Coloureds 20 °C 䡲Whites 95 °C
䡲Steam anti-crease
䡲Proofing
䡲Appliance hygiene
Woollens 30 °C
Hand wash 20 °C
WetClean 20 °C
Easy care Night economy programme
Pre-wash Fabric types
Sport Degree of soiling/Anti-mite
Steam anti-crease
Temperature setting Quick wash cycle/
End of programme
Spin speed Door opener
Delayed start
SPORT
204060
60
40
20
SPORT

… Your appliance
12
Graphic display
Various information appears in the graphic display during the programme
selection and the programme sequence.
Indicator lights
The buttons for the main programmes and certain additional programmes are
equipped with an indicator light.
Indicator light flashes
Programme or function can be selected.
Indicator light is illuminated
Programme or function is active.
Indicator light is not illuminated
Programme or function is switched off.
䡲Programme name with duration 䡲Delayed start
䡲Programme end time 䡲User settings
䡲Programme progress with time
remaining
䡲Hints and trouble-shooting
䡲Additional functions 䡲Further information
Coloureds
rpm end 15:381200
40 ˚C 1h05

… Your appliance
13
Using for the first time
Before using the newly installed appliance for the first time, the following work
should be carried out.
Transport lock
Setting the language, time and date
ASet the language, time and date in the user settings.
AHold the button depressed until the
following appears in the graphic display:
APress the button repeatedly until «Language» or «Time and date»
«set?» appear in the graphic display.
AUse the button to make the desired settings.
Running the first wash cycle without any washing
ARun an empty wash cycle to remove any residues from the manufacturing
process.
AAdd a little washing detergent to compartment II.
ASelect the main programme .
The appliance was tested with water before being shipped. There may
therefore still be traces of water left in the appliance.
Before using the appliance for the first time, the transport lock
must be removed (3 screws with washers at the back of the appli-
ance), in order to avoid damage to the appliance.
To ensure the user settings are saved, the power supply to the appli-
ance should not be switched off for at least 30 minutes.
FNXXX XXXXXX
User settings
60
60

14
Programme overview
Main programmes
To select the right wash programme, follow the fabric care symbols
on the labels of the wash items, e.g. .
Programme Symbol Type of wash
Whites
95 °C 1×
White cottons, linens:
e.g. bed and table linen, towels, white or colour-fast underwear.
Coloureds
60 °C
Coloured cottons:
e.g. bright blouses, overalls, shirts, bed linen.
Coloureds
40 °C
Coloured cottons (non-fast):
normal sportswear, blue jeans, sweatshirts, T-shirts.
Coloureds
20 °C
Energy-saving programme for lightly soiled textiles with fabric care
symbols , , or .
Woollens
30 °C
Gentle wash for woollens and other delicates. Only for woollens with a
felt-free finish and labelled as «machine washable».
Hand wash
20 °C Very gentle wash for items labelled with the fabric care symbol.
WetClean
20 °C
For all fabrics labelled as washable. Most gentle treatment possible
through applying a gentle rocking motion and a fine spray of water.
Favourites 5 programmes that can be freely put together and saved ( ).
Steam
anti-crease 2×
Dry, creased washing that can be washed at min. 40 °C is partially
uncreased and made damp, ready to iron.
Proofing 3×
For starching or proofing fabrics. The starching or proofing agent can be
added to the fabric conditioner compartment .
Appliance
hygiene 4×
Without any washing. A small amount of water is heated up to around
80 °C and the steam produced sharply reduces the germ count.
40
60
40
20 30 40 60 95
1– 5

… Programme overview
15
The stated consumption data and program durations are guide values and
refer to the maximum wash load with selected degree of soiling. The data can
vary with, for instance, towelling material, a very cold water feed, different
degree of soiling selected or a smaller wash load. The time remaining and
the programme end time shown are adjusted during the programme
sequence accordingly.
Load capacity Spin speed ¹ Duration ² Water Energy
1–8 kg 1200 rpm 1h38 2h15 75 l 2.2 kWh
1–8 kg 1200 rpm 1h15 1h32 65 l 1.3 kWh
1–8 kg 1200 rpm 1h05 1h14 65 l 0.8 kWh
1–8 kg 1200 rpm 0h59 1h00 70 l 0.3 kWh
1–2.5 kg 800 rpm 0h48 0h50 52 l 0.3 kWh
1–2 kg 600 rpm 0h45 0h48 58 l 0.2 kWh
1–1.5 kg 600 rpm 0h55 0h58 60 l 0.2 kWh
––––––
1–1.5 kg No spinning 0h23 0h23 1 l 0.1 kWh
1–3 kg 800 rpm 0h19 0h19 12 l 0.1 kWh
0 kg No spinning 0h23 0h37 9 l 0.7 kWh
¹
²
Factory setting
The longer programme duration is valid for 230 V~ 50 Hz, 10 A mains connection

… Programme overview
16
Additional programmes
Easy care
Pre-wash
Sport
For washing requiring very gentle treatment
䡲Reduced washing action
䡲Higher water level during washing and rinsing
䡲Reduced spin speed: 800 rpm
䡲Optimum wash load: max. 3.5 kg
Suitable for heavily soiled washing
䡲Programme duration extended: about 15 minutes
Short programme for a smaller, lightly soiled wash load
䡲Programme duration
+ : 26 minutes *
+ : 29 minutes *
+ : 39 minutes *
䡲2 instead of 3 rinsing cycles
䡲Optimum wash load: max. 2.5 kg
*At 230 V~ 50 Hz, 10 A mains connection, the programme duration is extended
Add a small quantity of wash detergent.
An excessively large washing load or too much wash detergent can
significantly lengthen the programme duration.
SPORT
20 SPORT
40 SPORT
60 SPORT

… Programme overview
17
Steam anti-crease
Night economy programme
The steam finish at the end of the programme significantly reduces
creasing in the washing. Recommended for items that crease easily,
e.g. shirts and blouses.
䡲The washing is warm and should be hung up immediately to dry –
for easy ironing – or tumble dried.
䡲To avoid renewed creasing at the end of the programme, the wash-
ing is loosened up for an extended period (about 60 minutes). The
washing can be unloaded at any time.
APress the button and unload the washing.
䡲Programme duration extended: about 20 minutes
䡲Limited spin speed: max. 1000 rpm
䡲Optimum wash load: max. 2 kg
Large energy savings due to reduced wash temperature. The extend-
ed washing time ensures the washing performance is maintained.
䡲Programme duration extended: 25–60 minutes
䡲Energy saving depending on programme: 10–40 %
Water savings due to reduced amount of water for rinsing. The extend-
ed rinsing time ensures the rinsing performance is maintained.
䡲Water saving: 10–20 %

… Programme overview
18
Fabric type
䡲Standard programme
䡲Minimizes creasing
䡲Uses steam anti-crease
䡲Optimum wash load: max. 7 shirts / blouses
䡲Suitable for waterproof and breathable clothing
䡲Higher water level during washing and rinsing
䡲Intermediate spinning for optimal removal of water out of
water-impermeable textiles
䡲Optimum wash load: max. 3 kg
䡲Reduced washing action for very gentle treatment
䡲Higher water level during washing and spinning
䡲Very gentle intermediate spinning
䡲Washing remains lying in the water after the final rinse (stop after rinsing)
䡲Optimum wash load: max. 2 kg
Depending on which main programme is selected, optimized pro-
grammes for different fabric types are available.
«Cotton / Mix» Can be selected with , , and
«Shirts» Can be selected with and
«Leisurewear» Can be selected with , and
«Net curtains» Can be selected with and
APress the button 1×
– Start draining with spinning at 400 rpm
APress the button 2×
–Startdrainingwithout spinning
20 40 60
40 60
20 40 60
20 40

… Programme overview
19
䡲Higher water level and extended rinsing
䡲Optimized for colour run from denim articles
䡲Optimum wash load: max. 4 kg
䡲Very thorough rinsing for the protection of sensitive baby skin
䡲At 95 °C: additional pre-wash
䡲Optimum wash load: max. 5 kg
䡲Optimized for the particular wetting characteristics of down fabrics
䡲Intermediate spinning for optimal draining
䡲Optimum wash load: 1 item of washing, max. 2 kg
䡲Optimized for silk fabrics
䡲Reduced spinning to minimize creasing
䡲Optimum wash load: max. 1.5 kg
«Black garments» Can be selected with , and
䡲Optimum wash load: max. 4 kg if and is selected
max. 2 kg if is selected
«Denim» Can be selected with and
«Baby garments» Can be selected with , and the
additional programme «95 °C whites»
«Down filling» Can be selected with , and
«Silks» Can be selected with
20 40
20 40
20 40
40 60
20 40 60

… Programme overview
20
Degree of soiling / Anti-mite
䡲Suitable for lightly soiled washing
䡲Wash time extended: about 15 minutes
䡲Wash time extended: 25–40 minutes
䡲Extended wash time
䡲Higher water level during washing
䡲Additional rinsing cycle
䡲Can be selected with and the additional programme «95 °C whites»
only
䡲Suitable for individuals with an allergy to mites
– The main wash is extended and intensified at the temperature set. The
mites are killed and the allergens are rinsed out thoroughly.
䡲An additional soaking cycle is carried out before the main wash.
APress the button to set the soaking time (0.5–6 hours).
Adjustment to the degree of soiling of the washing
«Soiling light»
«Soiling medium»
«Soiling normal»
«Soiling heavy»
«Anti-mite»
«Soaking»
60
