V-ZUG Adora SLX User manual

Washing machine
Adora SLX
Operating instructions
VZUG Ltd

2
Dear V-ZUG Customer
Thank you for choosing to buy one of our products.
Your appliance is made to high standards and is easy to use. Nevertheless, please
take the time to read these operating instructions in order to familiarize yourself with
the appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the
time these operating instructions went to press. The right to make technical modifica-
tions for the purpose of the further development of the appliance is reserved.
Symbols used
AIndicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
䡲Indicates a list.
Validity
The model number corresponds to the first three digits on the identification plate. These
operating instructions apply to the model:
Variations depending on the model are noted in the text
© V-ZUG Ltd, CH-6301 Zug, 2008
Denotes important safety precautions. Failure to observe
said precautions can result in injury or damage to the appli
ance or fittings!
Denotes useful tips for the user.
Model Type Model no.
Adora SLX WA-ASLX 258

3
Contents
Safety precautions 5
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . 5
Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Your appliance 9
Appliance description . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating and display elements . . . . . . . . . . . . . . . . . . . 11
Quick start programme selection . . . . . . . . . . . . . . . . . . . 12
Programme overview 16
Main programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Additional functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Settings 28
Programme settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
User settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Washing 33
Programme selection . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Changing selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Programme selection with childproof lock activated . . . . . . . 39
Adding washing detergent . . . . . . . . . . . . . . . . . . . . . . . 41
Soap detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Starching, proofing or dyeing textiles . . . . . . . . . . . . . . . . 43
End of programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

…Contents
4
Care and maintenance 46
Cleaning the appliance . . . . . . . . . . . . . . . . . . . . . . . . . 46
Cleaning the detergent dispenser drawer . . . . . . . . . . . . . . 46
Cleaning the water inlet filter . . . . . . . . . . . . . . . . . . . . . . 46
Emergency draining . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Cleaning the foreign body trap . . . . . . . . . . . . . . . . . . . . 48
Troubleshooting 49
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Opening the appliance door in the event of
a power failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Washing tips 57
Unsatisfactory wash results . . . . . . . . . . . . . . . . . . . . . . . 59
Damage to fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Technical data 64
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Unbalanced load detection system . . . . . . . . . . . . . . . . . . 66
Water and energy economy . . . . . . . . . . . . . . . . . . . . . . 67
Turbidity sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Weight sensory analysis . . . . . . . . . . . . . . . . . . . . . . . . . 67
Disposal 68
Notes 69
Index 72
Repair service 75
Quick instructions 76

5
Safety precautions
In accordance with the requirements of IEC 60335-1:
䡲This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, un-
less supervised or unless they have been given instruction concerning the use of the
appliance by a person responsible for their safety.
Before using for the first time
䡲The appliance must be installed and connected to the electricity supply in accord-
ance with the separate installation instructions. The necessary work should be car-
ried out by a qualified fitter or electrician.
䡲Dispose of the packaging material in accordance with local regulations.
䡲Ensure access to the place of disconnection (e.g. the socket outlet, wall switch,
mains fuse as well as the water tap).
䡲The transport lock must be removed. Failure to remove the transport lock can result
in damage to the appliance or apartment/laundry room fittings.
䡲It is advisable to run an empty wash cycle to remove any residues from the manu-
facturing process.
AAdd ½ cup of washing detergent and select the « Coloureds» programme.
The appliance corresponds to recognised technology stand
ards and the relevant safety regulations. Proper use of the
appliance is however essential to avoid damage and acci
dents. Please therefore follow the precautions given in these
operating instructions.
The appliance was tested with water before being shipped. There may there-
fore still be traces of water left in the appliance.
60

…Safety precautions
6
Correct use
䡲The appliance is suitable for washing home textiles with water and regular wash-
ing machine detergent. The appliance is designed for use in the home and for the
above-mentioned purpose only. No liability is assumed for any damage caused
by improper or incorrect use.
䡲Any repairs, modifications or manipulations to the appliance, especially any elec-
trically live parts, should only be carried out by the manufacturer, its Customer Serv-
ices or similarly qualified persons. Repairs if carried out incorrectly may cause
serious injury, damage to the appliance and fittings, as well as affect the function-
ing of the appliance. If the appliance is not working properly or in case of a repair
order, follow the instructions given in the 'Repair service' section. If necessary,
please contact Customer Services.
䡲Use original spare parts only.
䡲Retain these operating instructions for future reference. If you sell or pass the appli-
ance on to a third party, please ensure these operating instructions accompany the
appliance, together with the instructions on installation. In this way, the new owner
can inform themselves about how to use the appliance correctly and read the per-
tinent safety precautions.
Do not use the appliance to wash the following:
䡲Textiles that have been cleaned, treated or soaked with flammable chemicals, de-
tergents or solvents such as benzene, alcohol, stain remover, oil, paint, wax, etc.
Fire or explosion hazard!
Wash materials containing such substances first by hand with water or allow the
solvent to evaporate completely.
䡲Textiles with metal reinforcements (risk of damage).
䡲Trainers, diving suits, rucksacks, large sleeping bags and duvets, carpets, etc.

…Safety precautions
7
Children in the home
䡲Packaging material (e.g. plastic, polystyrene) can be dangerous for children. Dan-
ger of suffocation! Keep packaging material away from children.
䡲The appliance is designed for use by adults who are familiar with these operating
instructions. Children are often unable to recognise the danger of electrical appli-
ances. Ensure proper supervision and do not allow children to play with the appli-
ance – there is a danger that children could get locked inside.
䡲Washing detergent can irritate the eyes, mouth and throat and even cause chok-
ing! Keep washing detergent out of the reach of children.
䡲Use the childproof locking facility.
Note on use
䡲If the drain hose leads into a sink (wash trough), check that it is fastened securely.
Make sure that the water can drain off fast enough. Flooding hazard!
䡲From time to time, check the drain hose for tears, kinks, twists, bends, etc.
䡲Do not use the appliance if visibly damaged or if the inlet pipes are damaged.
Contact Customer Services.
䡲If the appliance is not operating properly, disconnect it from the electricity supply
immediately.
䡲Keep animals away from the appliance.
䡲To protect your washing, follow the fabric care symbols and the hints and advice
in the 'Washing tips' section.
䡲Do not use solvents (e.g. turpentine, benzene) instead of, or in addition to, water,
washing detergent or additives in your appliance. Fire or explosion hazard!
Do not use the pivoting operating panel to lift or move the
appliance.

…Safety precautions
8
䡲Only use water softener, dye/bleach or other additives expressly recommended
by the manufacturer for use in the appliance. Follow the manufacturer’s instructions
carefully.
䡲Store washing detergents, washing additives and other additives in a cool, dry
place. Lumpy washing detergent can cause problems. Keep all washing deter-
gents and additives out of the reach of children.
䡲Before closing the appliance door and starting a programme, ensure that there are
no foreign objects or pets in the washing drum, detergent dispenser drawer or
around the foreign body trap. Foreign objects such as coins, nails, paper clips,
etc. can damage parts of the appliance as well as the washing.
䡲After you have finished washing, always turn off the water tap before switching off
the electricity by turning off the wall switch or pulling out the mains plug. Never
pull the mains plug out by the cable.
Maintenance
䡲Disconnect the appliance from the mains before carrying out maintenance work.
䡲Do not spray the outside of the appliance with water. Do not use a steam cleaner.
䡲Do not sit, lean or rest on the appliance door.
䡲Do not climb on to the appliance. Danger of tipping!
䡲Opening the water inlet and outlet while the appliance is in operation could pose
a scalding hazard.
䡲Use original spare parts only.
Ensure the washing drum has stopped moving before reach
ing inside. Do not touch the drum while it is still in motion –
risk of serious injury!

9
Your appliance
Appliance description
䡲Load capacity: 5 kg dry washing
䡲Programmes
«7 main programmes»
Separate «Steam anti-crease»
«Anti-mite»
«Machine hygiene»
䡲Additional functions
«Pre-wash»
«Easy care»
«Programmes for lightly to very heavily soiled washing»
«Skin protection»
«Steam anti-crease»
«Bio washing»
«Soap washing»
«Soaking»
«Delayed start»
«Temperature selection»
«Spin speed selection»
«Stop after rinsing»
«Select parts of programmes»
䡲Load recognition with detergent dosage recommendation
䡲Sensors for optimizing the wash cycle
䡲InfoScreen for hints and trouble-shooting
䡲Automatic door opener
䡲Language selection
䡲Childproof lock
Transport lock
Before using the appliance for the first time, the transport
lock must be removed (3 screws with red washers at the
back of the appliance).

…Your appliance
10

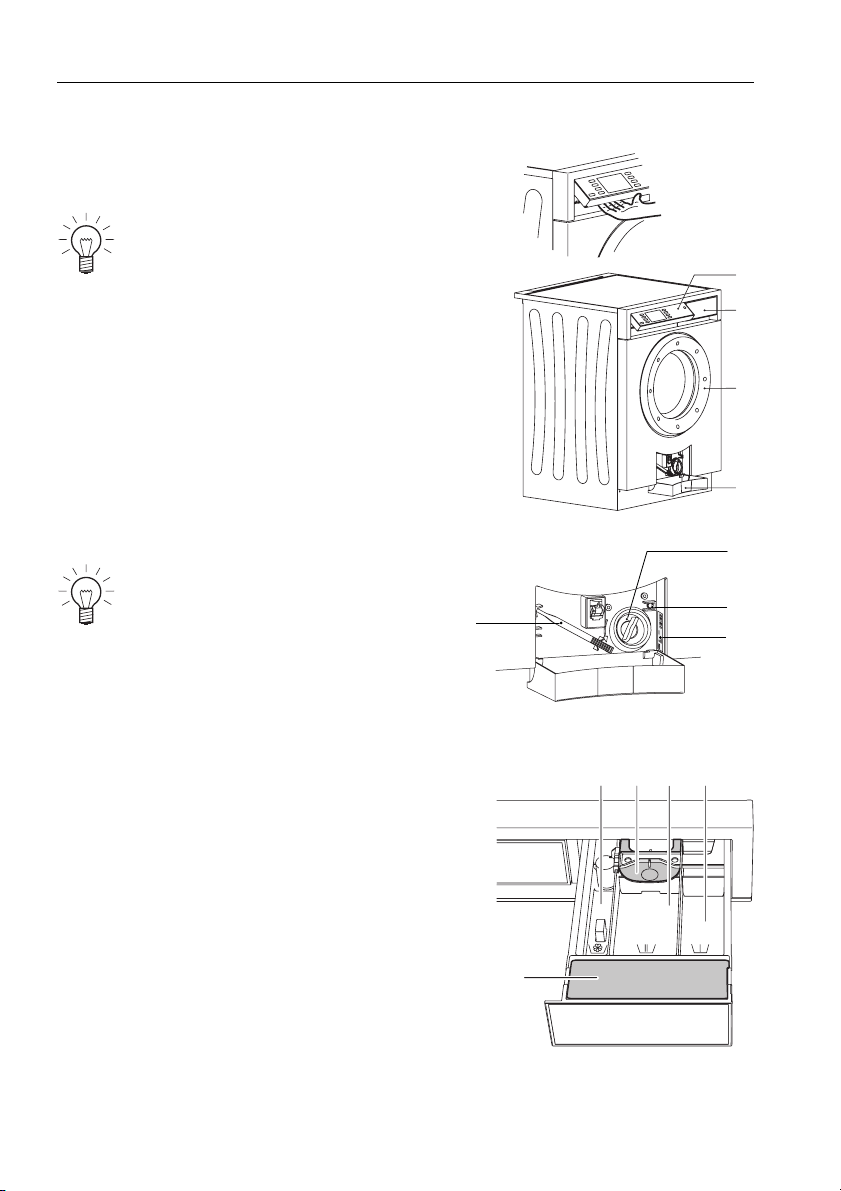

Construction
1Operating and display elements (pivoting
operating panel)
2Detergent dispenser drawer
3Appliance door
4Cover for foreign body trap
5Foreign body trap
6Emergency door release tool
7Emergency door release
8Identification plate
Detergent dispenser drawer with
9Pre-wash detergent compartment
10 Main wash detergent compartment
11 Liquid detergent flap
12 Fabric conditioner (softener) compartment
13 Quick operating instructions
䡲Front: German/French
䡲Back: English/Italian
The operating panel can be set in one
of three positions.
The appliance door can be set to
open to the left or to the right. Our Cus-
tomer Services can make the neces-
sary adjustments to the appliance.
3
4
2
1
6
5
8
7
12 11 10 9
13
M
A
X

…Your appliance
11
Operating and display elements
1InfoScreen
2Selection buttons
3Door opener
4Communications interface
InfoScreen
The InfoScreen guides you through programme selection. All key information is dis-
played on the InfoScreen during programme selection and programme sequence.
40
40
60
60
95
95
40
40
60
60
Whites
Coloureds
Coloureds
Wool
Sport
Sport
Hand
further
1/2
1
34
22
95˚C Whites 1h22
cancel
Spülstopp
nein
Temperature
95˚C
–
nicht aktiv
Bio od. Seife
normal
Spinning
1200 rpm
+
Hauptwaschen
Main wash

…Your appliance
12

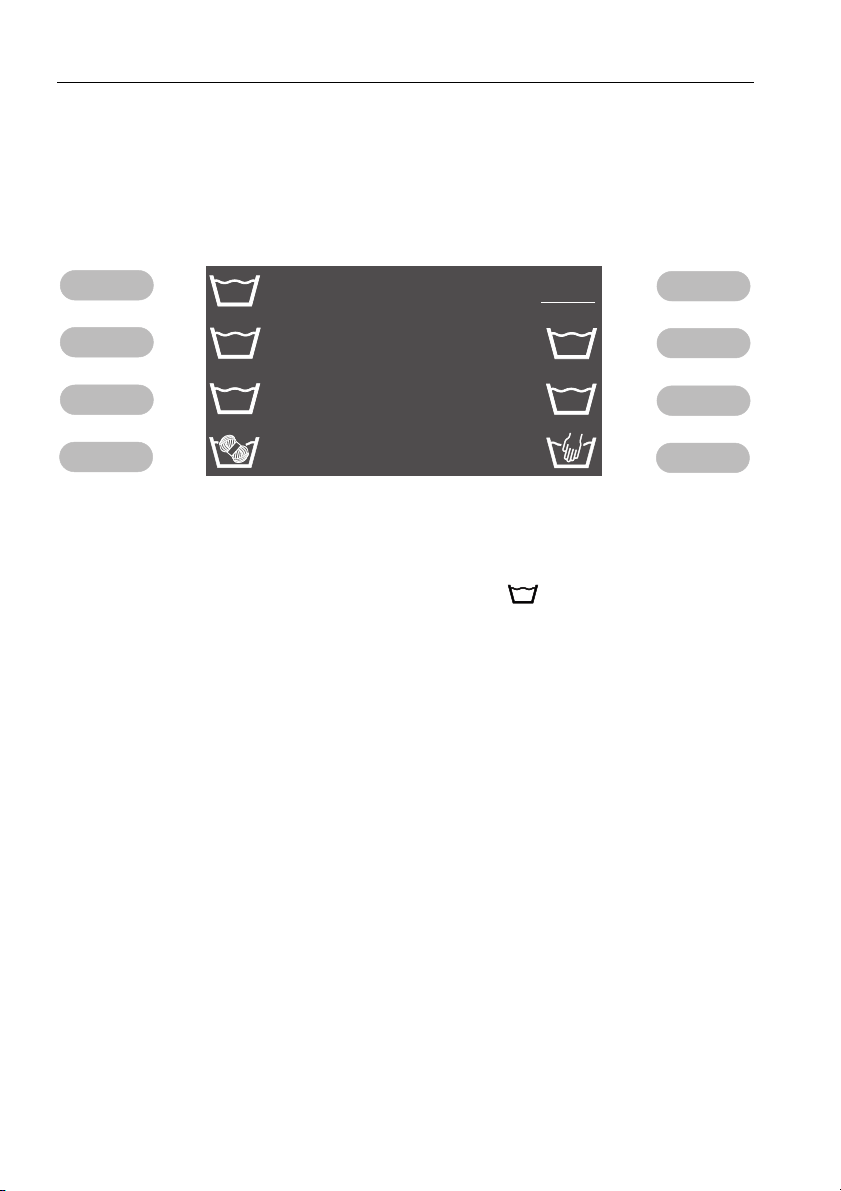

Quick start programme selection
Programme selection can be made with the door open or closed.
The start screen appears as soon as the power supply is switched on.
Selecting main programme
䡲With buttons with a dedicated wash symbol, e.g. , the corresponding wash
programme can be selected directly.
䡲Press the «further» button to toggle between the 2 pages of the main programme.
40
40
60
60
95
95
40
40
60
60
Whites
Coloureds
Coloureds
Wool
Sport
Sport
Hand
further
1/2
95

…Your appliance
13

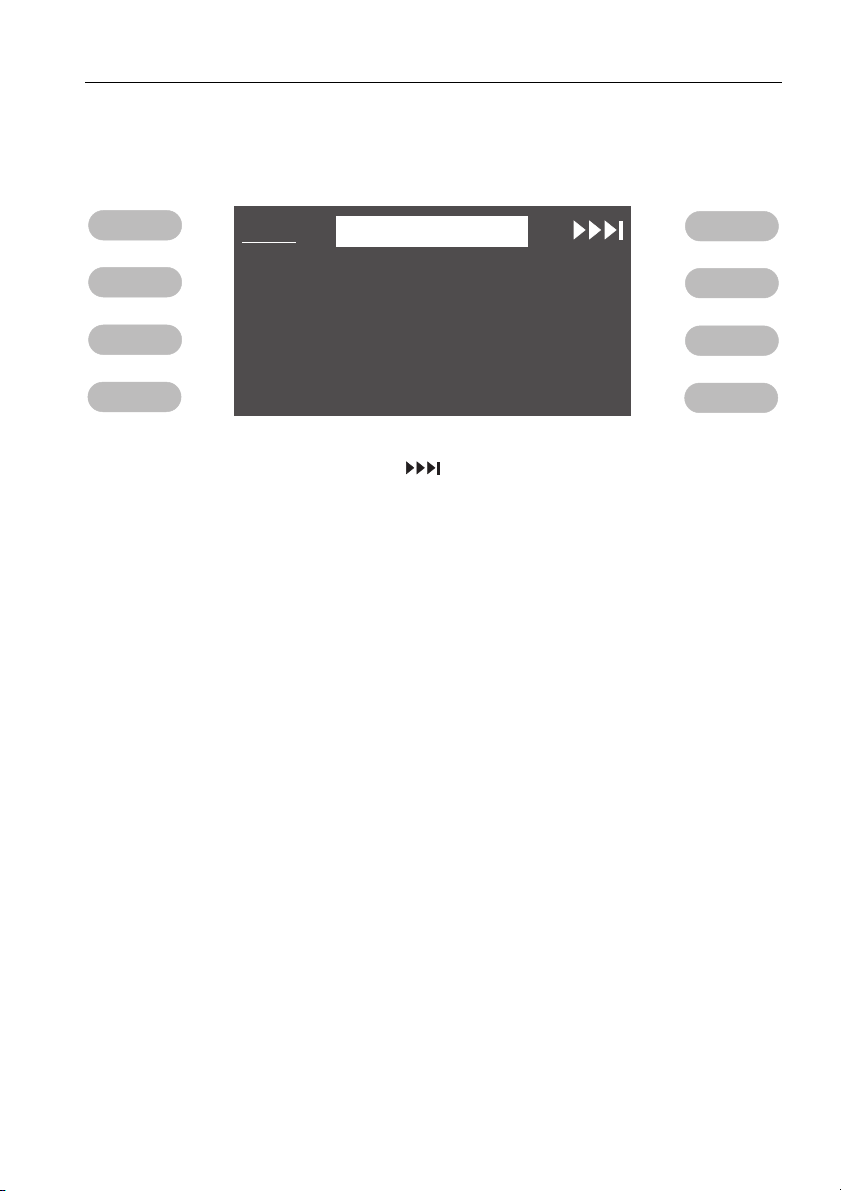

Selecting additional functions
After selecting a main programme, a new screen appears.
䡲Press the «cancel» button to return to the start screen.
䡲Press the «further» button to switch between the 3 pages of additional functions.
䡲Start or cancel on any page.
䡲Press the button to start the wash programme selected.
95˚C Whites 1h22
Start
cancel
Pre-wash
off
Easy care
off
Load
0 %
Delayed start
off
Spinning
1200 rpm
further
1/3
Start

…Your appliance
14

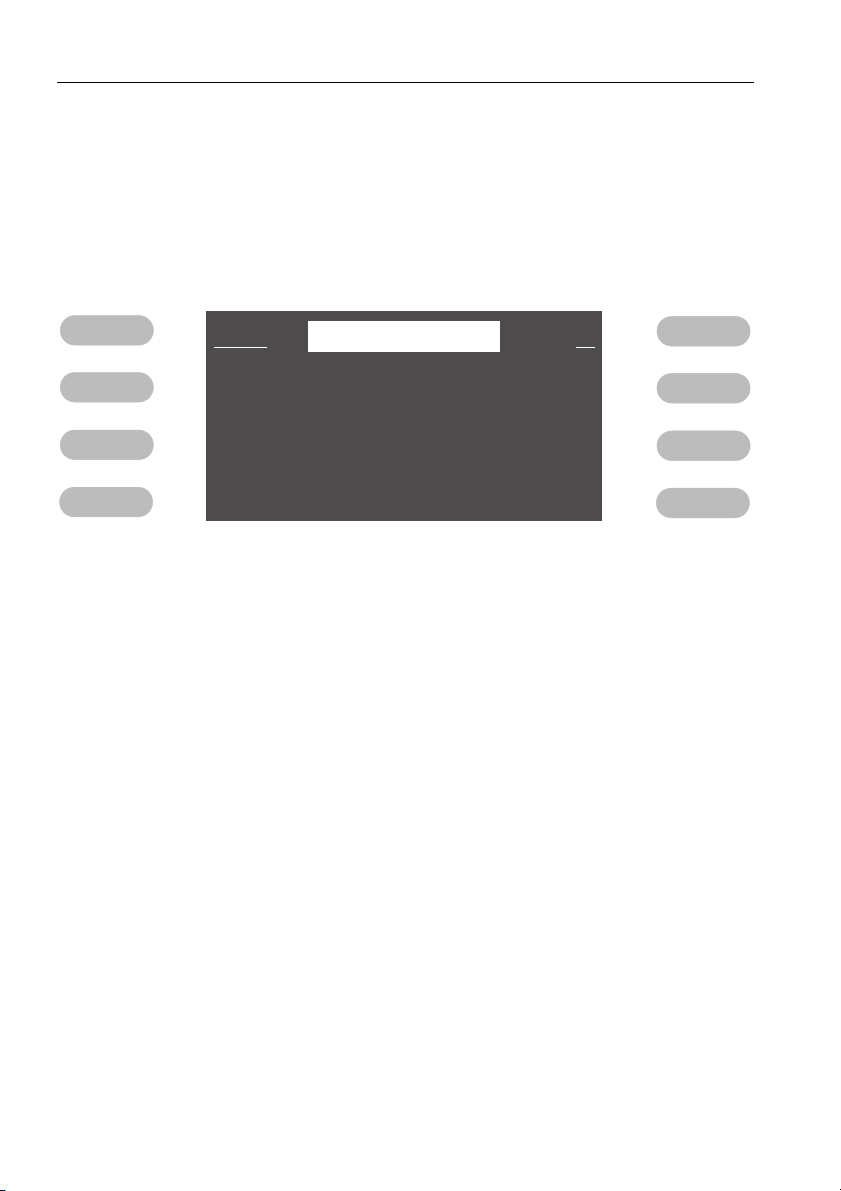

There are two different types of additional functions:
䡲Functions that can be switched on or off (e.g. «Stop after rinsing»).
APress the dedicated button to switch the corresponding function on or off.
䡲Functions with different settings (e.g. spin speed).
APress the dedicated button and a new screen appears.
APress the «+» or «–» button to change the spin speed in steps.
APress «ok» to confirm the setting.
AIf the «cancel» button is pressed, the settings will not be saved.
95˚C Whites 1h22
cancel
Spülstopp
nein
–
aus
–
nicht aktiv
Stop after rinsing
off
+
normal
+
Hauptwaschen
ok
Spinning
1200 rpm
Temperature
95˚C

…Your appliance
15
After starting
Various information is displayed during the programme sequence.
䡲Quick forward/End of programme
– To deselect parts of programmes or to end the wash programme before time.
䡲Cancel
– The start screen appears again. A new wash programme can be selected. The
water and washing detergent that has already been pumped in the tub will be
used in the newly selected washing programme.
95˚C Whites 1h22
cancel
Spülstopp
nein
Temperature
95˚C
–
nicht aktiv
Bio od. Seife
normal
Spinning
1200 rpm
+
Hauptwaschen
Main wash

16
Programme overview
Main programmes
To select the right wash programme, follow the fabric care symbols on the
labels of the wash items, e.g. .
Programme/Symbol Use
Whites 95 °C
White cottons, linens e.g. bed and table linen, towels, white or colour-fast underwear.
Coloureds 60 °C
Coloured cottons e.g. bright blouses, overalls, shirts, bed linen.
Sport 60 °C
Lightly soiled everyday wear, mixed fabrics, sportswear.
Coloureds 40 °C
Coloured cottons (non-fast) e.g. heavily soiled sportswear, blue jeans.
Sport 40 °C
Lightly soiled everyday wear, mixed fabrics, sportswear.
Wool 30 °C Gentle wash for woollens and other delicates. Only for woollens with a felt-free finish and
labelled as machine washable.
Hand wash 20 °C
For all wash items labelled with this fabric care symbol .
40
95
60
60
40
40

…Programme overview
17
The following consumption figures serve as a guide only. The figures can vary with,
for instance, towelling material, a lower ambient temperature, a very cold water feed
or a small wash load. During the programme sequence, the time remaining shown is
adjusted to reflect the actual situation. The display may not move for a few minutes.
¹ Factory setting
² For single-phase 230 V connections, the duration of the programme will be longer.
Programme duration/Consumption data
Capacity Spin speed¹ Duration² Water Energy
5 kg 1200 rpm 1h22 52 l 1.8 kWh
5 kg 1200 rpm 1h04 39 l 0.85 kWh
2.5 kg 1200 rpm 0h39 37 l 0.7 kWh
5 kg 1200 rpm 0h57 50 l 0.6 kWh
2.5 kg 1200 rpm 0h29 37 l 0.4 kWh
2 kg 800 rpm 0h45 52 l 0.2 kWh
1.5 kg 600 rpm 0h38 45 l 0.1 kWh

…Programme overview
18
Programme/Symbol Use
Steam anti-crease Dry, creased washing is partially uncreased and made damp, ready to iron.
Anti-mite
60 °C to 95 °C
Programme suitable for individuals with an allergy to mites. The mites are killed and
the allergens are rinsed out thoroughly.
Machine hygiene Without washing. Steam sharply reduces the germ count.
Delicates 40 °C Programme for particularly delicate washing, e.g. net curtains, skirts, blouses made of
perlon, nylon or trevira. Select « Coloureds + Easy care».
40 40

…Programme overview
19
¹ Factory setting
² For single-phase 230 V connection, the duration of the programme will be longer.
Programme characteristics/Consumption data
Capacity Spin speed¹ Duration² Water Energy
1.5 kg No spinning 0h18 1 l 0.1 kWh
5 kg 1200 rpm 2h33 105 l 1.5 kWh
0 kg No spinning 0h22 6 l 0.3 kWh
2 kg 800 rpm 0h58 46 l 0.5 kWh

…Programme overview
20
Additional functions
Prewash
The pre-wash function is activated together with the relevant wash programme.
With pre-wash, the programme duration and consumption data are increased as
given in the table below.
Easy care
The easy care programme is activated together with the relevant wash programme.
Textiles are washed very gently. Agitation and spin speed are reduced. The water
level is increased during rinsing. In the case of some programmes, the wash time may
be shortened.
Programme selection Spin speed Duration Water Energy
+ Pre-wash Depends on the wash
programme selected + ca. 15 mins. + ca. 10 l + ca. 0.2 kWh
Programme selection Capacity Spin speed Duration Water Energy
+ Easy care 3 kg 800 rpm – ca. 3 mins. + ca. 5 l 0 kWh
