Vacmaster VSD1801 User manual

www.vacmaster.com
Cleva North America, Inc.
Greenville, SC 29607
Made in China
Use & Care Guide
MODEL NO. VSD1801
18V 2-in-1 Cordless Stick Vacuum
[phone]

-2-
SECTION
Important Safety Instructions................................................................................................................3-5
Warranty…………....................................................................................................................................6
Technical Data ........................................................................................................................................6
Getting To Know Your Vacuum................................................................................................................7
General Assembly Instructions............................................................................................................8-11
Operating Instructions.......................................................................................................................11-13
Maintaining Your Vacuum................................................................................................................ 14-17
Troubleshooting................................................................................................................................18-19
TABLE OF CONTENTS
PAGE
Thank you for purchasing this Vacmaster® vacuum cleaner. With it you are
obtaining a high quality product that is engineered for optimal performance.
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual and your sales check (receipt) in a safe place for future
reference.

-3-
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
)DLOXUHWRIROORZWKHZDUQLQJVDQGLQVWUXFWLRQVPD\UHVXOWLQHOHFWULFVKRFN¿UH
and/or serious injury.
WARNING - To UHGXFHWKHULVNRI¿UHHOHFWULFVKRFNRULQMXU\
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by
or near children, pets or plants.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments.
• Do not charge if charging adapter is damaged. If appliance is not working as
it should, has been dropped, damaged, left outdoors, or dropped into water,
return it to a service center.
• Do not pull or carry the charging adapter by cord, use cord as a handle,
close a door on cord, or pull cord around sharp edges or corners. Do not run
appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on charging cord.
• Do not handle charger, including charger plug, and charger terminals with wet
hands.
• Do not put any object into openings. Do not use with any opening blocked;
NHHSIUHHRIGXVWOLQWKDLUDQGDQ\WKLQJWKDWPD\UHGXFHDLUÀRZ
 .HHSKDLUORRVHFORWKLQJ¿QJHUVDQGDOOSDUWVRIERG\DZD\IURPRSHQLQJV
and moving parts.
• Use extra care when cleaning on stairs.
 'RQRWXVHWRSLFNXSÀDPPDEOHRUFRPEXVWLEOHOLTXLGVVXFKDVJDVROLQHRU
use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
 'RQRWXVHZLWKRXWGXVWFXSRU¿OWHULQSODFH
• Prevent unintentional starting. Ensure the product does not operate before
connecting to hand vacuum, picking up or carrying the appliance. Carrying the
DSSOLDQFHZLWK\RXU¿QJHURQWKHVZLWFKLQYLWHVDFFLGHQWV

-4-
 5HFKDUJHRQO\ZLWKWKHFKDUJHUVSHFL¿HGE\WKHPDQXIDFWXUHU$FKDUJHUWKDW
LVVXLWDEOHIRURQHW\SHRIEDWWHU\SDFNPD\FUHDWHDULVNRI¿UHZKHQXVHGZLWK
another battery pack.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact.
,IFRQWDFWDFFLGHQWDOO\RFFXUVÀXVKDIIHFWHGDUHDZLWKZDWHU,IOLTXLGFRQWDFWV
eyes, additionally seek medical help. Liquid ejected from the battery may cause
irritation or burns.
 'RQRWXVHDEDWWHU\SDFNRUDSSOLDQFHWKDWLVGDPDJHGRUPRGL¿HG'DPDJHG
RUPRGL¿HGEDWWHULHVPD\H[KLELWXQSUHGLFWDEOHEHKDYLRUUHVXOWLQJLQ¿UH
explosion or risk of injury.
 'RQRWH[SRVHDEDWWHU\SDFNRUDSSOLDQFHWR¿UHRUH[FHVVLYHWHPSHUDWXUH
([SRVXUHWR¿UHRUWHPSHUDWXUHDERYH&PD\FDXVHH[SORVLRQ
• Follow all charging instructions and do not charge the battery pack or appliance
RXWVLGHRIWKHWHPSHUDWXUHUDQJHVSHFL¿HGLQWKHLQVWUXFWLRQV&KDUJLQJ
LPSURSHUO\RUDWWHPSHUDWXUHVRXWVLGHRIWKHVSHFL¿HGUDQJHPD\GDPDJHWKH
EDWWHU\DQGLQFUHDVHWKHULVNRI¿UH
 +DYHVHUYLFLQJSHUIRUPHGE\DTXDOL¿HGUHSDLUSHUVRQXVLQJRQO\LGHQWLFDO
replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack except as
indicated in the instructions for use and care.
• Always turn off this appliance before connecting or disconnecting any
accessories.
• Do not charge the unit outdoors.
• Do not incinerate the appliance even if it is severely damaged. The batteries
FDQH[SORGHLQD¿UH
• For Household Use Only.
SAVE THESE INSTRUCTIONS

-5-
127( This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
3URGXFW'LVSRVDO
This product contains an internal Lithium-ion battery pack formulated from
environmentally sensitive materials. This product must be disposed of properly
with due care for the environment. Do not dispose of product with household
garbage. Consult your local waste authority for information regarding available
recycling or disposal options.
WARNING
$Q\FKDQJHVRUPRGL¿FDWLRQVWRWKLVXQLWQRWH[SUHVVO\DSSURYHGE\WKHSDUW\
responsible for compliance could void the user’s authority to operate the
equipment.

-6-
FOR ONE YEAR from the date of sale, this product is warranted against defects
in material or workmanship when it is assembled, operated and maintained
according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will be replaced free of charge.
For warranty coverage details to obtain free replacement, visit the web page:
www.vacmaster.com or call [phone].
 7KLVZDUUDQW\GRHVQRWFRYHU¿OWHUVZKLFKDUHH[SHQGDEOHSDUWVWKDW
can wear out from normal use within the warranty period.
• This warranty is void if this product is ever used for other than private
household purposes.
 7KLVZDUUDQW\JLYHV\RXVSHFL¿FOHJDOULJKWVDQG\RXPD\DOVRKDYHRWKHU
rights which vary from state to state.
TECHNICAL DATA
Cordless Vacuum Cleaner
Voltage: 18VDC
Battery Charger:
Model: YLS0241A-T210050
Input: 100-240V~50/60Hz 0.8A
Output: 21.0V 500mA
WARRANTY

-7-

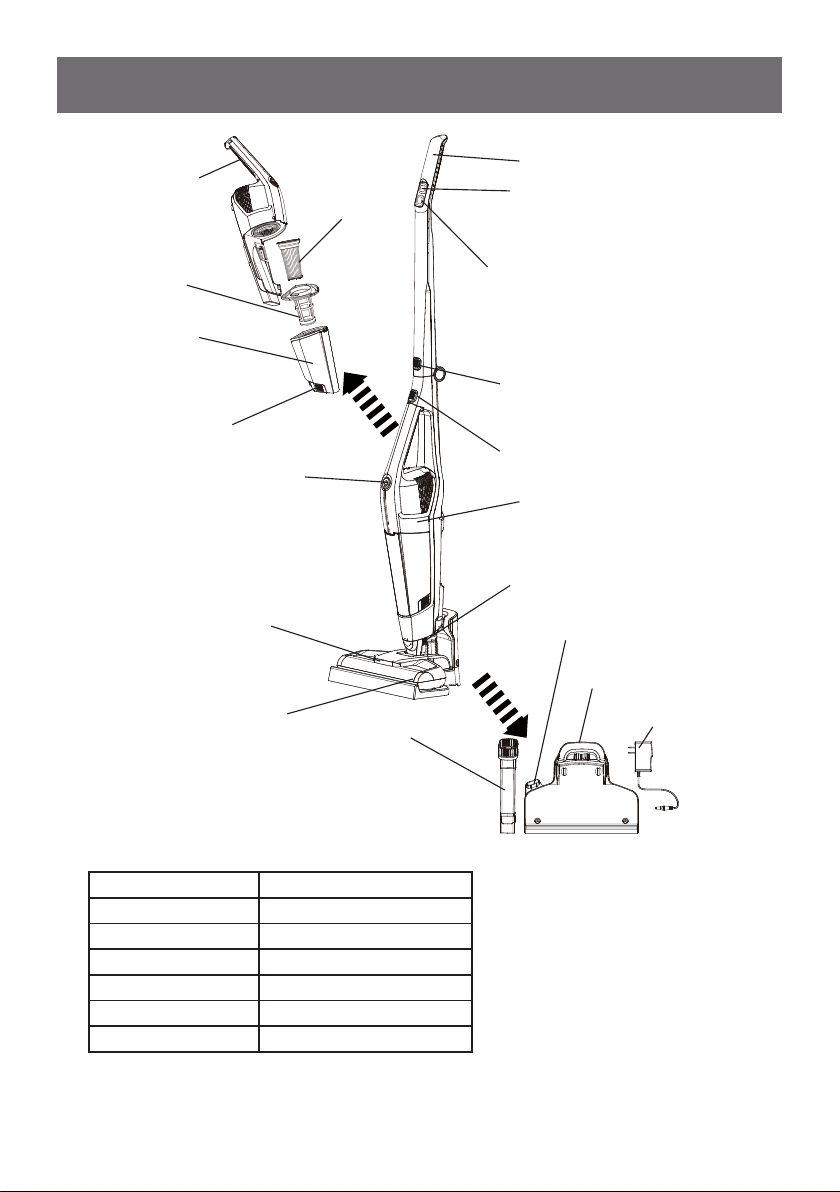

GETTING TO KNOW YOUR VACUUM
Handle
Power Button
Speed Control Button
Folding Handle Button
Hand Vacuum Release Button
Hand Vacuum On/Off Button Hand Vacuum
Motorized Brush Powerhead
LED Headlights
Nozzle Release Button
2-In-1 Combination Tool
Combination Tool Storage
Charging Base
Charging Adapter
REPLACEMENT PARTS
Available online at www.vacmaster.com or call [phone].
Item Part No.
Filter 561042108
Charging base 561042109
Combination Tool 561042111
Charging Adapter 561005107
Filter Basket 561042107
Brushroll 561042104
Hand Vacuum Handle
Filter
Filter Basket
Dust Cup
Dust Cup Release Button

-8-
1. Unfold the vacuum folding handle.
Put the vacuum folding handle upward, until there is a click from the folding
handle button.
2. Fit the end of the main body onto the neck of the motorized powerhead and
click into place.
GENERAL ASSEMBLY INSTRUCTIONS
$VVHPEO\,QVWUXFWLRQV
Click

-9-

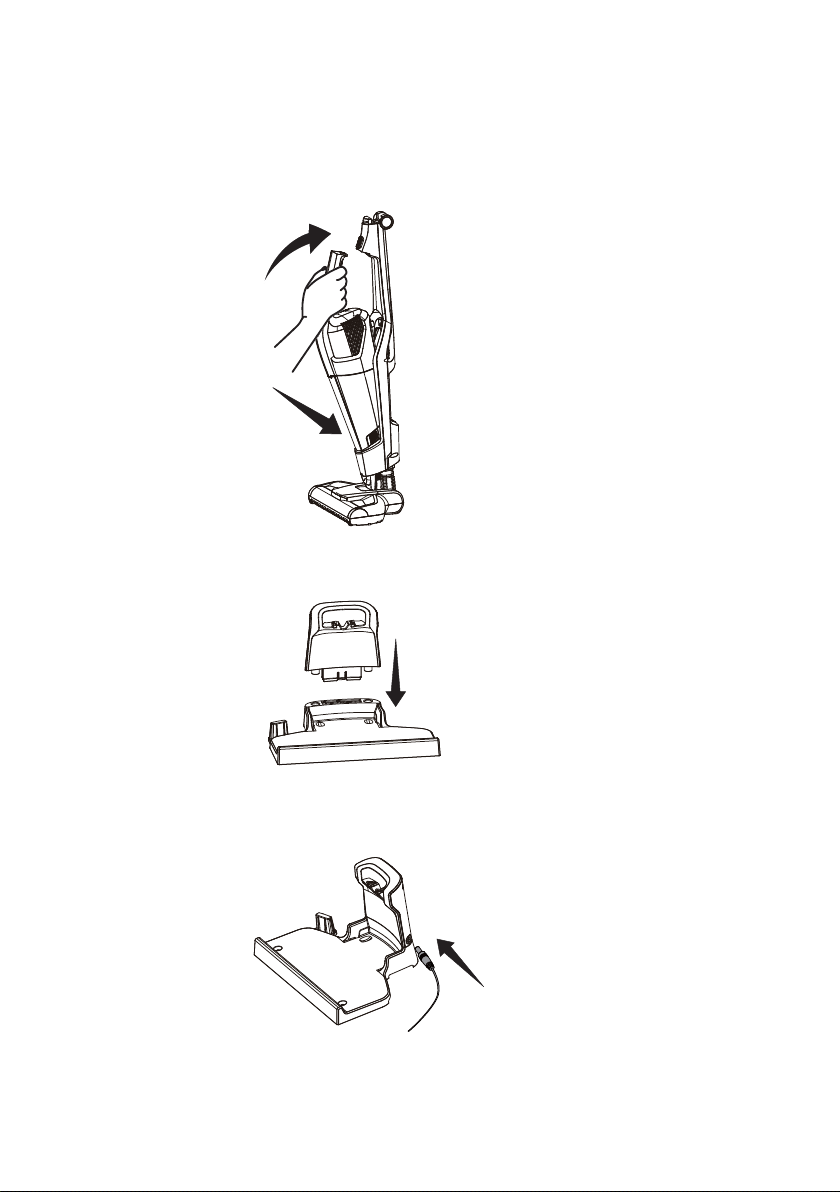

3. Insert the hand vacuum into the slot on the bottom of main body, then press
the handle into locked slot and click into place.
4. Insert the top of the charging base into the bottom of the charging base and
lock into place.
5. Insert the charging connector into the charging port on the side of charging
base.



-10-
6. Plug the adapter into a wall outlet.
1RWH Use only the charger supplied with your cleaner to recharge.
7. Insert the 2-in-1 combination tool into the slot on the charging base for
convenient storage.
&KDUJLQJ,QVWUXFWLRQV
1. Before charging, make sure the cordless vacuum is turned OFF. With the
hand vacuum installed in the stick vacuum, insert the vacuum cleaner onto
the charger base as shown. Make sure the charging adapter is plugged into
an outlet.

-11-

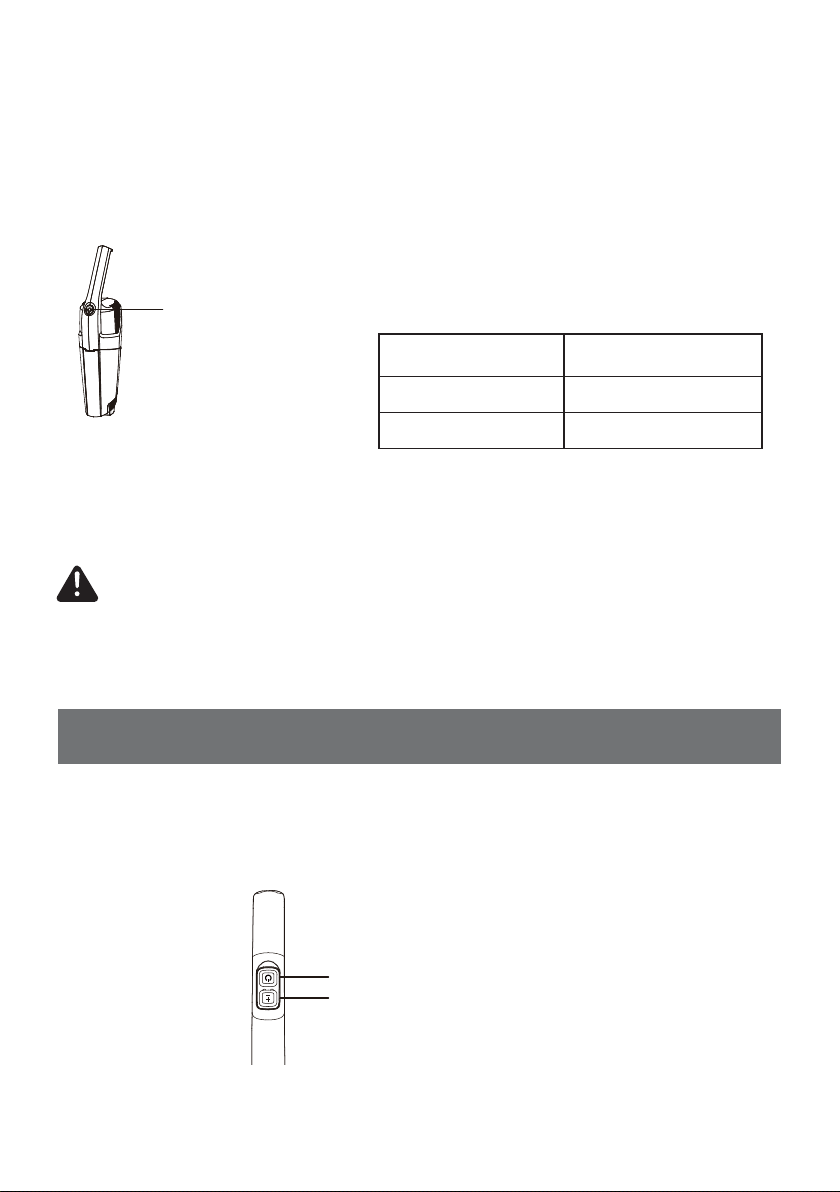

2. The Hand vacuum on/off button will show the progress of the charge. While the
YDFXXPLVEHLQJFKDUJHGWKHEDWWHU\FKDUJHLQGLFDWRUZLOOEHÀDVKLQJ2QFH
fully charged, the indicator will be off.
3. For improved battery performance, keep the vacuum cleaner on the charging
base while not in use. Do not start the vacuum cleaner while it is on the
charging base.
&DXWLRQ: To optimize the battery longevity, charge the vacuum cleaner for
DWOHDVWKRXUVEHIRUHXVLQJIRUWKH¿UVWWLPH
1HYHUFKDUJHWKHEDWWHULHVLQWHPSHUDWXUHVDERYH)&RUEHORZ
)&,WLVQRUPDOIRUWKHFKDUJHUWREHFRPHZDUPZKHQFKDUJLQJ
%DWWHU\LQGLFDWRU Status
Flashing light Charging
No light Fully charged
OPERATING INSTRUCTIONS
8VLQJ<RXU9DFXXP&OHDQHU
When vacuum cleaner is fully charged, lift it off the charging base.
1. To start the vacuum, press the power button. The vacuum automatically starts
in the HIGH speed position.
On/Off Button & Battery Indicator
Power Button
Speed Control Button

-12-
8VLQJ<RXU+DQG9DFXXP
1. To remove the hand vacuum, press the hand vacuum button and detach from
the main body.
2. To switch the speed to LOW, press the speed control button. Press the
speed control button again to switch back to HIGH speed.
3. To stop the vacuum, press the power button.
2. To turn on, press the power button located on the handle.
7RFOHDQDUHDVWKDWDUHGLI¿FXOWWRUHDFKXVHWKHLQFRPELQDWLRQWRROE\
inserting one end of the tool into the hand vacuum.


Hand vacuum release button
Hand vacuum

-13-
CAUTION
Moving parts! To reduce the risk of personal injury, DO NOT touch the brush
roll when vacuum is on. Contacting the brush roll while it is rotating can cut
or cause other injuries. Always turn off before servicing. Use caution when
operating near children.
6WRULQJ<RXU9DFXXP
1. Fold handle by pressing handle release button and pulling handle backward.
2. To operate vacuum, unfold the handle by moving it upward until you hear a
click.
4. The combination tool can be used as a crevice tool or dusting brush. To
transition from crevice to dusting brush, depress the latch on the tool and slide
the part to the top of the tool.

-14-
MAINTAINING YOUR VACUUM
CAUTION
To reduce the risk of shock, remove vacuum cleaner from the charging base,
and turn off before performing any service or maintenance.
(PSW\LQJWKH'XVW&RQWDLQHU&OHDQLQJWKH)LOWHU
1. Remove the hand vacuum from the main body by pressing the hand vacuum
release button.
2. Hold the unit over a trash bin and use one hand to press the two dust cup
release buttons to separate the dust cup from the hand vacuum body.
5HPRYHWKH¿OWHUEDVNHWIURPWKHGXVWFXS(PSW\WKHFRQWHQWVRIWKHGXVWFXS
into a trash bin.


Hand vacuum release button
Hand vacuum Dust Cup Release Buttons
Filter Basket

-15-

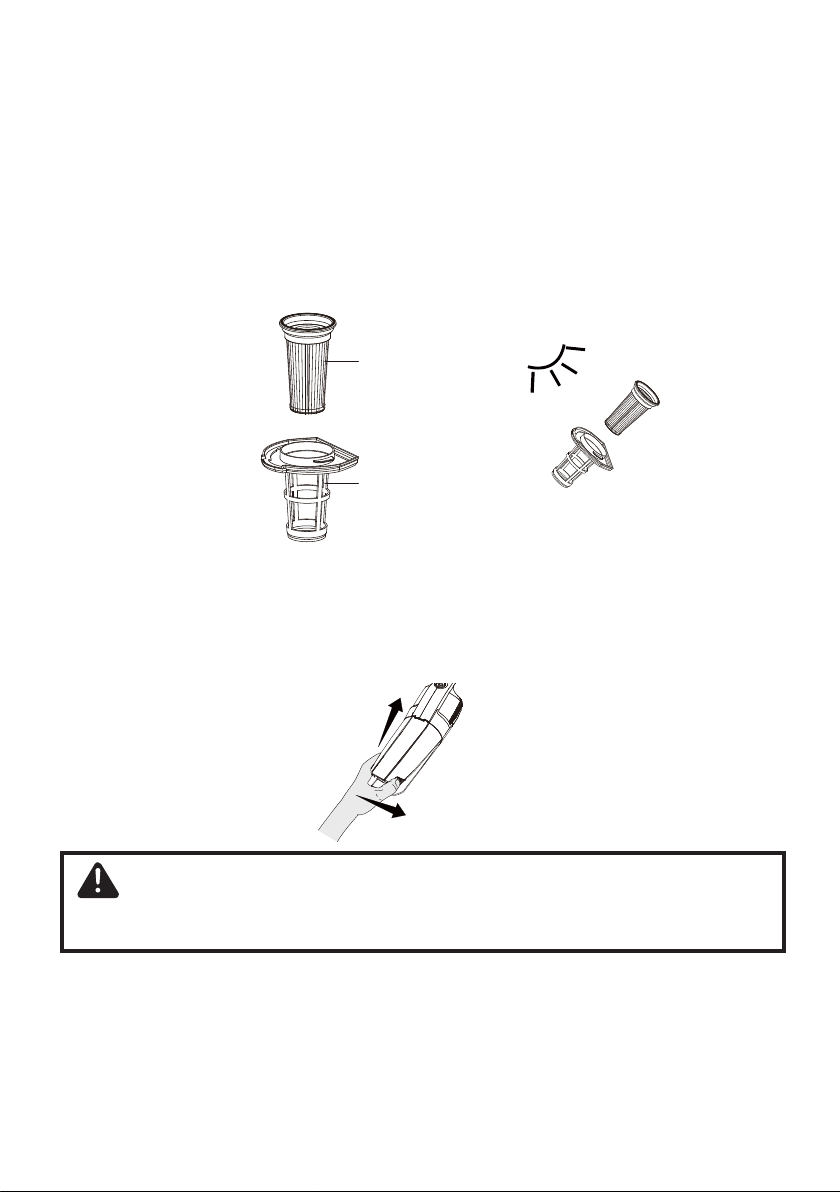

,03257$17
7KH¿OWHUDQGWKH¿OWHUEDVNHWPXVWEHFRPSOHWHO\GU\EHIRUHUHXVH
,QVHUWWKHFOHDQDQGGU\¿OWHULQWRWKHEDVNHW)LWWKHEDVNHWLQWRWKHGXVWFXSDQG
reconnect the dust cup to the hand vacuum.
WARNING
'RQRWRSHUDWHYDFXXPFOHDQHUZLWKRXW¿OWHULQVWDOOHG
5HPRYHWKH¿OWHUIURPWKH¿OWHUEDVNHW&OHDQWKHDFFXPXODWHGGHEULVIURPWKH
¿OWHUEDVNHWDQGWKH¿OWHUV
$IWHUUHSHDWHGXVHLWPD\EHQHFHVVDU\WRZDVKWKH¿OWHUEDVNHWDQG¿OWHU
Hand wash in lukewarm water. After washing, set aside and allow to air dry for
24 hours.


24hrs
Filter
Filter Basket

-16-
&OHDQLQJWKH0RWRUL]HG3RZHUKHDG%ORFNDJHV
7KHEUXVKUROOPD\DFFXPXODWHGHEULVVXFKDVVWULQJVKDLUDQG¿EHUV7KLVW\SHRI
debris can wrap around the brush and diminish its ability to clean effectively.

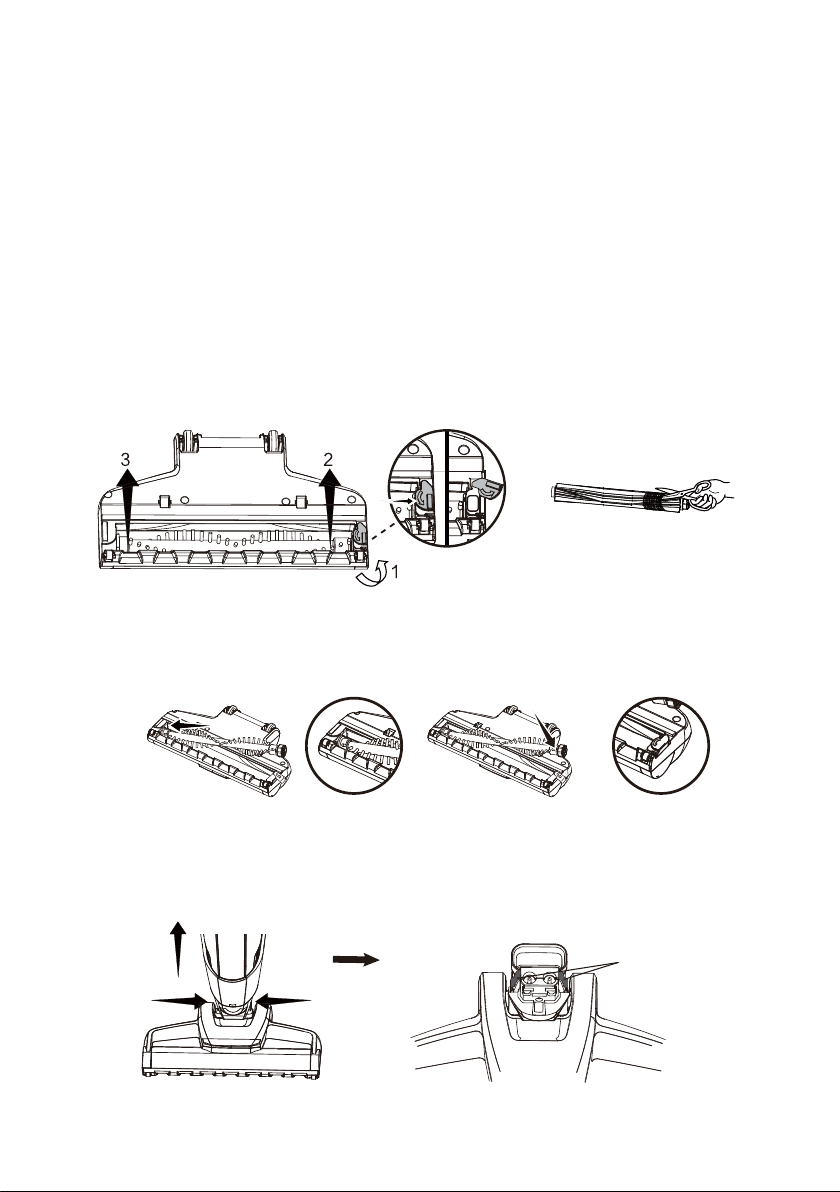

7R5HPRYH%UXVK5ROOIRU0DQXDO&OHDQLQJ
1. Make sure the vacuum cleaner is turned OFF then remove the hand vacuum
and set aside.
2. Turn the unit over to access the brush roll. As shown below,push and slide the
tab to the right to unlock, then lift the brush roll out of housing. Clean off debris
and anything wrapped around the brush. Use a pair of scissors to remove
threads, etc.
7R5HPRYH3RZHUKHDG%ORFNDJHV
1. To clean out the powerhead, press the two nozzle release buttons, and pull
the powerhead away from the main vacuum body.
3. Place the brush roll back into the housing by aligning the hexagon end to the
SRZHUKHDG¿UVWWKHQLQVHUWLQJWKHRWKHUHQGFRUUHFWO\LQWRSODFHDQGORFNWKH
tab.



Nozzle Release Button

-17-
TROUBLESHOOTING
2. Carefully remove any debris or blockage from the inside of the powerhead.
3. Reattach the powerhead onto the vacuum body.
1RWHDo not damage pins; do not use scissors or other sharp objects to
remove a blockage from the powerhead as these may damage the powerhead.
Pins

-18-
TROUBLESHOOTING
Should you have any problem(s) with your vacuum cleaner, review the table
below for solutions to minor performance issues.
WARNING
Disconnect electrical supply before performing maintenance to the vacuum
cleaner. Failure to do so could result in electrical shock or personal injury.
PROBLEM POSSIBLE CAUSE SOLUTION
Vacuum will not
power on.
Battery may be depleted. Charge the battery as instructed.
Wrong charger being
used. Be sure to use only the charger supplied with your product.
Hand vacuum is
not installed properly. Remove hand vacuum and reattach ensuring that it is securely in place.
Charging connector is
not fully plugged into the
charging base.
Be sure the charging connector is fully
inserted in the charging base.
Charging plug is not
fully plugged into outlet. Be sure charging plug is fully plugged into outlet.
Battery charge
indicator does
not illuminate.
Charging adapter is not
plugged in.
Be sure the charging adapter is plugged in
properly to the outlet and to the charging port
on the bottom of the charging adapter.
Debris accumulated on
the metal charge contacts
on the hand vacuum, main
body and charging
adapter.
Be sure no debris is accumulated on the
metal charger contacts on the hand vacuum,
main body and charging adapter.
The electrical outlet is out
of power. Ensure that the outlet is supplying power to the charger.

-19-
Motorized brush
not turning.
Brush roll is jammed. Remove obstruction. Follow instructions.
Brush roll needs to be
reset. Turn the unit off and remove the obstruction, then turn back on.
Brush roll is not
installed well. Remove brush roll and reinstall following instructions.
Vacuum not
picking up or
suction power is
weak.
Dust cup is full. Empty dust cup.
Filter needs cleaning. )ROORZ¿OWHUFOHDQLQJLQVWUXFWLRQV
Filter needs to be
replaced. To purchase online at www.vacmaster.com or call [phone].
Battery may be depleted. Charge the battery as instructed.
Dust cup is not installed
well. Check dust cup for correct installation and HQVXUHLWLVVQDSSHG¿UPO\LQSODFH
Dust escapes
from vacuum.
Filter is missing or
installed incorrectly. &KHFN¿OWHUIRUFRUUHFWLQVWDOODWLRQ
Filter is damaged and
needs to be replaced. To purchase online at www.vacmaster.com or call [phone].
Dust cup installed
incorrectly.
3RVLWLRQGXVWFXSFRUUHFWO\DQGVQDS¿UPO\
into place.
Vacuum turns off
on its own.
Battery may be depleted. Charge the battery as instructed.
Brush roll is jammed
causing motor protection
system activated.
While off, remove obstruction and then turn
unit on.
For further questions, call our support team at [phone].

www.vacmaster.com
Cleva North America, Inc.
Greenville, SC 29607
Made in China
Guía de uso y cuidado
MODELO N.O VSD1801
Aspiradora de varilla inalámbrica de 18 V 2-en-1
[phone]
