Vaidnor VDF730 Series User manual

VDF730 Series

VDF730 User Manual Preface
- 1 -
Preface
Thank you for purchasing the VDF730 series AC drive !
The VDF730 series AC drive is a general-purpose AC drive, which implements V/F control
on AC asynchronous motors. It is used to drive various automation production equipment of
different felds involving textile, paper-making, wiredrawing, machine tool, packing, food, fan
and pump. Featuring large startup torque and 8-speed running, it also supports closed-loop
process control and networking, and can be commissioned easily.
This manual describes the correct use of the VDF730 series AC drive, including selection,
parameter setting, commissioning, maintenance & inspection. Read and understand the
manual before use and forward the manual to the end user.
Notes
•The drawings in the manual are sometimes shown without covers or protective guards.
Remember to install the covers or protective guards as specifed frst, and then perform
operations in accordance with the instructions.
•The drawings in the manual are shown for description only and may not match the product
you purchased.
•The instructions are subject to change, without notice, due to product upgrade, specifcation
modifcation as well as efforts to increase the accuracy and convenience of the manual.
•Contact our agents or customer service center if you have problems during the use.

Introduction VDF730 User Manual
- 2 -
Introduction
The basic confguration and functions of the VDF730 are described in the following table.
Input/Output terminal
•5 x DI (DI5 can be used for high-speed input)
•2 x AI (AI2 for voltage or current input, or operation panel
potentiometer setting)
•2 x DO
•1 x AO (voltage or current output, or frequency or DO
output through FM)
•2 x relay output
Control mode V/F
Analog setting Straight-line mode
Multi-speed 8 speeds
Simple PLC 8-period scheduled running
Swing frequency and
fxed length control Supported
Communication function RS485 communication port
PID control Supported
V/F mode Straight-line V/F, multi-point V/F, square V/F
■Product Checking
Upon unpacking, check:
• Whether the nameplate model and AC drive ratings are consistent with your order. The
box contains the AC drive, certifcate of conformity, user manual and warranty card.
• Whether the AC drive is damaged during transportation. If you fnd any omission or
damage, contact Inovance or your supplier immediately.
■First-time Use
For the users who use this product for the frst time, read the manual carefully. If in doubt
concerning any function or performance, contact the technical support personnel of
Inovance to ensure correct use.
■Standard Compliant
The VDF730 series AC drive complies with the following standards:
• IEC/EN 61800-5-1: 2003 Speed Electric Drive Systems Safety Requirements
• IEC/EN 61800-3: 2004 Speed Electric Drive System; Part 3: EMC Standard and
Specifed Test Method (the VDF730 series AC drive complies with the requirements of
standard IEC/EN 61800-3 on the condition of correct installation and use by following
the instructions in chapter 7)

VDF730 User Manual Introduction
- 3 -
■Connection to Peripheral Devices
Ground
AC input
reactor
Electromagnetic
contactor
Moulded case circuit
breaker (MCCB) or earth
leakage circuit breaker
(ELCB)
Three-phase AC
power supply
Reliably ground the motor and the
AC drive to prevent electric shock .
Suppress the high order harmonic
to improve the power factor .
Braking resistor
Noise filter
on input side
To guarantee safety, use an
electromagnetic contactor . Do not use it to
start or stop the AC drive because such
operation reduces the service life of the
AC drive .
Select a proper circuit breaker to
resist large in -rush current that flows
into the AC drive at power -on.
Use within the allowable power
supply specification of the AC drive .
Reduce the electromagnetic
interference on the input side .
Output reactor
P(+)
BR
Braking unit
+
-
Motor
Ground
• Do not install the capacitor or surge suppressor on the output side of the AC drive.
Otherwise, it may cause faults to the AC drive or damage to the capacitor and surge
suppressor.
• Inputs/Outputs (main circuit) of the AC drive contain harmonics, which may interfere
with the communication device connected to the AC drive. Therefore, install an anti-
interferencefltertominimizetheinterference.
• For more details on peripheral devices, refer to section 3.2.1.

Contents
Preface ...................................................................................................................1
Introduction .............................................................................................................2
Chapter 1 Safety Information and Precautions......................................................................8
1.1 Safety Information ............................................................................................................8
1.2 General Precautions .......................................................................................................10
Chapter 2 Product Information .............................................................................16
2.1 Designation Rules and Nameplate of the VDF730 ..........................................................16
2.2 VDF730 Models and Technical Data ................................................................................16
2.3 Technical Specifcations .................................................................................................17
2.4 Physical Appearance and Overall Dimensions of the VDF730 ........................................20
2.5 Optional Parts .................................................................................................................24
2.6 Maintenance ...................................................................................................................24
2.7 Warranty ........................................................................................................................26
2.8 Braking Component Selection Guideline ........................................................................26
Chapter 3 Mechanical and Electrical Installation ..................................................30
3.1 Mechanical Installation ...................................................................................................30
3.2 Electrical Installation .......................................................................................................36
Chapter 4 Operation and Display .........................................................................52
4.1 Operation Panel.........................................................................................................................................52
4.2 Viewing and Modifying Function Codes .........................................................................54
4.3 Viewing Status Parameters ............................................................................................55
4.4 Starting or Stopping the AC Drive................................................................................. ...................... 56
4.5 JOG Running ..................................................................................................................60
4.6 Setting the Running Frequency ......................................................................................61
4.7 Setting and Auto-tuning of Motor Parameters ................................................................69
4.8 Use of DI Terminals ........................................................................................................70
4.9 Use of DO Terminals ......................................................................................................70
4.10 Use of AI Terminals .......................................................................................................71
4.11 Use of AO Terminals .....................................................................................................72
4.12 Use of Serial Communication .......................................................................................72

4.13 Password Setting....................................................................................................................................73
4.14 Default Initialization ......................................................................................................73
Chapter 5 Function Code Table ............................................................................76
Chapter 6 Description of Function Codes............................................................ .................. 98
Group P0: Basic Parameters ................................................................................................98
Group P1: Motor Parameters and V/F Control Parameters ................................................105
Group P2: Input Terminals ..................................................................................................109
Group P3: Output Terminals ...............................................................................................118
Group P4: Start/Stop Control ..............................................................................................122
Group P5: Auxiliary Functions ............................................................................................127
Group P6: Process Control PID Function ...........................................................................134
Group P7: Swing Frequency, Fixed Length and Count ......................................................137
Group P8: Multi-Reference and Simple PLC Function .......................................................141
Group P9: Reserved ...........................................................................................................144
Group PA: Communication Parameters............................................................................. .....................144
Group PB: Overload and Protection ...................................................................................144
Group PC: Motor 2 Parameters ..........................................................................................149
Group PD: AI Correction .....................................................................................................150
Group PF: Factory Parameters (Reserved) ........................................................................151
Group PP: User Password..........................................................................................................................151
Chapter 7 EMC ...................................................................................................154
7.1 Defnition ....................................................................................................................................................154
7.2 Introduction to EMC Standard ......................................................................................154
7.3 EMC Guideline .............................................................................................................154
Chapter 8 Troubleshooting .................................................................................158
8.1 Faults and Solutions .....................................................................................................158
8.2 Common Faults and Solutions .....................................................................................162

1
Safety Information and Precautions

Safety Information and Precautions VDF730 User Manual
- 8 -
Chapter 1 Safety Information and Precautions
In this manual, the notices are graded based on the degree of danger:
•
DANGER
indicates that failure to comply with the notice will result in severe personal
injury or even death.
•
WARNING
indicates that failure to comply with the notice will result in personal injury
or property damage.
Read this chapter carefully so that you have a thorough understanding, and perform all
operations such as installation, commissioning or maintenance by following the notices in
this chapter. Inovance will assume no liability or responsibility for any injury or loss caused
by improper operation.
1.1 Safety Information
Use Stage Safety
Grade Precautions
Before
installation
WARNING
•Do not install the equipment if you fnd water seepage,
component missing or damage upon unpacking.
•Do not install the equipment if the packing list does not conform
to the product you received.
DANGER
•Handle the equipment with care during transportation to prevent
damage to the equipment.
•Do not use the equipment if any component is damaged or missing.
Failure to comply will result in personal injury.
•Do not touch the components with your hands. Failure to comply
will result in static electricity damage.
During
installation
DANGER
•Install the equipment on incombustible objects such as metal,
and keep it away from combustible materials. Failure to comply
may result in a fre.
•Do not loosen the fxed screws of the components, especially
the screws with red mark.
WARNING
•Do not drop wire end or screw into the AC drive. Failure to
comply will result in damage to the AC drive.
•Install the AC drive in places free of vibration and direct sunlight.
•When two AC drives are laid in the same cabinet, arrange the
installation positions properly to ensure the good cooling effect.

VDF730 User Manual Safety Information and Precautions
- 9 -
Use Stage Safety
Grade Precautions
At wiring
DANGER
•Wiring must be performed only by qualifed personnel under
instructions described in this manual. Failure to comply may
result in unexpected accidents.
•A circuit breaker must be used to isolate the power supply and
the AC drive. Failure to comply may result in a fre.
•Ensure that the power supply is cut off before wiring. Failure to
comply may result in electric shock.
•Tie the AC drive to ground properly according to the
requirements. Failure to comply may result in electric shock.
WARNING
• Never connect the power cables to the output terminals (U,
V, W) of the AC drive. Pay attention to the marks of the wiring
terminals and ensure correct wiring. Failure to comply will result
in damage to the AC drive.
•Never connect the braking resistor between the DC bus terminals
(+) and (-). Failure to comply may result in a fre.
• Ensure that all wiring complies with the EMC requirements
and local safety standard. Use wire sizes recommended in the
manual. Failure to comply may result in accidents.
•Use a shielded cable for the encoder, and ensure that the
shielding layer is reliably grounded.
Before
power-on
WARNING
• Check that the following requirements are met:
–The voltage class of the power supply is consistent with the
rated voltage class of the AC drive.
–The input terminals (R, S, T) and output terminals (U, V, W)
are properly connected.
–No short-circuit exists in the peripheral circuit.
–The wiring is secured.
Failure to comply will result in damage to the AC drive
• Do not perform the voltage resistance test on any part of the AC
drive because such test has been done in the factory. Failure to
comply will result in accidents.
DANGER
• Cover the AC drive properly before power-on to prevent electric
shock.
•All peripheral devices must be connected properly under the
instructions described in this manual. Failure to comply will
result in accidents.
After
power-on
DANGER
•Do not open the AC drive's cover after power-on. Failure to
comply may result in electric shock.
•Do not touch any I/O terminal of the AC drive. Failure to comply
may result in electric shock.
•The AC drive automatically performs safety detection on the
external strong power circuit immediately after power-on. Do not
touch the U, V, W terminals of the AC drive or wiring terminals
of the motor. Failure to comply may result in electric shock.

Safety Information and Precautions VDF730 User Manual
- 10 -
Use Stage Safety
Grade Precautions
After
power-on
DANGER
•Do not touch the rotating part of the motor during the motor
auto-tuning or running. Failure to comply will result in accidents.
• Do not change the default settings of the AC drive. Failure to
comply will result in damage to the AC drive.
During
running
DANGER
•Do not touch the fan or the discharging resistor to check the
temperature. Otherwise, you may get burnt.
• Signal detection must be performed only by qualifed personnel
during operation. Failure to comply will result in personal injury
or equipment damage.
WARNING
• Avoid objects falling into the AC drive when it is running. Failure
to comply will result in damage to the AC drive.
• Do not start/stop the AC drive by turning the contactor ON/OFF.
Failure to comply will result in damage to the AC drive.
During
maintenance
DANGER
• Repair or maintenance of the AC drive can be performed only
by qualifed personnel. Failure to comply will result in personal
injury or damage to the AC drive.
•Do not repair or maintain the AC drive at power-on. Failure to
comply will result in electric shock.
•Repair or maintain the AC drive only ten minutes after the AC
drive is powered off. Otherwise, the residual voltage in the
capacitor will result in personal injury.
• Ensure that the AC drive is disconnected from all power supplies
before starting repair or maintenance on the AC drive.
• Set and check the parameters again after the AC drive is
replaced.
1.2 General Precautions
1) Requirement on residual current device (RCD)
The AC drive generates high leakage current during running, which fows through the
protective earthing (PE) conductor. Thus install a type-B RCD at primary side of the
power supply. When selecting the RCD, you should consider the transient and steady-
state leakage current to ground that may be generated at startup and during running of
the AC drive. You can select a specialized RCD with the function of suppressing high
harmonics or a general-purpose RCD with relatively large residual current.
2) High leakage current warning
The AC drive generates high leakage current during running, which fows through the
PE conductor. Earth connection must be done before connection of power supply.
Earthing shall comply with local regulations and related IEC standards.
3) Motor insulation test
Perform the insulation test when the motor is used for the first time, or when it is
reused after being stored for a long time, or in a regular check-up, in order to prevent
the poor insulation of motor windings from damaging the AC drive. The motor must be
disconnected from the AC drive during the insulation test. A 500-V mega-Ohm meter is

VDF730 User Manual Safety Information and Precautions
- 11 -
recommended for the test. The insulation resistance must not be less than 5 MΩ.

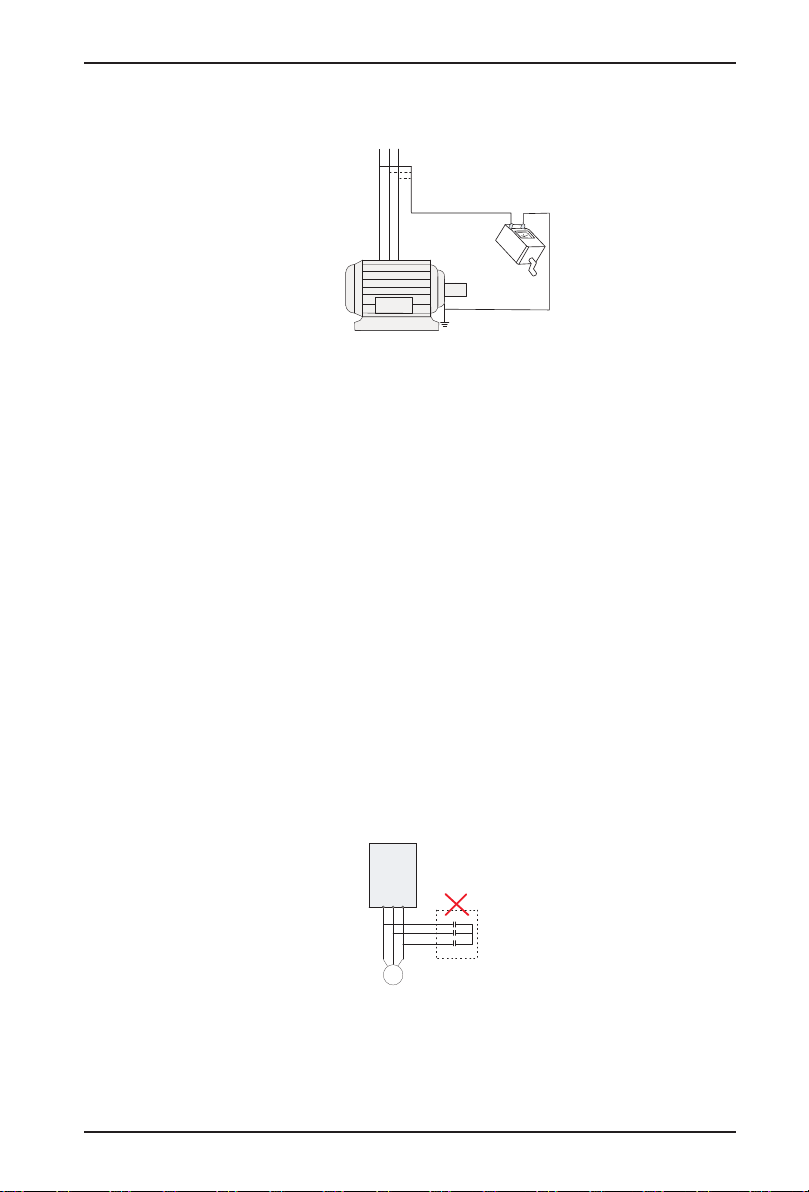

U VW
Megger
Input terminals
of the motor
Ground
4) Thermal protection of motor
If the rated capacity of the motor selected does not match that of the AC drive,
especially when the AC drive's rated power is greater than the motor's, adjust the motor
protection parameters on the operation panel of the AC drive or install a thermal relay
in the motor circuit for protection.
5) Running at over 50 Hz
The AC drive provides frequency output of 0−500 Hz. If the AC drive is required to run
at over 50 Hz, consider the capacity of the machine.
6) Vibration of mechanical device
The AC drive may encounter the mechanical resonance point at some output
frequencies, which can be avoided by setting the skip frequency.
7) Motor heat and noise
The output of the AC drive is pulse width modulation (PWM) wave with certain
harmonics, and therefore, the motor temperature, noise, and vibration are slightly
greater than when the AC drive runs at power frequency (50 Hz).
8) Voltage-sensitive device or capacitor on output side of the AC drive
Do not install the capacitor for improving power factor or lightning protection voltage-
sensitive resistor on the output side of the AC drive because the output of the AC drive
is PWM wave. Otherwise, the AC drive may suffer transient overcurrent or even be
damaged.
M
U V W
Capacitor or
voltage-sensitive
resistor
AC
drive
9) Contactor at the I/O terminal of the AC drive
When a contactor is installed between the input side of the AC drive and the power
supply, the AC drive must not be started or stopped by switching the contactor on or
off. If the AC drive has to be operated by the contactor, ensure that the time interval

Safety Information and Precautions VDF730 User Manual
- 12 -
between switching is at least one hour since frequent charge and discharge will shorten
the service life of the capacitor inside the AC drive.
When a contactor is installed between the output side of the AC drive and the motor,
do not turn off the contactor when the AC drive is active. Otherwise, modules inside the
AC drive may be damaged.
380 VAC
50/60 Hz
Do not start /stop the AC drive by switching
the contactor on /off. If the AC drive has to
be operated by the contactor , ensure that
the time interval is at least one hour .
R
S
T
V
W
U
Contactor KM Contactor KM or
other switches
M
AC drive
Turn on /off the contactor when
the AC drive has no output .
Otherwise , modules inside the
AC drive may be damaged .
10) When external voltage is out of rated voltage range
The AC drive must not be used outside the allowable voltage range specifed in this
manual. Otherwise, the AC drive's components may be damaged. If required, use a
corresponding voltage step-up or step-down device.
11) Prohibition of three-phase input changed into two-phase input
Do not change the three-phase input of the AC drive into two-phase input. Otherwise, a
fault will result or the AC drive will be damaged.
12) Surge suppressor
The AC drive has a built-in voltage dependent resistor (VDR) for suppressing the surge
voltage generated when the inductive loads (electromagnetic contactor, electromagnetic
relay, solenoid valve, electromagnetic coil and electromagnetic brake) around the AC
drive are switched on or off. If the inductive loads generate a very high surge voltage,
use a surge suppressor for the inductive load or also use a diode.
Note
Do not connect the surge suppressor on the output side of the AC.
13) Altitude and de-rating
In places where the altitude is above 1000 m and the cooling effect reduces due to thin
air, it is necessary to de-rate the AC drive. Contact Inovance for technical support.
14) Some special usages
If wiring that is not described in this manual such as common DC bus is applied,
contact the agent or Inovance for technical support.
15) Disposal
The electrolytic capacitors on the main circuits and PCB may explode when they are
burnt. Poisonous gas is generated when the plastic parts are burnt. Treat them as
ordinary industrial waste.

VDF730 User Manual Safety Information and Precautions
- 13 -
16) Adaptable Motor
• The standard adaptable motor is adaptable four-pole squirrel-cage asynchronous
induction motor or PMSM. For other types of motor, select a proper AC drive
according to the rated motor current.
• The cooling fan and rotor shaft of non-variable-frequency motor are coaxial, which
results in reduced cooling effect when the rotational speed declines. If variable
speed is required, add a more powerful fan or replace it with variable-frequency
motor in applications where the motor overheats easily.
• The standard parameters of the adaptable motor have been confgured inside the
AC drive. It is still necessary to perform motor auto-tuning or modify the default
values based on actual conditions. Otherwise, the running result and protection
performance will be affected.
• The AC drive may alarm or even be damaged when short-circuit exists on cables
or inside the motor. Therefore, perform insulation short-circuit test when the motor
and cables are newly installed or during routine maintenance. During the test,
make sure that the AC drive is disconnected from the tested parts.

Safety Information and Precautions VDF730 User Manual
- 14 -

2
Product Information

Product Information VDF730 User Manual
- 16 -
Chapter 2 Product Information
2.1 Designation Rules and Nameplate of the VDF730
Figure 2-1 Designation rules and nameplate of the VDF730
VDF730 T 7.5G B / 11P B
S Single -phase 220 V
Mark Voltage Class
Motor power (kW)0.4 0.75 …… 400 450
Mark 0.4 0.7 …… 400 450
11 kW, type P
Mapping relationship
T Three-phase 380 V
AC drive series
7.5 kW, type G
Nameplate
AC drive model
Power class
Rated input
Rated output
Manufacture SN
Blank No
Braking unit
BYes
Blank No
Braking unit
B Yes
2.2 VDF730 Models and Technical Data
Table 2-1 VDF730 models and technical data
VDF730 Model Input Voltage
Power
Capacity
(kVA)
Input
Current (A)
Output
Current (A)
Motor
Power (kW)
VDF730S0.4GB
Single-phase
220 V, range:
-15% to 20%
1.0 5.4 2.3 0.4
VDF730S0.7 GB 1.5 8.2 4.0 0.75
VDF730S1.5 GB 3.014.2 7.0 1.5
VDF730S2.2 GB 4.0 23.0 9.6 2.2
VDF730T0.7 GB
Three-phase
380 V, range:
-15% to 20%
1.5 3.4 2.1 0.75
VDF730T1.5 GB 3.0 5.0 3.8 1.5
VDF730T2.2 GB 4.0 5.8 5.1 2.2
VDF730T4.0GB/5.5PB 5.9 14.6 9.0/13.0 3.7/5.5
VDF730T5.5GB/7.5PB 8.9 20.5 13.0/17.0 5.5/7.5
VDF730T7.5GB/11PB 11.0 26.0 17.0/25.0 7.5/11
VDF730T11GB/15PB 17.0 35.0 25.0/32.0 11.0/15
MODEL： VDF730T2.2GB
INPUT： 3PH AC380V 5.8A 50/60Hz
OUTPUT： 3PH AC380V 5.1A 0-500Hz
S/N: VDF7180400001
POWER： 2.2kW

VDF730 User Manual Product Information
- 17 -
VDF730 Model Input Voltage
Power
Capacity
(kVA)
Input
Current (A)
Output
Current (A)
Motor
Power (kW)
VDF730T15GB/18.5PB
Three-phase
380 V, range:
-15% to 20%
21.0 38.5 32.0/37.0 15.0/18.5
VDF730T18.5G/22P 30.0 46.5 37.0/45.0 18.5/22
VDF730T22G/30P 40.0 62.0 45.0/60.0 22/30
VDF730T30G/37P 57.0 76.0 60.0/75.0 30/37
VDF730T37G/45P 69.0 92.0 75.0/91.0 37/45
VDF730T45G/55P 85.0 113.0 91.0/112.0 45/55
VDF730T55G/75P 114.0 157.0 112.0/150.0 55/75
VDF730T75G/90P 134.0 180.0 150.0/176.0 75/90
VDF730T90G/110P 160.0 214.0 176.0/210.0 90/110
VDF730T110G/132P 192.0 256.0 210.0/253.0 110/132
VDF730T132G/160P 231.0 307.0 253.0/304.0 132/160
VDF730T160G/200P 250.0 385.0 304.0/377.0 160/200
VDF730T200G/220P 280.0 430.0 377.0/426.0 200/220
VDF730T220G/250P 355.0 468.0 426.0/465.0 220/250
VDF730T250G/280P 396.0 525.0 465.0/520.0 250/280
VDF730T280G/315P 445.0 590.0 520.0/585.0 280/315
VDF730T315G/355P 500.0 665.0 585.0/650.0 315/355
VDF730T355G/400P 565.0 785.0 650.0/725.0 355/400
VDF730T400G/450P 630.0 883.0 752.0/820.0 400/450
2.3 Technical Specifcations
Table 2-2 Technical specifcations of the VDF730
Item Specifcations
Standard
functions
Maximum
frequency 500 Hz
Carrier frequency
0.5–16 kHz
The carrier frequency is automatically adjusted based on
the load features.
Input frequency
resolution
Digital setting: 0.01 Hz
Analog setting: maximum frequency x 0.025%
Control mode Voltage/Frequency (V/F) control
Startup torque 150%
Speed range 1:50

Product Information VDF730 User Manual
- 18 -
Item Specifcations
Standard
functions
Speed stability
accuracy ±1%
Overload capacity
•G type: 60s for 150% of the rated current
•P type: 60s for 130% of the rated current
Torque boost
•Fixed boost
•Customized boost 0.1%–30.0%
V/F curve
•Straight-line V/F curve
•Multi-point V/F curve
•Square V/F curve
Ramp mode
•Straight-line ramp
•S-curve ramp
Two groups of acceleration/deceleration time with the range
of 0.00–300.0s (m)
DC braking
DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0–36.0s
Braking action current value: 0.0%–100.0%
JOG control JOG frequency range: 0.00 Hz to maximum frequency
JOG acceleration/deceleration time: 0.0–300.0s
Simple PLC,
multi-speed
running
It implements up to 8 speeds via the simple PLC function or
combination of DI terminal states.
Built-in PID It implements the closed-loop process control system
easily.
Auto voltage
regulation (AVR)
It can keep constant output voltage automatically when the
mains voltage changes.
Overcurrent stall
control
The current is limited automatically during the running so
as to avoid frequent tripping due to overcurrent.
Rapid current limit It decreases the overcurrent faults to the minimum and
ensures normal running of the AC drive.
Individualized
functions
Peripheral device
safety check at
power-on
The AC drive performs safety check such as grounding and
short-circuit on peripheral devices at power-on.
Common DC bus Multiple AC drives share the DC bus.
MF.K key
This key can be used for command source switchover,
forward/reverse running selection, and jog running
selection.
Textile swing
frequency control
Control of multiple triangular wave frequencies is
supported.
Fixed length
control The fxed length control is supported.

VDF730 User Manual Product Information
- 19 -
Item Specifcations
RUN
Running
command source
•Operation panel control
•Terminal control
•Communication control
You can perform switchover between these sources in
various ways.
Frequency source
There are a total of eight frequency sources, including
digital setting, analog voltage setting, analog current
setting, pulse setting, multi-speed, PLC, PID and
communication setting.
Input terminal
5 x DI, one of which supports high-speed pulse input
2 x AI, AI1 supporting 0–10 V voltage input and AI2
supporting 0–10 V voltage input or 4–20 mA current input
(or operation panel potentiometer input through jumper
selection)
Output terminal
2 x DO
2 x relay output
1 x AO that supports 0–20 mA current output or 0–10 V
voltage output, to output the set frequency and running
frequency (FM can also be used for AO output)
Display and
operation on
the operation
panel
LED display It displays the parameters and monitored state of the AC
drive.
Protection
function
Motor short-circuit detection at power-on, input/output
phase loss protection, overcurrent protection, overvoltage
protection, undervoltage protection, overheat protection
and overload protection
Optional parts External operation panel (with or without the potentiometer),
braking components, external operation panel cable
Environment
Installation
location
Indoor, free from direct sunlight, dust, corrosive gas,
combustible gas, oil smoke, vapour, drip or salt.
Altitude Lower than 1000 m (de-rated if higher than 1000 m)
Ambient
temperature
-10°C to +40°C (de-rated if the ambient temperature is
between 40°C and 50°C
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage
temperature -20°C to +60°C
IP level IP20
Pollution degree PD2
Environment Power distribution
system TN , TT
