Vaillant eloSTOR pro VEH 50/7-3 User manual

Installation and maintenance instructions
eloSTOR pro
VEH 50/7-3
VEH 80/7-3
VEH 100/7-3
VEH 120/7-3
AT, DE
Publisher/manufacturer
Vaillant GmbH
Berghauser Str. 40 D-42859 Remscheid
Tel. [phone]‑0 Fax [phone]‑2810
[email protected] www.vaillant.de

Contents
2Installation and maintenance instructions eloSTOR pro 0020196671_06
Contents
1 Safety.................................................................... 3
1.1 Action-related warnings ......................................... 3
1.2 Intended use.......................................................... 3
1.3 General safety information .................................... 3
1.4 Regulations (directives, laws, standards).............. 4
2 Notes on the documentation .............................. 5
2.1 Observing other applicable documents ................. 5
2.2 Storing documents................................................. 5
2.3 Validity of the instructions...................................... 5
3 Product description............................................. 5
3.1 Identification plate.................................................. 5
3.2 CE label ................................................................. 5
3.3 Design.................................................................... 5
4 Set-up.................................................................... 5
4.1 Checking the scope of delivery.............................. 5
4.2 Requirements for the installation site .................... 6
4.3 Observing the minimum clearances ...................... 6
4.4 Installing the product.............................................. 6
5 Installation............................................................ 7
5.1 Hydraulic installation.............................................. 7
5.2 Requirements for electrical installation at the
installation site ....................................................... 7
5.3 Electrical installation .............................................. 8
6 Start-up................................................................. 8
6.1 Operating............................................................... 8
6.2 Checking that the product works correctly............. 8
6.3 Handing the product over to the operator.............. 9
7 Inspection and maintenance .............................. 9
7.1 Preparing the maintenance work........................... 9
7.2 Completing maintenance work .............................. 9
8 Detecting and rectifying faults ......................... 10
8.1 Replacing a defective heating element................ 10
8.2 Rectifying faults ................................................... 10
9 Decommissioning.............................................. 10
10 Recycling and disposal..................................... 10
11 Customer service............................................... 10
Appendix ............................................................................ 11
A Rectifying faults................................................. 11
B Dimensions and dimension drawing ............... 11
C Connection diagram.......................................... 12
C.1 Connection diagram............................................. 12
C.2 Selecting the power ............................................. 13
D Maintenance plan............................................... 15
E Technical data.................................................... 15

Safety 1
0020196671_06 eloSTOR pro Installation and maintenance instructions 3
1 Safety
1.1 Action-related warnings
Classification of action-related warnings
The action-related warnings are classified in
accordance with the severity of the possible
danger using the following warning signs and
signal words:
Warning symbols and signal words
Danger!
Imminent danger to life or risk of
severe personal injury
Danger!
Risk of death from electric shock
Warning.
Risk of minor personal injury
Caution.
Risk of material or environmental
damage
1.2 Intended use
There is a risk of injury or death to the user or
others, or of damage to the product and other
property in the event of improper use or use
for which it is not intended.
The product is designed to generate and
maintain heated drinking water for house-
holds.
–Max. hot water temperature: 85 ℃
The product is approved exclusively for ver-
tical installation on the wall.
The product must only be operated if a safety
group is installed.
Intended use includes the following:
–observance of accompanying operating,
installation and servicing instructions for
the product and any other system compon-
ents
–compliance with all inspection and main-
tenance conditions listed in the instruc-
tions.
The use of the product in vehicles, such as
mobile homes and caravans, is not classed
as intended use. Units that are not classed
as vehicles are those that are installed in
a fixed and permanent location (known as
"fixed installation").
Any other use that is not specified in these in-
structions, or use beyond that specified in this
document shall be considered improper use.
Any direct use in industrial or commercial
processes is also deemed to be improper.
Caution.
Improper use of any kind is prohibited.
1.3 General safety information
1.3.1 Risk caused by inadequate
qualifications
The following work must only be carried out
by competent persons who are sufficiently
qualified to do so:
–Set-up
–Dismantling
–Installation
–Start-up
–Inspection and maintenance
–Repair
–Decommissioning
▶Observe all instructions that are included
with the product.
▶Proceed in accordance with current tech-
nology.
▶Observe all applicable directives, stand-
ards, laws and other regulations.
1.3.2 Risk of death from electric shock
There is a risk of death from electric shock if
you touch live components.
Before commencing work on the product:
▶Disconnect the product from the power
supply by switching off all power supplies
at all poles (electrical partition with a con-
tact gap of at least 3 mm, e.g. fuse or cir-
cuit breaker).
▶Secure against being switched back on
again.
▶Check that there is no voltage.
1.3.3 Risk of death due to legionella in the
drinking water
Legionellas are pathogens that multiply
quickly at temperatures of up to approx-
imately 50 °C. The legionellas die off at
temperatures of over 60 °C.

1 Safety
4Installation and maintenance instructions eloSTOR pro 0020196671_06
▶Explain to the operator how the anti-Le-
gionella function works.
1.3.4 Risk of scalding and material
damage due to escaping hot or cold
water
▶If you use plastic pipes for the hot or cold
water connection of the product, you must
only use pipes that are temperature-res-
istant up to 95 °C under a pressure of 1.0
MPa (10 bar).
1.3.5 Preventing frost damage
If the product remains out of operation in an
unheated room for an extended period of
time, the water may freeze in the product and
in the pipelines.
▶Install the product in an installation room
that is always frost-free.
1.3.6 Material damage due to leaks
▶Ensure that there is no mechanical tension
on the supply lines.
▶Do not suspend any loads from the
pipelines (e.g. clothing).
1.3.7 Risk of death due to safety group
components either not being
installed or being incorrectly
installed
If certain safety group components (e.g. ex-
pansion relief valve, return flow prevention,
pressure reducer) have either not been in-
stalled or have been incorrectly installed,
this may lead to potentially fatal scalding and
other injuries.
▶Install the necessary safety group compon-
ents.
▶Do not install hydraulic accessories
between the safety group and the do-
mestic hot water cylinder's cold water pipe.
▶Explain to the operator how the safety
group works and where it is to be posi-
tioned.
1.3.8 Material damage due to unsuitable
installation surface
The installation surface must be even and
have sufficient load-bearing capacity to sup-
port the operating weight of the product. An
uneven installation surface may cause leaks
in the product.
There is a risk of death if the connections are
subject to leaks.
▶Make sure that the product is positioned
flush against the installation surface.
▶Ensure that the installation surface has
sufficient load-bearing capacity to bear the
operating weight of the product.
1.3.9 Risk of material damage caused by
using an unsuitable tool
▶Use the correct tool to tighten or loosen
threaded connections.
1.3.10 Material damage due to limescale
deposits in the expansion relief
valve
Hard water can cause limescale to accumu-
late in the expansion relief valve.
▶Regularly check the expansion relief valve
manually to ensure that it works correctly
by turning the cap one turn anticlockwise.
Water escapes.
◁Escaping water may be hot.
1.4 Regulations (directives, laws,
standards)
▶Observe the national regulations, stand-
ards, guidelines and laws.

Notes on the documentation 2
0020196671_06 eloSTOR pro Installation and maintenance instructions 5
2 Notes on the documentation
2.1 Observing other applicable documents
▶You must observe all the operating and installation in-
structions included with the system components.
2.2 Storing documents
▶Pass these instructions and all other applicable docu-
ments on to the system operator.
2.3 Validity of the instructions
These instructions apply only to:
Product article number
VEH 50/7-3 0010016657
VEH 80/7-3 0010016658
VEH 100/7-3 0010016659
VEH 120/7-3 0010016660
3 Product description
3.1 Identification plate
The identification plate is located on the lower side of the
product.
The identification plate contains the following information:
Information Meaning
Serial no. Serial number
VEH XX 7-3 Type designation
l Fill quantity
3/N/PE 400 V
1/N/PE 230 V
~ 50/60 Hz
Electrical connection data
MPa (bar) Max. operating pressure
IP25D IP rating
VDE mark
3.2 CE label
The CE label shows that the products comply with the basic
requirements of the applicable directives as stated on the
identification plate.
The declaration of conformity can be viewed at the manufac-
turer's site.
3.3 Design
4
1
2
6
7
8
5
3
1 Product bracket
2 Domestic hot water
cylinder
3 Rotary knob
4 Cold water connection
5 Mains connection line
6 Hot water connection
7 Rapid heating button
8 Signal lamp
The cylinder is equipped with external heat insulation. The
cylinder vessel is made of enamelled steel. The heating ele-
ments that transfer the heat are located inside the vessel. As
additional corrosion protection, the vessel has a magnesium
protection anode.
4 Set-up
4.1 Checking the scope of delivery
▶Check that the scope of delivery is complete.
Quantity Component
1 Domestic hot water cylinder
1 Product bracket
1 Installation template
1 Operating instructions
1 Installation and maintenance instructions
Applicability: VEH 80/7-3
Quantity Component
1 Connector 0020192421
1 Connector 0020192422

4 Set-up
6Installation and maintenance instructions eloSTOR pro 0020196671_06

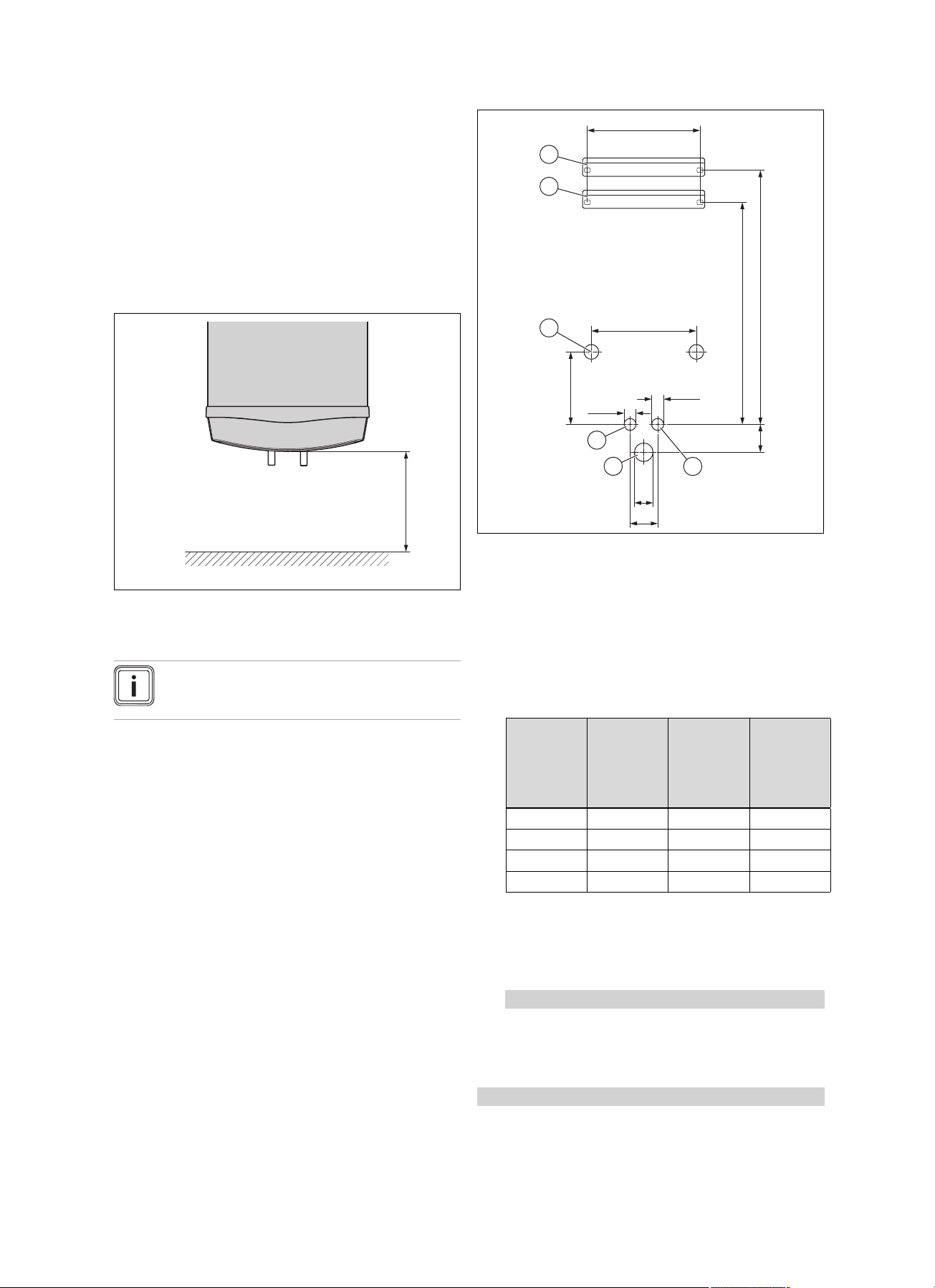

4.2 Requirements for the installation site
▶Observe the following requirements:
–Installation height above sea level: < 2000 m
–Installation only in rooms that are always dry and free
of frost
–Installation only on a level, vertical and stable wall
–Installation only on a wall with sufficient load-bearing
capacity for the filled product (→Appendix: Technical
data)
4.3 Observing the minimum clearances
≥500
▶Comply with the minimum clearances during installation.
4.4 Installing the product
Note
All VEH/7 cylinders can be installed with the exist-
ing safety group.
A1
A2
220 - 305
240
100
R ½
R ½
350
100
R1
6
1
2
3
5
4
1 Product bracket (re-
placement for VEH 5)
2 Product bracket (new
installation or replace-
ment for VEH 6)
3 Bearing surfaces for
wall support
4 Hot water connection
5 Discharge connection
6 Cold water connection
A1 Distance between the
product bracket and
water connections
(replacement for VEH 5)
A2 Distance between the
product bracket and
water connections
(new installation or
replacement for VEH 6)
1. Install the product bracket.
Unit A1
(Replace-
ment for
VEH 5)
A2
(New
installation
or
replacement
for VEH 6)
VEH 50/7-3 mm 790 690
VEH 80/7-3 mm 1020 920
VEH 100/7-3 mm 1020 920
VEH 120/7-3 mm 1020 920
2. Hang the product in the product bracket.
–Lateral corrections are possible as a result of move-
ment.
3. Install the safety group to the water connections of the
VEH.
Conditions: New safety group required
–Vaillant Safety group without a pressure reducer
0020174068
–Vaillant Safety group with a pressure reducer
0020174067
Conditions:VEH 80
▶Replace the connectors from the safety group with the
connectors supplied for the VEH 80.

Installation 5
0020196671_06 eloSTOR pro Installation and maintenance instructions 7
–Vaillant connector 0020192421
–Vaillant connector 0020192422
Conditions: The wall is uneven.
▶Smooth out any unevenness in the wall with the wall
supports.
5 Installation
5.1 Hydraulic installation
Warning.
Risk of adverse health effects caused by
impurities in the potable water.
Sealing residues, dirt or other residues in the
pipelines may adversely affect the quality of
the potable water.
▶Flush all of the hot and cold water pipes
thoroughly before you install the product.
Conditions: Pressure-tight installation
7 86 95
1 2
43
1 Return flow prevention
2 Circulation pump
3 Expansion relief valve
4 Stop valve
5 Pressure gauge con-
nectors
6 Return flow prevention
7 Test valve
8 Pressure reducer
9 Cold water stop valve
▶Install components (1) to (9).
▶Install the safety device as close as possible to the pro-
duct's cold water inlet.
▶Install the drain pipework at a constant incline.
▶Maintain a clearance between the expansion relief
valve's discharge pipe and the tundish so that the drain
pipework is open to the atmosphere.
–Clearance: ≥20 mm
▶Make sure that the diameter of the drain pipework is at
least equal to that of the expansion relief valve's dis-
charge pipe.
▶Check the water connection positive pressure.
Result 1:
Water connection positive pressure: ≤6 bar
▶Install a suitable safety group without a pressure
reducer, e.g. the Vaillant safety group 0020174068.
Result 2:
Water connection positive pressure: 6 … 16 bar
▶Install a suitable safety group with a pressure redu-
cer, e.g. the Vaillant safety group with pressure re-
ducer 0020174067.
5.2 Requirements for electrical installation at
the installation site
Danger!
Risk of electric shock
There is a risk of electric shock when working
on electrical components that are connected
to the low-voltage network.
▶Disconnect the product from the power
supply.
▶Secure the product against being
switched back on again.
▶Check that the product is de-energised.
▶Only open the product when it is de-ener-
gised.

6 Start-up
8Installation and maintenance instructions eloSTOR pro 0020196671_06
▶Connect the product to a permanent mains connection
via a partition wall.
–Requirements for the partition: Contact opening of at
least 3 mm; mains connection is switched off at all
pins
▶Make sure that the line protection switches are suitable
for the measuring current.
–Measuring current: 16 A

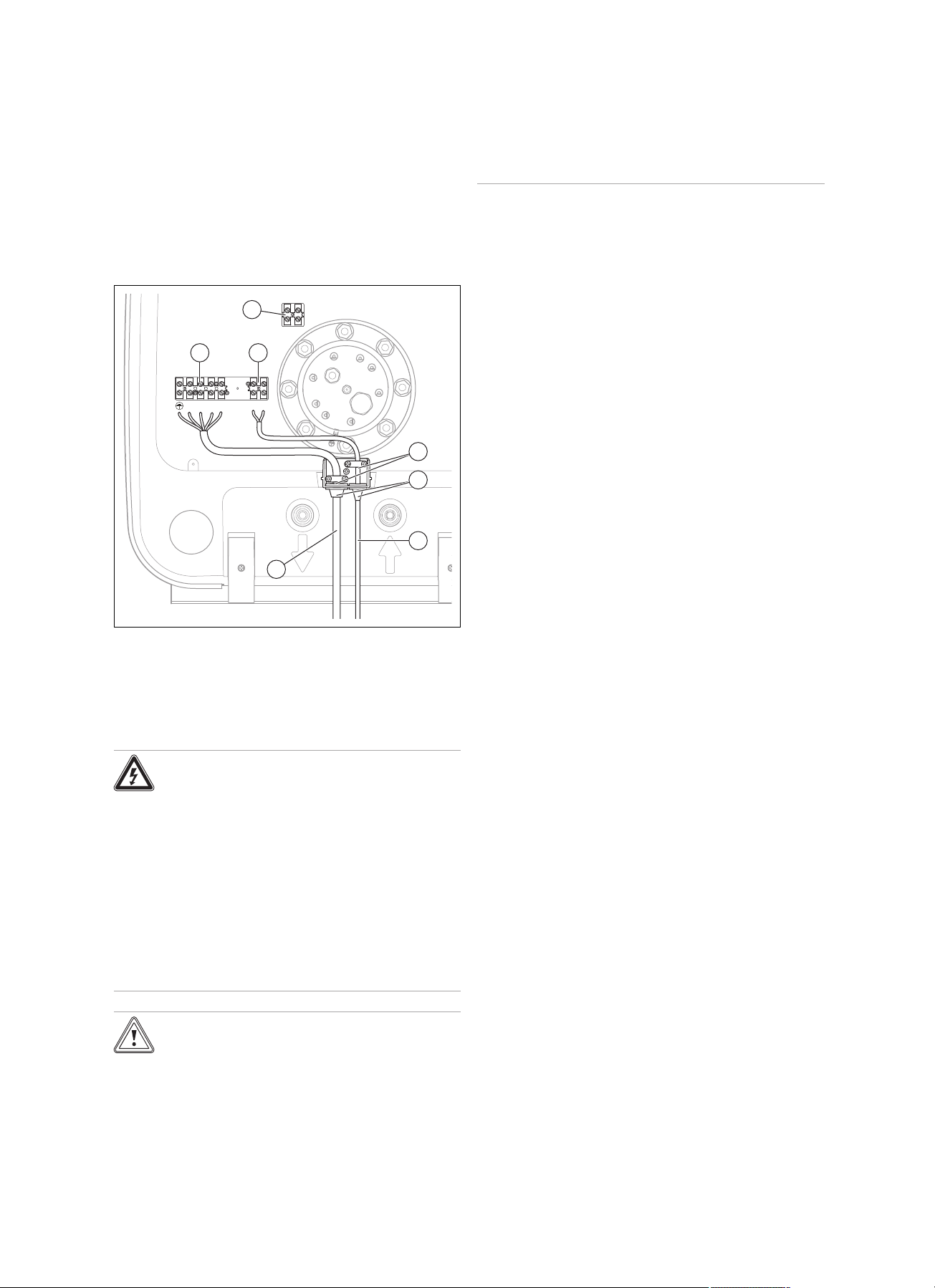

5.3 Electrical installation
12
45
L1 L2 L3 N
1
3
4
5 7
6
2
1 Mains connection cable
2 Auxiliary connection
cable
3 Cable duct
4 Strain relief
5 Mains connection ter-
minal
6 Output selection ter-
minal
7 Auxiliary connection
terminal
Danger!
Risk of electric shock
There is a risk of electric shock when working
on electrical components that are connected
to the low-voltage network.
▶Disconnect the product from the power
supply.
▶Secure the product against being
switched back on again.
▶Check that the product is de-energised.
▶Only open the product when it is de-ener-
gised.
Caution.
Material damage due to the mains connec-
tion cable and auxiliary connection cable
being switched
If the connection cables are switched, the
product can be operated but the thermostat
and safety cut-out will not work.
▶Ensure that the mains connection cable is
correctly connected to the mains connec-
tion terminal and the auxiliary connection
cable to the auxiliary connection terminal.
1. Observe the connection diagram. (→Page 12)
2. Guide the mains connection cable (1) through the cable
duct (3) and through the strain relief (4).
3. Tighten the screws on the strain relief (4).
4. Secure the mains connection cable (1) to the mains
connection terminal (5).
5. Guide the auxiliary connection cable (2) through the
cable duct (3) and through the strain relief (4).
6. Tighten the screws on the strain relief (4).
7. Secure the auxiliary connection cable (2) to the auxiliary
connection terminal (7).
Re-work
▶Using an indelible pen, note the connected power on the
identification plate.
6 Start-up
1. Open the cold water stop cock.
2. Open the hot water valves.
3. Wait until water flows out of the hot water valves.
4. Close the hot water valves.
5. Check that the expansion relief valve is functioning
properly by venting the expansion relief valve.
◁Water must escape from the expansion relief valve.
6. Ensure that the safety cut-out is switched on.
◁The red button must be pushed in.
7. Check that all of the pipe connections are leak-tight.
8. Switch on the fuses.
9. Switch on the line protection switches.
10. Check whether the signal lamp lights up and signals the
heating of the domestic hot water cylinder.
6.1 Operating
The domestic hot water cylinder operating instructions list
the functions that can be set by the operator.
6.2 Checking that the product works correctly
1. Open the hot water draw-off point that is furthest away
from the domestic hot water cylinder.
◁If water leaks from the hot water draw-off point, the
domestic hot water cylinder has been sufficiently
filled with water.
2. When the domestic hot water cylinder is heated for the
first time, check whether the expansion relief valve is
operating correctly.
◁If water drips from the discharge line, the expansion
relief valve is operating correctly.

Inspection and maintenance 7
0020196671_06 eloSTOR pro Installation and maintenance instructions 9
6.3 Handing the product over to the operator
▶Inform the operator how to handle the product. Answer
any questions the operator may have. In particular, draw
attention to the safety information which the operator
must follow.
▶Explain to the operator how the safety devices work and
where they are located.
▶Explain to the operator how to limit the hot water temper-
ature at the draw-off point in order to prevent scalding.
▶Inform the operator of the necessity to have the product
maintained on a regular basis.
▶Provide the operator with all relevant instructions and unit
documentation for safe-keeping.
7 Inspection and maintenance
▶You can find the inspection and maintenance work in the
maintenance plan in the appendix. (→Page 15)
7.1 Preparing the maintenance work
Danger!
Risk of electric shock
There is a risk of electric shock when working
on electrical components that are connected
to the low-voltage network.
▶Disconnect the product from the power
supply.
▶Secure the product against being
switched back on again.
▶Check that the product is de-energised.
▶Only open the product when it is de-ener-
gised.
▶Remove the mains connection lines.

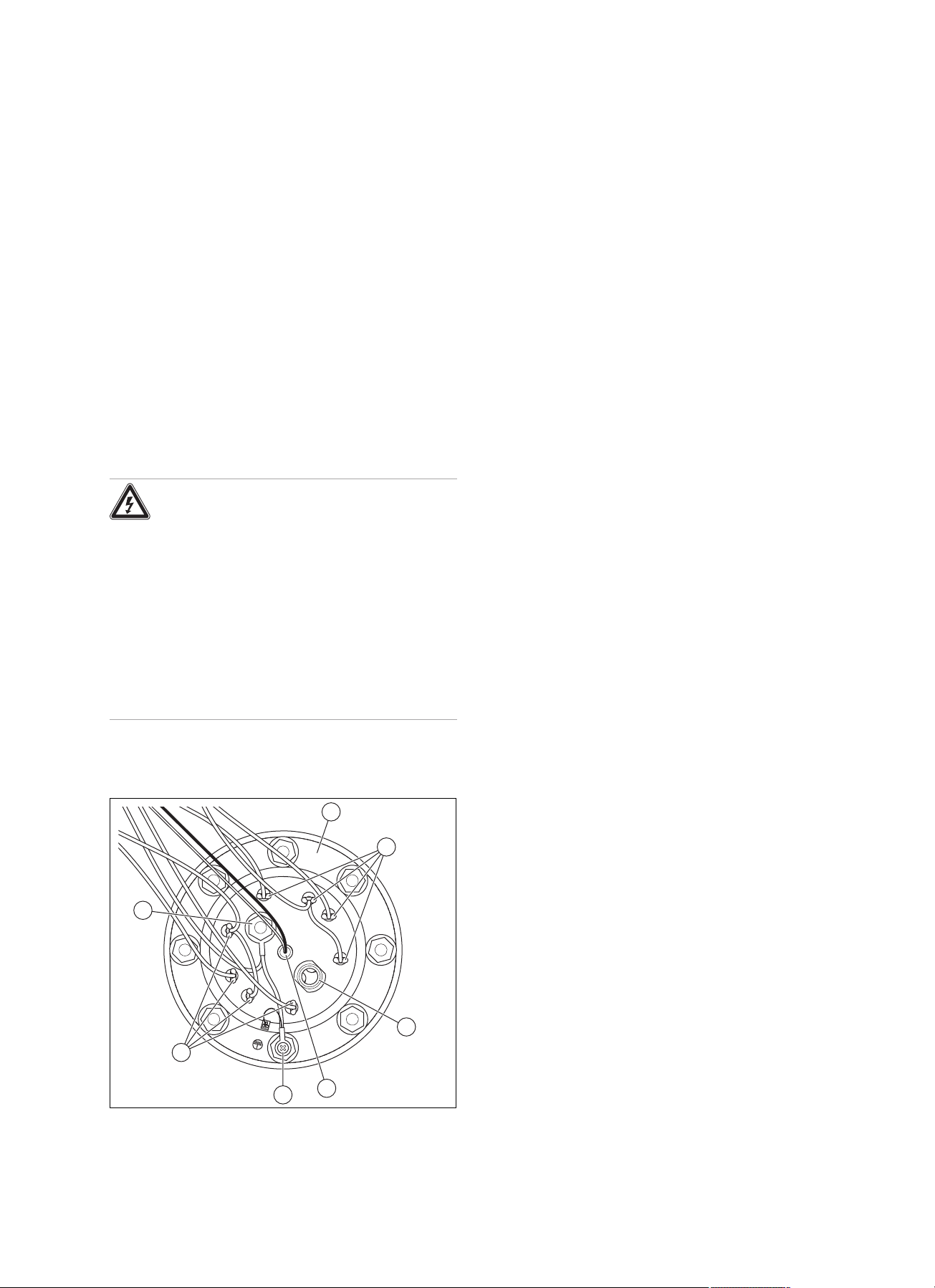

7.1.1 Checking the magnesium protection anode
1
2
2
5
3
4
6
1 Flange with hex nuts
2 Heating elements
3 Drain cock
4 Temperature sensor
5 Earth line
6 Magnesium protection
anode
1. Disconnect the product from the power supply.
(→Page 10)
2. Empty the product. (→Page 10)
Removing the flange
3. Unscrew the cover on the flange.
4. Remove the electrical connections on the heating ele-
ments (2) from the terminal block.
5. Undo the hex nuts on the cover for the flange (1) and
the electronics box.
6. Remove the temperature sensor (4) for the thermostat
and the safety cut-out.
7. Unscrew the earth line (5) from the flange.
8. Remove the flange straight from the cylinder tank.
Replacing the magnesium protection anode
9. Replace the magnesium protection anode (6) when it is
worn to an extent of 60%.
Installing the flange
10. Replace the flange seal.
11. Check the inner vessel and components for scale de-
position. (→Page 9)
12. Screw the flange in place.
13. Screw on the earth line.
14. Insert the temperature sensor for the thermostat and
the safety cut-out into the opening provided for them.
15. Use a cube plug to place the electrical connections for
the heating elements on the terminal block.
16. Screw the cover to the product tightly.
17. Start up the product. (→Page 8)
7.1.2 Checking the inner vessel and components
for scale deposition
1. Disconnect the product from the power supply.
(→Page 10)
2. Empty the product. (→Page 10)
3. Remove the flange. (→Page 9)
4. If necessary, clean the inner vessel with descaling
agents or by carefully scraping it with a wooden spatula.
5. Install the flange. (→Page 9)
6. Replace components if necessary.
7. Start up the product. (→Page 8)
7.2 Completing maintenance work
1. Fit the casing.
2. Ensure that all of the product's components have been
installed correctly.
3. Connect the product to the power supply.
4. Switch on the product.

8 Detecting and rectifying faults
10 Installation and maintenance instructions eloSTOR pro 0020196671_06
8 Detecting and rectifying faults
8.1 Replacing a defective heating element
1. Disconnect the product from the power supply.
(→Page 10)
2. Empty the product. (→Page 10)
3. Remove the flange. (→Page 9)
4. Unscrew the defective heating element from the flange.
5. Screw the new heating element onto the flange.
6. Install the flange. (→Page 9)
7. Start up the product. (→Page 8)
8.2 Rectifying faults
▶Use the table in the appendix to rectify the faults
(→Page 11).
9 Decommissioning
Disconnecting the product from the power supply
Danger!
Risk of electric shock
There is a risk of electric shock when working
on electrical components that are connected
to the low-voltage network.
▶Disconnect the product from the power
supply.
▶Secure the product against being
switched back on again.
▶Check that the product is de-energised.
▶Only open the product when it is de-ener-
gised.
1. Remove the mains connection lines.
Emptying the product
2. Close the cold water stop cock.
3. Open a hot water valve connected to the product.
4. Drain the domestic hot water cylinder using the drain
cock.
Removing the product
5. Remove the cold and hot water piping.
6. Undo the screws.
7. Lift the product and remove it from the wall.
8. Remove the screws from the wall.
10 Recycling and disposal
Disposing of the packaging
▶Dispose of the packaging correctly.
▶Observe all relevant regulations.
11 Customer service
Applicability: Austria
Vaillant Group Austria GmbH
Clemens-Holzmeister-Straße 6
1100 Wien
Österreich
E-Mail Kundendienst: [email protected]
Internet Kundendienst: http://www.vaillant.at/werkskundendi-
enst/
Telefon: 05 7050‑2100 (zum Regionaltarif österreichweit,
bei Anrufen aus dem Mobilfunknetz ggf. abweichende Tarife
- nähere Information erhalten Sie bei Ihrem Mobilnetzbe-
treiber)
Der flächendeckende Kundendienst für ganz Österreich ist
täglich von 0 bis 24 Uhr erreichbar. Vaillant Kundendienst-
techniker sind 365 Tage für Sie unterwegs, sonn- und feier-
tags, österreichweit.
Applicability: Germany
Auftragsannahme Vaillant Kundendienst: 021 91 5767901

Appendix
0020196671_06 eloSTOR pro Installation and maintenance instructions 11
Appendix
A Rectifying faults
Fault Possible cause Troubleshooting
The safety cut-out has
been tripped.
Dry fire –Check why the domestic hot water cylinder does not contain any
water and replace the faulty component.
–Fill the domestic hot water cylinder.
Heat-up time too long Check that the electrical plug connections and other connections are
seated correctly and correct these if necessary.
–Expansion relief valve is open
–Expansion relief valve is defect-
ive
–Close the expansion relief valve.
–Replace the expansion relief valve.
B Dimensions and dimension drawing
A
B C
470507
100
R ½
350
100
41
Dimensions
VEH 50/7-3 VEH 80/7-3 VEH 100/7-3 VEH 120/7-3
A637 mm 875 mm 1,041 mm 1,207 mm
B529 mm 673 mm 759 mm 759 mm

Appendix
12 Installation and maintenance instructions eloSTOR pro 0020196671_06
C Connection diagram
C.1 Connection diagram
12L1 L3
L2 N
45
HK4 HK1 HK2 HK3
TR
STB
12
3
4
10
6
11
12
13
5
7
8
9
1 Feeding in the single-/twin-circuit switching
2 Mains connection terminal
3 Relay
4 Signal lamp
5 Thermostat
6 Safety overheat cut-off device
7 Vessel earthing
8 Protection anode earthing
9 Functional earth resistor
10 Heating elements
11 Isolating plug
12 Output selection terminal
13 Rapid heating button

Appendix
0020196671_06 eloSTOR pro Installation and maintenance instructions 13
C.2 Selecting the power
Operating mode Mains connection Basic load Rapid heating
Single-circuit switch-
ing
12L1 L3
L2 N
45
LNPE
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
2 kW
–
–VEH 120/7-3
1.5 kW
–
12L1 L3L2 N
45
LNPE
– –
–VEH 120/7-3
3 kW
–
12L1 L3
L2 N
45
LNPE
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
4 kW
–
–VEH 120/7-3
4.5 kW
–
12L1 L3L2 N
45
NPE
L2L1
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
4 kW
–
–VEH 120/7-3
4.5 kW
–
12L1 L3L2 N
45
NPE
L3
L2L1
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
6 kW
–
–VEH 120/7-3
6 kW
–
Operating mode Mains connection Basic load Rapid heating
Twin-circuit switching
12L1 L3
L2 N
45
LNPE
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
1 kW
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
2 kW
–VEH 120/7-3
–
–VEH 120/7-3
–
12L1 L3L2 N
45
LNPE
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
2 kW
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
2 kW
–VEH 120/7-3
–
–VEH 120/7-3
–
12L1 L3L2 N
45
LNPE
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
1 kW
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
4 kW
–VEH 120/7-3
1.5 kW
–VEH 120/7-3
4.5 kW

Appendix
14 Installation and maintenance instructions eloSTOR pro 0020196671_06
Operating mode Mains connection Basic load Rapid heating
Twin-circuit switching
12L1 L3L2 N
45
LNPE
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
2 kW
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
4 kW
–VEH 120/7-3
3 kW
–VEH 120/7-3
4.5 kW
12L1 L3
L2 N
45
L1 NPE L2
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
1 kW
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
4 kW
–VEH 120/7-3
1.5 kW
–VEH 120/7-3
4.5 kW
12L1 L3L2 N
45
L1 N PE L2
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
2 kW
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
4 kW
–VEH 120/7-3
3 kW
–VEH 120/7-3
4.5 kW
12L1 L3L2 N
45
L1 N PE L2 L3
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
1 kW
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
6 kW
–VEH 120/7-3
1.5 kW
–VEH 120/7-3
6 kW
12L1 L3
L2 N
45
L1 N PE L2 L3
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
2 kW
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
6 kW
–VEH 120/7-3
3 kW
–VEH 120/7-3
6 kW
Operating mode Mains connection Basic load Rapid heating
Manual mode
12L1 L3
L2 N
45
LNPE
– – VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
2 kW
– – VEH 120/7-3
1.5 kW
12L1 L3
L2 N
45
LNPE
– –
– – VEH 120/7-3
3 kW
12L1 L3
L2 N
45
LNPE
– – VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
4 kW
– – VEH 120/7-3
4.5 kW

Appendix
0020196671_06 eloSTOR pro Installation and maintenance instructions 15
Operating mode Mains connection Basic load Rapid heating
Manual mode
12L1 L3L2 N
45
L2 NPE L1
– – VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
4 kW
– – VEH 120/7-3
4.5 kW
12L1 L3L2 N
45
NPE
L3
L2L1
– –
–VEH 50/7-3
–VEH 80/7-3
–VEH 100/7-3
6 kW
– – VEH 120/7-3
6 kW
D Maintenance plan
Maintenance work Interval
Checking seals Each time maintenance work is
carried out
Tighten the fixing screws Each time maintenance work is
carried out
Checking the magnesium protection anode Every three years
Checking the inner vessel and components for scale deposition Every three years
E Technical data
Technical data –General
VEH 7-3
Operating mode Single- or twin-circuit switching or manual operation
Thermal insulation PU foam, CFC-free
Inner vessel Steel, enamelled, with magnesium protection anode
Safety Complies with national safety regulations; radio-shielded; does not affect the mains
supply
Technical data –General
VEH 50/7-3 VEH 80/7-3 VEH 100/7-3 VEH 120/7-3
Product dimensions, height 637 mm 875 mm 1.041 mm 1.207 mm
Product dimensions, width 504 mm 504 mm 504 mm 504 mm
Product dimensions, depth 450 mm 450 mm 450 mm 450 mm
Weight when filled with water 80 kg 130 kg 160 kg 185 kg
Nominal capacity 50 l 80 l 100 l 120 l
Electrical power consumption –1 kW
–2 kW
–4 kW
–6 kW
–1 kW
–2 kW
–4 kW
–6 kW
–1 kW
–2 kW
–4 kW
–6 kW
–1.5 kW
–3 kW
–4.5 kW
–6 kW
Technical data –Output
VEH 50/7-3 VEH 80/7-3 VEH 100/7-3 VEH 120/7-3
Standby energy consumption (in 24 hours at
65 °C)
0.6 kWh 0.8 kWh 0.93 kWh 1.06 kWh
Selectable hot water temperature range 7 … 85 °C 7 … 85 °C 7 … 85 °C 7 … 85 °C
Energy-saving setting 60 °C 60 °C 60 °C 60 °C
Mixed water volume from 40 °C 96 l 157 l 196 l 237 l

Appendix
16 Installation and maintenance instructions eloSTOR pro 0020196671_06
VEH 50/7-3 VEH 80/7-3 VEH 100/7-3 VEH 120/7-3
Heat-up time (from 10 to 60 °C) at 1 kW 2.73 h 4.60 h 6.83 h –
Heat-up time (from 10 to 60 °C) at 1.5 kW –––4.35 h
Heat-up time (from 10 to 60 °C) at 2 kW 1.43 h 2.18 h 3.51 h –
Heat-up time (from 10 to 60 °C) at 3 kW –––2.16 h
Heat-up time (from 10 to 60 °C) at 4 kW 0.73 h 1.00 h 1.82 h –
Heat-up time (from 10 to 60 °C) at 4.5 kW –––1.32 h
Heat-up time (from 10 to 60 °C) at 6 kW 0.39 h 0.68 h 0.90 h 0.98 h
Permissible operating pressure 0 … 0.6 MPa 0 … 0.6 MPa 0 … 0.6 MPa 0 … 0.6 MPa
Technical data –Electrics
VEH 50/7-3 VEH 80/7-3 VEH 100/7-3 VEH 120/7-3
Electric connection –230 V/50 Hz
–400 V/50 Hz
–230 V/50 Hz
–400 V/50 Hz
–230 V/50 Hz
–400 V/50 Hz
–230 V/50 Hz
–400 V/50 Hz
Rated current 16 A 16 A 16 A 16 A
Level of protection IP25D IP25D IP25D IP25D

0020196671_06 19.12.2017
Supplier
Vaillant Group Austria GmbH
Clemens-Holzmeister-Straße 6 1100 Wien
Telefon 05 7050 Telefax 05 7050‑1199
Telefon 05 7050‑2100 (zum Regionaltarif österreichweit, bei Anrufen aus dem Mobilfunknetz ggf. abweichende
Tarife - nähere Information erhalten Sie bei Ihrem Mobilnetzbetreiber)
[email protected] [e-mail]
www.vaillant.at www.vaillant.at/werkskundendienst/
Vaillant Deutschland GmbH & Co.KG
Berghauser Str. 40 D-42859 Remscheid
Telefon [phone]‑0 Telefax 021 91 18‑2810
Auftragsannahme Vaillant Kundendienst 021 91 5767901
[email protected] www.vaillant.de
© These instructions, or parts thereof, are protected by copyright and may be reproduced or distributed only with
the manufacturer's written consent.
We reserve the right to make technical changes.
0020196671_06
