Product overview
Vaisala CMS Industrial Cabinet CAB100 is an instrument cabinet designed to integrate devices
for measuring humidity, temperature, dierential pressure, and other parameters.
CAB100 is available in 2 models, CAB100A (small enclosure) and CAB100B (large enclosure).
The cabinets can be configured according to application requirements, with options for
dierential pressure transmitters, analog input channels for the connection of remote
transmitters, and safety barriers or galvanic isolators for hazardous areas, used with
intrinsically safe devices.
Table 1 CAB100 configuration options
CAB100 model Max. number of devices or
measurement points
per cabinet
Powering Communication
interface
CAB100A
PDT101 model 4 PDT101 transmitters Within cabinet:
24 VDC / 2.5 A
To cabinet:
110 … 240 VAC
Serial port server
Power over
Ethernet
Vaisala vNet PoE
data logger interface
Analog input channel
model
4 analog input channels Within cabinet:
24 VDC / 2.5 A
To cabinet:
110 … 240 VAC
Serial port server
Safety barrier model 4 safety barriers
Galvanic isolator
model
4 galvanic isolators
CAB100B 1)
PDT101 model 16 PDT101 transmitters Within cabinet:
24 VDC / 2.5 A
To cabinet:
110 … 240 VAC
Serial port server
Analog input channel
model
32 analog input channels
Safety barrier model 16 safety barriers
Galvanic isolator
model
12 galvanic isolators
1) Mixed CAB100B models are also available, with certain limitations. Contact your Vaisala
sales representative for details.
For the full CAB100 product specifications, installation instructions, wiring
diagrams, and layout drawings, see www.vaisala.com/cab100.
5
ENGLISH

Installation safety
Only licensed experts may install electrical components. They
must adhere to local and state legislation and regulations.
WARNING!
Do not open the AC/DC power supply module. There are no user-
serviceable parts inside the module. If the power supply module is faulty,
replace it.
WARNING!
Keep away from live circuits. Operating personnel must observe
safety regulations at all times.
WARNING!
Ground the product and verify installation grounding periodically
to minimize shock hazard.
WARNING!
After disconnecting the power cable, dangerous voltages can
exist for some time. To avoid injury, disconnect the power and discharge
circuits before touching them.
WARNING!
CAB100 analog input channels are not surge protected. Therefore,
note the following:
• The analog input channel wiring must not exceed 30 meters.
• The wiring must not come from outside the building where CAB100 is
installed.
If CAB100 cannot be installed in an environment that meets the above criteria,
use a suitable surge protection device that has been installed following local
regulations.
CAUTION!
Do not use the power block in CAB100 to power measurement
devices that cannot be loop-powered.
CAUTION!
Do not modify the unit or use it in ways not described in the
documentation. Improper modification may lead to safety hazards, equipment
damage, failure to perform according to specification, decreased equipment
lifetime, or the warranty becoming void.
CAUTION!
6 M212284EN-C

For safety reasons, do not carry out installations alone. Safe
installation requires at least 2 people.
CAUTION!
7
ENGLISH

Installing the enclosure
• 4‑mm Allen key
• 10-mm wrench
• Drill and 8-mm drill bits for making the installation holes
• Spirit level
CAB100 is shipped with a mounting frame and installation accessories for indoor wall
installation. If the screws delivered with the mounting frame are not suitable for the wall
material in the installation location, use any appropriate screws to attach the frame.
Do not drill holes in the backplate or the cabinet enclosure. Drill
shavings may damage the equipment inside the cabinet.
CAUTION!
Installing CAB100A with mounting frame
200 [7.9]
300 [12]
Ø
8 [0.31]
mm
[in]
4
1
3
2

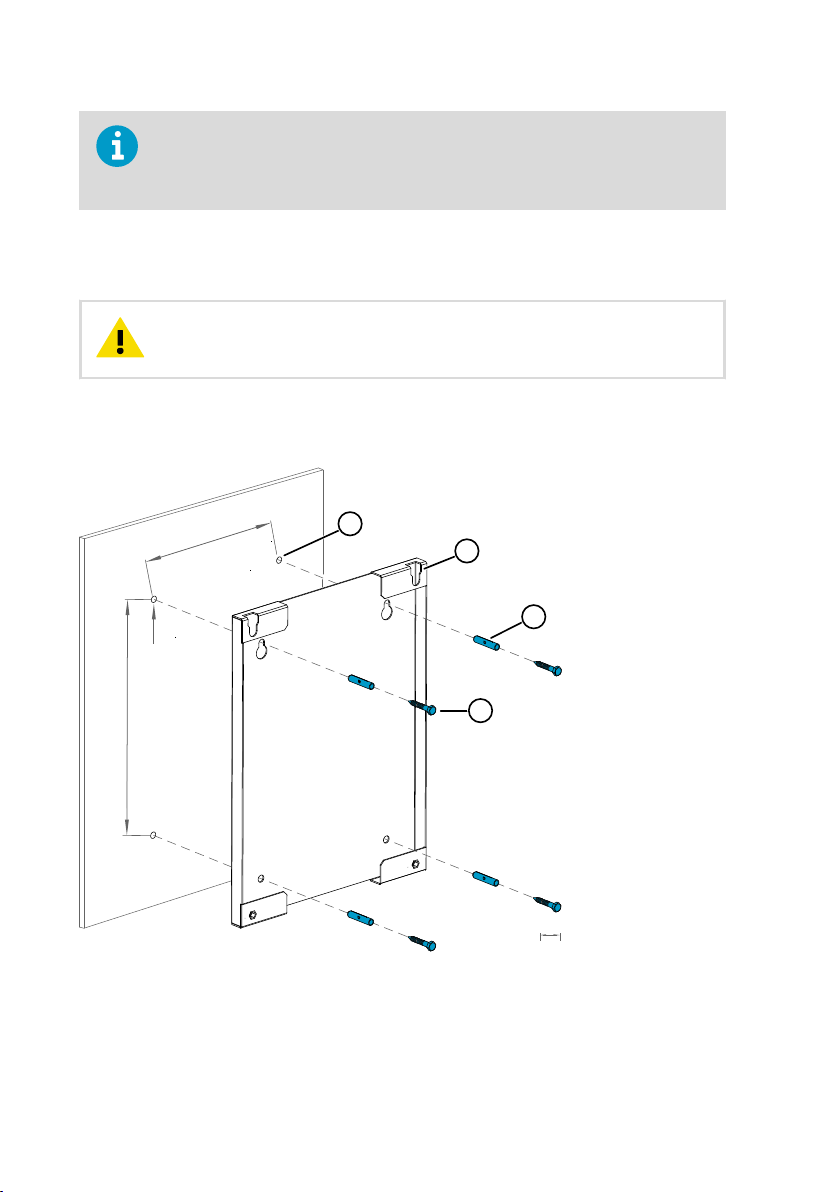

Figure 1 CAB100A wall installation accessories
1Hole for wall plug (4 pcs)
2Mounting slot (2 pcs)
3Wall plug (4 pcs)
4Hex wood screw M6×40 DIN571 A2 (4 pcs)
8 M212284EN-C

1. Drill holes into the wall. Use the mounting frame as a guide.
2. Place the wall plugs into the drilled holes.
3. Attach the mounting frame to the wall with screws.
4. Lift the enclosure into place.
Hang the enclosure onto the frame by sliding the mounting studs on the back of the
enclosure into the mounting slots of the frame.
5. Attach the bottom of the enclosure to the mounting frame.
2
1
1Washer with EPDM gasket 6.8/16×1.5/A2/EPDM (2 pcs)
2Hex screw M6×16 ISO7380 A4 (2 pcs)
9
ENGLISH

Installing CAB100B with mounting frame
175 [6.9] 175 [6.9]
440 [17.3]
Ø 8 [0.31]
4
1
3
2
mm
[in]
Figure 2 CAB100B wall installation accessories
1Hole for wall plug (4 pcs)
2Wall plug (4 pcs)
3Mounting slot (2 pcs)
4Hex wood screw M6×40 DIN571 A2 (4 pcs)
1. Drill holes into the wall. Use the mounting frame as a guide.
2. Place the wall plugs into the drilled holes.
3. Attach the mounting frame to the wall with screws.
10 M212284EN-C

4. Lift the enclosure into place. Hang the enclosure onto the frame by sliding the mounting
studs on the back of the enclosure into the mounting slots of the frame.
5. Attach the bottom of the enclosure to the mounting frame.
1
2
1Washer with EPDM gasket 6.8/16×1.5/A2/EPDM (2 pcs)
2Hex screw M6×16 ISO7380 A4 (2 pcs)
11
ENGLISH

Physical structure and components
1
5
6
4
7
8
3
9
10
2
Figure 3 Main components inside CAB100A, PDT101 model with serial port server and 24 VDC
power supply
1Mounting clamp for DL4000 data logger
2DL4000 data logger
3PDT101 transmitters (4 pcs)
4Cover plate
524 VDC fuses T2.5A, 5 × 20 mm (2 pcs)
6110 … 240 VAC mains input and grounding point (under cover plate)
7Circuit breaker and power supply module
8Grounding terminal block
9Serial port server
10 Mounting clamp for serial port server
12 M212284EN-C

1
3
2
5
4

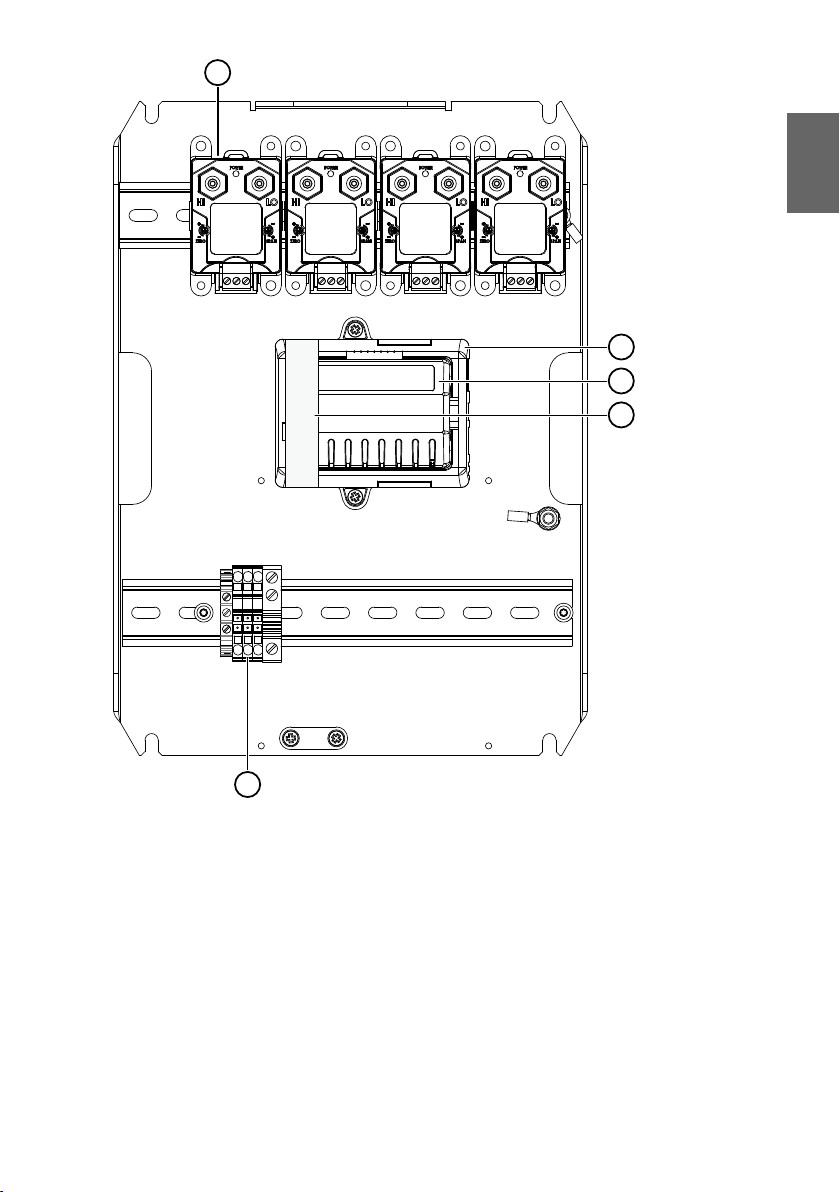

Figure 4 Main components inside CAB100A, PDT101 model with vNet PoE
1PDT101 transmitters (4 pcs)
2vNet PoE data logger interface
3DL4000 data logger
4Protective label. Remove before installation.
5Grounding terminal block
13
ENGLISH

5
6
1
7
9
10
12
16
4
8
2
3
14
11
13
15

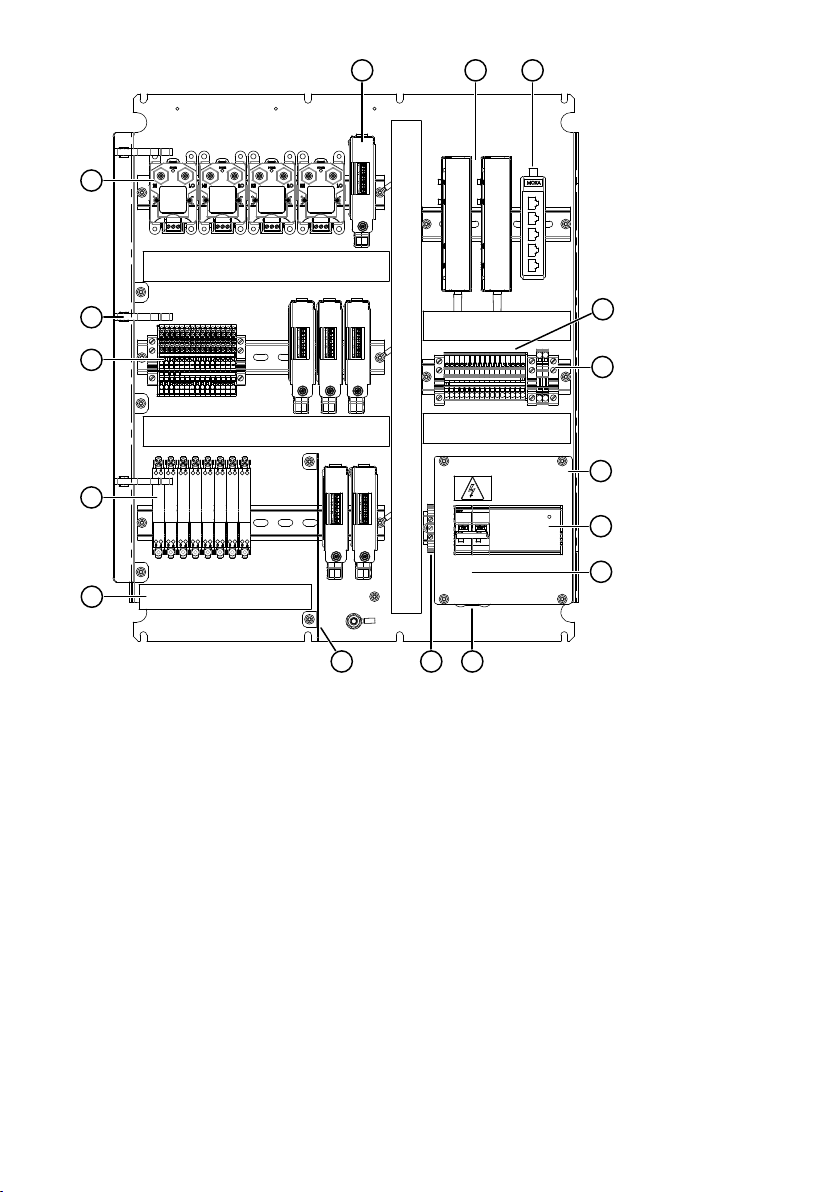

Figure 5 Main components inside CAB100B, mixed model with PDT101s, analog input channels, and
safety barriers
1Cable duct for intrinsically safe connections
2Safety barriers (8 pcs)
3Terminal block for analog input channels
4Holders for tubing (3 pcs)
5PDT101 transmitters (4 pcs)
6DL4000 data loggers (6 pcs)
7Serial port servers (2 pcs)
8Ethernet switch
924 VDC power block
10 24 VDC fuses T2.5A, 5 × 20 mm (2 pcs)
11 Cover plate
12 Circuit breaker and power supply module
13 110 … 240 VAC mains input (under cover plate)
14 Cable strain relief
15 Grounding terminal block
16 Partition plate separating intrinsically safe and non-intrinsically safe connections
14 M212284EN-C

Enclosure dimensions
400 [15.74]
207.6 [8.17]
202.1 [7.96]
300 [11.81]
418 [16.5]
mm
[in]

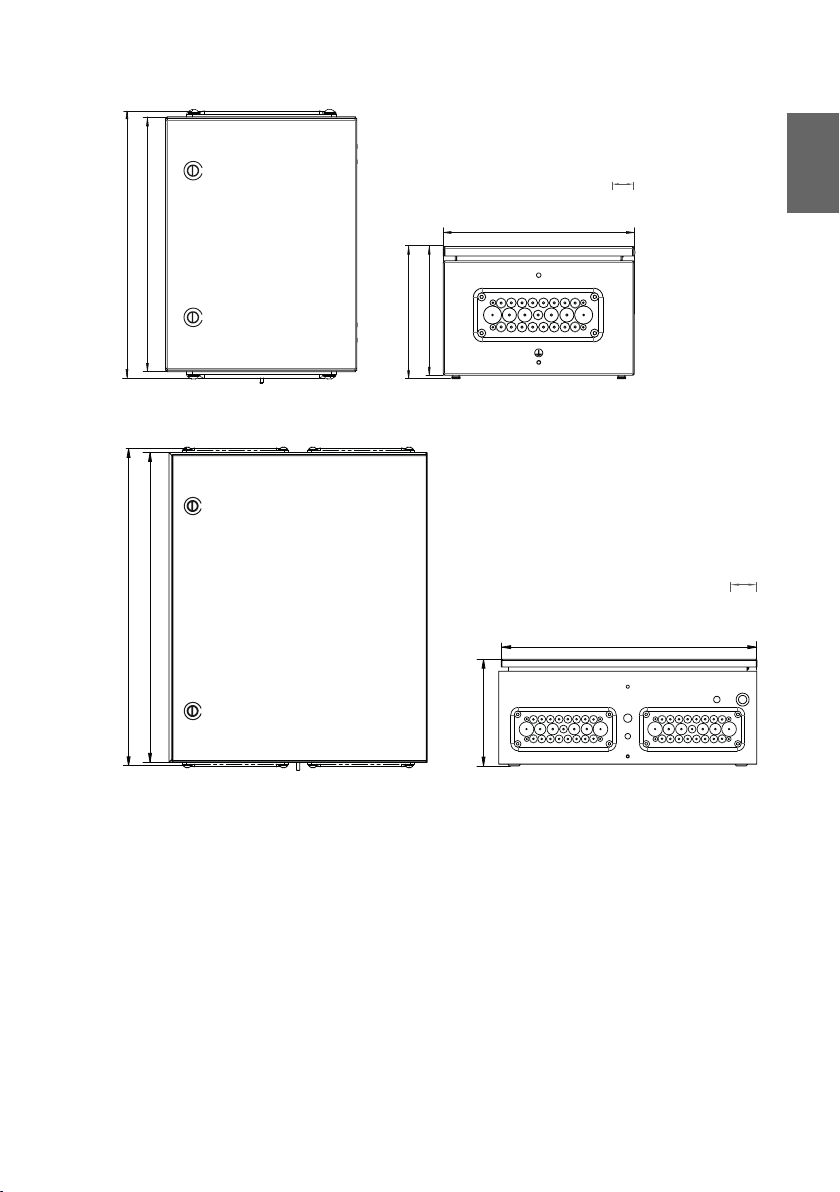

Figure 6 CAB100A enclosure dimensions
600 [23.62]
500 [19.69]
206 [8.11]
618 [24.33]
mm
[in]
Figure 7 CAB100B enclosure dimensions
15
ENGLISH

Powering CAB100
Before connecting the AC (mains) power cable, switch o the
power from the main power source.
WARNING!
Before connecting power to the device, read carefully the safety
notes in Installation safety (page 6).
CAUTION!
Connecting AC (mains) power
• Screwdriver
• Cable cutters
• Cable-stripping pliers
For the AC (mains) power connection, you need an external disconnection device (for
example, a power cable or a mains power switch).
Note the following:
• The disconnection device must be rated 16 A or 20 A at 250 VAC, and must conform to
any additional local regulations.
• The disconnection device must be visible from the cabinet, or lockable with a key to
prevent accidental switching on during installation and maintenance.
• The cabinet must not block access to the disconnection device after it has been installed.
The disconnection device must remain easy to operate.
The AC (mains) cable is not included in the delivery. Use an AC (mains) cable with a minimum
cross-section of 3 × 0.75 mm2(18 AWG).
1. Unscrew and remove the transparent cover plate protecting the circuit breaker and the
power supply module.
2. Lead the AC (mains) cable into the enclosure.
Lead the cable through a flange in the cabinet enclosure, following relevant safety
regulations. Take note of safe areas around safety barriers or galvanic isolators inside the
enclosure.
16 M212284EN-C

3. Strip approximately 100 mm (4 in) of the cable, and cut the phase and neutral wires to the
length of approximately 50 mm (2 in). If you are using a stranded wire, add cable ferrules
to the ends.
Make sure that the grounding wire is longer than the phase
and neutral wires. Under mechanical stress, the grounding wire must be the
last to disconnect from the protective ground terminal.
CAUTION!
100 [3.94]
50 [1.97]
mm
[in]
1
2
3

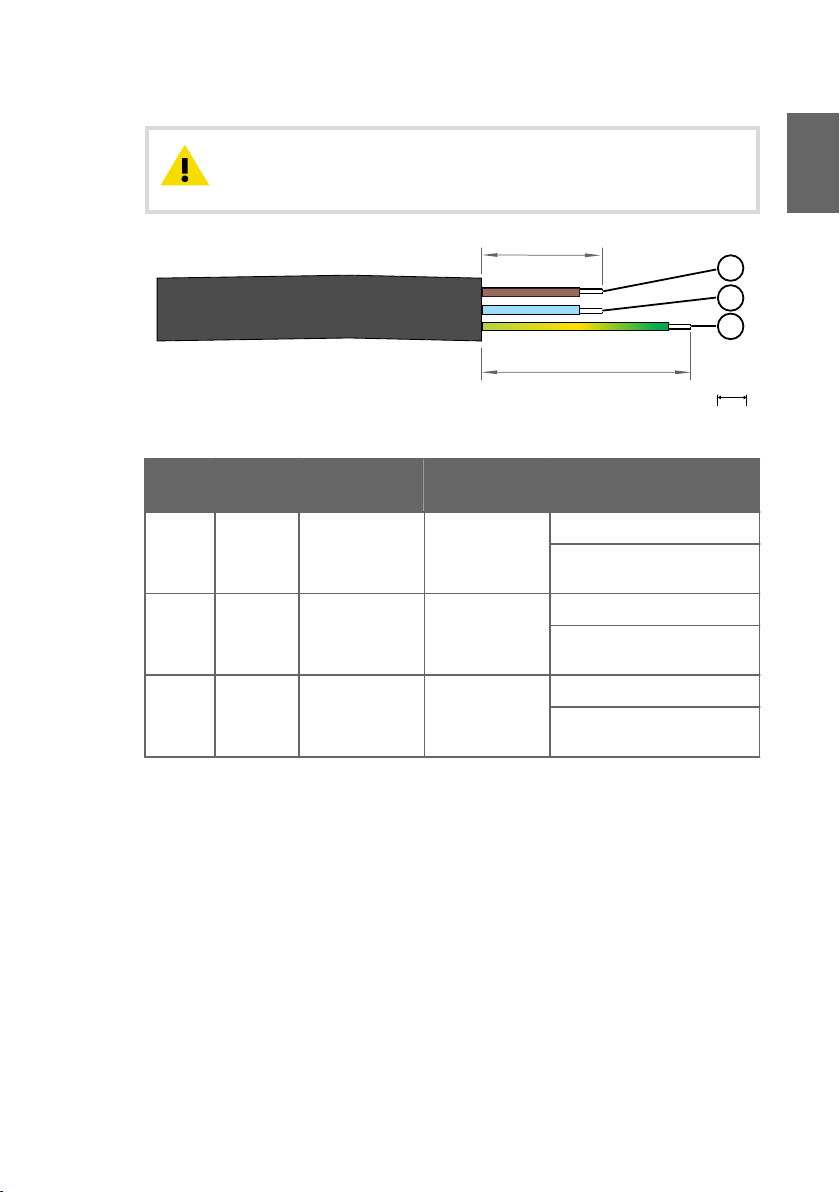

Number Wire Wire color
(international)
Wire color
(North America)
Maximum wire cross-section
1 Phase L Brown Black Solid wire: 4 mm2(12 AWG)
Stranded wire:
2.5 mm2(14 AWG)
2 Neutral N Blue White Solid wire: 4 mm2(12 AWG)
Stranded wire:
2.5 mm2(14 AWG)
3 Grounding
PE/GND
Yellow/Green Green Solid wire: 4 mm2(12 AWG)
Stranded wire:
2.5 mm2(14 AWG)
17
ENGLISH

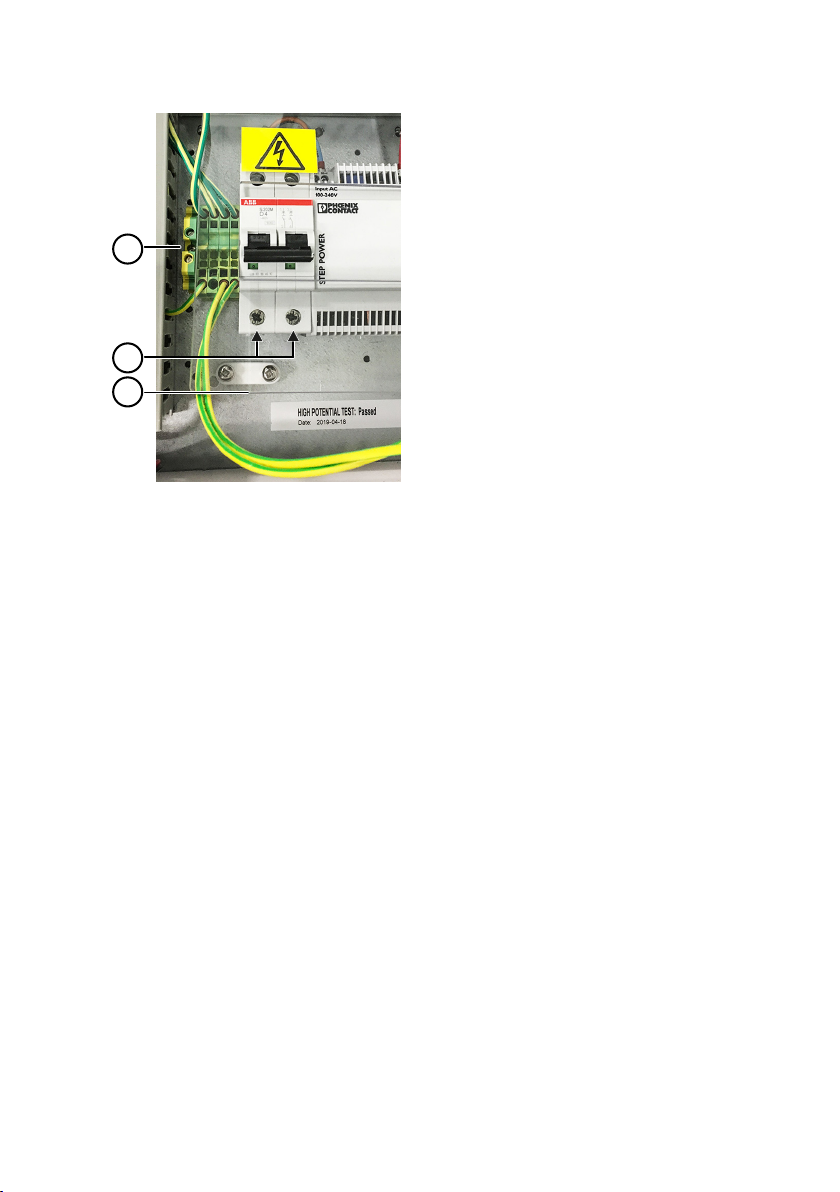

4. Connect the phase, neutral, and grounding wires of the AC (mains) cable as indicated in
the figure below.
2
1
3
L N
1Connect the (green or yellow-green) grounding wire to the grounding terminal block.
2Connect the phase (L) and neutral (N) wires to the circuit breaker: the phase in the
left-hand wire terminal and the neutral in the right-hand wire terminal.
3Mount the AC (mains) cable to the strain relief fixture located under the circuit
breaker.
5. Replace the transparent cover plate.
6. Switch on the circuit breaker.
7. Switch on mains power.
18 M212284EN-C

Connecting power over Ethernet to CAB100A
1. In CAB100A PDT101 model with vNet PoE, power the cabinet by connecting your Ethernet
PoE cable to the vNet device.
2. Switch on mains power.
User documentation for Vaisala vNet Power over Ethernet Data Logger Interface
is available in www.vaisala.com.
For the full CAB100 product specifications, installation instructions, wiring
diagrams, and layout drawings, see www.vaisala.com/cab100.
19
ENGLISH

Warranty
For standard warranty terms and conditions, see www.vaisala.com/warranty.
Please observe that any such warranty may not be valid in case of damage due to normal wear
and tear, exceptional operating conditions, negligent handling or installation, or unauthorized
modifications. Please see the applicable supply contract or Conditions of Sale for details of the
warranty for each product.
Technical support
Contact Vaisala technical support at [email protected]om. Provide at least the
following supporting information as applicable:
• Product name, model, and serial number
• Software/Firmware version
• Name and location of the installation site
• Name and contact information of a technical person who can provide further
information on the problem
For more information, see www.vaisala.com/support.
Recycling
Recycle all applicable material.
Follow the statutory regulations for disposing of the product and packaging.
20 M212284EN-C
