Valcom Vl530-ic User manual

Issue 1

1 947477

VL530-IC

InformaCast® Compliant

IP Message Display

INTRODUCTION

The VL530-IC IP Message Display provides highly

visible message output over an Ethernet network.

This message display is Singlewire InformaCast®

compliant.

SPECIFICATIONS

Features

RJ-45 network connection

Easy to read, high visibility

Adjustable display angle, 0° to 15°

Power over Ethernet Plus (PoE+) 802.3at

compatible

DIMENSIONS/WEIGHT

30” W x 5.50” H x 3.38” Deep (including

mounting brackets)

Weight: 7.65 LBS

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when

the equipment is operated in a commercial

environment. This equipment generates, uses

and can radiate radio frequency energy and if

not installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area

may cause harmful interference in which case

the user will be required to correct the

interference at one’s own expense.

Nominal Power Requirements

802.3at (PoE+) Class 4

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

IMPORTANT SAFETY INFORMATION

CONSIGNES DE SÉCURITÉ IMPORTANTES

1. Read these instructions.

Lisez ces instructions.

2. Keep these instructions.

Conservez ces instructions.

3. Heed all warnings.

Respecteztous les avertissements.

4. Follow all instructions.

Suivez toutes les instructions.

5. Do not use this apparatus near water.

Ne pas utiliser cet appareil près de l'eau.

6. Clean only with dry cloth.

Nettoyer avec un chiffon sec.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du

fabricant.

8. Do not install near any heat sources such as radiators, heat registers, stoves or other

apparatus (including amplifiers) that produce heat.

Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de

chaleur, poêles ou autres appareils (y compris les amplificateurs) produisant de la chaleur.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and a

third grounding prong. The wide blade and the third prong are provided for your safety. If

the provided plug does not fit into your outlet consult an electrician for replacement of the

obsolete outlet.

Ne pas contourner le dispositif de sécurité de la fiche polarisée ou de mise à la terre. Une

fiche polarisée possède deux lames dont une plus large que l'autre. Une fiche de terre a

deux lames et une troisième broche de mise à la terre. La lame large et la troisième

broche sont fournies pour votre sécurité. Si la fiche fournie ne rentre pas dans votre prise,

veuillez consulter un électricien pour le remplacement de la prise obsolète.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles and the point where they exit from the apparatus.

11.Only use attachments/accessories specified by the manufacturer.

N'utilisez que des fixations / accessoires spécifiés par le fabricant.

12. Use only with the cart, stand, tripod, bracket or table specified

by the manufacturer or sold with the apparatus. When a cart is

used, use caution when moving the cart/apparatus combination

to avoid injury from tip-over.

Utilisez uniquement avec le chariot, stand, trépied, support ou table spécifié par le

fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque

vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au

renversement.

13. Unplug this apparatus during lightning storms or when unused for a long period of time.

Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une

longue période de temps.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way. Such as when the power supply cord or plug is

damaged, liquid has been spilled, objects have fallen into the apparatus or the

apparatus has been exposed to rain or moisture and does not operate normally or has

been dropped.

Confiez toute réparation à un personnel qualifié. Une réparation est nécessaire lorsque

l'appareil a été endommagé de quelque façon. Parexemple lorsque le cordon

d'alimentation oula fiche est endommagé, du liquide a été renversé, si des objets sont

tombés dans l'appareil ou le appareil a été exposé à la pluie ou à l'humidité et ne

fonctionne pas normalement ou s'il est tombé.

2 947477

INSTALLATION

Mounting

The VL530-IC message display must be mounted

with appropriate hardware (not included).

It is recommended to secure the mounting brackets

to wall studs or other appropriate support. If

necessary, the spacing of the mounting brackets on

the back of the message display may be adjusted to

match stud spacing. Loosen the nuts that attach

the brackets to the display panel. Slide the

mounting bracket to the desired position and

retighten the nuts.

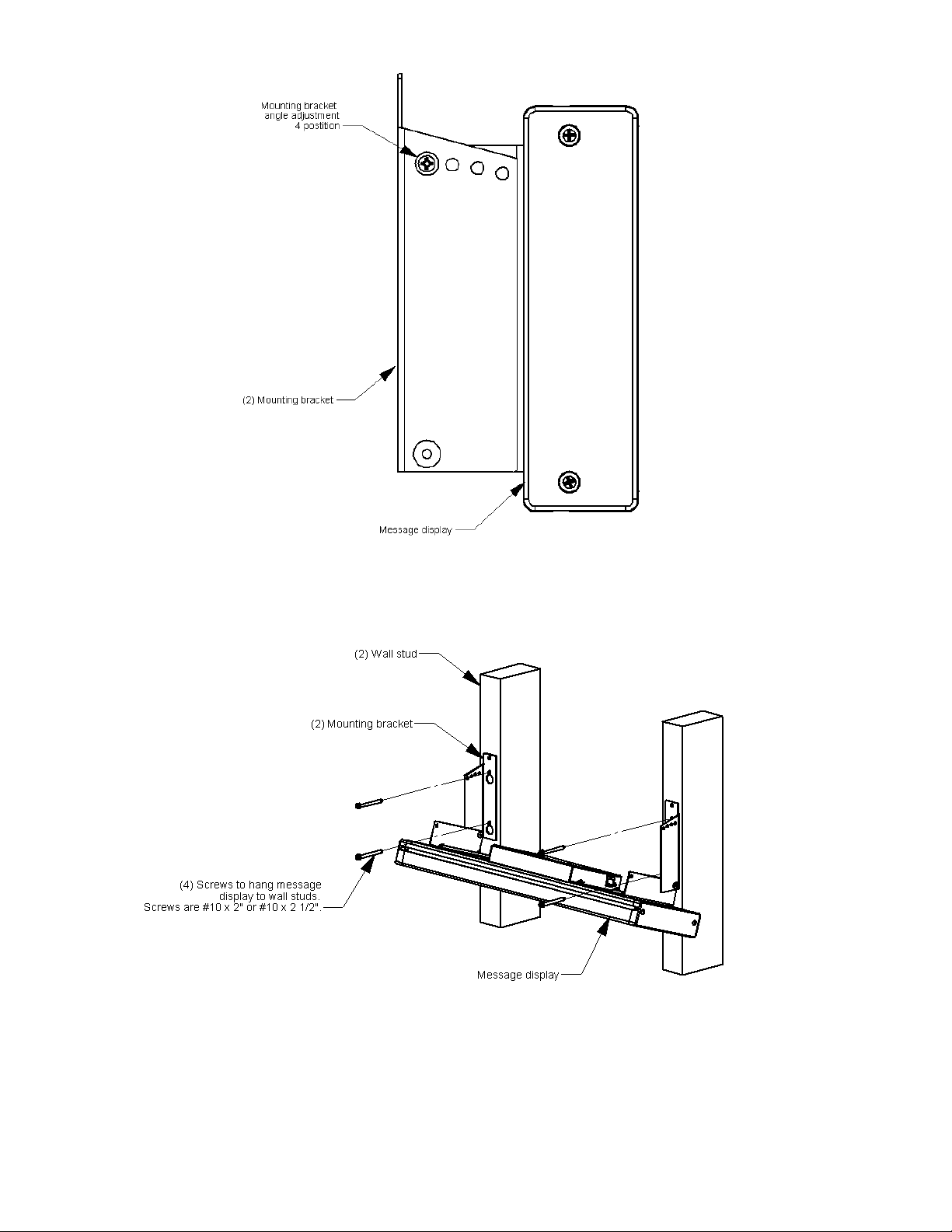

Remove the angle adjustment screws and nuts

from the mounting bracket to gain access to the

"keyhole" slots. (Figure 1)

Mark the mounting holes on the wall and install

appropriate hardware. For stud walls, a minimum

#10 x 2" screw is recommended. (Figure 2)

Reinstall the angle adjustment screws and nuts

previously removed.

Hang the message display by the "keyhole" slots.

(Figure 2)

Secure the message display brackets to the wall

with another screw at the top of each mounting

bracket. (Figure 3)

Network Connection / Power

The VL530-IC has one RJ-45 network connector on

the rear panel. Connect a standard patch cable to

the VL530-IC from an Ethernet switch supporting

the Power over Ethernet Plus specification 802.3at

(PoE+). If a PoE+ switch is not available, a mid-

span injector may be used to supply power to the

display.

Setup

The VL530-IC will automatically acquire an IP

address (using DHCP) and connect to the

InformaCast server when connected to the network

and powered up. Information specific to your

application will need to be programmed into the

InformaCast server. Refer to the InformaCast

documentation for further information.

3 947477

Figure 1

Figure 2

4 947477

Figure 3

TECHNICAL ASSISTANCE

Assistance is available from the factory when

problems are encountered. Call (540) 563-2000

and press 1 for Technical Support or visit our

website at http://www.valcom.com

Valcom, Inc. equipment is not field repairable.

Valcom maintains service facilities in Roanoke,

VA. Should repairs be necessary, attach a tag

to the unit clearly stating company name,

address, phone number, contact person, and

the nature of the problem.

Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of

normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or refund

of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts

and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to

additional charges for parts and labor).

This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable for any

anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation,

maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to the purchase price of the

specific Product covered by the warranty.

Disclaimer. Except for the Limited Warranty provided herein, the product is provided “as-is” without any warranty of any kind whatsoever including, without

limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified
