Valor L1 Series Operating instructions

4006013-09
©2019, Miles Industries Ltd.
This appliance may be installed in an after-
market permanently located, manufactured
(mobile) home where not prohibited by local
codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certied kit is used.
Ce guide est disponible en français sur demande.
This appliance is a domestic room-heating
appliance. It must not be used for any other
purposes such as drying clothes, etc.
This appliance is suitable for installation in
a bedroom or bed sitting room.
— Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the re department.
— Installation and service must be
performed by a qualied installer,
service agency or the gas supplier.
!WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
This manual contains instructions to install the
ENGINE ONLY. A trim kit is REQUIRED to
complete the installation. Abarrier screen is
provided with the trim kit. Refer to the manual
supplied with the trim for installation.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
INSTALLER
Leave this manual
with the appliance.
CONSUMER
Retain this manual
for future reference.
Please read this manual
BEFORE installing and
operating this appliance.
Direct Vent Zero Clearance Gas Fireplaces
1600JN (natural gas) & 1600JP (propane gas)
INSTALLATION & OWNER’S MANUAL
L1 Series

2
Table of Contents
Safety and Your Fireplace......................................3
Introduction.............................................................6
Locating Fireplace & Lighting Information Card ........6
Operating Your Fireplace for the First Time...............6
Operating Your Fireplace.......................................7
Fireplace Control Devices .........................................7
How to Turn Your Fireplace ON.................................7
How to Turn Your Fireplace OFF (and pilot)..............7
How to Ensure Your Fireplace Cannot
Be Turned ON Inadvertently...................................7
Using the Remote Control.....................................8
Using the Wall Switch ..........................................12
Kits & Accessories...............................................12
Lighting Instructions............................................13
Maintaining Your Fireplace..................................14
Servicing Your Fireplace..........................................14
Annual Inspection....................................................14
Cleaning Your Fireplace ..........................................15
Checking Pilot and Burner Flames..........................17
Replacing Batteries .................................................18
Using Handset Wall Holder......................................18
Warranty................................................................61
Specications .......................................................19
Overview................................................................20
Dimensions & Location........................................21
Mantel & Hearth Clearances................................22
Framing Requirements ........................................24
Venting...................................................................26
Co-axial Venting....................................................27
Co-linear Venting..................................................32
Installation Planning ............................................33
Plan Wall Finish.......................................................33
Installation.............................................................35
Unpack appliance....................................................35
Fit Stand-o󰀨s ...........................................................35
Install Heat Shield (side outlet only)........................35
Convert from Side to Top Outlet (if required)...........36
Fit optional LDK HeatShift Duct Kit’s take-o󰀨
collars to appliance (if used) ..........................36
Fit the appliance into framing ..................................36
Remove Window .....................................................37
Complete Installation of optional LDK HeatShift
Duct Kit (if used)...........................................37
Set-up Gas Supply ..................................................37
Install Liners ............................................................39
Install Driftwood Kit 2100DWK ................................40
Install Decorative Glass Murano 1500DGM............42
Install Decorative Glass Set 1500DGS....................44
Install Rocks & Shale Set 1514RSS........................46
Install Split Wood Kit 1500SWK ..............................48
Ret Window ...........................................................51
Install Remote Battery and Wall Switch Kit
RBWSK (required)................................................52
Synchronize Remote Control...................................54
Check Operation......................................................54
Adjust Aeration (if necessary) ..........................54
Install Trim and Barrier Screen................................55
Install Remote Control Handset Wall Holder...........55
Wiring Diagram.....................................................56
Approved Venting Components..........................57
Commonwealth of Massachusetts......................59
Warranty................................................................61
Spare Parts............................................................62
FOR THE OWNER FOR THE QUALIFIED INSTALLER
Massachusetts: The piping and nal
gas connection must be performed by a
licensed plumber or gas tter in the State of
Massachusetts. Also, see Carbon Monoxide
Detector requirements on page 59.
Designed and Manufactured by / for
Miles Industries Ltd.
190–2255 Dollarton Highway,
North Vancouver, BC, CANADA V7H 3B1
Tel. [phone] Fax [phone]
www.valorreplaces.com
The information contained in this installation manual is
believed to be correct at the time of printing. Miles In-
dustries Ltd. reserves the right to change or modify any
information or specications without notice. Miles Indus-
tries Ltd. grants no warranty, implied or stated, for the
installation or maintenance of your heater, and assumes
no responsibility for any consequential damage(s).
Warranty Card at the back of this manual.
© Copyright Miles Industries Ltd., 2019. All rights reserved.

3
Safety and Your Fireplace
SAFETY AND YOUR FIREPLACE
!
Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
Young children should be carefully supervised
when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible
to accidental contact burns. A physical barrier is
recommended if there are at-risk individuals in the
house. To restrict access to a replace or stove, install
an adjustable safety gate to keep toddlers, young
children and other at-risk individuals out of the room
and away from hot surfaces.
Do not place furniture or any other combustible house-
hold objects within 36” of the replace front.
Read and understand all instructions carefully before
starting the installation. Failure to follow these instal-
lation instructions may result in possible re hazard and
will void the warranty.
Prior to the rst ring of the replace, read the
Owner’s information section of this manual.
Do not use this appliance if any part has been under
water. Immediately, call a qualied service technician
to inspect the unit and to replace any part of the control
system and any gas control that has been under water.
This unit is not for use with solid fuel.
Installation and repair should be performed by a
qualied service person. The appliance and venting
system should be inspected before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive lint
from carpeting, bedding, etc. It is imperative that the
unit’s control compartment, burner, and circulating air
passageways be kept clean to provide for adequate
combustion and ventilation air.
Always keep the appliance clear and free from
combustible materials, gasoline, and other ammable
vapors and liquids.
Never obstruct the ow of combustion and venti-
lation air. Keep the front of the appliance clear of all
obstacles and materials for servicing and proper opera-
tion.
Due to the high temperature, the appliance should be
located out of tra󰀩c areas and away from furniture and
draperies.
Clothing or ammable material should not be placed
on or near the appliance.
This unit must be used with a vent system as de-
scribed in this installation manual. No other vent sys-
tem or components may be used.
This gas replace and vent assembly must be vented
directly to the outside and must never be attached to
a chimney serving a separate solid fuel burning appli-
ance. Each gas appliance must use a separate vent
system. Common vent systems are prohibited.
Inspect the external vent cap on a regular basis to
make sure that no debris, plants, trees, shrubs are inter-
fering with the air ow.
Do not operate this appliance with the glass door
removed, cracked, or broken. Replacement of the
glass door should be performed by a licensed or qualied
service person. Do not strike or slam the glass door.
The glass door assembly shall only be replaced as
a complete unit, as supplied by the replace manufac-
turer. No substitute material may be used.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance and
shall be installed for the protection of children and
other at-risk individuals.
Do not use abrasive cleaners on the glass door assem-
bly. Do not attempt to clean the glass door when it is hot.
If the barrier becomes damaged, the barrier shall
be replaced with the manufacturer’s barrier for this
appliance.
Turn o󰀨 the gas before servicing this appliance. It is
recommended that a qualied service technician per-
form an appliance check-up at the beginning of each
heating season.
Any safety screen, guard or barrier removed for
servicing the appliance, must be replaced prior to
operating the appliance.
Be careful not to put any decorating objects sensi-
tive to heat to close above or around the replace as it
gets very hot when operating.
Do not use this heater as a temporary source of
heat during construction.
This appliance is a domestic room-heating appliance.
It must not be used for any other purposes such as dry-
ing clothes, etc.
The glass door assembly must be in place and sealed
before the unit can be placed into safe operation.
This product can potentially expose you to chemicals
including Benzene which are known to the State of
California to cause cancer and birth defects or other
reproductive harm. For more information go to
www.P65Warnings.ca.gov
WARNING:

4
Parts of your Valor Fireplace become
extremely hot while in operation.
The glass viewing window temperature
can exceed 500 F at full capacity.
Momentary contact with a hot glass
surface can cause a severe burn, even
if the replace is operating at reduced
heating capacity.
The glass window will remain hot
for an extended period of time after
the replace has been turned o󰀨.
Ensure that children are prevented from
touching the replace during the cool
down period.
Toddlers and Young Children must
be closely supervised at all times
when they are in the same room as
the operating replace. They lack full
awareness of danger and rely on your
protection. Toddlers, in particular, do
not have the motor skills and response
reexes to withdraw in the event of
accidental contact with a hot surface.
A physical barrier is strongly
recommended if there are young
children, or at-risk individuals in the house.
Install an approved after-market safety
gate to keep toddlers, young children and
WARNING
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTILCOOLED.
NEVERALLOW CHILDREN
TO TOUCH GLASS.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
WARNING!
other at-risk individuals a safe distance
from the replace.
Keep the remote control handset out
of reach of children at all times. A wall
mount storage holster is provided with
your remote control handset.
Ensure that the replace, including
the pilot light, is completely turned
o󰀨 when children are present and close
supervision and safety barriers are not
available—see page 7 of this manual.
If the replace is not going to be used
for the summer or any extended period
of time, remove the batteries from the
remote control handset and remote
battery box. It is recommended that
batteries are replaced annually in any
event—see page 18.
Read and carefully follow all safety warnings and
operating instructions contained in your owner’s manual
Replacement manuals are available by contacting the Valor Service Department
at 1-800-468-2567 or visit www.valorreplaces.com.
Safety and Your Fireplace
!
FOLLOW THESE IMPORTANT CHILD SAFETY
PRECAUTIONS AND RECOMMENDATIONS

5
Front outlet
Side
outlet
This manual and particularly the preceeding and following pages contain very important information regarding
the safe operation of your replace as well as maintenance instructions. Read carefully before operating your
replace and pay special attention to the safety warnings.
A heating gas appliance does require safe handling. For this reason, we very strongly recommend children are not
allowed to touch the replace or controls. Install a screen or barrier in front of the replace to protect your children
against severe burns.
This appliance is designed and approved as a supplemental heater and provides the potential for most
energy conservation when used while attended. The use of an alternate primary heat source is advisable.
Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth
WARNING
HeatShift
Duct Kit:
Do not cover
or place items
in front of or
on top of
outlet(s)!
!
!WARNING
EXTREMELY HOT!!!
• Read the safety information on pages 3 and
4 of this manual before operating your gas
heater.
• Some parts of your replace are extremely
hot, particularly the glass window.
• Do not let children touch the glass or any
parts of your replace even after it is turned
o󰀨 as it is still hot.
• Use the barrier screen provided with the trim
or a gate to reduce the risk of severe burns.
• Keep the remote control handset out of reach
of children.
• Hot wall surfaces! The wall directly above
the replace is very hot when the replace
heats. It is constructed of non-combustible
materials and although safe, it may reach
temperatures in excess of 200º F depending
on choice of trims or optional accessories. DO
NOT TOUCH! We recommend installing the
optional LDK HeatShift Duct Kit when hot
walls are a concern.
• Some materials or items, although safe, may
discolor, shrink, warp, crack, peel, and so on
because of the heat produced by the replace.
Avoid placing candles, paintings, photos, and
other items sensitive to heat within 36 inches
(0.9 m) around the replace.
• Solid wood ooring in front of the replace (if
allowed) may shrink during the heating season
due to heat.
SAFETY AND YOUR FIREPLACE
!

6
WARNING
DO NOT ATTEMPT TO TOUCH THE DATA CARD
WHILE THE FIREPLACE IS STILL HOT! Let the
replace cool rst before touching it.
!
Operating Your Fireplace for the First Time
When operating your new replace for the rst time,
some vapors may be released due to the burning of
curing compounds used in the manufacture of the
appliance. They may cause a slight odor and could
cause the ames to be the full height of the rebox, or
even slightly higher, for the rst few hours of operation.
It is also possible that these vapors could set o󰀨 any
smoke detection alarms in the immediate vicinity.
These vapors are quite normal on new appliances. We
recommend opening a window to vent the room. After
a few hours use, the vapors will have disappeared and
the ames will be at their normal height.
Flame Supervision Device
For your safety, this appliance is tted with a ame
supervision device which will shut-o󰀨 the gas supply
if, for any reason, the pilot ame goes out. This device
incorporates a xed probe, which senses the heat
from the pilot ame. If the probe is cool, the device will
prevent any gas ow unless manually lighting the pilot.
See full lighting instructions on page 13 of this manual.
Introduction
Thank You ...
For purchasing a Valor by Miles Industries. Your new
radiant gas heater is a technical appliance that must
be installed by a qualied dealer. Each Valor replace
is fully tested during the production process for your
safety and comfort.
Your unit has been professionally installed by:
Dealer Name: ________________________________
Phone Number :_______________________________
Should you encounter an operational problem, call
your dealer immediately.
Do not try to repair the unit as you may cause an
injury or damage the replace.
Locating Fireplace & Lighting Information Card
The Fireplace and Lighting Information card is located at
the right hand side of the replace opening. The card is
attached under the plinth.
To access the card, remove the barrier screen, side
doors and the plinth. Grab the card and pull it out.
There is important information on both sides of the
card.
739MN
FOR NATURAL GAS POUR LE GAZ NATUREL
750
24,000
6,500
3.2"
5.0"
4006176N/01
CIRCULATING FAN KIT 755CFK VENTILATEUR POUR CIRCULATION D'AIR 755CFK
#4003360-741, #4003293-742, #4003313-745, #4003426-765, #4004666 772
120V, 60Hz, LESS THAN 1A 120V, 60Hz, MOINS DE 1A
739N 10000
Fireplace
model
Serial
number
Performance of propane gas appliances may be
a󰀨ected by the quality of commercial gas sup-
plied in your area.
Info
card
Window
The info card is located behind the front
panel below the window.
OWNER’S
INFORMATION

7
Gas valve
Battery holder
& wall switch
Fireplace
Receiver Gas valve
The receiver and gas valve are located on the bottom of the
replace behind the front panel. The battery holder is located
next to the wall switch.
Thermostatic
Remote
Control
Wall SwitchRemote control
handset
ON: parallel to pipe OFF:
perpendicular to
pipe
Wall Switch
Fireplace Control Devices
There are two ways to control your
replace.
1. Thermostatic Remote Control
can be programmed to function
automatically—see pages 8–11;
2. Wall Switch turns re on, o󰀨 and
controls ame height—see page 12.
How to Turn Your Fireplace ON
Press and hold button(s) until a short beep conrms the
start sequence has begun; release buttons.
Continuing beeps conrm the ignition is in process.
When the pilot is lit, the gas ows—see Using the
Remote Control section for more information.
How to Turn Your Fireplace OFF (and pilot)
Press and hold the OFF button for a second (either on
the handset or the wall switch).
If the ames are on, they go down and you hear the
valve motor wind down. You hear a clunk and a beep
indicating that the valve has received the signal from
the remote control.
In the unlikely event that you cannot turn o󰀨 your
replace with the remote control handset, use the
wall switch; if the wall switch malfunctions and will not
turn o󰀨 the replace, wait 6 hours and the replace
will automatically go to pilot. You can then access the
controls inside your replace.
Alternately, turn o󰀨 gas supply. In all cases, call your
dealer for service assistance.
How to Ensure Your Fireplace Cannot
Be Turned ON Inadvertently
You can use one of the two following methods to
ensure that your replace will not turn on when you
don’t want it on.
• On gas valve, turn dial from ON
position to MAN position as
shown. Turning dial to MAN will
ensures that main burner cannot
come on. The pilot will remain on
if lit.
• Alternately, remove all batteries
from the battery holder next to the
wall switch as well as the battery
from the handset.
Automatic Shut-O󰀨 (in certain
conditions)
Your replace’s remote control is
equipped with an automatic shut-o󰀨 mechanism which
is activated in certain conditions. See page 12 in the
Using the Remote Control section for a description of
this feature.
Operating Your Fireplace
WARNING
RISKS OF SEVERE BURNS! SURFACES OF
THE FIREPLACE ARE VERY HOT DURING
OPERATION! Ensure replace has cooled o󰀨
before accessing controls.
!
Wall SwitchRemote control
handset
OWNER’S
INFORMATION

8
Using the Remote Control
2
Remote Control Operation
Radio Frequency
315 MHz for USA and Canada.
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: Before using the remote control system for
the rst time, the receiver and the handset must
be synchronized. See the section Synchronize Remote
Control on page 1.
IMPORTANT: BEFORE YOU BEGIN, please note that on this
system, the settings of time, temperature and automatic
ON/OFF can only be programmed when the function
display is  ashing. Be patient when programming as it
can take a few seconds to set.
Note: In the TEMP or TIMER modes, the remote handset
senses the room temperature and adjusts the ame
accordingly.
To communicate, the handset should be within 15�feet
(4.5 meters) of the replace.
Do not leave the handset on the mantel or hearth.
SET (scrolls through
modes and settings)
O
FF (returns to set mode,
turns the burner and
WKHSLORWR΍
/DUJHȵDPHEXWWRQȵDPHV
up, sets hours, temperature)
6PDOOȵDPHEXWWRQȵDPHV
GRZQDQGR΍VHWVPLQXWHV
temperature)
Current
temperature
(F or C)
Current time
(12 or 24 hour clock)
Modes (Manual,
Temperature, Timer)
Handset
sensor
Battery status
Current
programmed
period (Timer)
Period
start or end
(Temp, Timer)
Turn Fireplace ON
Press + buttons until you hear a
short beep; release buttons.
Beeping continues until pilot is lit.
Burner lights to maximum ame height
and handset goes automatically to
manual (MAN) mode.
NOTES:
On the valve, MAN button must be at ON, in full
counter-clockwise position .
ON/OFF switch (if equipped) must be in I (ON) position.
Turn Fireplace OFF
Press button.
When pilot is just turned off, wait 2
minutes to light it again.
Standby Mode (Pilot Flame)
Press and hold to set replace
to pilot.
Adjust Flames Height
With pilot lit, press and hold buttons:
= increase ame height
= decrease ame height or
set to pilot
For ne adjustment, tap buttons.
Express Low and High Fire
Double-click buttons:
= increase ame to maximum
height “HI”
= decrease ame minimum
height “LO”
NOTE: Flame goes to high re rst
before going to designated low re.
x 2
x 2
OWNER’S
INFORMATION

9
Using the Remote Control
3
Remote Control Operation
Setting ºC/24-hr or ºF/12-hr clock
In MAN mode, press and hold +
buttons until temperature / clock display
changes from
°F / 12-hour °C / 24-hour
Setting Time
The time display will ash after either:
- installing the battery, or
- pressing +
To set the time, press buttons:
= hour
= minutes
Press or wait to go back to MAN.
Modes of Operation
Briey pressing SET cycles through
modes of operation.
MAN
>
TEMP
>
TEMP
>
TIMER
>
MAN
NOTE: Press or to reach
MAN
mode.
MAN
Manual Mode
Manual ame height adjustment.
TEMP
Daytime Temperature Mode
When pilot is lit, room temperature
is measured and compared to set
temperature. Flame height automatically
adjusts to reach Daytime Set
Temperature.
TEMP
Night time Setback
Temperature Mode
When pilot is lit, room temperature
is measured and compared to set
temperature. Flame height automatically
adjusts to reach Night Time Setback
Temperature.
TIMER
Timer Mode
When pilot is lit, two periods of time (P1
and P2) can be programmed to go ON
and OFF at specic times.
Note: Display shows set temperature
every 30 seconds.
Set the different parameters when
they are ashing.
OWNER’S
INFORMATION

10
Using the Remote Control
4
Setting ON / OFF Temperatures
Setting “DAYTIME” temperature.
Default Settings:
TEMP
23 °C/74 °F
Press SET to scroll to
TEMP
Hold SET button until TEMP ashes.
To set Daytime Temperature:
= increases temperature.
= decreases temperature.
Press or wait to complete setting.
Setting “NIGHT TIME SETBACK” temperature.
Default Settings:
TEMP
“--” (OFF)
Press SET to scroll to
TEMP
Hold SET button until TEMP ashes.
To set Night Time Temperature:
= increases temperature.
= decreases temperature.
Press or wait to complete setting.
Setting Program Timers
You can program two periods of time between 12 am
and 11:50 pm in each 24-hour cycle.
Programs P1 and P2 must be set in the following order
during a 24-hour cycle: P1 , P1 , P2 and P2 .
= beginning of program period, turns ON
= end of program period, turns OFF
Default Settings:
Program 1: P1 06:00 am P1 08:00 am
Program 2: P2 11:50 pm P2 11:50 pm
Press SET to scroll to
TIMER
.
Setting P1 ON time.
Hold SET button until P1 is displayed and time
ashes.
To set ON time:
= hour
= minutes
Press or wait to complete setting.
Setting P1 OFF time.
Hold SET button until P1 is displayed
and time ashes.
To set ON time:
= hour
= minutes
Press or wait to complete setting.
Remote Control Operation
If P1 = P1 or P2 = P2 ,
programming is cancelled.
To keep replace ON all night, set P2 at
11:50 am and P1 at 12:00 am.
If you want to program only one period,
program P1 and P1 with desired times
then P2 and P2 with the same time
as P1 .
OWNER’S
INFORMATION

11
Using the Remote Control
5
Remote Control Operation
6:00 am
P1 Start time
8:00 am
P1 End time
4:00 pm
P2 Start time
10:00 pm
P2 Start time
6:00 am
P1 Start time
Set temp 74F Set temp 40FSet temp 74F
Set temp 40F
Automatic Turn Down
6 Hour no Motor Movement
Manual Mode/Temperature/Timer Mode: The valve will
turn to pilot ame if there is no change in ame height
for a 6 hour period. In Temperature/Timer Mode if the
ambient room temperature changes, the ame height
will adjust automatically to maintain set temperature,
and the re will continue to function normally. The
valve will turn to pilot ame if the set temperature and
the ambient room temperature remain the same over a
6 hour period.
Automatic Shut-Off
Low Batteries Receiver. With low battery power
in the battery holder the system shuts offthe re
completely. This does not apply when the power supply
is interrupted.
On-Demand Pilot. This green feature eliminates
gas energy consumption during extended appliance
inactivity. When the appliance is inactive for 5 days
the system automatically extinguishes the pilot. This
feature helps the consumer realize cost benets by
automatically eliminating energy consumption during
non-heating months and limited use.
Timer Programming Example (default temperatures shown)
Caution
DO NOT USE a screwdriver or other metallic
object to remove batteries from holder. This
could cause a short-circuit.
Low Battery Indication
Remote handset: The battery icon will show
when the battery needs to be replaced. Replace with
one 9 V alkaline battery.
Remote battery holder: Frequent ‘beeps’ for 3 seconds
when the valve motor turns indicate the batteries
need to be replaced. Replace with four 1.5 V alkaline
batteries.
Handset / Receiver Match
The remote control handset and receiver are
programmed to function together. In case of a
replacement of the handset or the receiver, you will
need to reset the receiver to allow them to function
together. Contact your dealer for details.
Setting P2 ON and OFF times.
Repeat same steps as Setting P1 ON and OFF times.
When all settings are complete, press to save them.
Designed and Manufactured by / for
Miles Industries Ltd.
190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1
Tel. [phone] Fax [phone]
www.valorreplaces.com
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication.
OWNER’S
INFORMATION

12
Using the Wall Switch
TO TURN APPLIANCE ON and OFF
TO ADJUST FLAME HEIGHT
Press ON-OFF button once to light
pilot. Press again to shut of pilot.
Press and hold large ame button
to gradually increase ame height.
Press and hold small ame button to
gradually decrease ame height.
The Wall Switch can be used to
control your replace. You can
turn the pilot on or o󰀨 and you can
increase or decrease the ame
height.
Note that the thermostat and
programming functions are not
available with the wall switch.
Fuel Beds (choose one)
2100DWK Driftwood Set Kit
1500DGM Decorative Glass Murano
1500DGS Decorative Glass
1514RSS Rock & Shale Set
1500SWK Split Wood Kit
Liners (choose one)
1615FBL Linear Fluted Black Liner Set
1625RGL Reective Glass Panel Kit
Trims (choose one) Barrier
Screen
1550v2 Linear 3-1/2” Surround
4004215
1550LSB Black
1550LSZ Bronze
1550LSP Nickel
1575LFB Linear 1” Finishing Trim Black 4005564
Conversion Kits
1500NGK Conversion to natural gas
1600PGK Conversion to propane gas
Other Accessories
GV60CKO Outdoor Fireplace Conversion Kit
1506DRK Additional rocks for Driftwood Kit
1270RBK Remote Blower Kit
LDK HeatShift Duct Kits (gravity ow)
Hearth
Gate
Hearth gates such as Cardinal’s
VersaGates are available at retail stores
carrying safety products for children.
Required Kits
Information accurate at the time of printing and subject
to change without notice.
Optional Accessories
Information accurate at the time of printing and subject
to change without notice.
Kits & Accessories
OWNER’S
INFORMATION

13

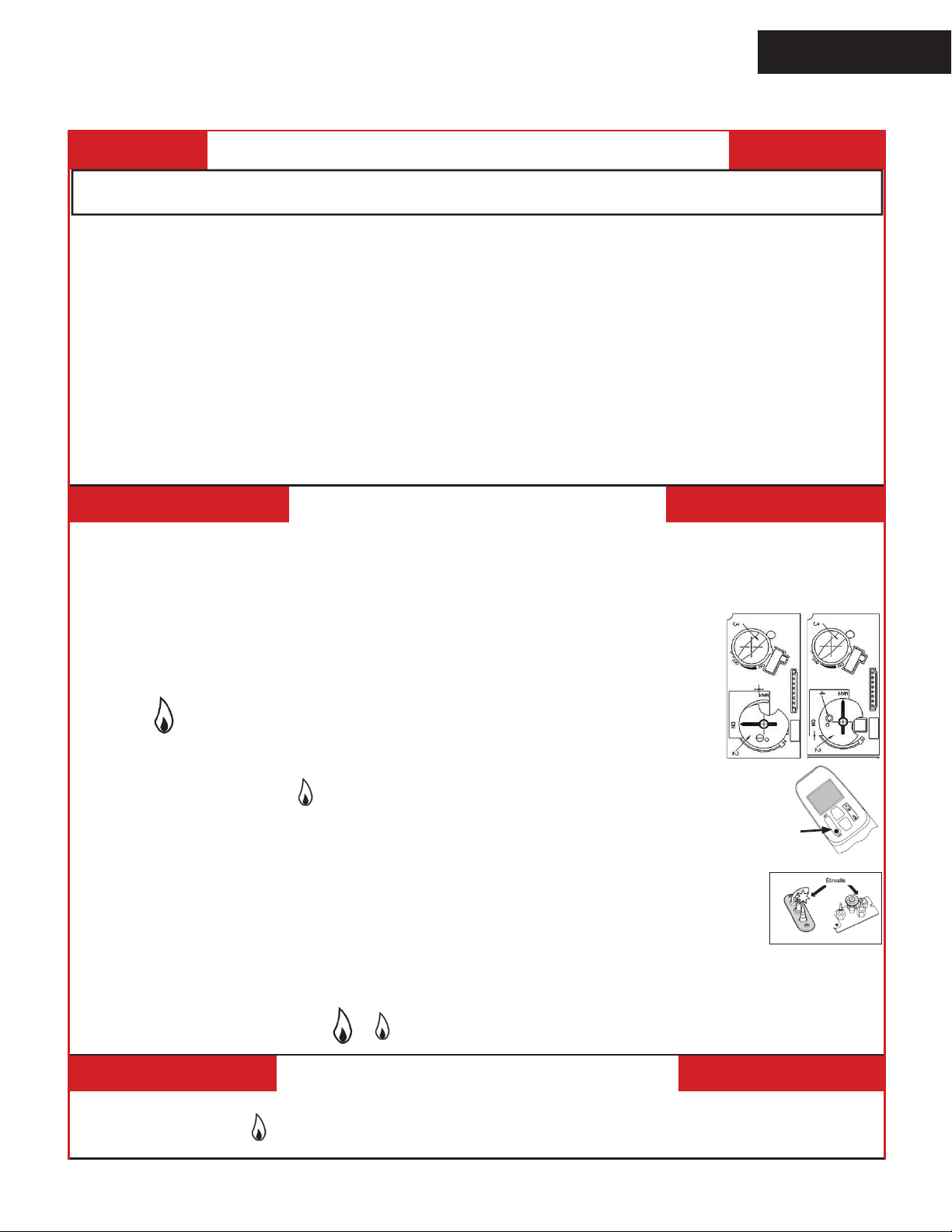

Lighting Instructions
MISE EN GARDE : Quiconque ne respecte pas à la lettre les instructions dans la présente
POUR PLUS DE SÉCURITÉ LIRE AVANT D’ALLUMER
A.
B.
Cet appareil possède une veilleuse qui doit être allumée par télécommande ou à la main. Suivez ces instructions à la
lettre. Pour économiser l’énergie, éteignez la veilleuse lorsque vous n’utilisez pas l’appareil.
AVANT DE FAIRE FONCTIONNER, sentez tout autour de l’appareil pour déceler une odeur de gaz. Sentez près du
plancher, car certains gaz sont plus lourds que l’air et peuvent s’accumuler au niveau du sol.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :
• Ne pas tenter d’allumer d’appareil.
• Ne touchez à aucun interrupteur; ne pas vous servir des téléphones se trouvant dans l’édifice.
• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez joindre le fournisseur, appelez le service des incendies.
C. Ne poussez ou ne tournez le bouton d’admission du gaz qu’à la main; ne jamais utiliser d’outil. Si le bouton reste
coincé, ne pas tenter de le réparer; appelez un technicien qualifié. Le fait de forcer le bouton ou de le réparer peut
déclencher une explosion ou un incendie.
D. N’utilisez pas cet appareil s’il a été plongé dans l’eau, même partiellement. Faites inspecter l’appareil par un techn-
-icien qualifié et remplacez toute partie du système de contrôle et toute commande qui ont été plongés dans l’eau.
INSTRUCTIONS DE MISE EN MARCHE
COMMENT COUPER L’ADMISSION DE GAZ DE L’APPAREIL
2. POURARRÊTER L’ENTRÉE DE GAZ, éteignez la soupape en pressant sur le bouton OFF
(point rouge) sur la manette de télécommande (1).
•plancher s’il y a une odeur de gaz. Si c’est le cas, ARRETEZ! Attendez cinq (5) minutes pour laisser Passez à l’étape B des consignes de
sécurité ci-dessus. S’il n’y a pas d’odeur de gaz, passez à l’étape suivante.
Bouton MAN à ON (2).Assurez-vous que le bouton de réglage
•Sur la télécommande, appuyez en même temps sur les boutons OFF (●) et grande
flamme ( ); un court signal sonore indiquera le début de proceédê d’allumage;
• De courts signaux sonores seront entendus jusqu’à ce que le procédé d’allumage
soit complet et que le gaz ait circulé dans les tuyaux jusqu’à la soupape;
•
automatiquement au réglage le plus haut;
•Bouton MAN à MAN (2) (fig 2). Avec la fenêtre enlevée,
•
• À l’aide d’un objet pointu comme un stylo, appuyez sur le centre métallique (4) pour
établir l’arrivée du gaz à la veilleuse;
•Toujours enappuyant sur le centre métallique (4), allumez le gaz à la veilleuse (5) avec une allumette:
•Continuez d’appuyer sur le centre métallique (4) pour à peu près 10 secondes; relâchez
repérez la veilleuse (fig 3) dans la boite de foyer.
• Si la veilleuse s’allume mais ne reste pas allumée après plusieurs essais, tournez le bouton d’alimentation de gaz
(3) à la position “OFF” ( ) et appelez votre agent de service ou votre fournisseur de gaz.
•le haut ( ) ou le bas ( ) ou utilisez les boutons des flammes ( ) ( ) sur la télécommande pour réglar les flammes.
1. ARRÊTEZ ! Lisez les instructions de sécurité ci-dessus.
3. ALLUMAGE AUTOMATIQUE
4. ALLUMAGE MANUEL
Fig 3
5
Fig 1 Fig 2
Fig 3
5
Fig 1
Fig 2
échapper tout le gaz.Vérifiez autour de l’appareil et pres du
des flammes (3) est au réglage le plus bas ( ) (fig 1) Reperez la veilleuse (fig 3) dans la boite de foyer.
Lorsque la veilleuse s’allumera, la bouton d’ajustement des flammes (3) tournera
Appuyez sur le bouton petite flamme ( ) pour réduire la hauteur des flammes.



Réglez le bouton de règlage de flammes (3) â la température la plus basse ( );
Replacez la fenêtre et mettez le bouton MAN (2) à la position ON; tournez la bouton de réglage des flammes (3) vers

1
OFF
ATTENTION:L’appareil est chaud lorsqu’il fonctionne. Ne pas toucher l’appareil.
Risque de brûlures graves. Surveiller les enfants. Garder les
vêtements et les meubles loin de l’appareil.
AVERTISSEMENT : Une installation, un réglage, une modification, une réparation ou
un entretien mal effectués peuvent causer des dommages à la propriété ou la
propriété ou des blessures.Voir la notice de l’utilisateur qui accompagne l’appareil.
Pour de l’aide ou d’autres renseignements, consultez un installateur
ou un technicien agréé ou le fournisseur de gaz.
INSTALLEZ L’APPAREIL SELON LES CODES OU RÈGLEMENTS LOCAUX OU, EN L’ABSENCE DE
TELS RÈGLEMENTS, SELON LES CODES D’INSTALLATION ANSI Z223.1, NATIONAL FUEL GAZ
CODE OU CAN/CGA B-149 EN VIGUEUR.
1. ARRÊTAUTOMATIQUE (à l’aide de la télécommande) :
Appuyez et maintenez le bouton petite flamme ( ) pour arrêter l’alimentation de gaz au brûleur;
Appuyez sur le bouton OFF pour fermer la valve et éteindre la flamme de la veilleuse.
•
•
notice risque de déclencher un incendie ou une explosion entraînant des dommages, des
blessures ou la mort.
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
FOR YOUR SAFETY, READ BEFORE LIGHTING
A. This appliance has a pilot which must be lighted by hand or by remote control. Follow these instructions exactly. To
save gas, turn the pilot off when not using the appliance for a prolonged period of time.
B. BEFORE LIGHTING, smell all around the appliance area for gas. Be sure to smell next to the floor because some gas
are heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the control knobs. Never use tools. If the knobs will not push in or turn by hand,
don’t try to repair them; call a qualified service technician. Force or attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system and any gas control, which has been under water.
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
CAUTION: Due to high surface temperature, keep children, clothing and furni-
ture away. Keep burner and control compartment clean.
See installation and operating instructions accompanying the appliance.
WARNING: Improper installation, adjustment, alteration, service or maintenance
can cause injury or property damage. Refer to the owner’s information manual
provided with this appliance. For assistance or additional information consult
a qualified installer, service agency or gas supplier.
THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE WITH LOCAL CODES, IF ANY. IF NONE,
FOLLOW THE NATIONAL FUEL GAS CODE, ANSI Z 233.1, OR CANADIAN INSTALLATION CODES,
CAN/CGA-B149.
1. AUTOMATIC SHUT-OFF (using the remote control handset):
Press and hold the (small flame) on the remote control handset to shut-off the main burner gas flow;
Press “OFF” button (red dot) on remote handset to shut-off the appliance, including pilot flame.
•
•
1. STOP! Read the safety information above.
Wait five (5) minutes to clear out any gas, then smell for gas, including near the floor. If you smell gas, STOP! Follow
“B” in the safety information above on this label. If you don’t smell gas, go to the next step.
•
2. TO CLEAR ANY GAS, turn main valve off by pressing OFF (red dot) button on remote handset (1).
1
OFF
•Reinstall the window and set the MAN-knob (2) to ON; turn Flame
manually or use the flame buttons ( ) ( ) buttons on the remote control handset to adjust the flame height.
Adjustment knob (3) up ( ) or down ( )
3. AUTOMATIC IGNITION: MAN-knob (2) in ON position. Ensure Flame Adjustment
knob (3) is set to lowest setting ( )(Fig. 1). Locate the pilot (Fig. 3.) inside of firebox.
•ON/OFF wall switch (1) in ON position,
•
button ( ) simultaneously; a short acoustic signal confirms the start has begun.
• Further short acoustic signals indicate the ignition process is in progress.
• When the pilot is lit, the FlameAdjustment knob (3) will automatically rotate to the highest setting
• Press the small flame button ( ) on the remote control handset to reduce the flame height
4. MANUAL IGNITION: MAN-knob (2) in MAN position (Fig. 2). With the window off,
locate the pilot (fig. 3) inside of the firebox.
• Set FlameAdjustment knob (3) to the lowest setting ( ).
• Push down the metallic core (4) with a pen or similar instrument; this will establish the pilot gas flow.
•Light gas at the pilot (5) with a match.
• Continue holding down metal core (4) for about 10 seconds; after release, pilot should remain lit.
•If the pilot will not stay lit after several tries, turn the gas control knob (3) to OFF ( ) and call your local
service technician or gas supplier.
On the remote control handset, press the OFF button (red dot) and large flame




DO NOT REMOVE FROM FIREPLACE / NE PAS RETIRER DU FOYER
650 / 1100 / 1150 / 1400 / 1500 / 1600 / 1700 / 1800 / 2200 4002230-01
OWNER’S
INFORMATION

14
Servicing Your Fireplace
We recommend having your replace serviced every year. Contact your supplier quoting the model
number. It will be helpful if the appliance’s serial number can also be quoted. These numbers are
on the information card. The replacement parts are shown at the end of this manual. Please always
quote the part number and description when requesting spare parts.
Safe Operation List
To be performed by a qualied technician only
1. Inspect and operate the pressure relief mechanism to verify relief mechanisms are free from
obstruction to operate. See Cleaning Your Fireplace: To ret the window section of this manual.
2. Clean glass window with a suitable replace glass cleaner. Abrasive cleaners must not be used.
Be careful not to scratch the glass when cleaning. See Cleaning Your Fireplace section of this manual.
3. Inspect the operation of the ame safety system Pilot or Flame rectication device.
4. Inspect and ensure the lighting of the main burner occurs within 4 seconds of the main gas valve
opening. Visual inspection should match that outlined in the appliance instruction manual. Inspect
primary air openings for blockage. See Checking Pilot and Burner Flame section of this manual.
5. Inspect condition of vent and vent terminal for sooting or obstruction and correct if present.
6. Vacuum and clean any debris in the rebox that is not supposed to be there.
7. Test and measure the ame failure response time of the ame safety system.
It must de-energize the safety shuto󰀨 in no more than 30 seconds.
8. Check all accessible gas-carrying tubes, connections, pipes and other components for leaks.
See Set up Gas Supply section of this manual.
Annual Inspection
In order to maintain the safe operation of your replace, contact your dealer to have a qualied
technician go over the list below and make the necessary verications at least once every year.
Maintaining Your Fireplace
OWNER’S
INFORMATION

15
WARNING
CHOKING HAZARD! Ensure that the replace
area is clear of rebed particles as these could
be ingested by small children. Vacuum thoroughly
around the replace area after cleaning.
WARNING
DO NOT TOUCH THE GLASS WHILE IT IS HOT!
Let the replace cool rst before cleaning it.
!
Spring Loaded
Window Levers
!
Cleaning Your Fireplace
Important - Glass cleaning - Mineral deposits
One of the by-products of the combustion process in
a gas appliance is a mineral which can show up as a
white lm on the ceramic glass of the viewing door.
The composition of the deposit varies with location and
time. It is believed to be associated with the varying
sulfur content of the gas. You may have the problem
intermittently.
We have consulted with ceramic glass manufacturers
and they cannot o󰀨er a denitive solution to this prob-
lem. Dealers have tried various cleaning products with
varying results. The following are recommendations
only and are not meant to guarantee results.
NOTE: This is a problem beyond Miles Industries’
control and is not covered under warranty.
• Clean the glass regularly as soon as you notice
the buildup (white lm). If the lm is left for a longer
period of time, it will etch into the glass. It is then
much harder, if not impossible, to remove.
• NEVER use an abrasive cleaner or ammonia-
based cleaner on the ceramic glass. Any
abrasion of the surface has the immediate e󰀨ect of
compromising the strength of the glass. An emulsion
type cleaner is recommended.
• Use a soft damp cloth to apply the cleaner. Dry the
glass with a soft, dry, preferably cotton cloth. Most
paper towels and synthetic materials are abrasive to
ceramic glass and should be avoided.
• Our dealers have had good results from the
products listed below. We cannot, however,
guarantee the results of these products.
◊ Brasso, Polish Plus by Kelkem, Cook Top Clean
Creme by Elco, White O󰀨 by Rutland, Turtle Wax
Do not clean the glass while it is hot!
Always securely replace the window and the barrier
screen before lighting.
If broken, the glass pane may only be replaced
as a complete window unit as supplied by the
manufacturer.
If the barrier becomes damaged, the barrier shall
be replaced with the manufacturer’s barrier for this
appliance.
Clean the window panes following the guidelines in this
section.
Clean the steel trim with mild soap and warm water.
Any alcohol/solvent base cleaner will weaken the coat-
ing and damage it.
Clean the barrier screen dusting it with a soft brush.
Clean the rebox ceramic logs/rocks and walls dusting
them with a soft brush. Dust can also be removed from
the burner using a soft brush after removing the fuel
bed. When cleaning, make sure that no particles are
brushed into the slots of the burner.
To remove the window for cleaning:
1. Remove the barrier screen.
2. Remove the side doors and the plinth.
3. Find the levers on each
side of the window
towards the top. Using
your nger, pull the
levers towards you and
unhook them from the
window frame brackets.
4. Gently pull the top of
the window outward.
5. Lift the window out of its bottom railing and set it
aside in a safe place to avoid damage.
Remove plinthRemove side doors
Maintaining Your Fireplace OWNER’S
INFORMATION

16
Window frame
Bottom railing
To ret the window:
1. Place the window in its bottom railing. Ensure to
remove any vermiculite or glass particles in
the railing before installing the window.
2. Push the top
of the window
frame against
the rebox.
3. While you hold it, pull the side levers back into the
window brackets on each side.
4. Apply rm hand pressure around the window frame to
ensure the window is sealed tight against the rebox.
Hot Glass Warning Plate
5. If the Hot Glass Warning plate has been removed
from the front lower corner of the window,
reinstall it by sliding it between the glass and
the frame as indicated.
6. Reinstall the plinth and side doors.
7. Reinstall the barrier screen on the trim.
8. Verify that the screen is properly hooked to the trim
and secure.
3
WARNING
Failure to install the window correctly can
leak carbon monoxide, a󰀨ect the performance
of the replace, damage components, cause
overheating resulting in dangerous conditions.
Damage caused by incorrect window installa-
tion is not covered by the Valor warranty.
!
DANGER
The window unit must be correctly installed,
fastened and sealed after servicing or serious
bodily injury and/or damage to the appliance
may result.
To ensure a safe operation:
• Double-check that the bottom of the window
frame is correctly installed in the bottom
support railing;
• Verify that the levers are hooked properly to
the window tabs then;
• Pull out the top of the window and release it
to insure the springs return it;
• Ensure the window is sealed before operation.
!
WARNING
FOR SAFETY PURPOSE, ensure the barrier
screen is re-installed on the fireplace after
maintenance.
!
Maintaining Your Fireplace
Valve
Section Views
1
2
OWNER’S
INFORMATION

17
Checking Pilot and Burner Flames
A periodic check of the pilot and burner ames should
be made. Check after the re has been on for at least
30 minutes. The pilot ame must cover the tip of the
thermocouple probe. The main burner ame pattern will
vary from appliance to appliance depending on the type
of installation and climatic conditions.
The appliance area must always be kept clear and
free from combustible materials, gasoline and other
ammable vapors and liquids.
Inspect the vent terminal outdoors regularly to make
sure that snow, trees, bushes, leaves, or other objects
do not obstruct it.
Examine the vent system and terminal regularly. We
recommend annually.
Maintaining Your Fireplace
Pilot Flame Thermocouple Probe
must be in Flame
1505DWK—Long Beach Driftwood
Pilot Flame can be seen
between the front and
rear left logs
1500DGM—Decorative Glass Murano
1500DGS—Decorative Glass
Pilot Flame can
be seen left of
the re bed
1514RSS—Rock & Shale
1500SWK—Split Wood
Pilot Flame can
be seen left of
the re bed
Pilot Flame can
be seen left of
the re bed
Correct Flame Appearance
OWNER’S
INFORMATION

18
WARNING
DO NOT ATTEMPT TO CHANGE THE BATTER-
IES WHILE THE FIREPLACE IS STILL HOT! Let
the replace cool rst before touching it.
CAUTION
DO NOT USE a screwdriver or other metallic object
to remove the batteries from the battery holder or
the handset! This could cause a short circuit.
Battery holder
& wall switch
Fireplace
The battery holder is located beside the wall switch.
Disconnect
connector
!
Replacing Batteries
Low batteries signal: see page 11.
BEFORE changing the batteries, turn the replace
o󰀨 (including pilot).
The appliance uses four 1.5 V AA alkaline batteries
located next to the wall switch and one 9 V alkaline
battery in its handset. Batteries should last one to two
seasons, depending on usage. Removing the batteries
in the o󰀨-season will extend the battery life.
To replace the batteries:
The battery compartment is located next to the wall
switch in the vicinity of the replace. Its front plate is
attached with magnets to the wall switch box.
1. Pull on the plate next to the wall switch to access
the batteries.
2. Disconnect the snap connector from the battery
holder. Do not pull the connector by the wire!
3. Replace the batteries with 4 AA alkaline batteries
orienting them as indicated inside the holder.
4. Reconnect the snap connector to the battery holder.
5. Put the battery holder back in its place beside the
wall switch and snap it in place.
Using Handset Wall Holder
Your replace equipment includes a wall
holder to store the handset. If it hasn’t be
installed, refer to the instructions further
on in this manual for the installation.
Maintaining Your Fireplace
OWNER’S
INFORMATION

19
XValve access side
This appliance is designed and approved as a
supplemental heater and provides the potential
for most energy conservation when used while
attended. The use of an alternate primary heat
source is advisable.
Model JN JP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 30,000 26,000
Input Minimum (Btu/h) 18,000 18,500
Manifold Pressure (in w.c.) 4.0” 10.0”
Minimum Supply Pressure (in
w.c.) 5” 11”
Maximum Supply Pressure (in
w.c.) 10” 14”
Main Burner Injector Marking 850 260
Pilot Injector Marking 51 30
Min. Rate By-Pass Screw 220 160
Approval & Codes
This appliance is certied to ANSI Z21.88-2016/CSA
2.33-2016 American National Standard / CSA Standard
for Vented Gas Fireplace Heaters for use in Canada
and USA, and to CGA 2.17-91 High Altitude Standard in
Canada. This appliance is for direct vent installations.
This appliance complies with CSA P.4.1-15 Testing
method for measuring annual replace eciencies.
The installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54 or the Natural Gas and Propane
Installation Code CAN/CGA-B149.1. Only qualied
licensed or trained personnel should install this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA
70 or the Canadian Electrical Code, CSA C22.1.
Ratings
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certied without deration for elevations up to 4,500 feet
(1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas utility
to conrm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Supply Gas
Heater engine 1600JN is used with natural gas.
Heater engine 1600JP is used with propane gas.
The supply pressure must be between the limits shown
in the Ratings section above.
Specications
The supply connection
is 3/8” NPT male and
located on the left hand
side of the rebox.
A shut-o󰀨 valve (not
supplied) is required
on the supply line to
isolate the unit during
service. See Gas Supply
Installation section for details.
Conversion Kits
The 1600J L1 Two-Sided is supplied as natural gas or
propane gas and is eld convertible between fuels. See
instructions packaged with the conversion kit for further
information.
Electrical
The 1600J is designed to run on battery power and
does not require an electrical power source to operate
as a heater. However, it requires electrical power to
operate optional 1270RBK Remote Blower Kit.
LDK HeatShift Duct Kit
The 1600J is designed to allow the installation of the
optional LDK HeatShift Duct Kit, a convection system
that redistributes the warm air ow away from the
replace opening to a more desirable location using
natural convection, without use of a fan.
The warm air ow may be relocated to a position higher
up the wall, out the sidewalls, or even to another room.
The result is much cooler wall temperatures above the
replace opening for locating televisions, artwork, etc.
Please note that the framing and mantel clearances
are a󰀨ected by the installation of the LDK. Refer
to the installation manual packed with the kit for more
information.
Outdoor Conversion Kit
The 1600J models are supplied standard for indoor
applications and may be adapted for installation in
specic “outdoor” applications protected from weather as
dened in the GV60CKO outdoor conversion kit manual.
WARNING
Optional electrical accessories
ARE NOT ALLOWED when adapting
appliance for outdoor use.
!
QUALIFIED
INSTALLER

20
Overview
Combustible Floor
Framing—See Framing Requirements
1/2 inch thick non-combustible
cement board – NOT supplied
Supplied as horizontal side outlet, eld
convertible to top vertical outlet.
Remote Handset
Wall Holder
Wall Finish
Any wall nishes applied
over cement board must
be non-combustible.
Combustible mantel
are ok provided they
conform to chart
(see p. 22)
Combustible Framing Allowed Beneath Fireplace. When
the appliance is installed directly on carpeting, tile or other
combustible material other than wood ooring, the appliance
shall be installed on a metal or wood panel extending the full
width and recessed depth of the appliance.
WARNING
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel, and
so on because of the heat produced by the
replace. Avoid placing candles, paintings,
photos, and other items sensitive to heat
around the replace.
!WARNING
HOT WALL SURFACES! The wall directly
above the replace is constructed of non-
combustible materials and, although safe, it
may reach temperatures in excess of 250° F
depending on choice of trims. Do not touch.
Finish the wall using materials suitable
for these temperatures. We recommend
installing optional LDK HeatShift Duct Kit
when hot walls are a concern.
!
Trim with Barrier Screen
(required)
Narrow 1” Trim 1575LFB
and wider 3-1/2” steel
Trim 1550 adjustable,
accept additional non-
combustible nish over
cement board and
behind trim.
Remote Battery
and Wall Switch
Kit (required)
(35-foot wire
length) (supplied)
1600J heater
Optional LDK HeatShift Duct Kit outlets (4)
Note: This appliance may be installed in outdoor, weather protected environments
as dened in the GV60CKO Outdoor Conversion Kit instruction manual.
QUALIFIED
INSTALLER
