Valor Wonderfire BR419 User manual

600B253/03
MODEL BR419
(G.C. 32-032-08)
Inset Live Fuel Effect
Gas Fire
with
UltimateFireslide
Colourway
Superflame
Or
Homestyle
Front
OWNER GUIDE
This Owner Guideis intended to help you care for your Valor gas fire.
Please read carefully before using your gas fire and keep for future reference.
This Owner Guide gives sufficient details to enable your gas fire to be operated and
maintained.
IMPORTANT.
Please keep your Owner Guide in a safe place together with the
Installer Guide.

2
Thank you for choosing Valor.
All Valor gas fires are designed to meet the most stringent quality, performance and safetyrequirements to provide our customers
with many years’ trouble-free service.
Your owner guide aims to improve your understanding and appreciation of your Valor gas fire by providing simple and informative
instructions to ensure that you benefit from the excellent performance and features it has to offer.
Ifyou require further assistance or anyadvice about gas in general, the Valor AdviceLine will be pleased to help.
Please telephone [phone] (local call rates apply in the United Kingdom).
FOR OTHER USEFUL TELEPHONE NUMBERS SEE INSIDE BACK COVER.
Page
Safety _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Major Dimensions_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
Gas Consumption_ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
Operating the Fire_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Cleaning_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Fuel Bed Refitting_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 7
Maintenance_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
UsefulTelephone Numbers _____ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Inside back cover
As supplied, this appliance is for use with natural gas (G20)
When converted using Valor conversion kit no. 591149 this appliance
is for use with propane gas (G31)
This appliance is for use in the United Kingdom (GB) and the Republic
of Ireland (IE) only.
CONTENTS
CUSTOMER CARE

3
SAFETY
IF YOU SMELL GAS
DON’T SMOKE
EXTINGUISH ALL NAKED FLAMES
DON’T TURN ELECTRICAL SWITCHES ON OR OFF
TURN OFF THE GAS SUPPLY AT THE METER
OPEN DOORS AND WINDOWS TO GET RID OF THE GAS
IMMEDIATELY CALL THE GAS EMERGENCY SERVICE - SEE YOUR LOCAL TELEPHONE DIRECTORY
1. As with any gas appliance, this fire must
be installed by a competent person. In
the United Kingdom, installation must
be in accordance with the latest edition
of the Gas Safety (installation & use)
Regulations.
In the Republic of Ireland, installation
must be in accordance with all national
and local regulations in force.
2. If the fire is intended to be installed to a
chimney which was previously used for
solid fuel, please note that the chimney
must be swept prior to installation.
3. On no account must the fire stand on
carpets or other combustible materials.
The fire must stand behind a non-
combustible hearth surface. The hearth
material must be at least 12mm thick. Its
top surface should be 50mm above floor
level to discourage placing carpets. Rugs
or other combustible materials over the
hearth. The minimum size of the hearth
is shown in figure 1.
4. If the fire is intended to be installed
against a wall with combustible
cladding, the cladding must be removed
from the area covered by the outer
surround (see figure 1).
5. The minimum height from the top
surface of the hearth to the underside of
any shelf made from wood or other
combustible material and which is not
more than 150mm deep is 750mm.
For shelves deeper than 150mm add
12.5mm to the above clearance for every
25mm of additional shelf depth.
6. Never put any paper or other material on
the fire. Never add any extra coals above
the number stated in these instructions.
This could cause a safety hazard.
7. It should be appreciated that although
this appliance conforms to all the
applicable standards, it is a decorative
fuel effect heating appliance and certain
parts of its surface will become hot. A
suitable guard which complies with BS
6539 or 6778 should be used for the
protection of young children, the elderly
and the infirm. Such a guard is also
recommended for the protection of pet
animals.
8. Always switch the fire off and allow to
cool before handling. Note that this
appliance retains heat for some time
after it has been switched off.
9. Never hang clothing, towels or any other
fabrics over the fire.
10. This appliance is fitted with a device
which will automatically shut off the
supply of gas to the fire if, for any
reason, the flames go out. If this device
does operate or if the fire is turned off
accidentally or intentionally, always wait
three minutes before attempting to
relight.
11. Soft wall coverings (e.g. embossed vinyl
etc.), are easily affected by heat. They
may, therefore, scorch or become
discoloured when close to a heating
appliance. Please bear this in mind when
having a heating appliance installed and
when redecorating.
Please note
When operating your fire for the first time, some
vapours may be given off which may cause a slight
odour and could possibly set off any smoke alarms
in the immediate vicinity. These vapours are quite
normal with new appliances. They are totally
harmless and will disappear after a few hours use.
This fire is supplied with ceramic “coals” to
simulate a real coal fire. These items are safe to
handle and are designed for easy refitting if
removed.
After some use, the ceramic walls and coals may
change colour. This is quite normal.

4
GAS CONSUMPTION
Natural gas appliances have a maximum gas input at the high setting of 6.0kW (Gross) and a minimum
gas input at the low setting of 2.7 kW (Gross).
Propane gas appliances have a maximum gas input at the high setting of 6.1kW (Gross) and a
minimum gas input at the low setting of 4.3 kW (Gross).
To calculate the running cost of this fire, multiply the gas consumption (gas input) by the cost of gas
which you will find on your gas bill.
GAS X COST =RUNNING
CONSUMPTION OF GAS COST
(HEAT INPUT)
Natural gas appliances have a heat output of 3.5kW at the high setting and 1.3kW at the low setting.
Propane gas appliances have a heat output of 3.6kW at the high setting and 2.1kW at the low setting.

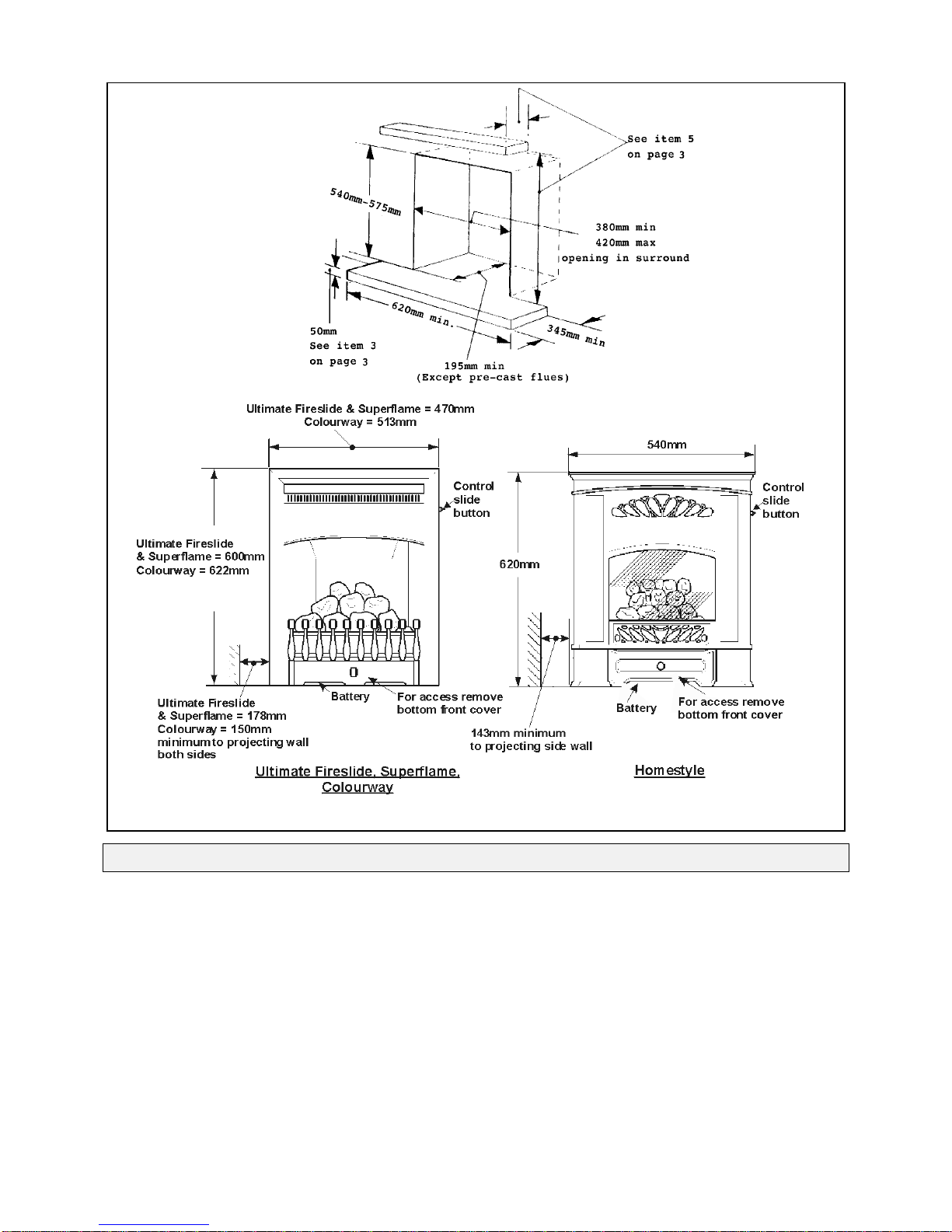

Fig 1 Hearth dimensions & clearances

5
OPERATING THE FIRE
The flame sensing & flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety device which will shut down the
appliance in the event of abnormal flue conditions. This device is NOT a substitute for an
independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire if the pilot flame goes out due to
lack of oxygen or for any other reason.
If this device starts to repeatedly shut off the gas, get expert advice.
This device incorporates a probe which senses that the heat from the pilot flame is correct. If this
probe is cool, the device will prevent any gas flow unless the sliding control button is held at the
ignition position.
If, for any reason, the flames go out when the fire is hot or if the fire is turned off when hot, always
wait at least three minutes before attempting to relight.
To light the fire

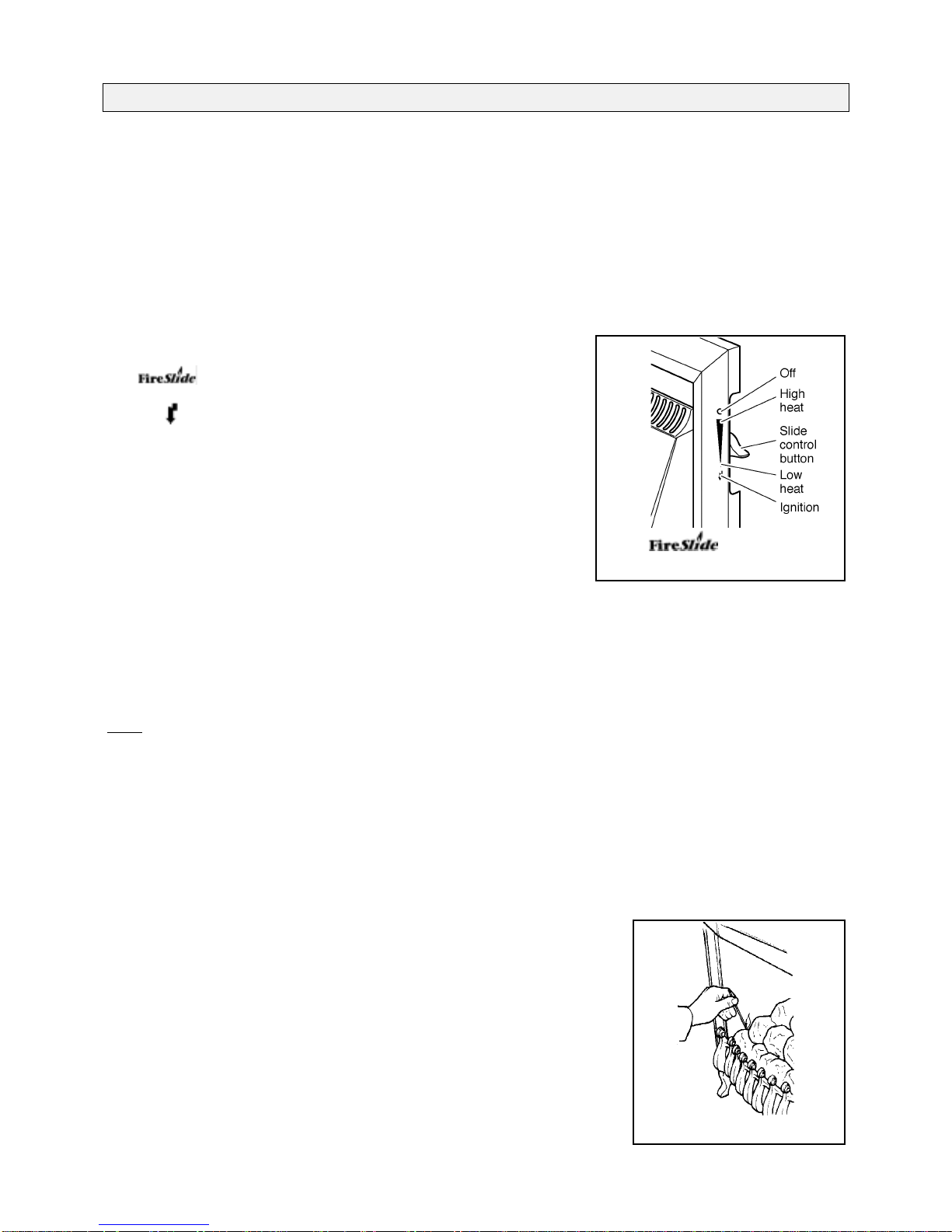

The control is shown in figure 2.
1. Slide the control button to the bottom (ignition) position
marked .
In this position, the electronic ignition system should cause a series
of sparks which should light the pilot. Within four seconds of the
pilot igniting, the main burner should light at its minimum setting.
If no sparks are produced to light the pilot, the battery may need
replacing. Details of battery replacement are given further on in this
manual.
Until you can obtain a replacement battery the fire can be lit with a
taper as described later in the instructions.
2. Keep the button at the ignition position for a further ten
seconds. This will prevent the flame sensing device from shutting
off the gas while its probe warms up as explained above.
3. If low heat is required, release the button. The button will automatically spring up to the low heat
position shown in figure 2 (See note i below).
4. For a higher heat level slide the button upwards. The burner flames and heat output will gradually
increase until the button reaches the high heat position shown in figure 2. When the button reaches the
high heat position you will feel a check to its movement. Do not slide the button above the high
heat position unless you want to turn the fire off (See note i below).
Note
i. If the flames go out while setting the control, repeat the full lighting procedure. If the flames
repeatedly go out have the fire serviced.
ii. Please note. When first turned on the flames will appear predominantly blue. The coals will take time
to warm up. Although some glow will be seen after approximately ten minutes, the full visual effect will
only be apparent after a somewhat longer time.
iii. The appliance will operate to its maximum potential if the flue is primed during the first 20 – 30
minutes of operation.To do this, simply turn the control knob to its highest setting. This will also burn
off any carbon deposits that may have formed during previous operations.
iv. If operating the appliance for long periods it is beneficial to change between settings. This will also
help to remove any carbon deposits that may form during operation.
To turn the fire off
Slide the button up past the high heat position to the “O” position until
the flames extinguish. Both the main burner and the pilot should go out.
While cooling, the coals may make some crackling noises. This is quite
normal.
Lighting with a taper (see figure 3)
In the unlikely event of failure of the ignition spark, the pilot can be lit
by a taper or long spill. Insert the taper or spill alongside of the left side
wall of the fire box and operating the slide control as described above.
Fig. 2 control (Shown
with Ultimate front)
Fig. 3 Lighting with a taper

6
CLEANING
Turn the fire off and allow it to cool before attempting any cleaning. Note that the fire will retain heat
for some time after it has been turned off.
If large pieces of debris are found anywhere in the fireplace, have the chimney inspected before
further use.
Metal parts
Clean the metal parts with a slightly damp cloth and then dry. Do not use abrasive cleaners, they
could scratch the surface.
Coals and burner compartment walls
This product uses ceramic fuel effect pieces. It makes sense to take care when handling these articles
so that the release of dust is kept to a minimum.
Coals
Light coatings of soot will usually be burnt off during the normal operation of the fire. If, however,
deposits of soot or particles of sand, mortar, etc. from the chimney accumulate to 3mm (1/8in) or more,
these should be removed from the coals by dismantling them and cleaning with a soft brush. We
suggest that you remove the coals in the reverse order to that shown in the fuel bed refitting
instructions on the next page.
Cleaning with a vacuum cleaner is not recommended because it may
damage the coals.
Ceramic fire box walls
Clean with a dry soft brush. Cleaning with a vacuum cleaner is not recommended because it may
damage the walls.
Ceramic burner
Remove any deposits of soot or other foreign matter from the solid areas of the burner with a dry soft
brush. Be careful not to brush any particles into the open slots. Remove any particles from the slots
with a vacuum cleaner fitted with a soft brush attachment. Do not poke wire, etc. into the slots in
the burner.

7

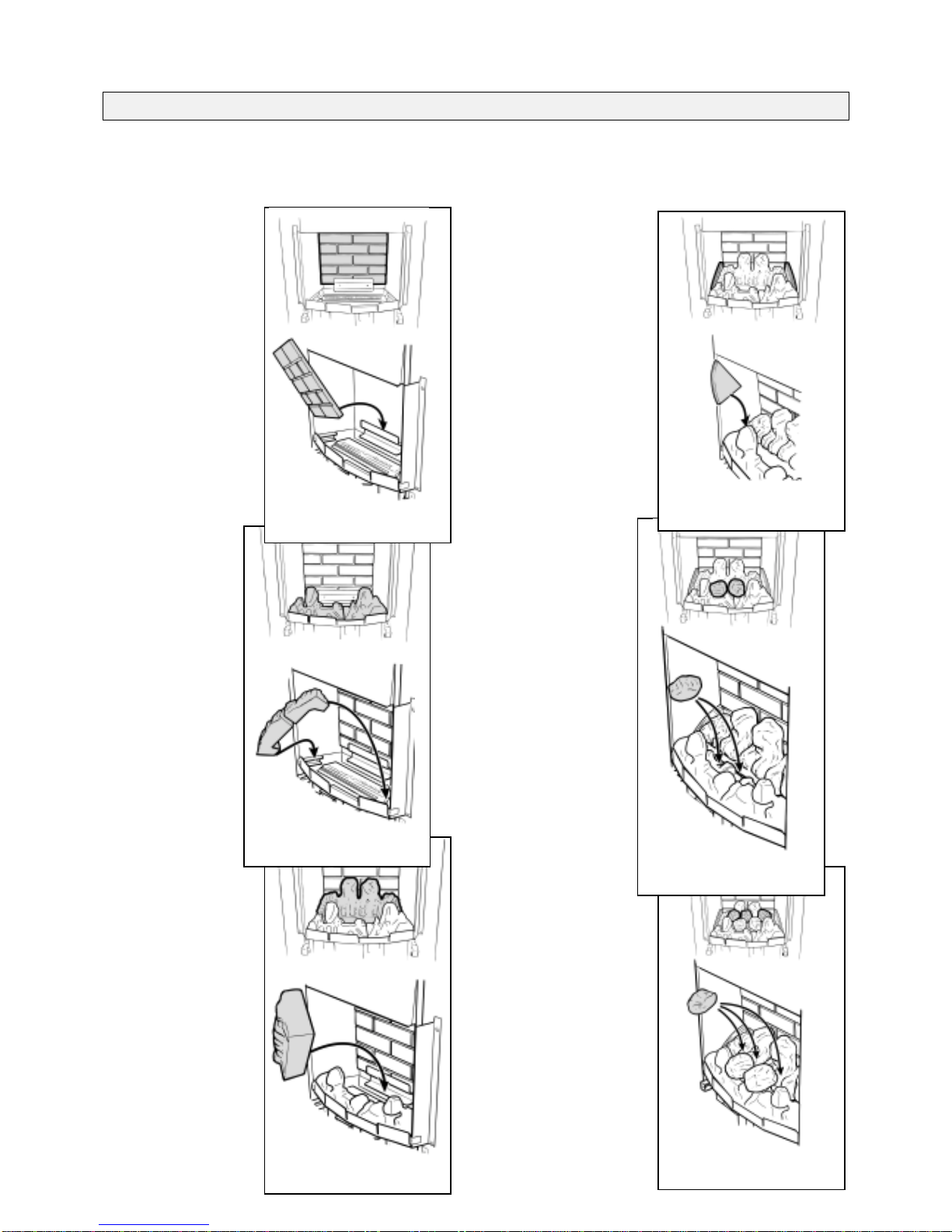

FUEL BED REFITTING
If the fuel bed components are dislodged or removed, they must be refitted as follows:
Only the fuel bed parts supplied with this appliance or authorised Valor replacements must be
used. Never add extra coals above the number stated in these instructions.
1.With its feather
edge at the top,
place the ceramic
rear wall into the
channel at the back
of the fire box. Push
the wall flat against
the rear of the fire
box. (See figure 4).
2.Place the two
halves of the front
base coal in the
burner
compartment so
that they rest on
the ledges at the
sides and front.
Pull the coals
forward so that
they are
immediately
behind the front
rim of the burner
compartment
(See fig. 5).
3.Place the rear
base coal in the
burner compartment
behind the front coal.
Its rear face should
touch the rear
ceramic wall (See
figure 6).
4.The ceramic side
walls are marked at
the rear bottom
corners “L” (Left side)
& “R” (Right side).
Place the side walls
against the sides of
the fire box and in
the recesses at the
sides of the base
coals. The markings
“L” & “R” should be at
the back bottom
corners and facing to
the centre of the
back of the firebox
(See figure 7).
5.Install the 5
loose coals as
follows. The
smooth surfaces
of the coals
should be at the
bottom and back.
5.1 Select the
two largest coals.
Place them in the
central two
valleys of the
front coal (See
figure 8).
5.2 Place the
three remaining
coals behind and
approximately
midway between
each of the coals in
the front row (See
figure 9).
Fig 9 Middle row of
coals
Fig. 8 Front row inner
coals
Fig. 6 Rear base coal
installation
Fig. 5 Front coal
installation
Fig. 4 Ceramic rear wall
installation
Fig. 7 Ceramic side walls
installation

8
With Spring clips With screws
Figure 11 Homestyle top casting & tiles removal
MAINTENANCE
Battery replacement
(See fig 10).
This appliance requires 9V PP3 Ever Ready Silver Seal (or equivalent)
battery.
To replace the battery remove the bottom front cover casting.
Fit the new battery firmly to the connections on the generator, the
positive battery terminal (+) being to the right as you insert.
Fitting Tile sets – Homestyle Only
A wide range of alternative tile designs are available from your
supplier.
To change the tiles:-
1. The top casting will have to be removed to insert
the tile set. Some appliances have the top casting
secured to the sides by screws. Other appliances
have the top secured by spring clips. If the top is
screwed to the sides, unscrew the two screws at
the top of the side castings until they are loose
enough to allow the top to be lifted off. There is
no screw thread in the top casting, only in the side
castings (See figure 11). If no screws are visible,
the top can be removed by pulling it firmly
upwards to release the spring clips (See figure 11).
2. a) Remove the complete tile cassette by sliding
the cassette channel up and out of the front
casting. See figure 11.
b) Alternatively, remove the tiles individually by sliding them up out of the cassette channel. This second
method will have to be employed if a shelf above the fire is too low to enable the channel to be slid clear.
3. Fit the new tile cassettes by sliding them in the grooves at the back of the front casting and in front of the
spring clips. Alternatively, if any shelf above the fire is too low to fit the full cassette, remove the new tiles
from the cassette and individually slide them into the old cassette channel.
4. Replace the top casting and, if applicable, secure by tightening the two screws.
Regular maintenance
In order to achieve and maintain high levels of personal safety and performance efficiency, it is essential that
the opening at the back of the fire and the flue are kept clear of any form of obstruction. It is possible that
deposits of mortar or soot could fall and accumulate causing the flue to be blocked or restricted and so
preventing proper clearance of dangerous exhaust fumes.
In the United Kingdom it is the law that a landlord must have any gas appliance, flue and pipework which is
situated in a tenant’s premises checked for safety at least every twelve months by a competent person (In the
U.K, a CORGI registered installer).
We recommend that all gas appliances and their flues, wherever situated, are checked annually.
Servicing
KIn the United Kingdom servicing can be carried out either by a Valor Service engineer or a CORGI registered
installer.
If you require your fire to be serviced by a Valor service engineer please contact Valor Service on 0121 386
6203 and quote the following details;
a) model name and number.
b) appliance serial no. (To be found below the burner and behind the bottom front cover)
KIf you wish to replace any of the owner replaceable parts listed below, please contact Valor Sales on 0121
386 6260 for your nearest stockist of these parts. When ordering please quote the part number shown
below.
In the Republic of Ireland call 353 183 75114 for all enquiries.
Description Part No
Rear wall 545999
Front base coal halves 569449
Rear base coal 569459
Pack of 5 top coals 569469
Right side wall 546039
Left side wall 546049
When fitting replacement parts, follow the instructions contained in this guide. It is important that only Valor
approved parts are used for maximum safety.
Fig. 10. Battery fitting

a) Your Post Code.
b)Type of fire.
c) Model/Name.
d)Serial Number.
e) The fault, problem or request.
General advice about gas and your gas fire:
VALOR ADVICELINE 0345 626341.
To report faults or arrange for your fire to be serviced:
VALOR SERVICE 0121 386 6203.
To order spares or for sales information:
VALOR SALES 0121 386 6260.
CALLERS IN THE REPUBLIC OF IRELAND
Call 353 183 75114
USEFUL TELEPHONE NUMBERS
To help us quickly help you, please try to have the
following information available before you contact
us:

Safety First.
Valor fires are CE Approved and designed to meet the appropriate British Standards and Safety Marks.
Quality and Excellence.
At the heart of every Valor fire.
All Valor fires are manufactured to the highest standards of quality and excellence and are
manufactured under a BS EN ISO 9001 quality system accepted by the British Standards Institute.
The Highest Standards
Valor is a member of the Society of British Gas Industries which works to ensure high standards of
safety, quality and performance.
Careful Installation
Valor is a Corgi registered company. All our gas fires must be
installed by a competent Corgi Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet or floor of combustible material.
Valor Heating, Erdington, Birmingham B24 9QP
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication.
© Valor Heating
