Valor MADRONA MF28JN User manual

Installation Manual
Direct Vent Zero Clearance
Freestanding Gas Fireplace
natural gas MF28JN
propane gas MF28JP
MADRONA
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
DANGER
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Installer: Place model/serial number here.
4005005-15

Ce guide est disponible en français sur demande.
This appliance is a domestic room-
heating appliance. It must not be used
for any other purposes such as drying
clothes, etc.
This appliance is suitable for
installation in a bedroom or bed
sitting room.
This manual contains instructions
to install the ENGINE ONLY. A stove
casing is REQUIRED to complete
this installation. A barrier screen is
provided with the casing. Refer to the
manual supplied with the casing for
installation.
The information contained in this manual is believed to
be correct at the time of printing. Miles Industries Ltd.
reserves the right to change or modify any information
or specifications without notice. Miles Industries Ltd.
grants no warranty, implied or stated, for the
installation or maintenance of your heater, and
assumes no responsibility for any consequential
damage(s).
© Copyright Miles Industries Ltd., 2022. All rights reserved.
Designed and manufactured for Miles Industries Ltd.
Valor Fireplaces
190–2255 Dollarton Highway
North Vancouver, BC, Canada V7H 3B1
T 604.984.3496 F 604.984.0246
valorfireplaces.com
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where
not prohibited by local codes. This
appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for
use with other gases, unless a certified
kit is used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
Massachusetts:
The piping and final gas connection must be
performed by a licensed plumber or gas fitter in
the State of Massachusetts. Also, see Carbon
Monoxide Detector requirements in this manual.
WARNING
This product can expose you to chemicals
including Benzene, which is known to the State
of California to cause cancer and birth defects or
other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
Note: Natural gas, in its original state, contains
Benzene.
2

3
Stove Safety........................................................ 4
Specifications..................................................... 6
Kits & Accessories.............................................. 7

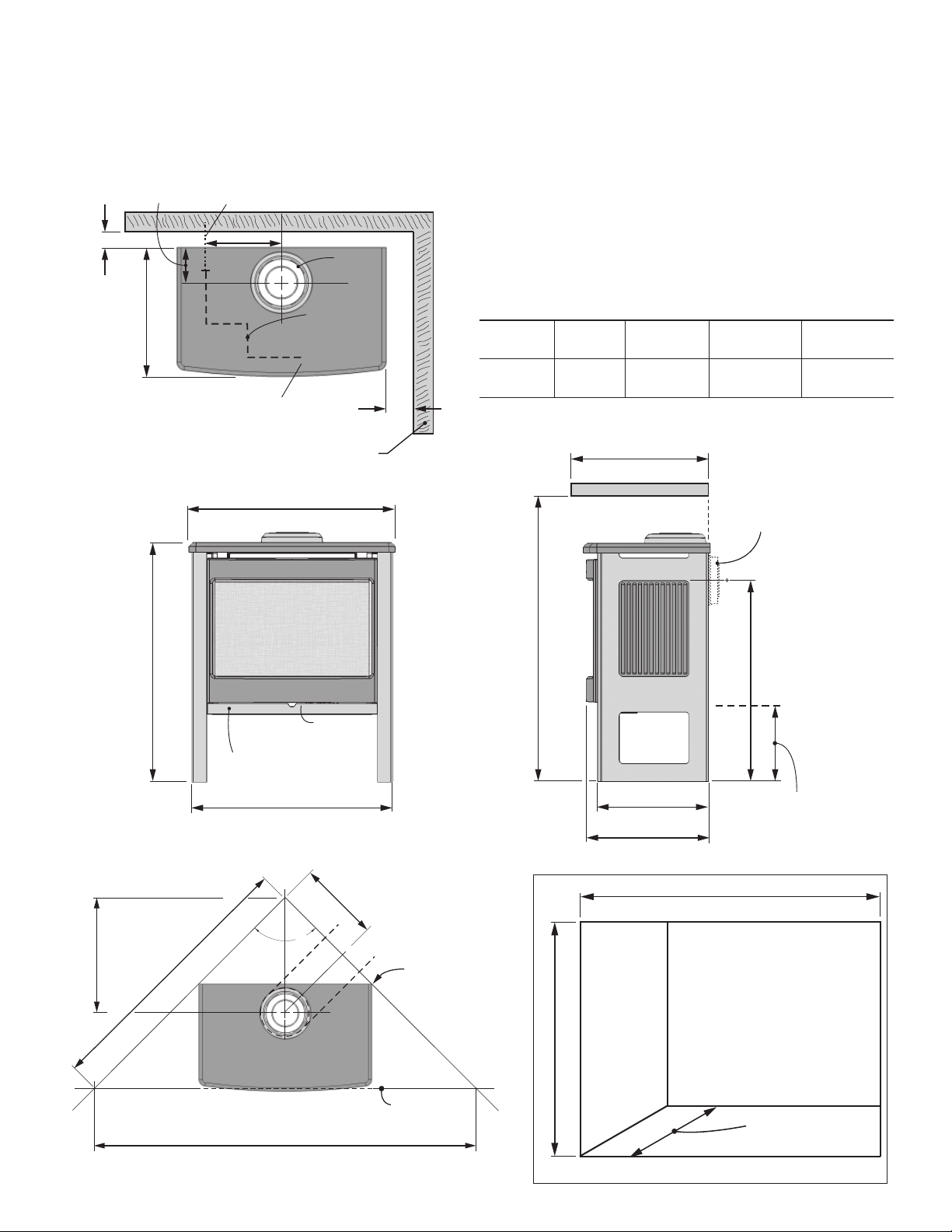

Dimensions & Clearances................................. 8
Venting .............................................................. 10
Overview ......................................................................10
Co-Axial ........................................................................11
Typical Co-Axial Venting Components....................11
Venting Chart ..............................................................12
Venting Diagram.........................................................13

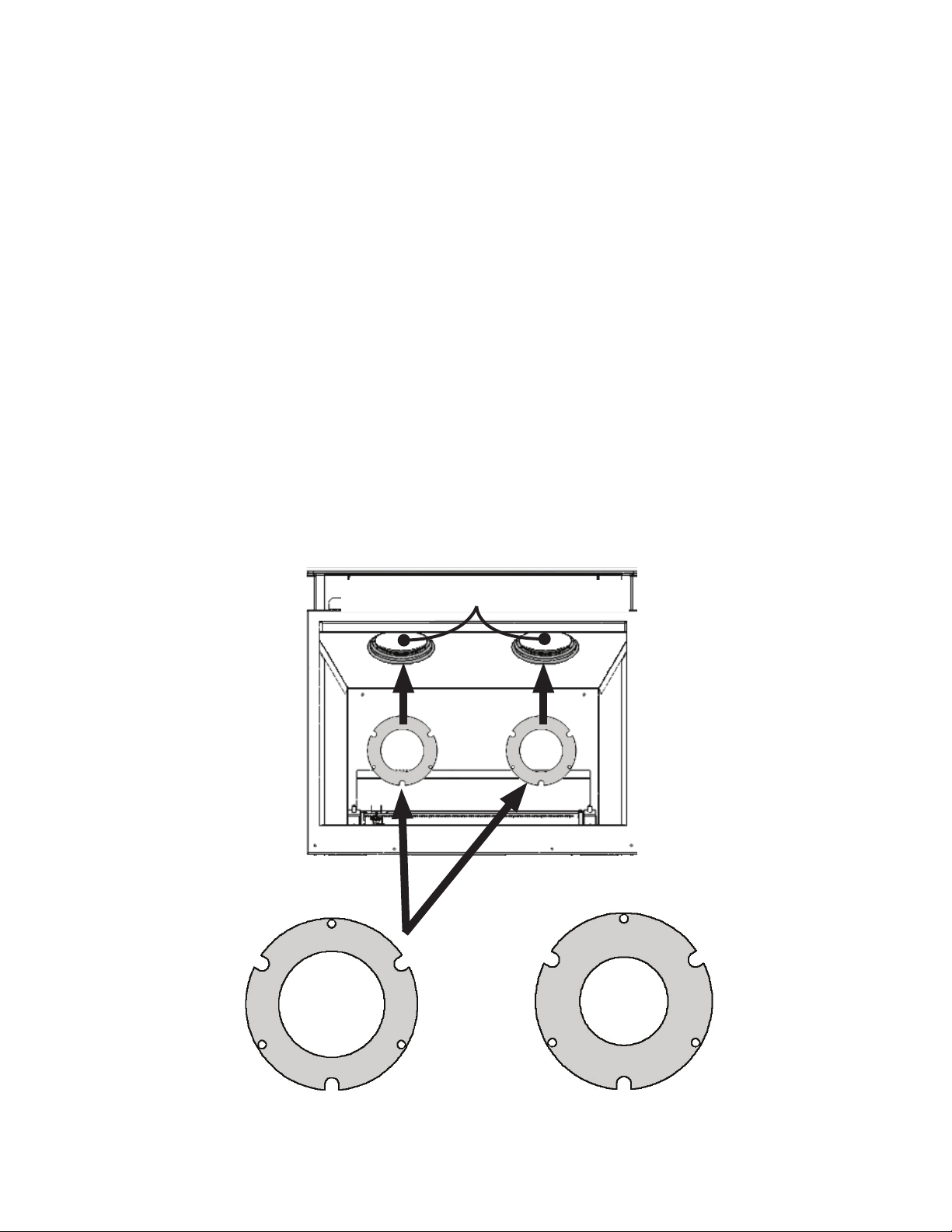

Restrictors ...................................................................14

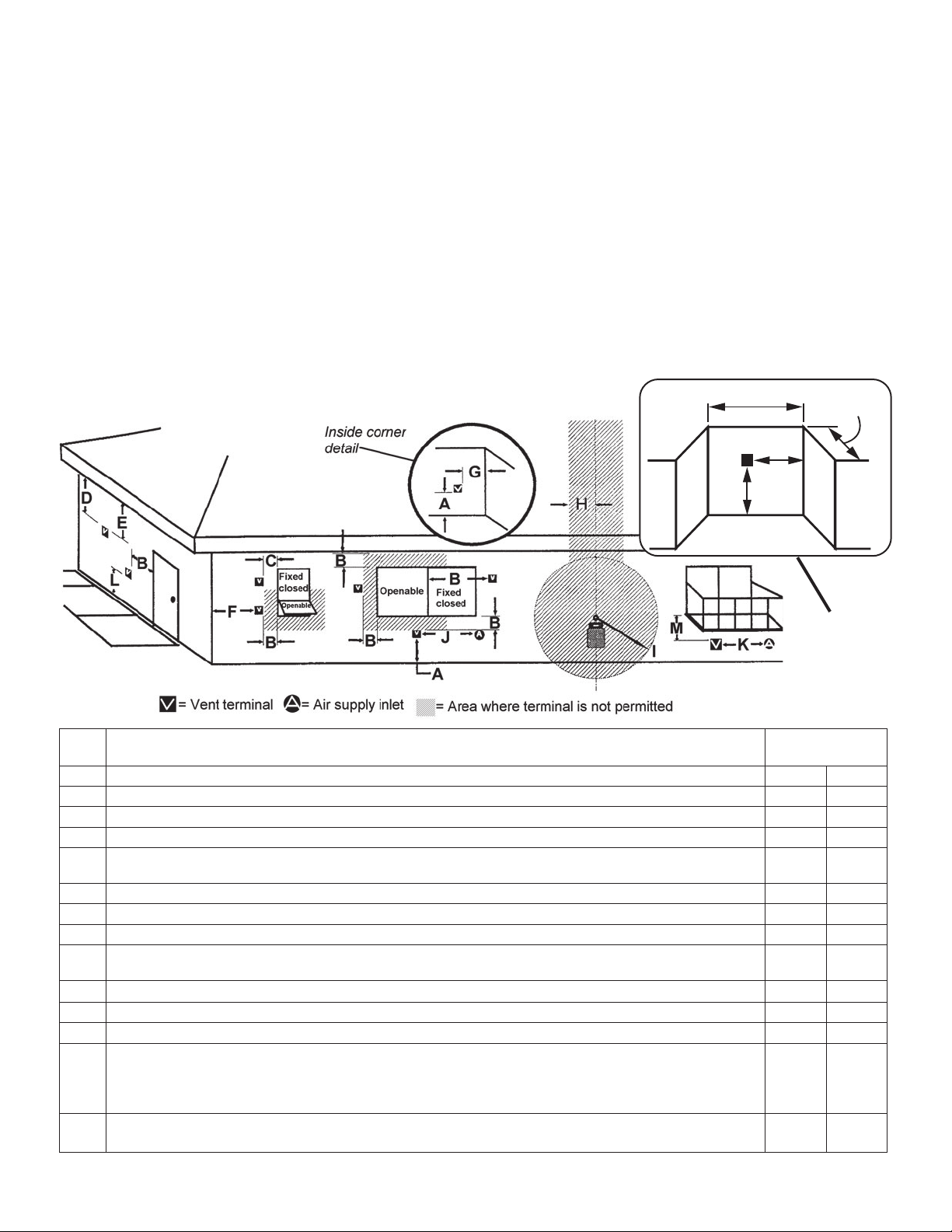

Horizontal Vent Termination Location....................15
Vertical Vent Termination .........................................16
Co-Linear ......................................................................16
Preparation ...................................................... 17
Before Installing..........................................................17
Installation ....................................................... 18

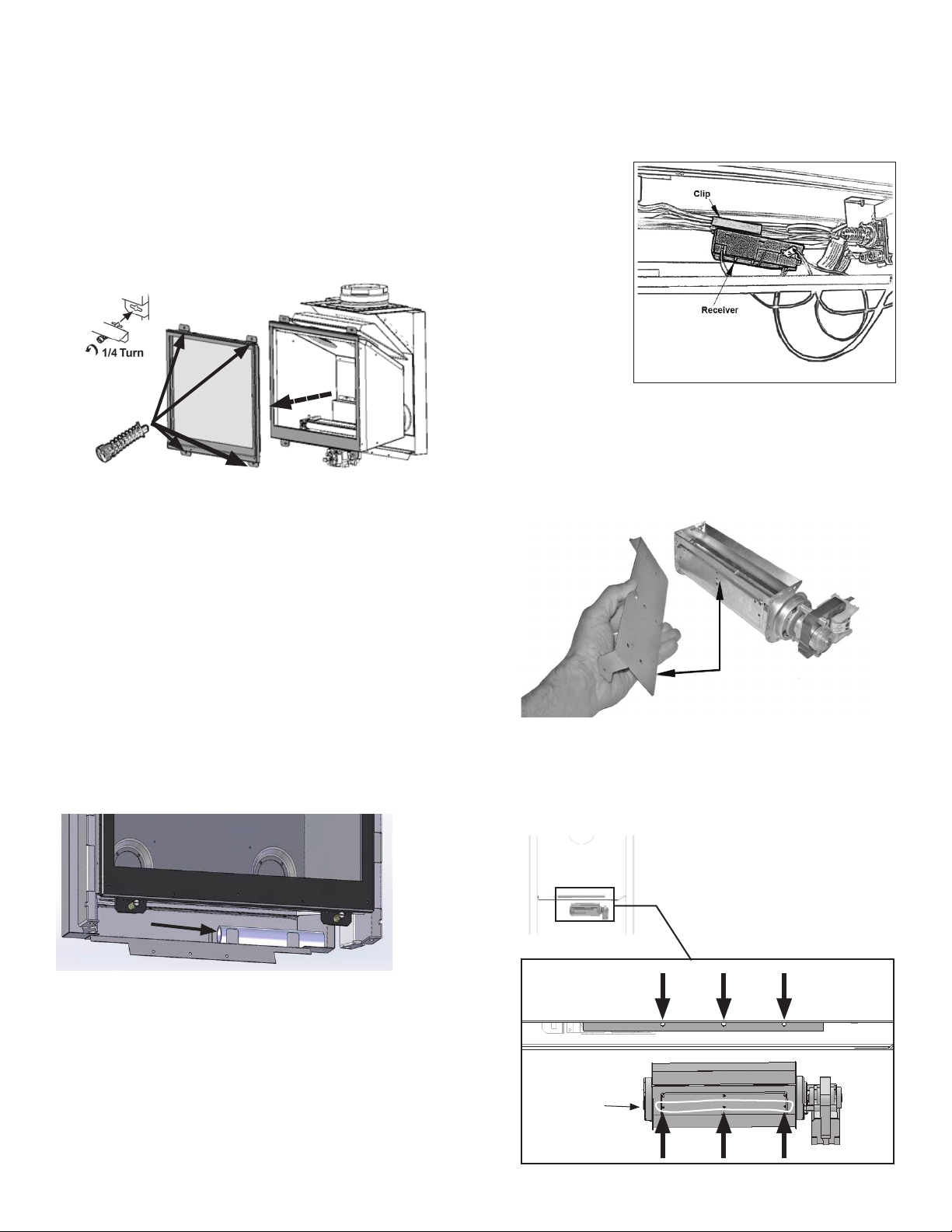

Window & Optional Fan .............................................18

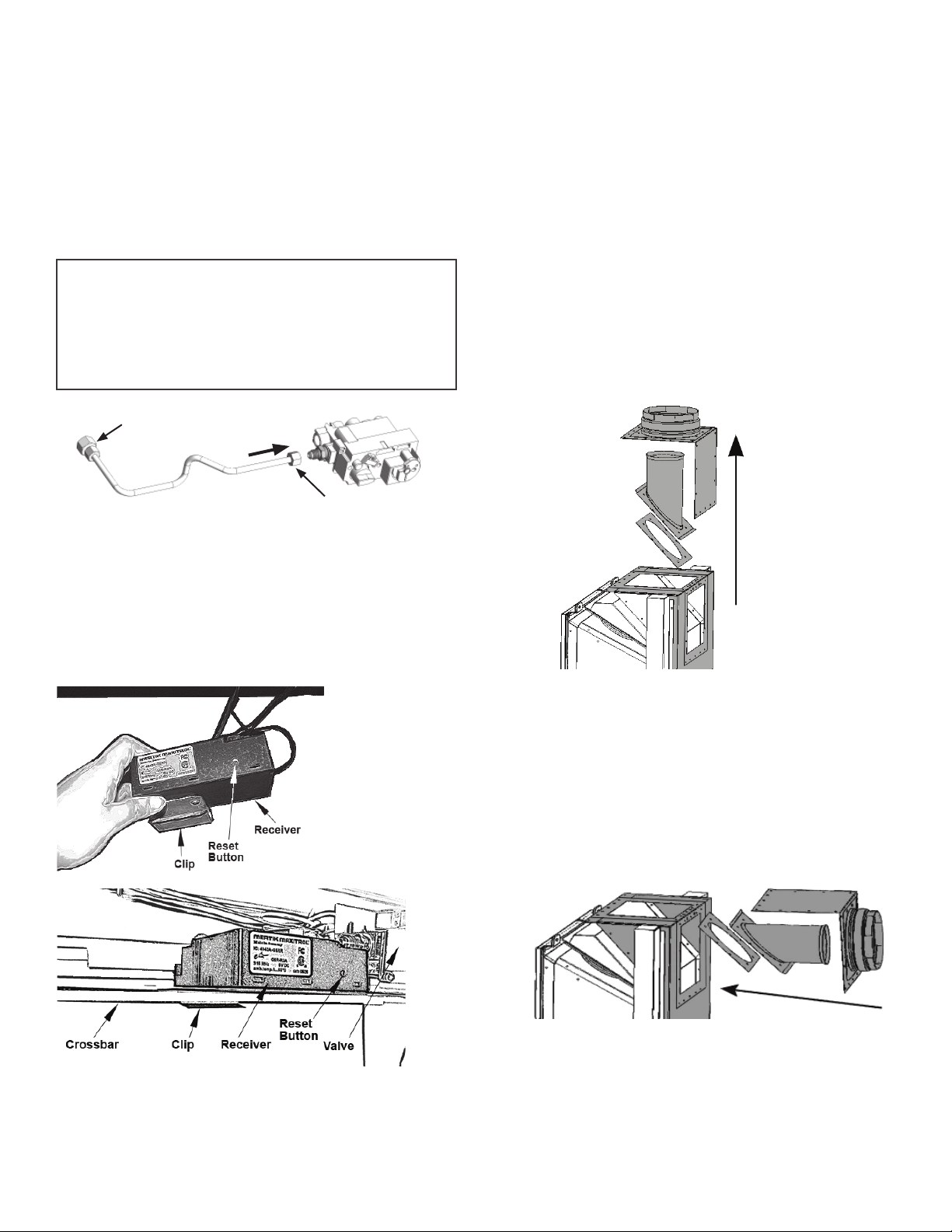

Vent Outlet...................................................................19
Gas Supply................................................................... 20
Fuel Beds ..................................................................... 21
Traditional Log Set MF28LSK....................................21
Driftwood Kit MF28DWK...........................................23
Splitwood Kit MF28SWK............................................25
Refit & Check Window............................................... 27
Battery Holder............................................................ 28
Remote Control Pairing............................................. 29
Operation Check & Burner Aeration ...................... 30
Barrier Screen & Accessories................................... 31
Wiring Diagram................................................ 32
Approved Venting Components.................... 33
Commonwealth of Massachusetts ............... 35
Appendix A – Lighting Instructions Plate..... 36
Appendix B – Remote Control Operation .... 37
Appendix C – Spare Parts ............................... 41
Please read this manual BEFORE
installing and operating this
appliance.
This appliance has been professionally installed by:
Dealer Name: ________________________________
Phone:______________________________________
Welcome to Valor®

4
Stove Safety
This manual contains very important information about the safe installation and operation of the stove. Read and
understand all instructions carefully before installing and operating the stove. Failure to follow these instructions
may result in possible fire hazard and will void the warranty.
Replacement manuals are available by contacting the Valor Customer Service at 1-800-468-2567, or by visiting
valorfireplaces.com.
WARNING: Extremely Hot!
Heat and flammability
• Some parts of the stove are extremely hot, particular-
ly the glass window. Use the barrier screen provided
with the trim or a gate to reduce the risk of severe
burns.
• The glass windows can exceed 500°F at full capacity.
• Always keep the appliance clear and free from com-
bustible materials, gasoline, and other flammable
vapors and liquids.
• Be aware of hot hearth/floor surface! The hearth or
floor directly in front of the stove can get very hot
when the stove heats. Even if constructed of non-
combustible materials, and although safe, it may
reach temperatures in excess of 250º F depending on
choice of materials. Do not step on it! Temperature
of hearth/floor surface will be reduced when barrier
screen is installed.
• Solid wood flooring in front of the stove (if allowed)
may shrink during the heating season due to heat.
• Some materials or items, although safe, may discolor,
shrink, warp, crack, peel, and so on because of the
heat produced by the stove. Avoid placing candles,
paintings, photos and other combustible objects
sensitive to heat or furniture within 36 inches (0.9m)
around the stove.
• Due to its high temperature, the appliance should be
located out of traffic areas and away from furniture
and draperies.
• Clothing or flammable material should not be placed
on or near the appliance.
Barrier Screen and Safety
• Any safety screen, guard, or barrier removed for ser-
vicing an appliance must be replaced prior to operat-
ing the appliance
• Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children, and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at-risk individuals in the house.
To restrict access to a fireplace or stove, install an
adjustable safety gate to keep toddlers, young chil-
dren, and other at-risk individuals out of the room
and away from hot surfaces.
• A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Do not put
furniture or other objects
in this space in front of
WKHȴUHSODFH
36” [0.9 m]
)LUHSODFH
Hearth

5
WARNING
Do not operate this appliance with the
glass front removed, cracked, or broken.
Replacement of the glass front should
be performed by a licensed or qualified
service person. Do not strike or slam the
glass front.
Glass window
• The glass front assembly must be in place and sealed
before the unit can be placed into safe operation.
• The glass front assembly must only be replaced as a
complete unit, as supplied by the fireplace manufac-
turer. No substitute material may be used.
• Do not use abrasive cleaners on the glass front as-
sembly. Do not attempt to clean the glass front when
it is hot.
Venting
• This unit must be used with a vent system as de-
scribed in this manual. No other vent system or com-
ponents may be used.
• Never obstruct the flow of combustion and ventilation
air. Keep the front of the appliance clear of all obsta-
cles and materials for servicing and proper operation.
• This gas stove and vent assembly must be vented
directly to the outside and must never be attached to
a chimney serving a separate solid fuel burning ap-
pliance. Each gas appliance must use a separate vent
system. Common vent systems are prohibited.
Intended use
• This appliance is designed and approved as a supple-
mental heater and provides the potential for most
energy conservation when used while attended. The
use of an alternate primary heat source is advisable.
• This unit is not for use with solid fuel.
• Do not use this heater as a temporary source of heat
during construction.
Installation and Servicing
• Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning might be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control com-
partments, burners, and circulating air passageways
of the appliance be kept clean.
• Do not use this appliance is any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
the control system and any gas control that has been
under water.
Stove Safety

6
Approval & Codes
This appliance is certified to ANSI Z21.88/CSA 2.33
American National Standard / CSA Standard for Vented
Gas Fireplace Heaters for use in Canada and USA, and
to CGA 2.17-M91 High Altitude Standard in Canada.
This appliance is for direct vent installations.
This appliance complies with CSA P.4.1-15 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54 or the Natural Gas and
Propane Installation Code CAN/CGA-B149.1. Only
qualified licensed or trained personnel should install
this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70
or the Canadian Electrical Code, CSA C22.1.
Ratings
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500
feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas
utility to confirm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Model MF28JN MF28JP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 26,000 26,000
Input Minimum (Btu/h) 6,500 14,500
Manifold Pressure (in w.c.) 3.75” 9.0”
Minimum Supply Pressure (in w.c.) 5.0” 11.0”
Maximum Supply Pressure (in w.c.) 11.0 ” 14.0”
Main Burner Injector Marking 82-750 92-300
Pilot Injector Marking 35 27
Min. Rate By-Pass Screw 125 125
Supply Gas
Heater engine MF28JN is used with natural gas.
Heater engine MF28JP is used with propane gas.
The supply pressure must be between the limits shown
in the Ratings table.
The supply connection is 3/8” NPT female.
Gas Conversion
The MF28 stove is offered with natural gas or propane
gas. It can be converted from one gas to the other. See
installation manual supplied with the gas conversion kit
for more information.
Combustible Materials
Combustible materials are defined as materials made
of or surfaced with wood, compressed paper, plant
fibers, or other materials that are capable of being
ignited and burned.
Such material shall be considered combustible even
though flame-proofed, fire-retardant treated, or
plastered.
Electrical
The Madrona does not require an electrical power
source unless fitted with the optional circulating fan
555CFK—see page 18.
Hearth Requirements
This appliance is approved for installation directly on
combustible wood flooring. If installed directly on
carpeting, vinyl or soft combustible floor other than
wood, it must be installed on a metal or wood panel
covering a minimum surface of 15 inches deep by 28
inches width.

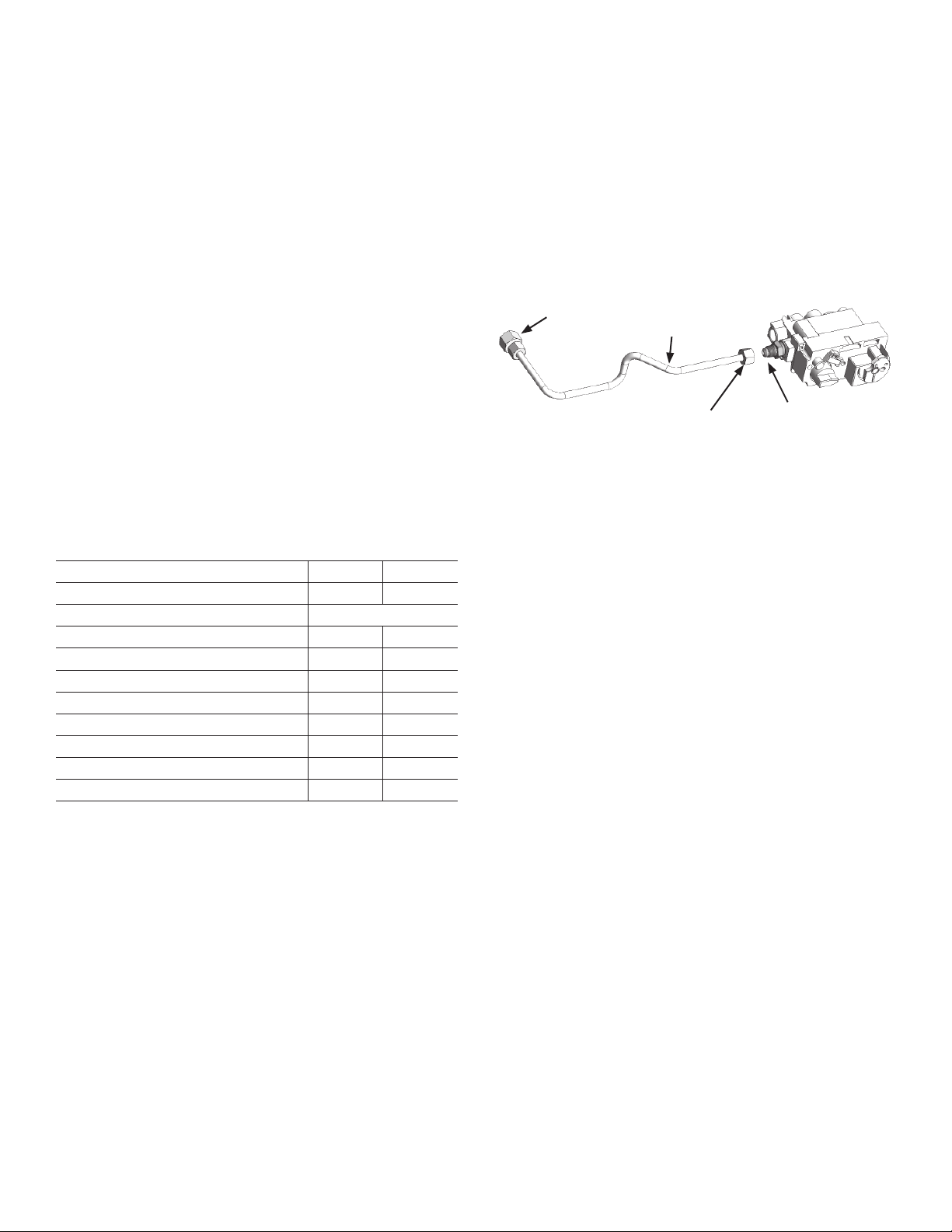

Specifications
3/8” N.P.T.
Female
3/8” N.P.T.
8 mm O.D.
tubing
Flare
fitting

7
WARNING
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel,
and so on because of the heat produced by
the stove. Avoid placing candles, paintings,
photos, and other items sensitive to heat
around the fireplace.
WARNING
HOT HEARTH/FLOOR! The hearth or floor
in front of the stove may become very hot
when it heats. Do not use the hearth as a
seat or shelf. Solid wood flooring in front
of the stove (if allowed) may shrink during
the heating season due to heat.
Specifications
Madrona Stove
There are two types of stove casing for the Madrona
MF28J engine, a traditional style available in two colors
and a contemporary style. The stove casings are sold
separately.
MFCS01—Traditional Stove Black, arched or square
fronted
MFCS02—Traditional Stove Majolica Brown, arched or
square fronted
MFCS05—Modern Stove offered with Almond White,
Black or Pewter accents
Traditional Stove—arched or square fronted
MFCS01 or MFCS02
Modern Stove MFCS05
Required Kits
Information accurate at the time of printing and subject to change without notice.
Optional Accessories
Fuel Beds (choose one)
MF28LSK Traditional Logs
MF28DWK Driftwood Kit
MF28SWK Splitwood Kit
Stove Casing (choose one) Barrier
Screen
MFCS01 Traditional Stove Black
Arched Front 4003311
Square Front 4004796
MFCS02 Traditional Stove Majolica Brown
Arched Front 4003311
Square Front 4004796
MFCS05 Modern Stove
–AW Almond White
4006079–BK Black
–PW Pewter
Gas Conversion Kits
MA28INK Conversion to natural gas
MA28IPK Conversion to propane gas
Other Accessories
555CFK Circulating Fan Kit
1265WSK Wall Switch Kit
RBWSK Remote Battery & Wall Switch Kit
Hearth Gate
Hearth gates such as Cardinal’s
VersaGates are available at retail stores
carrying safety products for children.
Kits & Accessories

8
B
A
Mantel
23”
(584 mm)
7-1/2”
(191 mm)
25-1/8” (638 mm)
27-1/2” (699 mm) 14”
(356 mm)
17-7/8”
(454 mm)
Ø 6-5/8”
venting
Supplied with
WRSYHQWȴHOG
convertible to
rear vent
Centre of vent
28-1/2 ” (724 mm)
xGas inlet position
3/8” fem. NPT
x
2”
(52 mm)
minimum
Gas line connection point
3/8” NPT FEMALE at valve
Sidewall
17-7/8” (454 mm)
4”
(102 mm)
2” (52 mm)
minimum
Ø 6-5/8”
venting
Suggested gas line
access point through wall.
Route to avoid optional fan.
Pipe supplied with
engine (see engine
manual)
Corner clearances
Min. 2”
between
combustible
wall and
stove
Min. 2” between
combustible wall and
stove
32-1/2” minimum
42” minimum
26” maximum
Alcove clearances
Traditional Cast Stove MFCS01 (black) or Traditional Cast Stove MFCS02 (Majolica brown)—
arched or square fronted
Mantel / shelf clearances
Mantel
Depth ‘A’
0–1”
(0–26 mm)
2–5”
(51–127 mm)
6–18”
(152–457 mm)
19–24”
(483–610 mm)
Mantel
Height ‘B’
34”
(864 mm)
36”
(914 mm)
38”
(965 mm)
42”
(1067 mm)
Dimensions & Clearances

9
Dimensions & Clearances
Modern Stove MFCS05
x
31-7/8 [809]
26-11/16 [678]
27-1/4 [691]
inches [mm]
Gas line
connection
point
Hinged control
access door
x
B
A
26-1/4 [667]
14-3/4 [374]
16-1/4 [413]
1 [
2
minimu
Gas line access
point 10 [254]
Mantel
Ø 6-5/8”
venting
Centre of vent
x
2 [52]
minimum
16-15/16 [430]
4-5/8 [118]
1 [26]
minimum
10 [254]
x
Suggested gas line
access point through wall.
Route to avoid optional fan.
Pipe supplied
with engine
(see engine
manual)
e
access
0
[254]
Gas line connection point
3/8” NPT FEMALE at valve
Sidewall
Ø 6-5/8”
venting
Minimum 61-1/8” (1553 mm)
Front surface
of stove
Minimum
18-1/4”
(464 mm)
Minimum 43-1/4” (1091 mm)
Minimum
12-7/8”
(327 mm)
90°
Zero clearance
Alcove Clearances
31-1/4” [794 mm] minimum
26” [660 mm]
maximum
42” [1067 mm] minimum
Corner clearances
Mantel / shelf clearances
Mantel
Depth ‘A’
0–1”
(0–26 mm)
2–5”
(51–127 mm)
6–18”
(152–457 mm)
19–24”
(483–610 mm)
Mantel
Height ‘B’
34”
(864 mm)
36”
(914 mm)
38”
(965 mm)
42”
(1067 mm)

10
Venting
Top or Rear Facing Take-Off
This appliance is supplied with a top facing take-off
which may be converted to a rear facing one with no
extra parts required—see Vent Outlet page 19 for details.
Vent Material
This appliance is approved for installation using
4 x 6-5/8-inch co-axial direct vent pipe and accessories
as listed in Approved Venting Components pages 33–34.
This appliance may also be converted to co-linear
venting with two 3-inch flex pipes (rear facing take-off
only) for use in solid-fuel burning fireplaces and
chimneys using approved adapers and accessories.
Instructions for co-linear conversion are packaged with
the co-linear adapter. See Co-Linear page 16 and
Approved Venting Components pages 33–34.
Follow the installation instructions supplied with the
individual venting accessories.
Do not mix components from different manufacturers.
Do not cut pipe lengths; use adjustable lengths instead.
Vent Sealing
Seal all outer co-axial pipe and elbow joints, including
sectioned elbow joints, using high quality, high temper-
ature 2-inch wide self-adhesive aluminum foil tape
(Nashua-322-2 brand or similar). Wrap the tape com-
pletely around all outer joints and press firmly to seal.
A high-temperature black silicone sealant may be used
in the outer joints as a substitute to foil tape.
Ensure all the pipe joints have a minimum of 1-1/4 inch
overlap.
Wall Thickness
The appliance vent is suitable for penetrating a
combustible wall assembly up to 14 inches in thickness.
A non-combustible wall can be of any thickness up to
the maximum horizontal run of vent pipe allowed for
the particular installation.
Framing Vent in Combustible Walls & Ceilings
When penetrating through combustible walls and
ceilings, frame a minimum of 10 inches x 10 inches
opening and ensure that the insulation is kept clear of
the vent pipe using either a wall thinble or an attic
insulation shield. Also, seal all joints between the wall
plates, the wall and the vent pipe. Follow the installation
instructions supplied with the individual venting
components.
Overview
Tape all
OUTER joints
(including all
elbow joints)
10” (254 mm)
10” (254 mm)
Align the vent
center to the
center of the
frame
All horizontal pipe runs must be graded 1/4 inch
per foot upwards in the direction of the exhaust
flow. The final pipe length, when terminating
through the wall may be graded downwards slightly
to prevent water migration.
Important Installer Notice—
Weather Sealing & Vapor Barrier
It is the installer’s responsibility to ensure that vent
installations through exterior walls are caulked and
weatherproofed in such a manner as to:
• Prevent rain from entering the wall from the
weather side by adequately caulking the outer
vent plate to the exterior wall surface.
• Prevent moisture inside the home from penetrat-
ing into the wall structure by ensuring the inside
wall plate is adequately sealed to the inside vapor
barrier.
• Prevent rain water and moisture from entering
the walls by sealing the joints between the outer
vent tube and the inner and outer wall plates.
We recommend the use of a high quality
polyurethane sealant.

11
Snorkel required (min. 14”
high) with horizontal run
through the wall (no rise)
Through wall (without vertical rise)
Through wall (with vertical rise) Through roof
Maximum pipe length:
24” (straight out with snorkel)
14” (45° elbow out with snorkel)
No more than one 45°
elbow allowed
Venting
Typical Co-Axial Venting Components
See venting accessories list on pages 33-34 for
allowable components.
Co-Axial

12
Venting Co-Axial
Venting Chart
How to Read the Venting Charts
The chart below applies to co-axial roof or wall
termination in installations with vertical rise.
All rear venting without a vertical rise must
be terminated by a snorkel—see page 11.
1. The total length of the vent pipe cannot
exceed 40 feet.
2. The minimum vertical height with roof ter-
mination is 8 feet.
3. Any combination of rise and run can be
used as long as they are within the allow-
able limits shown on the chart.
4. A maximum of 5 x 90 degrees elbows—or
equivalent (2 x 45 degrees = 90 degrees)—
can be used.
5. Each 90 degrees elbow installed on the
horizontal plane is equivalent to a 3 feet
horizontal pipe; therefore, 3 feet must be
subtracted from allowable horizontal run.
(45 degrees elbow is equivalent to 18 inches
horizontal pipe.)
6. All horizontal pipe runs must be graded 1/4
inch per foot upwards in the direction of the
exhaust flow.
The final pipe length, when terminating
through the wall may be graded downwards
slightly to prevent water migration.
7. Maximum co-linear venting in existing
chimney systems is limited to 40 feet
vertical rise.
8. Restrictors are not required for co-linear
installations.
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
2 4 6 8 10 12 14 16 18 20
7RSRU5HDUWDNHR΍
Horizontal Run (ft)
Vertical Rise (ft)
Example 1
NO INSTALLATION
Restrictor 75
Restrictor 50
No restrictor
NO INSTALLATION
Allowable Co-Axial Vent Configurations
with restrictor positions

13
Venting Co-Axial
Not to scale
V1
V2
V3
H1
H2
1” min.
all around
vertical pipe
3” min.
above top of
horizontal pipe
1” min. around
bottom & sides of
horizontal pipe
Max. 24”
before
elbow
Roof
termination
Sidewall
termination
Sidewall
termination
Min. 24”
before
elbow
Use 658TG or
845TG vent
guard with a
vent terminal
located at less
than 7’ (2.13 m)
above grade
5 x 90º ELBOWS MAXIMUM
(or equivalent)
Venting Diagram
Example 1
Value V = V1 (6’) + V2 (3’) + V3 (2‘) = 11’
Value H = H1 (2’) + H2 (2’) = 4’
Restrictor 75

14
Venting Co-Axial
Restrictors
SOME INSTALLATIONS REQUIRE RESTRICTORS. For
improved flame picture and performance, this unit is
supplied with two different sets of vent restrictors. The
level of restriction required depends on the vertical rise
in the venting system and, to a lesser degree, the
horizontal run and number of elbows.
The amount of restriction is based on laboratory tests.
The ideal restrictor set may vary, especially when the
vent pipe length is near the limits of the acceptable
configurations for each type of restrictors.
The chart on page 12 shows the vent restrictor required
relative to the length of the vent pipe.
Restrictors are not required for co-linear applications.
To install restrictors:
1. Remove every second screw from the exhaust ports
in the top of the firebox.
2. Install the restrictors with the removed screws.
50 75
Restrictor 50 Restrictor 75
OR
INSTALL RESTRICTORS HERE

15
Venting Co-Axial
Horizontal Vent Termination Location
Horizontal Vent Termination Location
• The vent terminal must be located on an outside
wall or through the roof.
• This direct vent appliance is designed to operate
when an undisturbed airȵow hits the outside vent
terminal from any direction.
• The minimum clearances from this terminal that
must be maintained when located on an outside
wall are shown in ȴgure below. Any reduction in
these clearances could result in a disruption of the
KEY VENT TERMINAL LOCATIONS - MINIMUM DISTANCES MINIMUM
CLEARANCE
Inches Cm
A Clearance above grade, verandah, porch, deck or balcony 12 30
B Clearance to window or door that may be opened 12 30
C Clearance to permanently closed window (recommended to prevent condensation on window) 12 30
DVertical clearance to ventilated soɝt located above the terminal within a horizontal distance of 2 feet (60 cm)
from the center-line of the terminal 18 46
E Clearance to unventilated soɝt 12 30
F Clearance to outside corner (measured from the center of vent) 12 30
G Clearance to inside corner (measured from the center of vent) 12 30
HHorizontal clearance to center-line of meter/regulator assembly located within 15 feet (4.6bm) below the
terminal 36 90
IClearance to service regulator vent outlet 36 90
J Clearance to non-mechanical air supply inlet to the building or the combustion air inlet to any other appliance 12 30
K Clearance to a mechanical air supply inlet 72 180
L
Clearance above paved sidewalk or a paved driveway located on public property
Note: A vent must not terminate directly above a sidewalk or paved driveway, which is located between two single-
family dwellings and serves both dwellings. THIS DOES NOT APPLY to direct vent, non-consdensing appliances in
the Province of Ontario.
84 210
MClearance under a verandah, porch, deck or balcony
Only permitted if veranda, porch, deck or balcony is fully open on a minimum of 2 sides beneath the ȵoor 12 30
Note: Local codes and regulations may require di΍erent clearances.
V
G
A
Min. 72”
Max. 72”
Alcove detail
(open on one
side) Normal
ceiling/soɝt
clearances
apply.
airȵow or a safety hazard. Local codes or regulations
may require greater clearances.
• The vent terminal must not be recessed into a wall
or siding.
• The vent terminal should be positioned where any
snowdrifts will not cover it.
• Sidewall vent terminations require a terminal guard
such as 658TG or 845TG when accessible—within 7’
of ground.

16
‘H’
Horizontal
overhang
Vertical
wall
Termination
cap
Storm
collar
Roof
flashing
Plumber’s tape
fixed to wall strap
Wall strap
Ceiling
firestop
Ceiling
support
Offset elbows
Min.
18”
Overhang should
not extend beyond
vent if within 48”of
termination cap
Min. 24”
(unvented soffit)
Min. 36”
(vented soffit)
Through-the-roof installation
Vertical Vent Termination
Venting Co-Axial
Roof Pitch Minimum
"H" [feet]
Flat to 7/12 1'
Over 7/12 to
8/12 1.5'
Over 8/12 to
9/12 2’
Over 9/12 to
10/12 2.5’
Over 10/12 to
11/12 3.25’
Over 11/12 to
12/12 4’
Over 12/12 to
14/12 5’
Co-Linear
Co-Linear (Rear Outlet ONLY)
For conversion of rear outlet collar to co-linear (two
3-inch pipes) rear venting, refer to instructions
packaged with the 556CLA—Co-Linear Adapter.
NOTE
Co-linear venting may only be installed into solid-
fuel burning fireplaces and chimneys.
NOTE
Co-linear adapter may be installed as a rear outlet
ONLY.

17
Preparation Before Installing
Attention
ONLY qualified licensed or trained personnel
should install this appliance.
Caution
LEAVE THE APPLIANCE ON ITS PACKAGING BASE
to avoid damage to the control valve, wires and
pipes until ready to install into stove casing.
1. BEFORE YOUR START, YOU NEED TO KNOW FROM
THE HOMEOWNER:
• Required accessories to install with stove: fuel
bed, fan, venting accessories;
• Hearth, if used;
• Venting configuration.
2. Unpack the appliance however keep it on its packag-
ing base to avoid damaging the components under-
neath. Removing all items packed inside and around
it. Recycle packaging.
3. Check that you have everything required for the in-
stallation, using the Pack Content sheet. Also, check
that you have:
• Fuel bed (packed separately);
• Stove casing with barrier screen (in multiple
cartons);
• Venting accessories;
• Gas conversion kit, if necessary;
• Fan, if necessary;
• Electrical accessories, if fan is used.
4. Carefully read the Installer’s Checklist included
with the appliance for the installation sequence.
Read also this manual and the stove casing
manual to have all information necessary for the
installation.
Installation Considerations
Fan (Blower)
Allow for and install electrical wiring if there will be a
fan (blower) to install. Ask the homeowner if you are
not sure.
Venting Configuration
This unit is supplied with a top vent take-offand is field
convertible to a rear vent take-off. Plan routing of vent
taking into consideration stove and vent clearances,
allowable vent terminal locations BEFORE cutting a hole
in the roof or wall. Avoid penetrating the wall/roof at
structural members.
Gas Line Routing
Consider visibility of shuf-offor step-down regulators,
etc. when planning gas line routing.
Upack Appliance
The Madrona appliance is supplied separately from the
stove casings. The Traditional stove—MFCS01 (black) or
MFCS02 (majolica brown)—and the Modern stove
MFCS05 are each supplied in multiple cartons. You
must have in hand the stove casing before starting the
assembly of the appliance.
Unpack the cartons carefully. We strongly recommend
that you leave the appliance sitting on the packaging
base in which it came to avoid damaging the control
valve, wires and pipes already attached until it is
ready to install in the stove casing.
Some parts are packed in the cardboard sleeve around
the appliance; make sure you take them all out of the
packaging. Make sure you have all the components
including the stove casing components before you start
the installation

18
Installation Window & Optional Fan
Remove Window
It is easier to remove the window and all the items
packed inside of the firebox to make the engine lighter
for installation.
1. Release the spring bolts at top and bottom of the
window by pushing and turning 1/4 turn.
2. Lift the window and set it aside in a safe place to
avoid damage.
Unpack Stove Casing
1. Rough-in the gas line and electrical wiring for a fan
if any.
2. Decide where the stove should be positioned to
avoid moving it once all the casing is put together.
3. Unpack the casing and follow the instructions
supplied with each model (MFCS01, MFCS02 or
MFCS05).
Reposition Lighting Instructions Plate
Roll the lighting instructions cards and tucked in at the
rear above the angled flange or fan (if installed).
x 4
Unclip Remote Control Receiver
Under the
appliance, the
receiver box is
clipped to the
burner pipes to
facilitate
transportation.
Unclip the box
and let it hang
while you fit the
gas pipe.
Install Optional Fan (if required)
If this installation requires the optional fan, it is easier
to install it at this point.
1. Remove the mounting plate from the fan and dis-
card it.
2. Install the fan motor at the back of the heater. Using
the lower set of fixing holes on the fan will ensure
more space to handle the receiver in front of the
fireplace.
See 555CFK—Circulating
Fan Kit manual for complete
fan installation details.
Receiver hooked to burner pipes
Unscrew 3 screws and
remove fan mounting
plate
Lower set of
fixing holes
Rear view

19
Install Gas Pipe & Connector
The gas pipe, connector, clamp and fixing screw are
supplied with the engine.
The support bracket for the gas pipe is supplied with
the stove casing.
Install Receiver into Position
Once the gas pipe is fitted, clip the receiver on top of
the casting corssbar on the base, to the left hand side
of the valve. Make sure the receiver box is oriented with
its wires towards the back and its RESET button at the
front.
Installation Vent Outlet
Convert Vent Outlet (if necessary)
Rear Vent
If the appliance is to be vented from the top, it is ready
for vent installation once the engine is on the casting
base.
If the appliance is to be vented from the rear, it must be
converted. Follow these simple steps:
1. Remove the following parts in this order:
a. Dura-Vent collar, gasket and intake plate from
the top of the appliance (22 screws of the intake
plate and 2 rear screws of the collar);
b. Exhaust collar (8 screws). Note that the gaskets
are glued to the appliance or the intake plate; it
is not necessary to separate them from the parts
they are attached to. However, if they need to be
manipulated, BE CAREFUL not to damage them
because their material is fragile.
2. Reinstall through the vent opening at the rear of the
firebox in the reverse order in which you took the
parts out.
Co-Linear (Rear Outlet ONLY)
For conversion of rear outlet collar to co-linear (two
3-inch pipes) rear venting, refer to instructions
packaged with the 556CLA—Co-Linear Adapter.
NOTE
The support bracket used on Madrona Traditional
stoves and the one used on Madrona Modern
stoves are different. Refer to stove casing
installation manual for complete details.
3/8” gas line
connection
Flare fitting
Receiver clipped to crossbar in final position
Receiver & clip

20
Connect Gas Supply
The gas supply inlet connection
is a 3/8 inch NPT female
connector. If a circulating fan
or isolating valve is to be
installed, adjust the routing of
the gas line to suit.
Use only new black iron or steel pipes, CSST, or copper
tubing if acceptable—check local codes. Note that in
USA, copper tubing must be internally tinned for
protection against sulfur compounds.
Union in gas lines should be of ground joint type.
The gas supply line must be sized and installed to
provide a supply of gas sufficient to meet the maximum
demand of the appliance without undue loss of
pressure.
Sealant used must be resistant to the action of all gas
constituents including propane gas. Sealant should be
applied lightly to male threads to ensure excess sealant
does not enter gas lines.
The supply line should include a manual shut-offvalve
and union to allow the appliance to be disconnected for
servicing.
Pressure test the supply line for leaks.
The appliance and its individual shut-offvalve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.5kPa).
The appliance must be isolated from the gas supply
piping system by closing its individual manual shut-off
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than
1/2 psig (3.5kPa).
Failure to either disconnect or isolate the appliance
during pressure testing may result in regulator or valve
damage. Consult your dealer in this case.
The minimum supply pressure is given on page 6 of this
manual.
All piping and connections must be tested for leaks
after installation or servicing. All leaks must be
corrected immediately.
When testing for leaks:
• Make sure that the appliance is turned off.
• Open the manual shut-offvalve.
• Test for leaks by applying a liquid detergent or soap
solution to all joints. Bubbles forming indicate a gas
leak.
The pressure test tapping locations are shown below. A
built-in non-adjustable regulator controls the burner
manifold pressure. The correct pressure range is shown
page 6 of this manual. The pressure check should be
made with the burner alight and at its highest setting.
See Appendix A – Lighting Instructions Plate page 36 for
full operating details.
Gas Supply
Installation
WARNING
NEVER USE OPEN FLAME to check for leaks.
Correct any leak detected immediately.
Gas valve
Control
Valve
Manifold Pressure
Adjustment behind Plastic
Cap
