Valor PORTRAIT 530INI User manual

4005323-12
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
DANGER
Direct Vent Insert
Gas Fireplace
natural gas 530INI
propane gas 530IPI
PORTRAIT
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Installation Manual
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Installer: Place model/serial number here.

2
Ce guide est disponible en français sur demande.
This appliance is a domestic room-
heating appliance. It must not be used
for any other purposes such as drying
clothes, etc.
This appliance is suitable for
installation in a bedroom or bed
sitting room.
This manual contains instructions to
install the ENGINE ONLY. A trim kit is
REQUIRED to complete the installation.
A barrier screen is provided with the
trim kit. Refer to the manual supplied
with the trim for installation.
The information contained in this manual is believed to
be correct at the time of printing. Miles Industries Ltd.
reserves the right to change or modify any information
or specifications without notice. Miles Industries Ltd.
grants no warranty, implied or stated, for the
installation or maintenance of your heater, and
assumes no responsibility for any consequential
damage(s).
© Copyright Miles Industries Ltd., 2022. All rights reserved.
Designed and manufactured for Miles Industries Ltd.
Valor Fireplaces
190–2255 Dollarton Highway
North Vancouver, BC, Canada V7H 3B1
T 604.984.3496 F 604.984.0246
valorfireplaces.com
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where
not prohibited by local codes. This
appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for
use with other gases, unless a certified
kit is used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
Massachusetts:
The piping and final gas connection must be
performed by a licensed plumber or gas fitter in
the State of Massachusetts.
WARNING
This product can expose you to chemicals
including Benzene, which is known to the State
of California to cause cancer and birth defects or
other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
Note: Natural gas, in its original state, contains
Benzene.

3
Please read this manual BEFORE
installing and operating this
appliance.
This appliance has been professionally installed by:
Dealer Name: ________________________________
Phone:______________________________________
Welcome to Valor®
Fireplace Safety ................................................. 4
Specifications..................................................... 6
Kits & Accessories.............................................. 7
Dimensions & Cavity......................................... 8
Clearances .......................................................... 9
Installation Planning ....................................... 10
Overview ......................................................................10
Co-Linear .....................................................................11
Co-Axial........................................................................12
Venting .............................................................. 13
Overview ......................................................................13

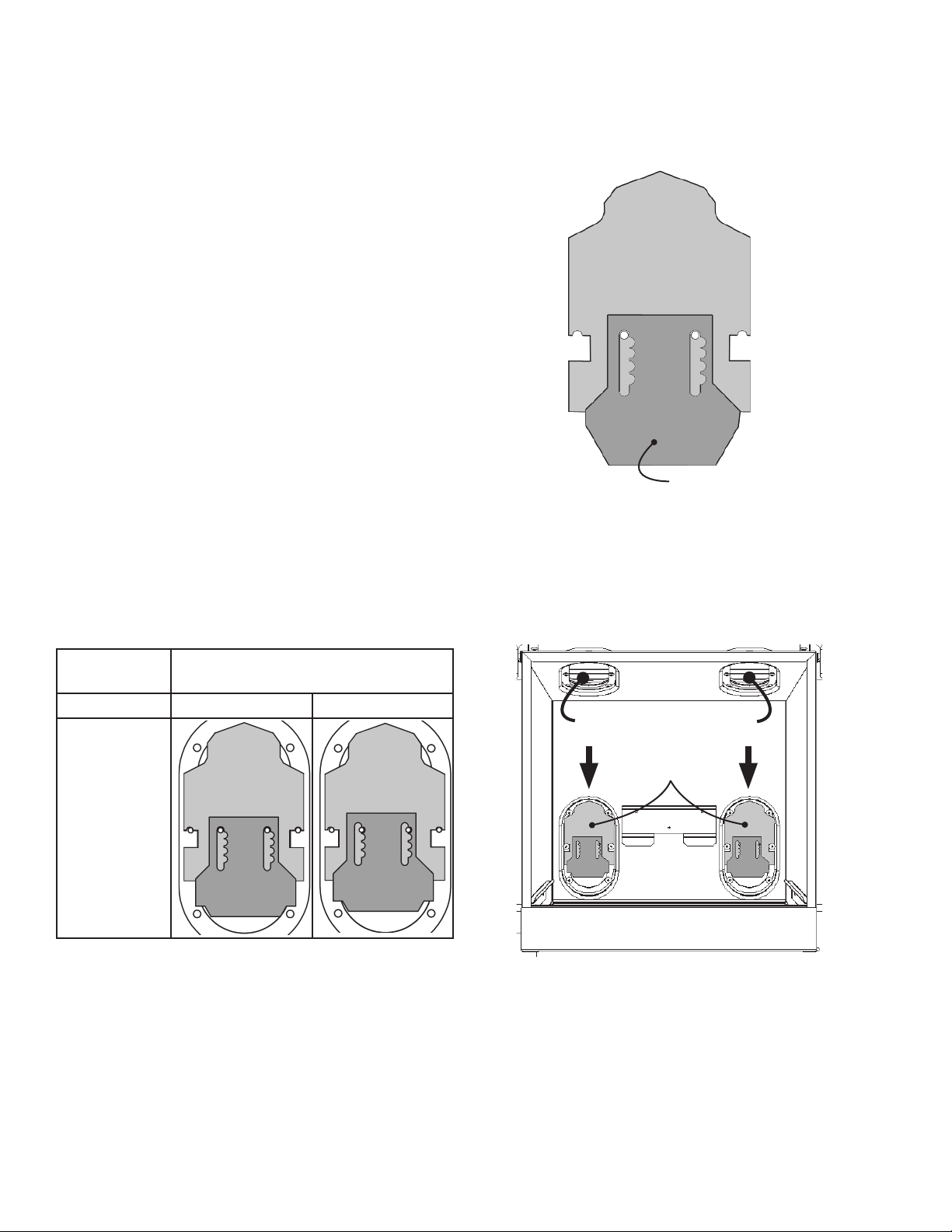

Restrictors....................................................................14
Preparation ...................................................... 15

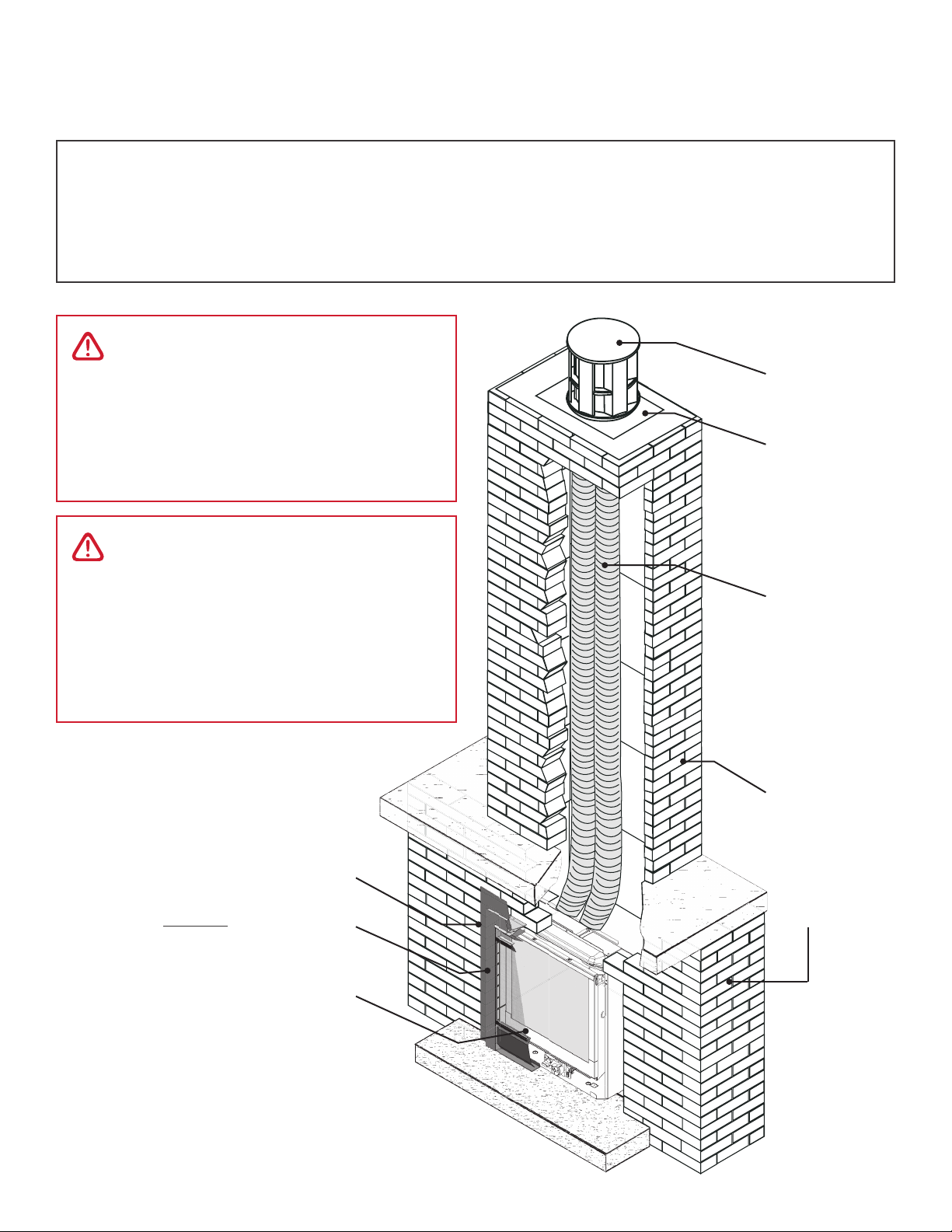

Existing Fireplace Preparation..................................15
Before Installation......................................................16
Window and Burner ...................................................17
Installation ....................................................... 18
Venting..........................................................................18
Co-Linear Applications ..............................................18
Co-Axial Applications.................................................19
Gas Supply................................................................... 20
Liners Panels—Traditional Logs & Coals ................ 21
Fuel Beds ..................................................................... 22
Traditional Logs Set 530LSK .....................................22
Coal Set 530CSK..........................................................23
Rock Set and Liners 530RSK.....................................24
Driftwood Kit and Liners 530DWK ..........................26
Refit & Check Window............................................... 28
Battery Holder............................................................ 29
Remote Control Pairing............................................. 30
Burner aeration.......................................................... 31
Accessories ................................................................. 32
Front and Barrier Screen ..........................................32
Handset Wall Holder..................................................32
Wiring Diagram................................................ 33
Approved Venting Components .................... 34
Appendix A – Lighting Instructions Plate..... 35
Appendix B – Remote Control Operation .... 36
Appendix C – Spare Parts ............................... 40

4
This manual contains very important information about the safe installation and operation of the fireplace. Read and
understand all instructions carefully before installing and operating the fireplace. Failure to follow these instructions
may result in possible fire hazard and will void the warranty.
Replacement manuals are available by contacting the Valor Customer Service at 1-800-468-2567, or by visiting
valorfireplaces.com.
Fireplace Safety
WARNING: Extremely Hot!
Heat and flammability
• Some parts of the fireplace are extremely hot, particu-
larly the glass window. Use the barrier screen provided
or a gate to reduce the risk of severe burns.
• The glass windows can exceed 500°F at full capacity.
• Always keep the appliance clear and free from combus-
tible materials, gasoline, and other flammable vapors
and liquids.
• Be aware of hot wall surfaces! The wall directly above
the fireplace can get very hot when the fireplace heats.
Although safe, it may reach temperatures in excess of
200ºF (93°C) depending on choice of optional accesso-
ries. Do not touch!
• Be aware of hot hearth/floor surfaces! Any projections
directly around the fireplace can get very hot when the
fireplace heats. Although safe, they may reach temper-
atures in excess of 200ºF (93°C) depending on elevation
of hearth. Be careful of touching these! Temperature
of projection surfaces will be reduced when barrier
screens are installed.
• Some materials or items, although safe, may discolor,
shrink, warp, crack, peel, and so on because of the heat
produced by the fireplace. Avoid placing candles, paint-
ings, photos and other combustible objects sensitive
to heat or furniture within 36 inches (0.9m) around the
fireplace.
• Solid wood flooring in front of the fireplace (if allowed)
may shrink during the heating season due to heat.
• Any safety screen, guard, or barrier removed for servic-
ing an appliance must be replaced prior to operating
the appliance
• Due to its high temperatures, the appliance should be
located out of traffic areas and away from furniture and
draperies.
• Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children, and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at-risk individuals in the house. To
restrict access to a fireplace or stove, install an adjust-
able safety gate to keep toddlers, young children, and
other at-risk individuals out of the room and away from
hot surfaces.
• A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and
shall be installed for the protection of children and
other at-risk individuals
• Clothing or flammable material should not be placed on
or near the appliance.

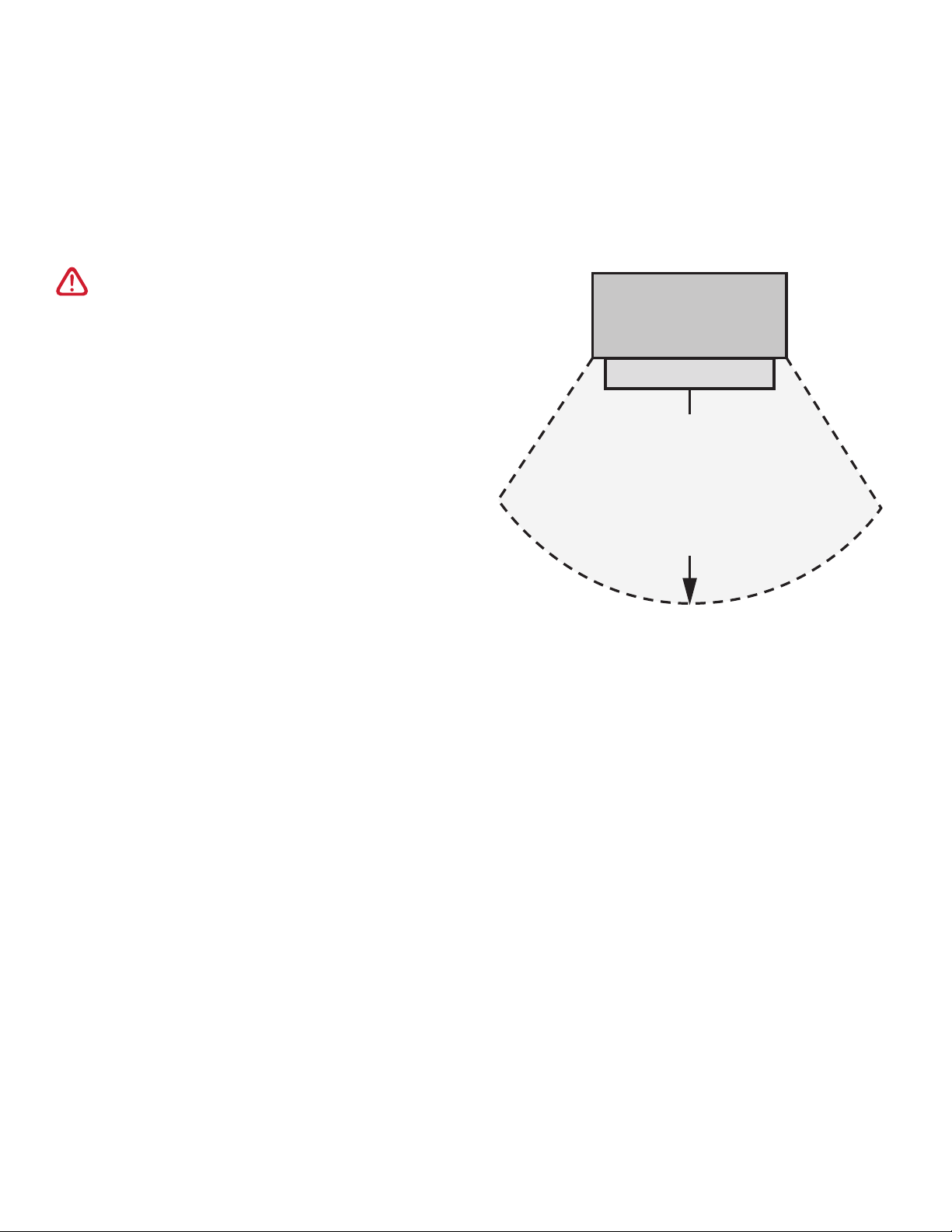

Do not put
furniture or other objects
in this space in front of
WKHȴUHSODFH
36” [0.9 m]
)LUHSODFH
Hearth

5
Fireplace Safety
Glass window
• The glass front assembly must be in place and sealed
before the unit can be placed into safe operation.
• The glass front assembly must only be replaced as a
complete unit, as supplied by the fireplace manufac-
turer. No substitute material may be used.
• Do not use abrasive cleaners on the glass front assem-
bly. Do not attempt to clean the glass when it is hot.
Venting
• This unit must be used with a vent system as described
in this manual. No other vent system or components
may be used.
• Never obstruct the flow of combustion and ventilation
air. Keep the front of the appliance clear of all obstacles
and materials for servicing and proper operation.
• This gas fireplace and vent assembly must be vented
directly to the outside and must never be attached to
a chimney serving a separate solid fuel burning ap-
pliance. Each gas appliance must use a separate vent
system. Common vent systems are prohibited.
WARNING
Do not operate this appliance with the
glass front removed, cracked, or broken.
Replacement of the glass front should
be performed by a licensed or qualified
service person. Do not strike or slam the
glass front.
Intended use
• This appliance is designed and approved as a supple-
mental heater and provides the potential for most en-
ergy conservation when used while attended. The use
of an alternate primary heat source is advisable.
• This unit is not for use with solid fuel.
• Do not use this heater as a temporary source of heat
during construction.
Installation and Servicing
• Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional ser-
vice person. More frequent cleaning might be required
due to excessive lint from carpeting, bedding material,
et cetera. It is imperative that control compartments,
burners, and circulating air passageways of the appli-
ance be kept clean.

6
Specifications
Approval & Codes
This appliance is certified to ANSI Z21.88/CSA 2.33
American National Standard / CSA Standard for Vented
Gas Fireplace Heaters for use in Canada and USA, and
to CGA 2.17-91 High Altitude Standard in Canada. This
appliance is for direct vent installations.
This appliance complies with CSA P.4.1-15 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54 or the Natural Gas and
Propane Installation Code CAN/CGA-B149.1. Only
qualified licensed or trained personnel should install
this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70
or the Canadian Electrical Code, CSA C22.1.
Ratings
* Tested to CGA – 2.17–91 Gas fired appliances for use at high
altitudes. In USA, installations may require deration over 2000’—
Check local codes.
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500
feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas
utility to confirm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Supply Gas
Heater engine 530INI uses natural gas.
Heater engine 530IPI uses propane gas.
The supply pressure
must be between the
limits shown in the
Ratings section.
The supply connection
is 3/8” NPT female and
located on the left side
of the control valve. The
opening for the gas
supply line is at the resr
left corner of the appliance.
Gas Conversion Kits
The 530INI/IPI is supplied as natural gas or propane gas
and is field convertible between fuels. See instructions
packaged with the conversion kits for further
information.
Electrical
The 530 does not require an electrical power source
unless fitted with an optional circulating fan or wifi.
However, if the appliance is fitted with a fan, a
grounded power source is required.
Floor/Hearth
This appliance is approved for installation into existing
solid-fuel burning fireplaces only. Combustible material
such as plywood and so on may be used for leveling
and shimming beneath the unit. This appliance does
not require a hearth other than to support the weight
of certain fronts.
Front Trims
Various fronts are available for the 530 insert engine.
This engine must be installed as an insert application.
The front trim style affects the depth of insert cavity
and position of the engine. A front trim kit is required
for all applications and should be on site when the
engine is installed. 536/541/563 fronts require a closure
plate (582/583CPB) to ensure proper position of the
casting front.
Outdoor Conversion Kit
The 530 models are supplied standard for indoor
applications and may be adapted for installation in
specific “outdoor” applications protected from weather
as defined in the GV60CKO outdoor conversion kit
manual.
Model 530INI 530IPI
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 20,500 19,000
Input Minimum (Btu/h) 6,500 12,500
Manifold Pressure (in w.c.) 3.5”–3.9” 10.3”–10.7”
Minimum Supply Pressure (in
w.c.) 5” 11”
Maximum Supply Pressure (in
w.c.) 10.5” 14”
Main Burner Injector Marking 580 200
Pilot Injector Marking 35 27
Min. Rate Bypass Screw 125 125
Gas line
access at
rear left
corner

7
Kits & Accessories
WARNING
Optional electrical accessories ARE NOT
ALLOWED when adapting appliance for
outdoor use.
Required Kits
Information accurate at the time of printing and subject to change without notice.
Optional Accessories
Fuel Beds & Liner Panels (choose one)
530LSK Traditional Logs & Reversible Liners Set
530RSK Rocks & Reversible Liners Set
530CSK Coals & Reversible Liners Set
530DWK Driftwood & Reversible Liners Set
Fronts (choose one) Barrier
Screen
536CXBI President Insert Front
(closure plate 582 or 583 required) 4006382
539/549/550 Windsor and Classic Arches
(as insert only) 4003290
541BPC Bolero Front (as insert only)
(closure plate 582 or 583 required) 4003289
545CFV Clearview Insert Front
(closure plate 582 optional) 4005146
546LF Ledgeview Insert Fronts 4005099
563CSB Senator Front (as insert only)
(closure plate 582 or 583 required) 4003291
Gas Conversion Kits
530NGK Conversion to natural gas
530PGK Conversion to propane gas
Other Accessories
GV60CKO Outdoor Fireplace Conversion Kit
582CPB
Closure Plate, black, 26”Wx 31”H
(use with 536CXBI, 541BPC, 563SB or
545CFV)
583CPB Closure Plate, black, 30”Wx 33”H
(use with 536CXBI, 541BPC or 563CSB)
567FGP Top Grille (DO NOT USE with coals)
580RGL Reflective Glass Liners (installs on top of
liners supplied with fuel bed)
530CVA2
Co-Axial Appliance Adapter—converts
from 2 x 3” co-linear to 5 x 3” co-axial flex
using 590FVK2 Flex Vent Kit and Terminal
Adapter/Flashing
555CFK Circulating Fan Kit
1265WSK Wall Switch Kit
RBWSK Remote Battery & Wall Switch Kit
RCK400
GV60VM
GV60WIFI
WiFi connection kits. See your dealer to
find out which kits are required for your
installation.
GV60PAK AC Adapter
Hearth Gate
Hearth gates such as Cardinal’s
VersaGates are available at retail stores
carrying safety products for children.

8
Dimensions & Cavity
Dimensions
Check that masonry step does not interfere with install dimensions
or vent pipe.
If mantel is combustible, see the following section for allowable
clearances.
X
Y
Cavity
Minimum Cavity Dimensions
Depth (X) 9–11-1/2” [229–292 mm]—varies with front trim options
Height (Y) 25-1/2” [648 mm]—Note: using 546 Ledgeview front
requires additional 1-1/2” [38 mm]
Width (not shown) 20-1/2” [521 mm]
25-1/4”
19-1/4”
Varies with front trim.
See Front trims installation
manuals for dimensions. 2 x 3” dia.
colinear vent
(as supplied)
530 insert engine with standard
co-linear vent (as supplied)
Ensure base of
KHDWHULVȵXVK
ZLWKȴQLVKHG
hearth height,
otherwise
IURQWZLOOQRWȴW
1RWHΖILQVWDOOLQJ
546 Ledgeview front,
4-sided frame drops
1-1/2” below
heater bottom.
25-1/4”
19-1/4”
Varies with front trim.
See Front trims installation
manuals for dimensions.
5”x 3” dia.
co-axial adaptor
530 insert engine with optional
530CVA2 co-axial appliance adapter
20”
9” - 11-1/2”
depending on
front trim - see front
installation manual
Ensure base of heater is flush*
with finished hearth height,
otherwise front will not fit.
*Note: If installing 546 Ledgeview
front, 4-sided frame drops 1-1/2”
below heater bottom.
Attention
See below for minimum
cavity dimensions!

9
Combustible Mantel Clearances
See Front trim installation manual.
Finishing Materials
Combustible materials: Materials made of or surfaced
with wood, compressed paper, plant fibers, plastics, or
other material that can ignite and burn, whether flame
proofed or not, or plastered or unplastered.
Non-combustible materials: Material which will not
ignite and burn. Such materials are those consisting
entirely of steel, iron, brick, tile, concrete, slate, glass or
plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 °C
See Front trim installation manual for Sidewall
Clearances.
Sidewall Clearance
Sidewall
Mantel
Depth
Mantel
Height
Do not put
furniture or
objects within
36” (914 mm)
of the front of
appliance
Combustible Mantel—Left Side View
Clearances
Sidewall Clearances
WARNING
Some materials or items, although
safe, may discolor, shrink, warp,
crack, peel, and so on because of the
heat produced by the fireplace. Avoid
placing candles, paintings, photos, and
other items sensitive to heat around
the fireplace.
WARNING
HOT GLASS! The use of a screen in front
of the glass is highly recommended
particularly in households with
children.
WARNING
HOT HEARTH / FLOOR! The hearth
or floor in front of the fireplace may
become very hot when the fireplace
heats. Do not use the hearth as a seat
or shelf. Solid wood flooring in front of
the fireplace (if allowed) may shrink
during the heating season due to heat.

10
Installation Planning Overview
WARNING
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel,
and so on because of the heat produced
by the fireplace. Avoid placing candles,
paintings, photos, and other items
sensitive to heat around the fireplace.
WARNING
HOT HEARTH / FLOOR! The hearth or floor
in front of the fireplace may become very
hot when the fireplace heats. Do not
use the hearth as a seat or shelf. Solid
wood flooring in front of the fireplace (if
allowed) may shrink during the heating
season due to heat.
Front with Barrier Screen
(required, sold separately)
Approved
Chimney
Terminal Cap
Flashing or
Terminal
Adapter with
Flashing from
590FVK2
2 x 3”
approved flex
chimney liners
running full
length or
5” x 3” co-axial
using 590FVK2
Flex Vent Kit
Existing
unaltered,
functioning
solid-fuel
burning
fireplace &
chimney
530 insert fireplace
Closure plate
(depending of front
used, may be included
or sold separately)
This appliance may ONLY be installed in an existing unaltered, functioning solid-fuel burning fireplace with a
working flue and constructed of non-combustible material.
This appliance may be installed in outdoor, weather protected environments as defined in the GV60CKO
Outdoor Conversion Kit instruction manual.
DO NOT install into combustible construction. This appliance is NOT APPROVED for installation with a zero
clearance kit.

11
Installation Planning Overview
Flashing
2 x 3”
liners
25-1/2”
3”min.
bend radius
2 x 3”
liners
530
engine
40’
max
8’
min
Approved co-linear
termination or approved
co-linear adapter
and approved
co-axial
termination

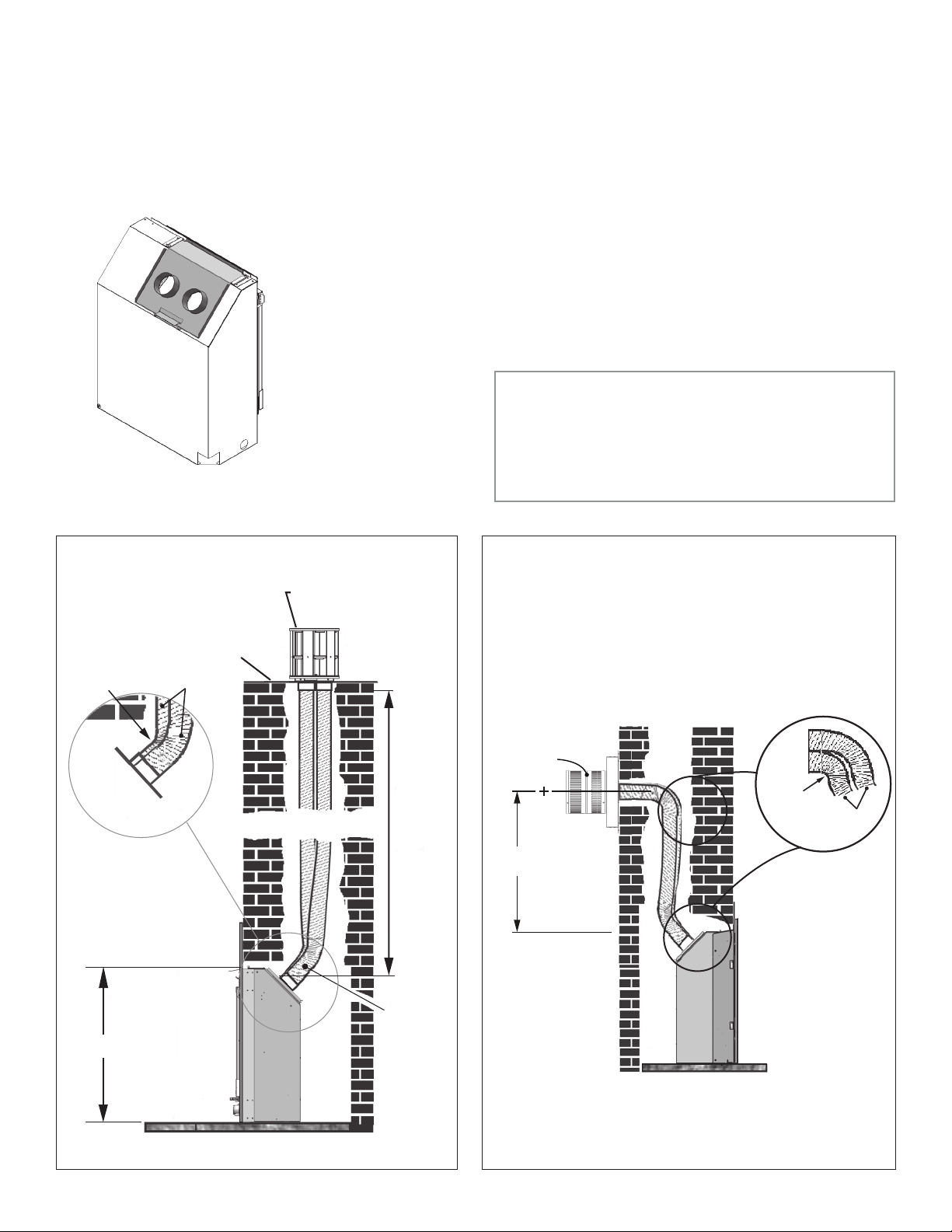

Co-linear installation into existing F/P
Co-linear appliance, as supplied
(2 x 3” diameter liners)
Rear view
Co-Linear—as supplied
Venting options
Co-Linear
Sidewall co-linear installation into existing F/P
using 720SWK—for units with logs, rocks or driftwood only
(see installation instructions supplied with 720SWK)
Min. 3’-0”
*Max. 5’-0”
*Beyond 5’-0”, the sidewall terminal may be
used but will require restrictors. See 530 section
further in this manual.
720SWK
Terminal
3”Liners
3” min.
Bend
Radius
* May be extended beyond 5’-0”. Refer to the
720SWK installation instructions
530INI/IPI as supplied 530INI/IPI with 720SWK—Sidewall Kit
NOTE
536/541/563 fronts require aclosure plate
(582/583CPB) to ensure proper positioning of
casting. Other fronts are supplied wih a backing
plate included.

12
Installation Planning Overview

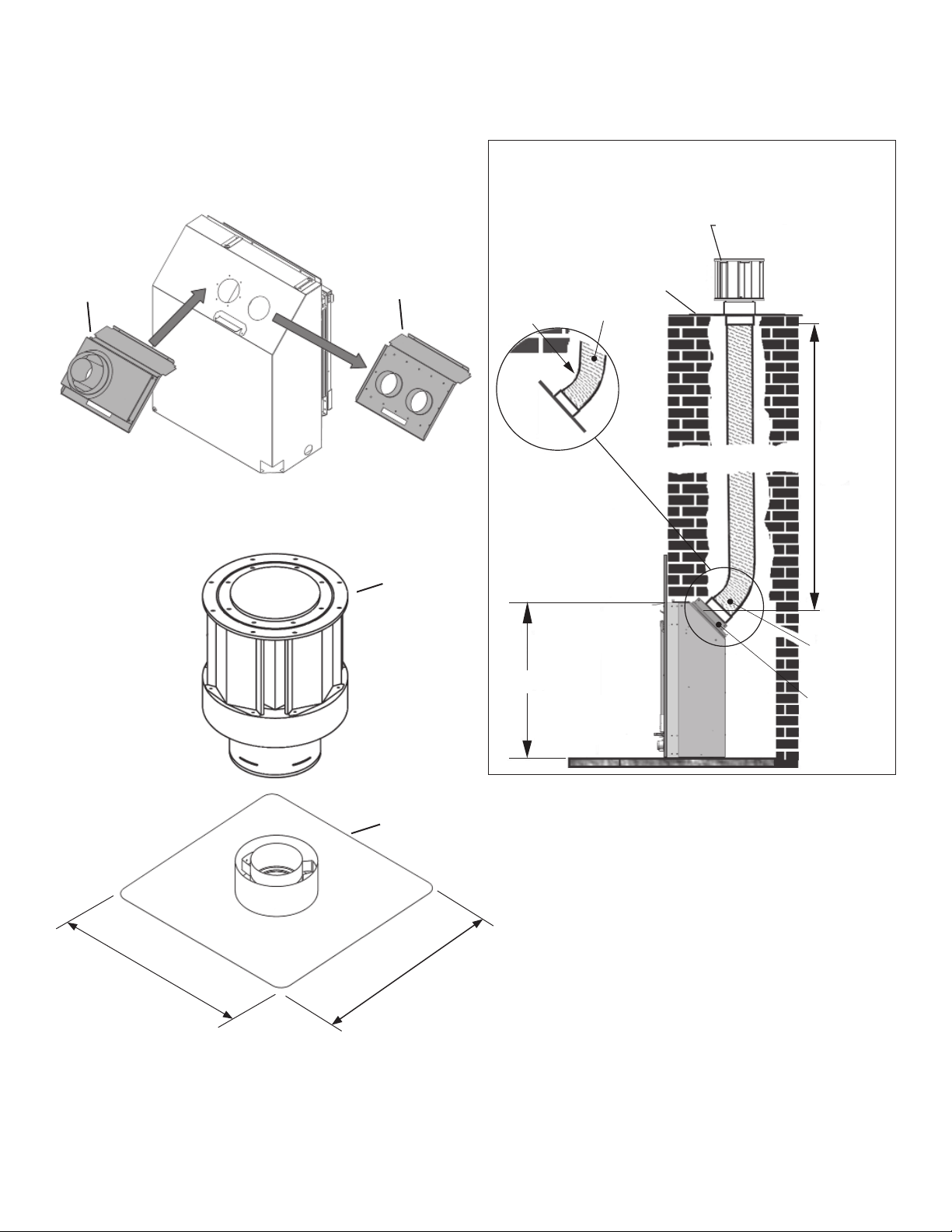

Add optional 530CVA2 for co-axial venting
(5” x 3” diameter liners)
Rear view
Add 530CVA2—
Appliance
Adapter
Discard
existing
vent plate
Approved
6-5/8 x 4
co-axial
terminal
Terminal adapter with
ashing supplied
with 590FVK2
25-1/2”
5” min.
bend radius
5 x 3”
liners
590FVK2
5 x 3” co-axial
liner kit
530CVA2
co-axial
appliance
adapter
530
insert
engine
40’
max
10’
min
Approved 6-5/8 x 4
co-axial terminal
Co-linear installation into existing F/P
530INI/IPI with 530CVA2—Co-axial Appliance
Adapter
18”
18”
Terminal
Adapter with
Flashing from
590FVK2
Co-Axial Conversion
Venting options
Co-Axial

13

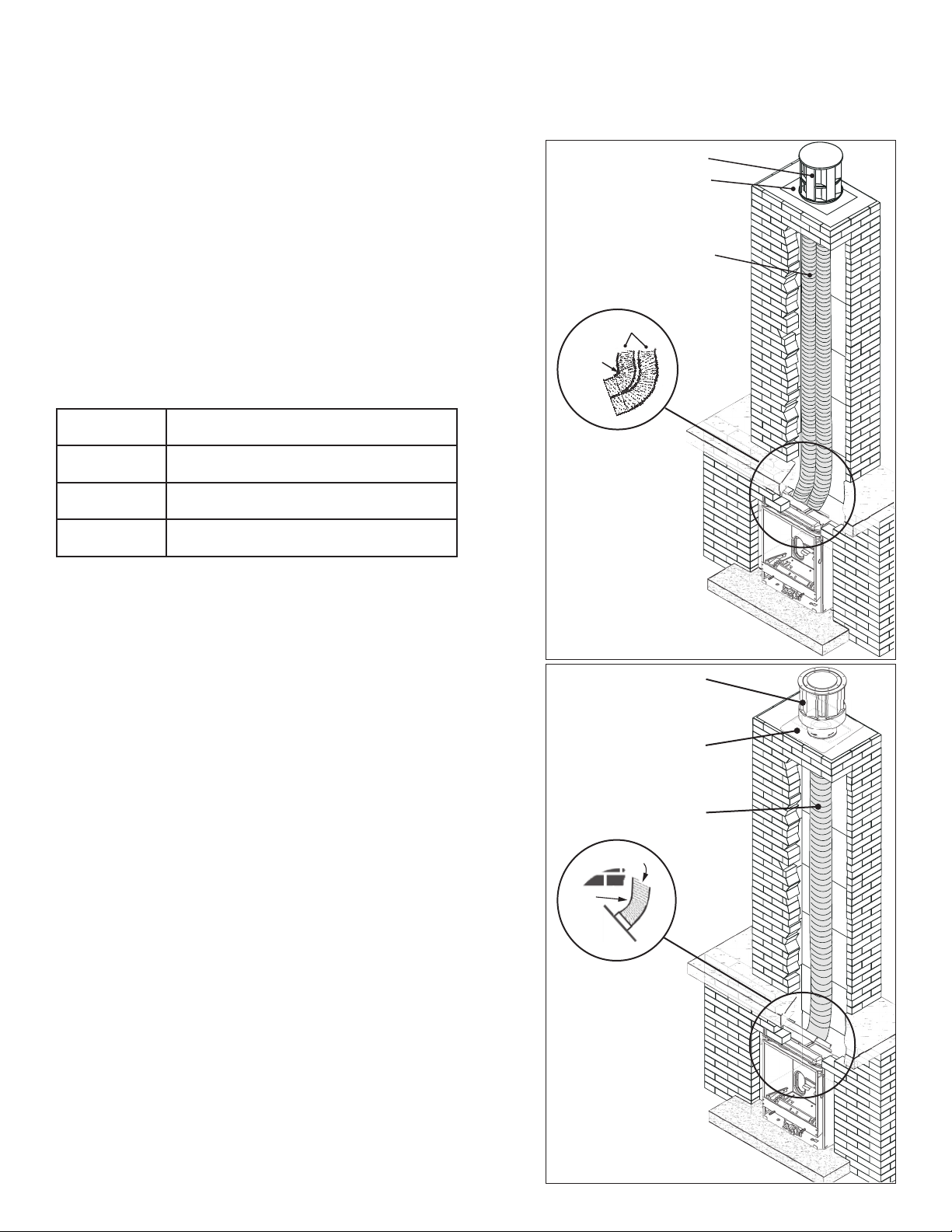

Venting Overview
Terminal Cap (co-linear)
Terminal Cap (co-axial)
Co-linear applications
Co-axial applications
Flashing
Terminal Adapter
and Flashing
supplied with
590FVK2
2 x 3” flex liners
—see Venting Table
for length allowed
5 x 3” flex liners supplied
with 590FVK2 kit—
see Venting Table for
length allowed
Typical Vent Installation
See the Approved Venting Components list on page 45 of
this manual.
Vent Location
The vent terminal must be located through the roof.
This direct vent appliance is designed to operate when
an undisturbed airflow hits the outside vent terminal
from any direction.
Check local codes for allowable vertical vent
termination.
Venting Table
Maximum
vertical height
40 ft (measured to bottom of termination)
Minimum
vertical height
10 ft (measured to bottom of termination)
Maximum
horizontal run
4 ft (measured center to center of pipe)
Maximum offset
angle
45˚(sweeping bend to allow for obstructions)
Venting Notes
Where possible, avoid splicing flex pipes. If splices are
required, use a approved connector and seal joints with
RTV high temp sealant.
Four feet horizontal is permissible to allow for routing
around masonry projections. Do not bend flex pipe
over a 45 degrees radius.
1. Co-linear venting may be converted to solid 4” x
6-5/8” co-axial venting at the top of the existing sol-
id-fuel burning chimney as necessary where the ex-
isting chimney has deteriorated and been removed.
The conversion must be done using approved com-
ponents (see page 45) and proper vent clearances
to combustibles must be maintained.
2. Flex liners may only be installed into solid-fuel burn-
ing fireplaces and chimney systems (no combustible
construction).
3. The appliance must not be connected to a chimney
flue serving a separate solid-fuel burning appliance.
Note
This appliance may also be vented using the following
optional methods (see installation instructions
packaged with optional kits):
• 720SWK—Co-linear sidewall kit
3”Liners
3” min.
Bend
Radius
5 x 3” Liners
5” min.
Bend
Radius

14
Venting Restrictors
Attaching Air Restrictors
Appliances with more than 10’-0” Vertical
Vent Rise Only
No restrictors are required for appliances which that have
less than 10’-0” vertical run. If installing an appliance which
has less than 10’-0” vertical vent pipe rise, ignore this stage.
Two restrictor sets, like the one shown right, are
supplied with each 530 engine unit. The restrictors
cover part of the inlet air openings in the firebox rear
wall on each side of the brick support. Do NOT install
the restrictors in the roof of the firebox!
Each set is assembled with an adjustable piece which
can be moved to different positions depending of the
vent configuration. See the table below to find out
which position is optimal for each type of installation.
• To fit the restrictors, loosen the two center screws of
the left and right inlet ports. Place the restrictor as-
sembly under the screw heads and tighten the center
screws.
• To set the adjustable restrictor piece, loosen the two
screws, position the adjustable piece according to the
diagram below and tighten the screws.
Adjustable
piece
DO NOT INSTALL HERE!
INSTALL HERE
Air Restrictor
Install restrictors in the inlet air openings
in the firebox rear wall behind the rear
log support.
Vertical vent
pipe run Restrictor setting
Logs/Rocks Coals
10–40 ft
(3.05–12.2 m)

15
Preparation Existing Fireplace Preparation
Existing Fireplace Preparation
A few points must be considered before inserting the
530 into an existing fireplace cavity. Generally, no
modifications are allowed to the existing fireplace that
will compromise the integrity of the existing fireplace.
Components that are bolted or screwed on such as
dampers or baffles may be removed to accommodate
the installation of the 530 engine. Cutting away any
sheet metal parts of the existing fireplace to
accommodate the installation of the 530 is prohibited.
Check with local authorities if in doubt.
Clean Fireplace and Chimney
Have the chimney swept and the fireplace cavity
including ash dumps and clean-outs cleaned before
installing the 530 heater and vent liners. Any creosote
or soot residue remaining in the fireplace cavity
chimney or clean-out may cause odors or stains once
the 530 insert is installed. Consult with chimney sweep
for information on how best to clean.
Existing Dampers
Factory-built, zero-clearance fireplaces will require the
damper to be removed in order to install the vent
liners. These dampers are usually bolted into place.
Dampers in masonry fireplaces must be fixed open and
may remain in place.
Ash Retaining Curbs
Some fireplaces (particularly factory-built) have a raised
curb at the front edge to retain ashes. Check the
dimensions carefully to ensure the 530 engine will fit
behind any raised curb (some curbs may be removed
separately from the refractory base).
Gas Line Routing
Plan the routing of the gas line before proceeding.
Utilize the existing hole for the gas line of the factory-
built fireplace.
If the fireplace has no access hole, carefully drill an
access hole of 1.5 inch (38 mm) or less through the
lower sides or bottom of the firebox. The access hole
must be plugged with non-combustible insulation after
the gas supply line has been installed.
See Dimensions section for detailed location of gas
inlet. Also, take into consideration whether or not a fan
or shut-offvalve will interfere when planning routing of
the gas line.
Existing Glass Doors and Wire Screens
Existing glass doors must be permanently removed
prior to installing the 530 insert.
Combustible Mantels
Combustible mantel clearances must conform to those
required for the original solid-fuel fireplace into which
the 530 is being installed.
Attach Warning Conversion Plate to Existing
Fireplace
(plate supplied loose with 530 heater)
Attach the “This fireplace has been converted...” label to
the existing fireplace using screws or other mechanical
means and store any removed parts in back of the
existing fireplace for future use.

16
Installer - READ THIS FIRST!
1. YOU NEED TO KNOW FROM THE HOMEOWNER:
• What front will be installed;
• What is the required cavity size/hearth finish;
• What is the vent configuration;
• Is there any optional accessories to be installed
2. Unpack the appliance, removing all items packed
inside and around it. Recycle the packaging.
3. Check that you have everything, using the Pack Con-
tent sheet. Also, check that you have:
• Front trim
• Fuel bed and liner panels (packed separately)
• Gas conversion kit (if necessary)
• Venting accessories
• Optional accessories (if ordered)
• Electrical accessories (if used)
4. Carefully read the Installer’s Checklist included with
the fireplace for the installation sequence.
Caution
Only qualified, licensed, or trained personnel
should install this appliance.
Preparation Before Installation
WARNING
Optional electrical accessories ARE NOT
ALLOWED when adapting appliance for
outdoor use.

17
Preparation Window and Burner
Remove Window
1. Release the top of the window by pulling forward
the two levers at the top corners.
2. Unscrew the two spring-loaded bolts securing the
bottom of the window.
3. Carefully lift the window. Keep the window and
bolts in a safe place.
Remove Burner Module
It may be desirable to remove the burner module to
gain access for gas fitting, to install a fan kit, or to fasten
the unit to the floor of the fireplace cavity.
Remove 11 screws to
remove burner module
Gas line access at
rear left corner

18

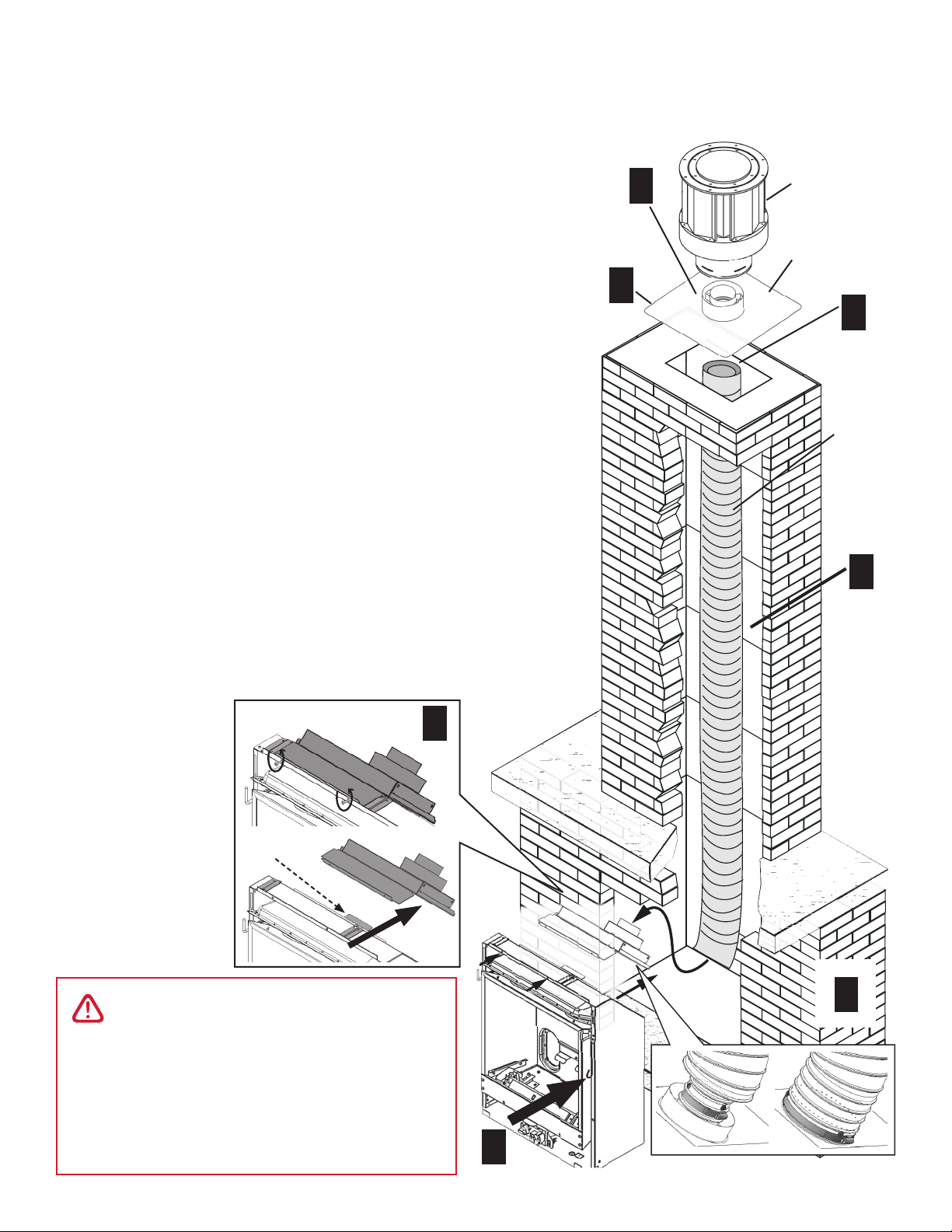

Co-Linear Applications (2 - 3” liners)—Connect Venting
IMPORTANT: This appliance’s venting system is room sealed and therefore,
does not require room air to be used in the combustion process.
1. Rough-in two 3” diameter vent liners into the existing chimney
system from the roof. Be careful not to tear or damage the liners in
the process. It may be easier to install both liners at the same time
rather than one at a time. Leave plenty of liner at the bottom to
facilitate the connection of the liners to the vent slider. It is best to
leave the top termination until later.
Designate and mark the top and bottom of one liner as
“EXHAUST” to avoid confusion later.
2. Release the two screws retaining the vent slider to the
front of the firebox. Remove the slider from the firebox by sliding it
towards the back of the firebox.
3. Fit the two liners ensuring that the exhaust liner is connected to
the identified “EXHAUST” vent collar. Secure liners to collars with
hose clamps (included) and 2 tapping screws per liner.
4. Slide the firebox onto the vent slider in the cavity taking care not
to damage the liners. Make sure that the rear edge of the slider is
hooked over the cleat on the firebox. Secure the vent slider to the
front of the firebox with two screws removed earlier.
5. From the roof, pull the liners and fit the flashing.
6. Fit the terminal cap ensuring that the exhaust liner is connected to
the exhaust vent collar. Secure with 8 screws provided.
7. Seal the terminal and flashing from water penetration as required.
Vent slider
cleat
1
3
2
4
5
6
7
Co-Linear Applications
Installation Venting
WARNING
Failure to position the parts in
accordance with these diagrams or
failure to use only parts specifically
approved with this appliance may
result in property damage or personal
injury.

19
1
3
2
4
6
7
5
Installation Venting
Co-Axial Applications (3” x 5” liners using 590FVK2 and
530CVA2)—Connect Venting
IMPORTANT: This appliance’s venting system is room sealed and therefore,
does not require room air to be used in the combustion process.
1. Stretch 3” and 5” liners from kit 590FVK2 individually to required
length. Insert the 3” liner inside the 5” liner and rough-in vent liners
into the existing chimney system from the roof. Be careful not to
tear or damage the liners in the process. Verify there is plenty of
liner at the bottom to facilitate the connection of the liners to the
vent slider so you will not need to stretch more later.
2. Trim 590FVK2’s Terminal Adapter & Flashing as required to suit top
of chimney and fold a drip edge if desired.
3. Trim ends of liner if necessary and fasten to collars on the under-
side of the 590FVK2’s terminal adapter using sheet metal screws
and gear clamps provided. Ensure liners are well secured and will
not fall down the chimney.
4. Apply a bead of sealant to top of chimney and seat 590FVK2’s flash-
ing onto sealant.
5. Release the two screws retaining the vent slider to the
front of the firebox. Remove the slider from the firebox by sliding it
towards the back of the firebox.
6. Fit the two liners. Secure with hose clamps (included) and 2 tapping
screws per liner (inner liner first, then outer).
7. Slide the firebox onto the vent slider in the cavity taking care not
to damage the liners. Make sure that the rear edge of the slider
is hooked over
the cleat on the
firebox. Secure the
vent slider to the
front of the firebox
with two screws
removed earlier.
See instructions
included with
590FVK2 kit for full
details.
Vent slider
cleat
Approved 4” x
6-5/8” vertical co-
axial termination
Terminal Adapter
and Flashing
supplied with
590FVK2
590FVK2
Flex Vent
Kit
Co-Axial Applications
WARNING
Failure to position the parts in
accordance with these diagrams or
failure to use only parts specifically
approved with this appliance may
result in property damage or personal
injury.

20
Connect Gas Supply
It is preferable to rough-in the gas line at this point
before proceeding with the firebox installation.
The appliance is supplied for supply gas connection at
the control valve. Supply line connection to the control
valve os the appliance is 3/8” NPT female. Take care not
to apply torque to the valve. An isolation valve may be
fitted within the appliance case. Be aware that the
supply pipe should follow routing to clear the remote
receiver or optional fan.
Use only new black iron or steel pipes, CSST, or copper
tubing if acceptable—check local codes. Note that in
USA, copper tubing must be internally tinned for
protection against sulfur compounds.
Union in gas lines should be of ground joint type.
The gas supply line must be sized and installed to
provide a supply of gas sufficient to meet the maximum
demand of the appliance without undue loss of
pressure.
Sealant used must be resistant to the action of all gas
constituents including propane gas. Sealant should be
applied lightly to male threads to ensure excess sealant
does not enter gas lines.
The supply line should include a manual shut-offvalve
and union to allow the appliance to be disconnected for
servicing.
Pressure test the supply line for leaks.
The appliance and its individual shut-offvalve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.5kPa).
The appliance must be isolated from the gas supply
piping system by closing its individual manual shut-off
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than
1/2 psig (3.5kPa).
Failure to either disconnect or isolate the appliance
during pressure testing may result in regulator or valve
damage. Consult your dealer in this case.
The minimum supply pressure is given on page 6 of this
manual.
All piping and connections must be tested for leaks
after installation or servicing. All leaks must be
corrected immediately.
When testing for leaks:
• Make sure that the appliance is turned off.
• Open the manual shut-offvalve.
• Test for leaks by applying a liquid detergent or soap
solution to all joints. Bubbles forming indicate a gas
leak.
The pressure test tapping locations are shown below. A
built-in non-adjustable regulator controls the burner
manifold pressure. The correct pressure range is shown
page 6 of this manual. The pressure check should be
made with the burner alight and at its highest setting.
See Appendix A – Lighting Instructions Plate on page 35 for
full operating details.
WARNING
NEVER USE OPEN FLAME to check for leaks.
Correct any leak detected immediately.
Supply
pressure
test tapping
Manifold
pressure
test tapping
Pressure test tappings
Control
Valve
Manifold Pressure Adjustment
behind Plastic Cap
Gas supply
connection 3/8”
NPT female at
valve
Gas line access at
rear left corner
Installation Gas Supply
