Valor 517 User manual

*Covered by GB Patent 2.202.622.B
600A939/03
Fan Flued Inset Gas Fires
(Model 517)
ULTIMATE TURBOCHIM*
&
SUPERFLAME RF*
OWNER GUIDE
This Owner Guideisintended to help you care for your Valor gas fire.
Please read carefully before using your gas fire and keepfor future reference.
This Owner Guide gives sufficient details to enable your gas fire to be operated and
maintained.
IMPORTANT.
Please keep your Owner Guide in a safe place together with the
Installer Guide.

2
22
2
Thank you for choosing Valor.
All Valor gas fires are designedto meet the most stringent quality,
performance andsafety requirements to provide our customers with
many years’ trouble-free service.
Your owner guide aims to improve your understanding and
appreciationofyourValorgasfirebyprovidingsimpleand
informative instructions to ensure that you benefit from the excellent
performance and features it has to offer.
Ifyourequirefurtherassistanceoranyadviceaboutgasingeneral,
theValor AdviceLine will be pleased to help.
Please telephone[phone] (local call rates apply in the United
Kingdom).
FOR OTHER USEFUL TELEPHONE
NUMBERS SEE INSIDE BACK COVER.
Page
PART 1: SAFETY 3
•Important information
PART 2: OPERATING INSTRUCTIONS 4-5
•How to light your fire
•How to turn your fire off
•The Flame Sensing Device &
Flue Ventilation Monitoring System
•Gas Consumption
PART 3: MAINTENANCE 5-8
•Cleaning your fire
•Refitting theCoals & Walls
•General Servicing
Natural gas models are for G20
Propane gas models are for G31
These appliances are for use in the United Kingdom (GB) and the
Republic of Ireland (IE).
They are radiant-convector gas fires
and must not be used for an
y
other
p
ur
p
ose.
CONTENTS
CUSTOMER CARE

3
33
3
DO
•Have the fire installed by a competent person. Inthe United
Kingdom, installation must be in accordance with the latest
edition of the Gas Safety (installation & use) Regulations and
the IEE Wiring Regulations.
In the Republic of Ireland, installation must be in accordance
with all national and local regulations in force and the ETCI
National Rules for Electrical Installation.
•Have the fire installed in accordance with the installation
instructions
•Provide a minimum distance of 750mm from the top surface
of the hearth to any shelf made of wood or other combustible
material where the shelf is not more than 150mm deep (This
will give a clearance of 150mmabove the top of the fire).
For a shelf deeper than 150mm, add 12.5mm to the clearance
for every 25mm of additional shelf depth (see figure 1).
•Make sure that any combustible wall finish or cladding is
removed from the area within the outer surround of the fire
(see figure 1)
•Make sure that the fire is on a non-combustible hearthand
that the hearth is at least the size shown in figure 1.
•Provide a suitable guardwhich complieswith BS6539 or
6778 for the protectionof youngchildren, the elderly and the
infirm. Such a guard is also recommended for the protection
of pet animals. (Although this fire conforms to all the
applicable standards, it is a heating appliance and certain parts
of its surface will become hot.)
•Switch the fire and fan off and allow to cool before attempting
to clean, service, etc. This appliance retains heat for some time
after it has been switched off
•Wait three minutes before attempting to relight if the fire is
switched off or if the flames are extinguished for any reason.
(Your fire is fitted with a safety device which will
automatically shut off the gas supply to the fire if, for any
reason, the flames go out or if the fan is not working.)
•Get advice about the suitability of any wall covering near your
fire. Soft wall coverings (e.g. embossed vinyl, etc.) which have
a raised pattern, are easily affected by heat. They may,
therefore,scorch or become discoloured when close to a
heating appliance. Please bear this inmindwhenever you are
considering redecorating.
•Provide a minimum clearance of 178mm between the outer
surround sides andany corner wall or other projection (see
figure 1). Please bear this in mind if ever you are considering
altering the room.
•Contact the Valor AdviceLine on0345 626 341 with any
enquiries you may have (local call rates apply in the United
Kingdom).
DON’T
•Put any paper or other material on the fire.
•Hang clothing, towels or any other fabrics over the fire.
•Fill in the space behind the case.
•Add any extra coals above the number stated in this guide - It
could cause a safety hazard.
•Place carpets, rugs or any other combustible material over the
hearth.

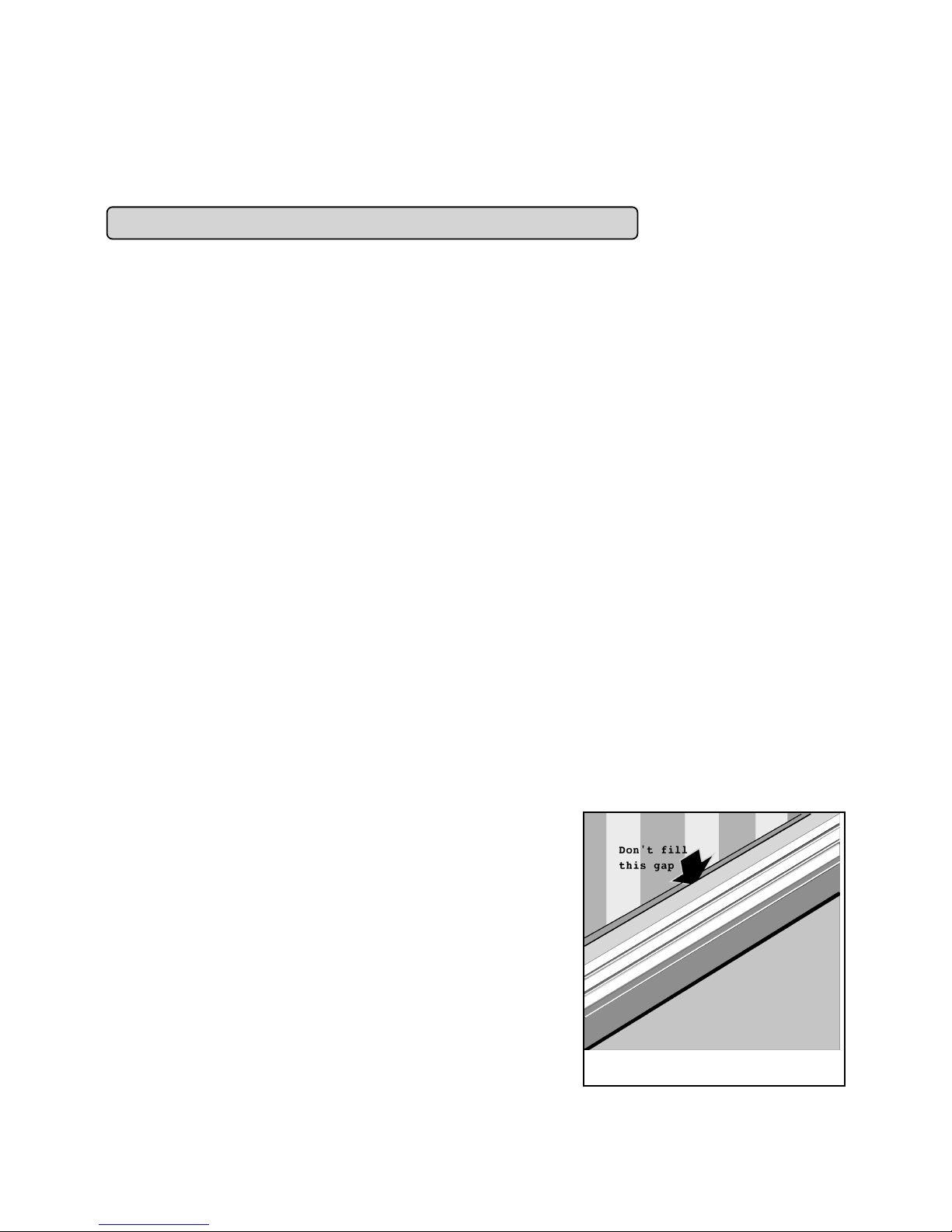

•Block in the space behind the top edge of the duct covers
(Side flue model only). See Part 3: Maintenance.
PART 1: SAFETY
CAUTION
IF YOU SMELL GAS...
•DON’T TURN ELECTRICAL SWITCHES ON OR
OFF
•DON’T SMOKE OR USE NAKED FLAMES
•DO OPEN DOORS AND WINDOWS TO GET RID
OF THE GAS
•DO TURN OFF THE GAS AT THE METER
•DO CALL THE GAS EMERGENCY SERVICE - IN
THE PHONE BOOK UNDER
“
GAS
”
PLEASE NOTE
W
hen operating your fire for the first time, some vapours ma
y
be given off which may cause a slight odour and could possibly
set off any smoke alarms in the immediate vicinity. These
v
apours are quite normal with new appliances.They are totall
y
harmless and will disappear after a few hours use.
This fire is supplied with ceramic “coals” which simulate a real
coal fire. The coals are designed for easy refitting if removed
and are totally safe to handle.
The burner in this appliance has been designedto give an
authenticcoalfire flame effect.Due to the nature of this kind o
f
burner,there may be various “popping” andflame noises not
usually associated with more conventional gas fires. As with a
real coal fire, these noises are perfectly normal and safe.
A
fter some use, the coals and the ceramic walls may change
colour. This is quite normal and will not affect the safety or
performance of the fire.
A
t times of very windy weather or low voltage during peak
electricity demand, a slight click may be heard. This is caused by
the fan control switchin
g
between its boost and normal s
p
eeds.
THIS APPLIANCE MUST BE EARTHED
Figure 1 Dimensions & clearances
See “Do”
above

4
44
4
HOW TO LIGHT YOUR VALOR GAS FIRE
The controlsare shown in Figure 2.
•Check that the main isolating switch is on.
•Remove the bottom front cover (see figure 1).The controls are behind this
cover.
•Check that the red indicator light is on.
•Press and hold in the “ON” switch. Within two seconds, the fan motor
should start and the indicator light should go out.
•Release the “ON” switch. The fan should continue to run.
•Depress the control knob andturn partially to the “PILOT/IGN” position
until you feel some resistance.
•Keep the knob depressed at this position for a few seconds to allow gas to
flow to the pilot.
•While keeping the knob depressed,turnto the “PILOT/IGN” position.
While turning, a spark should light the pilot. The pilot flame can be seen
below the round coal at the front left side.
•Keep the knob depressed at the “PILOT/IGN” position for a further ten seconds
then release it. The pilot flame should stay alight.
•Slightly depress the knob and turn it to “LOW”. Release the knob. Within a few
seconds the main burner should light at its low setting.
•Slightly depress the knob and gradually turn it towards “HIGH” until the burner is at
your desired setting. The burner flames will gradually increase until the knob is at the
“HIGH” position.
•If the spark ignition fails, the fire can be lit manually by inserting a lighted taper
alongside the left side wall inside the fire box (as shown in figure 3) and depressing
the controlknob at the “PILOT/IGN” position.
Note: If the fire goes out while setting the control, repeat the full lighting procedure. If
the fire repeatedly goes out, have the fire serviced.
HOW TO TURN OFF YOUR VALOR GAS FIRE
•To turn off the main burner but leave the pilot alight slightly depress the control knob
and turn to “PILOT/IGN”. Leave the fan switched on.
•To turn the fire fully off slightly depress the control knob and turn to “OFF”. Press the
“OFF” switch to turn the fan off. The indicator light will come on to show that the electrical
supply to the fire is live. If the fire is not likely to be used again for a long time we suggest
that the mains isolating switch for the fire is switched off.
•Wait at least three minutes after turning the fire off before relighting.
•While cooling, the coals may make some crackling noises. This is quite normal.
THE FLAME SENSING & FLUE BLOCKAGE SAFETY SYSTEM
•For your safety, this appliance is fitted with a flue blockage safety device which will shut
down the appliance in the event of abnormal flue conditions.
•This device will also shut down the appliance if the pilot flame goes out due to lack of
oxygen or for any other reason.
•The system includes a probe which senses the heat from the pilot flame. Ifthis probe is cool,
the system will prevent any gas flow unless the control knob is kept depressed at the
“PILOT/IGN” position.
•The system also includes an atmospheric pressure detector. This will shut off the gas supply
if the fan is not working.
•If there is a blockage preventing the flow of exhaust fumes out of the flue, the fan will switch
to a high boost speed to attempt to clear the blockage.If the boost speed does not clear the
flue, the pressure detector will shut off the gas supply.
•If the flames go out, or if for any reason the fire is turned off, always wait at least 3 minutes
before attempting to relight.
•If this device starts to shut off the gasfrequently please get expert advice from the Valor
AdviceLine on 0345 626341 (localcallrates apply in the United Kingdom).
•This device is NOT a substitute for an independently mounted Carbon Monoxide
detector.
Figure3 Lightingwitha taper
PART 2: OPERATING INSTRUCTIONS
Figure 2 The Controls

5
55
5
GAS CONSUMPTION
Natural Gas models have a maximum gas input of 6.0kW (Gross) and a minimum gas input at
the low setting of 2.2kW (gross).
Propane Gas models have a maximum gas input of 6.1kW (Gross) and a minimum gas input at
the low setting of 3.6kW (gross).
CLEANING YOUR VALOR GAS FIRE
To maintain the high performance and quality finish of your Valor fire, please follow these
guidelines:
•Before attemptingto clean the fire,please remember to turn off the gas at the fire and the
electricity at the isolating switch.
•Wait for the appliance to cool. The fire will retain heat for some time before cleaning can
begin.
Metal Parts
•Clean the metal parts with a slightly damp cloth and then dry.
•Do not use abrasive cleaners as these will scratch the fire surface.
Coals and burner compartment walls
•This product uses fuel effect pieces and burner compartment walls containing Refractory
Ceramic Fibres (RCF), which are man-made vitreous silicate fibres. Excessive exposure to
thismaterial may cause temporary irritationto eyes,skin andrespiratory tract. Consequently,
it makes sense to take care when handling these articles to ensure that the release of dust is
kept to a minimum.
•Light coatings of soot will usually be burnt off during the normal operation of the fire.
Should any soot accumulation become excessive, the fuel effect pieces and walls should be
removed from the fire for cleaning.
•Cleaning should be carried out in a well ventilated area or in the open air by gently brushing
with the pieces held away from your face so that you avoid inhaling the dust. We do not
recommend the use of a normal domestic vacuum cleaner which may blow dust back into
the air.

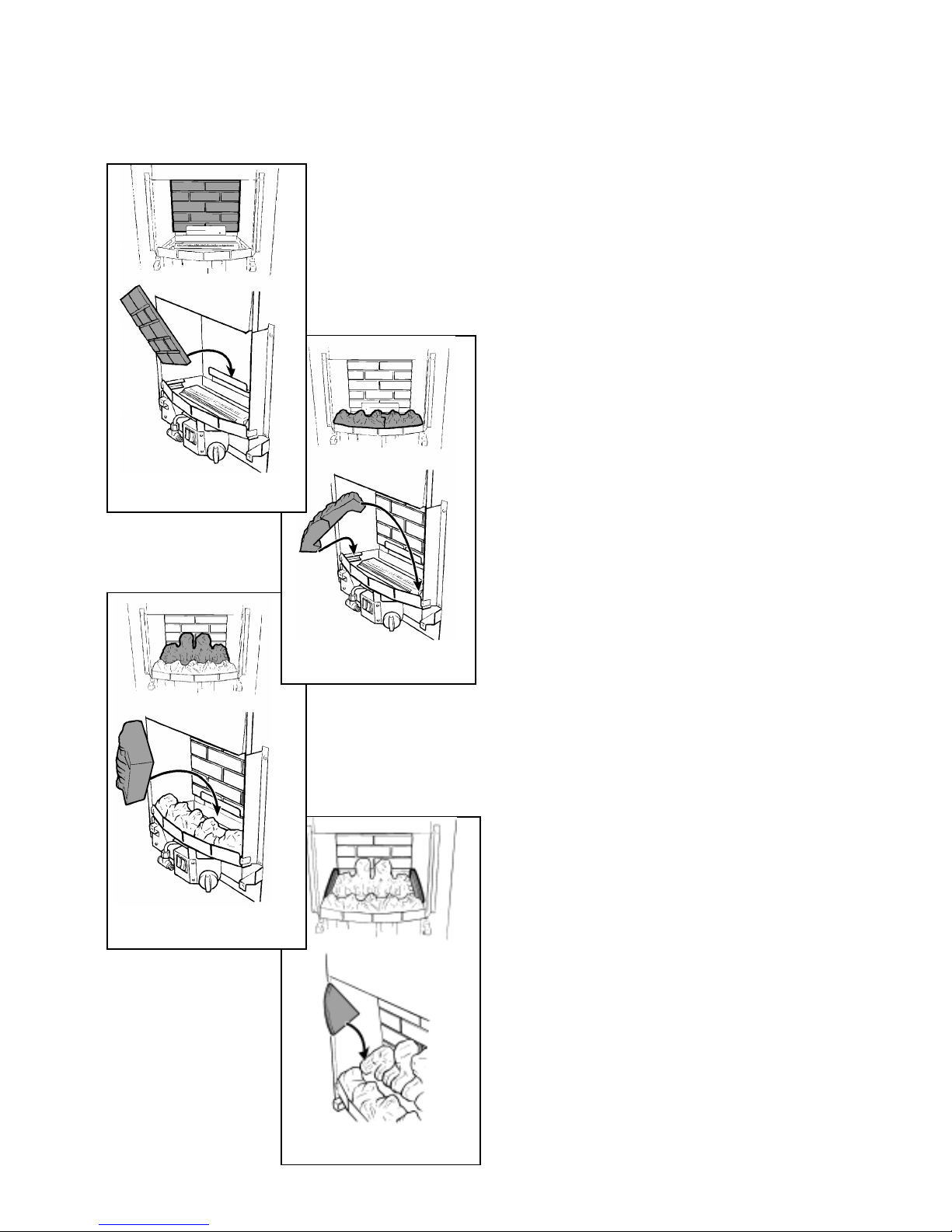

•We suggest that you remove the coals in the reverse orderto that shownin the fuelbed
refitting instructions.
Ceramic burner
•Remove any soot or other foreign matter from the solid areas of the burner with a dry soft
brush.
•Be careful not to brush any particles into the open slots.
•Remove any particles from the slots with a vacuum cleaner fitted with a soft brush
attachment. Do not poke wire, etc. into the slots in the burner.
Flue terminal
•Keep the slots in the flue terminal onthe outside wall clear of any obstructions
(leaves, snow etc.)
Ventilation
•If any purpose made ventilation was provided for this appliance, make sure that it
is always free from any obstruction.
Flue ducts (Side flue models)
•The flue duct covers running along the wall can be cleaned with a slightly damp
cloth and then dried.
•The covers in front of the duct pipes and the metal backing covers next to the
wall can be painted, if necessary, with any of the widely available primer and
finishing paints suitable for metal surfaces.
•The space behind the top back edge of the duct front covers must not be blocked
(See figure 4).The space is to allow cooling air to circulate along the ducting run.
PART 3: MAINTENANCE
Figure 4 Duct air gap

6
66
6
REFITTING THE COALS & CERAMIC WALLS
If the coals or ceramic walls are dislodged or removed, refit them as follows:
Only the parts supplied with this appliance or authorised Valor replacements must be used. Never
add extra coals above the number stated in this guide.
1With its feather edge at the top, place the ceramicrear wall into the channel at the back of
the fire box.. Push the wall flat against the rear of the fire box. (See figure 5) .
2Place the two halves of the front base coal inthe burner
compartment sothat they rest onthe ledgesat the sidesand
front. Pull the coals forward so that they are immediately behind
the front rim of the burner compartment (See figure 6).
3Place the rear base coal in the burner compartment behind
the front coal. It shouldrest on the ledge at the back of the
burner compartment and its rear face should touch the rear
ceramic wall (See figure 7).
4The ceramic side wallsare marked at the rear bottom
corners “L” (Left side) & “R” (Right side). Place the side walls
against the sides of the fire box and in the recesses at the sides of
the base coals. The markings “L” & “R” should be at the at the
back bottom corners and facing to the centre of the backof the
firebox (See figure 8).
Figure 8 Ceramic side walls
installation
Figure 7 Rear base coal
installation
Figure 6 Front coal installation
Figure 5 Ceramic rear wall
installation

7
77
7
5Install the 7 loose coals as follows. The smooth surfaces of the coals should be at the
bottom and back.
5.1 Select the two largest coals Place themin the central two valleys of the front coal (See
figure 9).
5.2 Place two of the remaining coals in the two outer
valleys of the front coal (One each side of the large coals)
(See figure 10). Place the left side coal so that you will be able
to see the pilot flame below the coal.
5.3 Place the three remaining coals behind and
approximately midway between each of the coals inthe front
row (See figure 11).
Figure 11 Middle row of coals
Figure 10 Front row outer coals
Figure 9 Front row inner coals

8
88
8
GENERAL SERVICING
•In order to achieve high levels of personal safety and performance efficiency it is essential that
the flue terminal outside the building is kept clear of any form of obstruction.
•In the United Kingdom it is the law that a landlord must have any gas appliance and
pipework which is situated ina tenant’s premises checked for safety at least every 12 months.
We recommend that all gas appliances, wherever situated, are checked annually by a
competent person (In the UK, a CORGI registered installer).
•If you require your fire to be serviced, please contact Valor Service on 0121 386 6203 and
quote the following details;
a) - model name
b) - model no.
c) - appliance serial no. (To be found ona chained plate below the burner andbehindthe bottom
front cover)
•If you wish to replace any of the owner replaceable parts listed below, please contact
Valor Sales on 0121 386 6260 for your nearest stockist of these parts.
Description Part No.
Rear wall 545999
Front base coal halves 546009
Rear base coal 563359
Pack of7 top coals 563369
Right side wall 546039
Left side wall 546049
•When fitting replacement parts, follow the instructions contained in this guide.
•It is important that only Valor approved parts are used for maximum safety.

a) Your Post Code.
b) Type of fire.
c) Model/Name.
d) Serial Number.
e) The fault, problem or request.
General advice about gas and your gas fire:
VALOR ADVICELINE 0345 626341.
To report faults or arrange for your fire to be serviced:
VALOR SERVICE 0121 386 6203.
To order spares or for sales information:
VALOR SALES 0121 386 6260.
CALLERS IN THE REPUBLIC OF IRELAND
Call 0044 121 373 8111
USEFUL TELEPHONE NUMBERS
To help us quickly help you, please try to have the
followin
g
information available before
y
ou contact us:

Safety First.
Valor fires are CE Approved and designed to meet the appropriate British Standards and Safety
Marks.
Quality and Excellence.
At the heart of every Valor fire.
All Valor fires are manufactured to the highest standards of quality and excellence and are
manufactured under a BSEN ISO 9001 quality systemaccepted by the BritishStandards
Institute.
The Highest Standards
Valor is a member of the Society of British Gas Industries which works to ensure high standards
of safety, quality and performance.
Careful Installation
Valor is a Corgi registered company. All our gas fires must be
installed by a competent Corgi Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet or floor of combustible material.
Valor Heating, Erdington, Birmingham B24 9QP
Because our policy is one of constant development and improvement, details may vary slightly from those given
in this publication.
© Valor Heating
