Valor LT1 2500KN User manual

4008705-03
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
DANGER
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Direct Vent Zero Clearance
Gas Fireplace
natural gas 2500KN
propane gas 2500KP
Installation Manual
LT1
Installer: Place model/serial number here.
with HeatShiftTM System

2
Ce guide est disponible en français sur demande.
This appliance is a domestic room-
heating appliance. It must not be used
for any other purposes such as drying
clothes, etc.
This appliance is suitable for
installation in a bedroom or bed
sitting room.
This manual contains instructions to
install the ENGINE ONLY. A trim kit is
REQUIRED to complete the installation.
A barrier screen is provided with the
trim kit. Refer to the manual supplied
with the trim for installation.
The information contained in this manual is believed
to be correct at the time of printing. Miles Industries
Ltd. reserves the right to change or modify any
information or specifications without notice. Miles
Industries Ltd. grants no warranty, implied or stated,
for the installation or maintenance of your heater,
and assumes no responsibility for any consequential
damage(s).
© Copyright Miles Industries Ltd., 2023. All rights reserved.
Designed and manufactured for Miles Industries Ltd.
Valor Fireplaces
190–2255 Dollarton Highway
North Vancouver, BC, Canada V7H 3B1
T 604.984.3496 F 604.984.0246
valorreplaces.com
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where
not prohibited by local codes. This
appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for
use with other gases, unless a certified
kit is used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
Massachusetts:
The piping and final gas connection must be
performed by a licensed plumber or gas fitter
in the State of Massachusetts. Also, see Carbon
Monoxide Detector requirements in the fireplace
installation manual.
WARNING
This product can expose you to chemicals
including Benzene, which is known to the State
of California to cause cancer and birth defects or
other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
Note: Natural gas, in its original state, contains
Benzene.

3
Please read this manual BEFORE
installing and operating this
appliance.
This appliance has been professionally installed by:
Dealer Name: ________________________________
Phone:______________________________________
Welcome to Valor®
Fireplace Safety .........................................................................4

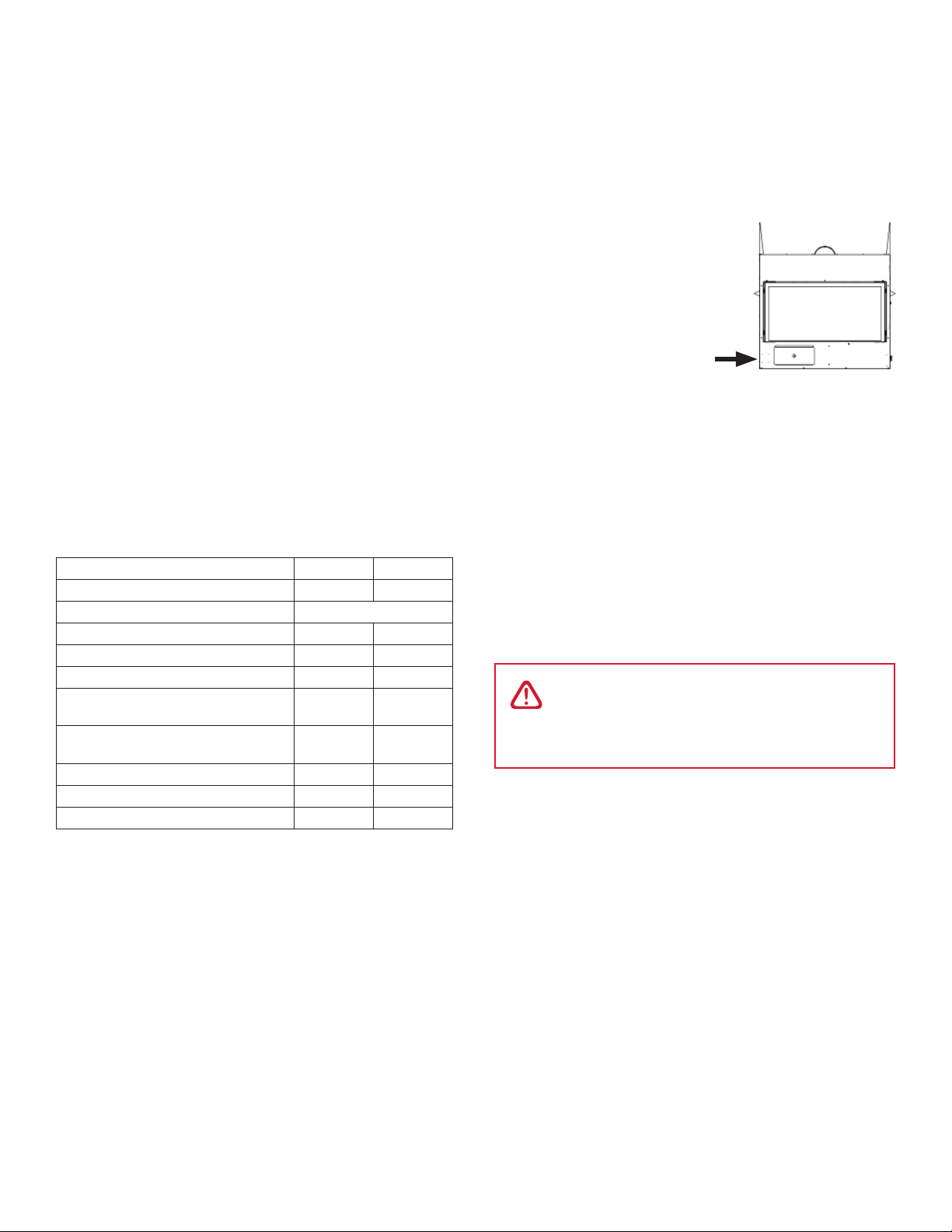

Specications .............................................................................6
Kits & Accessories......................................................................7

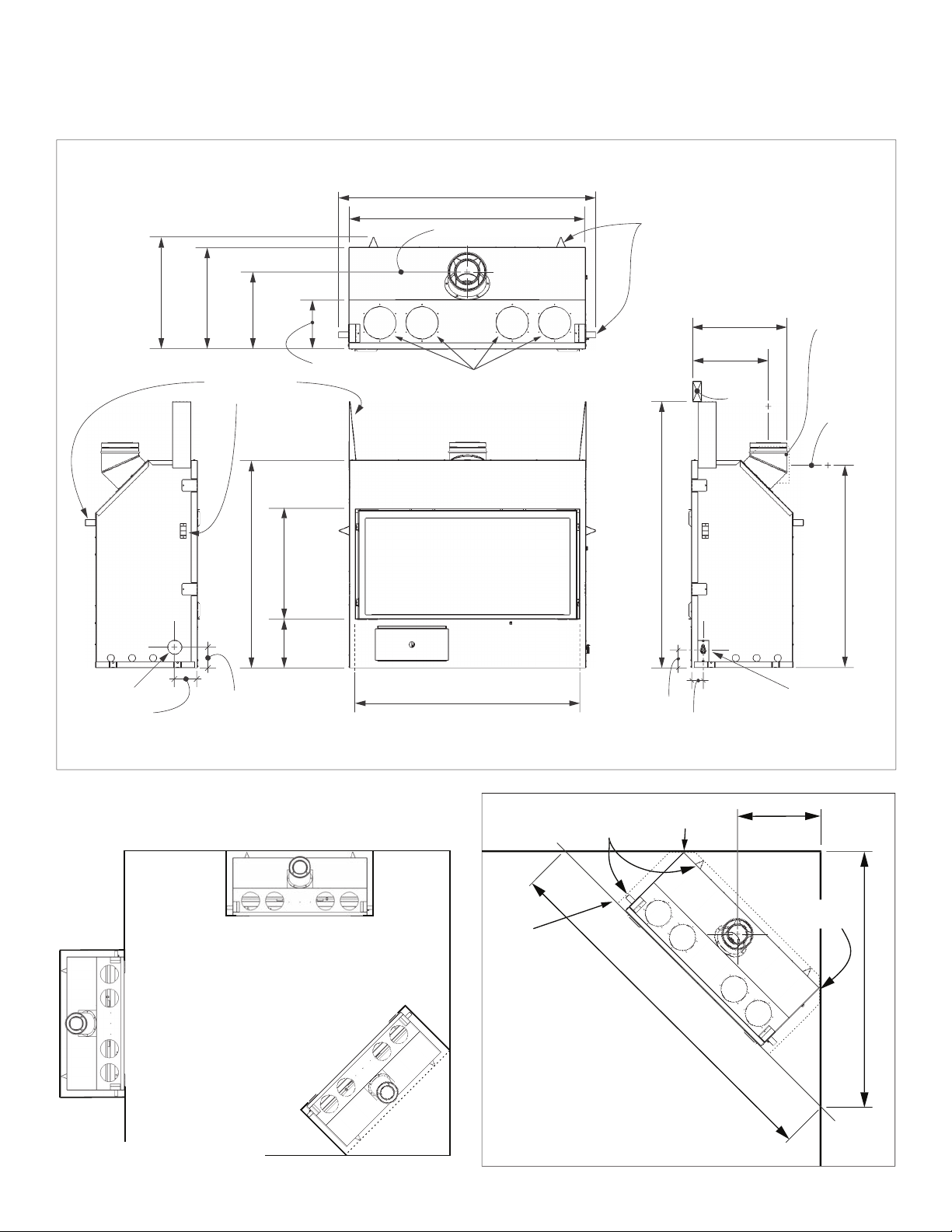

Dimensions & Location...........................................................8
Installation Planning................................................................9
Before Installing .......................................................................................9

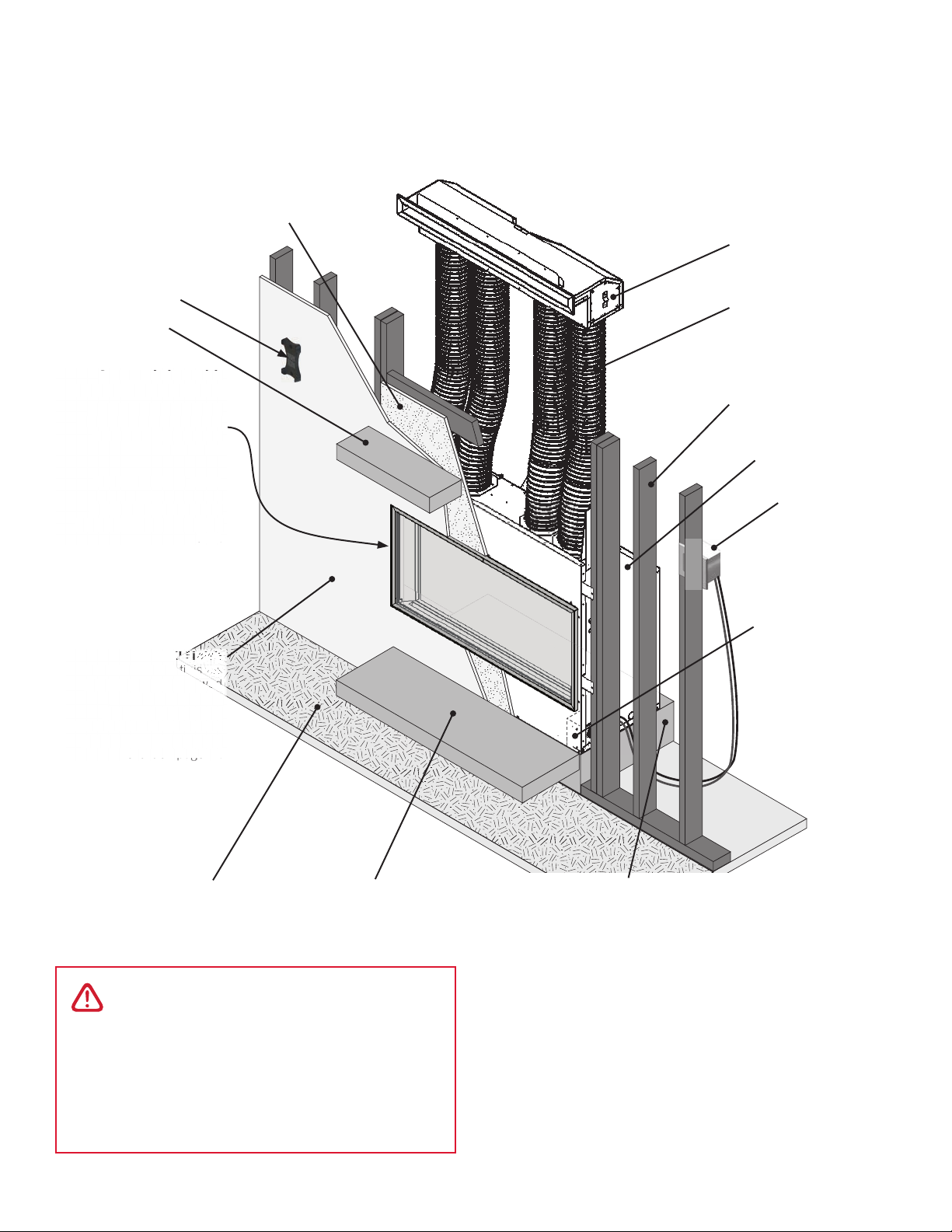

Overview.................................................................................................. 10

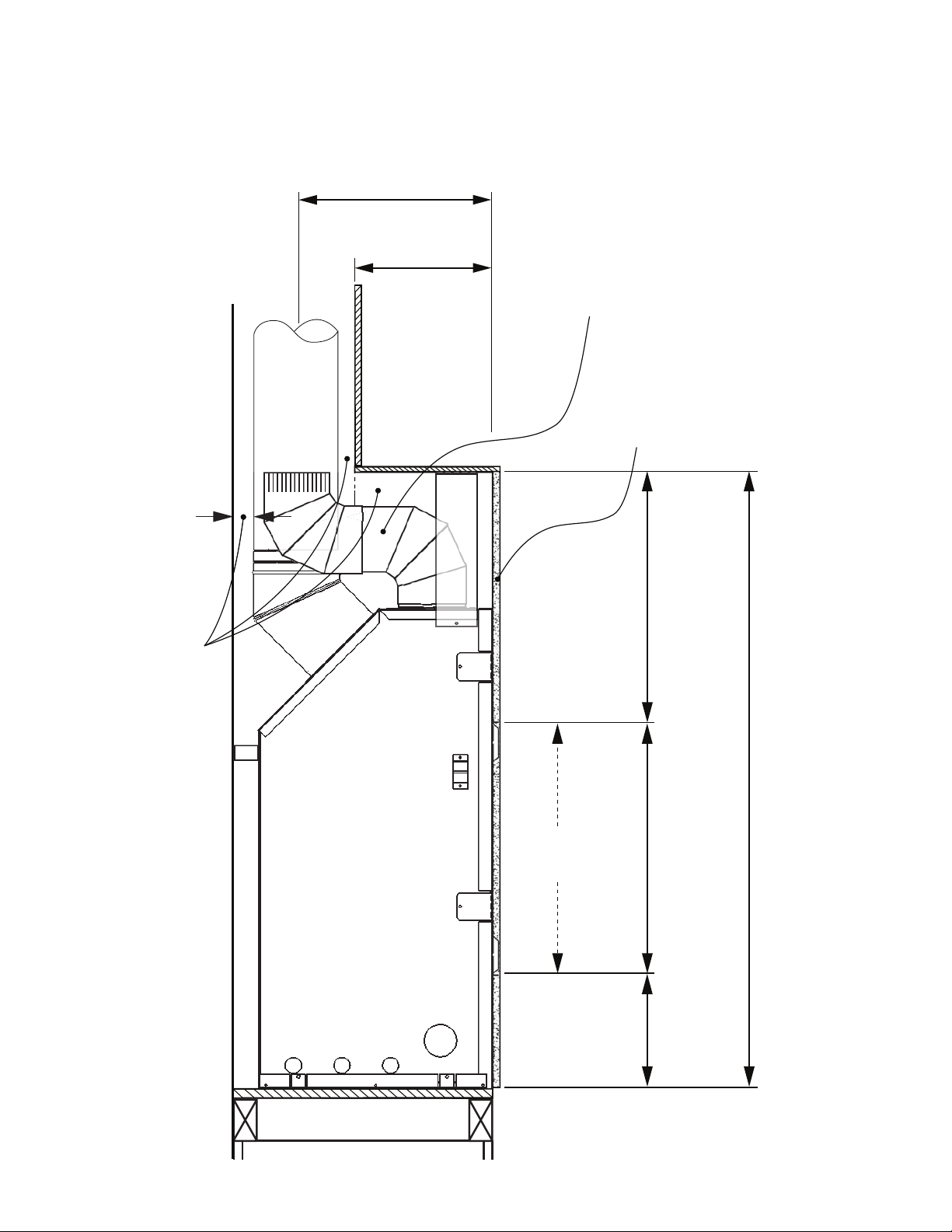

Mantel Clearances.................................................................................11
Framing..................................................................................................... 13
Wall Finish................................................................................................ 15

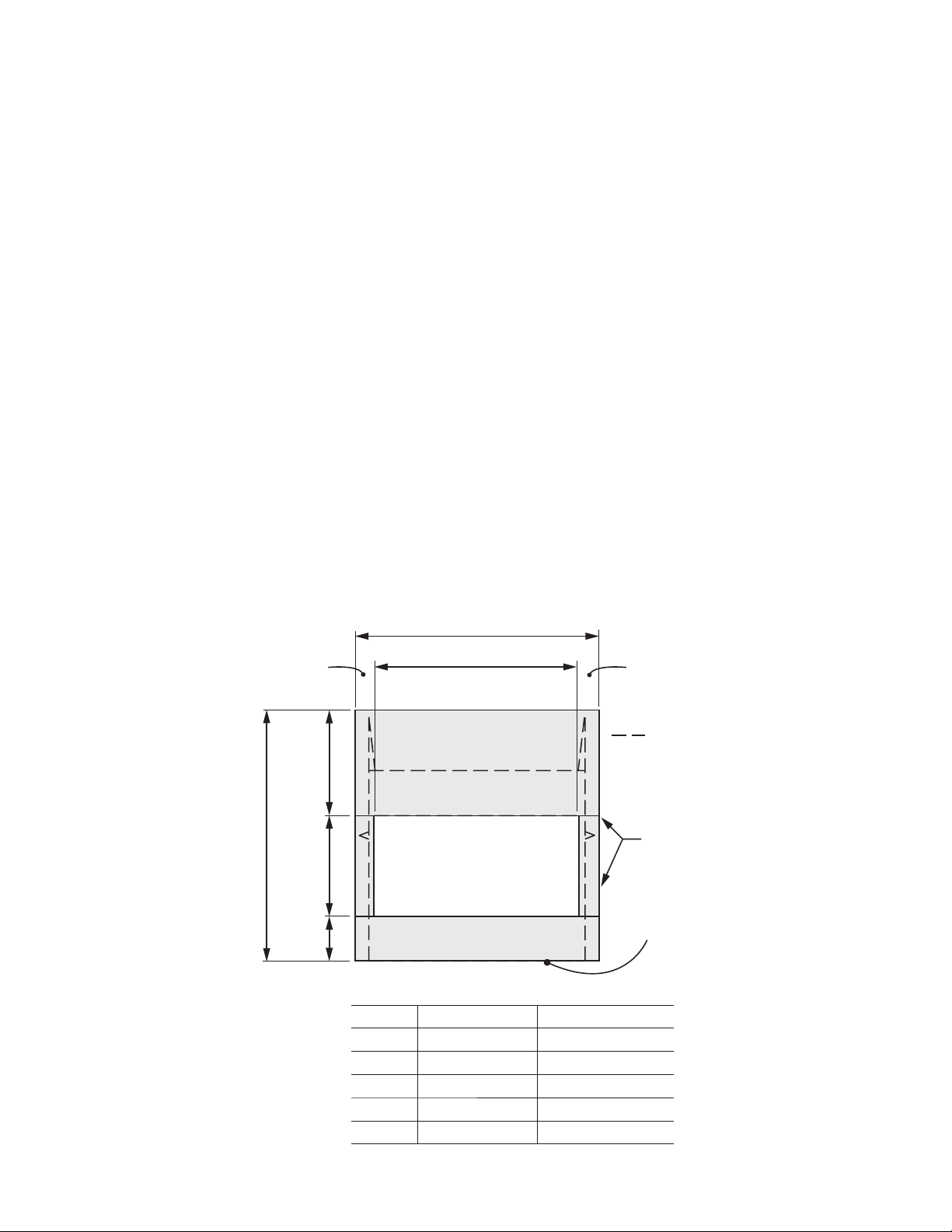

Material Specifications..............................................15
Non-Combustible Board...........................................15
Do Not Drill/Screw Areas ..........................................16

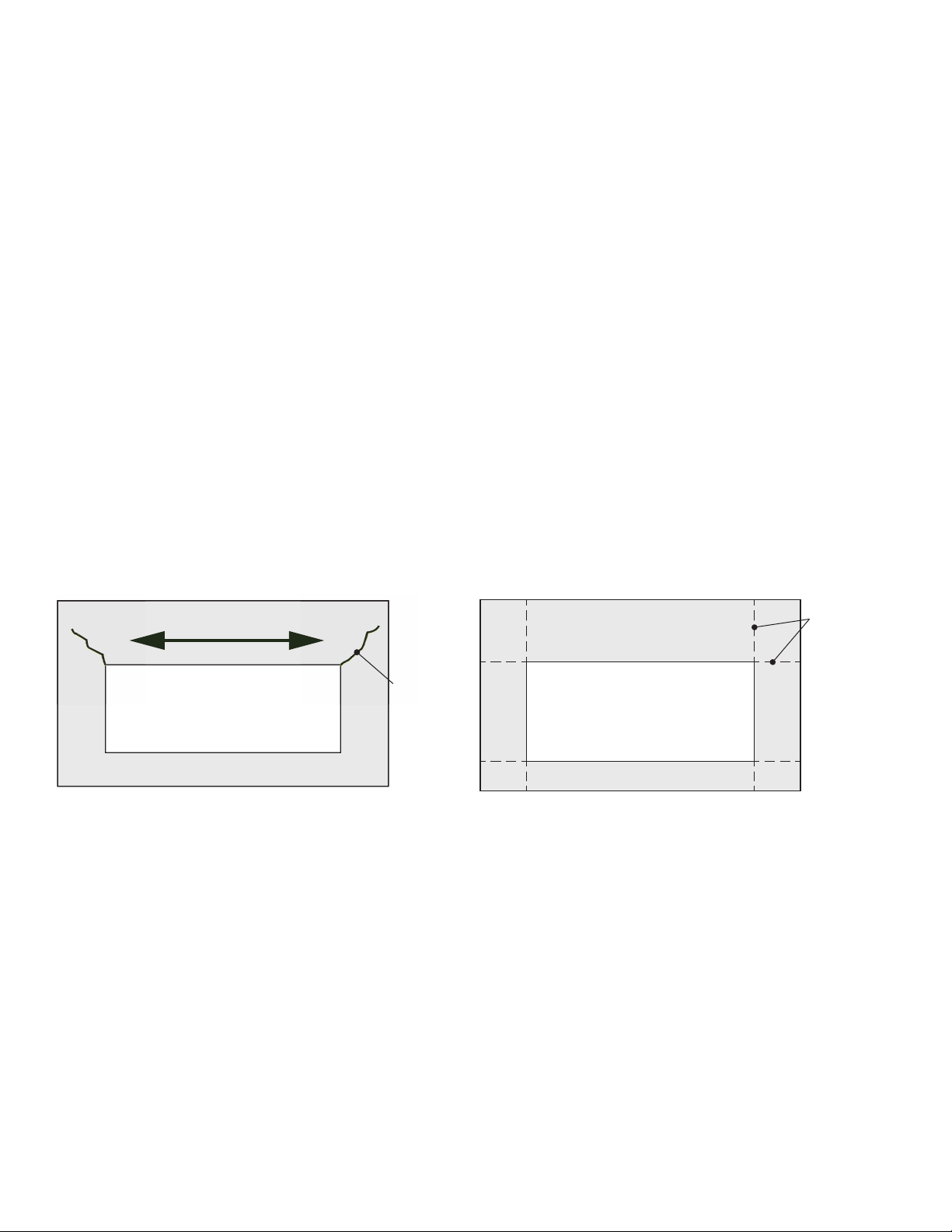

Avoiding Cracking Wall Finishes...............................17

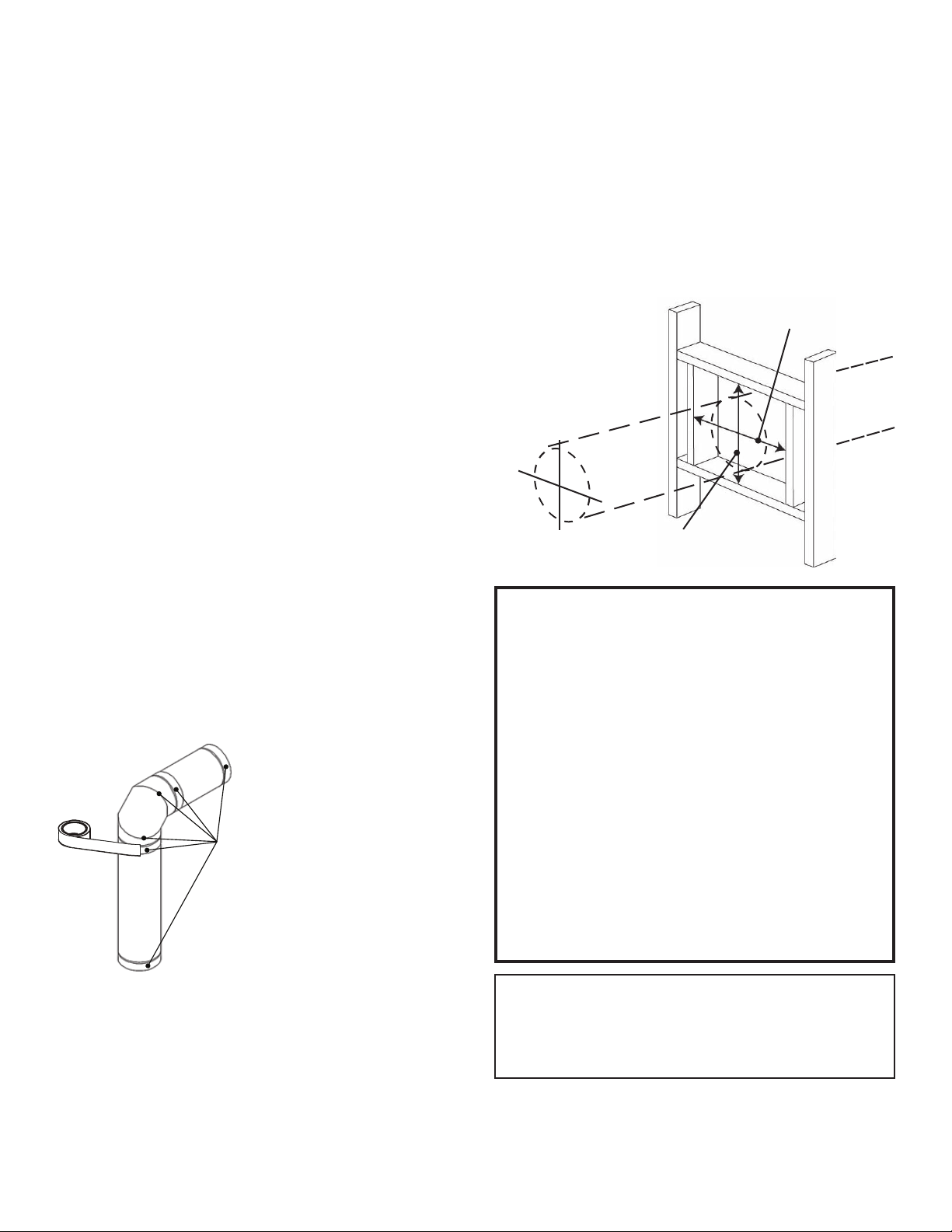

Venting........................................................................................18
Overview.................................................................................................. 18
Co-Axial .................................................................................................... 19
Typical Co-axial Venting Components ....................19
Venting Chart ..............................................................20
Restrictor Settings .....................................................21
Horizontal Vent Termination ....................................22
Vertical Vent Termination .........................................23
Co-Linear Conversion ......................................................................... 24
Co-Linear Conversion Installations .........................24
Installation Partially Into Fireplace Cavity..............25
Installation Using 1156CLA .......................................25
Installation Into an Adjacent Chimney....................26
Installation Into an Adjacent Chimney....................27
Example of Co-linear Conversion Accessories ......28
Installation ................................................................................ 29
Appliance Preparation........................................................................29
Window Removal ................................................................................. 30
Window Reinstallation & Check...................................................... 31
Electrical Wiring ....................................................................................34
Gas Supply............................................................................................... 36
Liner Installation ...................................................................................38
Fuel Beds..................................................................................................40
Birch Log Kit 1505BLKV2.......................................... 40
Driftwood Kit 1505DWKV2 .......................................43
Split Wood Kit 1505SWKV2...................................... 46
Decorative Glass Murano 1500DGM ......................49
Rocks & Shale Set 1514RSS .......................................50
Wall Switch.............................................................................................. 52
Remote Control.....................................................................................54
Checking Operation and Aeration................................................56
Checking Decorative Lighting......................................................... 57
Trim & Barrier Screen...........................................................................58
Wiring Diagram ...................................................................... 59
Approved Venting Components...................................... 60
Commonwealth of Massachusetts.................................. 62
Appendix A—Lighting Instructions ............................... 63
Appendix B—Remote Control Operation.................... 64
Appendix C—Wall Switch Operation............................. 71
Appendix D—HeatShift™System.................................... 72
Appendix E—Spare Parts ................................................... 90

Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth
This manual contains very important information about the safe installation and operation of the fireplace. Read and
understand all instructions carefully before installing and operating the fireplace. Failure to follow these instructions
may result in possible fire hazard and will void the warranty.
Replacement manuals are available by contacting the Valor Customer Service at 1-800-468-2567, or by visiting
valorreplaces.com.
WARNING: Extremely Hot!
Heat and ammability
• Some parts of the fireplace are extremely hot, par-
ticularly the glass windows. Use the barrier screens
provided or a gate to reduce the risk of severe burns.
• The glass windows can exceed 500°F at full capacity.
• Always keep the appliance clear and free from com-
bustible materials, gasoline, and other flammable
vapors and liquids.
• Be aware of hot wall surfaces! The walls directly above
the fireplace can get very hot when the fireplace
heats. Although safe, it may reach temperatures in ex-
cess of 200ºF (93°C) depending on choice of optional
accessories. Do not touch!
• Be aware of hot hearth/floor surfaces! Any projections
directly around the fireplace can get very hot when
the fireplace heats. Although safe, they may reach
temperatures in excess of 200ºF (93°C)depending on
elevation of hearth. Be careful of touching these! Tem-
perature of projection surfaces will be reduced when
barrier screens are installed.
• Some materials or items, although safe, may discolor,
shrink, warp, crack, peel, and so on because of the
heat produced by the fireplace. Avoid placing candles,
paintings, photos and other combustible objects
sensitive to heat or furniture within 36 inches (0.9m)
around the fireplace.
• Due to it high temperatures, the appliance should be
located out of traffic areas and away from furniture
and draperies.
• Clothing or flammable material should not be placed
on or near the appliance.
Barrier Screen and Safety
• A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
• Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children, and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at-risk individuals in the house. To
restrict access to a fireplace or stove, install an adjust-
able safety gate to keep toddlers, young children, and
other at-risk individuals out of the room and away
from hot surfaces.
• Any safety screen, guard, or barrier removed for ser-
vicing an appliance must be replaced prior to operat-
ing the appliance.
4
Fireplace Safety

Glass windows
• The glass front assemblies must be in place and
sealed before the unit can be placed into safe
operation.
• The glass front assemblies must only be replaced as
complete units, as supplied by the fireplace manufac-
turer. No substitute material may be used.
• Do not use abrasive cleaners on the glass front as-
semblies. Do not attempt to clean the glass when it
is hot.
Venting
• This unit must be used with a vent system as de-
scribed in this manual. No other vent system or com-
ponents may be used.
• Never obstruct the flow of combustion and ventilation
air. Keep the front of the appliance clear of all obsta-
cles and materials for servicing and proper operation.
• This gas fireplace and vent assembly must be vented
directly to the outside and must never be attached to
a chimney serving a separate solid fuel burning ap-
pliance. Each gas appliance must use a separate vent
system. Common vent systems are prohibited.
Intended use
• This appliance is designed and approved as a supple-
mental heater and provides the potential for most
energy conservation when used while attended. The
use of an alternate primary heat source is advisable.
• This unit is not for use with solid fuel.
• Do not use this heater as a temporary source of heat
during construction.
Installation and Servicing
• Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning might be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control com-
partments, burners, and circulating air passageways
of the appliance be kept clean.
• Do not use this appliance is any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
the control system and any gas control that has been
under water.
WARNING
Do not operate this appliance with the
glass front removed, cracked, or broken.
Do not strike or slam the glass front.
Replacement of the glass front should
be performed by a licensed or qualified
service person.
Ceiling outlet
Front outlet
Side outlets
WARNING
HeatShift
Duct Kit:
Do not cover
or place items
in front of or
above outlet(s)!
5
Fireplace Safety

6
X
Specifications
Approval & Codes
This appliance is certified to ANSI Z21.88/CSA 2.33
American National Standard / CSA Standard for Vented
Gas Fireplace Heaters for use in Canada and USA, and
to CGA 2.17-91 High Altitude Standard in Canada. This
appliance is for direct vent installations.
This appliance complies with CSA P.4.1-15 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in
the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 or the Natural Gas
and Propane Installation Code CAN/CGA-B149.1. Only
qualified licensed or trained personnel should install
this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70
or the Canadian Electrical Code, CSA C22.1.
Ratings
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500
feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas
utility to confirm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Supply Gas
Heater engine 2500KN uses natural gas.
Heater engine 2500KP uses propane gas.
The supply pressure must be
between the limits shown in
the Ratings section.
The supply connection is 3/8”
NPT male and located on the
left hand side of the firebox.
A shut-offvalve (not supplied)
is required on the supply
line to isolate the unit during service. See Gas Supply
Installation section for details.
Conversion Kits
The 2500K are supplied as natural gas or propane
gas and are field convertible between fuels. See
instructions packaged with the conversion kits for
further information.
Electrical
The 2500K are designed to run on battery power and
do not require an electrical power source to operate
as a heater. However, they require electrical power to
operate the lights and optional GV60WIFI WiFi Kit.
HeatShift™System (Required)
The 2500K requires the installation of the HeatShift
System, a convection system that redistributes the
warm air flow away from the fireplace opening to a
more desirable location using natural convection,
without use of a fan.
The warm air flow may be relocated to a position higher
up the wall, out the sidewalls, or even to another room.
The result is much cooler wall temperatures above the
fireplace opening for locating televisions, artwork, etc.
Refer to “Appendix D—HeatShift™System™” on page
72 for more information.
Outdoor Conversion Kit
The 2500K models are supplied standard for indoor
applications and may be adapted for installation in
specific “outdoor” applications protected from weather
as defined in the GV60CKO outdoor conversion kit
manual.
Model 2500KN 2500KP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 34,000 34,000
Input Minimum (Btu/h) 20,000 22,000
Manifold Pressure (in w.c.) 3.2” 9.0”
Minimum Supply Pressure (in
w.c.) 5” 11”
Maximum Supply Pressure (in
w.c.) 10” 14”
Main Burner Injector Marking DMS#32 DMS#50
Pilot Injector Marking BL22N BL14LP
Min. Rate By-Pass Screw 220 160
WARNING
Electrical connection IS NOT ALLOWED
when adapting appliance for outdoor use.

7
Kits & Accessories
Required Kits Information accurate at the time of printing and subject to change
without notice.
Information accurate at the time of printing and subject to change
without notice.
Optional Accessories
Fuel Beds (choose one)
1500DGM Murano Decorative Glass Kit
1505BLKV2 Birch Logs Kit
1505DWKV2 Driftwood Kit
1505SWKV2 Split Wood Kit
1514RSS Rock and Shale Kit
Liners Panels (choose one)
2515FBL Fluted Black Liners
2525RGL Reflective Glass Liners (requires 1725RGL-3 Glass Retainer Kit, included)
2560PBL Plain Black Liners
Trims (choose one) Barrier Screen
2530CIK Clean Install Kit - Fine Mesh 4008320
2575LFB Linear 1” Finishing Trim Black 4008495
HeatShift (choose one)
See page 87 for details on all HeatShift accessories OPTIONAL Accessories EXTRA Liners
LDK1 48” Plenum LDK2 - 48” Finishing frame LDK6
Pair - 5” x 10’
aluminum flex liners
(Note: one pair is
included with the
appliance)
LDK3 Pair - 14” Plenums, including grilles
LDK4 38” Plenum LDK5 - 38” Finishing frame
LDK7 Pair - Duct termination plates (wall valance discharge only)
LDK9 30” Plenum LDK10 - 30” Finishing frame
Gas Conversion Kits
2500KNGK Conversion to natural gas
2500KPGK Conversion to propane gas
Other Accessories
GV60CKO Outdoor Fireplace Conversion Kit
1506DRK Additional pebbles for Driftwood Kit
1270RBK Remote Blower Kit (for use with LDK1 and LDK4 only)
GV60WIFI WiFi Kit
Hearth Gate Hearth gates such as Cardinal’s VersaGate are available at retail stores carrying safety products for
children.
WARNING
HeatShift System MUST be installed on
this appliance!
WARNING
Electrical connection IS NOT ALLOWED
when adapting appliance for outdoor use.

8
42”
[
1
0
67 mm
]
4
5-
3
/4”
[
11
6
1 mm
]
1
3
-11/1
6”
[3
4
8
mm
]
1
8”
[
45
8
mm
]
1
9
-7/
8”
[
5
0
5 mm
]
36
-15/1
6
”
[938
mm
]
1
9
-1/
2”
[
4
96
mm
]
8
-11/1
6”
[22
1 mm
]
3
9-13/16”
[
1
0
11 mm
]
Z
ero Clearance
VWDQGR
΍
V
3-3/4
”
[9
5 mm
]
4”
[
1
0
3 mm
]
Gas line
entr
y
p
oin
t
Electrical
entr
y
p
oin
t
Center o
f
ven
t
36
-1/4”
[92
1 mm
]
C
ente
r
o
f
rear
ven
t
H
eade
r
13
-11/1
6”
[3
4
8
mm
]
1
6-7/8
”
[
4
29
mm
]
6-5/8” dia
.
Ventin
g
Z
ero Clearance
VWD
Q
GR΍V
M
in. 47-3/8”
[
1203 mm
]
t
o underside o
f
heade
r
8
-
3
/4”
[222
mm
]
HeatShi
f
t outlet
s
2
-1/16
”
[
53 mm
]
3”
[
77 mm
]
Zero Clearance
WR6WDQGR΍V
DW%DFNDQG6LGHV
Zero Clearance
DWEDFNFRUQHUV
Zer
ro Clearance
DWE
EDFNFRUQHUV
Face of
Framing
78” (1981 mm)
55-1/8” (1400 mm)
17-7/8”
(455 mm)
Dimensions
Location
Front ViewLeft Side View Right Side View
Corner Dimensions
Top View
Dimensions & Location

9
1. YOU NEED TO KNOW FROM THE HOMEOWNER:
• Height of appliance and shelf, if used;
• Thickness and type of wall finish around
appliance;
• Trim used;
• Optional accessories used (if any);
• Venting configuration.
2. Unpack the appliance, removing all items packed
inside and around it. Recycle the packaging.
3. Check that you have everything, using the Pack Con-
tent sheet. Also, check that you have:
• Fuel bed (packed separately);
• Liner panels (packed separately);
• Remote Battery and Wall Switch Kit;
• HeatShift System components;
• Gas conversion kit (if necessary);
• Venting accessories;
• Non-combustible board;
• Electrical accessories (if used).
4. Carefully read the Installer’s Checklist included with
the fireplace for the installation sequence.
Caution
Only qualified, license, or trained personnel
should install this appliance.
WARNING
HeatShift System MUST be installed on
this appliance!
Installation Planning Before Installing

10
Mantel—See Mantel &
Hearth Clearances
Hearth: not required.
If used,a combustible hearth must be
minimum 4” below fireplace opening.
S
Sur
rou
d
d
nd
l
l
Pla
te
i
i
wit
h
h
h
Barrier Screen (re
q
uired)
1
” Tr
i
m 2575LFB acce
p
ts
a
dditional
fi
nish over non-
combustible board and
behind trim.
2530CIK installs
b
ef
o
re
n
on-combustible board.
Non-combustible board
f
inishes u
p
to
p
erimeter o
f
tri
tri
tri
t
m.
m.
m.
.
2500K heater
Combustible Floor
Framing—See Framing
Requirements
1/2 inch thick non-combustible
board –NOT supplied
Remote
Handset
Wall Holder
l
l
Wal
l
l
lF
ll
l
l
l F
ii
ii
ini
h
h
sh
l
F
l F
i
h
ni
n
Fi
l
s
s
h
h
h
s
F
F
n
F
h
h
n
l
F
l F
Combustible wall fin
finish
fin
nishes
nish
s
h
s
es
h
e
i
e
e
s
h
ni
sh
up to 1” thick are allowed
owed
owed
ed
ed
d
ed
around perimeter of
f
f
the
fi
re
p
lace o
p
enin
g
.
Combustible mantel are ok
p
rovided the
y
con
f
orm to
pg
g
g
g
pg
g
g
cha
cha
cha
rt
rt
rt
on
on
on
pag
pag
pag
g
pg
pg
g
g
pg
g
pg
g
pg
g
e1
e1
e 1
1.
1.
1.
Combustible Framing Allowed Beneath Fireplace. When the appliance
is installed directly on carpeting, tile or other combustible material
other than wood flooring, the appliance shall be installed on a metal
or wood panel extending the full width and recessed depth of the
appliance.
Remote Battery
and Wall Switch
Kit c/w 35-foot wire
length (supplied)
Electrical junction
box to connect
power when
using lighting or
optional WiFi
Required HeatShift plenum
(LDK4 pictured)
Required HeatShift piping
Note: This appliance may be installed in
outdoor, weather protected environments as
defined in the GV60CKO Outdoor Conversion
Kit instruction manual.
Installation Planning Overview
WARNING
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel,
and so on because of the heat produced
by the fireplace. Avoid placing candles,
paintings, photos, and other items
sensitive to heat around the fireplace.

11
Combustible Mantel—Left Side View
Installation Planning Mantel Clearances
WARNING
HeatShift System MUST be
installed on this appliance!
Bottom of Unit
6”
10”
19-1/2”
Opening in Trim
8-3/4”
Note: Combustible
wall nish up to
1” thick may be
installed over
non-combustible
board (not included
with appliance) and
butt up to the trim
all around the opening.
DO NOT COVER
THE TRIM!
Non-combustible board
as specied in this manual
1” trim
1” trim
4” minimum to
combustible
hearth
Combustible
materials must
be kept behind
this line
28-3/16”
34-3/16”
38-3/16”
45°
Mantel
Height
(from
Bottom
of Unit)
Vent
HeatShift pipes (4)

12
39-11/16”
Fireplace Opening
Wall
Min. 4” to
wall or
combustible
mantel leg
Face of
Finished
Wall
FIREPLACE
Combustible Sidewall / Mantel Leg—Top View
Installation Planning Mantel Clearances

13
20”
min
47-3/8” min
45-3/4” min
1/2” thick non-combustible
board required above,
on each side and below
engine opening (NOT supplied)
NOTE: Height of cavity may be
D΍HFWHGE\YHQWFRQȴJXUDWLRQ
- see page
Between underside
of header and bottom
RIȴUHER[
No hearth required.
If using a hearth,
see page
NOTE: This unit requires a
solid platform to support it.
Combustible framing allowed
EHQHDWKȴUHSODFH:KHQWKH
appliance is installed directly
on carpeting, tile or other
combustible material other
WKDQZRRGȵRRULQJWKH
appliance shall be installed
on a metal or wood panel
H[WHQGLQJWKHIXOOZLGWK
and recessed depth of the
appliance
page 11.
page 20.
Framing Dimensions
Installation Planning Framing
WARNING
HeatShift System MUST be installed
on this appliance!

14
Framing with Partial Shelf—Top Outlet
Installation Planning Framing
47-3/8” (1203 mm) to underside of combustible cavity
Min. 1”
(25.4 mm)
clearance to
combustibles
around vertical
vent pipe and
HeatShift pipes
10-3/4”
(274 mm)
Max. from
back surface
RIZDOOȴQLVK
to front
surface
of appliance
case w/no
YHQWR΍VHW
15-1/16”
(383 mm)
19-1/2”
(496 mm)
8-3/4”
(221 mm)
19-1/8”
(489 mm)
Fireplace
Opening
PARTIAL SHELF l
HeatShift collars
connected to a
pair of 5” 90 deg
elbows.
1/2” thick
non-combustible
board

15
Installation Planning Wall Finish
Material Specications
Non-Combustible
Material which will not ignite and burn. Such materials
are those consisting entirely of steel, iron, brick, tile,
concrete, slate, glass or plasters, or any combination
thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750°C shall be considered
non-combustible materials.
Combustible
Materials made of or surfaced with wood, compressed
paper, plant fibers, plastics, or other material that
can ignite and burn, whether flame proofed or not,
or plastered or unplastered shall be considered
combustible materials.
D
Min. 48” (1219 mm)
E
Min. 47-3/8” (1203 mm)
DD
Flush with bottom of unit;
add extra cement board
if overlapping framing.
Minimum coverage area of non-combustible board.
Any wall nish applied to shaded area must be non-combustible.
LT1 replace outline
(including stand-os)
Non-combustible
board required
thickness:
1/2 inch (13 mm)
A
B
C
Joints preferred at corners
to prevent cracking
Minimum Non-Combustible Board Dimensions
N o n - C o m b u s t i b l e B o a r d
The LT1 Linear fireplace requires a 1/2” (13mm) thick
non-combustible board to be used as a wall surface
immediately surrounding the unit’s opening—see
diagram for minimum coverage.
Extending the non-combustible board well beyond
the minimum shown will help avoid cracking due to
differential expansion of materials.
Pre-drill non-combustible board with oversized holes
and do not over-tighten screws to avoid cracking due to
heat expansion.
Standard gypsum wall board may be used beyond the
perimeter of the non-combustible board.
inches [mm] With 2575 trim With 2530CIK trim
AMin. 20-1/2 [521] Min. 20-1/8 [511]
B19-1/2 [496] 21 [533]
CMin. 8-11/16 [221] Min. 8 [203]
DMin. 4 [102] Min. 3-3/8 [84]
EMin. 39-7/8 [1011] Min. 41-1/8 [1045]

16
Installation Planning Wall Finish
Non-Combustible Finishing Over
Non-Combustible Board
Additional material such as tile, etc.,
may be applied over top of the non-
combustible board or you may choose to
leave it finished clean with no tile, etc.
Be aware that a trim is always required.
Finish should not cover the trims.
2575 Trim
Only the 2575 style trim will accept tile,
etc. tucked behind it (up to 5/8” thick for
the 2575).
2530 Trim
2530 trim must be installed BEFORE non-
combustible board. Non-combustible
board and finishes are applied to the
perimeter of the trim frame. Non-
combustible board and finish CANNOT
be tucked under this trim.
Do Not Drill/Screw Areas
The face of the replace must not be
drilled or screwed into as shown below.
These areas house electrical and/or
control elements of the replace that
could be damaged and present risk of
injury.
Clean Installation Kit (2530) does not adjust
forward. Non-combustible board finishes
up to perimeter of the trim. Must be
installed before finish.
Narrow trim (2575) can adjust up to 5/8”
forward of surface of non-combustible
board
17-1/2” [445 mm] Wide
8-3/4” [222 mm] High
3” [76 mm] Wide
5-1/2” [140 mm]High
WARNING
Do not drill or screw in these areas!

17
Cracks
Provide joints
either here or
here
Avoiding Cracking Wall Finishes
If a clean finish with no tile, etc. is desired, joints in the
non-combustible board and the transition to gypsum
board will require special attention if future cracking
is to be controlled. Be aware that temperatures on the
non-combustible wall surface above the appliance can
exceed 200°F (93°C).
Below are some tips on how to best avoid any cracking:
• Allow materials to dry thoroughly before finishing the
wall. Non-combustible board has the ability to absorb
up to 30 percent of its weight in water and may shrink
as much as 1/8” over a 48” length when drying from
a saturated condition. Running the fireplace for an
extended period before final finishing will help drive
out moisture.
• Always pre-drill screw holes through non-combustible
board and use screws with self-milling head.
• Always use mesh tape over joints.
• Always stagger joints in wall board.
Installation Planning Wall Finish
• Behind joints, double up studs or use studs “on the
flat” to add extra support to the joint. Adhesive on
the backside of wall board behind any joints can help
control differential movement.
• Use multiple, thinner coats of joint compound and al-
low to dry thoroughly between coats.
• Ensure framing materials are dry.
• After finishing the wall, introduce heat gradually to
slowly dry any excess moisture rather than drying too
fast.
• Avoid notching non-combustible board or tiles around
corners of window opening and instead provide a joint
that intersects the corner.
• Avoid using lage one-piece slab of material with a
cut-out in the middle as a surround for the fireplace.
Expansion above the opening will cause cracking at
inside corners. Provide a joint that intersects the inside
corner to avoid cracking.

18
Venting Overview
10” (254 mm)
10” (254 mm)
Align the vent center
to the center of the
frame
Top or Rear Outlet
This unit is supplied with a vent outlet which can
be installed either as top facing or rear racing. See
Appliance Preparation section for more information.
Vent Material
This unit is approved for installation using
4 x 6-5/8 inches co-axial direct vent pipe and
accessories as listed in the Approved Venting Components
section on pages 61–62 of this manual. Follow the
installation instructions supplied with the individual
venting accessories.
This unit may also be converted to co-linear (3” x 4”)
venting for use in solid-fuel burning fireplaces and
chimneys using adapters and accessories—see list
in the Approved Venting Components section on pages
61–62 of this manual.
Vent Sealing
Seal all outer coaxial pipe and elbow joints, including
sectioned elbow joints, using high quality, high tem-
perature 2 inch wide self-adhesive aluminum foil tape
(Nashua-322-2 brand or similar). Wrap the tape com-
pletely around all joints and press firmly to seal.
A high temperature black silicone sealant may be used
in the outer joints as a substitute to foil tape.
Ensure all the pipe joints have a minimum of 1¼ inch
overlap.
Wall Thickness
The appliance vent is suitable for penetrating a
combustible wall assembly up to 8 inches in thickness.
A non-combustible wall can be of any thickness up to
the maximum horizontal run of vent pipe allowed for
the particular installation.
Framing Vent in Combustible Walls & Ceilings
When penetrating through combustible walls and
ceilings, frame a minimum of 10 in x 10 in opening and
ensure that the insulation is kept clear of the vent pipe
using either a wall thimble or an attic insulation shield.
Follow the installation instructions supplied with the
individual venting components.
Important Installer Notice – Weather
Sealing & Vapor Barriers
It is the installer’s responsibility to ensure that vent
installations through exterior walls are caulked and
weatherproofed in such a manner as to:
• Prevent rain water from entering the wall from the
weather side by adequately caulking the outer vent
plate to the exterior wall surface.
• Prevent moisture inside the home from penetrat-
ing into the wall structure by ensuring the inside
wall plate is adequately sealed to the inside vapor
barrier.
• Prevent rain water and moisture from entering the
walls by sealing the joints between the outer vent
tube and the inner and outer wall plates.
We recommend the use of a high quality
polyurethane sealant.
Tape all
OUTER joints
(including all
elbow joints)
All horizontal pipe runs must be graded 1/4 inch per
foot upwards in the direction of the exhaust flow. The
final pipe length, when terminating through the wall
may be graded downwards slightly to prevent water
migration.

19
HORIZONTAL
TERMINATION
2-PIECE
WALL THIMBLE
PIPE
LENGTH
HORIZONTAL
TERMINATION
2-PIECE
WALL THIMBLE
PIPE
LENGTH
PIPE
LENGTH
PIPE
LENGTH
PIPE
LENGTH
90˚ ELBOW
CEILING
FIRESTOP
ATTIC
FIRESTOP
ATTIC
INSULATION
SHIELD
FLASHING
STORM
COLLAR
VERTICAL
TERMINATION
Typical Co-axial Venting Components
Rear Outlet
Top Outlet Top Outlet
Venting Co-Axial
Note: Provide support for vertical
pipe runs, particularly at osets.
Do not rely on the appliance for
support of long vertical pipe runs.
Horizontal pipe runs should be
supported every 4 feet using
strapping.

20
4 x 90º ELBOWS MAXIMUM
(or equivalent)
V2
V1
V3
H2
H1
Max. 18” pipe if
no vertical rise
is used
45° elbow take-o
supplied with unit
1” min.
all around
vertical pipe
3” min.
above top of
horizontal pipe
1” min. around
bottom & sides
of horizontal pipe
VERTICAL RISE (ft)
HORIZONTAL RUN (ft)
02468101214161820
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
0
Position #4
Positions #2/3
Position #1
Example 1
NO INSTALLATION
NO INSTALLATION
Allowable Co-Axial
Vent Congurations with
restrictor positions
How to Read the Venting Chart
The chart below applies to co-axial roof or wall
termination.
1. The total length of the vent pipe cannot exceed
40 feet.
2. The minimum vertical height with roof termination
is 6 feet.
3. Any combination of rise and run can be used as
long as they are within the allowable limits shown
on the chart below.
4. A maximum of 4 x 90 degrees elbows—or
equivalent (2 x 45 degrees = 90 degrees)—can
be used. Excludes the 45 degrees take-offelbow
shipped with the appliance.
5. Each 90 degrees elbow installed on the horizontal
plane is equivalent to a 3 feet horizontal pipe;
therefore, 3 feet must be subtracted from allowable
horizontal run. (45 degrees elbow is equivalent to
18 inches horizontal pipe.)
6. All horizontal pipe runs must be graded 1/4 inch per
foot upwards in the direction of the exhaust flow.
The final pipe length, when terminating through the
wall may be graded downwards slightly to prevent
water migration.
7. A restrictor adjustment is required for most
installations having a vertical rise—see next
section.
Note: The restrictor is shipped installed at the
exhaust exit of the firebox.
Venting Chart
Example 1
V Value = V1 (2’) + V2 (4’) + V3 (2’)= 8’
H Value = H1 (0’) + H2 (3’) = 3’
Restrictor position # 1 required
Venting Co-Axial
