Valor 722AP Installation instructions

Model 722AN - for Natural Gas
Model 722AP - for Propane Gas
GAS FIREPLACE
With ADORN or VISAGE Fire Front
This appliance is a domestic room heating appliance. It must not be used for any other purpose
such as drying clothes etc.
600A727/09
INSTALLATION
AND OWNER’S
MANUAL
P
lease read this manual befor
e
installing and operating.
-Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance
•Do not touch any electrical switch
•Do not use any phone in your building.
•Immediately call your gas supplier from a neighbor’s
phone. Follow the gas suppliers instructions.
•If you cannot reach your gas supplier, call the fire
department.
- Installation and service must be performed by a qualified
installer, service agency or the gas supplier
W
ARNING: If the
information in these
instructions is not followed
exactly, a fire or explosion
may result causing property
damage, personal injury or
death.
fire-parts.com

2
CONTENTS
Page
Safety information 3
Options 4
General data 4
Location in the room 4
Supply gas 6
Pack contents 7
Pre-installation appliance preparation 8
Gas supply line installation 9
Convection box installation 10
Gas supply connection 11

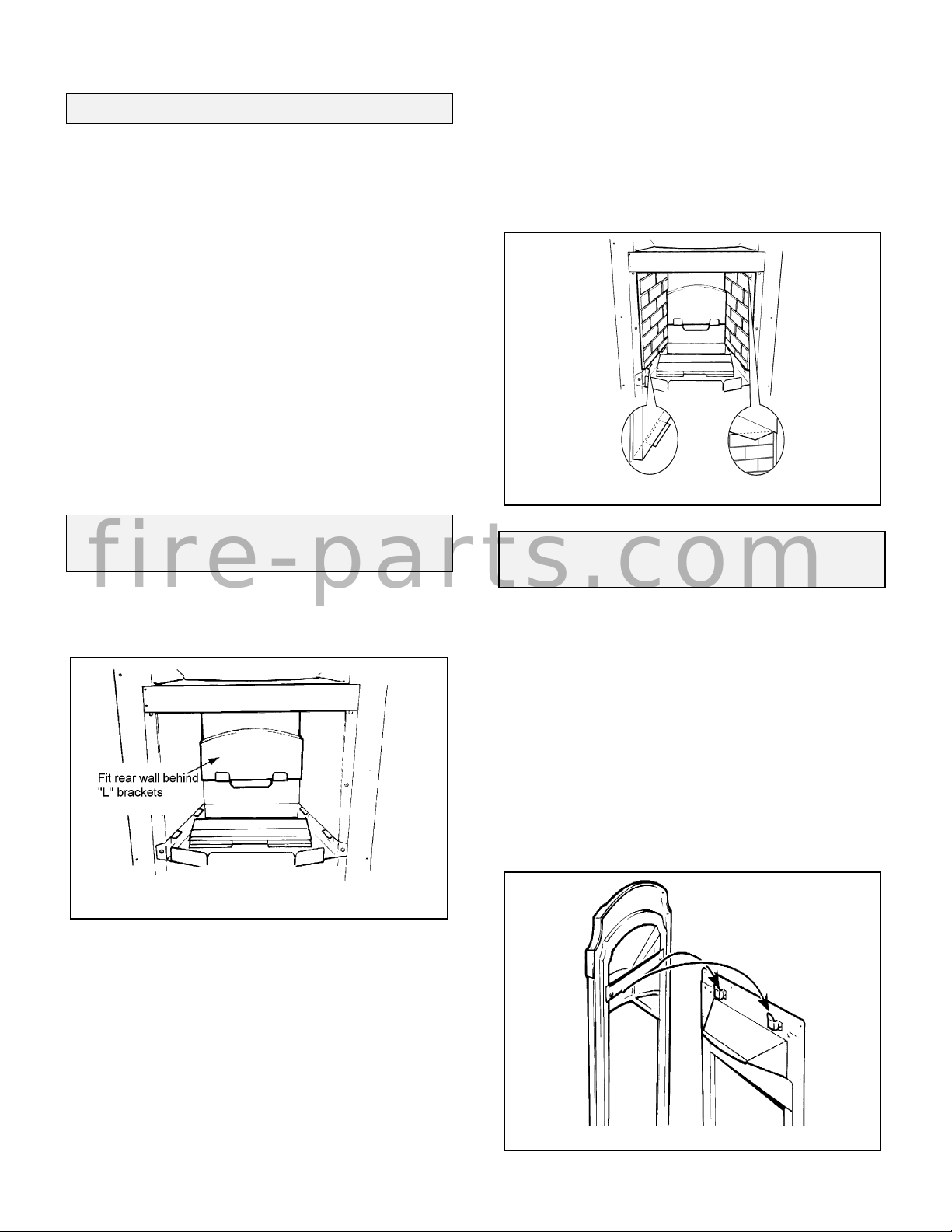

Ceramic walls installation 11

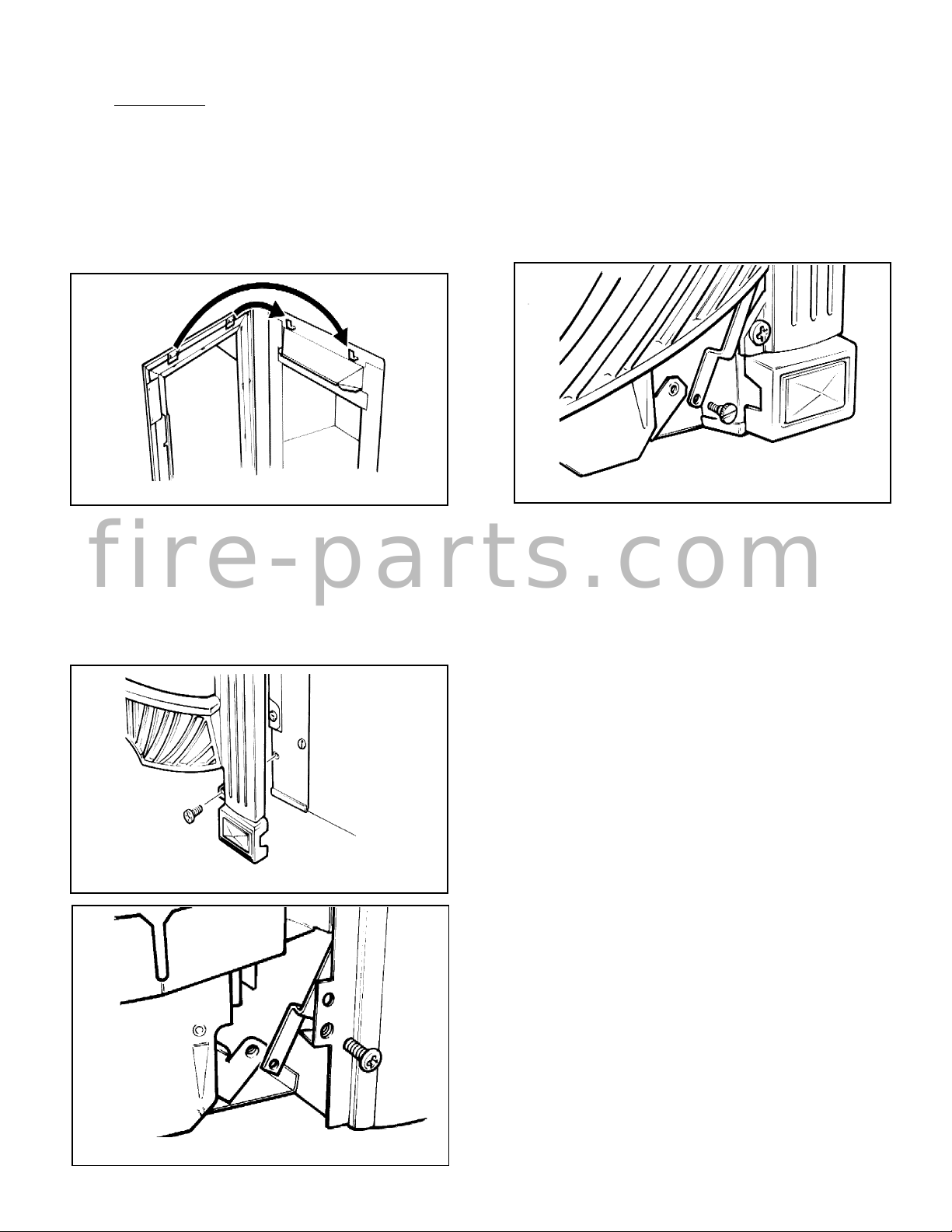

Front & control linkage installation 11

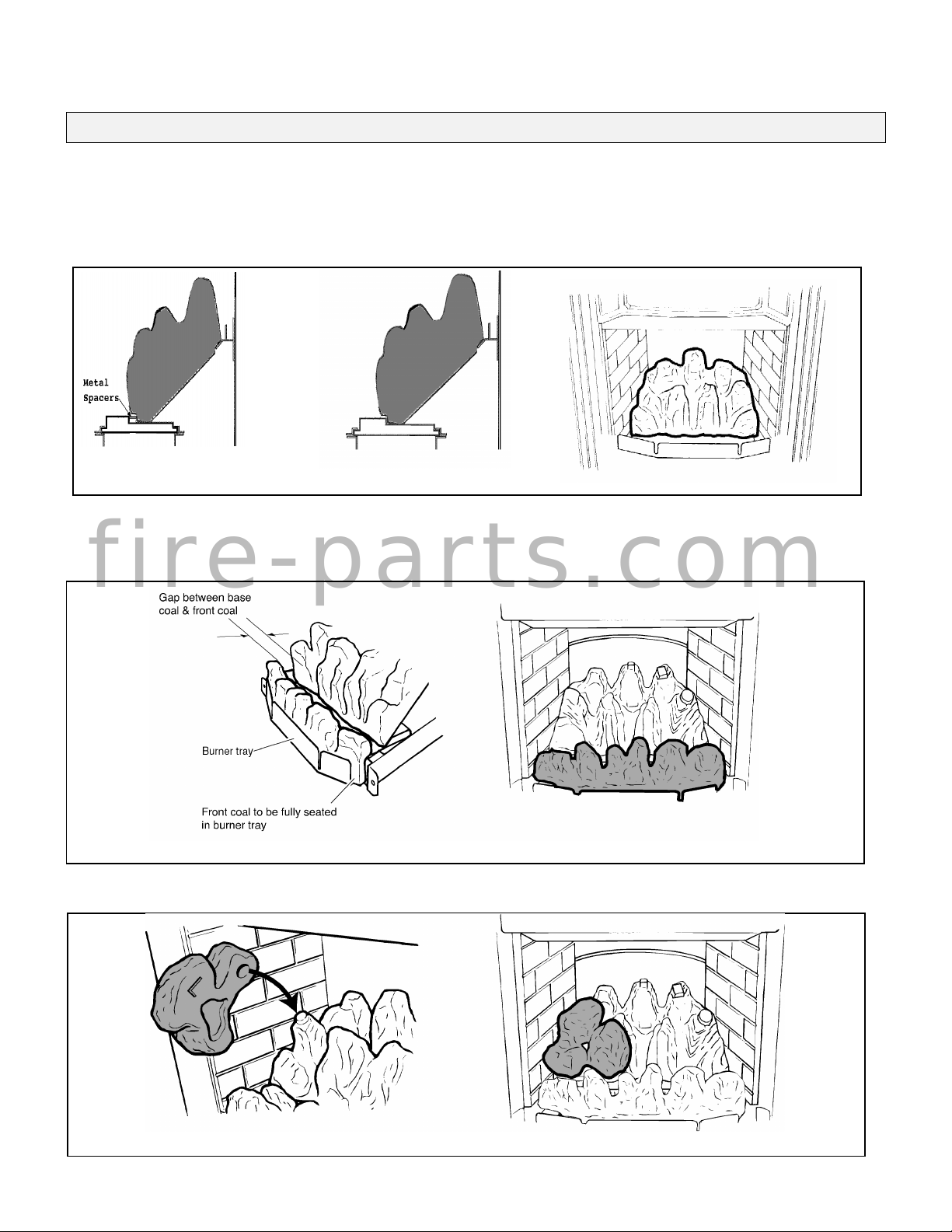

Ceramic coals installation 13
Operation checks 15

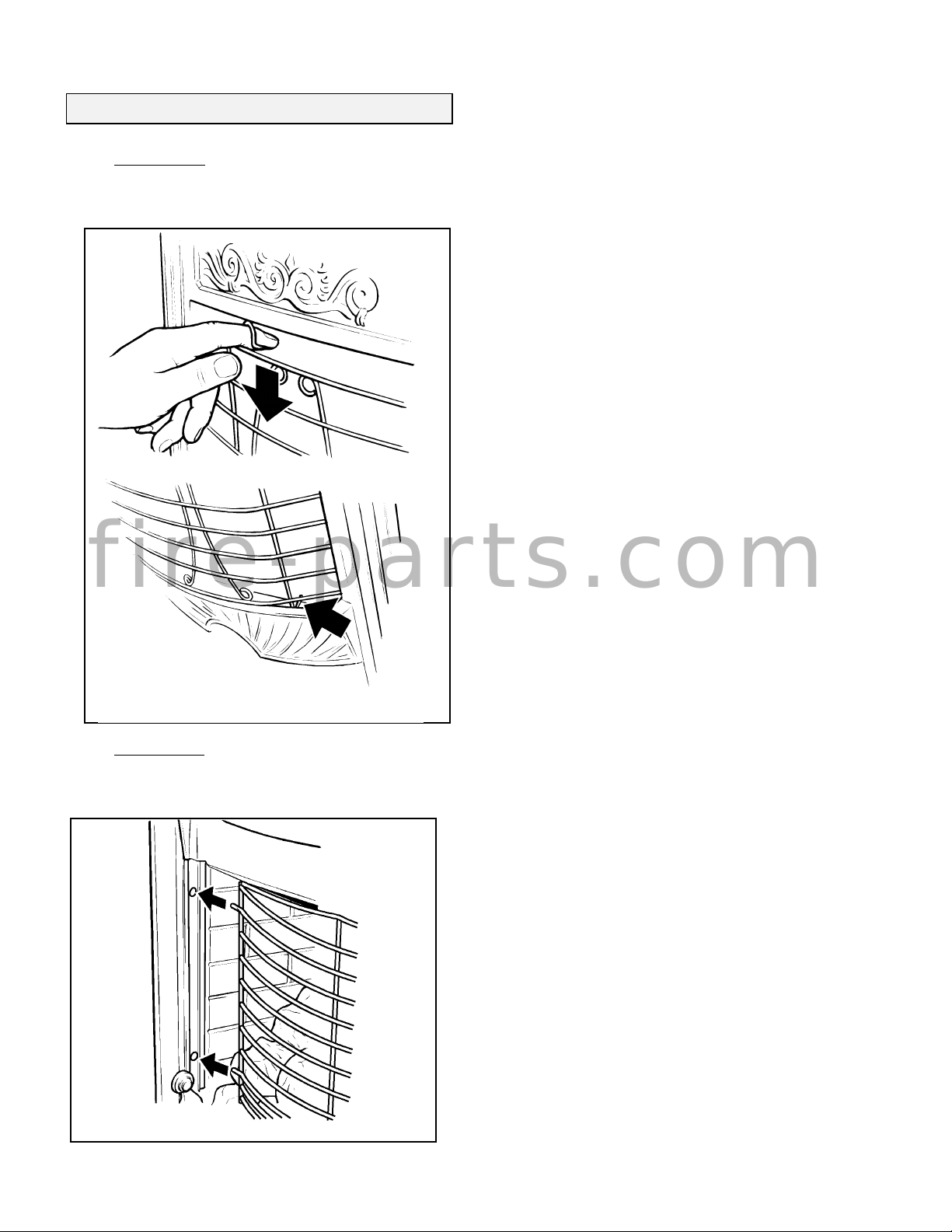

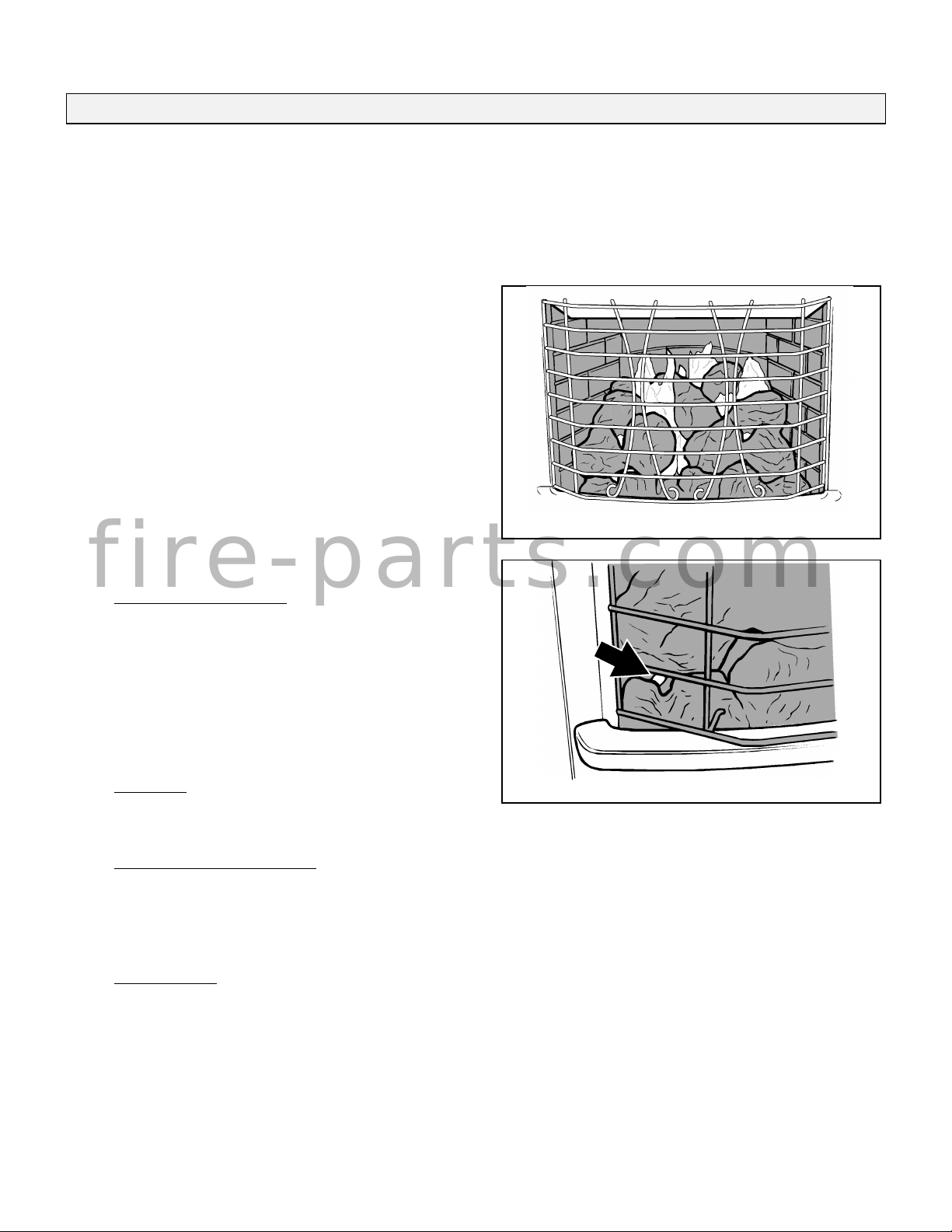

Safety guard fitting 15
Operating instructions 17
•Flame sensing device 17
•Cleaning 17
•Visual checks 17
•Lighting instructions 18
Servicing 19
fire-parts.com

3
1. SAFETY INFORMATION
Due to high temperatures, the appliance should be
located out of traffic and away from furniture and
draperies.
Children and adults should be alerted to the
hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
Young children should be carefully supervised
when they are in the same room as the appliance.
Clothing or other flammable material should not
be placed on or near the appliance.
The safety guard must be put back in place prior to
operating the appliance if it has been removed for
servicing or cleaning.
This appliance should be installed and repaired by
a qualified service person.
The appliance should be inspected before use and
at least annually by a professional service person.
More frequent cleaning may be required due to
excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments,
burners and circulating air passageways of the
appliance are kept clean.
Keep curtains, clothing, furniture and other
flammable materials a safe distance from all parts
of the appliance
Keep the appliance area well clear and free from
combustible materials, gasoline and other
flammable vapors and liquids.
If any changes are made to the room construction
in the vicinity of the appliance after installation
(e.g. additional mantle etc.) make sure that the
changes conform to the installation requirements
in this manual.
Never attempt to burn paper or any other material
in the appliance.
This appliance must be properly connected to a
venting system. The venting system should be
checked periodically. Recent trends in home
improvement and new tighter construction
techniques have contributed to problems with
venting. If you suspect that your appliance is not
venting properly, do not operate. Seek expert
advice.
Do not use this appliance if any part has been
under water. Immediately call a qualified service
technician to inspect the appliance and to replace
any part of the control system and any gas control
which has been under water.
Only trim kits supplied by the manufacturer shall
be used in the installation of this appliance.
Draft openings must not be covered or blocked
NOTE
When operating your new stove for the first time, some vapors may be released which may cause a slight odor and could possibly set off any
smoke detection alarms in the immediate vicinity. These vapors are quite normal on new appliances. They are totally harmless and will
disappear after a few hours use.
This fire is supplied with ceramic “coals” to simulate a real coal fire. These items are safe to handle and are designed for easy refitting if
removed.
After some use, the ceramic walls and coals may change color. This is quite normal.
fire-parts.com

4
2. OPTIONS
#775ZCK Zero Clearance Kit
Allows the appliance to be installed into an enclosure
constructed of combustible material. The kit must be used
in this form of enclosure.Enclosure framing dimensions
suitable for the kit are shown in section 4 of this manual.
Full installation instructions are included with the kit.
#721CRB Clearance Reduction Baffle
Can be used with “Adorn” front. Allows the clearance to
mantle to be reduced to 43” (see figure 2).
# Cast Suite Options
A cast suite can be made up of the following options,
selecting one from each category.
Category (a):
MANT01 – Mahogany Mantle Surround.
MANT02 – Oak Mantle Surround.
Category (b):
HEAR01 – Black Granite Hearth.
Category (c):
CAST02 – Art Nouveau Cast Back.
Category (d):
TILE01 – Butterfly Tile.
TILE02 – Cascade Tile.
TILE03 – Esprit Tile.
TILE04 – Minerva Tile.
TILE05 – Primrose Tile.
TILE06 – Tulip Tile.
3. GENERAL DATA
This appliance is certified by International Approval
Services for use in Canada and the USA.
This appliance must be installed in accordance with local
codes, if any; if none, follow the current ANSI Z223.1 or
CAN/CGA B149, installation code. Only qualified
licensed or trained personnel should install the appliance.
This appliance is only for use with the type of gas indicated
on the rating plate.
3.1 Venting
This appliance is for connection to an approved 5” metal
vent..
3.2 Ratings
722AN 722AP
Altitude (Ft) 0-4500
Input Max.
(Btu/h)
23,000
Input Min
(Btu/h)
13,780
Manifold
pressure (in w.c.)
3.0 9.15
Max Supply
pressure (in w.c)
10.5 13
Min. Supply
pressure (in. w.c.)
511
4. LOCATION IN THE ROOM
This appliance must not be connected to a chimney flue
serving a separate solid-fuel burning appliance.
Note: The State of Massachusetts requires that any flue damper
must be removed or permanently welded in the open position.
The appliance can be installed in the following
constructions:
4.1 Solid fuel (Non-combustible) fireplaces
As supplied, this appliance can be installed as an inset
in an existing solid fuel type fireplace with a chimney
and 5" dia liner (see fig.1).
The fireplace must be built in accordance with the
national, state provincial or territorial building code
recognised by the authority having jurisdiction, or in
the absence of such a code, in accordance with the
National Building Code of Canada or the National
Fire Protection Association code in the USA The
size of the fireplace recess must be sufficient to
accommodate the appliance as shown in fig.1.
If previously used with for burning solid-fuel, the
chimney must be swept before installation of the
appliance. Both chimney and fireplace must be
checked for soundness before installation of the
appliance. The liner must be a type approved by the
enforcing authority and installed in accordance with
the manufacturer's instructions.
The appliance must installed on a floor which is
sufficiently flat and level to ensure stability. Some
fireplace constructions have a well in the floor at the
back that may need to be filled in.
Though not mandatory, we recommend that carpet,
soft vinyl or other combustible floor coverings are
kept at least 16” from the front of the appliance since
these types of materials may be affected by the radiant
heat output from this appliance.
Clearances
The minimum clearances from any combustible
constructions at the front of the appliance are shown
in fig.2. These front clearances apply for all installations
(except where used with approved Valor Cast Suite).
4.2 Enclosures constructed with combustible materials

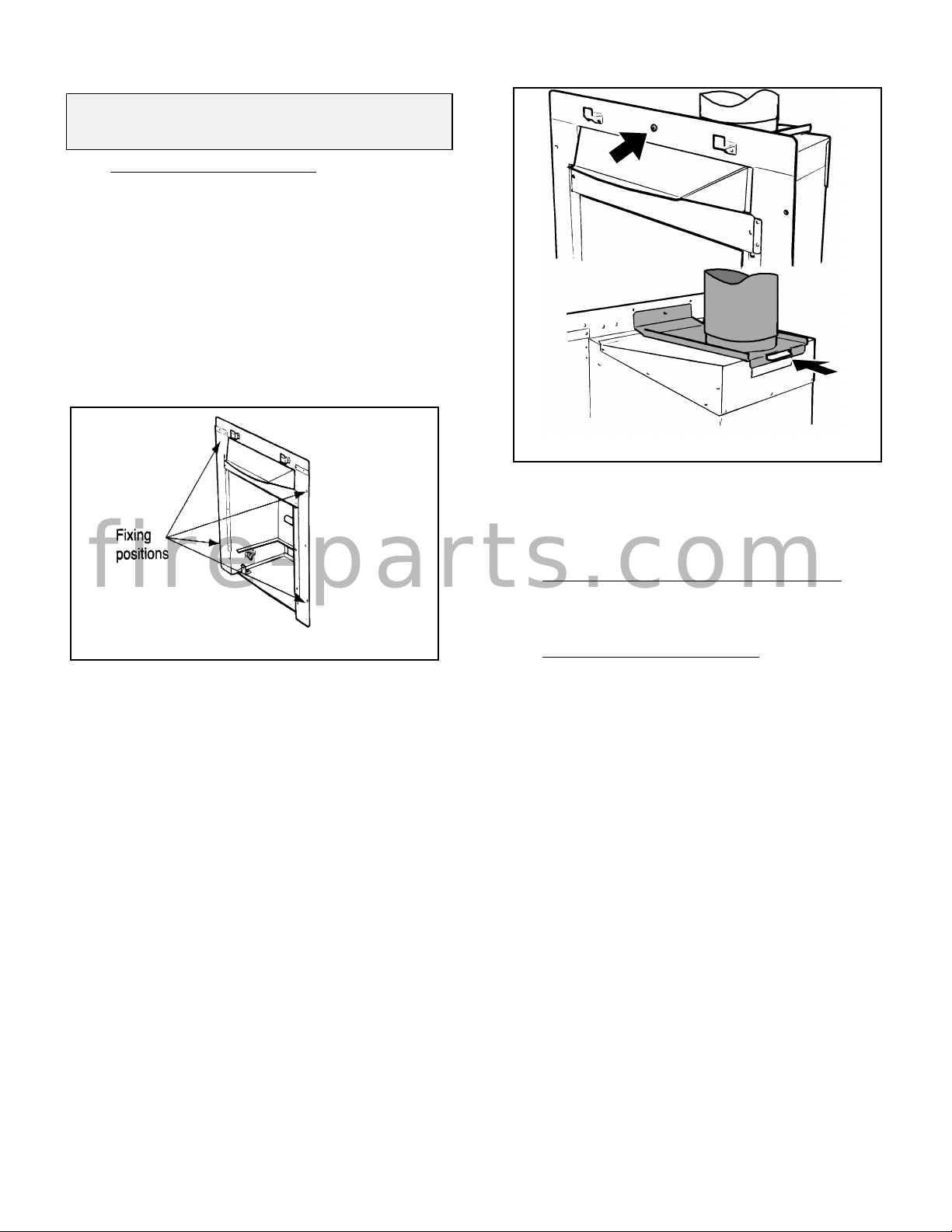

#775ZCK Zero clearance kit must be installed where
the appliance is intended to be in an enclosure made
with wood studding or other combustible materials.
The enclosure framing requirements are shown in
figure 3.
fire-parts.com

5
Fig. 1
MANTLE DEPTH “A” 1” 2” 3” 4” 5” 6”
CLEARANC
E FROM
BASE
“VISAGE”
FRONT
40” 43”
OF HEATER
“B”“ADORN”
FRONT
53” with appliance as supplied
see page 4 for Valor Cast Suite application
43” with kit #721CRB
Fig. 2 Clearances to combustible materials in front of opening - All installations
fire-parts.com

6
Framing Dimensions Zero Clearance box location
Zero Clearance box and front plate installation
Fig. 3 ~775ZCK Zero clearance kit enclosure
5 SUPPLY GAS
Model 722AN is for use only with natural gas. Model
722AP is for use only with propane gas. The supply
pressure must be between the limits shown in section 3 of
this manual.
The supply connection is 3/8”NPT. The supply pipe
connection is from the back of the appliance.
fire-parts.com

7
6. PACK CONTENTS
The complete appliance is contained in two packs.
Pack 1 - Fire Unit contains:
1 Burner & Convection box Unit
1 Ceramic back wall
1 Pair of ceramic side walls
1Frontcoal
1 Main coal bed
1 Pack of loose coals containing 3 multiple coal
blocks and 2 single coals
4 Wall plugs
4 Woodscrews
4 Thread cutting screws
1 Knurled shouldered screw for control linkage fixing
1 PP3 Battery
Pack 2 - “Adorn” Fire Front contains:
1 Fire front surround with sliding control
1 Ashpan cover casting
1 Safety guard
1 Canopy shield
3 Thread cutting screws for canopy shield
2 Machine screws for front surround fixing
or
Pack 2 - “Visage” Fire Front contains:
1 Fire front surround with sliding control
1 Fire front casting
1 Ashpan cover casting
1 Safety guard
1 Canopy shield
3 Thread cutting screws for canopy shield
2 Surround securing brackets
4 Machine screws for front surround & securing
brackets
Take care when removing the contents from the packaging to prevent damage. Check that all the contents are in the packs and
are undamaged. Take special care in handling the ceramic walls and the coals. Take care not to bend or distort the slide control
linkage when handling the fire front surround.

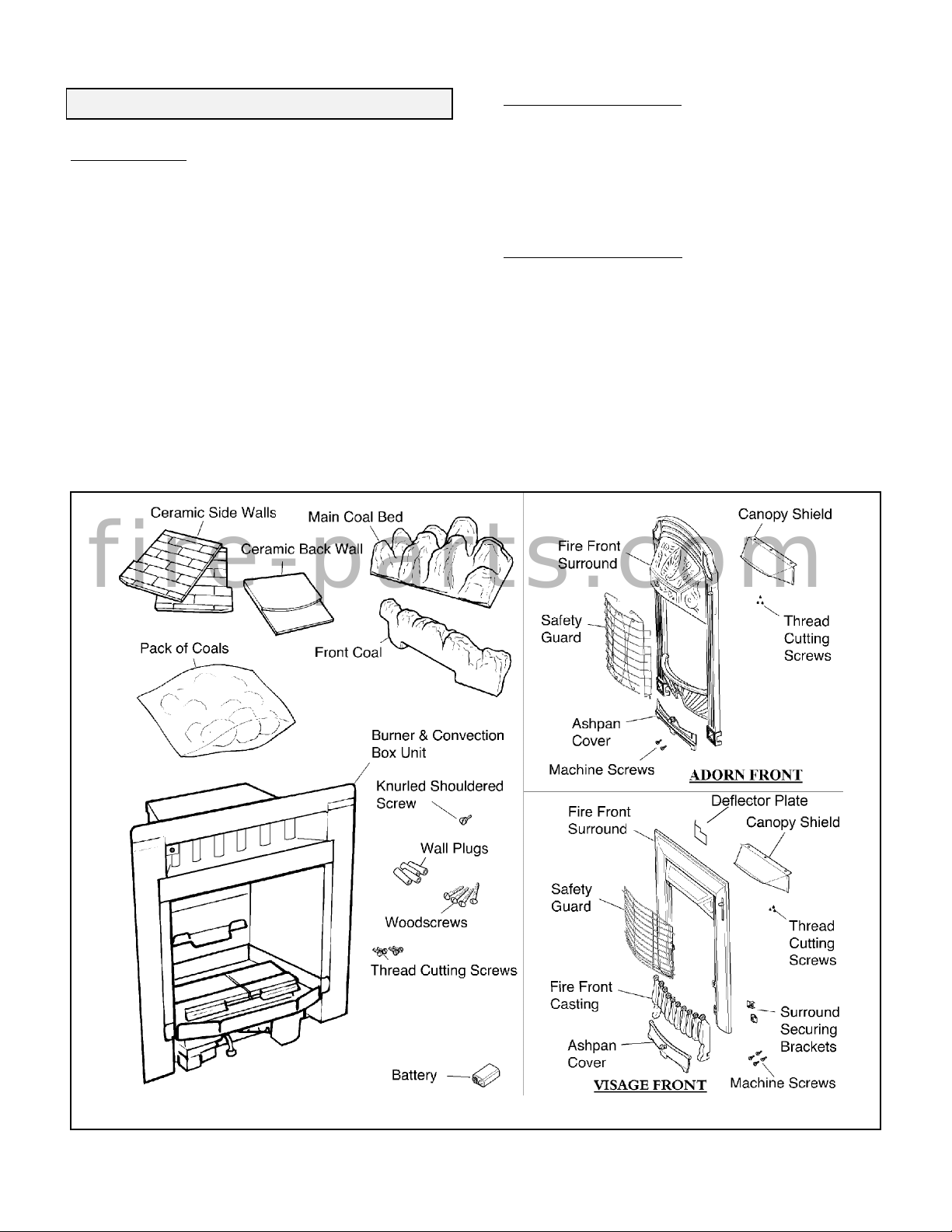

Fig. 4 Pack contents
fire-parts.com

8
7. APPLIANCE
PRE-INSTALLATION
PREPARATION
7.1 Check ignition spark
Before attempting to install, it is worth checking that
the electronic ignition system performs satisfactorily.
7.1.1 Fit the battery to the ignition block located below
the burner tray at the left side (see figure 5).
7.1.2 Rotate the control pivot bracket clockwise as far as it
will go (see figure 6). This should close the ignition
circuit.
Sparks should be seen tracking from the electrode
pin to the thermocouple tip (see figure 7).
If there are no sparks make the following checks.
a) Check condition of battery and that it is
correctly fitted.
b) Check spark gap between electrode wire and
thermocouple tip (see figure 7).
c) If a & b are satisfactory, check the ignition
circuit and components.
7.2 Detach the gas valve and connector unit from the
regulator inlet pipe (see figure 8). Keep the unit
safe.
7.3 Detach the burner unit from the convection box by
removing three screws (see figure 9). Lift out the
burner unit.
Fig. 5 Battery location
Fig. 6 Control pivot rotation
Fig.7. Pilot ignition unit
Fig. 9 Burner attachment points
Fig. 8 Gas valve unit disconnection
fire-parts.com

9
7.4 Remove the vent connection unit.
Detach the vent connection unit from the top of the
appliance case by removing the screw at front. Slide
the vent connection unit back and lift clear (see
fig.10).
7.5 Fit the canopy shield.
Attach the canopy shield to the convection air outlet
aperture using the three thread cutting screws
supplied in the fire front pack (see figure 11).
Take care not to damage the vent safety shut-
off switch mounted at the top left of the
convection air outlet
7.6 “Visage” front only
Fit the two surround securing brackets to the
convection box side flanges with the screws
supplied. Be aware of the different orientation of
the brackets at left and right sides - See figure 11A.
8. GAS SUPPLY LINE
INSTALLATION
8.1 Gas connection to the appliance is 3/8”NPT.
8.2 Use only new black iron or steel pipes or copper
tubing if acceptable - check local codes. Note that in
USA copper tubing must be internally tinned for protection
against sulfur compounds.
8.3 Unions in gas lines should be of ground joint type.
8.4 The gas supply line must be sized and installed to
provide a supply of gas sufficient to meet the
maximum demand of the appliance without undue
loss of pressure.
8.5 Sealants used must be resistant to the action of all
gas constituents including LP gas. Sealants should be
applied lightly to male threads to ensure excess
sealant does not enter gas lines.
8.6 The supply line should include a manual shut-off
valve to allow the appliance to be disconnected for
servicing.
8.7 A plugged 1/8”NPT tapping must be installed in the
line. The tapping must be accessible for test gauge
connection and be immediately upstream of the gas
supply connection to the appliance.
8.8 Before the appliance is fitted into the fireplace
opening the supply line must be extended so that it
will project through the opening at back of the
convection box.
The supply pipe route to the gas valve / connector is
shown in figure 12.
Fig12 Supply pipe routing
Fig10 Vent connector removal
Fig. 11 Canopy shield attachment
Left side Right side
Fig. 11A “Visage” surround securing brackets
fire-parts.com

10
9. CONVECTION BOX
INSTALLATION
9.1 If installing to masonry fireplace
9.1.1 Place the convection box centrally in the fireplace
opening in the position in which it is to be
permanently installed. Insert the convection box into
the fireplace opening feeding the supply pipe
through aperture at back of the convection box.
9.1.2 Mark the fireplace surround through the four fixing
holes in the side flanges of the convection box (see
figure 13).
9.1.3 Remove the convection box. Drill four holes in the
fireplace surround at the marked positions using a
no.12 masonry drill.
9.1.4 Insert a wall plug into each hole.
9.2 Secure the collar on the vent connector unit to the
5" diameter chimney liner (Fig. 14).
9.3 Slide the convection box into the fireplace making
sure that the vent connection unit is above the
convection box. Leave the convection box front a
few inches clear of the fireplace front to allow you to
fix the vent connector to the top of the convection
box.
9.4 Pull the vent connector towards the front of the
fireplace and locate the rear slot in the plate on the
lip at top rear of the convection box. Fix the front of
the vent connector plate to the convection box top
using the screw previously removed (Fig.14). Make
sure that the connector plate does not interfere with
the seal at back of the convection box top flange.
9.5 Push the convection box fully home against the
front face of the fireplace. Make sure that no sags or
dips occur in the liner.
9.6 If installing to zero clearance kit #775ZCK; Fit a
thread cutting screw through the four holes in the
convection box side flanges and tighten to seal the
box to the kit (see figure 13).
9.7 If installing to masonry fireplace; Fit a woodscrew
through each hole in the convection box flanges and
tighten to seal the box to the fireplace surround (see
figure 13).
Fig. 13 Convection box fixing
Fig. 14 Vent connector & liner attachment
fire-parts.com

11
10. GAS SUPPLY CONNECTION
10.1 Fit the gas valve and connector unit to the supply
line.
10.2 Refit the burner unit to the convection box with
three screws.
10.3 Connect the elbow on the gas valve unit to the
burner unit.
10.4 Pressure testing supply line.
Make sure that the gas valve is shut off (control
knob bar at 90° to supply pipe line of flow).
The appliance and its appliance main gas valve must
be disconnected from the gas supply piping system
during any pressure testing of that system at test
pressures in excess of 1/2 psig (3.5kPa). The
appliance must be isolated from the gas supply
piping system by closing the equipment shut off
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than
1/2 psig (3.5kPa).
11. CERAMIC WALLS
INSTALLATION
11.1 Fit the ceramic rear wall inside the “L” brackets
on the back face of the burner compartment. Push
the ceramic wall flat against the back face of the
burner compartment (See figure 15).
11.2 The ceramic side walls can be installed in two
alternative arrangements:
a) With the brick pattern visible - Fit the wall
stamped “A” at the right side and the wall
stamped “B” at the left side.
b) With the plain wall surfaces visible - Fit the
wall stamped “B” at the right side and the wall
stamped “A” at the left side.
Find out which arrangement the customer requires.
Explain that the customer can not alter the wall
arrangement after the front casting is installed.
Fit the ceramic side walls against the side faces of
the burner compartment. The bottom edges of
the walls should rest on the ledges at the sides of
the fire box and the top of the walls should locate
in the space between the black cross member and
the side walls of the burner compartment (See
figure 16).
12. FRONT & CONTROL
LINKAGE INSTALLATION
12.1 Remove the tape securing the control linking bar to
the casting/surround. Slide the control knob
upwards as far as it will go. This will make sure that
the bottom of the linking bar is higher than the
bottom of the casting/surround when fitting it to
the fireplace.
12.2 “Adorn front”; Carefully lift the casting. Do not lift
it by the control knob. Place it against the fireplace
front surface so that the retaining strip at the back of
the casting is above the two upper retaining
brackets at the top of the convection box. Lower the
casting making sure that the rear retaining strip
locates fully over the retaining brackets on the
convection box (See figure 17).
Fig. 15 Ceramic rear wall installation
Fig. 16 Ceramic side walls installation
Fig. 17 “Adorn” front casting top location
fire-parts.com

12
“Visage” front; Carefully lift the front surround. Do
not lift it by the control knob. Place it against the
fireplace front surface so that the two retaining
plates at the back of the surround are directly above
the two upper retaining brackets at the top of the
convection box. Lower the surround unit making
sure that the rear retaining plates locate fully over
the retaining brackets on the convection box (See
figure 18).
12.3 Swing the bottom control linking bar towards the
center of the fire to clear the front casting/surround.
Slide the front casting/surround sideways, if
necessary, to align the bottom fixing holes with
those in the convection box. Fix the bottom of the
casting/surround to the convection box with two
screws (See figure 19 or 20).
12.4 Align the hole near the bottom of the control
linking bar with that in the control pivot bracket.
Join them with the knurled shouldered screw (See
figure 21). Make sure that the gas control valve is
closed. Slide the control knob fully from top to
bottom and back to make sure that the slide and
pivot mechanisms move smoothly. Note that some
resistance should be felt when the slide knob
reaches the “burner fully on” position.
Fig. 21 Control bar & pivot bracket (Shown with “Adorn”
f
Fig. 18 “Visage” front casting top location
Fig. 19 “Adorn” Front casting bottom fixing
Fig. 20 “Visage” Front surround bottom fixing
fire-parts.com

13
13. CERAMIC COALS INSTALLATION
13.1 Place the ceramic base coal in the burner
compartment. The bottom rear face of the coal
should rest on the angled ledge at the back of the
burner compartment. For natural gas appliances,
the bottom front edge of the coal base should locate
behind the metal spacers at back of the recess in the
burner plaques and touch the spacers (See figure 22).
For LPG (propane) appliances the bottom front edge
of the coal base should locate directly behind the recess
in the burner plaques and touch the ceramic plaques
(See figure 22).
13.2 Place the ceramic front coal in position in front of
the base coal. Make sure that the side legs of the
front coal are fully seated into the burner tray.
There will be a gap between the rear of the front
coal and the front of the base coal (See figure 23).
13.3 Find the front left multiple coal block. It is marked
“L” underneath. Place it at the left side. The hole in
the block must locate in the round peg at left of the
base coal (See figure 24).
NATURAL GAS APPLIANCE
Fig. 22 Ceramic base installation LPG APPLIANCE
Fig. 23 Ceramic front coal installation
Fig. 24 Front left multiple coal installation
fire-parts.com

14
13.4 Find the front right multiple coal block. It is
marked “R” underneath. Place it at the right side.
The hole in the block must locate in the round peg
at right of the base coal (See figure 25).
13.5 Find the rear multiple coal. It has a square hole
underneath. Place it centrally behind the front
multiple coals. The square hole must locate in the
square peg in the base coal (See figure 26).
13.6 Place a single coal at each of the back corners of the
fire box (See figure 27).
Fig. 25 Front right multiple coal installation
Fig. 26 Rear multiple coal installation
Fig. 27 Single coals installation
fire-parts.com

15
14. OPERATION CHECKS
14.1 Check reference pressure
The appliance is pre-set to give the correct heat
input at the manifold pressure shown in section 3 of
this manual. No adjustment is necessary. Check the
burner pressure by fitting a pressure gauge at the
test point. The test point is on the pipe situated
below the bottom right corner of the burner unit
(See figure 28). Check the pressure with the
appliance burning and the slide control set at high
heat.
All piping and connections must be tested for leaks
after installation or servicing. All leaks must be
corrected immediately.
a. Open the manual shut-off valve.
b. Test for leaks by applying a liquid detergent
or soap solution to all joints. Bubbles forming
indicate a gas leak.
NEVER USE AN OPEN FLAME TO
CHECK FOR LEAKS.
d. Correct any leak detected immediately.
14.2 “Visage” front; Fit the fire front casting to the front
surround. Locate the two screw heads at the rear
top corners of the casting through the keyhole slots
at the inner sides of the surround. If the screw
heads do not project enough or project too far, the
screws can be adjusted. Lower the casting so that it
rests on the floor (see figure 29).
14.3 Check valve control and slide control for proper
operation as described in the lighting instructions
section further on in this manual.
14.4 Check venting efficiency
A check for correct venting of combustion products
must be made before the installed appliance is left
with the customer.
You will need a mirror for this check. The mirror
must be cold and dry for the check so keep in a cool
place it away from the room containing the
appliance while the fire is warming up.
14.4.1 Open the gas valve. Place the ashpan cover in
position below the fire front casting.
14.4.2 Light the appliance and set the slide control to high
heat.
14.4.3 Leave the appliance on for five minutes.
14.4.4 Make sure that the mirror is cold and dry. Place the
mirror face downwards touching the bottom front
of the black cross member and angled slightly
upwards so that the mirror face can be seen.
The mirror face should remain clear for at least 5
seconds.
If condensation appears over the mirror face
within 5 seconds the venting is incorrect. Don’t
allow the appliance to be used until the
problem is cured.
!
Fig. 28 Pressure test tapping point
(Shown with “Adorn” front)
Fig. 29 Venting check with mirror
(Shown with “Adorn” front)
fire-parts.com

16
15. SAFETY GUARD FITTING
15.1 “Adorn” front; Locate the guard bottom wires over
the brass ashlip. Hold the top springs down. Swing
the guard back. Release the springs so that they
locate behind the canopy (See figure 30).
15.2 “Visage” front;
Locate the two wires projecting from each side of
the guard into the holes in the inner faces of the
visage front (see figure 31)
Figure 31 Fitting “Visage” safety guard
Figure 30 Fitting “Adorn” safety guard
fire-parts.com

17
16. OPERATING INSTRUCTIONS
16.1 The flame sensing device.
For your safety, your fireplace is fitted with a
mechanism, which will automatically shut off the
gas supply to the fire if the pilot flame goes out. It
will also shut off the gas supply if the vent is
blocked or if there is not enough ventilation.
This mechanism incorporates a probe, which senses
that the heat from the pilot flame is correct. If this
probe is cool, the device will prevent any gas flow
unless the sliding control button is held at the
ignition position.
The fireplace is also fitted with a mechanism, which
will automatically shut off the fire if the vent is
blocked.
If this safety mechanism frequently shuts off the gas,
get expert advice.
16.2 Lighting
Full lighting instructions are on the next page.
Note that when first turned on the flames will
predominantly blue. The coals will take time to
warm up. Although some glow will be seen after
approximately ten minutes, the full visual effect will
only be apparent after a somewhat longer time.
Lighting with a long match
In the unlikely event of failure of the ignition spark,
the pilot can be lit by a long match. Insert the match
alongside the left side wall of the fire box and
operating the slide control as described in the
normal lighting instructions.
16.3 Cleaning
Turn the fire off and allow it to cool before
attempting any cleaning. Note that the fire will
retain heat for some time after it has been turned off.
Metal parts
Clean the metal parts with a slightly damp cloth and
then dry. Do not use abrasive cleaners, they could
scratch the surface.
Coals and ceramic firebox walls
Dust etc. Can be brushed from the coals after
removing the safety guard. We suggest that you
remove the coals in the reverse order to that shown
fitting instructions. Make sure that no particles are
brushed into the ceramic burner slots.
Ceramic burner
Remove any dust or other foreign matter from the
solid areas of the burner with a dry soft brush. Be
careful not to brush any particles into the open slots.
Remove any particles from the slots with a vacuum
cleaner fitted with a soft brush attachment. Do not
poke wire, etc. into the slots in the burner.
16.4 Checks
16.4.1 A periodic visual check of the pilot and burner
flames should be made. Compare the burner flames
to those illustrated in figure 32. The pilot flame
should be visible between the coals near the front
left corner as illustrated in figure 33.
Check after the fire has been on for at least 30
minutes.
16.4.2 Keep area in front of the ashpan cover clear to
prevent obstruction of air flow to appliance for
combustion.
16.4.3 The flow of combustion and ventilation air must
not be obstructed. The venting system should be
examined by a qualified agency regularly. We
suggest annually.
!
Fig.32 Main flames
Fig.33 Pilot flame
fire-parts.com

18
16.5 Lighting instructions
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these
instructions exactly.
B.BEFORE LIGHTING smell all round the appliance area for gas. Be sure to smell next to the floor because
some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electric switch; do not use any phone in your building.
•Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire department.
C.Use only your hand to turn the gas valve knob and move the control slide knob. Never use tools. If the
knobs will not move correctly by hand, don’t try to repair them, call a qualified service technician. Force
or attempted repair may result in a fire or explosion.
D.Do not use this appliance if any part has been under water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the control system and any gas control which has been
under water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above on this label.
2. Turn the gas valve control counterclockwise as far as it will go (shut).
3. Move the control slide knob up to “Off”.
4. Wait five (5) minutes to clear out any gas. then smell for gas, including near the
floor. If you smell gas, STOP! Follow “B” in the safety information above. If you
don’t smell gas, go to the next step.
5. Find the pilot. It is at the left side of the fire box near the front corner.
6. Turn the gas valve control clockwise as far as it will go (open).
7. Slide the control slide knob to the bottom (ignition) position marked and hold
down . The pilot should light.
If the pilot does not light at all during several attempts, try lighting with a long
match as described below.
8. Keep the slide knob held down for a further 10
seconds then release. The knob should pop up to the
low heat position and the burner should light at low
heat.
•If the pilot does not light or stay lit repeat steps 2
through 8.
9. Move the control slide knob to the desired setting
between low heat and high heat.
10.Replace the ashpan cover.
Match Lighting: Apply a long match to the pilot while the gas valve is open and
the control slide knob is held at the ignition position.
•If the pilot or burner will not light or stay lit after several tries of all the above steps, shut the gas valve
control and call your service technician or gas supplier.
TO TURN OFF GAS TO APPLIANCE
1. Move the control slide knob past the high heat position to “O” (Off).
2. Turn the gas valve control counterclockwise as far as it will go (shut). Do not force.
Control slide knob
Gas Valve control
Pilot
fire-parts.com

19
17. SERVICING
If you require any attention to your appliance, contact your supplier quoting the model number. It will be helpful if the
appliance serial number can also be quoted. This is on the chained rating plate visible when the ashpan cover is removed.
The repair parts are shown in the separate repair parts leaflet. Please always quote part number and description when
requesting spare parts.
fire-parts.com

20
Manufactured by
HEATING
BIRMINGHAM, ENGLAND
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication.
© Valor Ltd.
fire-parts.com
