Valor Retrofire F24BN Installation instructions
4001003-12
© 2010 Miles Industries Ltd. All rights reserved
Manufactured by
British Columbia, Canada
www.valorreplaces.com
WARNING
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
WARNING
!
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
WARNING
!
2
For purchasing a Valor Retrore. Your new radiant gas heater is a technical appliance
that must be installed by a qualied dealer. Each Retrore is fully tested during the
production process for your safety and comfort.
Your unit has been professionally installed by:
Dealer Name _______________________________________
Phone Number ______________________________________
.
The information contained in this installation manual is believed to be correct at the time of printing.
Miles Industries Ltd. reserves the right to change or modify any information or specications without
notice. Miles Industries Ltd. grants no warranty, implied or stated, for the installation or maintenance
of your heater, and assumes no responsibility for any consequential damage(s).

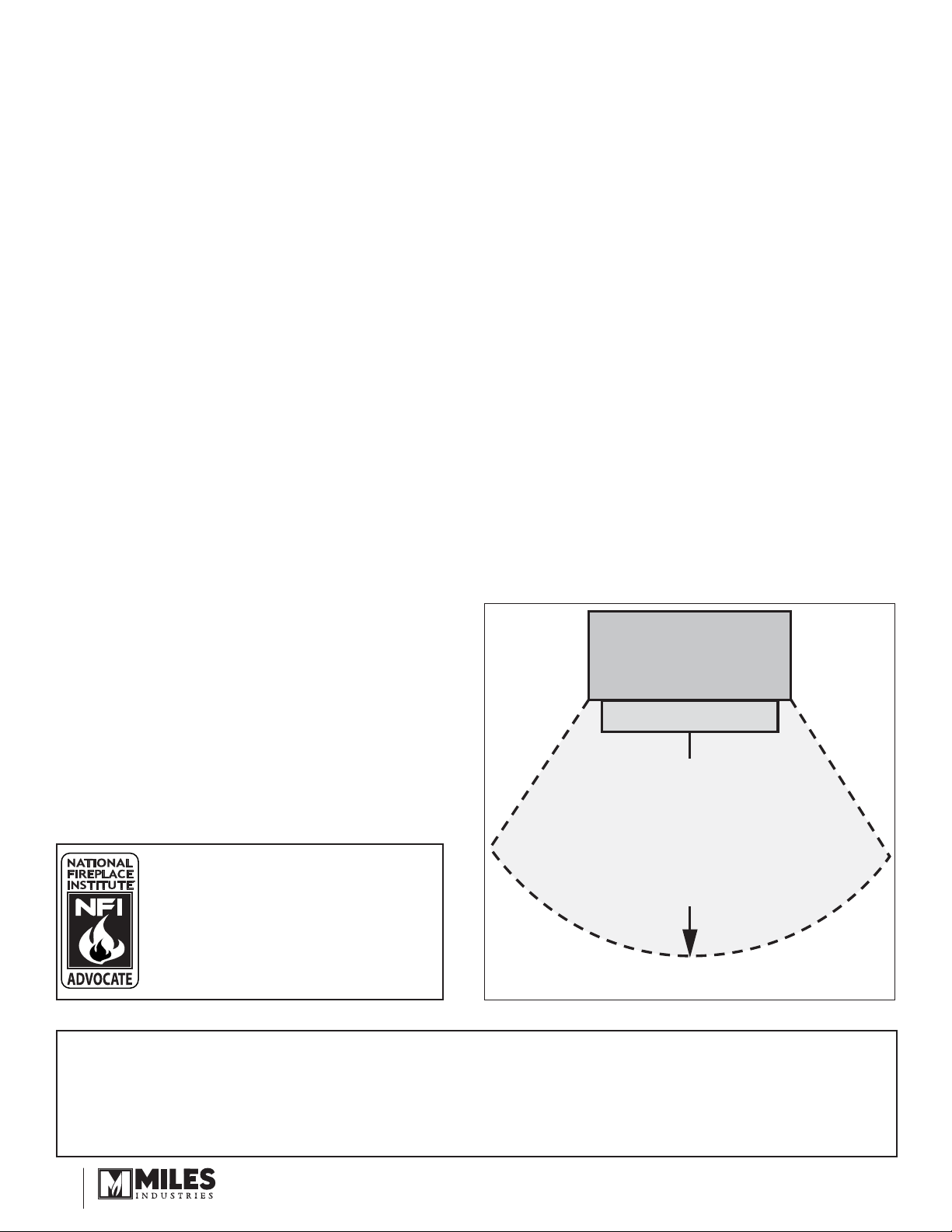

Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth
3
Table of Contents
= Updated content
◊
◊
◊
◊
4
Safety and Warning Information
Children and adults should be to the hazards
of high surface temperature and should to
avoid burns or clothing ignition.
should be
when they are in the same room as
the appliance. Toddlers, young children and others
may be susceptible to
. A physical barrier is recommended if there
are at risk individuals in the house. To restrict access
to a replace or stove,
to keep toddlers, young children and
other at risk individuals out of the room and away from
hot surfaces.
place furniture or any other combustible
household objects within 36” of the replace front.
and all instructions carefully
before starting the installation.
these installation instructions may result in possible re
hazard and will void the warranty.
Prior to the rst ring of the replace, the
Owner’s Information section of this manual.
this appliance if any part has been under
water. Immediately, a qualied service technician
to inspect the unit and to replace any part of the control
system and any gas control that has been under water.
Installation and repair should be by a
qualied service person. The appliance and venting
system should be before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive
lint from carpeting, bedding, etc. It is that
the unit’s control compartment, burner, and circulating
air passageways to provide for
adequate combustion and ventilation air.
Always the appliance clear and free from
combustible materials, gasoline, and other ammable
vapors and liquids.
the ow of combustion and
ventilation air. Keep the front of the appliance
of all obstacles and materials for servicing and proper
operation.
Due to the high temperature, the appliance should be
out of trafc areas and away from furniture
and draperies. Clothing or ammable material
on or near the appliance.
This unit MUST be used with a vent system as
described in this installation manual. vent
system or components .
This gas replace and vent assembly be vented
directly to the outside and be attached
to a chimney serving a separate solid fuel burning
appliance. Each gas appliance a separate
vent system. Common vent systems are .
the external vent cap on a regular basis to
make sure that no debris, plants, trees, shrubs are
interfering with the air ow.
The glass door assembly be in place and sealed
before the unit can be placed into safe operation.
this appliance with the glass door
removed, cracked, or broken. Replacement of the glass
door should be performed by a licensed or qualied
service person. strike or slam the glass door.
The glass door assembly be replaced
as a complete unit, as supplied by the replace
manufacturer. material may be used.
abrasive cleaners on the glass door
assembly. to clean the glass door
when it is hot.
the gas before servicing this appliance.
It is recommended that a qualied service technician
perform an appliance check-up at the beginning of each
heating season.
Any safety screen or guard removed for servicing
before operating this appliance.
not to put any decorating objects
sensitive to heat to close above or around the replace
as it gets very hot when operating.
use this heater as a temporary source of heat
during construction.
This appliance is a
. It must not be used for any other purposes
such as drying clothes, etc.
Fuels
used in gas, wood-burning or oil red appliances,
and the products of combustion of such fuels, contain
chemicals known to the State of California to cause
cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6.
5
Safety and Warning Information
Specications
This appliance as supplied is intended for installation
into
See separate instructions packaged with the Zero
Clearance Kit.
This appliance is certied to ANSI Z21.88-2009 /
CSA 2.33-2009 American National Standard / CSA
Standard for Vented Gas Fireplace Heaters for use in
Canada and the USA and to CGA 2.17-91 High Altitude
Standard in Canada.
is for use with Natural Gas only.
is for use with LPG only.
Conversion between fuels may only be done using the
approved conversion kits listed in the section Options.
This appliance complies with CSA P4.1-09 Testing
method for measuring annual replace efciencies.
The installation must conform to local codes or, in the
absence of local codes with the National Fuel Gas
Code, ANSI Z223.1 or the Canadian Installation Code
CAN/CGA-B149. Only qualied licensed or trained
personnel should install this appliance.
This appliance, when installed , must be electrically
grounded in accordance with local codes, or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70 or the Canadian Electrical Code,
CSA C22.1
Input ratings are shown in BTU per hour and are
certied without deration for elevations up to 4,500 feet
(1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370 m).
When operating your new replace for the rst time,
some vapors may be released due to the burning of
curing compounds used in the manufacture of the
appliance. They may cause a slight odor and could
cause the ames to be the full height of the rebox, or
even slightly higher, for the rst few hours of operation.
It is also possible that these vapors could set off any
smoke detection alarms in the immediate vicinity.
These vapors are quite normal on new appliances. We
recommend opening a window to vent the room. After
a few hours use, the vapors will have disappeared and
the ames will be at their normal height.
Natural Propane
0-4,500 feet*
20,500 19,000
12,500 12,500
3.7 10.5
5.0 11.0
10.5 14.0
82-580 92-200
51 30
6
for Solid-Fuel Burning Fireplace Insert Only
See separate framing Dimensions for Zero Clearance applications with the Zero Clearance Kit RA24ZC.
—For Solid-Fuel Burning
Fireplace Insert
(See separate framing dimensions for Zero Clearance applications in
the Zero Clearance Kit RA24ZC.)
The diagram shows minimum dimensions required to install the RF24.
Installations in cavities having a combination of the minimum
dimensions shown, although possible, may prove to be difcult.
Combustible Mantel and Hearth Clearances for insert applications
must conform to those required for the original solid-fuel burning
replace in which the RF24 insert is being installed.
NOTE: The glass front and hearth are very hot. Existing wire mesh
screens or free standing hearth mounted mesh screens may be used
in front of the RF24 insert to help minimize the chance of injury.
Dimensions and Clearances
17”
Stand-offs
3” dia.
Collar
4-1/2”
4-1/2”
1”
Front Face of
Cast Fret
24”
Control
Valve
Location
Top View
Front View Side View
Gas Inlet
3/8” NPT Female
1-3/4”
24”
Valve
Min. 12”
Max. 14-3/4”
Smoke
Channel
for
Checking
Draft
Fret
Mounting
Brackets
(removeable)
Optional Fan
Speed Control
Location
(at front)
18/3/4”
19”
20-1/2”
Min. 12”
Max. 14-3/4” 4-1/2”
Adjustable
Convection
Baffle
Optional
Cast Fret
Levelling
Bolt
1-1/4” 13-1/4”
14-1/2”
Vent Switch
Location
24-1/2”
8”
25-1/2”
27”
10” 11”
RA24TB Fret (Black) 1225VFB Ventana Fret (Black)
RA24CV Fret (Vintage Iron) RA24AV Fret (Vintage Iron)
Optional Frets
24-3/8”
7-5/8”
20”
Height of Smoke Curtain
14”
28-1/2”
18”
19-1/2”
Minimum Insert Cavity
7
Use a 3” diameter aluminium ex liner approved for gas venting when installing as an insert (existing chimneys).
Use a 4” diameter type “B” vent when installing with a RA24ZC Zero Clearance Kit. See separate instructions packaged
with the Zero Clearance Kit.
The minimum vent lengths are shown below. For other allowable congurations, refer to the venting tables in the National
Fuel Gas Code Z223.1 or the Natural Gas and Propane Installation Code B149.1.
Approved Termination Required
Max. 16” offset if
vent height is minimal
or elbow at collar of unit
3” Liner
3” min. Bend
Radius
Min. 10 feet
Minimum Vent Liner Radius

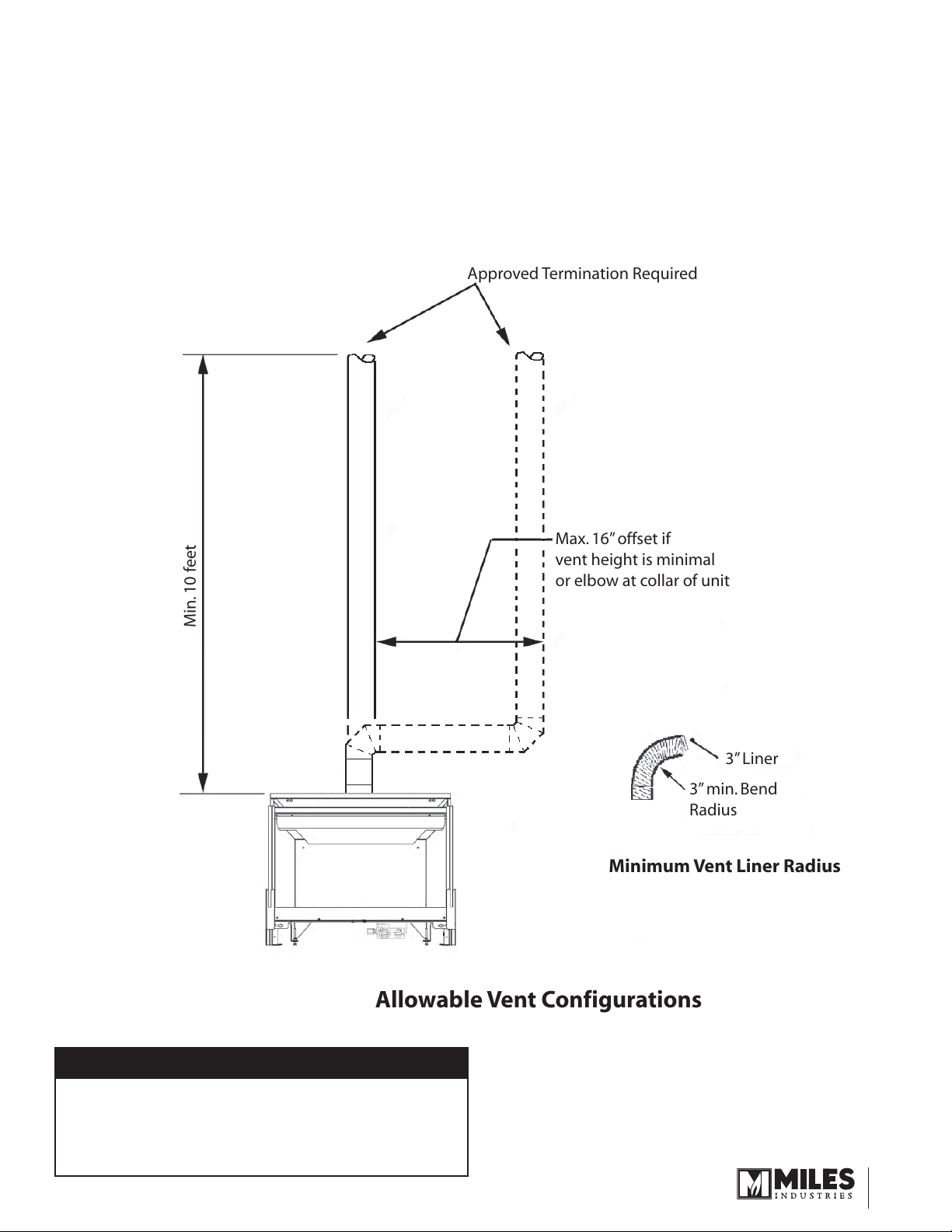

Allowable Vent Configurations
Venting
Failure to position the parts in accordance with
these diagrams or failure to use only parts
specically approved with this appliance may
result in property damage or personal injury.
8
Existing Fireplace Preparation
A few points must be considered before inserting the RF24 into an existing replace cavity. Generally, modications to
the existing replace that will compromise its integrity are NOT allowed. Components that are bolted or screwed on,
such as dampers or bafes, may be removed to accommodate the installation of the RF24 engine.
. Check
with local authorities if in doubt.
Have the chimney swept and the replace cavity including ash dumps and clean-outs cleaned before installing the
RF24 heater and vent liners. Any creosote or soot residue remaining in the replace cavity chimney or clean-out may
cause odors or stains once the RF24 insert is installed. Consult with chimney sweep for information on how best to
clean.
Factory-built, zero clearance replaces will require the damper to be removed in order to install the vent liners. These
dampers are usually bolted into place. Dampers in masonry replaces must be xed open and may remain in place.
Some replaces (particularly factory-built) have a raised curb at the front edge to retain ashes. Check the dimensions
carefully to ensure the RF24 engine will t behind any raised curb (some curbs may be removed separately from the
refractory base). The fret retainers allow for some vertical adjustment of the cast iron fret should the fret need to sit on
top of the curb, otherwise the fret will need to be eliminated or adequate room provided behind the curb.
Plan the routing of the gas line before proceeding. Utilize the existing hole for the gas line. If the factory-built replace
has no access hole, carefully drill an access hole of 1-1/2 inch (38 mm) or less through the lower sides or bottom of the
rebox. The access hole must be plugged with non-combustible insulation after the gas supply line has been installed.
See illustration in Dimensions section for detailed location of gas inlet. Also, take into consideration whether or not a
fan or shut-off valve will interfere when planning the routing of the gas line.
prior to installing the RF24 insert. Existing wire re screens
may remain in place or new ones may be added. The RF24 has been tested and approved to operate with wire re
screens in the or positions.
Combustible mantel clearances must conform to those required for the original solid-fuel replace into which the RF24
is being installed.
It may be desirable, for visual reasons, to paint the existing refractory liners in black to blend in with the RF24 insert
once installed.
(label supplied loose with RF24 heater)
Attach the label “This replace has been converted...” using screws or other mechanical
means and store any removed parts in the back of the existing replace for future use.
9
Supply Gas
• It is preferable to rough-in the gas line at this point before proceeding with the rebox installation.
• The gas supply inlet connection is a 3/8” NPT female connector. For detailed location of this connector, see
illustration in section Dimensions. If a circulating fan or isolating valve is to be installed, adjust the routing of the
gas line to suit.
• Use only new black iron or steel pipes or copper tubing if acceptable—check local codes. Note that in USA,
copper tubing must be internally tinned for protection against sulfur compounds.
• Unions in gas lines should be of ground joint type.
• The gas supply line must be sized and installed to provide a supply of gas sufcient to meet the maximum
demand of the appliance without undue loss of pressure.
• Sealant used must be resistant to the action of all gas constituents including LP gas. Sealant should be applied
lightly to male threads to ensure excess sealant does not enter gas lines.
• The supply line should include a manual shut-off valve and union to allow the appliance to be disconnected for
servicing.
• Pressure test the supply line for leaks.
• Failure to either disconnect or isolate the appliance during
pressure testing may result in regulator or valve damage.
Consult your dealer in this case.
• The minimum supply pressure is given in the section
Specications of this manual.
• All piping and connections must be tested for leaks after
installation or servicing. All leaks must be corrected
immediately.
• When testing for leaks:
• Make sure that the appliance is turned off.
• Open the manual shut-off valve.
• Test for leaks by applying a liquid detergent or soap
solution to all joints. Bubbles forming indicate a gas
leak.
• Correct any leak detected immediately.
• The pressure test tapping locations are shown in gure above. A built-in non-adjustable regulator controls the
burner manifold pressure. The correct pressure range is shown in the ratings table in section Specications of
this manual. The pressure check should be made with the burner alight and at its highest setting. See Lighting
Instructions section for full operating details.
Inlet Pipe
Manifold Pressure
Test Tap Supply Pressure
Test Tap
Loosen screw to check
(tighten afterwards)
Pressure Test Tappings
10
3” dia. Aluminum Liner
Rough-in the 3” diameter vent liner into existing chimney system being careful not to tear or damage the liner in the
process. Leave plenty of liner at the bottom end if the heater will be connected while on the hearth—see diagram
in Connect Liner to the Firebox section. When connecting the liner in this manner,
so the slack liner can be lifted after the insert is in place.
• Unpack appliance.
• Remove window.
• Remove log pack from rebox.
• Strip rebox down by removing:
• Burner module (4 screws);
• Vent plate;
• Support Legs (2 screws per leg)
1/4 Turn
Spring-Loaded
Fastening Studs (2)
Remove Window
The size of the existing replace cavity will affect the method of installation. Smaller replaces, particularly factory-
built zero clearance replaces, will require the RF24 rebox to be disassembled and then reassembled inside the
replace. Plan your installation accordingly.
Remove Vent Plate
Remove Window
Remove
Burner
Module
(4 screws)
Remove
Support Legs
(2 screws each)
Vent Liner Rough-In
Appliance Preparation
11
The vent plate will ultimately locate approximately 19”
above the base of the replace once inserted.
1. Trim the liner accordingly so it will not be too long
once the rebox in raised.
2. Connect the liner to the vent plate using the gear
clamp provided.
3. Stretch the liner down and slide the rebox onto the
vent plate.
4. Secure the vent plate to the rebox using 2 screws
through the front tab.
: When installing into larger replaces, the RF24
may be connected to the liner while sitting out on the
hearth or inside the replace without removing the vent
plate.
The support legs may also be left in place if the
replace is large enough.
If the liner is connected to the rebox on the hearth, it
will be necessary to pull the slack liner up from the top
of the chimney after the rebox is installed.
Thread thumbscrews
into Support Leg.
Raise left hand side of firebox
and slip LH Support Leg
Under. Fasten with 2 bolts
as indicated.
Thread thumbscrews
into Support Leg.
Raise right side of firebox
and slip RH Support Leg
Under. Fasten with 2 bolts
as indicated.
With the rebox recessed behind the smoke curtain of the existing replace, raise it and place the individual support
legs under it; the liner will need to compress to do this. Placing a temporary shim under the rebox, such as a 2” x
4”, may help while positioning the support legs. Tabs are provided on the support legs to help position them. Fasten
the support legs at the points indicated by the arrows using the bolts provided (2 per side).
Slide Firebox onto
Vent Plate
Secure Vent Plate
using 2 screws at
Front
Firebox with Legs and
Burner Removed
Approx. 19”
above base
of fireplace
Vent Plate
Trim Liner and Connect
Vent Plate to Liner using
Gear Clamp provided
Firebox Installation
12
Reinstall the burner module using the 4 screws removed previously.
Note: The upper bafe may be removed to gain more room for the screwdriver to install the rear screws.
Connect the gas line to the burner module. Check for leaks, purge the line and, test-re the unit before installing the win-
dow or proceeding with the remainder of the install. See Lighting Instructions section.
(if removed)
Position the rebox
to allow ample space at the
front for the fret.
Position the top convection bafe with the threaded
studs pointing downwards into the slots at the top of
the rebox.
Slide the convection bafe as far forward as
possible and tighten the wingnuts.
Reinstall Burner
Module (4 screws)
Edge Fits into
Cleat at Back
Remove Top Baffle
(2 screws)
Remove Top Baffle (optional)
(to provide space for a screwdriver)
Edge fits into
Cleat at Back
of Firebox
Reinstall Top
Baffle (2 screws)
Convection Baffle
Wingnuts(2)
Start Wingnuts an Studs.
Slide Convection Baffle
into slots. Adjust
Baffle Forward to Touch
Back of Smode Curtain of
Existing Fireplace.
Tighten Wingnuts.
Firebox Installation
13
Install the ceramic brick liner taking care not to damage them as the material is fragile. The top rounded edges of
the side panels should face inwards and the front edge is bevelled. Place the side brick panels at up high against
the side of the rebox and slide them downward into place, behind the frame of the rebox.
Side Brick Behind
Firebox Return
Side Brick in front of Rear Brick
Rear Brick
Left
Brick
Rest Brick on
Rear Log Support
Rear Brick
Rear Brick
Left
Brick
Right
Brick
Carefully remove the ceramic logs from the packaging, taking care not to damage them. Install the logs as described
below.
Drop Rear Log into place
behind front log retainers
Front Log locating pins
Rear Log Touches
Front Log Here
Right Log
Locating Pins
Place Font Log onto locating
Pins at Each End
Ceramic Fuel Bed Installation
14

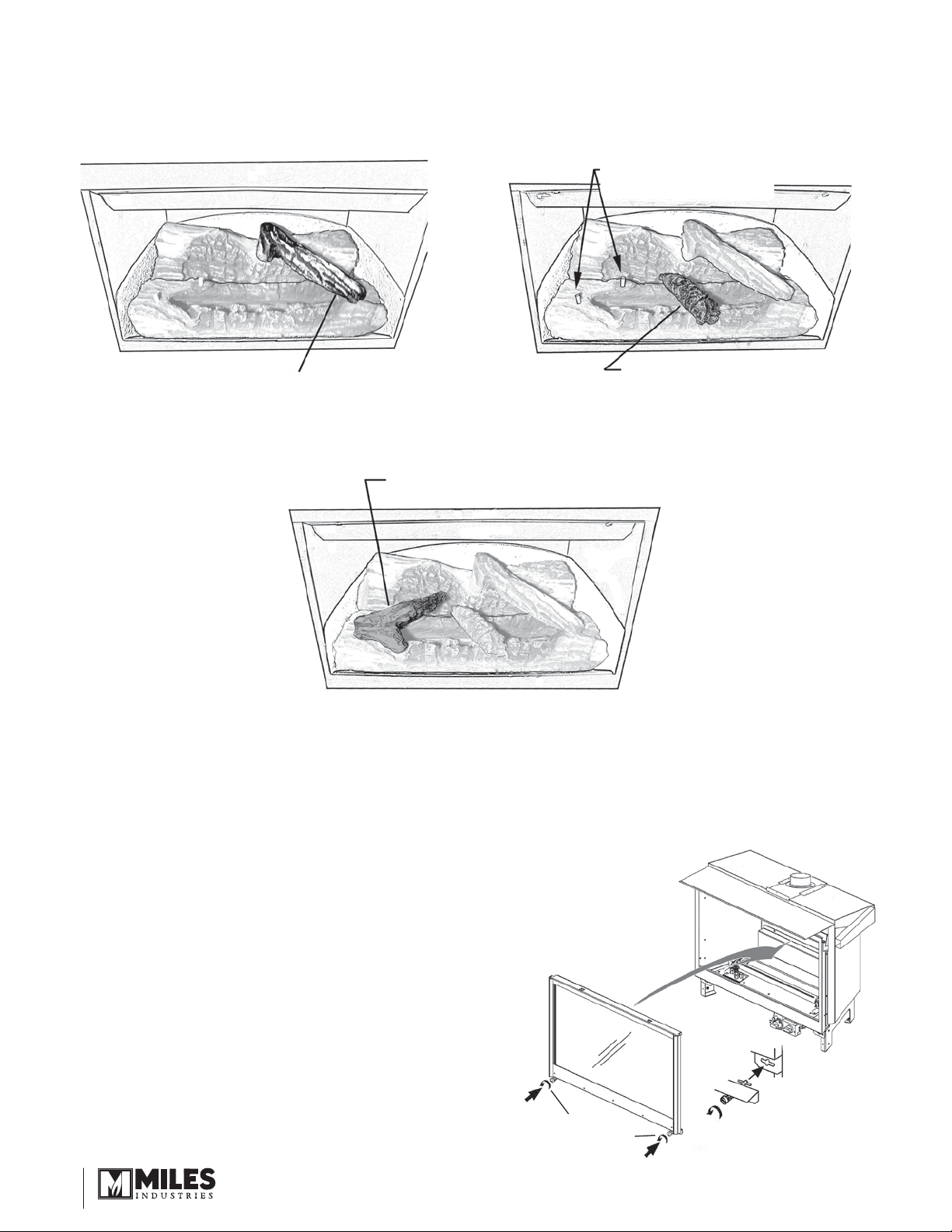

Place R/H Cross Log
Onto Locating Pins
L/H Log Locating Pins
Place Middle Cross Log
Across Gap in Front Log
Place L/H Cross Log
Onto Locating Pins
Hook the window over the top edge of the rebox and
fasten the bottom two spring-loaded bolts by pushing in
and turning 90 degrees.
If broken, the glass pane may only be replaced as a
complete window assembly unit as supplied by the
manufacturer.
Cast Iron Fret Installation
Spring-loaded
Fastening Studs (2)
1/4 Turn
Ceramic Fuel Bed Installation
Window Retting
15

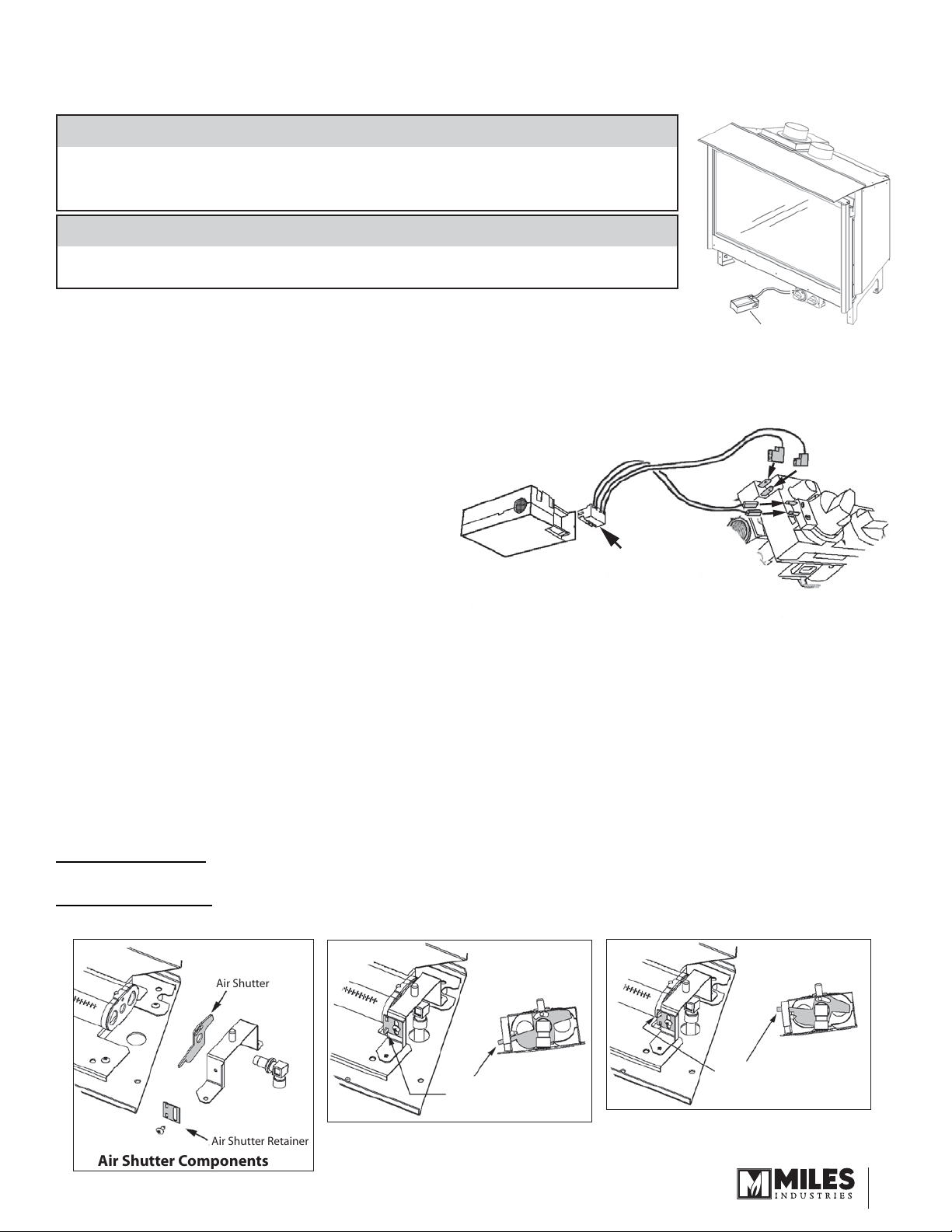

Air Shutter in
Open Position
Air Shutter in
Closed Position
Air Shutter
Air Shutter Retainer
Air Shutter Components
Remote Control Installation
Operation Check and Aeration Adjustment
1. Connect the wiring harness to the receiver box, by pushing the wire connector on to the
receiver circuit board. The plug will only go on one way so please ensure that the wires
are pointing up and slot in the board is in line with the tab on the wiring harness plug.
2. Connect wires as shown. Please note that the “L” connectors are different sizes, the smaller one ts to the
lower connection and the larger one the top connection on the top left hand side of the valve. The other two wire
connectors can be tted to either terminal located to the left of the ame control button.
3. Remove the remote control receiver lid.
4. Fit four AA 1.5 V alkaline batteries.
5. Place the remote control receiver on the base of
the replace beside the valve.
6. Fit the 9 V alkaline battery to the handset
transmitter.
Remote Receiver
Receiver GV34 Valve
Push-on
Connector
a screwdriver or other metallic object to remove the batteries from the
receiver or the handset! This could cause a short circuit to the receiver.
Turn the replace up and down using the remote control to conrm that the full range of inputs is achieved.
Light the re and allow to warm up for 10–15 minutes to evaluate the ame picture. The burner is equipped with
an adjustable air shutter to control primary aeration. See gures below. The shutter is factory-set at an aeration
gap which will give optimum performance for the vast majority of installations. In a few unusual installations, ame
picture may be improved by adjusting the aeration. The need for adjustment should be determined only by operating
the appliance with the ceramic fuel effects and window installed.
will cause the ame to appear more transparent and blue making the ceramic fuel effects glow
more.
will cause the ames to appear more yellow or orange making the fuel effects glow less.
Too little aeration may result in black carbon forming and dropping into the rebox.
16
1. Release the two thumbscrews on the each side of
the replace.
2. Fit the slotted holes in the fret retainers over the
thumbscrews and push the retainers down.
3. Tighten the thumbscrews.
1. Adjust the screw heads on the back of the fret to the
thickness of the retainer bracket.
2. Drop the fret into place while guiding the screw
heads into the slots in the brackets.
3. Clip the ash pan cover onto the fret.
Drop Fret with Bolt
into Slotted Retainer
(fret adjusts up or
down to suit)
Slip Fret Retainer
over thumbscrews
and tighten screws
The fret retainer brackets are designed to maintain the required space in front of the window to allow the window to
move and relieve during a hard start. It is very important to ensure the area in front of the window is kept clear
at all times.
To check vent action,
hold a match or
source of smoke in
front of Draft Channel
(smoke should be drawn
inward)
Draft Channel
Draft Channel
Bracket secured
by 2 screws
RH side of fireplace
Vent Switch
Vent Switch
Bracket
This unit is equipped with a vent safety switch, located on the right side of the draft hood, which will shut the burner off if
the vent is not functioning properly. Use a match or a source of smoke at the front of the draft channel to check direction of
ow in the vent. Access to the vent switch for servicing is shown below.
Vent Check
Cast Iron Fret Installation
17
Owner’s Information
Spring-loaded
Fastening Studs (2)
1/4 Turn
Safety and Warning
Information
For your safety, this appliance is tted with a ame
supervision device which will shut-off the gas supply
if, for any reason, the pilot ame goes out. This device
incorporates a xed probe, which senses the heat
from the pilot ame. If the probe is cool, the device will
prevent any gas ow unless the burner control knob is
kept pushed in at the PILOT position. See full lighting
instructions on page 21 of this manual.
It will be necessary to clean the glass periodically.
During startup, condensation, which is normal, forms
on the inside of the glass and causes dust, lint etc. to
cling to the glass surface. Initially paint, while curing,
may deposit a slight lm on the glass. We therefore
recommend that, during the rst few weeks of use,
the glass be cleaned two or three times with non-
abrasive common household cleaners and warm
water. Ammonia based cleaners should not be used.
Subsequently, the glass should be cleaned two or
three times a season depending on the circumstances.
Do not clean the glass while it is hot. Always securely
replace the window before lighting.
Cast Iron Fret Installation
Pilot Flame
Thermocouple
Probe must be
in Flame
Warranty
Card at the
back of this
manual.
Let the replace cool rst before cleaning it.
Your replace becomes very hot when operating.
Avoid placing decorating objects sensitive to heat
within 36 inches (0.9 m) around it.
Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth
Performance of LPG appliances may be affected by
the quality of commercial gas supplied in your area.
The window can be removed for cleaning by rotating
the two fastening studs at the bottom corners 90
degrees to release, and swinging the bottom of the
window unit outwards to unhook the top edge—see
page 10.
To ret the
window, hook
it to the top of
the rebox and
fasten it at the
bottom with
the two spring-
loaded studs
pushing and
turning them
90 degreese—see page 14.
Dust, etc. can be brushed from the ceramic fuel effects
and rebox walls after removing the front unit and
opening the window. Dust etc. can also be removed
from the burner using a soft brush after removing the
ceramic fuel effects.
A periodic check of the pilot and burner ames should
be made. Check after the re has been on for at least
30 minutes. The pilot ame must cover the tip of the
thermocouple probe. The main burner ame pattern
will vary from appliance to appliance depending on the
type of installation and climatic conditions—see images
below.
The appliance area must always be kept clear and
free from combustible materials, gasoline and other
ammable vapors and liquids.
Inspect the vent terminal outdoors regularly to make
sure that, snow, leaves, bushes, trees, etc, do not
obstruct it.
Examine the vent system and terminal regularly. We
recommend annually.
18
Owner’s Information
All appliances use four 1.5 V AA alkaline batteries for
remote control receivers and the handset uses a 9 V
alkaline battery.
Batteries are accessible by removing the lid of the
remote control receiver. Batteries should last one to
two seasons, depending on usage. Removing batteries
in the off season will extend battery life. Should the
batteries loose power, the control may be operated by
manually turning the control knob at the valve.
If your appliance needs to be serviced, contact your
supplier quoting the model number. It will be helpful if
the appliance serial number can also be quoted. This is
on the rating plate, which is attached to the unit.
The repair parts are shown in the repair parts list.
Please always quote the part number and description
when requesting spare parts.
This appliance is equipped with a vent safety switch
which, when activated, will turn off the burner and
pilot if the vent is blocked, disconnected, or if there is
excessive down draught.
If the safety switch is activated, wait for it to cool off
before trying to light the appliance again. The safety
switch will cool off and reset itself automatically after 25
to 30 minutes.
Should the safety switch require replacement, only use
parts supplied by Miles Industries.
a screwdriver or other metallic object
to remove the batteries from the receiver or the
handset! This could cause a short circuit to the
receiver.

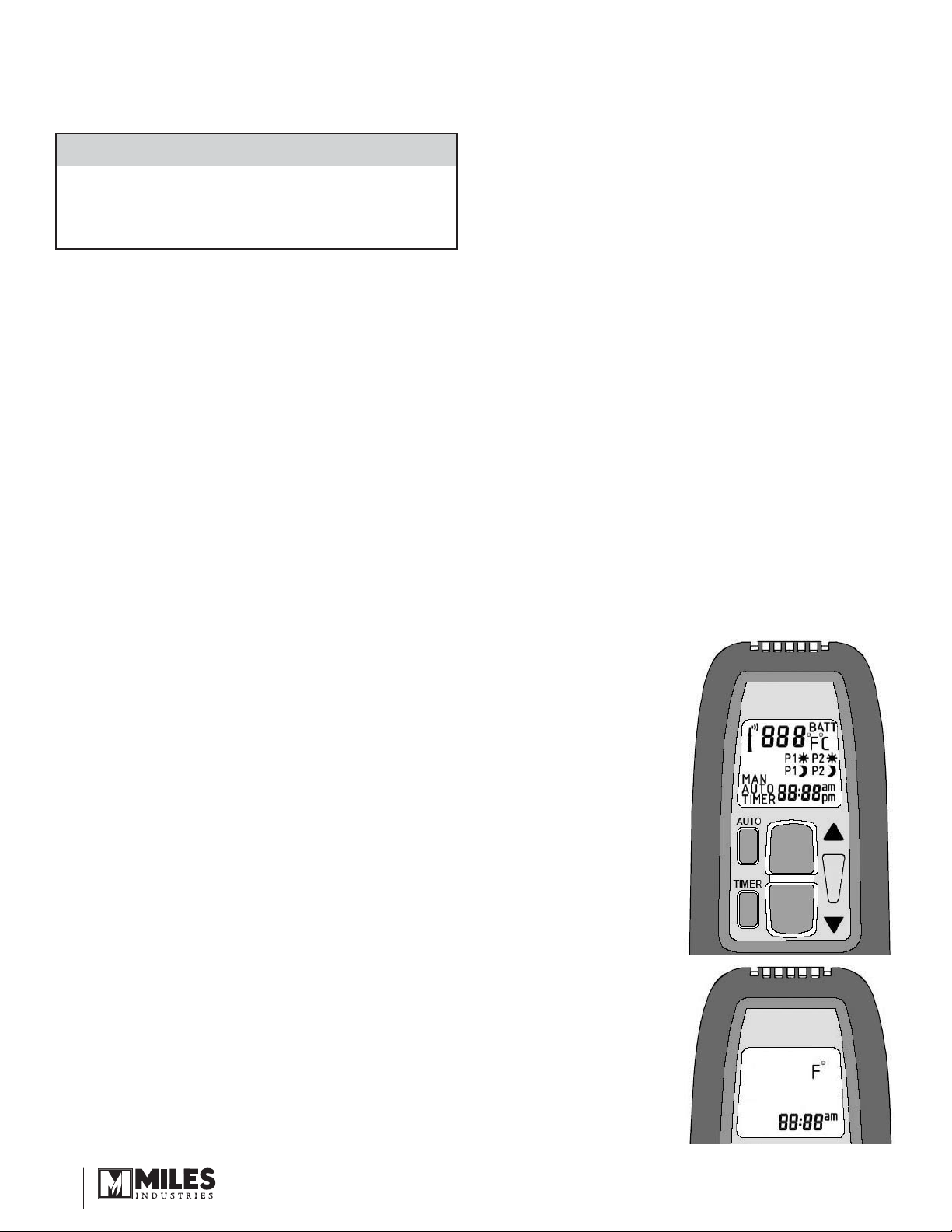

Remote Control Operation
Your replace remote control helps you get the comfort, convenience and aesthetics
you want from your gas replace. The remote controls your replace in different
ways.
BEFORE YOU BEGIN, please note that on this system, the settings
of time, temperature and automatic ON/OFF can only be programmed when the
function display is ashing. Be patient when programming as it can take a few
seconds to set.
The rst thing to do is to set the time.
1. With your thumb, hold down the and buttons until ashes.
Let go.
2. Note the digital clock on the bottom right hand corner. The ▲ button sets the
hour; the ▼ button sets the minutes. Set the time.
Note: You must start setting the time while the is ashing. If it stops ashing,
go back to 1.
3. The display shows °C/24-hour or °F/12-hour. To change the temperature/hour
display, press on the button while the display ashes.
4. Let go and wait until the ashing stops. The remote shows the time you set. It
also shows the current temperature.
19
Remote Control Operation
a screwdriver or other metallic object
to remove the batteries from the receiver or the
handset! This could cause a short circuit to the
receiver.
Use this setting when you come in and want to enjoy a specic temperature.
1. Push the button until a number and ash. Let go.
2. While it is still ashing, push the ▲ and ▼ buttons to the temperature you want.
Let go.
Your replace will reach that temperature and the remote will check the temperature
every ve minutes, adjusting the amount of fuel needed to give you a steady, even heat.
Use this setting when you want a particular ame level. For instance, you want to
watch ames burn at their highest level and you don’t mind if the room is too hot.
1. To raise the ame, press and hold the ▲ button until the flame gets to the desired
level. Let go.
2. To lower the ame, press and hold the ▼ button until the ame gets to the
desired level. Let go.
The will remain just as you set it.
You can set your replace to come on before you wake up and turn off after you leave
and then, turn on again just before you come home and turn off after going to bed.
You can leave it like this for the heating season.
1. Decide what temperature you want your replace to be at. Also, decide what time
you want your replace to turn on and off. Finally, decide what time you want it to
come back on and off in the afternoon or evening. For the rst few times you set
the timer, it’s handy to write these times down.
2. Set the temperature (just as you did in the section Setting the temperature.)
3. Press the button and hold it until appears and flashes. Let go.
While ashing, push the buttons ▲ (hour) and ▼ (minutes) to set the time at
which you want your replace to turn on in the morning.
4. Press the button and hold it until ☽ appears and ashes. Let go. While
ashing, push the buttons ▲ (hour) and ▼ (minutes) to set the time at which you
want your replace to turn off when you leave.
5. Press the button and hold it until appears and ashes. Let go. While
ashing, push the buttons ▲ (hour) and ▼ (minutes) to set the time at which you
want your replace will turn back on in the afternoon.
6. Press the button and hold it until ☽ appears and ashes. Let go. While
ashing, push the buttons ▲ (hour) and ▼ (minutes) to set the time at which you
want your replace to turn off in the evening.
7. That is all you have to do. Your replace will give you steady, even heat at the
temperatures and times you set.
Note: If you want to set your replace for only one time on and off, set and ☽
for the same times as ☽. The remote will record the ☽ off time for both times.
To temporarily override the timer setting, just press or ▲ and ▼ to go back to
manual settings. Press to go back to your settings.
When your remote control displays , you need to
replace the battery with a new 9 volt alkaline battery—
6LR61/MN1604.
20
Options
RF24BN—Natural Gas Installations
RF24BP—Propane Gas Installations
(sold separately)
RA24CV—Contemporary, Vintage Iron Finish
RA24AV—Avant-Garde, Vintage Iron Finish
RA24TB—Traditional, Black Finish
1225VFB—Ventana Fret, Black Finish
Pipe—Generic 3” dia. exible aluminum liner approved
for gas venting into existing replace and chimneys or
4” dia. type “B” vent with zero clearance kit option.
555CFK—Circulating Fan Kit, thermally actuated,
variable Speed, with 6’–0” c/w grounded cordset.
RA24NK—Converts from LPG to NG
RA24PK—Converts from NG to LPG
RA24ZC
715CVI(use with RA24ZC kit only)
RA24DS —Draw Screen
RA24FSFixed Screen
743FVIDouble Door FenderFire
744FVISingle Door FenderFire
Hearth gates such as Kidco’s are available at retail
stores carrying safety products for children.
This manual suits for next models
1
Table of contents
Other Valor Indoor Fireplace manuals
Valor
Valor 641 User manual
Valor
Valor Retrofire RF24XBN Guide
Valor
Valor Brava 347 Instruction Manual
Valor
Valor Black Beauty Unigas II Assembly instructions
Valor
Valor sirius br218 User manual
Valor
Valor L2 SERIES User manual
Valor
Valor H3 1000KN User manual
Valor
Valor PORTRAIT 922ECN Installation instructions
Valor
Valor British Gas BG C-2 User manual
Valor
Valor H5 User manual
Valor
Valor Black Beauty Radiant Assembly instructions
Valor
Valor urban 746 User manual
Valor
Valor 500FS Instructions for use
Valor
Valor G3 Classic Operating instructions
Valor
Valor black beauty 466 User manual
Valor
Valor Regency OXYSAFE 2 Assembly instructions
Valor
Valor L2 SERIES Operating instructions
Valor
Valor LX Series User manual
Valor
Valor Heartbeat Oxysafe 426 User manual
Valor
Valor H3 1000NGK User manual
Popular Indoor Fireplace manuals by other brands
Appalachian Stove & Fabricators
Appalachian Stove & Fabricators 52-Bay Installation and operation procedures
Travis Industries
Travis Industries DVS Insert EF II owner's manual
Superior Fireplaces
Superior Fireplaces WRT3036RS Installation and operation instruction
Outland Technology
Outland Technology FMPPC2-2 owner's manual
Dimplex
Dimplex Canterbury CAB20F Installation and operating instructions
Verine
Verine Quasar Plus NKPC RN2 Series Installation, maintenance & user instructions
Costway
Costway 81960723 user manual
baltur
baltur TBG 45 ME User instruction manual
Stellar Hearth
Stellar Hearth GALAXY Series Installation and operating manual
Modern Flames
Modern Flames INSERT FIRE 3824 Safety information and operations manual
Acquisitions
Acquisitions X-ERO Installation & user's instructions
Baxi
Baxi Brava 4 Oxysafe owner's guide
FMI
FMI (V)PN36-A Owners manual and installation manual
Harman Stove Company
Harman Stove Company R7R1 Exception Wood Fireplace Installation and operating manual
Tulikivi
Tulikivi KOUTA operating manual
SEI
SEI FA1137759 Assembly
Sylvane
Sylvane FA5523 Assembly manual
Kingsman
Kingsman Zero Clearance installation instructions
