Valor L1 1500KN User manual

4008054-09
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
DANGER
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Direct Vent Zero Clearance
Gas Fireplace
natural gas 1500KN
propane gas 1500KP
Installation Manual
L1
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Installer: Place model/serial number here.

2
Ce guide est disponible en français sur demande.
This appliance is a domestic room-
heating appliance. It must not be used
for any other purposes such as drying
clothes, etc.
This appliance is suitable for
installation in a bedroom or bed
sitting room.
This manual contains instructions to
install the ENGINE ONLY. A trim kit is
REQUIRED to complete the installation.
A barrier screen is provided with the
trim kit. Refer to the manual supplied
with the trim for installation.
The information contained in this manual is believed
to be correct at the time of printing. Miles Industries
Ltd. reserves the right to change or modify any
information or specifications without notice. Miles
Industries Ltd. grants no warranty, implied or stated,
for the installation or maintenance of your heater,
and assumes no responsibility for any consequential
damage(s).
© Copyright Miles Industries Ltd., 2022. All rights reserved.
Designed and manufactured for Miles Industries Ltd.
Valor Fireplaces
190–2255 Dollarton Highway
North Vancouver, BC, Canada V7H 3B1
T 604.984.3496 F 604.984.0246
valorfireplaces.com
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where
not prohibited by local codes. This
appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for
use with other gases, unless a certified
kit is used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
Massachusetts:
The piping and final gas connection must be
performed by a licensed plumber or gas fitter
in the State of Massachusetts. Also, see Carbon
Monoxide Detector requirements in this manual,
page 62.
WARNING
This product can expose you to chemicals
including Benzene, which is known to the State
of California to cause cancer and birth defects or
other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
Note: Natural gas, in its original state, contains
Benzene.

3
Please read this manual BEFORE
installing and operating this
appliance.
This appliance has been professionally installed by:
Dealer Name: ________________________________
Phone:______________________________________
Welcome to Valor®
Fireplace Safety ................................................. 4
Specifications..................................................... 6
Kits & Accessories.............................................. 7
Dimensions & Location..................................... 8
Installation Planning ......................................... 9
Before Installing............................................................9
Overview ......................................................................10
Mantel Clearances ......................................................11
Framing.........................................................................13
Wall Finish ....................................................................17
Material Specifications ..............................................17
Non-Combustible Cement Board............................17
Avoiding Cracking Wall Finishes...............................19
Venting .............................................................. 20
Overview ..................................................................... 20
Co-Axial ....................................................................... 21
Typical Co-axial Venting Components ....................21
Venting Chart ..............................................................22
Restrictor Settings .....................................................23
Horizontal Vent Termination ....................................24
Vertical Vent Termination .........................................25
Co-Linear Conversion................................................ 26
Installation Into Existing Fireplace Cavity ..............26
Installation Partially Into Fireplace Cavity..............27
Installation Into Existing Adjacent Chimney ..........28
Example of Co-linear Conversion Accessories ......29
Installation ....................................................... 30
Appliance Preparation .............................................. 30
Unpack Appliance ......................................................30
Fit Standoffs................................................................30
Remove Heat Shield...................................................30
Convert from Top to Rear Outlet (if required).......31
Fit Appliance into Framing........................................32
Remove Window ........................................................33
HeatShift™ System—if used .................................... 34
Remove Convection Baffle ...................................... 34
Install HeatShift Take-Off Collars to Appliance.... 34
Electrical Wiring ......................................................... 35
Gas Supply................................................................... 37
Liners ........................................................................... 39
Fuel Beds ..................................................................... 40
Birch Log Kit 1505BLKV2.......................................... 40
Driftwood Kit 1505DWKV2 .......................................43
Decorative Glass Murano 1500DGM ..................... 46
Rocks & Shale Set 1514RSS .......................................47
Split Wood Kit 1505SWKV2.......................................49
Window Re-Installation & Checking ....................... 52
Wall Switch.................................................................. 53
Remote Control Pairing............................................. 55
Checking Operation and Aeration .......................... 57
Trim & Barrier Screen................................................ 58
Wiring Diagram................................................ 59
Approved Venting Components .................... 60
Commonwealth of Massachusetts ............... 62
Appendix A—Lighting Instructions............... 64
Appendix B—Remote Control Operation .... 65
Appendix C—Wall Switch Operation ............ 72
Appendix D—HeatShift System .................... 73
Appendix E—Spare Parts ............................... 94

4
Do not put
furniture or other objects
in this space in front of
WKHȴUHSODFH
36” [0.9 m]
)LUHSODFH
Hearth
This manual contains very important information about the safe installation and operation of the fireplace. Read and
understand all instructions carefully before installing and operating the fireplace. Failure to follow these instructions
may result in possible fire hazard and will void the warranty.
Replacement manuals are available by contacting the Valor Customer Service at 1-800-468-2567, or by visiting
valorfireplaces.com.
WARNING: Extremely Hot!
Heat and flammability
• Some parts of the fireplace are extremely hot, par-
ticularly the glass windows. Use the barrier screens
provided or a gate to reduce the risk of severe burns.
• The glass windows can exceed 500°F (260°C) at full
capacity.
• Always keep the appliance clear and free from com-
bustible materials, gasoline, and other flammable
vapors and liquids.
• Be aware of hot wall surfaces! The walls directly above
the fireplace can get very hot when the fireplace
heats. Although safe, it may reach temperatures in ex-
cess of 200ºF (93°C) depending on choice of optional
accessories. Do not touch!
• Be aware of hot hearth/floor surfaces! Any projections
directly around the fireplace can get very hot when
the fireplace heats. Although safe, they may reach
temperatures in excess of 200ºF (93°C)depending on
elevation of hearth. Be careful of touching these! Tem-
perature of projection surfaces will be reduced when
barrier screens are installed.
• Some materials or items, although safe, may discolor,
shrink, warp, crack, peel, and so on because of the
heat produced by the fireplace. Avoid placing candles,
paintings, photos and other combustible objects
sensitive to heat or furniture within 36 inches (0.9m)
around the fireplace.
• Due to it high temperatures, the appliance should be
located out of traffic areas and away from furniture
and draperies.
• Clothing or flammable material should not be placed
on or near the appliance.
Barrier Screen and Safety
• Any safety screen, guard, or barrier removed for ser-
vicing an appliance must be replaced prior to operat-
ing the appliance.
• Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children, and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at-risk individuals in the house. To
restrict access to a fireplace or stove, install an adjust-
able safety gate to keep toddlers, young children, and
other at-risk individuals out of the room and away
from hot surfaces.
• A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Fireplace Safety

5

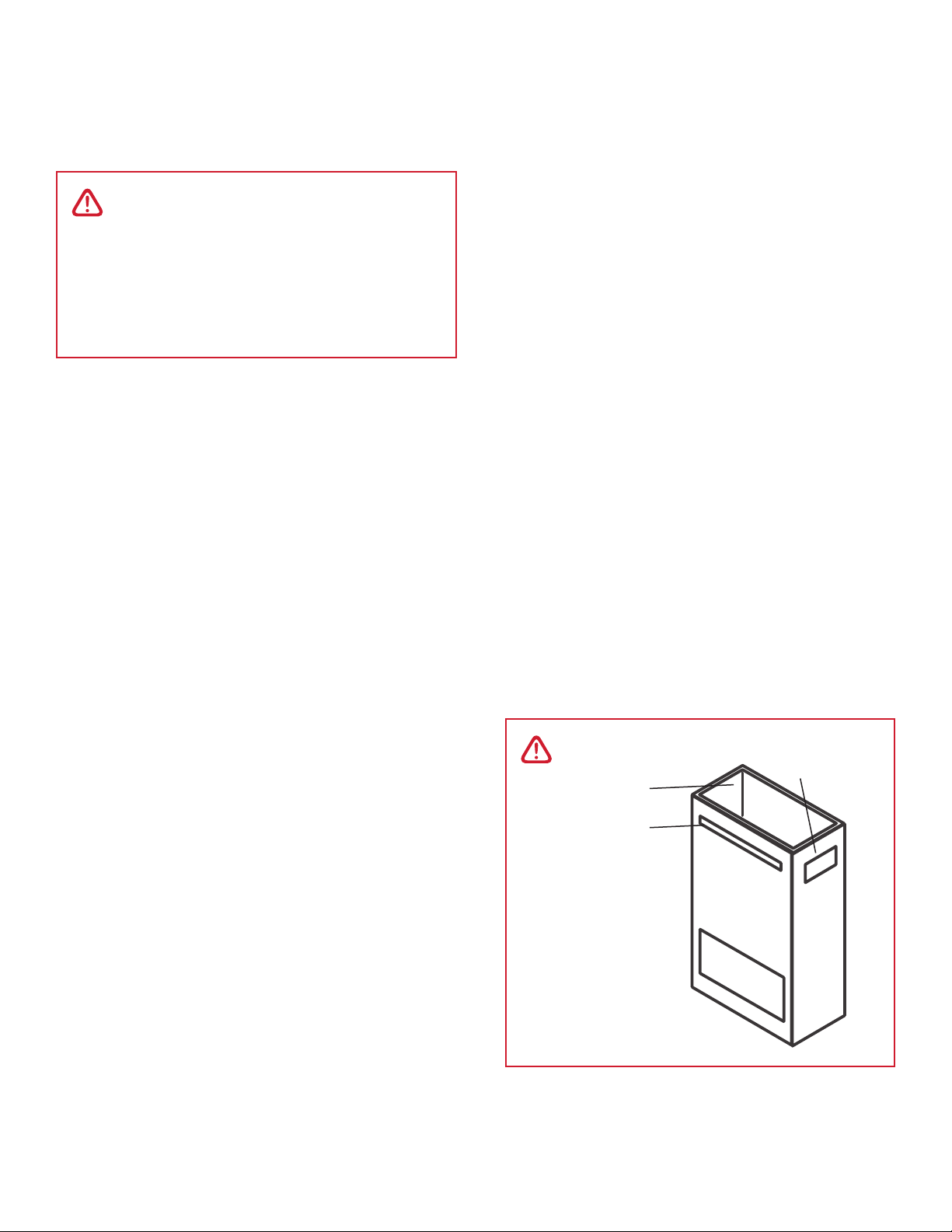

Ceiling outlet
Front outlet
Side outlets
WARNING
HeatShift
Duct Kit:
Do not cover
or place items
in front of or
above outlet(s)!
Glass windows
• The glass front assemblies must be in place and
sealed before the unit can be placed into safe
operation.
• The glass front assemblies must only be replaced as
complete units, as supplied by the fireplace manufac-
turer. No substitute material may be used.
• Do not use abrasive cleaners on the glass front as-
semblies. Do not attempt to clean the glass when
it is hot.
Venting
• This unit must be used with a vent system as de-
scribed in this manual. No other vent system or com-
ponents may be used.
• Never obstruct the flow of combustion and ventilation
air. Keep the front of the appliance clear of all obsta-
cles and materials for servicing and proper operation.
• This gas fireplace and vent assembly must be vented
directly to the outside and must never be attached to
a chimney serving a separate solid fuel burning ap-
pliance. Each gas appliance must use a separate vent
system. Common vent systems are prohibited.
WARNING
Do not operate this appliance with the
glass front removed, cracked, or broken.
Replacement of the glass front should
be performed by a licensed or qualified
service person. Do not strike or slam the
glass front.
Intended use
• This appliance is designed and approved as a supple-
mental heater and provides the potential for most
energy conservation when used while attended. The
use of an alternate primary heat source is advisable.
• This unit is not for use with solid fuel.
• Do not use this heater as a temporary source of heat
during construction.
Installation and Servicing
• Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning might be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control com-
partments, burners, and circulating air passageways
of the appliance be kept clean.
• Do not use this appliance is any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
the control system and any gas control that has been
under water.
Fireplace Safety

6
X
Specifications
Approval & Codes
This appliance is certified to ANSI Z21.88/CSA 2.33
American National Standard / CSA Standard for Vented
Gas Fireplace Heaters for use in Canada and USA, and
to CGA 2.17-91 High Altitude Standard in Canada. This
appliance is for direct vent installations.
This appliance complies with CSA P.4.1-15 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in
the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 or the Natural Gas
and Propane Installation Code CAN/CGA-B149.1. Only
qualified licensed or trained personnel should install
this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70
or the Canadian Electrical Code, CSA C22.1.
Ratings
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500
feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas
utility to confirm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Supply Gas
Heater engine 1500KN uses
natural gas.
Heater engine 1500KP uses
propane gas.
The supply pressure must be
between the limits shown in the Ratings section.
The supply connection is 3/8” NPT male and located on
the left hand side of the firebox. A shut-offvalve (not
supplied) is required on the supply line to isolate the
unit during service. See Gas Supply Installation section
for details.
Conversion Kits
The 1500K are supplied as natural gas or propane
gas and are field convertible between fuels. See
instructions packaged with the conversion kits for
further information.
Electrical
The 1500K are designed to run on battery power and
do not require an electrical power source to operate
as a heater. However, they require electrical power
to operate optional 1595CFKV2 Circulating Fan Kit,
1270RBK Remote Blower Kit, or GV60WIFI WiFi Kit.
HeatShift™System
The 1500K are designed to allow the installation of the
optional HeatShift System, a convection system that
redistributes the warm air flow away from the fireplace
opening to a more desirable location using natural
convection, without use of a fan.
The warm air flow may be relocated to a position higher
up the wall, out the sidewalls, or even to another room.
The result is much cooler wall temperatures above the
fireplace opening for locating televisions, artwork, etc.
Please note that the framing and mantel clearances
are affected by the installation of the HeatShift
System. Refer to “Appendix D—HeatShift™System™” on
page 73 for more information.
Outdoor Conversion Kit
The 1500K models are supplied standard for indoor
applications and may be adapted for installation in
specific “outdoor” applications protected from weather
as defined in the GV60CKO outdoor conversion kit
manual.
Model 1500KN 1500KP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 30,000 30,000
Input Minimum (Btu/h) 19,000 21,000
Manifold Pressure (in w.c.) 3.5” 9.0”
Minimum Supply Pressure (in
w.c.) 5” 11”
Maximum Supply Pressure (in
w.c.) 10” 14”
Main Burner Injector Marking DMS#36 DMS#51
Pilot Injector Marking 51 30
Min. Rate By-Pass Screw 220 160

7
Kits & Accessories
WARNING
Optional electrical accessories ARE NOT
ALLOWED when adapting appliance for
outdoor use.
Required Kits Information accurate at the time of printing and subject to change
without notice.
Information accurate at the time of printing and subject to change
without notice.
Optional Accessories
Fuel Beds (choose one)
1505DWKV2 Driftwood Kit
1500DGM Decorative Glass Murano Kit
1514RSS Rock & Shale Kit
1505SWKV2 Split Wood Kit
1505BLKV2 Birch Logs Kit
Liners Panels (choose one)
1515FBL Fluted Black Liners
1525RGL Reflective Glass Liners (requires 1725RGL-3 Glass Retainer Kit)
1540SSL Stacked Stone Liners
1560PBL Plain Black Liners
Trims (choose one) Barrier Screen
1530CIK Clean Install Kit - Fine Mesh - REQUIRES HeatShift 4007929
1550LSBv2 Linear 3-1/2” Surrounds, Black 4004215
1575LFB Linear 1” Finishing Trim Black 4005564
Gas Conversion Kits
1500KNGK Conversion to natural gas
1500KPGK Conversion to propane gas
Other Accessories
GV60CKO Outdoor Fireplace Conversion Kit
1506DRK Additional rocks for Driftwood Kit
1595CFKV2 Circulating Fan Kit (requires GV60VM)
1270RBK Remote Blower Kit
GV60WIFI WiFi Kit (requires GV60VM)
GV60VM V-Module power supply (required for Circulating Fan Kit or WiFi Kit)
LDK HeatShift System Kits (gravity flow) - MANDATORY with 1530CIK Kit
Hearth Gate Hearth gates such as Cardinal’s VersaGate are available at retail stores carrying
safety products for children.
WARNING
HeatShift System MUST be installed on
this appliance when using 1530CIK—Clean
Installation Kit!

8
18”
[
457 m
m
]
1
5-1/1
6”
[
[
383
m
m
]
]
15-1/16
”
mm
]
[38
3
1
8
-1/
2”
[
4
69
mm
]
8
-5/
8
”
[2
1
9
mm
]
19
-7/
8
”
[
5
0
5 m
m
]
Min. 44-1/2”
[
1130 mm
]
to to
p
o
f
cement board
Min. 43”
[
1092 mm
]
to underside o
f
heade
r
Electrical
Ele
ctr
ica
l
Access Plat
e
1
27
0
RBK Remot
e
B
lower Kit outlet
(remove
p
late)
L
DK HeatShi
f
t Duct Kit
o
utlets (remove
p
lates)
1
27
0
RBK Remote
B
lower Kit outlet
(
remove
p
late)
G
as Lin
e
Access Poin
t
Z
ero Clearanc
e
6WD
Q
G

2
΍
V
ead
e
r
He
Center
Li
n
e
6
-5/8” dia
.
Ventin
g
ȴ
HOG
c
onvertibl
e
f
rom to
p
t
o
r
ear outle
t
C
enter o
f
ven
t
H
eat shield
re
q
uired
f
o
r
rear ven
t
outle
t
app
lications
3
-
3
/4
”
[9
5 mm
]
4”
[
1
0
2 mm
]
32
-
3
/
8
”
[822
mm
]
33
-1/
8
”
[8
41 mm
]
14-1/2
”
/2
[369 m
m
m]
m
9
-
3
/
8
”
[238
m
m
m]
46
”
[
11
68
mm
]
4
2”
[
1
0
67 mm
]
39-11/16”
[
1
00
9 mm
]
Zero Clearance
to Stand-os
at Back and Sides
Zero Clearance
at back corners
Ze
ero Clearance
at
a
back corners
Face of
Framing
78” (1981 mm)
55-1/8” (1400 mm)
16-15/16”
(430 mm)

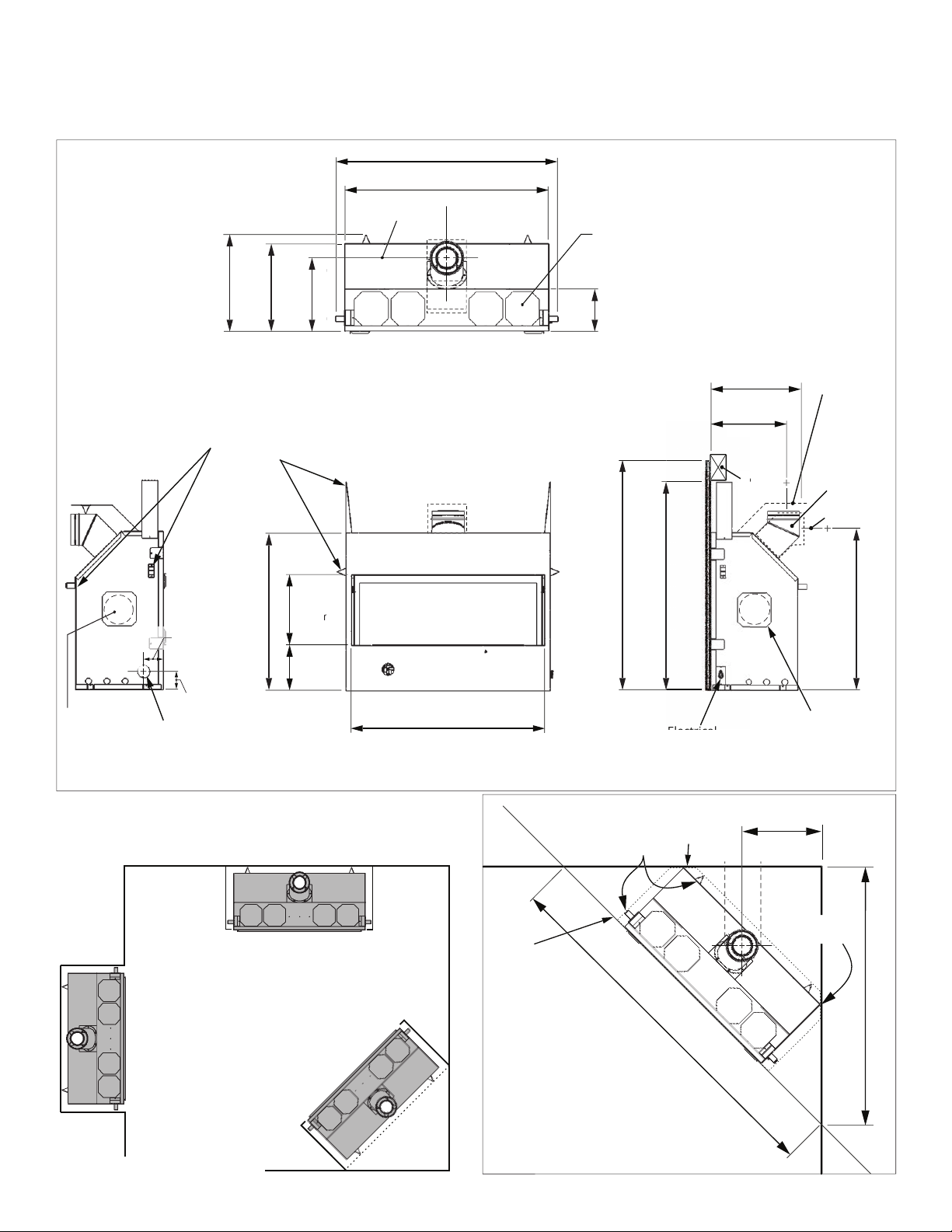

Dimensions
Location
Front ViewLeft Side View Right Side View
Corner Dimensions
Top View
Dimensions & Location

9
1. YOU NEED TO KNOW FROM THE HOMEOWNER:
• Will optional HeatShift System*be used;
• Height of appliance and shelf, if used;
• Thickness and type of wall finish around
appliance;
• Trim used*;
• Other optional accessories used (if any);
• Venting configuration.
2. Unpack the appliance, removing all items packed
inside and around it. Recycle the packaging.
3. Check that you have everything, using the Pack Con-
tent sheet. Also, check that you have:
• Fuel bed (packed separately);
• Liner panels (packed separately);
• Remote Battery and Wall Switch Kit;
• HeatShift System components (if used);
• Gas conversion kit (if necessary);
• Venting accessories;
• Electrical accessories (if used).
4. Carefully read the Installer’s Checklist included with
the fireplace for the installation sequence.
Caution
Only qualified, license, or trained personnel
should install this appliance.
WARNING
*HeatShift System MUST be installed on
this appliance when using 1530CIK—Clean
Installation Kit!
Installation Planning Before Installing

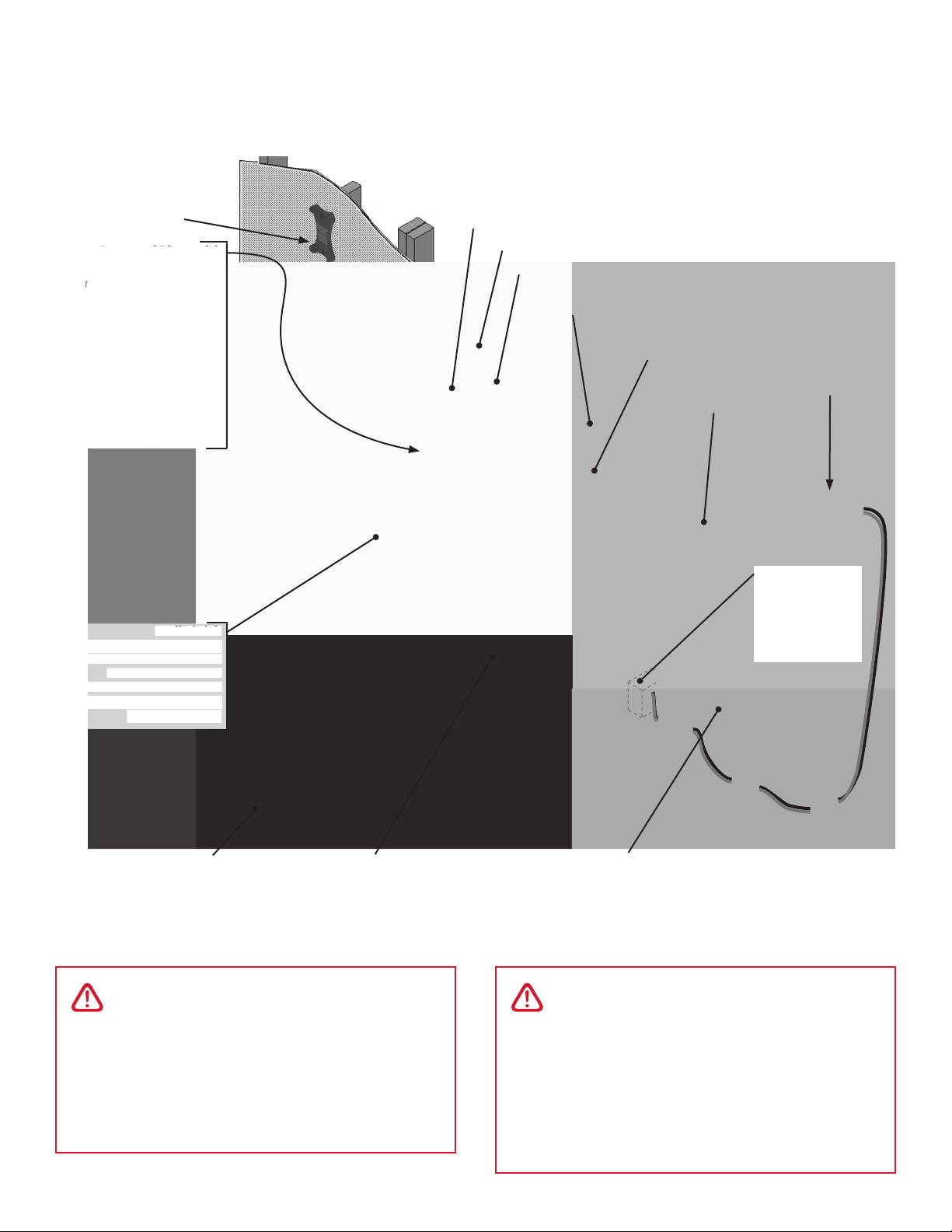

10
Mantel—See Mantel & Hearth Clearances
Hearth: not required.
If used, must be minimum 4” below
fireplace opening unless using LDK
HeatShift Duct Kit (see installation
instructions packed with kits).
S
Sur
rou
d
d
nd
l
Pl
Pla
te
i
i
wit
h
h
h
Ba
r
r
rier Screen (re
qui
red)
Nar
r
r
ow 1” Trim 1575LFB and
wid
e
e
r 3-1/2” steel Trim 1550
a
d
j
u
s
s
table, acc
ept
additional
n
on
-co
mbu
sti
ble
fi
nis
h o
ver
cement board and
beh
ind
tr
im.
15
30C
IK’
s
n
arrow tr
i
mre
q
u
i
res
HeatShi
f
t
.
Cement board
f
inishes u
p
to
p
erimeter o
f
tr
im.
Note: 1530CIK installs be
f
or
e
cem
cem
ce
ent
ent
et
bo
bo
bo
ard
ard
ad
.
.
.
1500K heater
Combustible Floor
Framing—See Framing Requirements
1/2 inch thick non-combustible cement board –NOT supplied
Supplied as vertical outlet, field convertible to horizontal
outlet. Note - Vertical rise required in vent system
Optional LDK HeatShift
Duct Kit outlets (4)
Remote
Handset
Wall Holder
l
Wal
l
l F
ii
ini
h
sh
A
A
n
y
wall
fi
nishes a
pp
lied
o
o
ver cement board must
be non-combustible.
Co
m
m
bustible mantel are o
k
p
rovided the
y
con
f
orm to
chart on
p
a
g
e 1
1.
Combustible Framing Allowed Beneath Fireplace. When the appliance
is installed directly on carpeting, tile or other combustible material
other than wood flooring, the appliance shall be installed on a metal
or wood panel extending the full width and recessed depth of the
appliance.
Remote Battery
and Wall Switch Kit
(required) (35-foot wire
length) (supplied)
Electrical
junction box
(not supplied) to
connect power
when using
optional fan, WiFi
Note: This appliance may be installed in outdoor, weather
protected environments as defined in the GV60CKO Outdoor
Conversion Kit instruction manual.
Installation Planning Overview
WARNING
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel,
and so on because of the heat produced
by the fireplace. Avoid placing candles,
paintings, photos, and other items
sensitive to heat around the fireplace.
WARNING
HOT WALL SURFACES! The wall directly
above the fireplace is constructed of non-
combustible materials and, although safe,
it may reach temperatures in excess of
200°F (93°C) depending on choice of trims.
Do not touch. Finish wall using materials
suitable for these temperatures.

11
Bottom of Unit
0 2” 4” 6” 8” 10”12”
Face of 1/2” thick
non-combustible
cement board
Do not put
furniture or objects
within 36” (914 mm)
of front of appliance
Mantel Projection
(from Face of Cement Board)
Mantel
Height
(from
Bottom
of Unit)
Fireplace
Opening
Ceiling
36” Min. to Ceiling
44”
42”
40”
38”
33”
23-7/8”
9-3/8”
4” minimum to
combustible or
non-combustible hearth
Combustible Mantel—Left Side View
Installation Planning Mantel Clearances
NOTE
Use for the optional HeatShift
System affects mantel and hearth
clearances. See HeatShift section in
Appendix D of this manual.
WARNING
HeatShift System MUST be installed
on this appliance when using
1530CIK—Clean Installation Kit!

12
39-11/16”
Fireplace Opening
Wall
Min. 4” to
wall or
combustible
mantel leg
Face of
Finished
Wall
FIREPLACE
Combustible Sidewall / Mantel Leg—Top View
Installation Planning Mantel Clearances

13
20”
43”
46”
1/2”thick non-combustible
cement board required above,
on each side and below
engine opening (NOT supplied)
NOTE: Height of cavity may be
affected by vent configuration
- see page 26
Between underside
of header and bottom
of firebox
No hearth required.
If using a hearth,
see page 22.
NOTE: This unit requires a
solid platform to support it.
Combustible framing allowed
beneath fireplace.When the
appliance is installed directly
on carpeting, tile or other
combustible material other
than wood flooring, the
appliance shall be installed
on a metal or wood panel
extending the full width
and recessed depth of the
appliance
page 11.
page 15.
Framing Dimensions
Installation Planning Framing
NOTE
Use fo the optional HeatShift
System affects mantel and hearth
clearances. See HeatShift section in
Appendix D of this manual.
WARNING
HeatShift System MUST be installed
on this appliance when using
1530CIK—Clean Installation Kit!

14
43”(1093 mm) to underside of combustible cavity
Min. 1”
(25.4 mm)
clearance to
combustibles
around
vertical
vent pipe
Approx. 10-3/4”
(274 mm)
from back
surface of
wall finish to
front surface
of appliance
case w/no
vent offset
15-1/16”
(383 mm)
14-1/2”
(369 mm)
9-3/8”
(238 mm)
19-1/4”
(489 mm)
Fireplace
Opening
PARTIAL SHELF, top outlet
1/2”thick
non-combustible
Cement Board
Framing with Partial Shelf—Top Outlet
Installation Planning Framing

15
43”(1093 mm) to underside of combustible cavity
Min. 1”
(25.4 mm)
clearance to
combustibles
around
vertical
vent pipe
Note - Vent
elbow in cavity
requires
9”(229 mm)
clearance above
when less than
12”(305 mm)
vertical pipe
is used;
otherwise elbow
requires 3”(77 mm)
top clearance.
Approx. 10-3/4”
(274 mm)
from back
surface of
wall finish to
front surface
of appliance
case w/no
vent offset
15-1/16”
(383 mm)
14-1/2”
(369 mm)
9-3/8”
(238 mm)
19-1/4”
(489 mm)
Fireplace
Opening
PARTIAL SHELF, to
p
outlet
1/2”thick
non-combustible
Cement Board
Framing with Partial Shelf—Top Outlet, vent elbow in cavity
Installation Planning Framing

16
Heat
shield
20”(508 mm)
from the font
surface of the
wall finish to the
front surface of
appliance case
For venting
clearances,
see Venting
Chart section
43”(1093 mm) to underside of combustible cavity
14-1/2”
(369 mm)
9-3/8”
(238 mm)
19-1/4”
(489 mm)
Fireplace
opening
FULL SHELF, rear outlet
1/2”thick
non-combustible
Cement board
Framing with Full Shelf—Rear Outlet
Installation Planning Framing

17
Installation Planning Wall Finish
Material Specifications
Non-Combustible
Material which will not ignite and burn. Such materials
are those consisting entirely of steel, iron, brick, tile,
concrete, slate, glass or plasters, or any combination
thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750°C shall be considered
non-combustible materials.
Combustible
Materials made of or surfaced with wood, compressed
paper, plant fibers, plastics, or other material that
can ignite and burn, whether flame proofed or not,
or plastered or unplastered shall be considered
combustible materials.
NON-COMBUSTIBLE MATERIALS ONLY
READ INSTRUCTIONS
MATÉRIAUX INCOMBUSTIBLES SEULEMENT
CONSULTEZ LE GUIDE D’INSTALLATION
NON COM
NON-COM
BUSTIBL
BUSTIBL
E MATER
E MATER
IALS ON
IALS ON
LY
LY
READ INSTRUCTIONS
READ
INSTRUCTIONS
M
ATÉRIA
U
X INC
O
MB
U
STIBLES SE
U
LEMENT
CONSULT
CONSULT
EZ LE GEZ LE G
UIDE D’UIDE D’
INSTALLINSTALL
ATIONATION
D
Min. 48” (1219 mm)
E
Min. 44-1/2” (1130 mm)
DD
Flush with bottom of unit;
add extra cement board
if overlapping framing.
Minimum coverage area of non-combustible cement board.
Any wall nish applied to shaded area must be non-combustible.
Linear 1500 replace outline
(including stand-os)
Non-combustible
cement board
required
thickness:
1/2 inch (13 mm)
A
B
C
Joints preferred at corners
to prevent cracking
NON-COMBUSTIBLE MATERIALS ONLY
READ INSTRUCTIONS
MATÉRIAUX INCOMBUSTIBLES SEULEMEN
T
CONSULTEZ LE GUIDE D’INSTALLATION
Minimum Cement Board Dimensions
Non-Combustible Cement Board
The L1 Linear fireplace requires a 1/2” (13mm) thick
non-combustible cement board to be used as a wall
surface immediately surrounding the unit’s opening—
see diagram for minimum coverage.
Extending the cement board well beyond the minimum
shown will help avoid cracking due to differential
expansion of materials.
Pre-drill cement board with oversized holes and do
not over-tighten screws to avoid cracking due to heat
expansion.
Standard gypsum wall board may be used beyond the
perimeter of the cement board.
inches [mm]
With 1550 or
1575 trims
with 1530CIK kit
AMin. 20-1/2 [521] Min. 20-1/8 [511]
B14-3/4 [375] 15-13/16 [401]
CMin. 9-1/4 [235] Min. 8-9/16 [218]
DMin. 4 [102] Min. 3-3/8 [84]
EMin. 40 [1016] Min. 41 [1041]

18
Installation Planning Wall Finish
1/4”
(235 mm)
Possible screw loc
(in the designated
ard flush with bo
of heater; add extra
overlapping framing
Wider trim (1550)
can adjust up to 1”
forward of surface of
cement board
Narrow trim (1575)
can adjust up to 5/8”
forward of surface of
cement board
Non-Combustible Finishing Over Cement
Board
Additional non-combustible material such as tile, etc.,
may be applied over top of the cement board or you
may choose to leave it finished clean with no tile, etc.
Be aware that a trim is always required. Finish should
not cover the trims.
1575 and 1550 Trims
Only the 1575 and 1550 style trims will accept tile, etc.
tucked behind them (up to 5/8” thick for the 1575 and
up to 1 inch thick for the 1550).
1530 Trim
1530 trim must be installed BEFORE cement board.
Cement board and finishes are applied to the perimeter
of the trim frame. Cement board and finished CANNOT
be tucked under this trim.
Clean Installation
Kit (1530) does not
adjust forward.
Cement board
finishes up to
perimeter of the
trim. Requires
HeatShift, and must
be installed before
finish.

19
Crac
k
Provide joints
either here or
here
Avoiding Cracking Wall Finishes
We recommend installing the optional LDK HeatShift
Duct Kit to reduce the wall temperatures and
minimize the possibility of cracking wall finishes.
If a clean finish with no tile, etc. is desired, joints in the
cement board and the transition to gypsum board
will require special attention if future cracking is to be
controlled. Be aware that temperatures on the non-
combustible wall surface above the appliance can
exceed 200°F (93°C).
Below are some tips on how to best avoid any cracking:
• Allow materials to dry thoroughly before finishing the
wall. Cement board has the ability to absorb up to 30
percent of its weight in water and may shrink as much
as 1/8” over a 48” length when drying from a satu-
rated condition. Running the fireplace for an extended
period before final finishing will help drive out mois-
ture.
Installation Planning Wall Finish
• Always pre-drill screw holes through cement board
and use screws with self-milling head.
• Always use mesh tape over joints.
• Always stagger joints in wall board.
• Behind joints, double up studs or use studs “on the
flat” to add extra support to the joint. Adhesive on
the backside of wall board behind any joints can help
control differential movement.
• Use multiple, thinner coats of joint compound and al-
low to dry thoroughly between coats.
• Ensure framing materials are dry.
• After finishing the wall, introduce heat gradually to
slowly dry any excess moisture rather than drying too
fast.
• Avoid notching cement board or tiles around corners
of window opening and instead provide a joint that
intersects the corner.
• Avoid using lage one-piece slab of material with a
cut-out in the middle as a surround for the fireplace.
Expansion above the opening will cause cracking at
inside corners. Provide a joint that intersects the inside
corner to avoid cracking.
WARNING
HeatShift System MUST be installed on
this appliance when using 1530CIK—Clean
Installation Kit!

20
Venting Overview
10” (254 mm)
10” (254 mm)
Align the vent center
to the center of the
frame
Top or Rear Outlet
This unit is supplied with a top vent outlet which can
be field-converted to a rear vent outlet. See Appliance
Preparation section for more information.
Vent Material
This unit is approved for installation using
4 x 6-5/8 inches co-axial direct vent pipe and
accessories as listed in the Approved Venting Components
section on pages 61–62 of this manual. Follow the
installation instructions supplied with the individual
venting accessories.
This unit may also be converted to co-linear (2 x 3 in)
venting for use in solid-fuel burning fireplaces and
chimneys using adapters and accessories—see list
in the Approved Venting Components section on pages
61–62 of this manual.
Vent Sealing
Seal all outer coaxial pipe and elbow joints, including
sectioned elbow outer joints, using high quality, high
temperature 2 inch wide self-adhesive aluminum foil
tape (Nashua-322-2 brand or similar). Wrap the tape
completely around all outer joints and press firmly
to seal.
A high temperature black silicone sealant may be used
in the outer joints as a substitute to foil tape.
Ensure all the pipe joints have a minimum of 1¼ inch
overlap.
Wall Thickness
The appliance vent is suitable for penetrating a
combustible wall assembly up to 8 inches in thickness.
A non-combustible wall can be of any thickness up to
the maximum horizontal run of vent pipe allowed for
the particular installation.
Framing Vent in Combustible Walls & Ceilings
When penetrating through combustible walls and
ceilings, frame a minimum of 10 in x 10 in opening and
ensure that the insulation is kept clear of the vent pipe
using either a wall thimble or an attic insulation shield.
Follow the installation instructions supplied with the
individual venting components.
Important Installer Notice – Weather
Sealing & Vapor Barriers
It is the installer’s responsibility to ensure that vent
installations through exterior walls are caulked and
weatherproofed in such a manner as to:
• Prevent rain water from entering the wall from the
weather side by adequately caulking the outer vent
plate to the exterior wall surface.
• Prevent moisture inside the home from penetrat-
ing into the wall structure by ensuring the inside
wall plate is adequately sealed to the inside vapor
barrier.
• Prevent rain water and moisture from entering the
walls by sealing the joints between the outer vent
tube and the inner and outer wall plates.
We recommend the use of a high quality
polyurethane sealant.

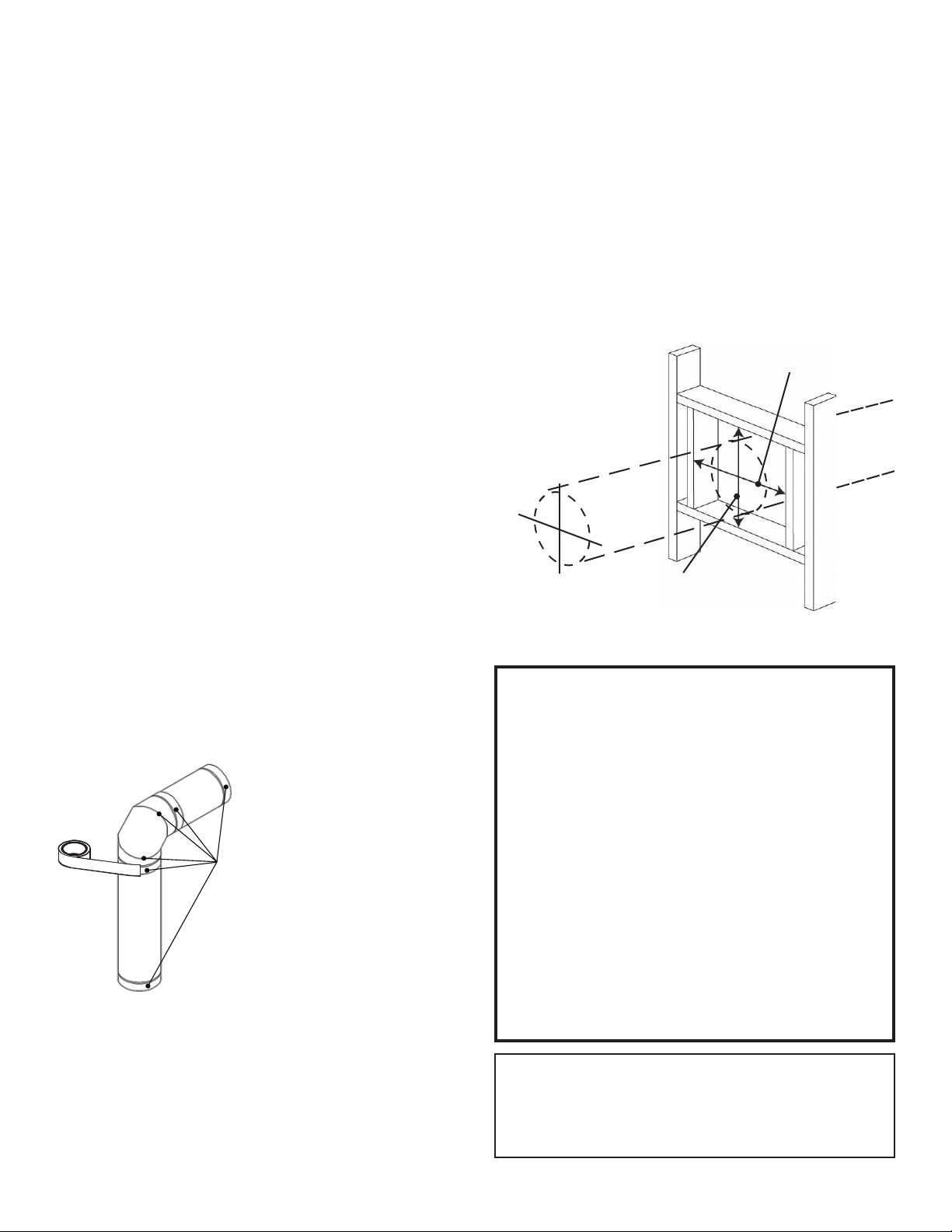

Tape all
OUTER joints
(including all
elbow joints)
All horizontal pipe runs must be graded 1/4 inch per
foot upwards in the direction of the exhaust flow. The
final pipe length, when terminating through the wall
may be graded downwards slightly to prevent water
migration.
