Valor H4 650JN User manual

Installation Manual
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
DANGER
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Installer: Place model/serial number here.
Direct Vent Zero Clearance
Gas Fireplace
natural gas 650JN
propane gas 650JP
H4
4005130-16

Ce guide est disponible en français sur demande.
This appliance is a domestic room-
heating appliance. It must not be used
for any other purposes such as drying
clothes, etc.
This appliance is suitable for
installation in a bedroom or bed
sitting room.
This manual contains instructions to
install the ENGINE ONLY. A trim kit is
REQUIRED to complete the installation.
A barrier screen is provided with the
trim kit. Refer to the manual supplied
with the trim for installation.
The information contained in this manual is believed
to be correct at the time of printing. Miles Industries
Ltd. reserves the right to change or modify any
information or specifications without notice. Miles
Industries Ltd. grants no warranty, implied or stated,
for the installation or maintenance of your heater,
and assumes no responsibility for any consequential
damage(s).
© Copyright Miles Industries Ltd., 2022. All rights reserved.
Designed and manufactured for Miles Industries Ltd.
Valor Fireplaces
190–2255 Dollarton Highway
North Vancouver, BC, Canada V7H 3B1
T 604.984.3496 F 604.984.0246
valorfireplaces.com
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where
not prohibited by local codes. This
appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for
use with other gases, unless a certified
kit is used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
Massachusetts:
The piping and final gas connection must be
performed by a licensed plumber or gas fitter
in the State of Massachusetts. Also, see Carbon
Monoxide Detector requirements in this manual.
WARNING
This product can expose you to chemicals
including Benzene, which is known to the State
of California to cause cancer and birth defects or
other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
Note: Natural gas, in its original state, contains
Benzene.
2

3
Fireplace Safety ................................................. 4
Specifications..................................................... 6
Kits & Accessories.............................................. 7

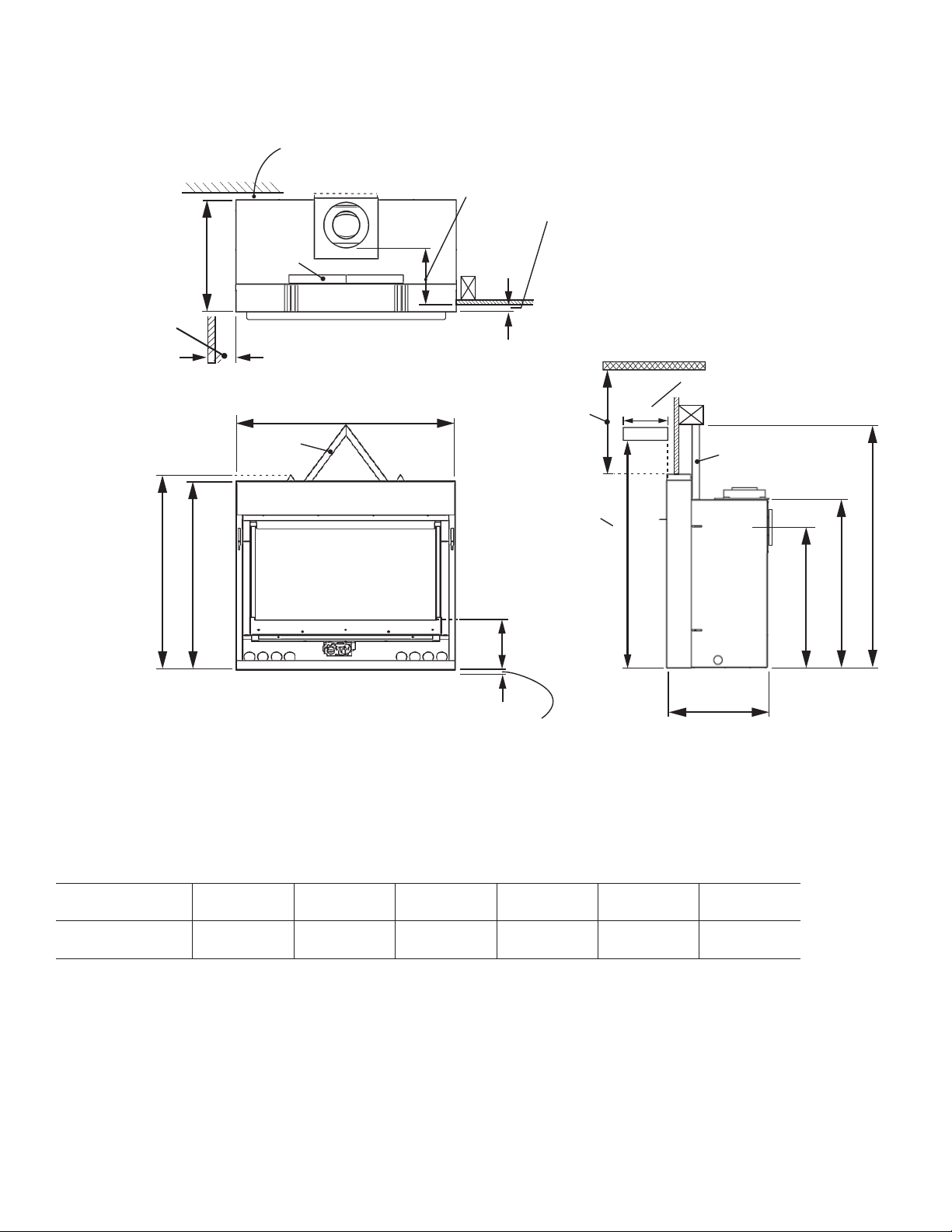

Dimensions & Clearances................................. 8
Location .............................................................. 9
Planning ............................................................ 10
Before Installing..........................................................10
Overview ......................................................................11
Framing.........................................................................12
Wall Finish ....................................................................13
Venting .............................................................. 14
Overview ......................................................................14
Co-axial.........................................................................15

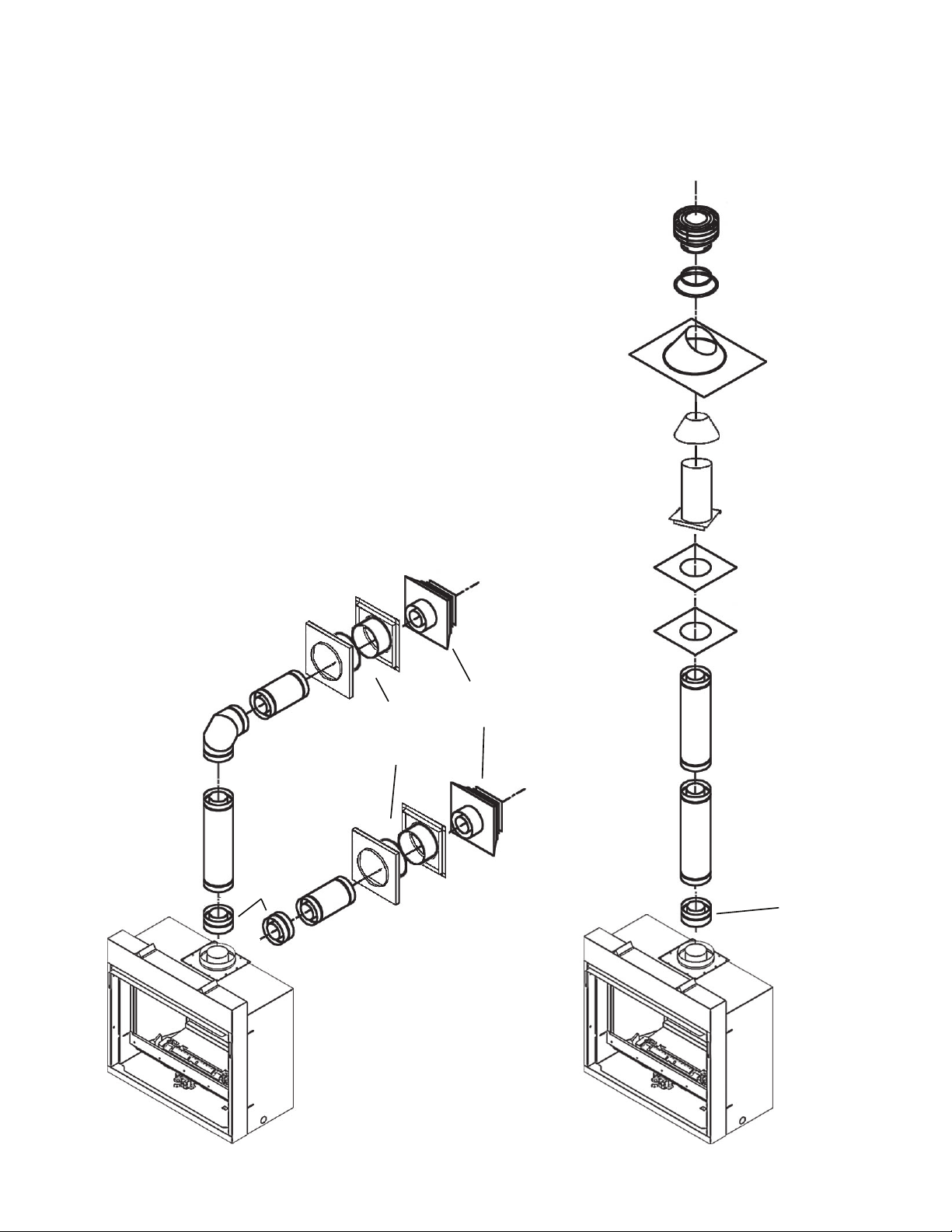

Typical Co-Axial Venting Components....................15
Rear Vent—No Vertical Rise .....................................16
Horizontal Vent Termination Location....................17
Venting Configurations—With Vertical Rise ..........18
Venting Charts ............................................................19
Co-Axial Vertical Installations ..................................20
Co-Linear Conversion................................................ 21
Co-Linear Vent Installations .....................................21
Typical Co-Linear Venting Components .................22
Appliance Preparation.................................... 23
Window & Vent Outlet .............................................. 23
Stand-offs .................................................................. 24
Restrictors................................................................... 25
Installation ....................................................... 26
Appliance into Framing............................................. 26
Gas Supply................................................................... 27
Liner Panels ................................................................ 28
Fuel Beds ..................................................................... 29
Traditional Logs 534LSK............................................29
Ceramic Rocks 534RSK..............................................31
Driftwood 534DWK....................................................33
Refit & Check Window............................................... 35
Wall Switch Kit ............................................................ 37
Remote Control Pairing............................................. 38
Burner aeration.......................................................... 39
Accessories ................................................................. 40
Install Front, Trim and Barrier Screen.................... 40
Install Handset Wall Holder..................................... 40
Wiring Diagram................................................ 41
Approved Venting Components.................... 42
Commonwealth of Massachusetts ...............44
Appendix A – Lighting Instructions Plate..... 46
Appendix B – Remote Control Operation .... 47
Appendix C – Wall Switch Operation ............ 51
Appendix D – Spare Parts............................... 52
Please read this manual BEFORE
installing and operating this
appliance.
This appliance has been professionally installed by:
Dealer Name: ________________________________
Phone:______________________________________
Welcome to Valor®

4
Fireplace Safety
This manual contains very important information about the safe installation and operation of the fireplace. Read and
understand all instructions carefully before installing and operating the fireplace. Failure to follow these instructions
may result in possible fire hazard and will void the warranty.
Replacement manuals are available by contacting the Valor Customer Service at 1-800-468-2567, or by visiting
valorfireplaces.com.
WARNING: Extremely Hot!
Heat and flammability
• Some parts of the fireplace are extremely hot, par-
ticularly the glass window. Use the barrier screen
provided with the trim or a gate to reduce the risk of
severe burns.
• The glass windows can exceed 500°F at full capacity.
• Always keep the appliance clear and free from com-
bustible materials, gasoline, and other flammable
vapors and liquids.
• Be aware of hot wall surfaces! The wall directly above
the fireplace can get very hot when the fireplace
heats. Although safe, it may reach temperatures in
excess of 200ºF depending on choice of trims or op-
tional accessories. Do not touch!
• Be aware of hot hearth/floor surfaces! The hearth or
floor directly in front of the fireplace can get very hot
when the fireplace heats. Although safe, they may
reach temperatures in excess of 200º F depending on
elevation of hearth. Do not step on it! Temperature
of hearth/floor surface will be reduced when barrier
screen is installed.
• Solid wood flooring in front of the fireplace (if al-
lowed) may shrink during the heating season
due to heat.
• Some materials or items, although safe, may discolor,
shrink, warp, crack, peel, and so on because of the
heat produced by the fireplace. Avoid placing candles,
paintings, photos and other combustible objects
sensitive to heat or furniture within 36 inches (0.9m)
around the fireplace.
• Due to its high temperature, the appliance should be
located out of traffic areas and away from furniture
and draperies.
Barrier Screen and Safety
• Any safety screen, guard, or barrier removed for ser-
vicing an appliance must be replaced prior to operat-
ing the appliance
• Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children, and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at-risk individuals in the house.
To restrict access to a fireplace or stove, install an
adjustable safety gate to keep toddlers, young chil-
dren, and other at-risk individuals out of the room
and away from hot surfaces.
• A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Do not put
furniture or other objects
in this space in front of
WKHȴUHSODFH
36” [0.9 m]
)LUHSODFH
Hearth

5
WARNING
Do not operate this appliance with the
glass front removed, cracked, or broken.
Replacement of the glass front should
be performed by a licensed or qualified
service person. Do not strike or slam the
glass front.
• Clothing or flammable material should not be placed
on or near the appliance.
Glass window
• The glass front assembly must be in place and sealed
before the unit can be placed into safe operation.
• The glass front assembly must only be replaced as a
complete unit, as supplied by the fireplace manufac-
turer. No substitute material may be used.
• Do not use abrasive cleaners on the glass front as-
sembly. Do not attempt to clean the glass front when
it is hot.
Venting
• This unit must be used with a vent system as de-
scribed in this manual. No other vent system or com-
ponents may be used.
• Never obstruct the flow of combustion and ventila-
tion air. Keep the front of the appliance clear of all
obstacles and materials for servicing and proper
operation.
• This gas fireplace and vent assembly must be vented
directly to the outside and must never be attached to
a chimney serving a separate solid fuel burning ap-
pliance. Each gas appliance must use a separate vent
system. Common vent systems are prohibited.
Intended use
• This appliance is designed and approved as a supple-
mental heater and provides the potential for most
energy conservation when used while attended. The
use of an alternate primary heat source is advisable.
• This unit is not for use with solid fuel.
• Do not use this heater as a temporary source of heat
during construction.
Installation and Servicing
• Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning might be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control com-
partments, burners, and circulating air passageways
of the appliance be kept clean.
• Do not use this appliance is any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
the control system and any gas control that has been
under water.
Fireplace Safety

6
XX
Approval & Codes
This appliance is certified to ANSI Z21.88/CSA 2.33
American National Standard / CSA Standard for
Vented Gas Fireplace Heaters for use in Canada and
USA, and to CGA 2.17-M91 High Altitude Standard in
Canada. This appliance is for direct vent installations.
This appliance complies with CSA P.4.1-15 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in
the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 or the Natural Gas
and Propane Installation Code CAN/CGA-B149.1. Only
qualified licensed or trained personnel should install
this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70
or the Canadian Electrical Code, CSA C22.1.
Ratings
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500
feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas
utility to confirm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Model 650JN 650JP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 24,000 24,000
Input Minimum (Btu/h) 6,500 13,000
Manifold Pressure (in w.c.) 3.95” 10”
Minimum Supply Pressure (in w.c.) 5” 11”
Maximum Supply Pressure (in w.c.) 10” 14”
Main Burner Injector Marking 82-650 92-260
Pilot Injector Marking 35 27
Min. Rate By-Pass Screw 125 125

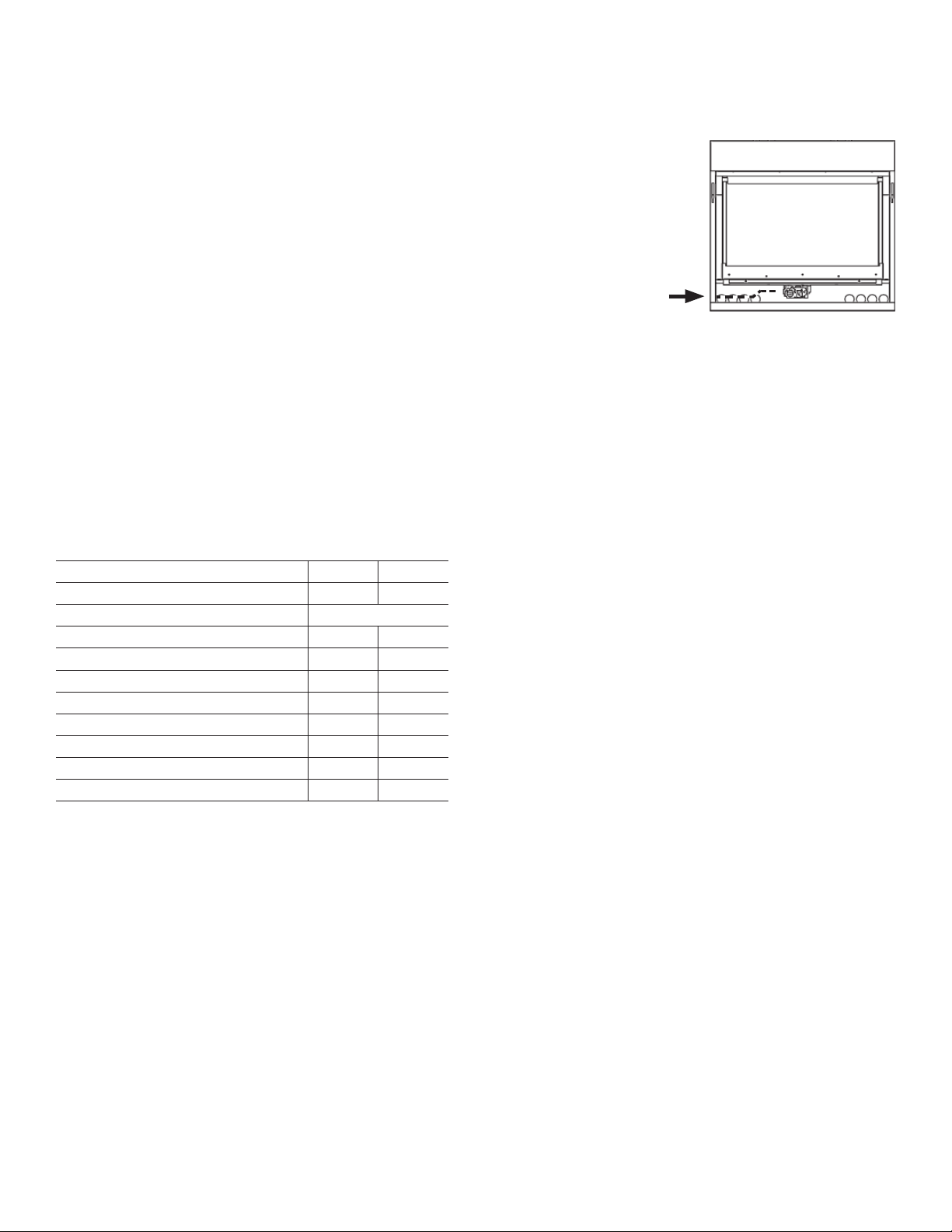

Supply Gas
Heater engine 650JN is
used with natural gas.
Heater engine 650JP is
used with propane gas.
The supply pressure must
be between the limits
shown in the Ratings
section.
The supply connection is 3/8” NPT. The opening of the
gas supply line is at the left side of the appliance.
Venting Options
Co-axial direct vent installations (solid piping)
A list of all approved venting accessories can be
found in section Approved Venting Components pages
42–43 in this manual.
Note: An 817VAK Vent Adapter is required in all cases.
Co-linear direct vent installations (flexible
piping)
Converts the appliance outlet collars to accept two
3-inch diameter flex liners for installation into existing
solid-fuel burning fireplaces and chimneys. requires
a co-linear adapter at the appliance and either a co-
linear terminal or co=linear-to-co-axial adapter and
terminal at the top of teh chimney. A list of approved
venting accessories can be found in section Approved
Venting Components pages 42–43 in this manual.
Gas Conversion
The 650J fireplace is offered with natural gas or
propane gas. It can be converted from one gas to the
other. See installation manual supplied with the gas
conversion kit for more information.
Outdoor Conversion Kit
The 650J model is supplied standard for indoor
applications and may be adapted for installation in
specific “outcoor” applications protected from weather
as defined in the GV60CKO Outdoor Conversion Kit
manual.
Specifications

7
Required Kits
Information accurate at the time of printing and subject to change without notice.
Optional Accessories
Fuel Beds (choose one)
534LSK Traditional Log Set
534RSK Rock Set
534DWK Driftwood Kit
Liner Panels (choose one)
621VRL Valor Red Brick Liners
622LSL Ledgestone Liners
620FBL Fluted Black Liners
618RGL Reflective Glass Liners
Surrounds (choose one)
660LSV Landscape Surround Vintage Iron
660LSB Landscape Surround Black
660SSV Square Surround Vintage Iron
Inner Fronts (choose one) Barrier
Screen
661BSB Inner Bezel Black
4003314661BSN Inner Bezel Nickel
661BSC Inner Bezel Copper
Gas Conversion Kits
650PGK Conversion to propane gas
650NGK Conversion to natural gas
Other Accessories
GV60CKO Outdoor Fireplace Conversion Kit
755CFK Circulating Fan Kit
RBWSK Remote Battery & Wall Switch Kit
RCK400
GV60VM
GV60WIFI
WiFi connection kits. See your dealer to
find out which kits are required for your
installation.
Hearth Gate
Hearth gates such as Cardinal’s
VersaGates are available at retail stores
carrying safety products for children.
WARNING
Optional electrical accessories ARE NOT
ALLOWED when adapting appliance for
outdoor use.
Kits & Accessories

8
Mantel
36”
(914 mm)
min.
See table
Stand-off Stand-off
See
table
A
B
23-1/8” (587 mm)
to rear vent center
16”
(406 mm)
26-3/4” (679 mm)
38-5/8” (981 mm)
32-3/16” (817 mm)
29-3/4” (756 mm)
30-3/4” (781 mm)
3” (76 mm) min.
To side wall from
inner frame
in front of
the appliance
8-1/4” (210 mm)
From finished
wall surface
to top vent
MINIMUM
3/4” (19 mm)
from finished
wall surface
to front of
appliance
MINIMUM 3/4” (19 mm)
clearance to combustible
at rear
Stand-off
16” (406 mm)
NOTE: Backing plate requires a MINIMUM of 1/2” (13 mm) space
to floor/hearth in front for air flow. Raise the appliance accordingly.
7-7/8”
(199 mm)
Mantle depth “A” 0–2”
[0–51 mm]
2–4”
[51–102 mm]
4-6”
[102–152 mm]
6–8”
[152–203 mm]
8–10”
[203–254 mm]
10–12”
[254–305 mm]
Mantel height “B” 31-1/4”
[794 mm]
34”
[864 mm]
35”
[889 mm]
36”
[914 mm]
37”
[940 mm]
38”
[965 mm]
Dimensions & Clearances
Dimensions
Clearances—Mantel or Shelf
Top View
Front View Right Side View

9
Fronts and Trims
For fronts and trims dimensions, refer to instructions
provided with each kit.
Floor/Hearth
This appliance is approved for installation directly on
combustible material such as plywood and so on. Vinyl,
carpet, and soft flooring require sheet metal extending
the whole width and depth under the appliance.
This appliance does not require a hearth. Combustible
flooring may extend up to the front of the unit.
Corner Installation
Location
46”(1168 mm) min.
46”(1168 mm) min.
65”(1651 mm) min.
clearance to
combustible
at rear
MINIMUM 3/4”(19 mm)
NOTE
The surround backing plates for this appliance
require a MINIMUM space of 1/2” (13 mm)
between their bottom edge and the surface of
the finished floor/hearth in front for air flow.
Raise the appliance accordingly.

10
Planning Before Installing
Attention
ONLY qualified licensed or trained personnel
should install this appliance.
1. BEFORE YOUR START, YOU NEED TO KNOW FROM
THE HOMEOWNER:
• Required accessories to install with fireplace (lin-
ers, fuel bed, front, surround trim);
• Height of appliance and hearth, if used;
• Thickness an type of wall finish around appli-
ance’s opening;
• Venting configuration;
• Optional accessories, if used.
2. Unpack the appliance, removing all items packed
inside and around it. Recycle packaging.
3. Check that you have everything required for the in-
stallation, using the Pack Content sheet. Also, check
that you have:
• Fuel bed (packed separately);
• Liner panels (packed separately);
• Venting accessories;
• Gas conversion kit, if necessary;
• Optional accessories;
• Electrical accessories, if necessary.
4. Carefully read the Installer’s Checklist included
with the fireplace for the installation sequence.
Read also this manual and the fronts/trims
manuals to have all information necessary for the
installation.
WARNING
Optional electrical accessories ARE NOT
ALLOWED when adapting appliance for
outdoor use.

11
Planning Overview
650J Fireplace
Framing—see page 12
Supplied with top facing vent outlet; can be
converted to rear facing outlet—see page 23
Remote Handset Wall Holder
Fire ON/OFF Wall Switch
(supplied, recommended)
Surround backing plate required
(sold separately)
Inner front bezel with
barrier screen required
(sold separately)
Wall Finish
May be combustible material.
NOTE: Finished wall surface,
including tiles, etc. MUST be
minimum 3/4” (19 mm) set back
from the front face of the heater.
Hearth (if used) may be
combustible material
NOTE: Appliance
projects forward of
finished wall. Allow for
tile, etc.
Combustible framing
allowed beneath
fireplace. When
the appliance is
installed directly on
carpeting, tile or other
combustible material
other than wood
flooring, the appliance
shall be installed on a
metal or wood panel
extending the full
width and depth of the
appliance.
Minimum 1/2” (13 mm) gap required below
backing plate to surface of hearth or floor in front
for air flow. Raise entire appliance accordingly.
WARNING
SAFETY WARNING! The H4 is a very effective radiant heater.
HOT WALL SURFACES! The wall directly above the fireplace may be constructed of combustible
materials and, although safe, may become very hot when the fireplace is operating. Do not
touch! Finish the wall directly above the fireplace using materials and methods suitable for
elevated temperatures.
HEARTH/FLOOR SURFACES! The hearth/floor in front of the fireplace can get very hot. Locating
the unit raised above the hearth/floor and using the screen front will help reduce hearth
temperatures. Note that some materials, although safe can degrade due to heat—take this
into consideration when choosing materials.
Note: This appliance may be installed in outdoor, weather protected environments
as defined in the GV60CKO Outdoor Conversion Kit instruction manual.
Min. 3/4”
(19 mm)
Min. 1” (25 mm) for
combustible material

12
Planning Framing
• A non-combustible hearth is not necessary in front of
this appliance.
• Note that the appliance is installed at the framing
stage and secured to framing using support angles.
See page 24, 26. Wall finish is then installed
afterwards over the support angles up to the front
frame on the appliance, on the sides and up to the
stand-offs on the top.
NOTE
When the appliance is installed directly on
carpeting, tile or other combustible material
other than wood flooring, the appliance shall be
installed on a metal or wood panel extending the
full width and depth of the appliance.
38-3/4”(984 mm) to underside of
header and cavity height
30-3/4” (768 mm)
to wall finish
33”(838 mm)
Wall Finish
FRAMING DIMENSIONS
16”(406 mm) min. straight out
or off the top venting.
Allow for elbow if rear vent with rise.
MINIMUM 1/2”(13 mm) space
between bottom of backing
plate and surface of hearth or
floor finish in front for air flow
Combustible framing
allowed beneath fireplace.
When the appliance is
installed directly on
carpeting, tile or other
combustible material
other than wood
flooring, the appliance
shall be installed on a
metal or wood panel
extending the
full width and recessed
depth of the appliance

13
Planning Wall Finish
Plan the Wall Finish
Non-Combustible Materials Specifications
Non-combustible materials are those which will not
ignite and burn. Such materials are those consisting
entirely of steel, iron, brick, tile, concrete, slate, glass
or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 °C shall be considered
non-combustible materials.
Combustible Materials Specifications
Materials made of or surfaced with wood, compressed
paper, plant fibers, plastics, or other material that
can ignite and burn, whether flame proofed or not,
or plastered or unplastered shall be considered
combustible materials.
Cracking Wall Finishes
If a clean finish with no tile, etc. is desired, joints in the
gypsum board will require special attention if future
cracking is to be controlled.
Shrinkage and differential movement of the framing
and wall board can transmit cracking through to tiles,
etc.
Be aware that temperatures on the wall surface above
the appliance can exceed 185°F. Although safe, this is
too hot for many many materials and finishes. Choose
materials that will withstand these temperatures.

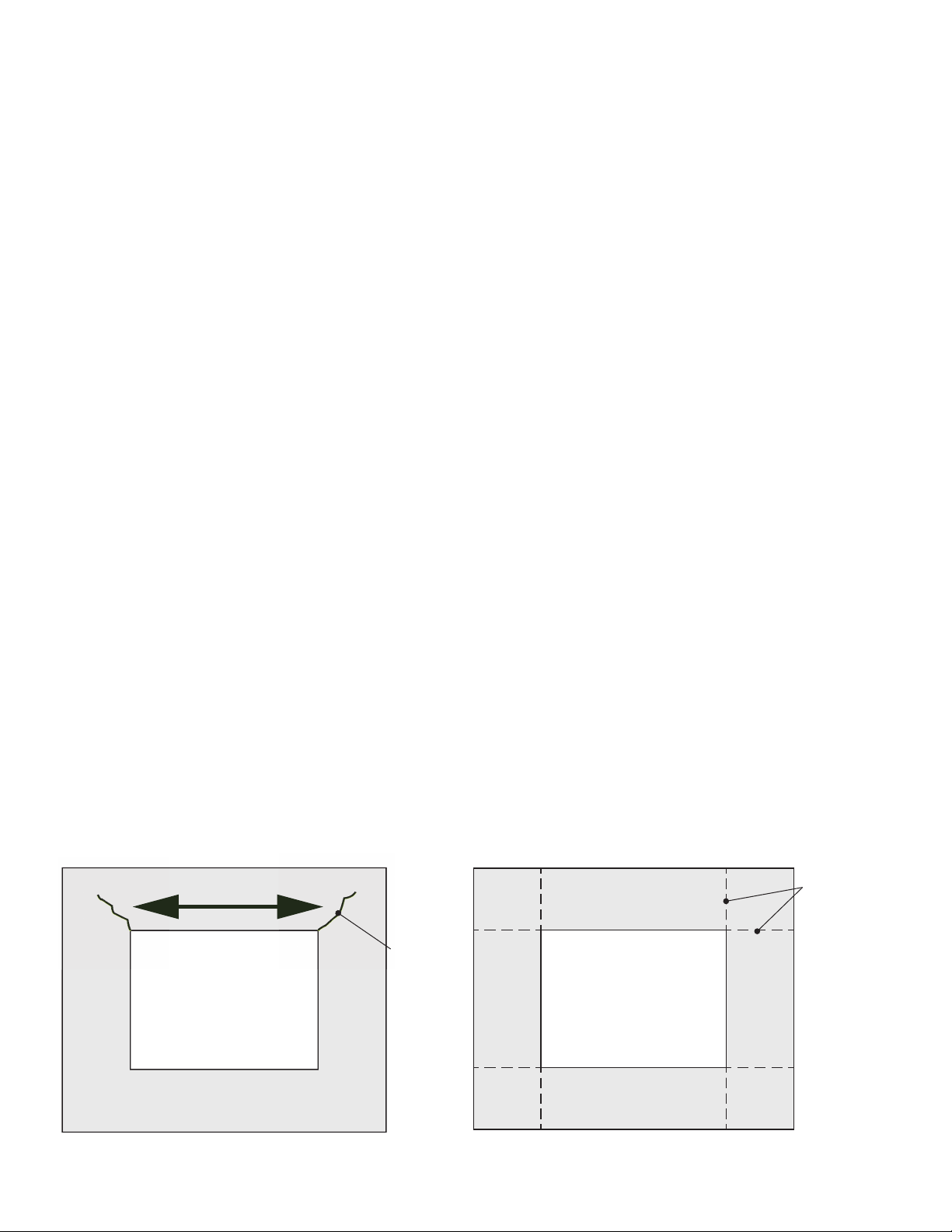

Cracks
Provide joints
either here or
here
Below are some tips on how to best avoid any cracking:
• Allow materials to dry thoroughly before finishing the
wall. Some materials, such as cement board has the
ability to absorb up to 30 percent of its weight in wa-
ter and may shrink as much as 1/8” over a 48” length
when drying from a saturated condition. Running the
fireplace for an extended period before final finishing
will help drive out moisture. Moisture is the leading
cause of material shrinkage!
• Always pre-drill screw holes through cement board
and use screws with self-milling head.
• Always use mesh tape over joints.
• Always stagger joints in wall board.
• Behind joints, double up studs or use studs “on the
flat” to add extra support to the joint. Adhesive on
the backside of wall board behind any joints can help
control differential movement.
• Use multiple, thinner coats of joint compound and al-
low to dry thoroughly between coats.
• Ensure framing materials are dry.
• After finishing the wall, introduce heat gradually to
slowly dry any excess moisture rather than drying too
fast.
• Avoid notching cement board or tiles around corners
of window opening and instead provide a joint that
intersects the corner.
• Avoid using large, one-piece slab of material with a
cut-out in the middle as a surround for the fireplace.
Expansion above the opening will cause cracking at in-
side corners. Provide a joint that intersects the inside
corner to avoid cracking.

14
Venting
Top or Rear Facing Outlet
This appliance is supplied with a top vent outlet which
can be field-converted to a rear facing vent outlet. See
page 23 for more information.
Vent Material
This appliance is approved for installation using
4 x 6-5/8-inch co-axial direct vent pipe and accessories
as listed in Approved Venting Components pages
42–43. Follow the installation instructions supplied
with the individual venting accessories.
This appliance may also be converted to co-linear
venting with two 3-inch pipes for use in solid-fuel
burning fireplaces and chimneys using approved
adapers and accessories. See Co-Linear Conversion
pages 21–22 and Approved Venting Components
pages 42–43.
Vent Sealing
Seal all outer co-axial pipe and elbow joints, including
sectioned elbow joints, using high quality, high
temperature 2-inch wide self-adhesive aluminum foil
tape (Nashua-322-2 brand or similar). Wrap the tape
completely around all joints and press firmly to seal.
A high-temperature black silicone sealant may be used
in the outer joints as a substitute to foil tape.
Ensure all the pipe joints have a minimum of 1-1/4 inch
overlap.
Wall Thickness

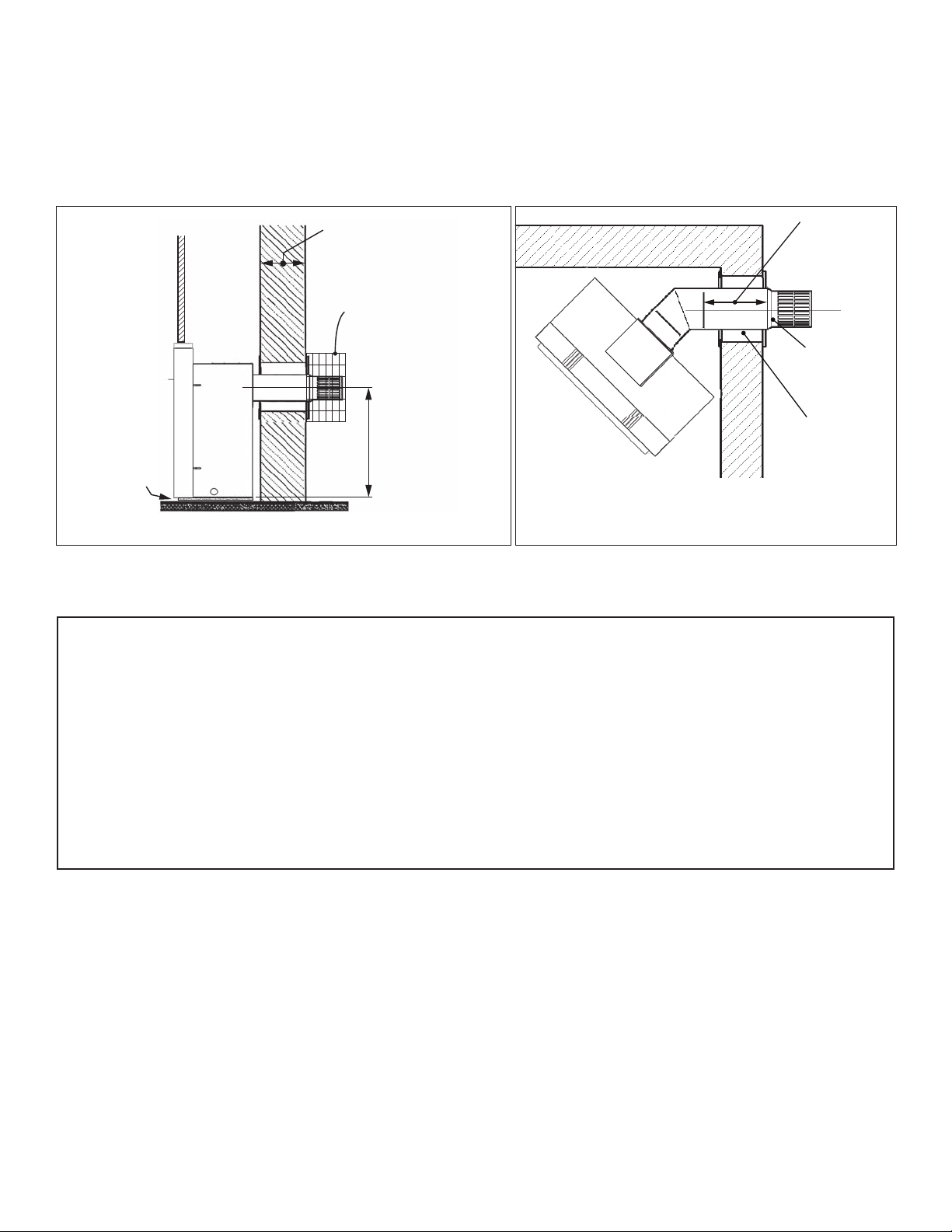

The appliance vent is suitable for penetrating a
combustible wall assembly up to 14 inches in thickness.
A non-combustible wall can be of any thickness up to
the maximum horizontal run of vent pipe allowed for
the particular installation.
Vent Penetration Through Walls & Ceilings
Combustible
When penetrating through combustible walls and
ceilings, frame a minimum of 10 inches x 10 inches
opening and ensure that the insulation is kept clear
of the vent pipe using either a wall thinble or an attic
insulation shiedl. Follow the installation instructions
supplied with the individual venting components.
Non-combustible
If the wall is totally non-combustible (e.g. masonry
block or concrete), mark for a 7-inch circular hole.
In both cases, the center of the hole should line up with
the center line of the horizontal vent.
Overview
Tape all joints
(including all
elbow joints)
10” (254 mm)
10” (254 mm)
Align the vent
center to the
center of the
frame
All horizontal pipe runs must be graded 1/4 inch
per foot upwards in the direction of the exhaust
flow. The final pipe length, when terminating
through the wall may be graded downwards slightly
to prevent water migration.

15
HORIZONTAL
TERMINATION
2-PIECE
WALL
THIMBLE
PIPE
LENGTH
PIPE
LENGTH PIPE
LENGTH
817VAK
817VAK
PIPE
LENGTH
90˚ ELBOW
CEILING
FIRESTOP
ATTIC
FIRESTOP
ATTIC
INSULATION
SHIELD
FLASHING
STORM
COLLAR
VERTICAL
TERMINATION
Venting
Typical Co-Axial Venting Components
Co-axial

16
Important Installer Notice—Weather Sealing & Vapor Barrier
It is the installer’s responsibility to ensure that vent installations through exterior walls are caulked and
weatherproofed in such a manner as to:
• Prevent rain from entering the wall from the weather side by adequately caulking the outer vent plate to the
exterior wall surface.
• Prevent moisture inside the home from penetrating into the wall structure by ensuring the inside wall plate is
adequately sealed to the inside vapor barrier.
• Prevent rain water and moisture from entering the walls by sealing the joints between the outer vent tube and
the inner and outer wall plates.
We recommend the use of a high quality polyurethane sealant.
Venting Co-axial
Rear Vent—No Vertical Rise
The horizontal vent run cannot be extended by the use of any vent accessory pipes.
Rear vent—no vertical rise Corner rear vent—no vertical rise
26”(660 mm) max.
vent length
(14”(356 mm) max.
enclosed within
combustible wall cavity)
* raise the
appliance by
at least 1/2”
(13 mm) from
surface of
hearth or floor
finish in front
to allow for
air gap below
backing plate
23-1/8”
(587 mm)
from the
bottom of
appliance*
Use 658TG or 845TG
vent guard with
accessible terminals
located at less than
7’ (2.13 m) above
ground
Approved
through wall
shield/thimble
Approved
side wall
termination
Vent pipe max.
15”(381 mm)
after 45° elbow

17
Venting Co-axial
Horizontal Vent Termination Location
Horizontal Vent Termination Location

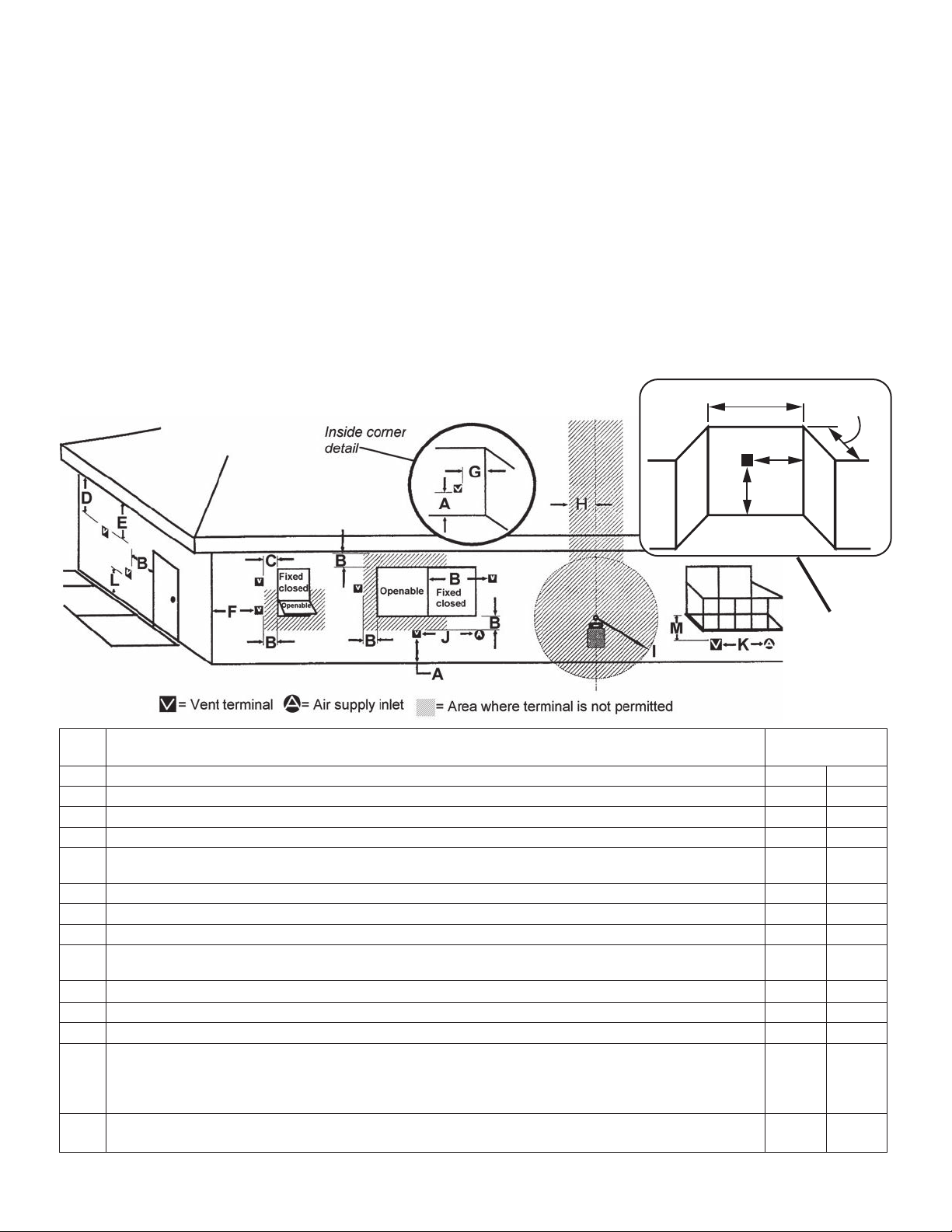

• The vent terminal must be located on an outside
wall or through the roof.
• This direct vent appliance is designed to operate
when an undisturbed airȵow hits the outside vent
terminal from any direction.
• The minimum clearances from this terminal that
must be maintained when located on an outside
wall are shown in ȴgure below. Any reduction in
these clearances could result in a disruption of the
KEY VENT TERMINAL LOCATIONS - MINIMUM DISTANCES MINIMUM
CLEARANCE
Inches Cm
A Clearance above grade, verandah, porch, deck or balcony 12 30
B Clearance to window or door that may be opened 12 30
C Clearance to permanently closed window (recommended to prevent condensation on window) 12 30
DVertical clearance to ventilated soɝt located above the terminal within a horizontal distance of 2 feet (60 cm)
from the center-line of the terminal 18 46
E Clearance to unventilated soɝt 12 30
F Clearance to outside corner (measured from the center of vent) 12 30
G Clearance to inside corner (measured from the center of vent) 12 30
HHorizontal clearance to center-line of meter/regulator assembly located within 15 feet (4.6bm) below the
terminal 36 90
IClearance to service regulator vent outlet 36 90
J Clearance to non-mechanical air supply inlet to the building or the combustion air inlet to any other appliance 12 30
K Clearance to a mechanical air supply inlet 72 180
L
Clearance above paved sidewalk or a paved driveway located on public property
Note: A vent must not terminate directly above a sidewalk or paved driveway, which is located between two single-
family dwellings and serves both dwellings. THIS DOES NOT APPLY to direct vent, non-consdensing appliances in
the Province of Ontario.
84 210
MClearance under a verandah, porch, deck or balcony
Only permitted if veranda, porch, deck or balcony is fully open on a minimum of 2 sides beneath the ȵoor 12 30
Note: Local codes and regulations may require di΍erent clearances.
V
G
A
Min. 72” Max. 72”
Alcove detail
(open on one
side) Normal
ceiling/soɝt
clearances
apply.
airȵow or a safety hazard. Local codes or regulations
may require greater clearances.
• The vent terminal must not be recessed into a wall
or siding.
• The vent terminal should be positioned where any
snowdrifts will not cover it.
• Sidewall vent terminations require a terminal guard
such as 658TG or 845TG when accessible—within 7’
of ground.

18

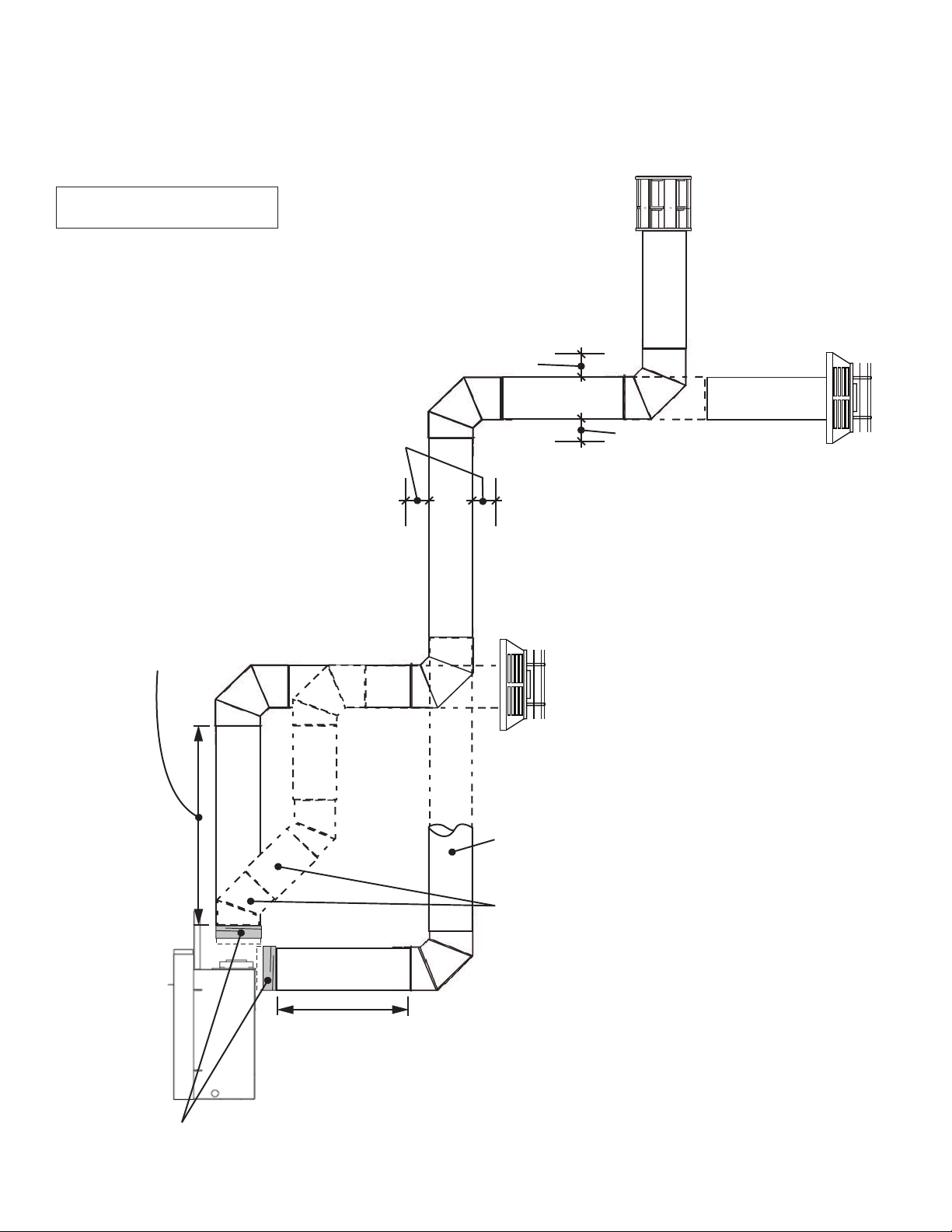

4 x 90º ELBOWS MAXIMUM
(or equivalent)
Venting Configurations—With Vertical Rise
Min. 6” rise
for top outlet
817VAK adapter required
for top or rear outlet
Max. 24” before
elbow
Min. 12” rise
45° elbow directly
on flue collar is
allowed with min. 6”
pipe between elbows
1”min.
all around
vertical pipe
3”min.
above top of
horizontal pipe
1”min. around
bottom & sides of
horizontal pipe
V1
V2
V3
H1
H2
Venting Co-axial
Example 1
Value V = V1 (6’) + V2 (6’) + V3 (2’)= 14’
Value H = H1 (3’) + H2 (3’) = 6’

19
Horizontal Run (ft)
Top Facing OutletRear Facing Outlet
Vertical Rise (ft) Vertical Rise (ft)
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
2 4 6 8 10 12 14 16
1
1
2 4 6 8 10 12 14 16
1
35 35
0.5
1
2
3
12 3
0.5
1
2
3
12 3
Horizontal Run (ft)
NO INSTALLATION
NO INSTALLATION
NO INSTALLATION
NO INSTALLATION
Example 1
How to Read the Venting Charts
The charts below apply to co-axial roof or wall termina-
tion in installations with vertical rise. See page 17 for
installations with no vertical rise.
1. The total length of the vent pipe cannot exceed
40 feet.
2. The minimum vertical height with roof termination is
10 feet.
3. Any combination of rise and run can be used as long
as they are within the allowable limits shown on the
chart below.
4. A maximum of 4 x 90 degrees elbows—or equivalent
(2 x 45 degrees = 90 degrees)—can be used.
Venting
Venting Charts
Co-axial
5. Each 90 degrees elbow installed on the horizon-
tal plane is equivalent to a 3 feet horizontal pipe;
therefore, 3 feet must be subtracted from allowable
horizontal run. (45 degrees elbow is equivalent to
18inches horizontal pipe.)
6. All horizontal pipe runs must be graded 1/4 inch per
foot upwards in the direction of the exhaust flow.
The final pipe length, when terminating through the
wall may be graded downwards slightly to prevent
water migration.
7. Maximum co-linear venting is 40 feet.
8. A restrictor is required for all installations—see
Restrictors page 25 for more information.
Allowable Co-Axial Vent Configurations with Vertical Rise

20
‘H’
Horizontal
overhang
Vertical
wall
Termination
cap
Storm
collar
Roof
flashing
Plumber’s tape
fixed to wall strap
Wall strap
Ceiling
firestop
Ceiling
support
Offset elbows
Min.
18”
Overhang should
not extend beyond
vent if within 48”of
termination cap
Min. 24”
(unvented soffit)
Min. 36”
(vented soffit)
Joists
10”
(254 mm)
10”
(254 mm)
Through-the-roof installation
Firestop hole
Co-Axial Vertical Installations
• Check the roof pitch to determine which roof flash-
ing will be needed. See Approved Venting Components
pages 42–43 for allowable components.
• The distance from the roof to the lowest terminal
discharge opening (“H” in figure) depends on the roof
pitch and must be in accordance with the manufac-
turer’s instructions supplied with the termination unit.
Note: The venting system for these appliances is consid-
ered to be Special Venting System.The rule in the CAN/
CGA-B149 Installation Code requiring a minimum vent
height of 2 feet above any portion of a building within
10 feet does not, therefore, apply.
• The minimum clearances to combustible materials
all round the vent pipes must be in accordance with
the dimensions shown in Venting Configurations—With
Vertical Rise page 18 of this manual.
• Drop a plumb from the ceiling to the center of the ap-
pliance vent opening. Mark the position on the ceiling.
Drill a small hole at the marked position.
• Determine the position where the vent will pass
through the roof. If directly above the position where
it penetrates the ceiling, drop a plumb from the roof
to the small hole in the ceiling and mark the roof at
this spot.
If rafters or other obstructions will prevent a vertical
exit or if clear attic space is desired, the roof outlet
can be offset using 45 degrees elbows.
Drill a small hole at the marked position.
• A ceiling firestop must be installed at the second floor
and higher floors.
A ceiling support should be used below the flat ceiling.
To install the firestop and support, cut and frame a
10inches (254 mm) square hole centered on the small
hole previously drilled.
• Fit vent accessory elbows a pipe lentghs as required
up through ceiling support boxes and firestops.
If installation includes offset, support the offsetting
pipes every 3 feet (1 m) with wall straps as shown.
• Cut a hole in the roof centered on the small hole. The
hole must allow for the minimum clearrences to com-
bustible materials. See Venting section in this manual.
• Fit pipe lengths through the roof. Fit roof flashing
securing it with roofing nails.
• Fit storm collar and termination cap.
Venting Co-Axial
Roof Pitch Minimum
"H" [feet]
Flat to 7/12 1'
Over 7/12 to
8/12 1.5'
Over 8/12 to
9/12 2’
Over 9/12 to
10/12 2.5’
Over 10/12 to
11/12 3.25’
Over 11/12 to
12/12 4’
Over 12/12 to
14/12 5’
