VAN CAFE RTD SIDE LADDER RAM PROMASTER User manual

RTD SIDE LADDER
RAM PROMASTER
INSTRUCTION MANUAL
Thank you for purchasing the Van Cafe RTD Side Ladder. Finally gain access to the gear
you have mounted on the top of your van - securely and comfortably! The Van Cafe RTD
Side Ladder was designed with function in mind, but we didn't skimp on the aesthetics,
either.
Created in Fort Collins, Colorado, the Van Cafe Rooftop Deck system is the product of
years of manufacturing expertise. Here at Van Cafe, we are innovators, thinkers, creators,
doers and, most importantly, users! We love the outdoors and the idea of sharing experi-
ences and memories with our families, friends, and our customers.
As always, please reach out to us at suppor[email protected] with any questions.

RTD SIDE LADDER - PROMASTER
page | 2
Installation questions? Email [e-mail]
CONTENTS
Unboxing..........................................................................................3-4
Required Tools ................................................................................... 5
ProMaster Van Fitment ..................................................................... 6
Installation Step - 1 ............................................................................ 7
Installation Step - 2 ............................................................................ 8
Installation Step - 3 ............................................................................ 9
Installation Step - 4 ..........................................................................10
Installation Step - 5 ..........................................................................11
Installation Step - 6 ..........................................................................12
Installation Step - 7 ..........................................................................13
Torque Specs ...................................................................................14
PROMASTER PRODUCT &
COMPONENT LINKS
Roofop Deck: Ram ProMaster
Rooftop Deck: Plank Kit for ProMaster
Rooftop Deck: Deck Board Kit
Rooftop Deck: Filler Panel Kit for ProMaster

RTD SIDE LADDER - PROMASTER
page | 3
Installation questions? Email [e-mail]

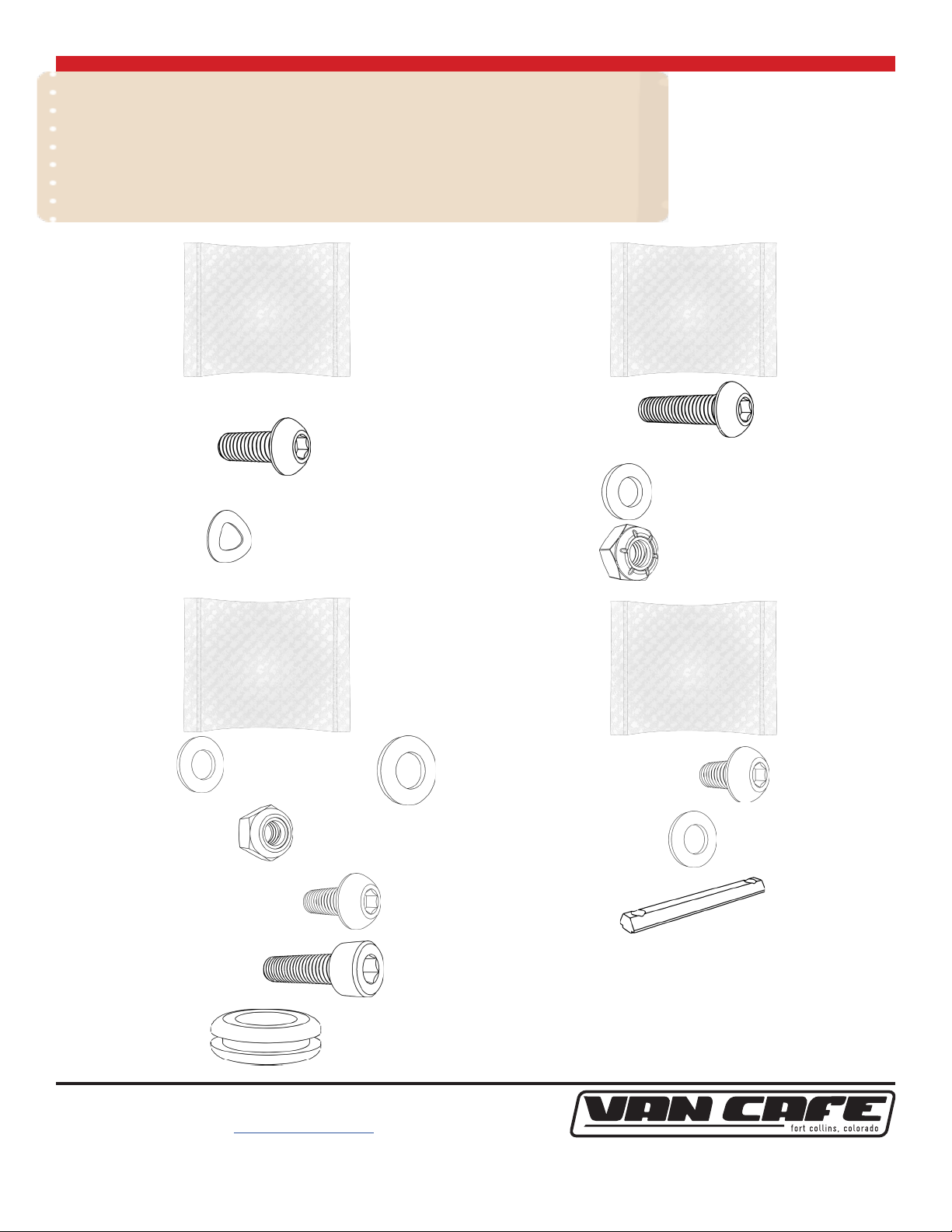

UNBOXING AND REQUIRED TOOLS
Hardware KIT contents
A
HARDWARE BAG
8x
M6 wavy washer
#006006
28x
M6 Nyloc Nut
#005989
M6 x 16mm
button Head Screw
#005991
8x
M6 x 25mm
button Head Screw
#005990
28x
M6 washer
#004095
56x
B
HARDWARE BAG
C
HARDWARE BAG D
HARDWARE BAG
8x
M8 Washer SM
#004096
8x
M8 Nyloc Nut
#000833
4x
M8 x 20 button head screw
#003094
4x
M8 x 30 socket head screw
#003001
2x
Push-in grommet
#006082
4x
M8 x 16 button head screw
#003095
4x
M8 washer
#005281
2x
3in T-Nut
#003681
8x
M8 Washer LG
#005281

RTD SIDE LADDER - PROMASTER
page | 4
Installation questions? Email [e-mail]

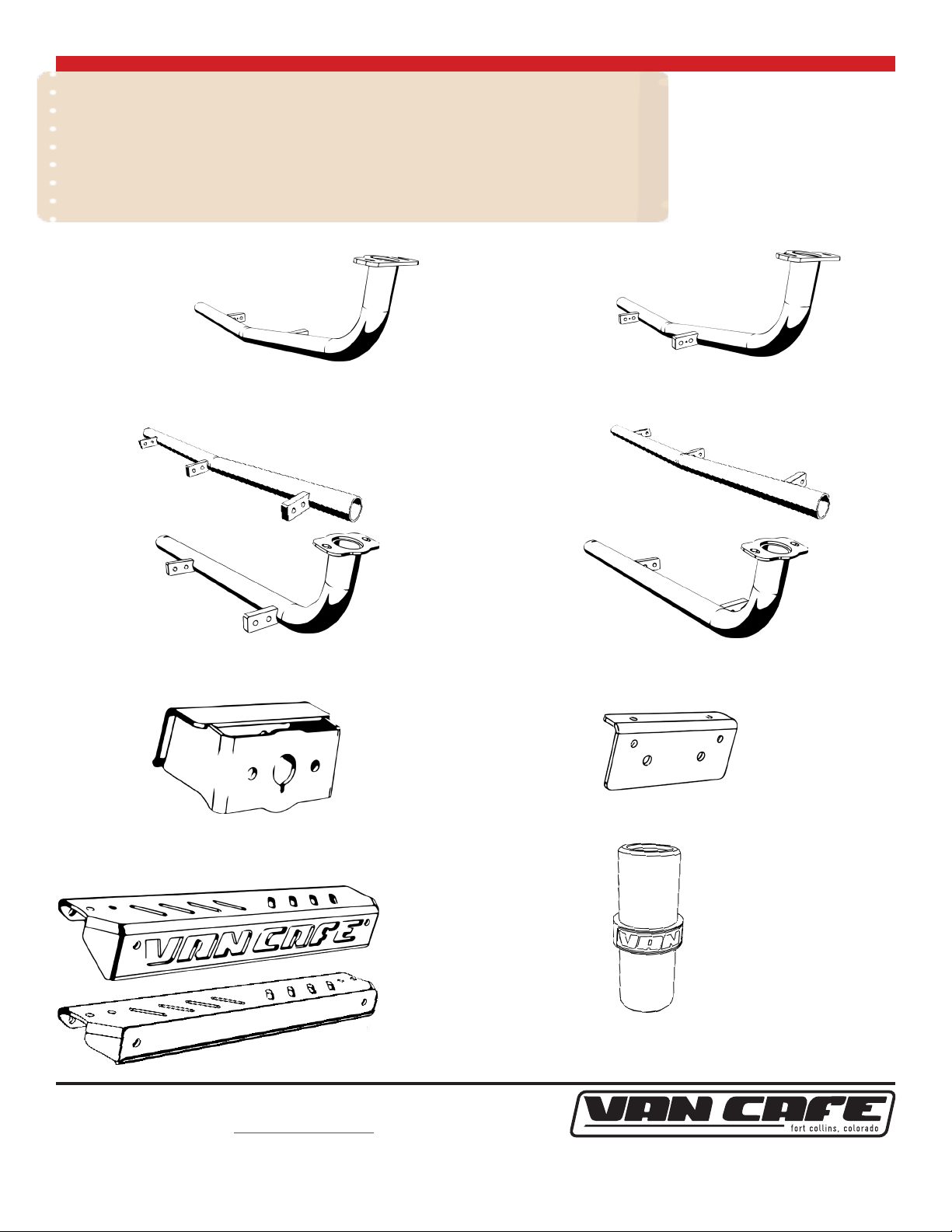

UNBOXING AND REQUIRED TOOLS
transit ladder kit CONTENTS
1x
PROMASTER rail - Upper left
#006039
1x
PROMASTER rail - Upper
#006040
1x
PROMASTER rail - mid left
#006041
1x
PROMASTER rail - mid right
#006042
1x
PROMASTER rail - lower left
#006043
1x
PROMASTER rail - lower Right
#006044
2x
PROMASTER ladder - outside pinch weld bracket
#006052 2x
inside pinch weld bracket
#005930
top
bottom
top
bottom
top
bottom
top
bottom top
bottom
top
bottom
4x
ladder bung
#005930
7x
steps
#005931 - 1x logo step
#005932 - 6x regular steps

RTD SIDE LADDER - PROMASTER
page | 5
Installation questions? Email [e-mail]
6MM ALLEN WRENCH
5MM ALLEN WRENCH
4MM ALLEN WRENCH
UNBOXING AND REQUIRED TOOLS
REQUIRED TOOLS
RUBBER MALLET
TAPE MEASURE
13MM WRENCH
10MM WRENCH
STEP LADDER
1/4in TORQUE WRENCH
*INCH POUNDS

RTD SIDE LADDER - PROMASTER
page | 6
Installation questions? Email [e-mail]
PROMASTER VAN FITMENT
THIS ladder IS DESIGNED FOR
2014V-2022 RAM PROMASTERS
RAM PROMASTER
2014-2022
136in Wheelbase High Roof
159in Wheelbase High Roof
159in Wheelbase Extended High Roof

RTD SIDE LADDER - PROMASTER
page | 7
Installation questions? Email [e-mail]

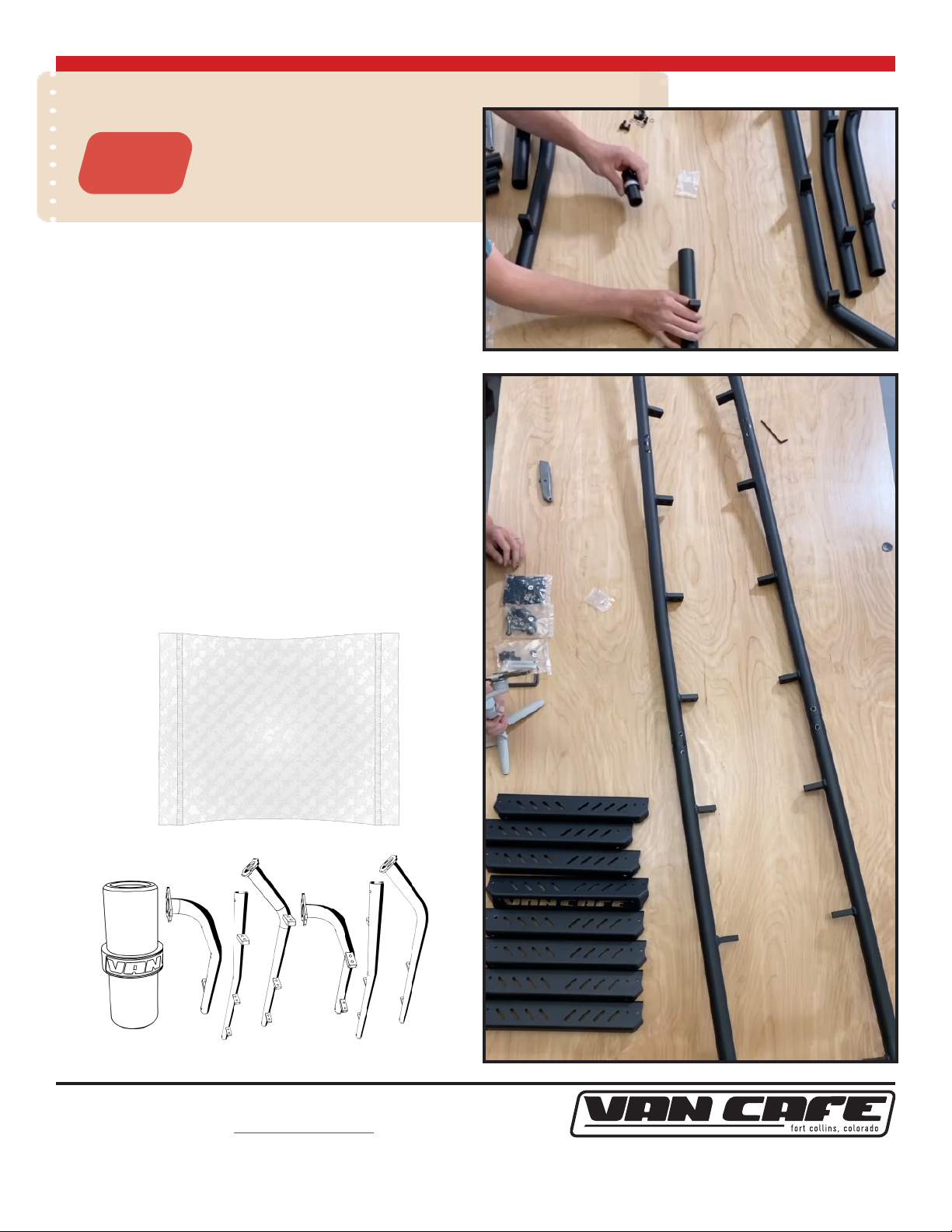

INSTALLATION STEP
Start by assembling the left and right
ladder rails
Insert the bungs in the ends of the tubes
With a 4mm allen wrench, thread M6 with
wavy washers into the holes
*Make sure the VAN CAFE etched into the
bungs isn’t upside down
*Refer to page 4 for which rail goes where
*Leave the screws loose, we’ll tighten them
up at the end when everything is aligned
*Torque specs on pg 14
1
A
+

RTD SIDE LADDER - PROMASTER
page | 8
Installation questions? Email [e-mail]

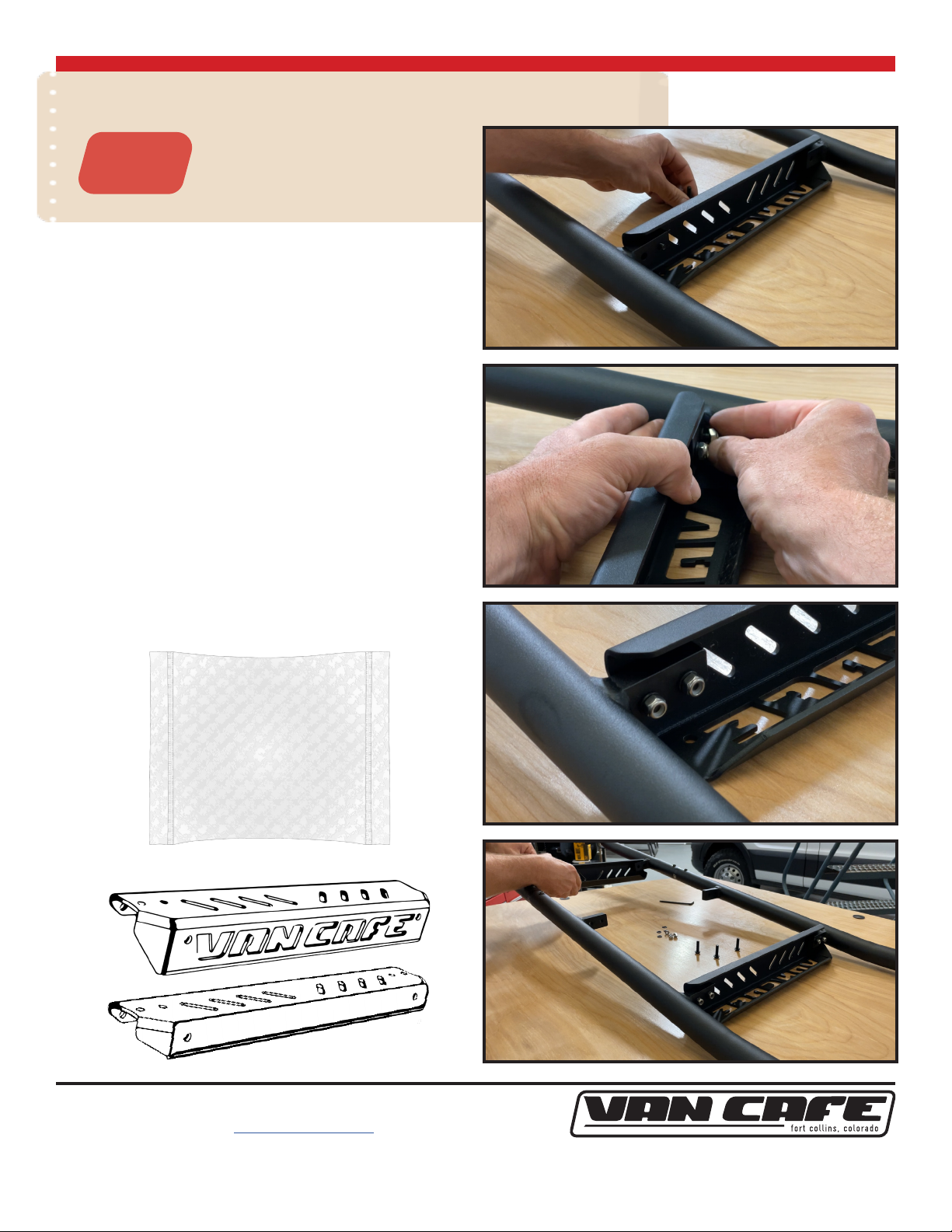

INSTALLATION STEP
With both ladder rails assembled, start
installing the steps (face down) with the
M6 screws, lock nuts, and washers
Install one step per section
(Lower, Middle, Top)
Pick where you want your ‘VAN CAFE’
step (the 5th step is roughly eye height)
Fill in the rest of the steps
*Tighten down just enough to engage the
Nyloc nut, tighten down with ladder on the
van
*Torque specs on pg 14
B
2
+

RTD SIDE LADDER - PROMASTER
page | 9
Installation questions? Email [e-mail]

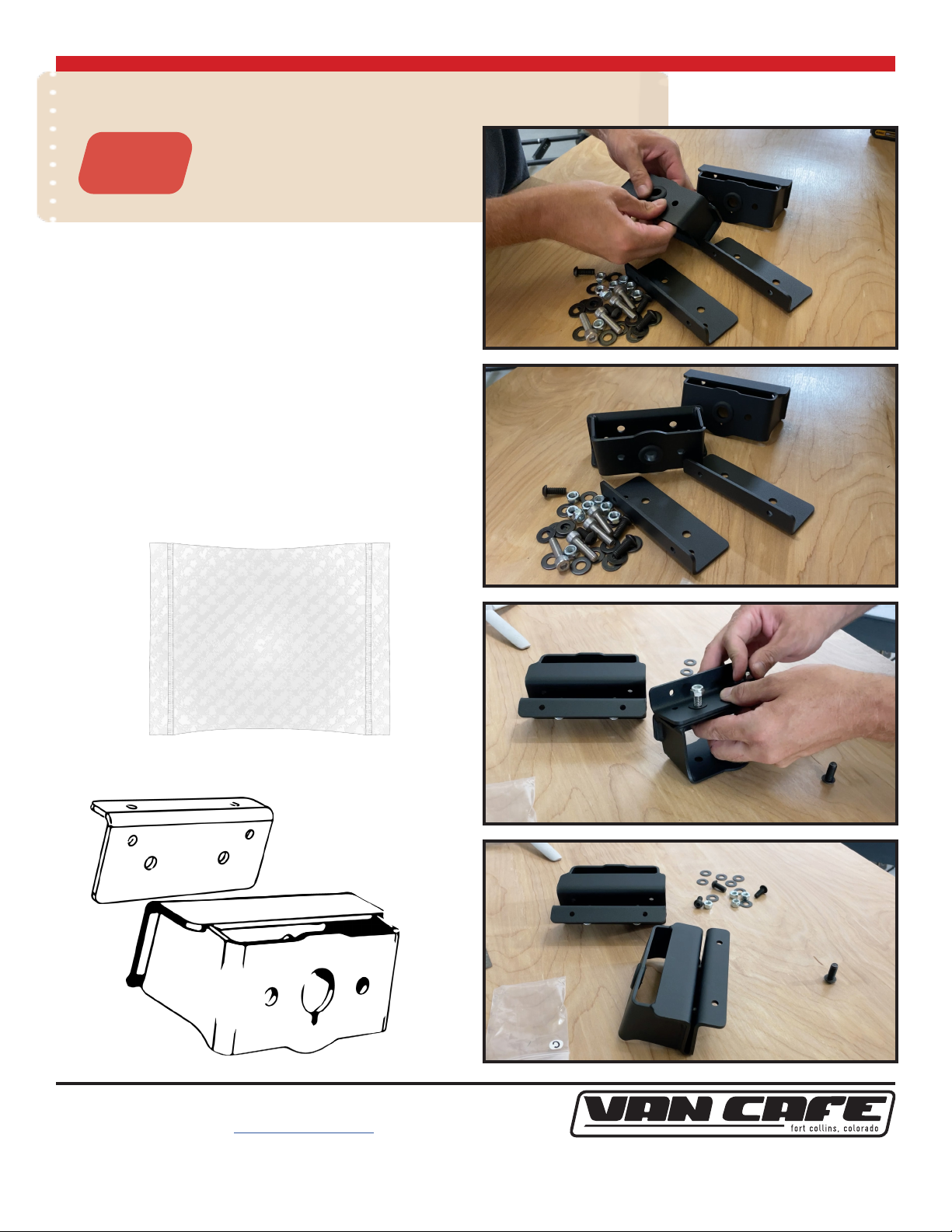

INSTALLATION STEP
Insert the grommet into the large holes in
the outer bracket
With a 6mm allen wrench and 13mm
wrench, screw the inside and outside
pinch weld brackets together
*Leave assembly loose enough to t over
the pinch weld on the van
*Torque specs on pg 14
3
C
+

RTD SIDE LADDER - PROMASTER
page | 10
Installation questions? Email [e-mail]
INSTALLATION STEP
Install the bottom brackets on the pinch
weld
Once in place, tighten enough so that it
doesn’t fall off
Brackets should be 16.5” apart
center-to-center or about 12” apart
at the ends
*Ladder was designed to t anywhere
behind the front door and in front of
the rear wheel
*Depending on where you install the ladder,
you might have to remove the rocker drain
plugs
*Torque specs on pg 14
4
16.5”

RTD SIDE LADDER - PROMASTER
page | 11
Installation questions? Email [e-mail]

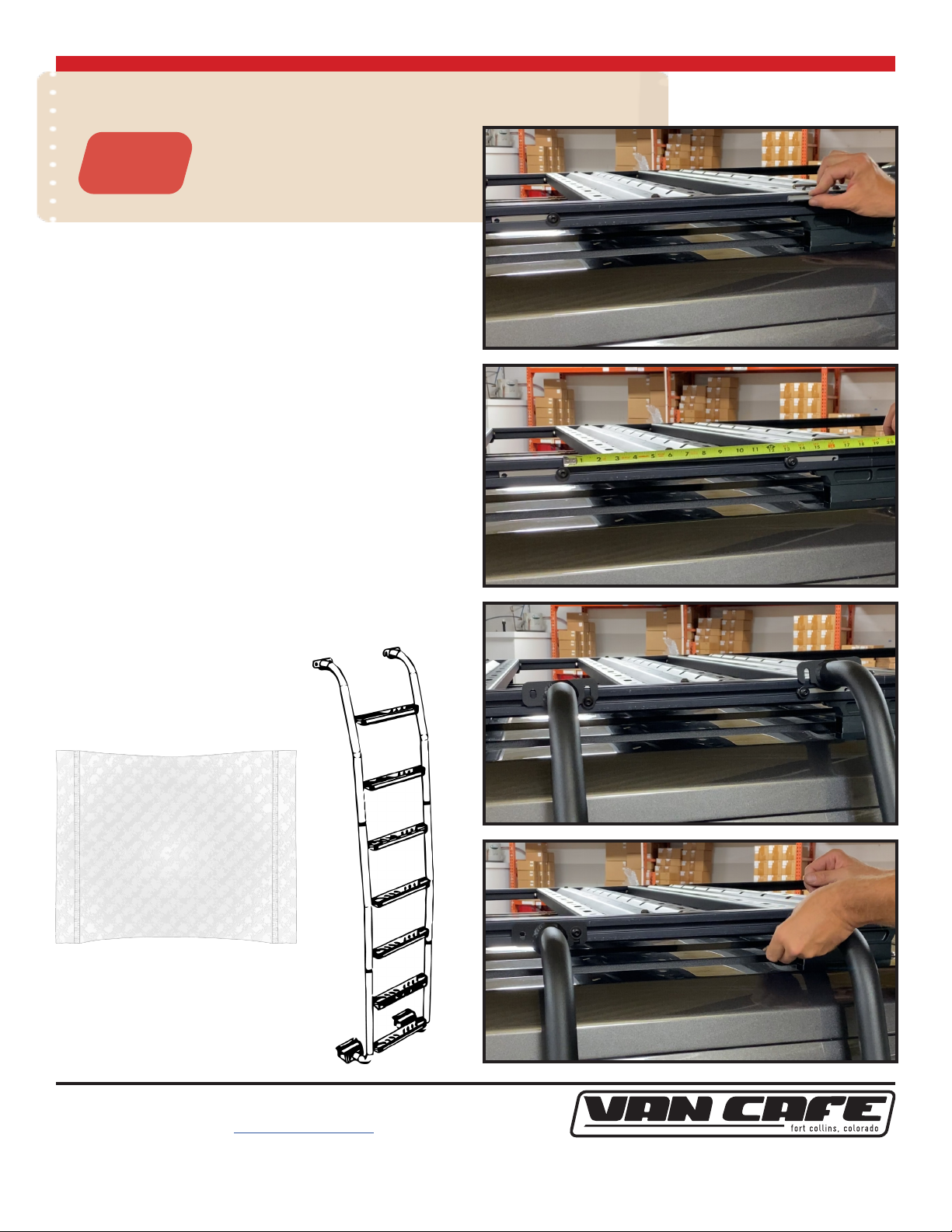

INSTALLATION STEP
Head up your ladder and install the 3”
T-Nuts
Screw a M8 with washer into the inside
hole on each T-Nut, leave loose enough to
easily slide
Visually line up vertically with where you
installed the Bottom Brackets
Inside screws should be 13.5” apart
Hang your completed ladder assembly
on the inside screws, make sure washers
stay on the outside
Screw in the M8s with washers on in the
outside holes
*Leave loose enough to slide in perimeter
track
*Torque specs on pg 14
5
D+

RTD SIDE LADDER - PROMASTER
page | 12
Installation questions? Email [e-mail]

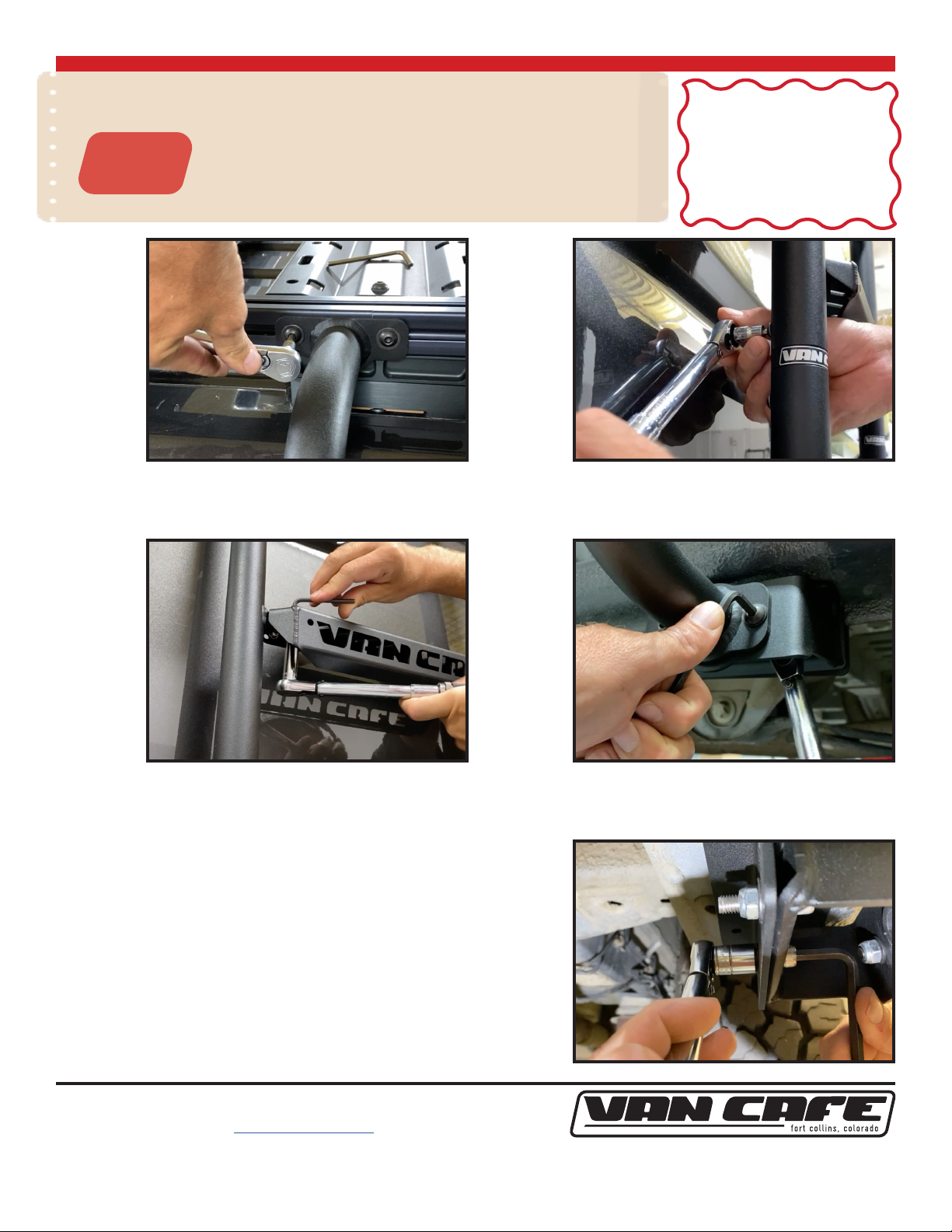

INSTALLATION STEP
Get back to the bottom of the ladder and
lineup the Lower Rail Bracket with the
holes in the Bottom Bracket
Insert the M8 screws with small
washers on both sides and Nyloc
nuts in all 4 holes
Tweak the ladder around to get the
brackets centered and tighten down
*Torque specs on pg 14
6

RTD SIDE LADDER - PROMASTER
page | 13
Installation questions? Email [e-mail]
INSTALLATION STEP
Align the steps on the ladder with the
horizontal body-lines on the van
Get the ladder where you want it and
tighten down the Rail Bungs, Steps, Upper
Bracket and lower Bottom Bracket
7

RTD SIDE LADDER - PROMASTER
page | 14
Installation questions? Email [e-mail]
INSTALLATION STEP
8RTD - SIDE LADDER TORQUE SPECS
torque specs are in inch pounds
125 IN LBS
TOP RAIL FLANGE
&
3IN T-NUT
60 IN LBS
SIDE RAILS
&
TUBE BUNGS
60 IN LBS
STEPS
&
STEP TABS
146 IN LBS
LOWER RAIL
FLANGE
&
BOTTOM
BRACKET
120 IN LBS
OUTSIDE BOTTOM
BRACKET
&
INNER PINCH
WELD FLANGE
1 ft lb = 12 in lbs
1 Nm = 8.85 in lbs

RTD SIDE LADDER - PROMASTER
page | 15
Installation questions? Email [e-mail]
FINISHED!
That’s it, you’re all done!!
Time to climb up and down your
ladder, make sure it's solid, then go
on an adventure!
