Van Der Stahl V-301 Series User manual

Printed JUN 2016
3rd Edition 3.02E
NOZZLE TYPE TABLETOP
VACUUM SEALER
V-301 SERIES
OPERATING INSTRUCTIONS
www.vanderstahl.com
Single
D TYPE
Double
E TYPE
POWE RPOWE R
HEAT CY CLEHEAT CY CLE
VAC CY CL EVAC CY CL E
HEAT TI M ERHEAT TI M ER
VA C TIM E RV A C TIM E R
VACUUM STARTVACUUM STARTNOZZLE IN / OUTNOZZLE IN / OUT

V-301Series Operating Instructions 3.02E
2
Pressure lever
1.Insert the power
plug into the
wall socket.
2.Push NOZZLE IN /
OUT button to
withdraw the
nozzle.
3. Please make
sure that the
nozzle is in the
back position,
not in between
the levers.
Holder
Cardboard (back)
Packing (top)
Packing
(controller side)
Packing (filter side)
Sealer
Box
Cardboard (bottom)
Packing (lever)
Packing (holder)
Partition board
Table
Operating instructions

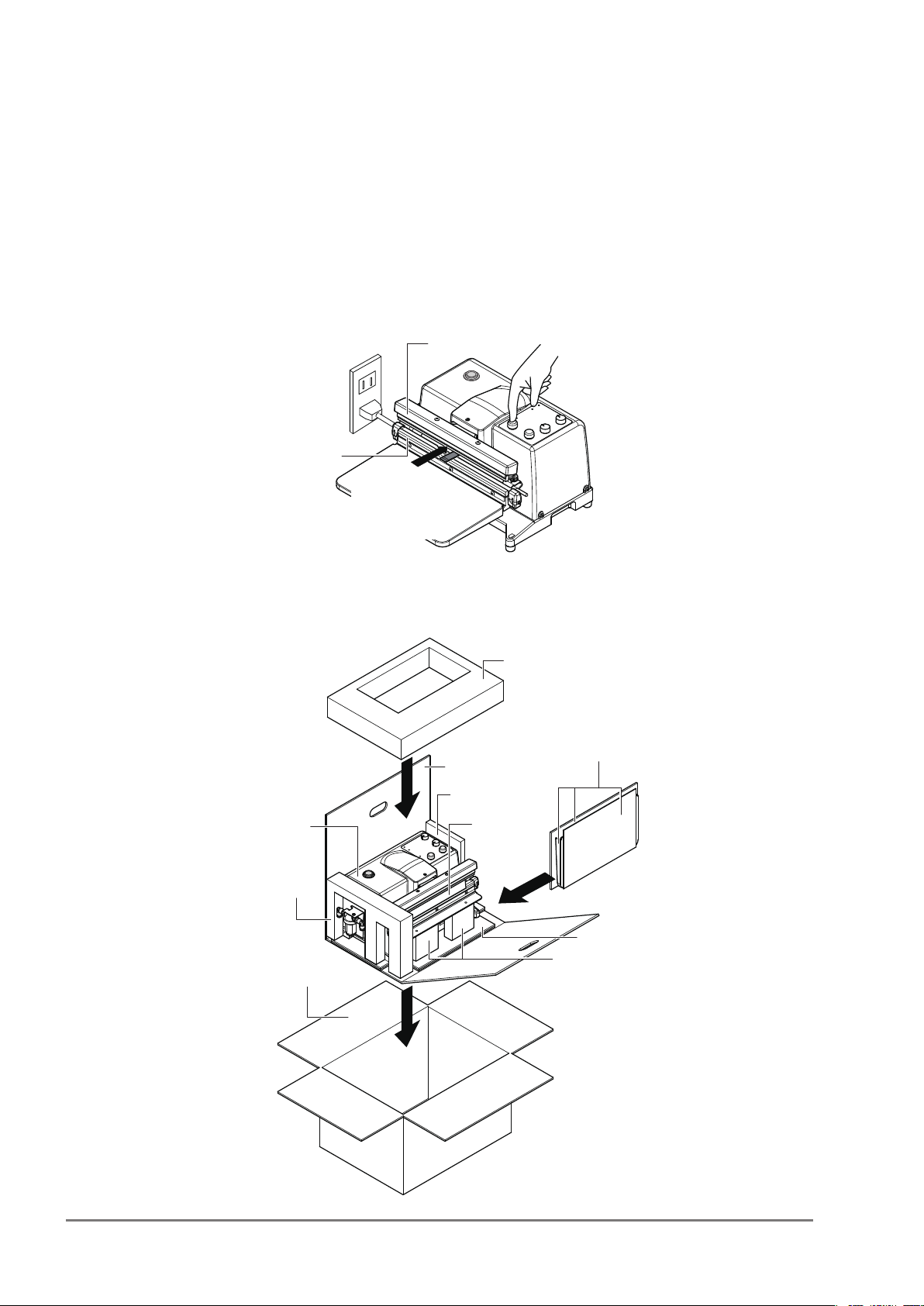

Please make sure to follow the below instructions when repacking the machine.
1 Do NOT transport the machine with the nozzle placed between the upper and lower levers. Please make
sure that the nozzle is in back position.
2 When you transport the machine, use the packing materials that came with your machine. For how to set
each packing material, please refer to the below illustration.
Please do NOT throw out the packing materials for transportation.
How to repack the V-301 for transportation
Before transportation
How to pack the machine

V-301Series Operating Instructions 3.02E
3











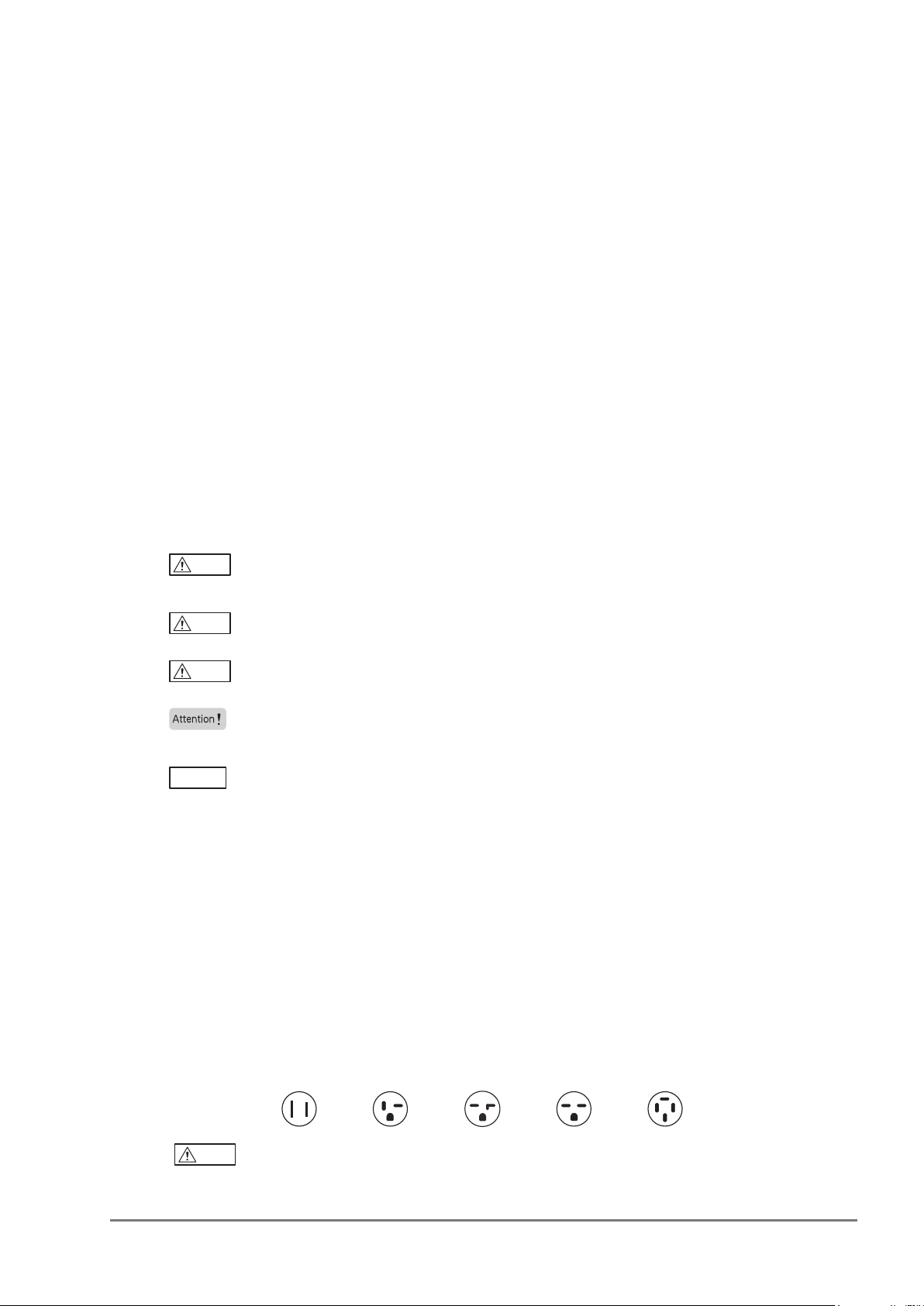

Before using, always verify the voltage specification of your particular unit and operate it at the
correct voltages. Please note the following.
1 The voltage specification of your unit is listed on the label which displays the serial
number.
This label can be found on the machine body.
2 Please confirm the plug configuration on your specific unit. The explanations and
illustrations in this operator's manual utilize the plug configurations most common in
Japan.
The following marks are used in this manual to easily identify the conditions of risks, damages,
or some tips for the optimal use of your unit.
Caution   

Warning   

Danger   

Attention  

TIPS  

Thank you for purchasing the V-301 series sealer.
Please read all of the safety and operating instructions before operating this machine.
Periodic maintenance and proper operation are necessary to ensure safety when using this
impulse sealer.
Keep this manual on hand when operating this sealer. V-301 series controls heating time by dial
setting on the control panel. Also sufficient cooling time and pressure adjustment produce
beautiful sealing performance.
As a result of research to further improve the V-301 series, some details in the operating
instructions may differ from your actual machine. For operating problems or product
information, please contact Van der Stahl Scientific.
Foreword
This manual is designed to cover machines of various voltages and
plug configurations
About the warning labels
Warning Voltages and plug configurations differ according to various worldwide specifications.
Always verify those of your particular unit before beginning operation. Connecting the
power cord to an outlet of a different specification is extremely hazardous.

V-301Series Operating Instructions 3.02E
4
1 Specifications ……………………………………………………………………………………………… 5
2 Accessories ………………………………………………………………………………………………… 6
3 Replacement parts ………………………………………………………………………………………… 6
4 Proper operating boundaries for the V-301 series …………………………………………………… 7
5 Warning - Caution label location and content………………………………………………………… 7
6 Operating precautions …………………………………………………………………………………… 8
For safety operating…………………………………………………………………………………………………………………………… 8
For smooth operation ……………………………………………………………………………………………………………………… 10
Other safeguards …………………………………………………………………………………………………………………………… 11
7 Major parts and functions …………………………………………………………………………… 12
8 Proper use of the sealer ……………………………………………………………………………… 13
8-1 Securing the machine ……………………………………………………………………………………………………………… 13
8-2 Table attachment …………………………………………………………………………………………………………………… 13
8-3 Plugging in the electrical power cord……………………………………………………………………………………………… 13
8-4 Power switch ON …………………………………………………………………………………………………………………… 13
8-5 Adjust sealing conditions…………………………………………………………………………………………………………… 14
8-6 Move the vacuum nozzle forward ………………………………………………………………………………………………… 15
8-7 Place a pouch to the sealing area ………………………………………………………………………………………………… 15
8-8 Push the table down………………………………………………………………………………………………………………… 15
8-9 Start vacuuming …………………………………………………………………………………………………………………… 15
8-10 Press the table further down ……………………………………………………………………………………………………… 16
8-11 Allow sufficient cooling …………………………………………………………………………………………………………… 16
8-12 Finish sealing ……………………………………………………………………………………………………………………… 16
8-13 Power switch OFF ………………………………………………………………………………………………………………… 17
8-14 Inspection after operation ………………………………………………………………………………………………………… 17
9 When air flushing is desired…………………………………………………………………………… 18
10 Replacing he routine maintenance parts …………………………………………………………… 19
10-1 How to shift fluoro glass sheet …………………………………………………………………………………………………… 20
10-2 Heating element replacement (For both ribbon and braided types) ………………………………………………………… 20
10-3 Glass tape and Sarcon sheet replacement ……………………………………………………………………………………… 23
10-4 Silicone rubber (white) replacement ……………………………………………………………………………………………… 24
10-5 Clean a filter/ replace a filter element …………………………………………………………………………………………… 25
10-6 Clean and replace the nozzle ……………………………………………………………………………………………………… 26
10-7 Clean or replace the nozzle coupler ……………………………………………………………………………………………… 27
10-8 How to remove piping (hose) ……………………………………………………………………………………………………… 28
11 Adjust sealing pressure………………………………………………………………………………… 29
12 Electric diagram ………………………………………………………………………………………… 30
13 Common problems and solutions …………………………………………………………………… 32
14 Safety measurement and error message …………………………………………………………… 34
Exploded View / Parts List …………………………………………………………………………… 35
Table of Contents

V-301Series Operating Instructions 3.02E
5
"V-301 series" vacuum sealer is equipped with a built-in vacuum pump for reducing the air in the pouch prior to
sealing.
Set the suitable sealing pressure and heating time according to the material or thickness of film, and take sufficient
cooling time to make a beautiful and strength seal without burning or melting of film.
Compared with conventional sealers, the additional function of removing air from the package can increase the
life of foods and prevent oxidation of metal parts. But it is not effective than what is called as vacuum packaging.
In cases when the higher protection is required, we recommend to enclose the deoxidizer into your package.
Preservation of foods sometimes requires refrigeration or freezing. Please don't overestimate the freshness-keep
sealing by this model.
Although this sealer keeps freshness of foods, the main purpose is protecting the contents against scratching each
other in the pouch, or lessening the volume of package to reduce the cost in transportation.
Please make a sufficient test and take care to the various conditions to get the effective air-reduce packaging.
Code D Type E Type
Model V-301 V-301-10DK
Power supply AC 110V 50/60Hz AC 220V 50/60Hz AC 110V 50/60Hz AC 220V 50/60Hz
Power consumption 1050W (10mm ribbon heating element)
560W (5 mm ribbon heating element)
1050W
(For both ribbon and braided heating elements)
Weight 12.3kg 13kg
Effective seal length 300mm
Effective seal width 10 or 5mm (interchangeable) 10mm
Vacuum pump:
Pumping speed and ultimate pressure
10L/min (pumping speed) ※1
- 58.6kPa / 320 torr (ultimate pressure) ※2
Vacuum timer 0.1 ~ 20 seconds, consecutive
Measurement W400 X D420 X H228mm
V-301 series
1 Specifications
※1) The exhaust speed and ultimate vacuum represent stand-alone values, before installation to the machine.
※2) The 0 torr of the ultimate vacuum is 0Pa.

V-301Series Operating Instructions 3.02E
6
Please make sure that all of the accessories described below are included.
If not, please contact your dealer. These accessories (except for the table) are located in the parts cover under
the body of machine.
When the package is opened, make sure that the heating scale on the control is pointing to 1.
If not, adjust heating dial so that the heating scale is pointing to 1.
Parts name V-301 V-301-10DK
Spare heating element · 5mm ribbon heating element…5pcs.
· 10mm ribbon heating element…5pcs.
· Braided heating element…2pcs.
· 10mm ribbon heating element…2pcs.
Phillips screwdriver 1pc.
Hexagonal wrench 1pc.
Filter cartridge 1pc.
Table 1pc.
Parts name When sold individually When included in maintenance
parts kit
Ribbon heating element
(5mm and 10mm) 10 pcs. Choice of heating element:
· 5mm ribbon heating element…3 pcs.
· 10mm ribbon heating element…3 pcs.
· Braided heating element …2 pcs.
Braided heating element 5 pcs.
Fluoro glass sheet 2 sheets 2 sheets (315 x 250 mm)
Glass tape (W)13mm x 5M roll 1 pc.
Glass tape (W)13mm x 10M roll 1 pc.
Glass tape (W)25mm x 5M roll 1 pc. 1 pc.
Glass tape (W)25mm x 10M roll 1 pc.
Silicone rubber (white) 2 pcs. 1 pc. (12 x 310 mm)
Filter cartridge 3 pcs. 2pc.
Sarcon sheet 2 pcs. 1 pc. (13 x 320 mm)
Routine maintenance parts, which will need to be replaced after extensive use, are sold individually as
detailed below. Also the maintenance parts kits that includes all the consumable parts are available.
Replacement parts can be purchased through Van der Stahl Scientific.
2 Accessories
3 Replacement parts
Table
Parts cover
These parts are stored in
the parts cover under the
body of machine.
Phillips screwdriver
Ribbon
heating element
Braided
heating element
Filter cartridge
Hexagonal wrench
3mm
Caution V-301 and V-301-10DK use different replacement parts. When you order the parts, please specify the model exactly.

V-301Series Operating Instructions 3.02E
7
POWERPOWER
HEAT CY CLEHEAT CY CLE
VAC C YCL EVAC C YCL E
HEA T TIME RHEA T TIME R
VA C TI ME RVA C TI ME R
VAC UU M STA RTVAC UU M STA RTNO ZZL E IN /OUTNO ZZ LE IN / OUT
CAUTION
HOT
CAUTION
UN PL UG B EFO RE
PERFORMING
MAINTENANCE.
CAUTION
HOT
SHOCK
WARNING
Caution
W2135
UNPLUG BEFORE
PREFORMING
MAINTENANCE.

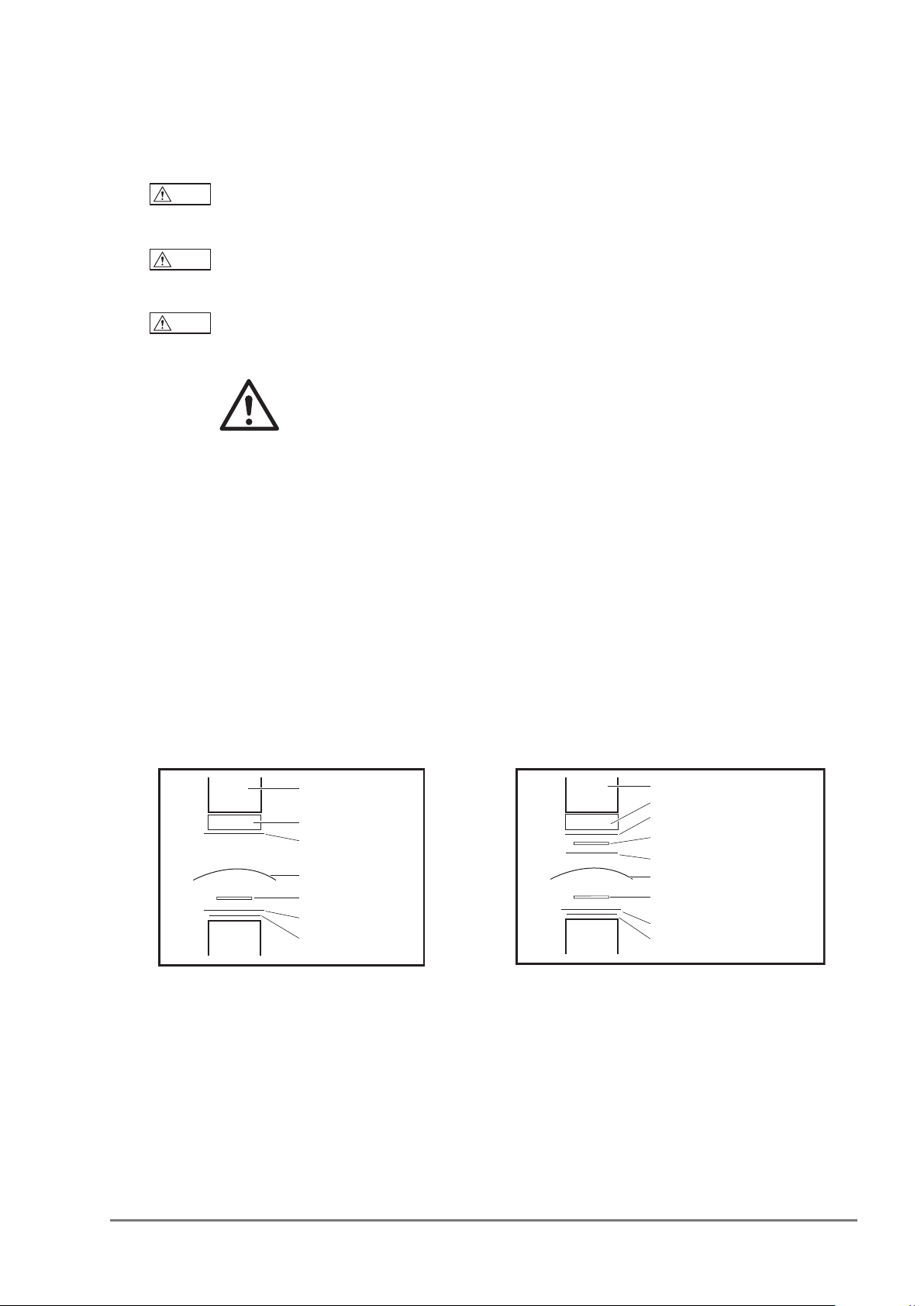

1 The impulse sealer is a machine which sends strong electric current quickly to the thin ribbon
heater, which presses against the film and instantly heat seals the package. Though this machine
yields superior quality sealing, it is not compatible with films thicker than that indicated in the
diagram below, sponge-like sheet, and materials which are not able to withstand high heat.
2 Vacuum packaging requires a laminated pouch made with high-barrier property materials such as
nylon-based films. Using films with low gas barrier properties will allow air to seep into the pouch
over time, negating the effectiveness of a vacuum seal.
3 Film thickness limits for the V-301 and V-301-10DK are described below. The machine cannot seal
pouches which are thicker than the indicated. The machine may malfunction if you try to exceed
the limits of the machine.

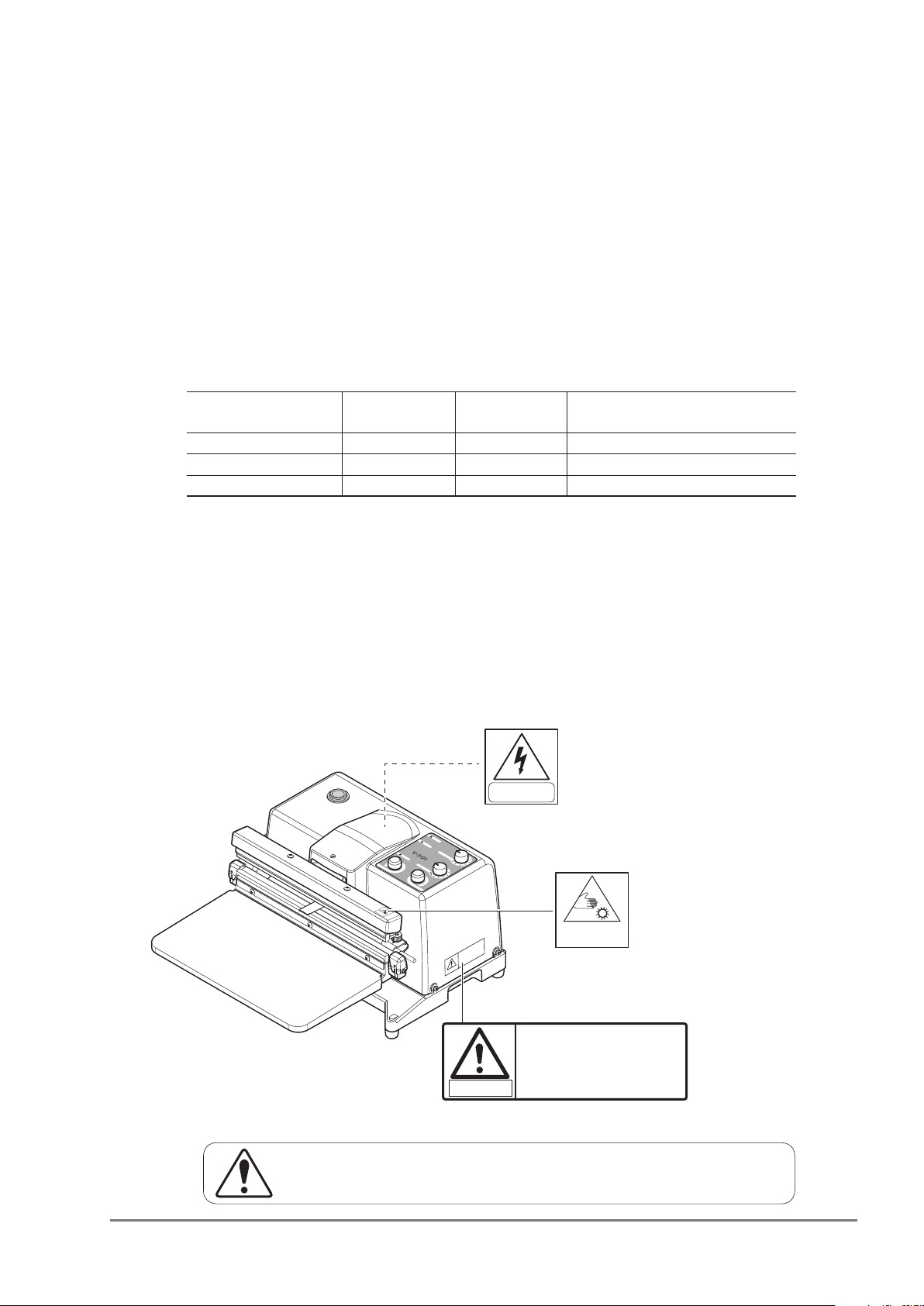

Warning - Caution labels are placed in locations where there is a danger of injury to a person or damage to the
machine. Label location details are illustrated below.
Please check them before beginning operation.
Labels not readily apparent are indicated by dotted lines.
Heating method Model Heating element
width
Film thickness
(Total thickness of overlapping sheets)
Single side heating V-301 5mm 0.3mm or less
Single side heating V-301 10mm 0.4mm or less
Double side heating V-301-10DK 10mm 0.5mm or less
4 Proper operating boundaries for the V-301 series
5 Warning - Caution label location and content
This label is placed on the right side of the frame.




If Warning, Caution labels peel off or are lost, please purchase the proper
labels and place them in the appropriate location.

V-301Series Operating Instructions 3.02E
8
Warning In an emergency, unplug the power cord
immediately
This sealer incorporates a number of safety devices and is carefully
designed to prevent fires or other malfunctions. However, should all of
the safety devices fail simultaneously, there is a possibility of the fluoro
glass sheet catching fire due to a failure of the heating circuit's tripping
mechanism that results in the heating element overheating. Should
smoke or fire appear from the fluoro glass sheet, immediately release
the table or turn OFF the power.
Warning Confirm proper electric power source
Make sure power source has the specified voltage and electric power as
explained in the operating instructions. Do not use an extension cord, as
the machine may malfunction or may result in fire. Machine will
malfunction if connected to anything other than the specified voltage.
Insert the electric power plug fully into the wall outlet.
Warning Do not pour water on the machine.
Do not splash water on the machine or use machine for packaging
liquids since machine is not waterproof. There is a danger of
electrocution or malfunction of the machine.
Warning When replacing parts, unplug the power plug
Maintenance of the machine is important. Parts should be replaced in
accordance with the operating instructions. There is a risk of danger if
the parts are not replaced properly. Before replacing parts, unplug the
machine from the power source.
Warning
Do not insert any metal objects into the sealing area
Please do not place any metal objects into the sealing area during
operation. This might cause electrocution.
Warning Do not use for pumping a liquid
Take care so that the vacuum nozzle does not draw a liquid. (Use the
optional large-volume filter for vacuum packaging of watery items.)
6 Operating precautions
For safety operating

V-301Series Operating Instructions 3.02E
9
Warning Do not modify the machine
Modification of the sealer or the use of unspecified parts may not only
lead to damage of the machine. But there is also a risk of danger to the
operator. Please do not tamper with machine. Accidents or damage
caused by modification by the customer is the sole responsibility of the
customer.
Caution Do not place hands in the sealing area
With prolonged use, the sealing area will retain heat and become hot. If
you place your fingers in this area, there is a possibility of burns.
In addition, sealing pressure is very strong. Please take sufficient care
not to pinch your fingers.
Warning If the power switch automatically turns OFF
If heating is not complete within 3 seconds, the power switch will
automatically turn to the OFF position. There is a possibility of the
machine malfunction.
Do not operate the machine until the cause of the shut down is
ascertained and the problem has been addressed.
Caution Do not use in the following places
Do not operate machine in the following places since there is a danger
of malfunction:
1 Dusty locations
2 Locations not within normal temperature
3 Locations with high humidity
Caution Use machine properly
Read this operating instructions carefully and operate sealer correctly.
Accidents or damage caused by misuse of the machine not in
accordance with the operating instructions are the sole responsibility of
the customer.

V-301Series Operating Instructions 3.02E
10
Ɣ +HDWLQJWHPSHUDWXUHVKRXOGEHVHWDWDPLQLPXP
Set sealer so that an acceptable seal is completed in the least amount of
heating time.
Excessively long heating time will damage the fluoro glass sheet, glass
tape and other consumables, as well as result in heating element
breakage. This will lead to decreased work productivity and
unnecessary power consumption.
Ɣ $OORZVXIILFLHQWFRROLQJWLPH
With an impulse type sealer, residual heat after the heating cycle has
been completed is dispersed through the pressure lever and machine
frame, allowing the film to set under pressure.
Release the table after “beeping” (indication buzzer for seal
completion) sounds.
If the table is released before the buzzer, seal performance will be not
good.
Refer to "8-11 Cooling process".
Ɣ :KHQWKHIOXRURJODVVVKHHWDQGVLOLFRQHUXEEHUDUHGDPDJHG
The fluoro glass sheet and silicone rubber will start to wear with use.
Once they are damaged, it will be difficult to achieve smooth and strong
seals.
Thoroughly read how to replace the parts and be careful when doing so.

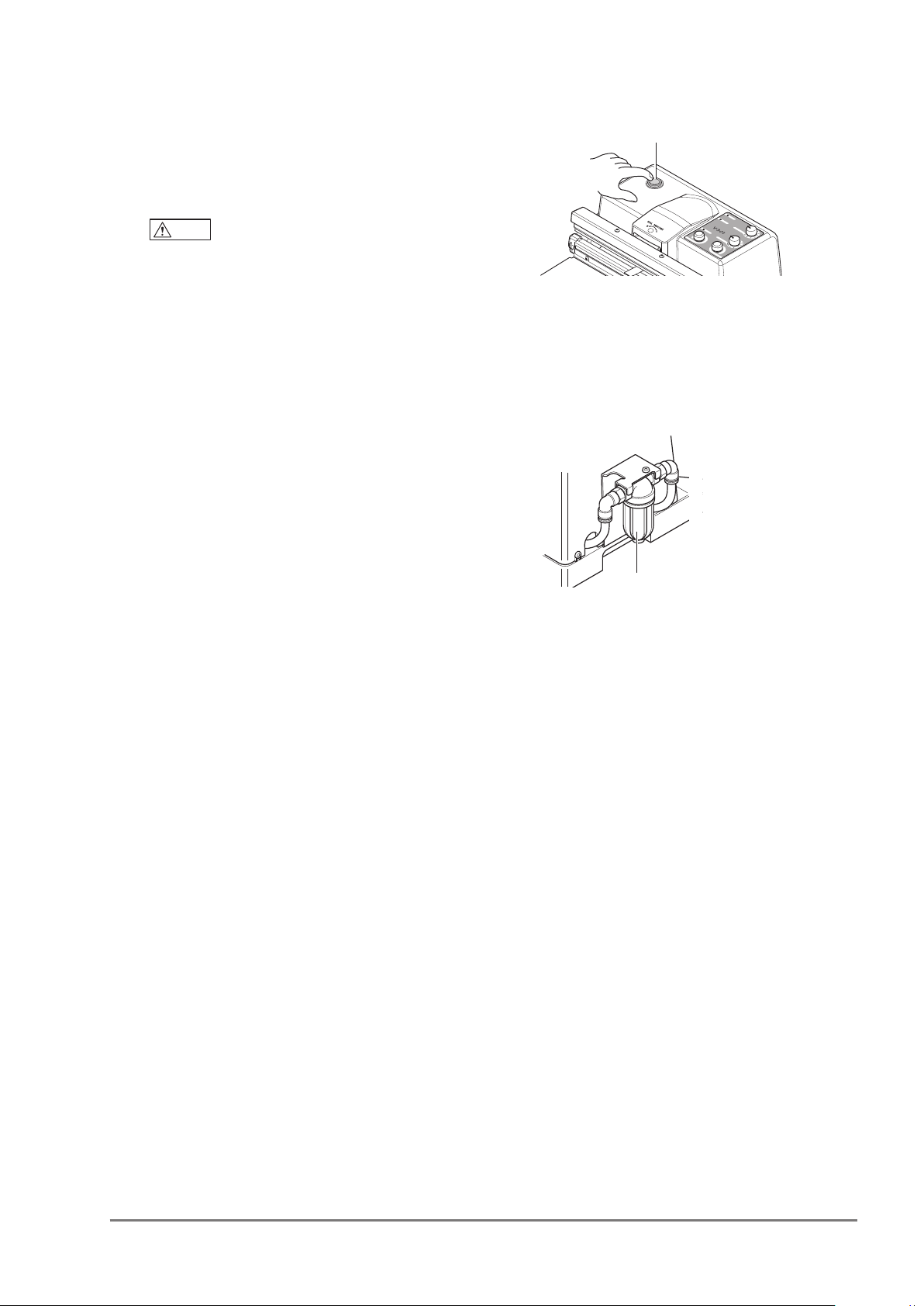

Caution Be careful with the nozzle
After the sealing process, nozzle comes forward automatically.
Please take sufficient care not to put hand or face close to nozzle.
Also, if the sealed pouch is left to the sealing area after sealing, the
nozzle may break the bag when it is moving forward.

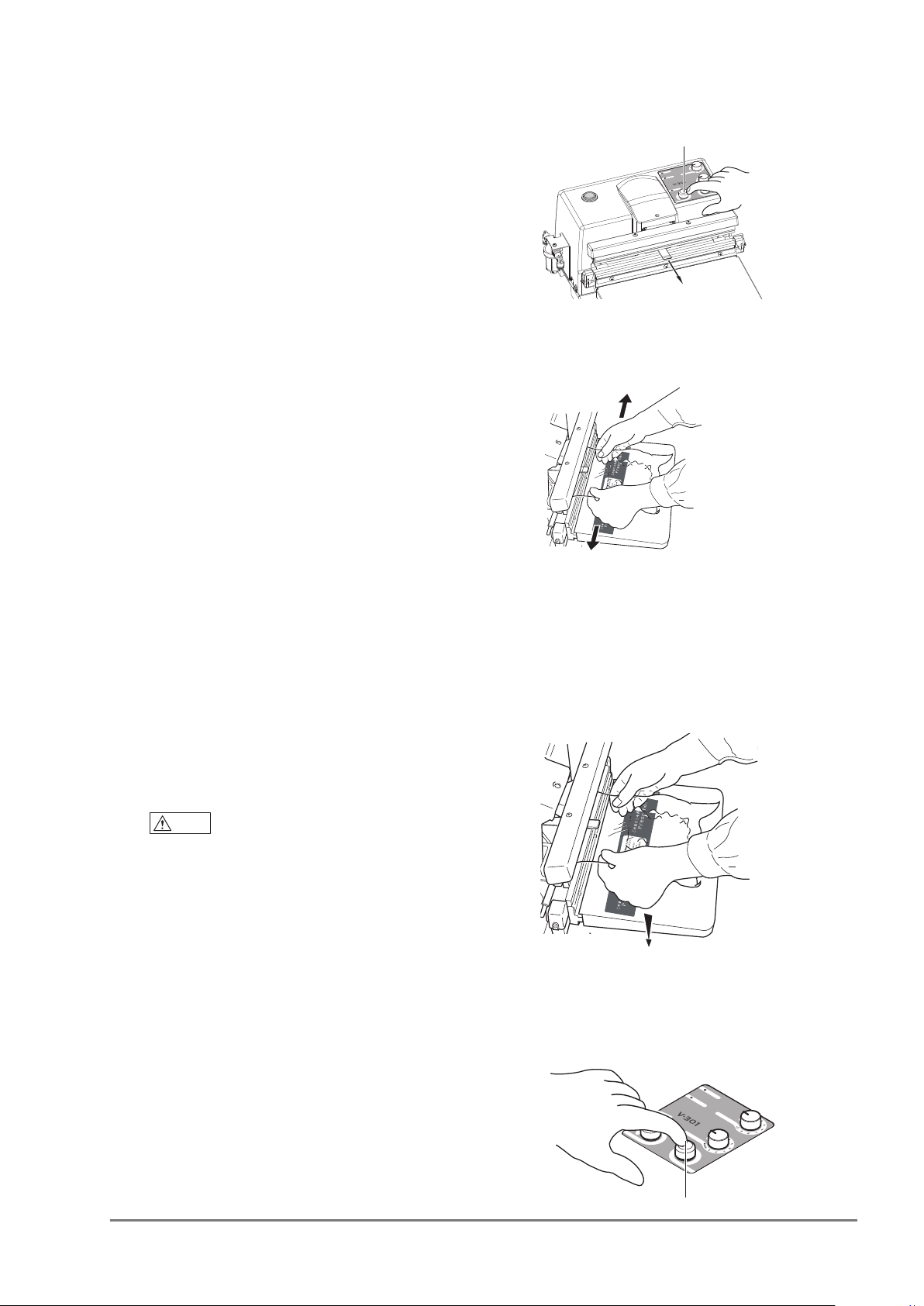

Caution When the frame cover is opened
Inside the sealer's body, there are metal plate parts which have sharp
edge.
If the frame cover would be removed for the replacement of parts,
please take care not to be injured.
For smooth operation

V-301Series Operating Instructions 3.02E
11
Ɣ 7RDFKLHYHDVWURQJVHDO
Proper sealing pressure is important in achieving a strong seal. Follow
directions on “11 Adjust the sealing pressure” and set accordingly.
Ɣ :KHQRSHUDWLQJPDFKLQHIRUH[WHQGHGSHULRGVRIWLPH
The machine's temperature will rise upon prolonged use of the
machine. As the temperature of the machine rises, the condition of the
seal will change. Thus, heating time should be shortened and cooling
time should be lengthened accordingly.
Ɣ 'XVWLQWKHVHDOLQJDUHD
Dust will prevent attainment of a smooth seal. It could also cause
damage to heating element and / or other routine maintenance parts.
Before using the machine, clean the sealing area.

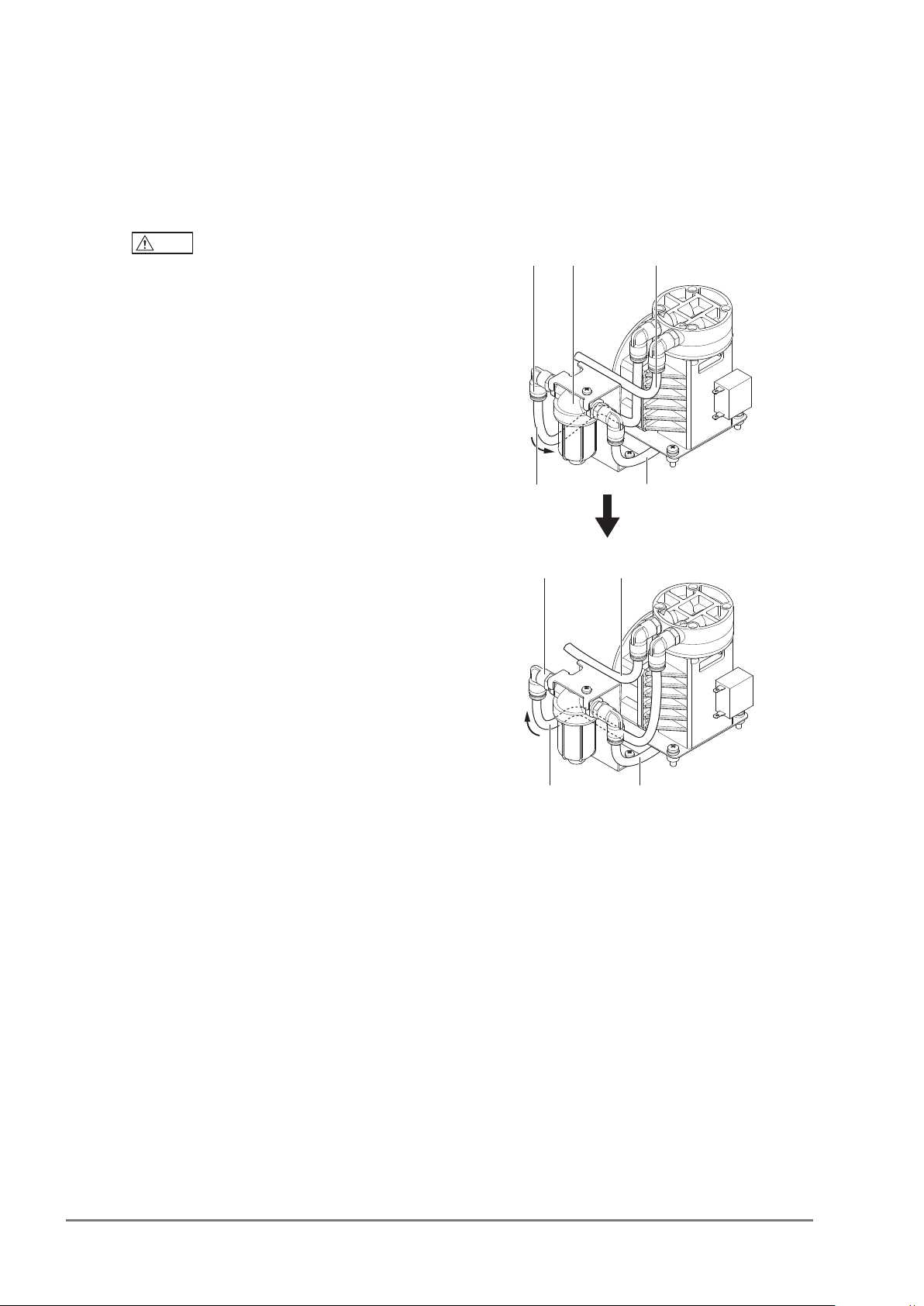

Ɣ :KHQWKHVSRQJHSDGLVGDPDJHG
The damage for surface of sponge pad (upper or lower) cause an air leak
at the vacuum operation (with a small noise). When such, remove the
sponge pad and check whether there is any breakage on the surface. If it
is broken, replace the sponged pad to use opposite side. When both sides
are damaged, exchange to the new one.
Ɣ 5XQWHVWWULDOVEHIRUHEHJLQQLQJRSHUDWLRQ
Depending on the type of film being used, heating / cooling / pressure
strength conditions will differ. Run test trials to find the optimum
sealing condition, especially when trying to find the tightest seal
possible.
Ɣ 7KH9VHULHVLVDQLPSXOVHVHDOHU
Do not become alarmed if the sealing area does not become hot after the
power switch is turned to the ON position. The machine has not
malfunctioned.
The sealer uses an impulse method so that the heating element will not
become hot just by plugging the unit in or turning the power switch to the
ON position.
The heater will only become hot for an instant when the heating process
is in operation.
However, after extended periods of use, the sealing area may become hot.
Other safeguards

V-301Series Operating Instructions 3.02E
12
PO WE RPOW E R
HEAT C YCLEHEAT CYCLE
VAC C YCL EVAC C YCL E
HE AT TI MERHE AT TI MER
VA C TI ME RVA C TI ME R
VAC UU M STA RTVAC UU M STA RTNO ZZL E IN / OUTNO ZZL E IN / OUT
POWERPOWER
HEAT CYCLEHEAT CYCLE
VAC CYCLEVAC CYCLE
HEAT TIMERHEAT TIMER
VAC TIMERVAC TIMER
VACUUM STARTVACUUM STARTNOZZLE IN / OUTNOZZLE IN / OUT
7 Major parts and functions
V-301
Control Panel
Power lamp
Vacuum lamp
Heating lamp
Vacuum start button
Vacuum timer dial
Heating timer dial
Sponge pad
Frame cover fixing screw
Fluoro glass sheet holder fastening screw
Parts cover
Nozzle
Table
Pressure plate Frame cover Power switch
Electrode
Fluoro glass sheet holder
Turns ON when the power is ON.
Turns ON during the vacuum
cycle.
Turns ON during the heating
cycle.
Push to start vacuuming (or supplying) air.
Adjust the heat timer according to the bag
thickness and material.
(0.1 ~ 2.3 seconds)
Adjust the vacuum timer according to the bag
size and packaging content.
(Dial 1~9= about 0.1~20 seconds, or manual
[=continuous] mode)
Works as a packing when removing/
supplying air from the nozzle.
Loosen these screws on both sides 2
to 3 turns to remove the frame cover.
Loosen these screws 2 to 3 turns to
remove the fluoro glass sheet.
Accessories stored inside
this cover.
Removes/supplies air inside the
pouch through this nozzle.
Push the table down to seal.
The position to push the table is
indecated on the label adhered to
the table. Do NOT push the edge
of the table.
Remove this holder when
replacing/shifting the fluoro
glass sheet or replacing the
heating element.
Remove terminal covers
when replacing the heating
element.
Push to turn ON and OFF
the power.
Nozzle IN/OUT button
When the lever is open, the nozzle
moves back and forth by pressing
this button.
Control panel

V-301Series Operating Instructions 3.02E
13
POWERPOWER
HEATCY CLEHEATCY CLE
VAC CYCLEVAC CYCLE
HEAT TIM ERHEATT IMER
VAC TIM ERVAC T IMER
VACUUM ST ARTVACUUM ST ARTNOZZLE IN /OUTNOZZL E IN / OUT
POW ERPO WE R
HEAT CYCLEHEAT CYCLE
VAC CY CLEVAC C YCLE
HEA T TIMERHEAT TIM ER
VAC T IMERV AC TI MER
VAC UUM STAR TVACUU M STARTNOZ ZL E I N / OUTNO ZZ LE IN / OUT
This machine is a desk type sealer. Place the machine
on a flat, horizontal surface and secure an appropriate
workbench.
1Remove the plastic nuts (white) attached to the
table. Insert the screw shaft of the table to the
holder as per in the right illustration.
2Then tighten two screws with the plastic nuts
(white).
Push the power switch located on the top of the frame.
Power lamp on the control panel will light up.
Use only as described in this manual.
There is a risk of danger and malfunctions may result if the machine is used not in accordance with this manual.
The power cord is located on the left side of the
machine, when facing toward it. Make sure the
electrical outlet has adequate current carrying capacity
for your machine. Insert the electric power plug fully
into the wall outlet.
8 Proper use of the sealer
8-1 Securing the machine
8-2 Table attachment
8-3 Plugging in the electrical power
cord
8-4 Power switch ON
Plastic nut(white)
Power switch
Push
Holder
Warning Installing the machine on an unstable or
inclined surface may cause the overturn of
the sealer.
Warning There is a danger of fire if the electrical
power source does not meet proper
specifications.

V-301Series Operating Instructions 3.02E
14



POWERPOWER
HEAT C Y CLEHEAT C Y CLE
VAC CYCL EVAC CYCL E
HEAT TIMERHEAT TIMER
VAC TIMERVAC TIMER
VACUUM STARTVACUUM START
NOZZLE IN / OUTNOZZLE IN / OUT



POWERPOWER
HEAT C Y CLEHEAT C YCLE
VAC CYCL EVAC C YCLE
HEAT TIMERHEAT TIMER
VAC TIMERVAC TIMER
VACUUM STARTVACUUM STARTNOZZLE IN / OUTNOZZLE IN / OUT

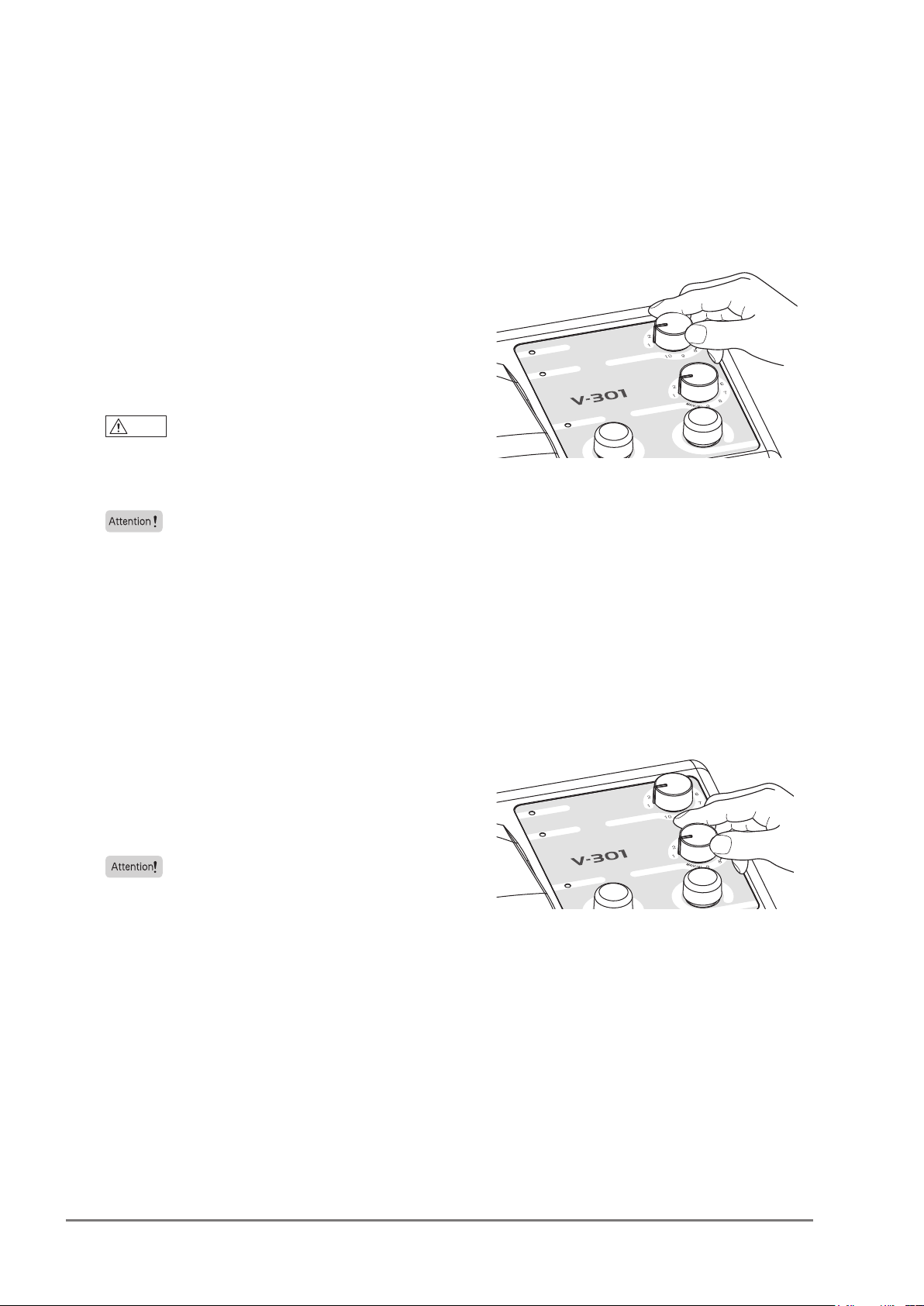

Adjust vacuum time
Turn the vacuum timer dial. Turn clockwise (to larger
scale) and vacuum time becomes longer.
[Dial 1 ~ 9 = about 0.1 ~ 20 seconds/
Manual =continuous operation mode.]
Set vacuum time according to a pouch size and desired
level of vacuum.
Heating and vacuum time is set by turning dials on the
control panel. Set values vary according to bag (film)
material, thickness, and size etc., therefore adjust and
set each time after changing films.
Adjust heating time
Turn the heating timer dial. Turn it clockwise (to the
direction of larger scales) to make heating time longer.
[Dial 1 ~ 10 = about 0.1 ~ 2.3 seconds.]
Set at the lowest temperature necessary for sealing.
Production will increase and unnecessary wear of parts
will be kept at a minimum.
8-5 Adjust sealing conditions
Warning If you do not take enough cooling process
as described “8-11 Allow sufficient cooling
”, and set a long heating time in continuous
sealing work, there is a possibility of fire.
Attention If vacuum timer is set to manual position,
buzzer sound "beep" one time (when
manual is reset, sounds two times), and it
means limitless time setting. Vacuum
process continues (vacuum pump
activates) until "Nozzle IN/OUT" button is
pushed.
Attention When a braided heating element is
replaced with a ribbon heating element
and vice versa, seal finish may be different
even with the same amount of heat time.
Adjust heat time again to seal the pouch in
optimum conditions.

V-301Series Operating Instructions 3.02E
15
H
L
POWERPOWER
HEAT C YCLEHEAT C YCLE
VA C CY CL EVA C CYCL E
HEAT TIMERHEAT TIMER
VAC TIMERVAC TIMER
VACUUM STARTVACUUM STARTNO ZZ LE I N / OUTN OZZ LE I N / OUT
H
L
POWERPOWER
HEAT CYCLEHEAT CYCLE
VAC CYC LEVAC CYC LE
HEAT T IMERHEAT TIME R
VAC TIMERVACTIMER
VACU UM STARTVACUU M STARTNOZZ LE IN/ OUTNOZZL E IN / OUT
Push the"Nozzle IN/OUT button" to move the nozzle
forward. Nozzle will extend beyond the sealing surface.
1Insert the nozzle inside a pouch.
When inserting the nozzle, hold the pouch with
your hands and slide the upper film with your
thumbs towards you to open the pouch.
2Lightly pull the pouch outward with your hands
to avoid wrinkles on sealing.
3When vacuuming a solid item, put the item
close to the vacuum nozzle tip to avoid the
pouch film clogging the nozzle when
vacuuming. For the liquid or powder items,
keep some distance between the nozzle.
4Make sure that the packaging content is placed
in the desired position inside the bag.
Push the vacuum start button to start vacuuming.
Vacuuming stops when the set vacuum timer expires,
and the nozzle returns automatically. When the manual
(continuous) mode is selected, push the nozzle IN/OUT
button to finish vacuuming.
Adjust vacuum time again when it is too short or long.
Press the table down with both hands until you hear
click sound and the upper lever is locked in position.
8-6 Move the vacuum nozzle forward
8-7 Place a pouch to the sealing area
8-9 Start vacuuming
8-8 Push the table down
Nozzle IN/OUT button
Vacuum start button
Caution Please push the area indicated by the
sticker on the table.
If you push the other part of the table such
as its edge, the table might be damaged.

V-301Series Operating Instructions 3.02E
16
POWERPOWER
HEAT CY CLEHEAT C YCLE
VAC C YCLEVAC C YCLE
HEA T TIME RHEA T TIME R
VA C TIM ERVAC T IM ER
VAC UUM S TAR TVAC UUM S TAR TNOZ ZL E IN / OUTNO ZZ LE IN / OUT
POW ERPOW ER
HEAT CYCLEHEAT CY CLE
VAC CY CLEVA C CYCLE
HEAT T IMERHEAT TI MER
VAC TIMERVAC TIMER
VACUUM STARTVACUUM STARTNOZ ZLE IN / OUTNOZZ LE IN / OUT
After the heating and cooling cycle has finished, release
your hand from the table. The pressure lever will return
to the initial position and the sealing is finished.
If a sealing is not clean enough, adjust the heating time
or sealing pressure.
Keep pressing the table until signal buzzer sounds after
the heating lamp turns off.
With an impulse type sealer, residual heat is dispersed
through the pressure lever and machine frame, allowing
the film to set heating cycle has been completed.
In V-301 series, after the heating lamp goes out,
keeping – cooling process for 2~3 seconds is necessary
to produce good sealing performance.
After the nozzle returns, press the table further down
with both hands.
Heating starts. Keep the pressure to the table.
8-12 Finish sealing
8-11 Allow sufficient cooling
8-10 Press the table further down
Heating lamp
Release table 2~3 seconds after
the heating lamp goes off.
Push further down
Caution Insufficient cooling time could cause poor
seals and shorten the life of the routine
maintenance parts.
In addition, poor seals could contribute to
the oxidation and / or deterioration of touch
contents.
Attention To operate the vacuum manually - when
you stop the air removal once the
appropriate vacuum has been reached,
push the Nozzle IN/OUT button during the
vacuum process.
This will stop the vacuum in mid-cycle and
nozzle returns to the initial position.
Attention If vacuum timer is set to manual position,
vacuum time becomes limitless. Vacuum
process continues until "Nozzle IN/OUT"
button is pushed.

V-301Series Operating Instructions 3.02E
17
PO WERPOW ER
HEAT CY CLEHEAT CY CLE
VAC CY CLEVAC CY CLE
HEA T TIMERHE AT TIME R
VAC T IMERV AC TI MER
VAC UUM STAR TV ACUUM ST ARTNOZ ZL E IN / OUTNO ZZL E IN / OUT
After use, please clean up the parts. Please make sure
there are no foreign objects in the air filter.
If necessary, remove the filter and clean it referring
to“10-5 Clean a filter/ replace a filter element”.
After use, be sure to turn OFF the power switch.
Pull out the plug from the outlet if not using the
machine for a long period of time.
8-13 Power switch OFF
8-14 Inspection after operation
Filter
Power switch
Push
Caution To prevent the nozzle from the damage,
always push Nozzle IN/OUT button to
storage the nozzle before turning the
power off.

V-301Series Operating Instructions 3.02E
18
1Using a Phillips screwdriver, loosen the screw
which holds the frame cover and lift it off.
2Remove the IN hose from the air filter elbow
joint and set it so that it sticks out of the
machine frame.
3Plug the OUT hose into the air filter elbow joint
which was connected to the IN hose.
The air becomes provided into a pouch.
V-301 series sealer does not only remove the air, but can flush it as well.
It is as simple as reversing the air hose lines on the vacuum pump.
The procedure for changing the hose connections is detailed below.
9 When air flushing is desired
Elbow joint OUT hoseFilter
To nozzleRemove IN hose
IN hose
Place outside the frame cover
Insert the OUT hose
Elbow joint
To nozzle
Warning Always unplug before replacement of
the parts.
There is a danger of electrocution if the
plug is still inserted.

V-301Series Operating Instructions 3.02E
19
The sealing area is constructed with parts illustrated in the diagram below.
When replacing the parts, be careful to arrange the parts in the same exact order.
Replace parts according the following directions in order to maintain your machine in optimum operating
condition.
10 Replacing he routine maintenance parts
Construction of the sealing section
V-301 V-301-10DK
Pressure lever
Fluoro glass sheet
Glass tape (25mm)
Sarcon sheet
Ribbon heating element
Glass tape (13mm)
Silicone rubber
Pressure lever
Silicone rubber
Fluoro glass sheet
Glass tape (25mm)
Sarcon sheet
Braided or ribbon heating element
Braided or ribbon heating element
Glass tape (13mm)
Glass tape (13mm)
Always unplug the power plug from the wall outlet before
conducting any maintenance.
Warning Always unplug the power plug before replacing any parts. There is a danger of electrocution, if
conducted with the plug still inserted
Warning Do not replace parts according to other methods not described in the operating instructions.
Otherwise electrocution or burns may occur.
Warning :KHQUHSODFLQJSDUWVDOZD\VXVHRQO\VSHFLILHGSDUWVVROGWKURXJK)8-,,038/6(2WKHUZLVH
malfunction may occur.

V-301Series Operating Instructions 3.02E
20
[Essential tools] Scissors, Phillips screwdriver
[Replace when] Fluoro glass sheet is ripped, burned, or
when seals become irregular.
Fluoro glass sheets are sold separately or as parts in a
maintenance parts kit.
1Loosen three (a) holder securing screws, and
pull out the edge of (b)fluoro glass sheet.
2Loosen (c) white plastic nuts so that (b)the
fluoro glass sheet can be pulled forward in the
direction of the allow.
3Cut the damaged part of (b) the fluoro glass
sheet with scissors.
4Set the end of (b) fluoro glass sheet between
(d) holding bracket and (e)holder, and fasten (a)
securing screws.
5Roll up (f) roll bar to lose the slack of (b)fluoro
glass sheet.
6Tighten (c)white plastic nuts and fix (f) roll bar.
[Essential tools] Phillips screwdriver
[Replace when] The heating element breaks,
unevenness is generated, or when the
seal becomes messy.
The heating element is either sold individually or
included in the maintenance parts kit.
Electrodes that mount the heating element consist of
parts as in the right illustration.
10-1 How to shift fluoro glass sheet
10-2 Heating element replacement
(For both ribbon and braided types)
(d) Fluoro glass sheet
holding bracket
(a) Fluoro glass sheet
holder securing
screw
(b) Fluoro glass sheet
(e) Holder
(f) Fluoro glass sheet
roll bar
(c) White plastic nut
Sponge pad
(g) Fluoro glass sheet
roll bar holder
Screw D
Electrode bracket
Electrode plate
Electrode plate spring
Electrode cover
Screw C (M4x6)
Screw B
Screw A
Terminal cover
(Installed only to the
single side heating
model.)
Warning If you lose screw C (M4x6), do not use
longer screw as a substitute for it.
Otherwise, there is a possibility of
electrical short by touching
Caution When replacing the heating element, be
sure to check the damage of glass tape or
Sarcon sheet. If they are damaged,
Otherwise, heating element touches with
sealer's frame directly, and it may occur
the electrical short.
TIPS Heating element can be replaced without
removing the electrode cover to prevent
the loss of electrode or screws.
