Van Der Valk ValkSolarFix User manual

Version 2 |October 2022
Installation manual
ValkSolarFix
Mounting in concrete roof with concrete anchor
for at and pitched roofs

Version 2 |October 2022
1
2
SS anged nut M10
SS washer M10
SS anged nut M10
EPDM sealer M10
Complete set: 747680 ValkSolarFix - SS concrete anchor
Installation manual ValkSolarFix / Mounting in concrete roof with concrete anchor
Concrete anchor
Min. thickness
100mm
Drill diameter
16mm
Drilling depth
75mm
Edge distance
min. 50mm
Concrete quality
Min. C20/25

Version 2 |October 2022
3
4
Installation manual ValkSolarFix / Mounting in concrete roof with concrete anchor
16 mm

Version 2 |October 2022
5
6
Advice size rosee:
- 540mm outer size
- 130mm inner size
For the waterght nishing of the consoles please contact your cered roofer.
Advice installaon membrane:
Installation manual ValkSolarFix / Mounting in concrete roof with concrete anchor

Version 2 |October 2022

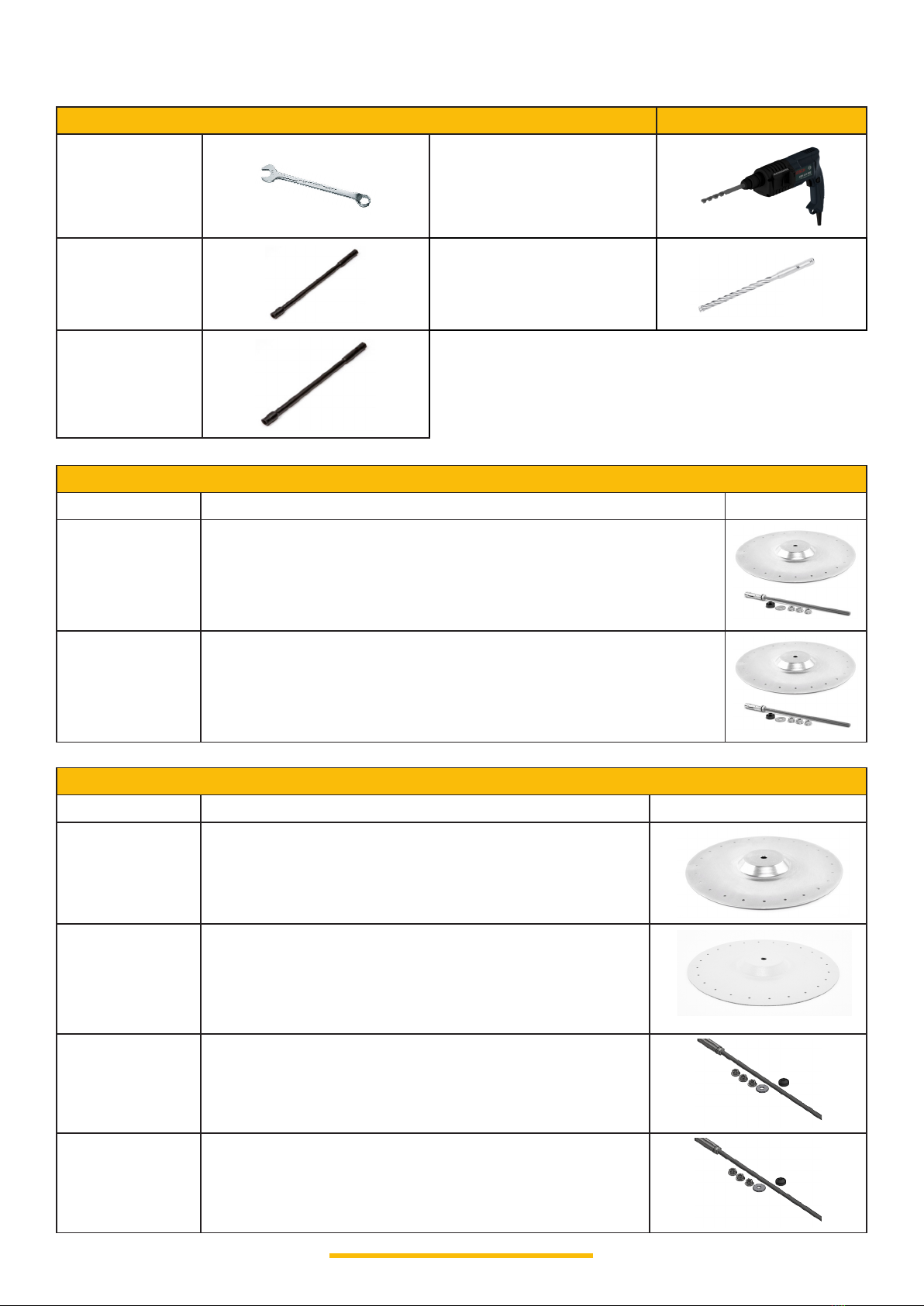

Complete sets
Article number Description
747680 ValkSolarFix Concrete - concrete anchor - insulation 2-28cm
747681 ValkSolarFix Concrete - concrete anchor - insulation 29-38cm
Needed tools
Wrench 15 Concrete drill
Fixation tool 15
L=200 mm
Drill Ø16mm
Fixation tool 17
L=500 mm
Separate components
Article number Description
747600 ValkSolarFix Low h=20mm
747601 ValkSolarFix Low h=20mm - PVC coated
747610 ValkSolarFix - SS concrete anchor M10 L=400mm
747611 ValkSolarFix - SS concrete anchor M10 L=500mm
Installation manual ValkSolarFix / Mounting in concrete roof with concrete anchor
