Pop Up Gazebo
VG-9429 / VG-9504 / VG-9320 / VG-8422 / VG-8439 / VG-8446/ VG-8453
GA20161111-01 / GA20170103-01
UK
Installation lMaintenance lSafety

2
Scope of delivery ........................................................................................................................................... 3
Part name ............................................................................................................................................................ 3
Safety instructions ....................................................................................................................................... 4
Erecting your Pop Up Gazebo ........................................................................................................... 6
Side Panels ....................................................................................................................................................... 9
Cleaning and storage ............................................................................................................................. 10
Disposal ............................................................................................................................................................. 10
Distributor ......................................................................................................................................................... 10
CONTENTS

3
Dear Customer,
Thank you for choosing our product. If you have any questions or sugge-
stions, please contact our service hotline. Tel.: + 44 203 318 44 15
We wish you much pleasure and satisfaction with our product.
Please read the safety and assembly instructions
carefully prior to use and retain the instructions for
for further reference.
• Transport and storage bag
• Pop Up Gazebo approx. 3 m x 3 m x
2.6 m (length x width x height)
• 2/4 side panels
• 4 tensioning ropes
• 4 ground pegs
• 8 tent pegs
• Accessory bag
1. Locking pin
2. Plastic sliders
3. Corner post
4. Plastic part
5. Drill holes
6. Hook
7. Corner section
8. Lug
9. Velcro strip
10. Velcro strip
11. Side panels
12. Ground peg
13. Tent peg
14. Tensioning rope
!
SCOPE OF DELIVERY
Part name

4
!
• Keep the instructions in a safe place to refer to later, and pass them on
with the product if you give it to another user.
• No modification must be made to the shape or function of the Pop Up
Gazebo.
• The product is intended for personal use only and not for commercial use.
Hazard for children and a wider group of persons
• This product is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concer-
ning the use of the product by a person responsible for their safety. Child-
ren must not play with this product. Cleaning and user maintenance must
not be carried out by children without supervision.
• Do not allow children or persons requiring assistance to use this product
unsupervised.
• Keep children away from packaging material. Suffocation hazard if swallo-
wed. Ensure that the packaging bag is not put over the head.
• Children should be supervised at all times to ensure that they do not play
with the Pop Up Gazebo.
Read all safety information and instructions.
Failure to comply can cause serious accidents.
SAFETY INSTRUCTIONS

5
SAFETY INSTRUCTIONS
General accident risk
• The Pop Up Gazebo has been developed for quick erection and dismant-
ling and is not intended for long-term use.
• ALWAYS take care when erecting the Pop Up Gazebo ensuring that fin-
gers are kept clear of any entrapment.
• Never use the Pop Up Gazebo in adverse weather conditions. Do not erect
or use in wind, rain and snow. The product can become damaged.
• Dismantle immediately with imminent poor weather conditions. Dismant-
ling of the Pop Up Gazebo with anticipated wind speeds of more than
40 km/h (fresh wind, large branches and trees move and wind is clearly
audible).
• In the event of unexpected rain or snowfall, water pockets that form must
be emptied/accumulations of snow must be removed.
• Always ensure the Pop Up Gazebo is erected on an even surface.
• When erecting it on a hard surface (paving stones, etc.) and it is not
possible to use the tensioning ropes/ground pegs, please use alternative
means of ensuring that the Pop Up Gazebo is securely anchored.
• The Pop Up Gazebo should be erected individually with a clearance distan-
ce on all sides. It should not be tethered to, or used with other gazebos or
products of a similar nature such as tarpaulins etc.
• Do not hang any items on the poles and do not lay any items on top of the
Pop Up Gazebo.
• WARNING! Never burn charcoals inside a tent or in a confined space – Risk
of Carbon Monoxide Poisoning.
• In order to avoid mould formation, only pack the Pop Up Gazebo once it is
completely dry.

6
ERECTING YOUR POP UP GAZEBO
!
Due to the size of this product it is recommended that 2 or 4 people
erect the gazebo to ensure safe and easy assembly at all times.
1
2
9
3
7
8
6
4
5

7
ERECTING YOUR POP UP GAZEBO
6
13
12
1410
11
8

8
ERECTING YOUR POP UP GAZEBO
• Remove the Pop Up Gazebo and accessories from the transport and stora-
ge bag.
• Place the Pop Up Gazebo as illustrated in the middle of a 4 m x 4 m
surface.
• Lift the Pop Up Gazebo slightly off of the ground and carefully pull the four
corner posts apart in the direction of the arrows. In doing so, push all 4 pla-
stic sliders (2) up until all locking pins (1) are locked into the openings of
the plastic sliders.
• Put your foot on the plastic parts (4) and pull the corner post (3) up slowly
(pull up a minimum of 2 corner posts at the same time).
• The corner posts (3) have 3 drill holes (5), in which a locking pin must also
be locked in, depending on the required height of the Pop Up Gazebo. In
order to change the height, push in the locking pin. Ensure that the 4 cor-
ner posts are on the same setting.
• Untie the corner sections (7) and place the hooks (6) into the relevant drill
holder above the plastic part (4) , depending on the height setting (drill
holes are visible when the corner posts are pulled apart).

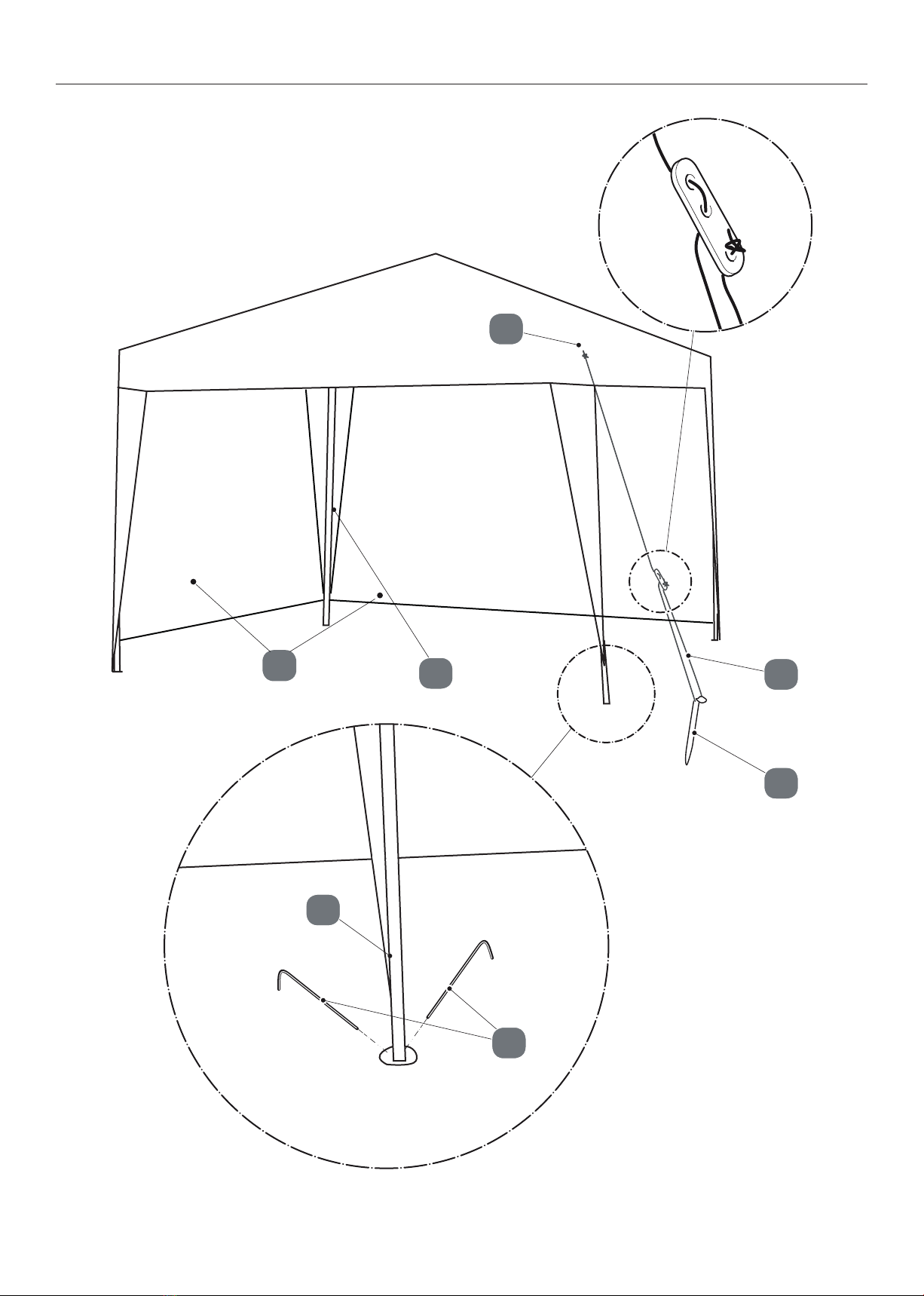

• Secure the Pop Up Gazebo with the tensioning ropes (14) and ground
pegs (12) on the lugs (8) . The corner posts can additionally be secured
with the tent pegs (13) on the plastic parts (4).
• Dismantling takes place in reverse order. The locking pins are unlocked by
pushing them in.

9
SIDE PANELS
1011
• The side panels (11) are fastened to the corner posts and at the top of the
scissor pole with Velcro strips (10).
• They can be fastened across the corner or opposite each other.

10
VG-9429 / VG-9504 / VG-9320 / VG-8422 / VG-8439 / VG-8446/ VG-8453
GA20161111-01 / GA20170103-01
CLEANING AND STORAGE
• The Pop Up Gazebo side panels are made of 100 % polyester and can be cleaned
by hand. For this, the Pop Up Gazebo must be removed from the poles.
• Do not use any caustic or abrasive detergents for cleaning.
• After cleaning, allow the Pop Up Gazebo and side sections to dry completely
before storing them away in the transport and storage bag.
DISPOSAL
For information about disposal and the location of the nearest recycling centre
please contact your local authority or visit their website.
Do not dispose of the product with household waste!
DISTRIBUTOR
Latupo GmbH, Waterloohain 9, 22769 Hamburg, Germany
