INSTALLATION GUIDE FOR
VENMAR AVS UNITS CONSTRUCTO 1.2 ERV
AND VÄNEE 60H+ ERV
Model no.: 41556
(ERV with top ports)
Model no.: 41554
(ERV with side ports)
VB0204
Model no.: 41656
(ERV with top ports)
VB0205
Model no.: 41654
(ERV with side ports)
VB0206
RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
! !
®

2
WARNING
Identifies an instruction which, if not followed, might cause serious personal injuries including possibility of death.
!
CAUTION
Identifies an instruction which, if not followed, may severely damage the unit and/or its components.
ABOUT THIS MANUAL
Because of the large amount of models covered by this publication, the illustrations are typical ones. Some details of your unit may be
slightly different than the ones shown.
Please take note that this manual uses the following symbols to emphasize particular information:
NOTE: Indicates supplementary information needed to fully complete an instruction.
We welcome any suggestions you may have concerning this manual or the unit, and we would appreciate hearing your comments on ways
to better serve you. Please contact us by phone at 1-800-567-3855.
ABOUT THESE UNITS
LIMITATION
For residential (domestic) installation only. Installation work and electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction codes and standards.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSON(S) OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or
telephone number listed in the warranty.
2. Before servicing or cleaning the unit, disconnect power cord from electrical outlet.
3. This unit is not designed to provide combustion and/or dilution air for fuel-burning appliances.
4. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
5. Do not use this unit with any solid-state speed control device other than following wall controls:
6. This unit must be grounded. The power supply cord has a 3-prong grounding plug for your personal safety. It must be plugged into a
mating 3-prong grounding receptacle, grounded in accordance with the national electrical code and local codes and ordinances. Do
not remove the ground prong. Do not use an extension cord.
7. Do not install in a cooking area or connect directly to any appliances.
8. Do not use to exhaust hazardous or explosive materials and vapors.
9. When performing installation, servicing or cleaning these units, it is recommended to wear safety glasses and gloves.
10. Due to the weight of the unit, two installers are recommended to perform installation.
11. When applicable local regulation comprise more restrictive installation and/or certification requirements, the aforementioned
requirements prevail on those of this document and the installer agrees to conform to these at his own expenses.
CAUTION
1. To avoid prematurate clogged filters, turn OFF the unit during construction or renovation.
2. Please read specification label on product for further information and requirements.
3. Be sure to duct air outside – Do not intake/exhaust air into spaces within walls or ceiling or into attics, crawl spaces, or garage.
4. Intended for residential installation only in accordance with the requirements of NFPA 90B (for a unit installed in U.S.A.) or Part 9 of the
National Building Code of Canada (for a unit installed in Canada).
5. Do not run any air ducts directly above or closer than 2 ft (0.61 m) to any furnace or its supply plenum, boiler, or other heat producing
appliance. If a duct has to be connected to the furnace return plenum, it must be connected not closer than 9’ 10” (3 m) from this plenum
connection to the furnace.
6. The ductwork is intended to be installed in compliance with all local and national codes that are applicable.
7. When leaving the house for a long period of time (more than two weeks), a responsible person should regularly check if the unit
operates adequately.
8. If the ductwork passes through an unconditioned space (e.g.: attic), the unit must operate continuously except when performing
maintenance and/or repair. Also, the ambient temperature of the house should never drop below 18°C (65°F).
WARNING
!
UNIT MAIN CONTROL AUXILIARY CONTROLS
VENMAR AVS CONSTRUCTO 1.2 ERV ALTITUDE, DECO-TOUCH, LITE-TOUCH CONSTRUCTO,
SIMPLE-TOUCH CONSTRUCTO OR CONSTRUCTO DEHUMIDISTAT,
20-MINUTE LIGHTED PUSH-BUTTON TIMER
AND 60-MINUTE CRANK TIMER
VÄNEE 60H+ ERV PLATINUM, DECO-TOUCH, LITE-TOUCH BRONZE,
SIMPLE-TOUCH BRONZE OR BRONZE

3
TABLE OF CONTENTS
1. T YPICAL INSTALLATIONS ......................................................................................................................... 4-5
1.1 FULLY DUCTED SYSTEM.................................................................................................................................. 4
1.2 CENTRAL DRAW POINT .................................................................................................................................. 4
1.3 SIMPLIFIED INSTALLATION ................................................................................................................................ 4
1.4 ATTIC INSTALLATION ....................................................................................................................................... 5
2.INSTALLATION..................................................................................................................................... 5-10
2.1 INSPECT THE CONTENT OF THE BOX ............................................................................................................... .5
2.2 LOCATING THE UNIT ....................................................................................................................................... 5
2.3 UNIT PREPARATION .....................................................................................................................................5-6
2.4 HOW TO HANG THE UNIT................................................................................................................................ 6
2.5 PLANNING OF THE DUCTWORK ......................................................................................................................... 7
2.6 INSTALLING THE DUCTWORK AND REGISTERS .................................................................................................. 7-8
2.6.1 FULLY DUCTED SYSTEM .........................................................................................................................................7
2.6.2 CENTRAL DRAW POINT SYSTEM ..............................................................................................................................7
2.6.3 SIMPLIFIED INSTALLATION ........................................................................................................................................8
2.7 CONNECTING THE DUCTS TO THE UNIT.............................................................................................................. 9
2.8 INSTALLING 2 EXTERIOR HOODS..................................................................................................................... 10
2.9 INSTALLING THE TANDEM®TRANSITION KIT ....................................................................................................... 10
3.CONTROLS....................................................................................................................................... 11-13
3.1 INTEGRATED CONTROL...................................................................................................................................11
3.2 ELECTRICAL CONNECTION TO OPTIONAL WALL CONTROLS............................................................................. 12-13
3.2.1 ELECTRICAL CONNECTION TO ALTITUDE OR PLATINUM MAIN WALL CONTROL .................................................................12
3.2.2 ELECTRICAL CONNECTION TO DECO-TOUCH MAIN WALL CONTROL..............................................................................12
3.2.3 ELECTRICAL CONNECTION TO LITE-TOUCH CONSTRUCTO OR BRONZE
OR SIMPLE-TOUCH CONSTRUCTO OR BRONZE MAIN WALL CONTROLS .........................................................................12
3.2.4 ELECTRICAL CONNECTION TO CONSTRUCTO OR BRONZE MAIN WALL CONTROL .............................................................12
3.2.5 ELECTRICAL CONNECTION TO OPTIONAL AUXILIARY WALL CONTROLS...........................................................................13
4.ELECTRICAL CONNECTION TO THE FURNACE ................................................................................................13
5.WIRING DIAGRAM ..................................................................................................................................14
6.BALANCING THE UNIT ..............................................................................................................................15
7. S ERVICE PARTS.....................................................................................................................................16
8.TROUBLESHOOTING ...........................................................................................................................17-18

4
1. TYPICAL INSTALLATIONS
Installations may vary according to the type of unit and the ports configuration (top or sides). Use the following illustrations as guidelines
to help you decide on how the unit will be installed.
All the units should be hung from the joists.
In every case, bathroom fans and a range hood should be used to exhaust stale air. Also, for homes with more than one level, we
recommend one exhaust register at the highest level.
There are 3 installation methods: Fully ducted, Central Draw Point and Simplified Installation.
NOTE: An electrical outlet has to be available within 3 feet of the unit.
1.1 FULLY DUCTED SYSTEM (PRIMARILY FOR HOMES WITH RADIANT HOT WATER OR ELECTRIC BASEBOARD HEATING)
VH0099
Stale air coming from the registers located at the highest level of the
house is exhausted to the outside. Fresh air from outside is filtered and
supplied by the register located in the lowest liveable level.
Homes with more than one level require at least one exhaust register
at the highest level.
See figure at right.
1.2 CENTRAL DRAW POINT (CONNECTION TO AFORCED AIR SYSTEM)
Stale air coming from the registers located at the highest level of the
house is exhausted to the outside. Fresh air from outside is filtered and
supplied to the return (plenum) or the supply duct of the forced air unit.
See figure at right.
For this type of installation, it is not essential that the forced air system
blower runs when the unit is in operation, but we recommend it.
NOTE: Home with multiple forced air systems should have one unit on
each system.
1.3 SIMPLIFIED INSTALLATION (CONNECTION TO AFORCED AIR SYSTEM)
Stale air is exhausted to the outside. Fresh air from outside is filtered
and supplied to the return (plenum) or the supply duct of the forced air
unit.
See figure at right.
To avoid cross-contamination and achieve the highest efficiencies, the
forced air system blower must always be ON.
NOTE: Home with multiple forced air systems should have one unit on
each system.
VH0100
VH0101

5
1. TYPICAL INSTALLATIONS (CONT’D)
1.4 ATTIC INSTALLATION
All 3 types of installations can be used in the attic (Fully ducted system, Central Draw Point or Simplified). The example shown
below is a Simplified installation (connection to a forced air system).
NOTE: To get the most of your ERV unit, the ambient temperature around the unit should be conditioned. If the unit has to be
installed in an unconditioned space, the heat gains or losses from the unit and the ducts could increase the operation
costs of the unit.
CAUTION
• Due to the potential temperature difference between the attic and the rest of the house, all unit ducts must be
insulated.
• The attic temperature must always be above 0°C (32°F) and under 65°C (149°F).
Stale air is exhausted to the outside. Fresh air from
outside is filtered and supplied to the return (plenum) of
the forced air unit. See figure at right.
To avoid cross-contamination and achieve the highest
efficiencies, the forced air system blower must always
be ON.
NOTE: Home with multiple forced air systems should
have 1 unit on each system.
VH0102
2. INSTALLATION
2.1 INSPECT THE CONTENTS OF THE BOX
• Inspect the exterior of the unit for shipping damage. Ensure that there is no damage to the door, door latches, power cord, etc.
• Remove and discard both transport brackets (A) and open the door. Discard the styrofoam
fillers and remove the hardware kit from the unit. Inspect the interior of the unit for damage.
Ensure that heat or energy recovery core, core filters, insulation, dampers, etc. are all intact.
2.2 LOCATING THE UNIT
Choose an appropriate location for the unit.
• Within an area of the house where the ambient temperature is kept between 18°C (65°F) and 40°C (104°F).
• So as to provide easy access to the interior of the unit, for semi-annual and annual maintenance.
• Close to an exterior wall, so as to limit the length of the insulated flexible duct to and from the unit.
• Away from hot chimneys and other fire hazards.
• Allow for a power source (standard 3-prong grounding outlet).
2.3 UNIT PREPARATION
All these units are equipped with 2 ports having integrated balancing damper. Turn the thumb screw
(B) clockwise to manually open and adjust the damper (C). Set both Fresh air to building port and
Exhaust air to outside port to wide open position.
VD0183
A
V
J003
2
B
C
Port with integrated balancing
damper - Top view

6
2. INSTALLATION (CONT’D)
2.3 UNIT PREPARATION (CONT’D)
The door latches location can be changed from sides to front of the unit, according to the installation needs.
To do so, turn the unit upside down. Open the latches an unscrew them from the unit. Install the latches on their new locations.
VD0176
Latches on sides of the unit Latches in front of the unit
VB0094
VO0089
VO0090
2.4 HOW TO HANG THE UNIT
Hang the unit with the 4 chains, hooks and
springs provided.
CAUTION
Make sure the unit is level.
VD0184
VD0185
VD0187
If there is not enough space on top of the unit, slightly bend the hooks and
install them lower on the unit. See figure at right.

7
2. INSTALLATION (CONT’D)
2.5 PLANNING OF THE DUCTWORK
• Keep it simple. Plan for a minimum of bends and joints.
• Keep the length of insulated ducts to a minimum.
• Do not ventilate crawl spaces or cold rooms. Do not attempt to recover the exhaust air from a dryer or a range hood. This would
cause clogging of the filters and recovery module.
• If the house has two floors or more, be sure to plan for at least one exhaust register on the highest lived-in level.
2.6 INSTALLING THE DUCTWORK AND REGISTERS
2.6.1 FULLY DUCTED SYSTEM (AS ILLUSTRATED IN SECTION 1.1)
Stale air exhaust ductwork:
• Install the stale air exhaust registers where the contaminants are produced: Kitchen, living room, etc. Position the registers as
far from the stairway as possible and in such a way that the air circulates in all the lived-in spaces in the house.
• If a register is installed in the kitchen, it must be located at least 4 feet (1.2 m) from the range.
• Install the registers 6 to 12 inches (152 to 305 mm) from the ceiling on an interior wall OR install them in the ceiling.
Fresh air distribution ductwork:
• Install the fresh air distribution registers in bedrooms, dining rooms, living room and basement.
• Keep in mind that the fresh air registers must be located as far as possible from the stale air registers.
• Install the registers in the ceiling OR 6 to 12 inches (152 to 305 mm) from the ceiling on an interior wall. The duct length
should be at least 15’ (4.6 m). (The fresh air will then flow through the room and mix with room air, ensuring a continuous
renewed airflow.)
• If a register must be floor installed, direct the airflow up the wall.
2.6.2 CENTRAL DRAW POINT SYSTEM (AS ILLUSTRATED IN SECTION 1.2)
Stale air exhaust ductwork:
Same as for Fully Ducted System, described on point 2.6.1
Fresh air distribution ductwork:
There are 2 methods for connecting the unit to the furnace/air handler:
Method 1: Supply side connection
• Cut an opening into the furnace supply duct at least 18 inches (0.5 m) from the
furnace/air handler.
• Connect this opening to the Fresh air to building port of the ERV (use steel duct,
see figure at right).
• Make sure the ERV duct forms an elbow inside the furnace/air handler ductwork.
• If desired, interlock (synchronize) the furnace/air handler blower operation (see
Section 4).
Method 2: Return side connection
• Cut an opening into the furnace return duct not less than 10 feet (3.1 m) from the
furnace/air handler (A+B).
• Connect this opening to the Fresh air to building port of the ERV (see figure at right).
NOTE: For Method 2, it is not essential that the furnace/air handler runs when the unit
is in operation, but we recommend it. If desired, interlock (synchronize) the
furnace/air handler blower operation (see Section 4).
WARNING
Never install a stale air exhaust register in a closed room where a combustion device operates, such as a gas furnace,
a gas water heater or a fireplace.
!
CAUTION
When performing duct connections to the furnace supply duct, this duct must be sized to support the additional
airflow produced by the ERV. Also, use a steel duct.
VJ0036
STEEL DUCT
MINIMUM 18"
(0.5 M)
B
A
VJ0035 A+B= NOT LESS
THAN 10' (3.1 M)
WARNING
When performing duct connections, always use approved tools and materials. Respect all corresponding laws and
safety regulations. Please refer to your local building code.
!

8
2. INSTALLATION (CONT’D)
2.6 INSTALLING THE DUCTWORK AND REGISTERS (CONT’D)
2.6.3 SIMPLIFIED INSTALLATION (AS ILLUSTRATED IN SECTION 1.3)
There are 2 methods for connecting the unit to the furnace/air handler:
Method 1: Supply-return connection Method 2: Return-return without
Stale air intake:
• Cut an opening into the furnace/air handler return duct not less than 10 feet (3.1 m) from the furnace/air handler (A+B).
• Connect this opening to the Exhaust air from building port of the ERV.
Fresh air distribution:
• Same instructions as for Method 1 or Method 2, Section 2.6.2.
For Method 2 (Return-return), make sure there is a distance of at least 3 feet (0.9 m) between the 2 connections to the
furnace/air handler.
NOTE: For Method 1, it is not essential to synchronize the furnace blower operation with the unit operation, but we recommend it.
WARNING
When performing duct connections, always use approved tools and materials. Respect all corresponding laws and/or
safety regulations. Please refer to your local building code.
!
CAUTION
When performing duct connections to the furnace supply duct, this duct must be sized to support the additional
airflow produced by the ERV. Also, use a steel duct. For a Return-Return installation, the furnace blower must be in
operation when the ERV is in operation.
B
A
VJ0038
B
A
VJ0037
STEEL DUCT
MINIMUM 18"
(0.5 M)
A+B= NOT LESS
THAN 10' (3.1 M)
MINIMUM 3'
(0.9 M)
A+B= NOT LESS
THAN 10' (3.1 M)
CAUTION
If using Method 2, make sure the furnace/air handler blower operation is synchronized with the unit operation! See
Section 4.

9
2. INSTALLATION (CONT’D)
2.7 CONNECTING THE DUCTS TO THE UNIT
NOTE: All units ports were created to be connected to ducts having a minimum of 5” diameter, but if need be, they can be connected
to bigger sized ducts by using an appropriate transition (e.g.: 5” diameter to 6” diameter transition).
Insulated flexible ducts:
All units have both Fresh air to building and Exhaust air to outside ports equipped with integrated balancing damper. Prior to install
the insulated flexible ducts on, ensure these both ports have their dampers set to wide open position (See Section 2.3)
CAUTION
Make sure the balancing dampers are set to wide open position before connecting the ducts to the ports.
Pull back the insulation to expose the flexible duct.
Attach the flexible duct to the port using tie wrap.
Pull the insulation over the joint and tuck in between the inner and outer rings of the double collar, then pull down the vapor barrier
(shaded part in illustrations below) over the insulation and over the outer ring of double collar.
Apply duct tape to the joint making an airtight seal. Avoid compressing the insulation when pulling the tape
tightly around the joint. Compressed insulation loses its R value and causes water dripping due to condensation on the exterior
surface of the duct.
Rigid ducts:
Use a small length (6” lenght) of flexible duct to connect the rigid duct to the ports in order to avoid vibration transmissions. Use
tie-wraps to perform connections, then seal with duct tape.
CAUTION
Do not use screws to connect the rigid ducts to the ports.
Use the following procedure for connecting the insulated flexible ducts to the port of the unit (Exhaust air to outside and Fresh
air from outside ports).
CAUTION
If ducts have to go through an unconditioned space (e.g.: attic), always use insulated ducts.


VJ0120

CAUTION
Make sure the vapor barrier on the insulated ducts does not tear during installation to avoid condensation within the
ducts.

10
2.8 INSTALLING 2 EXTERIOR HOODS
Choose an appropriate location to install the exterior hoods:
• There must be a inimum distance of 6’ (1.8 m) between the hoods to avoid cross-contamination
• There must be a minimum distance of 18” (457 mm) from the ground
Refer to figure below for connecting insulated ducts to the exterior hoods. An “Anti-gust intake hood” should be installed in regions
where a lot of snow is expected to fall.
WARNING
Make sure the intake hood is at least 6 feet (1.8 m) away from any of the following:
• Dryer exhaust, high efficiency furnace vent, central vacuum vent
• Gas meter exhaust, gas barbecue-grill
• Any exhaust from a combustion source
• Garbage bin and any other source of contamination
!
VD0028
EXHAUST HOOD
INTAKE HOOD
TAPE AND DUCT TIE
18"
(457 MM)
6'
(1.8 M)
18"
(457 MM)
18"
(457 MM)
6'
(1.8 M)
6" Ø
(152 MM)
OPTIONAL DUCT
LOCATION
2. INSTALLATION (CONT’D)
2.9 INSTALLING THE TANDEM®TRANSITION* KIT
If desired, a Tandem transition kit can be used instead of 2 exterior hoods; but take in
account this device will generate additional 0.23 in. w.g. static pressure.
The joist opening needed to install the Tandem®transition must be 9¾” minimum. The
maximum height of the Tandem transition is 8¾”.
To connect the insulated flexible ducts to the Tandem transition (Exhaust air to outside
and Fresh air from outside), follow the instructions included with the Tandem transition kit
(part no.14690).
*Patented.
VR0003
Tandem transition kit

11
3. CONTROLS

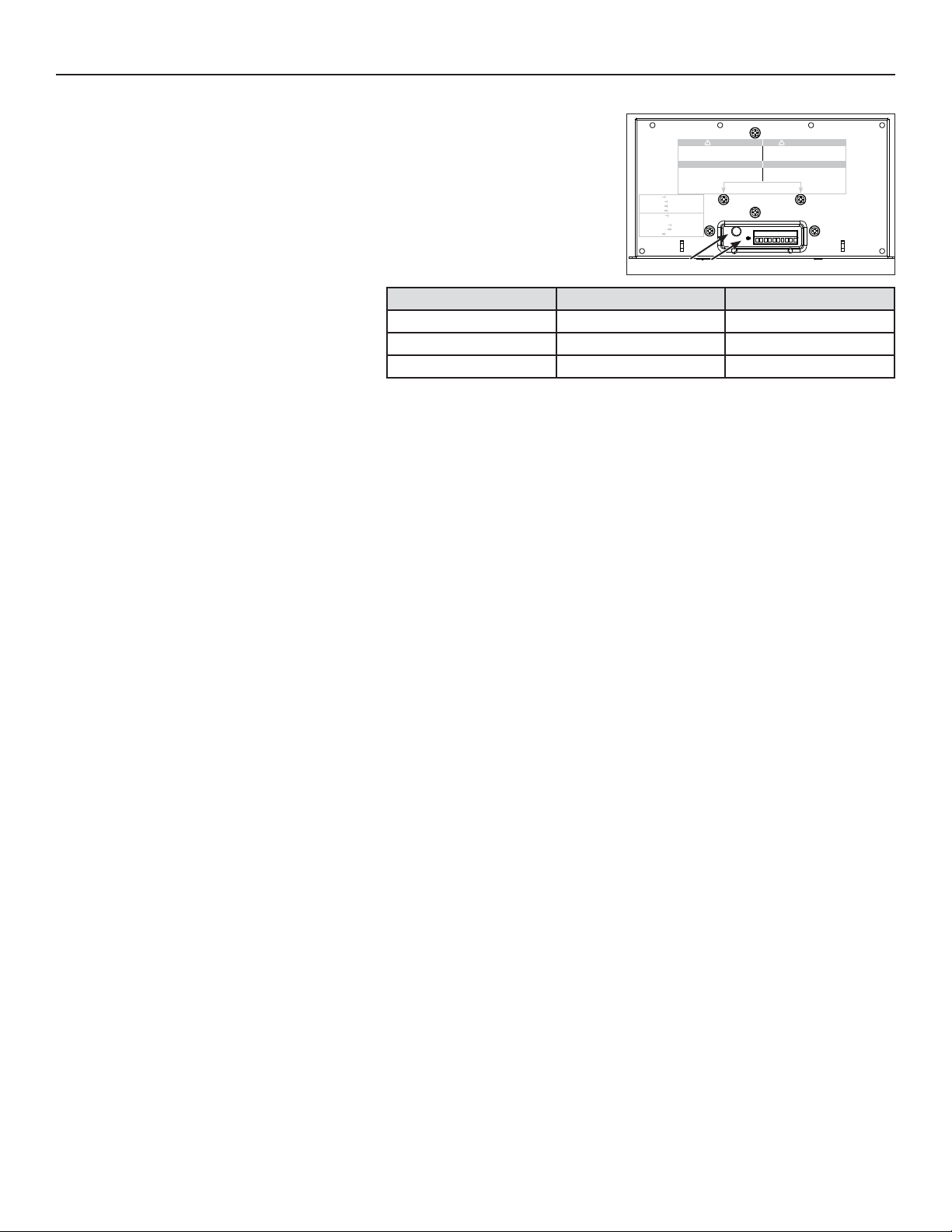

3.1 INTEGRATED CONTROL
All units are equipped with an integrated control, located under the unit, in front of
the electrical compartment. Use the push button (1) to control the unit. The LED (2)
will then shows on which mode the unit is in.
WARNING
Risk of electric shock. Before performing
any maintenance or servicing, always
disconnect the unit from its power source.
AVERTISSEMENT
Danger d’électrocution. Débranchez
toujours l’appareil avant d’entreprendre
des travaux d’entretien ou de réparation.
CAUTION
Unscrew both screws to open the electrical
compartment. To completely remove, detach
from its retention wire inside.
ATTENTION
Dévisser les deux vis pour ouvrir le compartiment
électrique. Pour retirer complètement, le
détacher de son fil de rétention intérieur.
No li ght OFF or remote controled
Amber light LOW speed
Green ligh HIGH speed
Blinking light See User Manual
Sans lumière Arrêté ou contrôlé
par contrôle mural
Lumière ambre Basse vitesse
Lumière verte Haute vitesse
Clignotant Voir guide d’utilisation
VD0182 12
PRESS ON PUSH BUTTON LED COLOR RESULTS
ONCE AMBER UNIT IS ON LOW SPEED
TWICE GREEN UNIT IS ON HIGH SPEED
THREE TIMES NOLIGHT UNIT IS OFF
Refer to table at right to see how to operate
the unit using its integrated control.
If a problem occurs during the unit operation, its integrated control LED (2) will blink. The color of the blinking light depends on the
type of error detected. Refer to Section 8 TROUBLESHOOTING on page 17 for further details.
3.1.1 BOOT SEQUENCE
The unit boot sequence is similar to a personal computer boot sequence. Each time the unit is plugged after being unplugged, or
after a power failure, the unit will perform a 30-second booting sequence before starting to operate. During the booting sequence,
the integrated control LED will light GREEN or AMBER for 5 seconds, and then will shut off for 2 seconds. After that, the LED
will light RED for the rest of the booting sequence. During this RED light phase, the unit is checking and resetting the motorized
damper position. Once the motorized damper position completely set, the RED light turns off and the booting sequence is done.
NOTE: No command will be taken until the unit is fully booted.
3.1.2 SETTING EXTENDED DEFROST
These units are factory set to normal defrost. In cold region (outside temperature -27°C [-17°F] and lower), it may be necessary
to setup extended defrost. During the first 2 seconds of booting sequence, while the integrated control LED is GREEN, press on
push button for 3 seconds to set the unit in extended defrost; the LED will blink AMBER to show the unit is in extended defrost
mode. After that, the LED will shut off, then light RED (the unit returns in its booting sequence).

12
3. CONTROLS (CONT’D)
3.2 ELECTRICAL CONNECTION TO OPTIONAL WALL CONTROLS
3.2.1 ELECTRICAL CONNECTION TO ALTITUDE
OR PLATINUM MAIN WALL CONTROL
3.2.2 ELECTRICAL CONNECTION TO DECO-TOUCH
MAIN WALL CONTROL
3.2.3 ELECTRICAL CONNECTION TO LITE-TOUCH
CONSTRUCTO OR BRONZE, OR SIMPLE-TOUCH
CONSTRUCTO OR BRONZE MAIN WALL CONTROLS
3.2.4 ELECTRICAL CONNECTION TO CONSTRUCTO
OR BRONZE MAIN WALL CONTROL
NO C NC I OC OL Y R G B
VE0181
SMART
SET
MODE
PREF
NO C NC I OC OL Y R G B
VE0250
NO C NC I OC OL Y R G B
BG
OC
MAIN WALL CONTROLS
LITE-TOUCH CONSTRUCTO,
LITE-TOUCH BRONZE,
SIMPLE-TOUCH CONSTRUCTO
and SIMPLE-TOUCH BRONZE
REAR VIEW
G B
Y
VE0113A
NO C NC I OC OL Y R G B
VE0187
For more convenience, this unit can also be controlled using an optional main wall control.
NOTES: 1. The integrated control must be turned OFF to use an optional main control.
2. If an optional auxiliary control is used, if activated, this auxiliary control will override the optional main control operation.
CAUTION
Never install more than one main wall control per unit. Make sure that the wires do not short-circuit between
themselves or by touching any other components on the wall control. Avoid poor wiring connections. To reduce
electrical interference (noise) potential, do not run wall control wiring next to control contactors or near light dimming
circuits, electrical motors, dwelling/building power or lighting wiring, or power distribution panel.
Use the terminal connector included in the installation kit to perform the electrical
connection for main and optional wall controls. Check if all wires are correctly inserted
in their corresponding holes in the terminal block. (A wire is correctly inserted when its
orange receptacle is lower than another one without wire. On illustration at right, wire
Ais correctly inserted, but not wire B.)
Splice back the end of the cable to access the 4 wires. Strip the end of each wire.
Connect each wire to its corresponding terminal:YELLOW wire to “Y’’, RED wire to “R’’,
GREEN wire to “G’’ and BLACK wire to “B’’. Check if all wires are correctly inserted in
their corresponding holes in the terminal block.
Connect the auxiliary control cable, if installed (not shown).
VE0272
A
B
WARNING
Always disconnect the unit before making any connections. Failure in disconnecting power could result in electric
shock or damage of the wall control or electronic module inside the unit.
!

13
3. CONTROLS (CONT’D)
3.2 ELECTRICAL CONNECTION TO OPTIONAL WALL CONTROLS (CONT’D)
3.2.5 ELECTRICAL CONNECTION TO OPTIONAL AUXILIARY WALL CONTROLS
NOTE: If an optional auxiliary wall
control is activated and then,
the Dehumidistat is being
activated, this one will override
the auxiliary wall control
commands.
NO C NC I OC OL Y R G B
PUSH-BUTTON TIMERS
60-MINUTE
CRANK TIMER
DEHUMIDISTAT
VE0296A
Once the wall control(s) connections have been made, insert the terminal connector in the bottom of the unit, on the electrical
compartment front face.
WARNING
Risk of electric shock. Before performing
any maintenance or servicing, always
disconnect the unit from its power source.
AVERTISSEMENT
Danger d’électrocution. Débranchez
toujours l’appareil avant d’entreprendre
des travaux d’entretien ou de réparation.
CAUTION
Unscrew both screws to open the electrical
compartment. To completely remove, detach
from its retention wire inside.
ATTENTION
Dévisser les deux vis pour ouvrir le compartiment
électrique. Pour retirer complètement, le
détacher de son fil de rétention intérieur.
No li ght OFF or remote controled
Amber light LOW speed
Green ligh HIGH speed
Blinking light See User Manual
Sans lumière Arrêté ou contrôlé
par contrôle mural
Lumière ambre Basse vitesse
Lumière verte Haute vitesse
Clignotant Voir guide d’utilisation
VD0182
TERMINAL
CONNECTOR
NOTE: For information about the operation of the wall controls, refer to the user guide.
4. ELECTRICAL CONNECTION TO THE FURNACE
WARNING
Never connect a 120-volt AC circuit to the terminals of the furnace interlock (standard wiring). Only use the low voltage class
2 circuit of the furnace blower control.
!
For a furnace connected to a cooling system:
On some older thermostats, energizing the “R” and “G” terminals at the furnace has the effect of energizing “Y” at the thermostat and
thereby turning on the cooling system. If you identify this type of thermostat, you must use the ALTERNATE FURNACE INTERLOCK WIRING.
STANDARD FURNACE INTERLOCK WIRING ALTERNATE FURNACE INTERLOCK WIRING
W R G Y
W
R
G
C
Y
UNIT TERMINAL CONNECTOR
THERMOSTAT
TERMINALS
FOUR
WIRES
TWO WIRES
heating only
FURNACE
24-VOLT
TERMINAL BLOCK TWO WIRES COOLING SYSTEM
NO C NC I OC OL Y R G B
W R G Y
W
R
Y
R
G
Y
C
THERMOSTAT
TERMINAL
4 WIRES
2 WIRES
heating only wiring
nuts
FURNACE
24-VOLT
TERMINAL BLOCK 2 WIRES COOLING SYSTEM
NO
NC
C
UNIT TERMINAL CONNECTOR
NO C NC I OC OL Y R G B
VE0108A

14

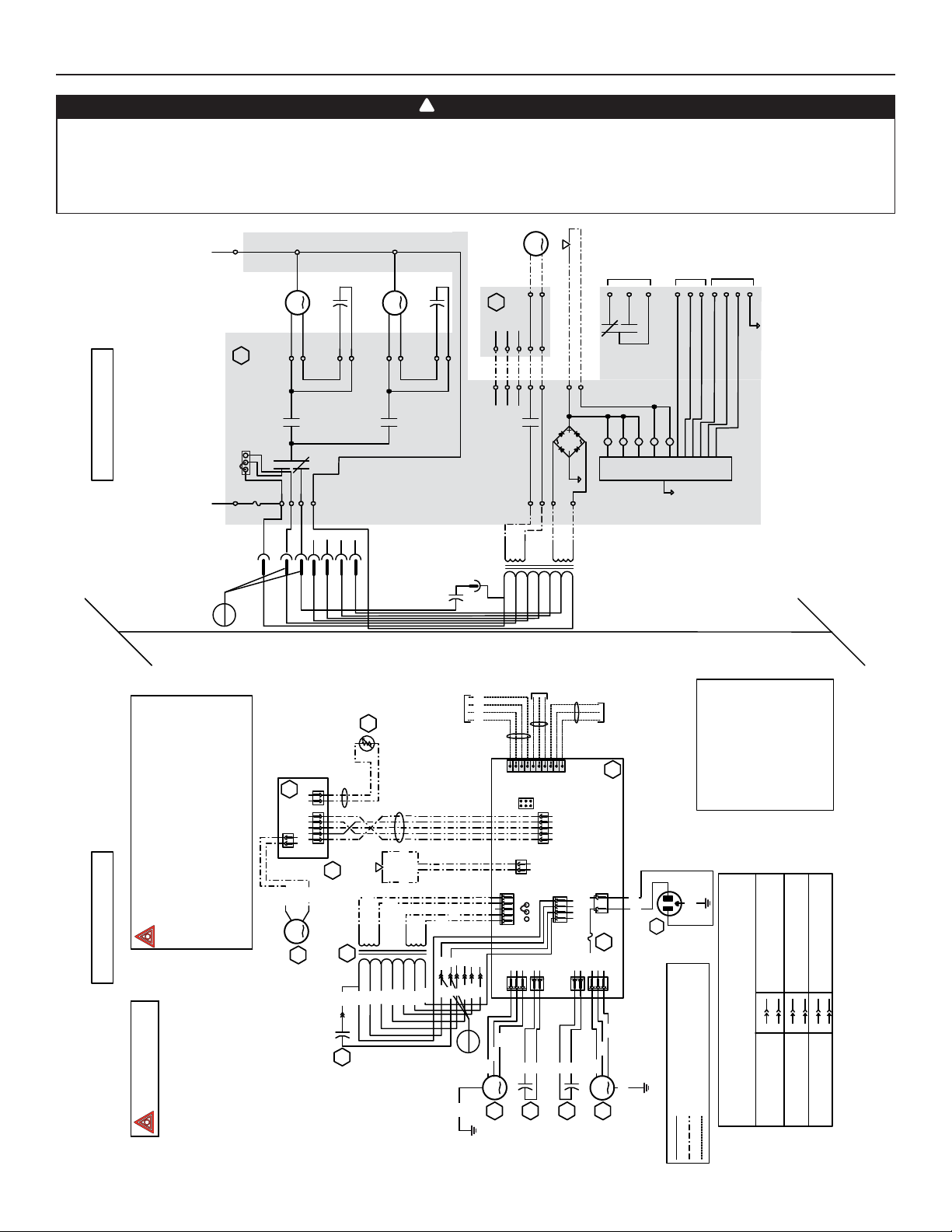

5. WIRING DIAGRAM
WARNING
• Risk of electric shocks.Before performing any maintenance or servicing,always disconnect the unit from its power source.
• This product is equipped with an overload protection (fuse). A blown fuse indicates an overload or a short-circuit situation.
If the fuse blows, unplug the product and check the polarity and voltage output from the outlet. Replace the fuse as per the
servicing instructions (refer to wiring diagram for proper fuse rating) and verify the product. If the replaced fuse blows, it may
be a short-circuit and the product must be discarded or returned to an authorized service center for examination and/or repair.
!
Field wiring
remote control
(see notes 3 & 4)
120 V, 60 Hz W1
J5 J7 J6 J4
ELECTRONIC
ASSEMBLY
1 2 3 1 2 1 2 1 2 3
1234
12
12345
12345
J8
J9
J11
J10
12
J12
J13
J14
10
9 8 7 6 5 4 3 2 1
BK
24 V class 2
9.5 V class 2
120V, 60Hz
Neutral
120 V, 60 Hz
Line
CPU
K2 K4 K5
J5-2
J10-1J10-2
Line voltage factory wiring Class 2 low voltage factory wiring Class 2 low voltage field wiring
See note 1
120 V
106 V
81 V
neutral
Door interlock switch
(magnetically actuated
Exhaust fan
motor
1234512
12
J3
J2 J1
t°
Damper motor
BK
Override switch
Furnace blower interlock
J14-1 : NO J14-2 : COM J14-3 : nc
(optional; see notes 3, 5)
DAMPER ELECTRONIC ASSEMBLY
Defrost temperature sensor
WIRING DIAGRAM LOGIC DIAGRAM
Exhaust fan motor
Supply fan motor
J5-1 J5-3 J7-2 J7-1 J4-1 J4-3 J6-2 J6-1
K1 K3
K2
24 V class 2
9.5 V class 2
120 V
neutral
J9-1
J9-2
J9-3
J4-2
J9-4 Exhaust fan motor
capacitor
Supply fan motor
capacitor
J8-1 J8-2 J8-4 J8-5
K4
J12-2 J12-1
A1
Damper motor
J3-2 J3-1
J2-2 J2-1
F1
J12-5 J12-4 J12-3 J2-3
J2-4 J2-5
Door interlock switch
J11-2 J11-1
K1 K3
K5 J14-3
J14-1 J14-2
Furnace blower interlock (optional; see notes 3, 5)
J14-4 J14-5 J14-6 J14-7 J14-8 J14-9
J14-10
Override switch (optional; see notes 3, 4) Field wiring remote control (see notes 3, 4)
ICP
BK
YRG
W W
BK
W
BL
G
BK BL BN
BN
R R R R
BK BL
Exhaust fan
motor
capacitor
Supply fan
motor
capacitor
Supply fan
motor
G
G
O
O
Y
Y
BK W
A2
A2
M3
T1
S1
R1
A1
F1
M1
C1 C2
M2
(optional; see
notes 3 & 4)
VE0301A
COLOR CODE
BK BLACK BL BLUE BN BROWN G GREEN RRED
W WHITE Y YELLOW nc no connection
Critical characteristic.
reed switch)
JU1
1
23
MED HI
321
HI MED
JU1
NOTES
1. Use specified UL listed/CSA Certified line fuse
(3A, 3AG Type).
2. If any of the original wire, as supplied, must
be replaced, use the same equivalent wire.
3. Field wiring must comply with applicable
codes, ordinances and regulations.
4. Remote controls (class 2 circuit) available, see instruction manual.
5. Furnace fan circuit must be class 2 circuit only.
Ref
1
Ref
1
FAN MOTORS SPEED SELECTION
SETTING Ref 1 FAN SPEEDS (Voltage) Factory shipped Low - High (106) Med-High select Med (64) - High (106) Low-Med select Low - Med (81)
BL BL
BK R
BL BL
GR R
PBL
BK R
71 V
64 V 57 V
R
BL
BL R
BK
P
P
BN
BN
GR
GR
nc nc nc
GR GREY
O ORANGE P PURPLE
O O
Y
Y
106 V
81 V
71 V
64 V 57 V
BK
W
BL
R
P
BN
GR
BK
W
BL
R
P
BN
GR
120 V
106 V
81 V
71 V
64 V 57 V
Rnc
BK
Low speed
capacitor C1 BK
BL
MED
R
LO
BK
Low speed
capacitor
BK

15
6. BALANCING THE UNIT
To avoid balancing, the difference between stale air ducts total length and fresh air ducts total length must not exceed 50 ft. However, even
if the stale air ducts and fresh air ducts lengths are almost equal, your local building codes may require balancing the unit.
If the unit does not need to be balanced, shut all the pressure taps (located on the unit door) with the small plastic plugs included in the
hardware kit.
6.1 WHAT YOU NEED TO BALANCE THE UNIT
• A magnehelic gauge capable of measuring 0 to 0.5 inch of water (0 to 125 Pa) and 2 plastic
tubes.
• The balancing chart located on the unit door.
6.2 PRELIMINARY STAGES TO BALANCE THE UNIT
• Seal all the unit ductwork with tape. Close all windows and doors.
• Turn off all exhaust devices such as range hood, dryer and bathroom fans.
• Make sure the integrated balancing dampers are fully open. Turn the thumb screw (A) clockwise to
manually open the dampers. Both are located on the Exhaust air to outside port and on Fresh air to
building port.
• Make sure all filters are clean (if it is not the first time you balance the unit).
6.3 BALANCING PROCEDURE
1. Set the unit to high speed.
Make sure that the furnace/air handler blower is ON if the installation is in any way
connected to the ductwork of the cold air return. If not, leave furnace/air handler blower
OFF. If the outside temperature is below 0°C/32°F, make sure the unit is not running in
defrost while balancing. (By waiting 10 minutes after plugging the unit in, you are assured
that the unit is not in a defrost cycle.)
2. Place the magnehelic gauge on a level surface and adjust it to zero.
3. Connect tubing from gauge to exhaust air flow pressure taps (see diagram at right).
Be sure to connect the tubes to their appropriate high/low fittings. If the gauge drops
below zero, reverse the tubing connections.
NOTE: It is suggested to start with the exhaust air flow reading because the exhaust has
typically more restriction than the fresh air, especially in cases of fully ducted
installations or source point ventilation. Place the magnehelic gauge upright and level. Record equivalent air flow of the
reading according to the balancing chart.
4. Move tubing to fresh air flow pressure taps (see diagram). Adjust the fresh air balancing damper until the fresh air flow is
approximately the same as the exhaust air flow. If fresh air flow is less than exhaust air flow, then go back and adjust the
exhaust balancing damper to equal the fresh air flow.
5. Secure both dampers thumb screw in place with tape.
6. Write the required air flow information on a label and stick it near the unit for future reference (date, maximum speed air flows,
your name, phone number and business address).
NOTE: The unit is considered balanced even if there is a difference of ±10 cfm (or ± 5 l/s or 17 m³/h) between the two air flows.
VP0009
V
J003
2
A
Port with integrated balancing
damper - Top view
VP0015
1 12 12 11
1 12 12 11
3 13 33 23
1 12 12 11
1 12 12 11
3 13 33 23
BALANCING
CHART
EXHAUST
AIR FLOW
FRESH
AIR FLOW

16
7. SERVICE PARTS
REPLACEMENT PARTS AND REPAIR
In order to ensure your ventilation unit remains in good working condition, you must use the manufacturer genuine replacement
parts only. The manufacturer genuine replacement parts are specially designed for each unit and are manufactured to comply with
all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause
serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Also, the manufacturer
recommends to contact a certified service depot for all replacement parts and repairs.
NO.DESCRIPTION PART NO.41554 ERV
SIDE PORTS
41556 ERV
TOP PORTS
41654 ERV
SIDE PORTS
41656 ERV
TOP PORTS
1OVAL PORT (FITS 5” DIAMETER DUCTS) 16040 1111
2DOOR LATCH WITH SCREWS 16035 2222
3OVAL PORT WITH INTEGRATED BALANCING DAMPER 16041 2222
4MOTOR & WHEEL ASSEMBLY (5 µF MOTOR
CAPACITOR AND INLET RING INCLUDED)183012222
5CAPACITOR 5 µF (2) 16042 1111
6CAPACITOR 18µF 611271111
7ELECTRONIC BOARD 62257 1111
8DOOR ASSEMBLY 16094 1 1
16095 1 1
9ERVCORE (WITH 2 FILTERS) 16033 1111
10 ERV FOAM FILTER 16031 2222
11 MOTORIZED DAMPER PORT ASSEMBLY 16029 1111
* ES TRANSFORMER 18302 1111
* PCB CONNECTOR 164161111
* NOT SHOWN.
VL0065
12
34
7
56
8
9
10 3
11

17
8. TROUBLESHOOTING
If the unit does not work properly, reset the unit by unplugging it for one minute and then replug it. If it still not working properly,
refer to table below.
If the integrated control LED of the unit is flashing, this means the unit sensors detected a problem. See the table below to know where
the problem occurs on the unit.
LED SIGNAL ERROR TYPE ACTION UNIT STATUS
LED flashes GREEN Thermistor error Replace the entire port assembly
(fresh air from outside port)
Unit works but will defrost
frequently
LED flashes AMBER Damper error Go to point 7 Unit does not work
LED flashes RED • The door is open and
the unit is not unplugged
• Exhaust motor error
• Put a magnet over the door switch or close the
door and press once on the integrated control
push button to reset the unit.
• Go to 8
Unit does not work
PROBLEMS POSSIBLE CAUSES YOU SOULD TRY THIS
1
The error code E1 is
displayed on Altitude,
Platinum or Deco-Touch wall
control screen.
• Unit not compatible with control.
• The wires may be in reverse position.
• The wires may be misconnected.
• The wires may be broken.
• Check table on page 2 for control compatibility.
• Ensure that the color coded wires have been connected to their
appropriate places.
• Ensure the wires are correctly connected.
• Inspect every wire and replace any that is damaged. If wires are
hidden into walls, test the control using a shorter wire.
2
There is no outside
temperature displayed on
Altitude or Platinum wall
control screen __.
• RED wire in control cable damaged or
misconnected.
NOTE: At its very start-up or after a power failure, it takes some
minutes before the outside temperature appears on screen.
The delay duration depends on which operation mode the
wall control is set. The shortest delay is obtained when the
wall control is set on MIN or MAX in VENT Mode.
• Ensure the RED wire is not damaged and properly connected.
3
Altitude, Platinum or
Deco-Touch wall control
screen alternates between
normal display and E3.
• The Altitude, Platinum or Deco-Touch
wall control may be defective.
• Replace the Altitude, Platinum or Deco-Touch wall control.
4
The wall control
does not work.
• Unit integrated control set to low or high
speed (AMBER or GREEN continuous
LED).
• Unit not compatible with control.
• The wires may be in reverse position.
• The wires may be misconnected.
• The wires may be broken.
• Defective wall control.
• Press on the integrated push button until the LED turns off.
• Check table on page 2 for control compatibility.
• Ensure that the color coded wires have been connected to their
appropriate places.
• Ensure the wires are correctly connected.
• Inspect every wire and replace any that are damaged.
• Replace the wall control.
5
Unit does not work (LED not
lit on power up).
• Unit is unplugged.
• No power to power outlet.
• The fuse may be defective.
• J10, J9, or J8 connector(s) may be
unplugged.
• The transformer may be defective
(no 9.5 VAC between J8-4 and J8-5).
• The PCB may be defective.
• Make sure the unit is plugged.
• Test the power outlet with another electrical device (e.g.: a lamp).
If it does not work, call an electrician.
• Check if fuse F1 (located on the PCB) is blown. In that case, replace
fuse F1 as per product nameplate.
• Check the connection of J10, J9, and J8 connector(s).
• With unit powered and J9 connected, check if there is about
9.5 VAC between transformer connector J8-4 and J8-5 (YELLOW
wires). If no, change the transformer.
• Unplug the unit. Disconnect the
main control and the auxiliary
control(s) (if need be). Jump G
and Bterminals. Plug the unit
back and wait about 10 seconds.
If the motors run on high speed and the damper opens, the circuit
board is not defective.
NO C NC I OC OL Y R G B
VE0097

18
8. TROUBLESHOOTING (CONT'D)
PROBLEMS POSSIBLE CAUSES YOU SOULD TRY THIS
6
The Dehumidistat
OR other auxiliary control
does not work.
• The wires may be in reverse postion.
• The wires may be misconnected.
• The wires may be broken.
• The Dehumidistat or push button may be
defective.
• Ensure that the color coded wires have been connected to their
appropriate places.
• Ensure the wires are correctly connected.
• Inspect every wire and replace any that is damaged. If wires are
hidden into walls, test the control using a shorter wire.
7
The damper system
does not work
(AMBER error code).
At power up, no RED LED. • See point 5.
At power up, LED lights RED and
there is a clicking sound coming from
electrical compartment, but damper
does not move:
• Ice or other things hindering the damper
movement.
• J12 unconnected or bad contact.
• Wrong connection of J8.
• The transformer may be defective
(no 24 VAC between J8-1 and J8-2).
• The damper actuator may be defective.
• Remove ice or hindering elements.
• Check J12 connection (both harness side and board side).
• Check J8 connection.
• With unit powered and J9 connected, check if there is about
20-24 VAC between transformer connector J8-1 and J8-2
(ORANGE wires). If no, change the transformer.
• Replace the damper system (entire port assembly).
Damper moves but does not stop when
supposed to:
• Damper motor turns on reverse side.
• Bad connection of J12 connector.
• Damper PCB defective or damper motor
stripped gear.
• The main PCB is defective.
• Facing the damper motor shaft, the motor should turn
counterclockwise. If not, replace the damper system.
• Check J12 connection (both harness side and board side).
• Replace the damper system.
• Replace the main PCB.
8
A. The supply motor does not
work, but exhaust motor
works.
• The supply motor may be defective.
• The supply motor capacitor or the PCB
may be defective.
• Plug supply motor to J5 connector and exhaust motor to J4
connector. If the integrated control LED flashes RED, the supply
motor is defective. If exhaust motor works, plug back supply motor
to J4 connector and exhaust motor to J5 connector, then check for
supply motor capacitor validity.
• Plug supply motor capacitor to J7 connector and exhaust motor
capacitor to J6 connector. If the integrated control LED flashes
RED, the supply motor capacitor is defective. If there is no change,
the PCB is defective.
B. The integrated control LED
flashes RED.
• The exhaust motor may be defective.
• The exhaust motor capacitor may be
defective.
• Tranformer wire(s) bad connection.
• The transformer or the PCB may be
defective.
• Plug exhaust motor to J4 connector and supply motor to J5
connector. If supply motor works but exhaust motor does not,
exhaust motor is defective. If exhaust motor works, plug back
supply motor to J4 connector and exhaust motor to J5 connector,
then check for exhaust motor capacitor validity.
• Plug exhaust motor capacitor to J6 connector and exhaust motor
capacitor to J7 connector. If exhaust motor works but supply motor
does not, the exhaust motor capacitor is defective. If there is no
change, check validity of transformer or PCB.
• Check J8 and J9 connectors, as well as BLUE and RED wire
connections from J9.
• Move JU1 jumper from pins 2 and 1 to pins 2 and 3. Set the unit on
high speed. If exhaust motor works, the transformer is defective. If
it still does not, change the PCB..
• Jump the OL and OC terminals.
If the unit switch to high speed,
remove the Dehumidistat or push
button and test it right beside the
unit using another shorter wire. If
it works here, change the wire.If it doesn’t, change the Dehumidistat
or the push button.
NO C NC I OC OL Y R G B
VE0098
