VanGaa VG-DL450 User manual

VG-DL450 450W LED Fresnel Spot Light User Manual VG-DL450 450W LED Fresnel Spot Light User Manual
450W LED Fresnel Spot Light
User Manual
VG-DL450
CE RoHS
User Manual
Please read this user manual before using this product！
Keep it for further reference!
http://www.vangaa.com

VG-DL450 450W LED Fresnel Spot Light User Manual VG-DL450 450W LED Fresnel Spot Light User Manual
INDEX
ⅠPRODUCT MAIN FEATURES ............................................. 01
ⅡOVERVIEW AND DIMENSIONS ......................................... 02
ⅢSAFETY INFORMATION ................................................... 02
ⅣPOWER CONNECTION...................................................... 03
ⅤCONTROL PANNEL AND KNOBS ...................................... 06
ⅥDMX PROTOCOL.............................................................. 07
ⅦCOMMON INSTRUCTION ................................................. 08
ⅧTECHNICAL SPECIFICATION ........................................... 08
ⅨAPPENDIX ........................................................................ 10
Thank you for using our product! Please read this manual carefully and completely. For
technical reference in future, please keep this user manual well. This user manual contains
all installation and operation information of this Colorful LED Soft Video Panel Light, it’s very
useful for user to install and operate the light. Please strictly abide by the relevant
instruction for the installation and operation.
This light has very beautiful appearance. Based on the LED Film and Television Flat Light
Technology, using high brightness SMD LED chips beads matrix arrangement of large area,
through the whole aluminum shell to realize heat dissipation naturally, we have designed
this light. This light has high brightness, good head dissipation, ultra-quiet and other
features. It can satisfy the requirement of indoor movie filming for the lighting layout. It is
a good substitute of the traditional Fresnel spot light, which is very suitable for the studio
room, TV station, Meeting room, stage, show and other entertainment places.
This light meets the following criteria:
GB7000.1-2007/IEC60598-1:2003
GB7000.217-2008/IEC60598-2-17:1984+A2:1990
ⅠPRODUCT MAIN FEATURES
The light’s lighting function is controlled by DMX-512, very convenient;
Using international standard (1990) DMX single, digital control panel display;
With 1CH,DMX channel control modes;
Dimmer range: 0~100%, 0~15% dimmer smoothly;
CRI more than 95, 5600K color temperature optional, light effective distance is 3~15
meters;
Cast aluminum radiator, equips copper tube radiator, no need fan cooling, realize the silent,
01

VG-DL450 450W LED Fresnel Spot Light User Manual VG-DL450 450W LED Fresnel Spot Light User Manual
intelligent temperature control system, improve the quality of our products stable
performance, apply to indoor installation.
Using brand LED chips, integrated encapsulation, improve reliability and long lifespan.
Using the advanced optical reflective material, make the light on the projection distance
and brightness is higher than traditional film soft light.
ⅡOVERVIEW AND DIMENSIONS
All dimensions are in millimeters
ⅢSAFETY INFORMATION
※Important
Every person involved with the installation, operation and maintenance of this device has to
be qualified and follow the instructions of this manual. Manufacturer will not with
responsibility for those operations which are not according to this Instruction.
Verify that the voltage matches the rated voltage.
When the voltage is 110V, Do not connect more than 10 lightings in total to AC mains
power in one interconnected daisy chain
When the voltage is 220V, Do not connect more than 20 lightings in total to AC mains
power in one interconnected daisy chain
Before using the fixture, check that all power distribution equipment and cables are in
perfect condition and rated for the current requirements of all connected devices.
Always ground (earth) the fixture electrically.
Avoiding hit the Light when you are move or install the light.
The minimum distance between light-output and the illuminated surface must be more
than 0.5 meters. Keep all combustible materials (for example fabric, wood, paper) at least
0.2 meters away from the fixture.
Do not expose the fixture to rain or moisture.
Avoid looking directly into the light source (especially those who suffer from epileptic fits)
Maximum ambient temperature (Ta) is 40°C. Do not operate fixture at temperatures higher
than this.
The Maximum surface temperature is 50°C
When suspending the fixture above ground level, verify that the structure can hold at least
10 times the weight of all installed devices.
Verify that all external covers and rigging hardware are securely fastened and use an
approved means of secondary attachment such as a safety cable.
ⅣPOWER CONNECTION
INSTALLING A NENUTRIK CONNECTOR ON A POWER CABLE
03
02
03

VG-DL450 450W LED Fresnel Spot Light User Manual VG-DL450 450W LED Fresnel Spot Light User Manual
Put
bushing and chuck onto the cable.
Prepare cable as shown above. The power cable must is a three-conductor 2.5mm2 cable.
Insert the wire into the terminals and fasten the clamping device by a flat screw driver.
Push insert and chuck into housing (pay attention to the guiding keyway).
Fasten bushing.
The color-coding schemes and some possible pin identification schemes; if pins are not
clearly identified, or if you have any doubts about proper installation, consult a qualified
electrician.
RELAYING POWER TO OTHER DEVICES
The lightings can be linked in a chain by power cables which installed a blue and a
light-gray connectors on the two ends. The light-gray connector connects to the power out
socket of the first lighting, and the blue connector connects to the power in socket of the
subsequent lighting, and so on.
The power cable must is a three-conductor 2.5mm2 cable.
When the voltage is 110V, Do not connect more than 10 lightings in total to AC mains
power in one interconnected daisy chain.
When the voltage is 220V, Do not connect more than 20 lightings in total to AC mains
power in one interconnected daisy chain.
Wire color
Conductor
Symbol
Brown
Live
L
Blue
Neutral
N
Yellow/green
ground
05
04
05

VG-DL450 450W LED Fresnel Spot Light User Manual VG-DL450 450W LED Fresnel Spot Light User Manual
PHYSICAL INSTALLATION
This lighting can be placed on a horizontal surface such as a stage or clamped to a truss or
similar rigging structure in any orientation using a rigging clamp.
When suspending the fixture above ground level, verify that the structure can hold at least
10 times the weight of all installed devices.
Verify that all external covers and rigging hardware are securely fastened and use an
approved means of secondary attachment such as a safety cable.
ⅤCONTROL PANNEL AND KNOBS
KNOBS CONTROL
Mode Manual
Rotating the "Mode" knob to setting the main menu, press it can enter;
Rotating the "Manual" knob to setting the sub menu, press it can kept.
After the setting, you can rotating the Manual knob for CCT and linear dimmer.

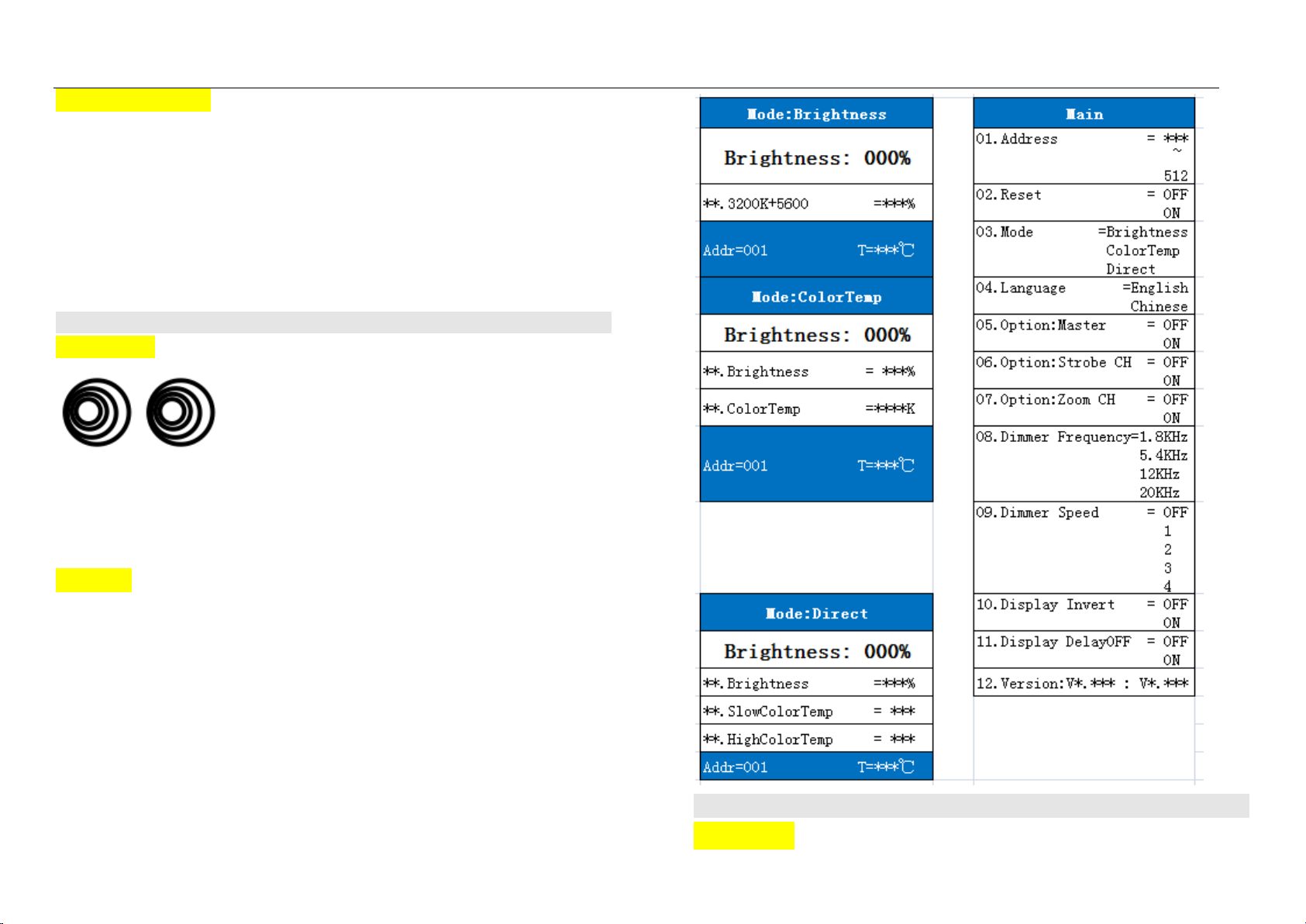

MENU MAP
ⅥDMX PROTOCOL
Brightness-CH
07
07
06

VG-DL450 450W LED Fresnel Spot Light User Manual VG-DL450 450W LED Fresnel Spot Light User Manual
H2CH
DMX CH
DMX Value
Function
CH1
000←→255
Direct-CH
SlowColorTemp
CH2
000←→255
Direct-CH
Zoom
ⅦCOMMON INSTRUCTION
The light uses international 3 pins DMX signal cannon for DMX in and DMX out;
The light uses digital display to show the parameter. If there is no DMX in, the display will
shows the information which you can check from the menu map.
In fact, the light has three DMX channels modes, and different bit. please refer the DMX
channel chart.
This light uses intelligent full aluminium shell for the heat dissipation, through the electronic
temperature detection ensure the stability of the circuit at any time;
This light is only for indoor use, when you install it by hanging, please use the safety cable
to ensure the safety.
If you have any questions, please contact with our sales manager.
ⅧTECHNICAL SPECIFICATION
Light Sources
·LED: 450W-COB high CRI and high brightness LED bead chips
·Lifespan: 50,000hours
·Color: from warm white to cold white
Optics
·Beam angle: 15~60 degree
·Frequency: 24K flick free light source drive system
·Dimmer: 0~100% linear dimmer
Light Output
·C RI: Ra≥95
·Special CRI: R9≥90, R15≥90
·Color temperature: 5600k adjustable
Control
·DMX channel: 2CH
·Control mode: DMX-512, RDM, Demo mode, Manual, Dimmer rotary knob(wireless remote
control option)
·Control panel: 2.4in LCD display + 4 buttons
Power Supply
·Related voltage: AC90V-240V, 50/60Hz
·Related power:keep output 400W
Construction
·Body dimension: D720*W390*H420mm
·Net weight: 12kg
·Shell color: black
·Housing material: aluminum alloy
Working Environment
·Working temperature: -25-40℃
·Cooling: aluminum radiator, and a mute fan
Spare Parts
·Cable: 1set DMX in and DMX out signal cable, and 1set Power in and Power out power
cable with plug [standard configuration]
·Light visor: 1pc light visor [optional configuration]
09
08

VG-DL450 450W LED Fresnel Spot Light User Manual VG-DL450 450W LED Fresnel Spot Light User Manual
ⅨAPPENDIX
Problem and solution
Problem
Reason
Resolution
Device not work
No power
AC100-240V, 50/60Hz
Check the power connection, and
make sure device connect the mains
in well condition.
Check if the fuse is good.
LED Bulb is off
LED bulb damaged
Replacing LED bulb
LED drive board damaged
Replacing LED drive board
Temperature switch damaged
Replacing temperature switch
Fans not work
Fans damaged
Replacing fans
Caution
Unqualified person involved with installation, operation and maintenance of this
device is prohibited
If any above mentioned problem happened, or unknown problem happened, please
contact manufacturer or distributor for assistance.
Innovation, Quality, Performance, VanGaa, Achieving Users’Value!
