VANQ VQ-GLTF800-800W User manual

Shenzhen VANQ Technology Co.,Ltd.
Plant grow light series
VQ-GLTF800-800W LED Top Fill Light Specifications
Manufacturer：Shenzhen VANQ Technology Co., Ltd.
Address：3#,BLDG B, Debaoli lndustrial park, NO.312, Jihua Road, Bantian, Longgang, Shenzhen China
Tel：[phone] Fax：[phone] Email：[e-mail]
Web：www.vanqled.com www.vanqled.com.cn
Version：2022.07

Shenzhen VANQ Technology Co.,Ltd VQ-GLTF800 Top Fill Light Specifications
2
GLTF Series GLTF800 800W LED Grow Light
1 Product introduction
1.1 Introduction
Thank you for purchasing the GLTF800. The VQ-GLTF800 is a 800W horticultural LED light.
The GLTF800 is intended to be used in indoor grow rooms.This manual describes the installation
and connection of the product and also describes how touse the product. Mounting and installing
of the GLTF800 may only be executed by certifiedservice personnel. Please read and understand
this manual completely before using the product.Only use the product as specified in this manual.
1.2 Product Features
1、 1:1 replacement for HPS grow light Compatibility with old HPS wiring and electrical. Easy
& direct installation, no circuit layout changes required.
2、 Excellent heat dissipation, easy to maintain。6063 aviation aluminum material, excellent heat
dissipation. detachable LED module, easy to maintain.
3、 Full spectrum, high output, energy saved。2160 µmol/s output 25% energy saved VS. 1000W HPS，
Broad full spectrum (6500K+660nm+450nm) designed for all stage of growth.
4、 Wide light distribution for Uniform crop。Broad-coverage light match the HPS, which enables
wide & even light distribution, thus promising growers a more uniform crop.
5、 Flexible Smart Control System (With independent dimmer knob & RJ14 port) Stepless dimming
to meet the need of growth cycles from veg to bloom for various crops.
2 Product Information & Specifications
2.1 ORDERING CODE MATRIX FOR GLTF800 LIGHT FIXTUR
FAMILY MODEL INPUT VOLTAGE LED PLUG TYPE
VQ-GLTF 800 -S:100-277VAC
P-S:277-480VAC
* P-S is only available with
pigtail power cord
-SE:San'an+Epistar -US5 NEMA 5-15P
-US6 NEMA 6-15P
-USL7 NEMA L7-15P
-EU EU 230V
-UK UK 240V
-AUS AUS/NZS 240V
-P Pigtail
For example: 1、VQ-GLTF800-S-SE-US5 refers to our company's 800W top fill light, mains input,
ordinary lamp beads, and US plug.
2、VQ-GLTF800P-S-SE-P refers to our company's 800W top fill light, high voltage input,
ordinary lamp beads, and bare wire ends.

Shenzhen VANQ Technology Co.,Ltd VQ-GLTF800 Top Fill Light Specifications
3
2.2 Specifications
Model VQ-GLTF800
Power
Input Power 800w±5%
Input Voltage(Standard) 100-277VAC
High Input Voltage(Optional) 277-480VAC
Light Source Details
LED
Diodes - White
Model SMD5050
Supplier San'an
LED Diodes Qty Per GLTF800 Series
LED Fixture 428pcs
LED Diodes –
Single Color
Model(460nm) SMD5050
Supplier San'an
LED Diodes Qty Per GLTF800 Series
LED Fixture 20pcs
Model(660nm) SMD3535
Supplier Epistar
LED Diodes Qty Per GLTF800 Series
LED Fixture 180pcs
Total LED Diodes Number 628pcs
Spectrum
Relative Radiation Intensity
PAR (Photosynthetically Active Radiation)
PPF(Photosynthetic Photon Flux) 2160 μmol/s
Efficacy 2.6-2.8 μmol/J
Physical
LED Fixture Weight 15kg, 33.1 lbs
Dimensions 730Lx315Wx110H(mm),28.75Lx12.4Wx4.33H(in)
Working Temperature -20°C ~ 40°C | -4°F ~ 104°F
Dimming 0-10V
Waterproof Main components (power supply and light
source) IP65, the whole lamp is not waterproof
Light Source LED
AC Input Power 800W @ 240VAC
AC Input Voltage 100-277V AC, 277-480V AC, 50/60Hz
Light Distribution 120°

Shenzhen VANQ Technology Co.,Ltd VQ-GLTF800 Top Fill Light Specifications
4
AUS/NZS
plug 240V
US 5-15P US 6-15P US L7-15P EU plug 230V UK plug 240V
2.3 General Information
Product Name GLTF800 800W LED Grow Light
Manufacturer Shenzhen VANQ Technology Co., Ltd.
Version US EU UK AUS
Plug Type US plug 120-277V EU plug 230V UK plug 240V AUS/NZS plug 240V
Input Voltage 100-277VAC 100-277VAC 100-277VAC 100-277VAC
Note:Other types of plug are also available, please check with our sales engineers directly.
2.4 NOMINAL ELECTRICAL AC INPUT
AC Voltage 120V 208V 230V 277V 347V 380V 400V 480V
AC Current 7.0A 3.9A 3.5A 2.95A 2.3A 2.1A 2A 1.66A
AC Power 846W 808W 805W 800W 800W 800W 800W 800W
Power Factor 1 0.99 0.99 0.98 0.98 0.98 0.98 0.98
Note:The standard model comes with LED driver supporting only 100-277VAC input. 347V,
380V,400V, 480V needs to be specially customized, please check with our sales engineers directly.
3 Safety Precautions
Carefully read the safety Precautions below before using or working with the product.
1、Always adhere to the local rules and regulations when installing or using the LED light.
2、DO NOT connect to live power until installation is complete.
3、Do not open or disassemble the LED light. Opening or modifying the LED light can be dangerous
and will void the warranty.
4、Do not use the LED light when either the LED light or its power cord are damaged. Replace
the power cord only with original certified cords.
5、Modifications to the cords can lead to unwanted electromagnetic effects, which makes the
product not comply with legal requirements.
6、Do not expose the LED light to:
- (ambient) temperatures outside the specified range;
- dust and contamination;
- direct sunlight during use or HID light that could heat up the ballast.
7、Always disconnect the LED light from mains before performing any maintenance.
8、Always allow for a cool down period of at least 30 minutes before touching the LED bars. Touching
the LED bars when the light is lit or immediately afterwards can result in severe burns!
9、Do not use the LED light near flammable, explosive or reactive substances. Do not use sulfur

Shenzhen VANQ Technology Co.,Ltd VQ-GLTF800 Top Fill Light Specifications
5
vaporizers or water misters.
10、The installation and use of the LED light is the responsibility of the end user. Incorrect
use or installation can lead to failure and damage to the LED light.
4 Installation & Connect
1、Mounting and installing of the LED light may only be executed by certified service personnel,
in accordance with the applicable local laws and regulations.
2、The installer is responsible for correct and safe installation.
3、Ensure the local cabling can support the voltage and current requirements of the LED light.
4、Avoid coiled cords and keep mains leads separated. This prevents electromagnetic interference.
5、Do not connect or disconnect the LED light under load.
6、Mount the system to something that can hold the weight of the LED light.
4.1 Installation guide
1、Hang the V-Hook on the Lamp
2、Hang one adjustable ratchet hanger on the light fixture and the other on the V-shaped hook
3、Insert the unpowered power cord into the corresponding port of the light fixture

Shenzhen VANQ Technology Co.,Ltd VQ-GLTF800 Top Fill Light Specifications
6
4.2 Connecting the LED light to the mains
1、Make sure mains power is switched off.
2、Ensure the cord is not coiled and does not touch any hot surfaces.
3、Connect the cables according to local rules, safety regulations and electrical code.
4、Ensure external switching gear can cope with the inrush current of the LED fixture. Always
use a double pole contactor suitable for switching a capacitive load. Never use household
timers to switch the LED fixture!
4.3 Connecting LED Lights To A Controller
1、Do not connect or disconnect the controller with LED light under load.
2、Ensure the power cord and the controller cables do not touch lamp.
3、Using a daisy chain setup, a maximum of 50pcs LED lights can be connected to one controller.
The controller can dim the LED light from 0 to 100%.
- Connect the dimming cable to the dimming port on the first LED light.
- Use dimming cable (RJ14 network cable) to connect the dimming port of the following LED
light.
- Repeat these steps to connect up to 50pcs LED lights.
daisy-chain control dimming
single control Knob dimming

Shenzhen VANQ Technology Co.,Ltd VQ-GLTF800 Top Fill Light Specifications
7
4.4 PPFD test
Below is the PPFD map of 59in x 59in /1.5m x 1.5m at different hanging heights.
*Typical data of GLTF800 tested in a 5ftx5ft grow tent

Shenzhen VANQ Technology Co.,Ltd VQ-GLTF800 Top Fill Light Specifications
8

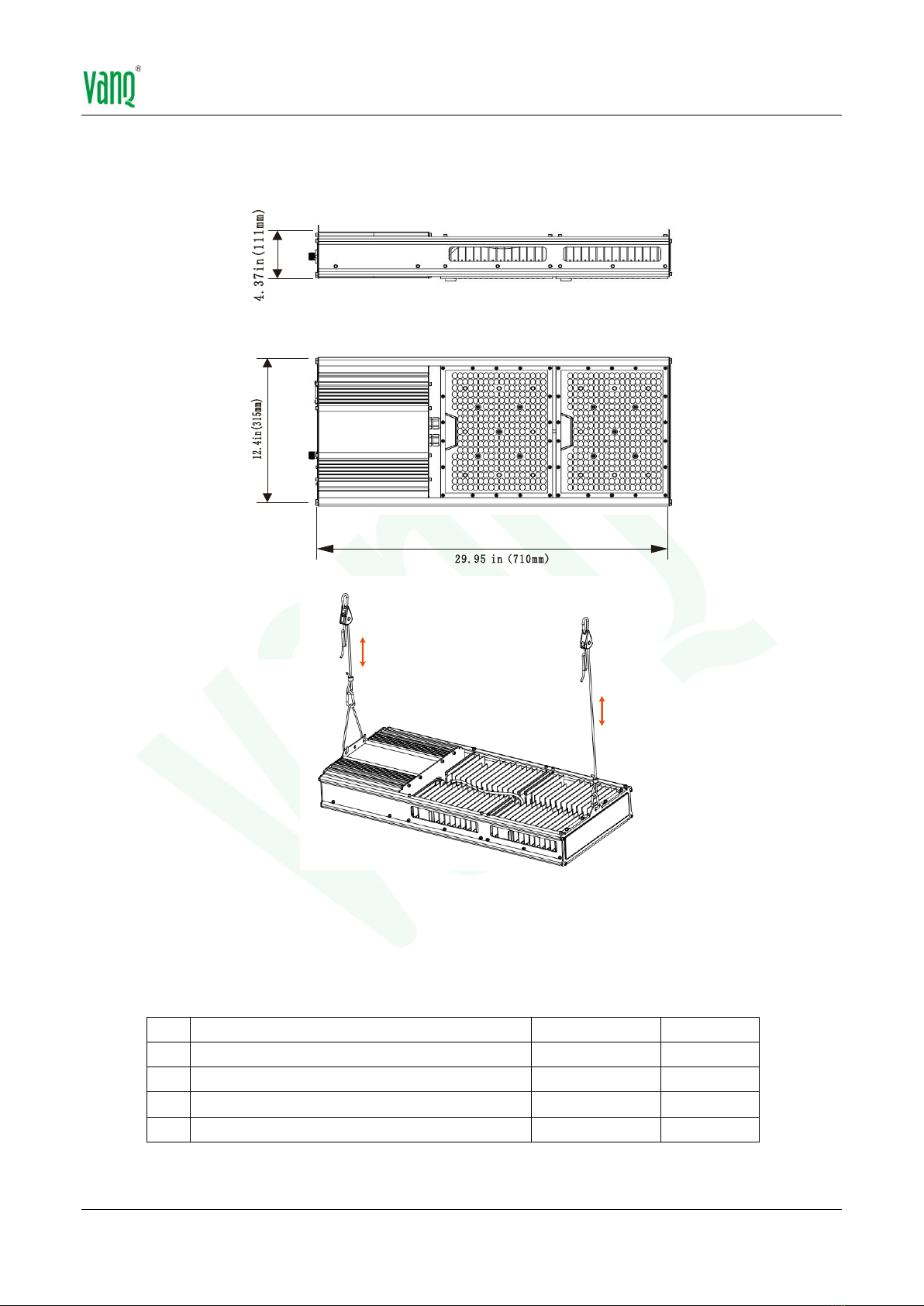

70 .8 "(1 mm)800
7 0 .8 "(1 mm)800
5 Size & Packaging:
5.1 Size
5.2 Packing List
Please follow the content of the list and carefully check whether the purchased equipment and
accessories are complete. If you find that the actual product does not match the list, or the
product is damaged, please contact us mediately and provide photos or videos!
No.
Product Name Model Quantity
1 Lamps VQ-GLTF800 1
2 Plug wire 1.5m/5ft 1
3 hook up V shape 1
4 1/8" Adjustable Ratchet Hangers 1.8m/6ft 2

Shenzhen VANQ Technology Co.,Ltd VQ-GLTF800 Top Fill Light Specifications
9
6.7"
( mm)170
30.7"
(mm
)
780
14.2"
( mm)360
5.3 Packaging
Packaging:1pcs/carton
Gross Weight: 18kg(39.7Ibs)
Net Weight: 15 kg (33.1lbs)
Size:30.7L x 14.2W x 6.7 H(inch)
780L x 360W x 170H(mm)
Packaging Material:plastic and foam and
carton
plug wire X 1
1/8" Adjustable Ratchet Hangers X 2
hook up X 1
VQ-GLTF800 X 1

Shenzhen VANQ Technology Co.,Ltd VQ-GLTF800 Top Fill Light Specifications
10
6 Inspection, maintenance and repair
Do not clean the LED fixture with detergents, abrasives or other aggress.
1、Regularly check the LED fixture for dust or dirt buildup. Clean if necessary. Contamination
may cause overheating and decreased performance. Clean the outside of the LED fixture using
a dry or damp cloth.
2、Regularly check the cables of the LED fixture to ensure it is undamaged.
7 Storage and disposal
1、Store the LED fixture in a dry and clean environment, with an ambient temperature of-20~85°C.
2、The product must not be discarded as unsorted municipal waste, but must be collected separately
for the purpose of treatment, recovery and environmentally sound disposal.
8 Warranty service
VANQ technology warrants the mechanical and electronic components of their product to be free
of defects in material and workmanship if used under normal operating conditions for a period
of three (3) years from the original date of purchase. If the product shows any defects within
this period and that defect is not due to user error or improper use, VANQ technology shall, at
its discretion either replace or repair the product using suitable new or reconditioned products
or parts. In case VANQ technology decides to replace the entire product, this limited warranty
shall apply to the replacement product for the remaining initial warranty period, i.e. three (3)
years from the date of purchase of the original product. For service, return the GLTF800 light
to your shop with the original sales receipt.
