USER’S MANUAL
QUAD INTERFACE

6
Package Contents:
NexStar 3 3.5” SATA to USB/eSATA/
1394a/1394b External Hard Drive Enclosure
13.5" HDD Enclosure
2Power Adapter
3eSATA Cable
4SATA to eSATA Bracket
5USB Cable
61394b Cable
71394b to 1394a Converter Cable
8Enclosure Stand
9User’s Manual
10 Installation Screws
TRADEMARKS
MS-DOS,Microsoft, Windows NT/2000/ME/XP/Vista are trademarks of Microsoft Corporation.
Apple, Macintosh and Mac are trademarks of apple Computer
*All other third-party brands and names are the property of their respective owners.
SATA
SATA
3
5
7
2
USER’S MANUAL
EXTERNAL 3.5” HARD DRIVE ENCLOSURE
USB 2.0/eSATA/FireWire 800/400 INTERFACE
910
1
4
8

1. Introduction ................................................................................................................02
2. Specifications/Features
NexStar 3 External 3.5”HDD Enclosure .........................................................................03
3. System Requirements ......................................................................................04
4. Parts Layout
NexStar 3 External 3.5”HDD Enclosure ..........................................................................05
5. Installation
NexStar 3 External 3.5”HDD Enclosure
5.1 Hardware Installation ..................................................................................................06
5.2 System Set Up ................................................................................................................09
5.3 USB Mode.........................................................................................................................09
5.4 eSATA Mode ....................................................................................................................10
5.5 FireWire 800/400(1394b/1394a) Mode ...................................................................10
6. Disconnecting the NexStar 3
NexStar 3 External 3.5”HDD Enclosure ..........................................................................11
7. Creating A New Partition ..............................................................................12
8. Troubleshooting/FAQ
NexStar 3 External 3.5”HDD Enclosure ..........................................................................15
9. Warranty .........................................................................................................................17
10.Contact ...........................................................................................................................17
Table of Contents
1
Table of Contents:

Introduction
2
NST-360FBSU-BK
1. Introduction:
Form and functionality collide with style in the
NexStar 3 External Hard Drive Enclosure from
Vantec. With its mirror finish, sleek curves and
bold colors, the Vantec NexStar 3 stands out from
the crowd. The sturdy drive cage protects your
hard drive while the aluminum case effectively
draws away the heat, protecting your drive from
overheating. With its quad external interface
design: USB 2.0, FireWire 400(1394a), FireWire
800(1394b) and eSATA, it will meet all your
connection needs. The NexStar 3 is an ideal way
to store and transfer large amounts of data in an
enclosure that matches your style!

Specifications/Features
3
2. Specifications/Features:
NexStar 3 External 3.5” HDD Enclosure:
Specifications:
• Model: NST-360FBSU-BK
• Device Support: SATA I/II Hard Drive
• Device Size: 3.5”
• Internal Interface: SATA I/II
• External Interface: USB 2.0/eSATA/1394a/1394b
• HD Capacity: Up to 1 TB
• Power Supply: AC Adapter
• Material: Aluminum
• Dimension: 206 x 123 x 33mm
• Aluminum Casing Cools Down Your Hard Drive
• Transfer Rates Up to 3Gbps W/ eSATA
• Transfer Rates Up to 480Mbps W/ USB 2.0 (12Mbps W/ USB1.1)
• Transfer Rates Up To 400Mbps With FireWire 400(1394a)
• Transfer Rates Up to 800Mbps With FireWire 800(1394b)
• Hot-Swappable: Plug And Play Without Rebooting
• Attractive Blue LED Indicates Power/HDD Activity
Features:
FireWire800/ 400
USB2.0 port
Power connection
eSATA port
Powerswitch
SATA
IEEE
1394

3. System Requirements:
System Requirements
4
Intel Pentium II 350 MHz-compatible
Microsoft Windows 2000/XP/Vista
1. USB port, internal SATA port, eSATA
port, FireWire 400(1394a) port, or
FireWire 800 (1394b) port.
2. For USB 2.0 speeds, the system must
support USB 2.0 specifications
3. For SATA speeds , the system must
support SATA specifications
4. For FireWire 800(1394b) speeds, the
system must support 1394b specifications.
5. For FireWire 400(1394a) speeds, the
system must support 1394a specifications.
Mac G3 processor & greater(G4 for 1394b)
Mac OS 10.2 & greater
1. USB port, internal SATA port, eSATA
port, FireWire 400(1394a) port, or
Fire Wire 800 (1394b) port.
2. For USB 2.0 speeds, the system must
support USB 2.0 specifications
3. For SATA speeds , the system must
support SATA specifications
4. For FireWire 800(1394b) speeds, the
system must support 1394b specifications.
5. For FireWire 400(1394a) speeds, the
system must support 1394a specifications.

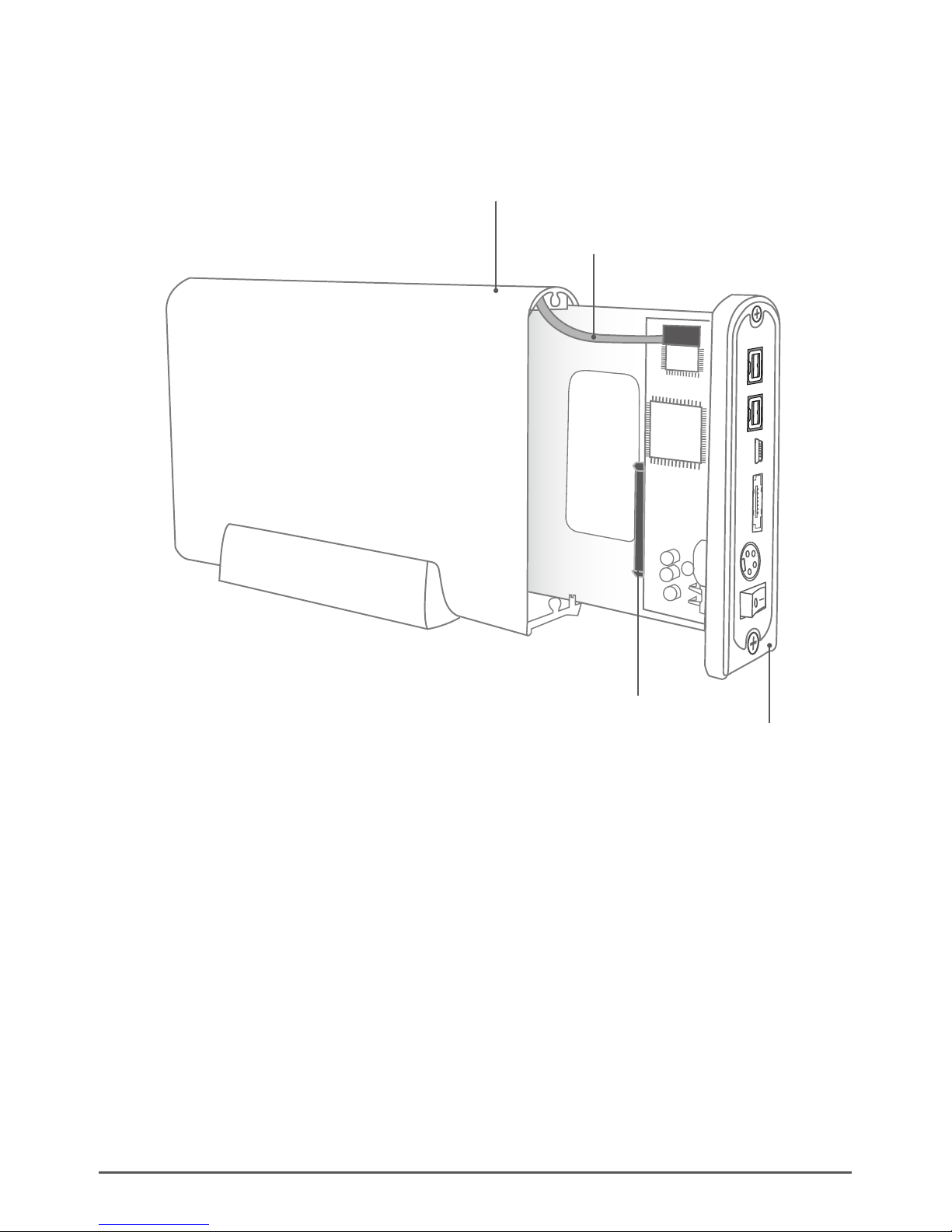

4. Parts Layout:
Parts Layout
5
NexStar 3 External 3.5” HDD Enclosure
Hard Drive Caddy
Aluminum Housing
LED Cable
SATA/Power connector

5. Installation:
Installation
6
NexStar 3 External 3.5” HDD Enclosure:
Preparing the hard drive:
(1) Set the hard drive jumpers to MASTER or
SINGLE DRIVE ONLY. Please refer to the
documentation included with your hard
drive for information on how to accomplish
this.
Preparing the NexStar 3:
(1) Remove the side of the NexStar 3 with the
power and USB connection ports. If it has
previously been screwed in place,remove
the screws first.

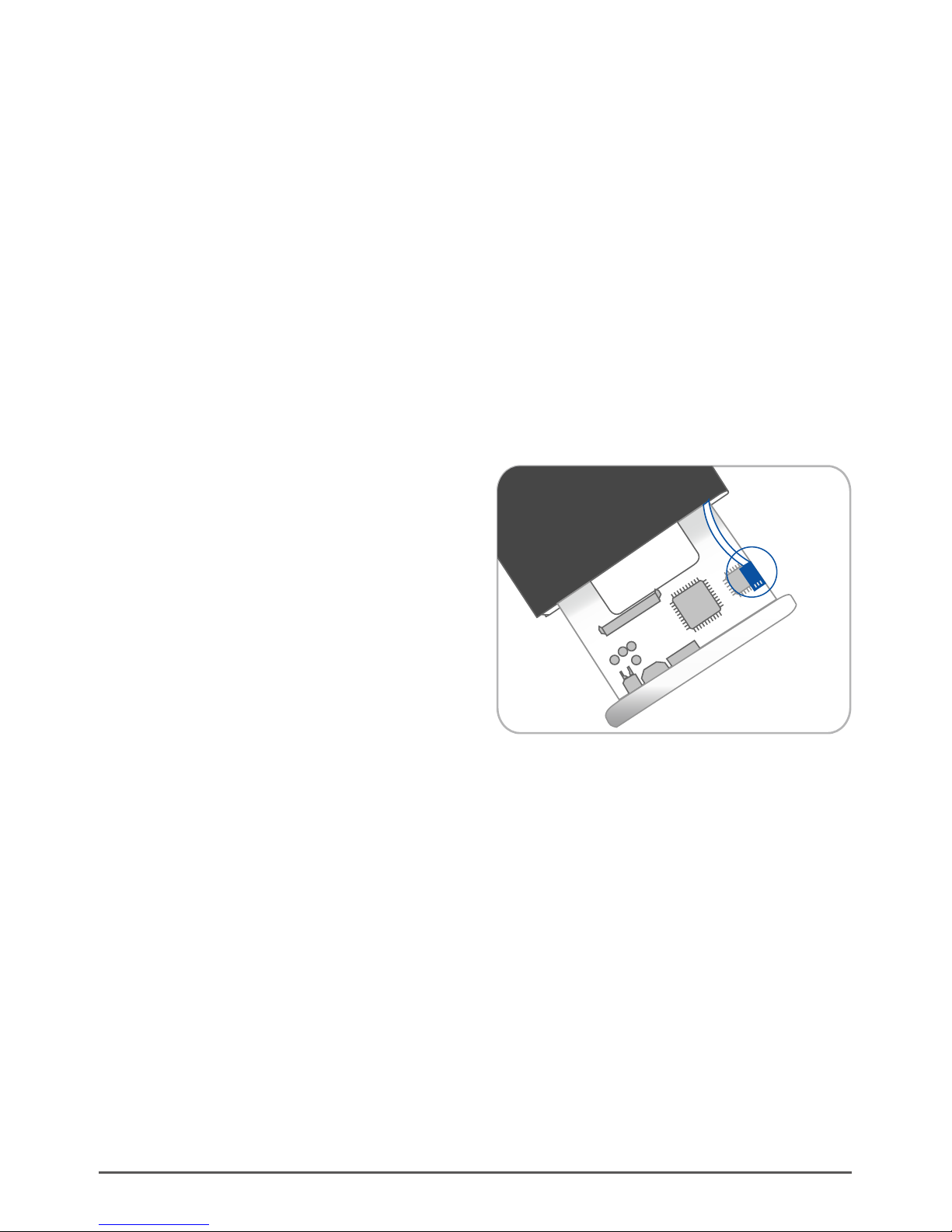

(2)Carefully slide out the side approximately
3 inches. ( pic 5.1-A )
(3) Unplug the red and white cable for the LED.
(4) Slide out the rest of the side.
5.1. Hardware Installation:
( pic 5.1-A )

Installation
7

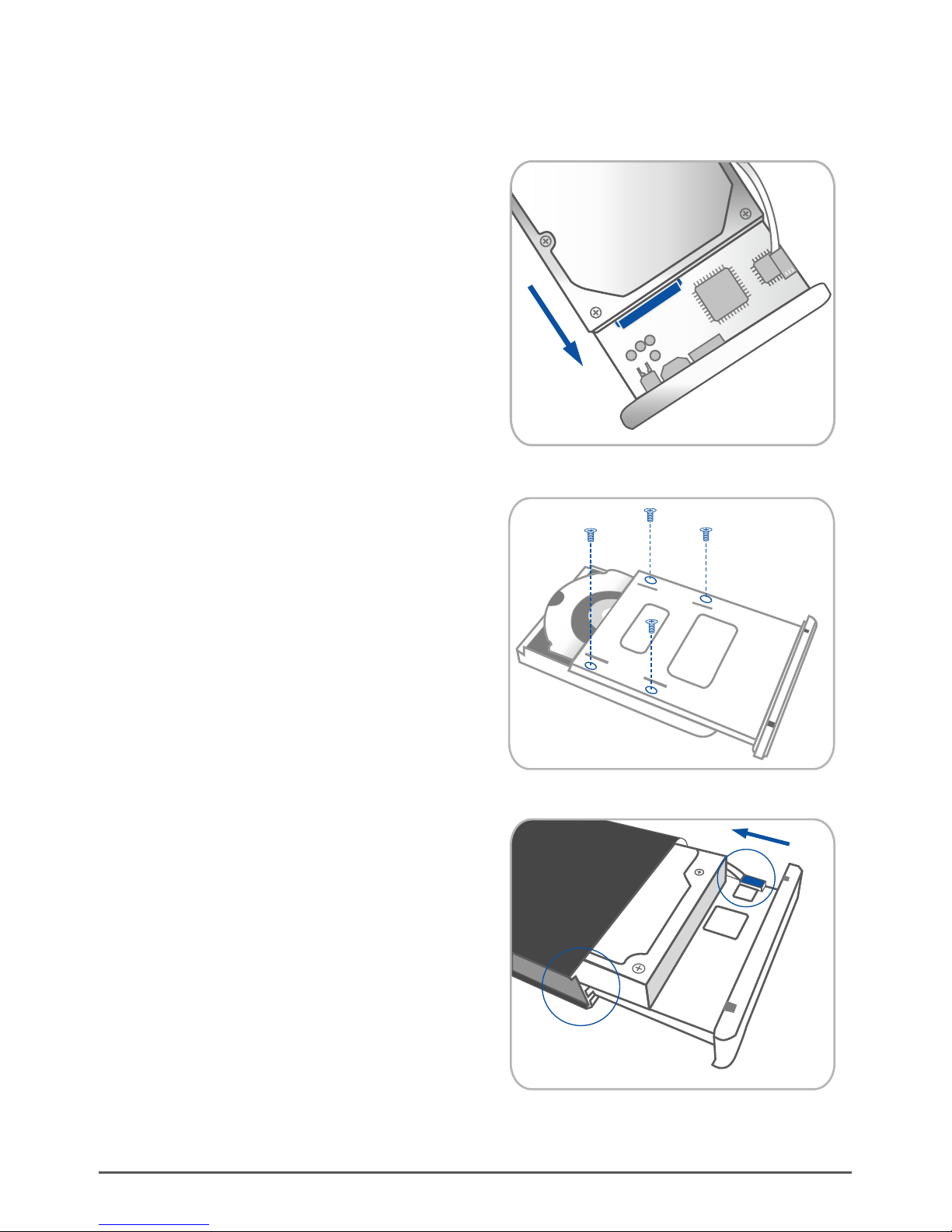

(1) Connect the SATA connector and power cable to
the hard drive as pictured below. ( pic 5.1-B )
(3) Secure the hard drive onto the drive caddy with the
screws provided.
(4) Insert the drive caddy back into the aluminum housing.
Be sure to reconnect the LED cable before closing the unit.
When reinserting the caddy,also be sure to align the top
of the caddy with the guides on the housing.
( pic 5.1-D )
(2) Align the hard drive mounting holes with the
holes on the back of the drive caddy.
( pic 5.1-C )
Installing the hard drive in the NexStar 3:
( pic 5.1-B )
( pic 5.1-C )
( pic 5.1-D )

Installation
8

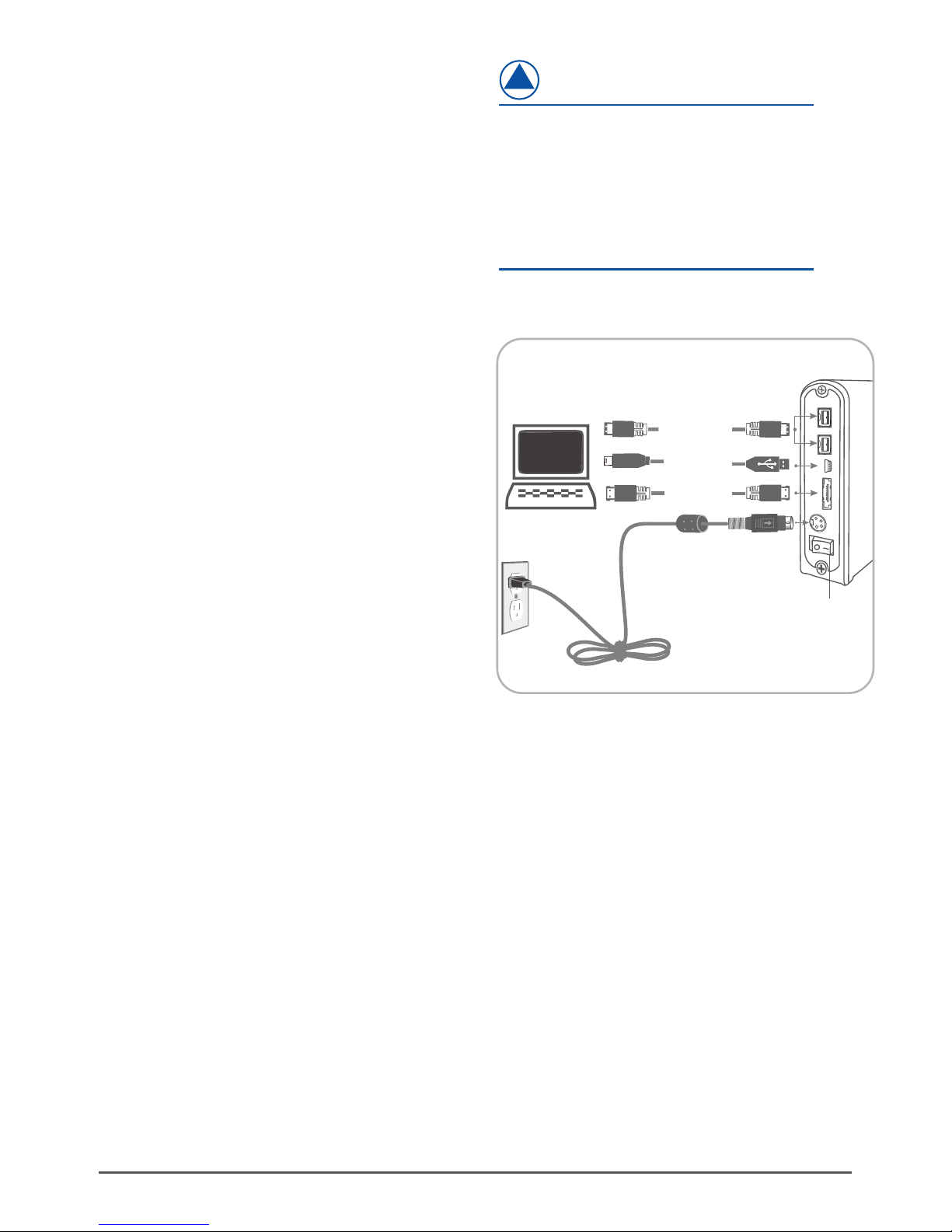

Connecting the NexStar 3 to your computer:
(1) Connect the type (B) USB connectortotheNexStar3
and the type (A) USB connector to an available
USB 1.1/2.0 port on your system.
Or
Connect the FireWire 800 or 400 cable from an
available FireWire port on your system to either
FireWire port on the NexStar 3. The other FireWire
port is used for daisy chain.
Or
Connect the eSATA connector to the NexStar 3
and to the eSATA port on your system. An internal
SATA port can be converted to an eSATA port with
the included adapter. ( pic 5.1-E )
(2) Connect the power cable to the NexStar 3 and
plug the cable into an available outlet. ( pic 5.1-E )
(3) Turn onthe NexStar3 via the powerswitch.(pic5.1-E)
(4) Your operatingsystemshould detect theNexStar3
and automatically install the necessary drivers
Once your operating system finishes settingup the
NexStar 3, it will mount your hard drive. On Mac OS
systems, the new volume should appear on the
desktop. On a Windows PC,the new volume will
appear under My Computer.
(5) Your NexStar 3 External Hard Drive is now ready
for use.

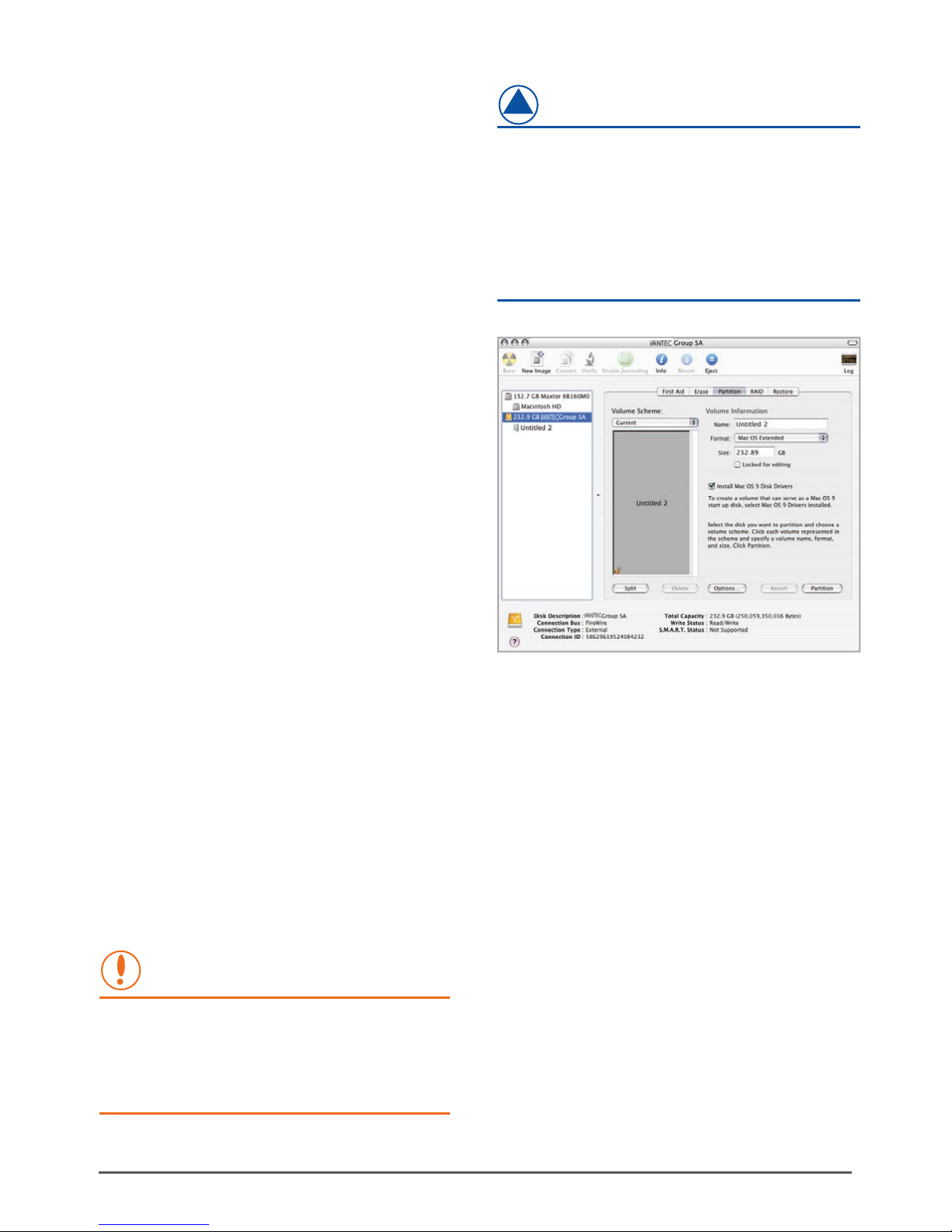

For new hard drives, you will need to initialize
andpartitionyourhard drive beforeitwillappear
in Windows Explorer or on your Mac desktop.
Please refer to your hard drive manufacturer's
documentation or read the"Creating a New
Partition" section of this manual.
NOTE :
or
or
USB 2.0 Cable
eSATA Cable
Firewire Cable
SATA
IEEE
1394
IEEE
1394
SATA
(1)
(2)
(3)
( pic 5.1-E )

5.2 System Set Up
Some tips before connecting your
external storage enclosure :
• Please confirmthat yoursystemsupports SATA.
• If your system does not support SATA, please
install a SATA host card.
• To enable auto mount for SATA, your system
must support Plug and Play.
• If required, update your OS or BIOS.
• Only one interface can be used at the time.
• Onlyonecomputercanaccessthedriveatthetime.
• Firewire can be daisy chained.
• All devices in a daisy chain have to be switched
on to permit the hub/daisy chain function.
• Do not cover the device and leave enough
space around it for better heat dissipation.
• Do not expose the product to
water or humid conditions.
• If possible , arrange the cables well to
avoid the cross by one another.
• Using the supplied cables and
adapter is always recommended.
5.3 USB Mode
Use in Vista X86、Vista 64 bit、Windows XP、
Windows 2000 and MAC OS
1. USB 1.1 Mode:
No driver is required for Vista X86, Vista 64-bit,
Windows XP, Windows 2000 and Mac OS 9.1,
9.2, 10.1.5 or higher. NexStar 3 does not support
Windows 98, Windows ME and Mac OS 9 or older
in USB 1.1 mode.
2. USB 2.0 Mode:
No driver is required for Vista X86, Vista 64-bit,
Windows XP, Windows 2000 and MAC OS 10.2
orhigher. NexStar 3doesnot support Windows 98,
Windows ME and Mac OS 10.1 or older in USB 2.0
mode.
Installation
9
If you can see the USB icon in the system tray ,
but there is no any disk appear in your computer,
pleaseconfirm your hard disk is partitioned.
NOTE :
Please be careful & plug the power adapter
to your enclosure properly.
See below figures. ( pic 5.2-A , pic 5.2-B )
WARNING :
( pic 5.2-A ) ( pic 5.2-B )

Installation
10
NOTE :
Because some motherboard does not support
eSATA hot-plug and play function, if you meet this
situation, please follow below steps to setup NexStar3.
1.Shut down your computer.
2. Turn on NextStar 3 then connect it to your computer.
3.Power on your computer.
5.5 FireWire 800/400(1394b/1394a) Mode
Use in Vista X86、Vista 64 bit、Windows XP、
Windows 2000 and MAC OS
No driver is required for Vista X86, Vista 64-bit,
Windows XP, Windows 2000 and Mac OS 10.2
orhigher. NexStar3 doesnot supportWindows98,
Windows ME and Mac OS 10.1 or older in
FireWire 800/400 mode.
5.4 eSATA Mode
Use in Vista X86、Vista 64 bit、Windows XP、
Windows 2000 and MAC OS
No driver is required for Vista X86, Vista 64-bit,
Windows XP, Windows 2000 and Mac OS 10.2
orhigher. NexStar3 doesnot supportWindows98,
Windows ME and Mac OS 10.1 or older in eSATA
mode.

NEVER remove the NexStar 3 while the hard drive
is in use. Doing so may corrupt the data on the hard
drive or damage the hard drive, I\lexStar 3, or computer.
WARNING :
Windows 2000/XP/Vista:
(1) Make sure all operations using the hard
drive within the NexStar 3 has ceased.
(2) Close any windows and programs
pertaining to the NexStar 3 .
(3) Double click the green "Unplug or EJect
Hardware " icon in the system tray and
select [ Safely Remove Hardware ].
Select the device you wish to remove and
click on [Stop]. The system should prompt,
"lt is now safe to remove the USB device.
" If not, wait for any programs still using
the device to finish and tryagain."
(4) Turn off the NexStar 3.
(5) Unplug the USB cable or Firewire cable
from the system.
6. Disconnecting the NexStar 3:
Disconnecting the NexStar 3
11
NexStar 3 External3.5" HDD Enclosure:
MacOS:
(1) Make sure all operations using the hard
drive with in the NexStar 3 has ceased.
(2) Close any windows and programs
pertaining to the NexStar 3.
(3) From the Desktop, drag the
I\lexStar3 hard drive to the trash.
(4) Turn off the NexStar 3.
(5) Unplug the USB cable or Firewaire
cable from the system.

Creating a New Partition
12

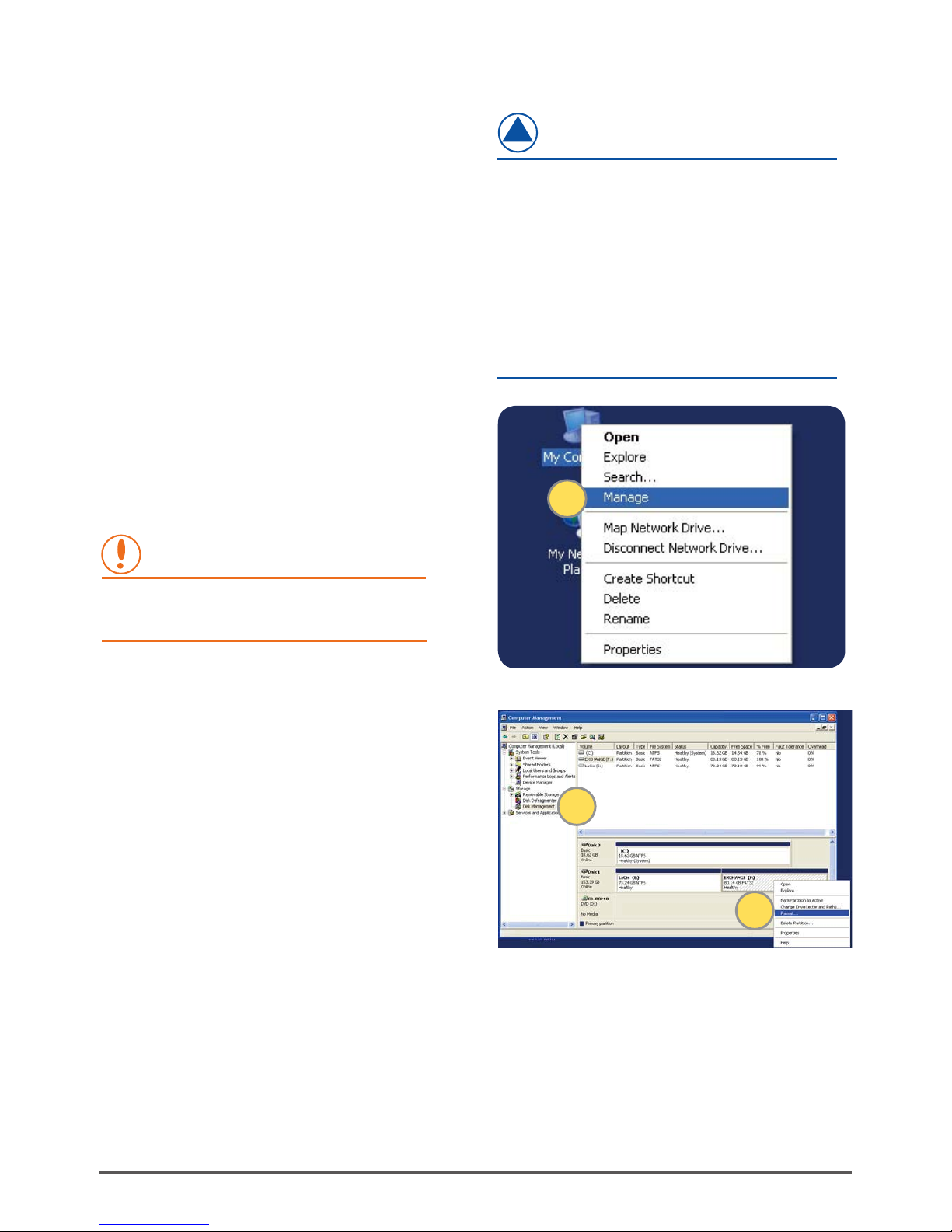

7. Creating A New Partition:
FOR Windows 2000/XP/ Vista : users
(1) Right click on "My Computer"
and choose "Manage". ( pic 7-A )
(2) Under "Storage"on the LEFT pane,
select "Disk Management" ( pic 7-B )
(3) Windows should now give you the option to
initialize the disk. lf not,locate the new drive,
right click on the new disk (where it reads "Disk #")
and choose Initialize. (This step may not be required
for some hard drives.) ( pic 7-B )
(4) Go through the wizard.
(5) Once complete,locate your hard drive in
the bottom right pane. Right click on the
area with a status bar (to the right of the
"Disk #" area) and choose New Partition.
WARNING :
Doing the following setup will erase any existing
data on the drive.
NOTE :
Most hard drives should come with a CD that
includes on installation program. If not, a download
should be available on the manufcturers website.
The best way to partition a new hard drive is by using
the manufacturers program. However, if that is not
possible,please try the following instead
(if using Mac as 9 or below, please refer to your
hard drive documentation for information on
formatting / partitioning the hard drive):
福隆
( pic 7-A )
1
3
( pic 7-B )
2

Creating a New Partition
13
福隆

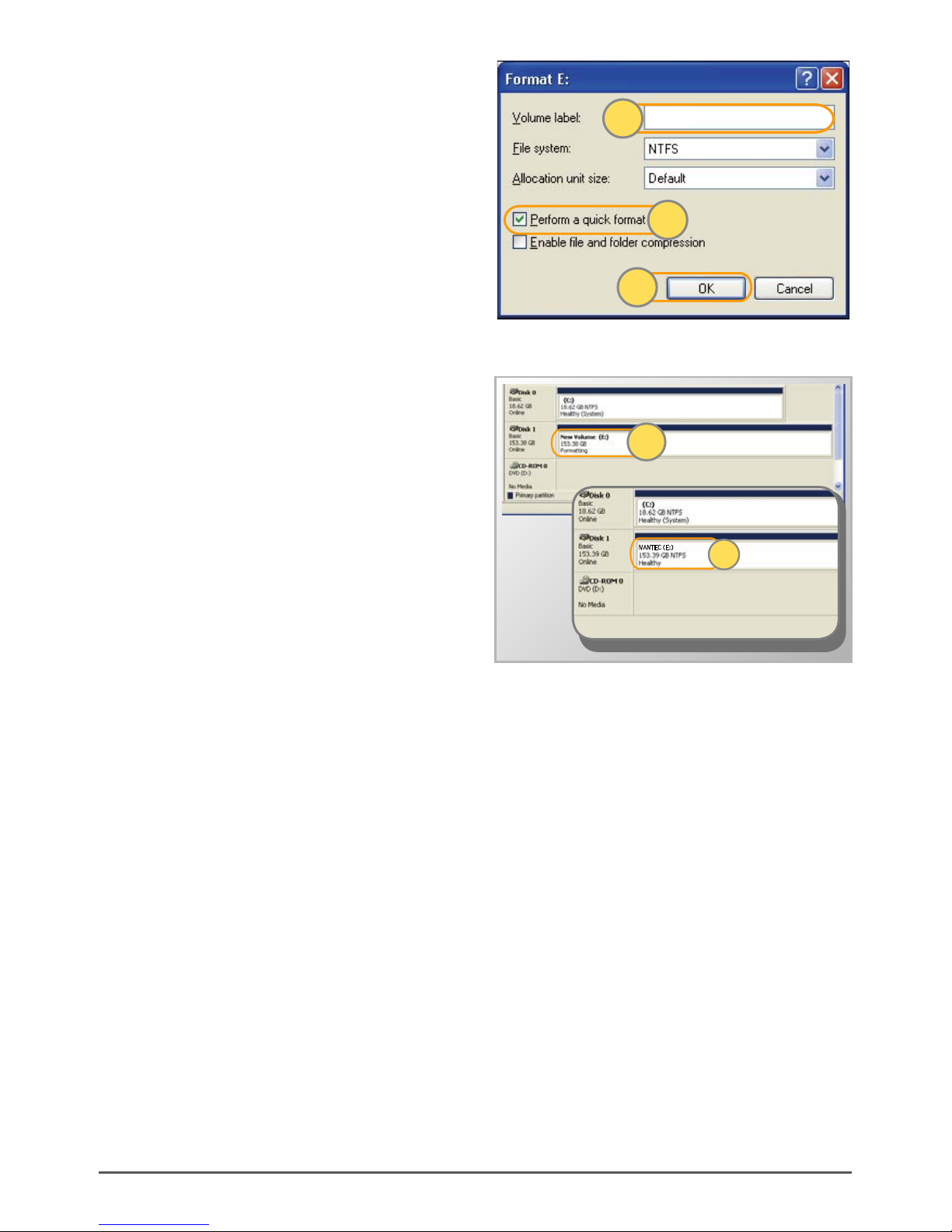

(6) Follow the directions of the wizard.
The recommended partition type is "primary"
and the recommended ( pic 7-C )
file system is "NTFS." Please note that
Windows 2000/XP/Vista limits FAT32
partitions to only 32GB.
(7) Windows Disk Management will format
and parti-tion the disk according to your
settings, and your drive will appear
in My Computer, ready to use. ( pic 7-D )
(8) Once complete,you should now be able to
see the drive in Windows Explorer.
VANTEC
( pic 7-C )
( pic 7-D )
2
1
1
3
VANTEC(E:)
2

Following these steps will erase everything from
the Hard Disk. If you have data that you want to
protect or continue to use, back up your data
before performing these steps.
NOTE :
If the hard drive will not mount on your system,
format the drive with a FAT32 or NTFS partition
first through a PC system. Once formatted, connect
the NexStar Enclosure to your Mac and run the Disk
Utility tool again. You should now be able to format
the drive into a Mac partition and mount the drive
Creating a New Partition
14
Formatting for Mac Users
1. Connect the drive to the computer and turn on the drive.
2. Select Utilities from the Go menu in the Finder menu bar.
3. In the Utilities folder, double-click Disk Utility.
4. The Disk Utility window will open. Select the volume
labeled Vantec Desktop Hard Disk from the list of
available hard disks on thw left side of the window.
5. Select the Partition tab.
6. From the Volume Scheme:menu, choose the mumber
of partitions you want to divide the drive into
(Mac OS 10.x gives you the option of dividing the
drive into at most 16 partitions ) . You can adjust the
size of each partition using the slide bar between the
partitions in the Volume Scheme : area.
7. In the Volume Information section, enter a name for
each volume (partition), choose the volume format
(Mac OS Extended, Mac OS Standard, UNIX File
System, or MS-DOS).
8. Once you have finalized the volume options,click
Partition. Click Partition again when the alert
message appears to continue.
9. Mac Disk Utility will format and partition the disk
according to your settings, and your drive will be
ready to use.
WARNING :
( pic 7-E )

Troubleshooting /FAQ
15
8. Troubleshooting /FAQ :
A: Please make sure the HDD has been initialized and
partitioned before hardware installation. Please refer
to section 7. Creating A New Partition.
1. I can only find the USB icon in the system
tray, but can’t find the hard disk in
“MY COMPUTER” after hardware installation ?
A: NexStar 3 might have compatibility issues with
few older 3.5” SATA HDDs, but no problem with
new versions of 3.5” SATA HDDs.
2. Does the NexStar 3 have any compatibility
issue with any 3.5 inches SATA HDD ?
A: Formatted through the Disk Management tool
provided by Windows systems, the maximum
formatted capacity of FAT32 is 32GB.
3. What is the max. Capacity of FAT32 format ?
A: Yes. NexStar 3 can support multiple partitions with
different formats. You can format it under FAT32 and
NTFS depending on your demand. Only under
Windows ME and Windows 98SE, we recommend
that it’s better to use FAT32 FORMAT to all partitions
because NTFS FORMAT is not supported by
these two OS systems.
5. Does NexStar 3 supports multiple partitions
with different formats (FAT32 or NTFS) ?
4. What is the max. capacity that NexStar 3
can support ?
A: Currently, the NexStar 3 supports Serial ATA hard
drive up to 1TB. Updated information will be
provided in the future as hard drive capacity
increases.
About the Hard Disk：

Troubleshooting /FAQ
16
A: No. It doesn’t support USB bus-power, the external
power supply is mandatory. Using the supplied
external power adapter is recommened.
1. Does the NexStar 3 support USB bus-power ?
About the USB Disk Function：
2. Why I can not find the disk in my computer
after plug in eSATA cable ?
A: 1. Please make sure that the firmware is
the latest version.
2. Please make sure that your motherboard
supports the hot swapping of eSATA.
About the eSATA Function :
A: No, NexStar3 doesn’t support Windows 98 system.
3. I can’t find NexStar3 under Windows 98
system. Does it support Windows 98 system ?
About the WINDOWS OS：
4. What is DAISY CHAIN function ?
How to use it ?
A: A daisy chain is an interconnection of computer
devices, peripherals, or network nodes in series,
oneafteranother.AsingleFireWireportcansupportup
to 63 external devices connected in a daisy chain,
just likeUSB hub.Youonly needto attachtwoormore
1394 devices one by one. But not all 1394 devices
support daisy chain function. If NexStar 3 co-works
with otherFirewire devicesbut failedtosupport daisy
chain , please contact the manufacturers to check if
their devices support daisy chain function.
About the 1394 Function :

Warranty/Contact
17
9. Warranty:
10.Contact :
Vantec Thermal Technologies
43951 Boscell Rd.
Fremont, CA 94538
tel: [phone]
fax: [phone]
website: www.vantecusa.com
The NexStar 3 comes with a 1 year limited
warranty ( 90 day parts ) . If your unit should
become defective withinthat time frame,please
go to http://www.vantecusa.com for information
on how to receivewarranty exchange or repair.
Cosmetic defects and missing parts are not
covered under this warranty. Please check
thecontentsoftheunittomake sureyou received
all parts. Also, check for any cosmetic flaws.
If any parts are missing or if there are cosmetic
defects, please contact the retailer from which
you purchased the unit immediately and ask for
a replacement.
Copyright © 2008 Vantec Thermal Technologies. All Right Reserved.
All Registered Trademarks Belong To Their Respective Companies.
