Vantrue Element 1 User manual

Element 1
User Manual
122mmX130mm
70g
Smart Cube
Voice-controlled Dashcam

Hey, find us here:
www.vantrue.net/contact facebook.com/vantrue.live

CONTENTS
VERZEICHNIS
CONTENU
ÍNDICE
SPIS TREŚCI
目次
目录
15
54
95
136
177
219
259
Basic Operation
Grundlegende Bedienung
Opérationdebase
Operación básica
Podstawowe funkcje
基本操作
功能亮点
4.
5
44
Installation
Installation
Installation
Instalación
Instalacja
取り付け方法
安装及使用说明
3.
85
126
167
209
249
Camera Overview
Die Übersicht über Kamera
Vue d'ensemble de la caméra
Descripción de la cámara
Budowa kamery
ドラレコの概要
机身部件说明
2
41
82
122
164
206
246
2.
1
40
81
121
163
205
245
What’s in the box?
Was ist in der Box？
Qu'ya-t-ildanslaboîte？
¿Qué hay en la caja？
Co znajdziemy w pudełku？
梱包内容
盒内物品清单
1.

CONTENTS
VERZEICHNIS
CONTENU
ÍNDICE
SPIS TREŚCI
目次
目录
38
79
119
161
202
242
279
Specifications
Spezifikation
Spécification
Especificaciones
Dane techniczne
仕様
产品规格参数
5.
39
80
120
162
203
243
280
Warranty & Support
Garantie und Support
Garantie & Support
Garantía y Soporte
Gwarancja & wsparcie
保証とアフターサービス
售后服务
6.

1.What'sinthebox?
J. CPL Fliter
Optional Accessories
- 1 -
A.Vantrue E1
Dash Cam
D. Type C Data Cable
(3.3ft, for transferring
files only)
G. Warning Stickers
C. Car Charger with
Built-in Type C Cable
(11.5ft)
F. Electrostatic stickers
I. User Manual
B.GPS Adhesive
Mount
E. Wireless Remote
Control
H.Crowbar
EN

2. Camera Overview
NO. DescriptionName
During video recording, long press to turn off the
screen, short press to stop video recording and
enter standby mode; you can confirm the
selected option in the menu; when playing back
files, you can play/pause files
1 Microphone
2
3Button
Serial Number Serial number for warranty registration.
- 2 -
Records clear audio with the video footage.
EN
69
7
3
45
1 2
8
12
14
10
11
13 15

4 During video recording and standby, long press
to quickly enter parking mode, and short press to
turn on/off the microphone; in menu settings,
long press to scroll through menu options, and
short press to display the next menu option;
during file browsing, long press to scroll to display
file, short press to display the next file; in playback
mode, short press to pop up the delete file menu
Button
6
7
8
9
10
11
12
5 Button
SD Card Slot
Speaker
During video recording and standby mode,
long press to turn on/off WiFi
Mount Port Connects to Type C cable or car charger for
external power supply
Supports Micro SD Card up to 512GB in FAT32,
Class 10
Button Power ON/OFF; long press to turn on/off the dash
cam; short press during recording to enter event
recording mode; short press to capture pictures
during event recording
Delivers sound during video playback.
Front Camera Front facing camera for video recording road
Events
For connecting mountsMount Interface
13
14
Power Port Connects to Type C cable or car charger for
external power supply；connects the data cable
for data transfer
Short press to restart the camera.Reset Button
- 3 -
Screen 1.54” LCD Screen
EN

- 4 -
Screen Overview
15
DescriptionLED Status
15 Camera is recordingBlinking green light
Steady green light Instandbystatus
2560x1440P 30FPS
MP/H
00:00:37
05-01-2022 14:09:07
120
Time Lapse On
Collision Detection ON
Motion Detection ON
1080P Low Bitrate Recording ON 15FPS
720P Low Bitrate Recording ON 15FPS
Low Framerate Parking Mode
Loop recording off
Loop recording for 1 min
Loop recording for 3 mins
Loop recording for 5 mins
G-Sensor ON
G-Sensor OFF
Remote control is connected
GPS Signal Connecting
GPS Signal Locked
Voice Assistant
Parking Mode
Recording Time
(Current Clip)
Recorded Driving Speed
(KMH or MPH)
Mic is ON
Mic is OFF
No memory card inserted
Memory card inserted Video Resolution
00:00:37
Current Date
and Time
EN

Before using this card, please follow the steps below to format it properly:
If the camera is recording, please press the icon to pause the
recording, then press the icon to enter the menu, then enter “System”,
select the format card , and confirm to format the memory card until it
prompts "Formatted successfully."
3. Installation
3.1 Installing a Memory Card (Recommended: Vantrue U3 high-speed micro
SD card).
Please insert a memory card (memory card capacity: 32GB-512GB, card
speed: U3/Class10/A2). The dashcam has certain requirements on the
card speed of the memory card. For reliable operation, we recommend
using a VANTRUE SD card(sold separately).
Memory Card Installation: There is an icon indicating the insertion
direction of the memory card. Please push the memory card into the
card slot according to the direction indicated by this icon, until a "click"
sound is heard in the card slot, indicating that the memory card is
inserted properly.
- 5 -
EN

- 6 -
After inserting the memory card, if the screen prompts "Card error, please
format" (please note that the recorder does not record at this time),
please directly press the button to enter the menu and start the
formatting process.
We recommend formatting the card once a month to ensure normal
operation of the dash cam.
Do not remove or insert the memory card during recording to avoid
losing important videos.
Please do not use bad cards or low-speed cards on the dash cam, as
it is easy to stop or lose the recording due to a failure of the memory
card.
Before formatting the memory card, please check the emergency
video folder in the SD card to see if there are any videos that need to
be saved separately, so as not to delete important videos by mistake.
REMINDER:
1.
2.
3.
4.
EN

3.2 Installing the camera onto your windshield
- 7 -
Align the mount with the dash cam mount interface then push in until
the mount is installed
1.
Thoroughly clean the windshield with water or alcohol, then wipe it
with a dry cloth. Stick the electrostatic sticker behind the rear-view
mirror, which is the recommended position to prevent blocking your
view while driving.
2.
Electrostatic sticker
EN

- 8 -
Remove the 3M tape from the mount, then fix the mount and camera
on the electrostatics stickers.
3.

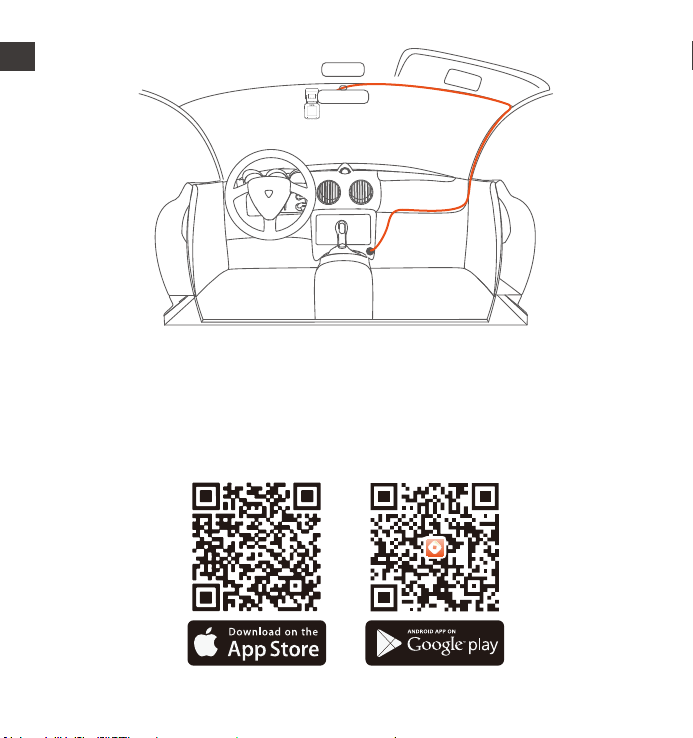

Connect the car charger to the car cigarette lighter, then insert the
USB end of the charger into the Type C USB power port of the camera.
After the car is started, the camera can be powered on immediately.
4.
Note: There are two electrostatic stickers numbered 1 and 2. Please
remove the protective film from No. 1, paste the electrostatic sticker
on the windshield, and then remove the protective film from No.2.
Please peel off this mask
AFTER application completed
Please peel off this
mask BEFORE application
EN

- 9 -
3.3 App APP Download
Please scan the QR code of the relevant version below to download the
APP and install it.
Search for the "Vantrue Cam" app in App Store or Google Play Store to
find the app and then download and install it on your phone.
EN

Note: After this camera is successfully connected to the mobile phone
through WiFi, it can realize real-time video preview, change camera
settings, download files without Internet connection, and play back
videos on the mobile phone. However, the GPS track playback and video
sharing functions will depend on the Internet or telecom value-added
services (requires you to turn off/disconnect the camera WiFi).
Turn on the WiFi function of the camera, enter the WiFi settings of the
mobile phone, then find the WiFi name, such as: E1_VANTRUE_XXXX, and
enter the WiFi default password: 12345678 to connect to WiFi.
- 10 -
3.4 WiFi Connection
EN

After the WiFi connection is successful, click "+" when opening the app for
the first time, add the camera model, then the app will automatically
connect to the camera and display the current real-time recording
situation of the camera.
3.5 App Connection
Note:
If you do not connect to WiFi before opening the app, the app will
prompt you by saying "Please connect to WiFi first", and will automati-
cally jump to the WiFi settings. Please complete the steps to connect
to WiFi first.
If the WiFi is already connected, but the app jumps to the application
permissions after selecting the model, please check whether the
wireless network permissions for the app are turned on.
1.
2.
- 11 -
EN

3.
4.
5.
6.
- 12 -
The initial password for this device is only used for initial login. In order
to prevent potential security risks, please be sure to change the initial
password after the initial login to prevent others from logging into your
device without authorization or other adverse consequences.
If you forget the WiFi password, you can restore the default setting of
the device, and the Wi-Fi password of the device will also be restored
to the default password(12345678).
If the connected WiFi name does not match your dash cam model,
the app will prompt you: "Please select the correct model" and
automatically jump back to the model selection interface.
If there is no connection with the mobile phone after the WiFi is turned
on, the camera will automatically turn off the WiFi and return to the
recording interface after 10 minutes.
EN

3.6 App Operation
Camera Setting
Full-Screen icon
Front and Rear
Display Switch
Snapshot
Album
Stop Recording
icon
Microphone switch
After entering the app's real-time preview, you can perform the following
operations:
Video preview: After the app is successfully connected to the camera,
enter the real-time preview page, click the full-screen button or place the
phone horizontally, and the real-time screen will automatically switch to
the full-screen preview mode. Click the window switch button to switch
the front and rear video windows,but only multi-lens dash cams can use
this feature.
Video playback: The video and photo files recorded on the SD card can
be viewed in the app, and the video can be played back after clicking
the file.
- 13 -
EN

- 14 -
Vantrue Ltd.
Vantrue Cam
VantrueCam
9:41
Today Games Apps Search
Back
Video download: You can select the video or picture you want to
download in the SD card browsing interface or in the video playback
area. After downloading the video, if you play it in the local app
interface, you can view the GPS track of the video.
Video snapshot: You can capture the current screen in the real-time
preview interface of the app.
Open the "Vantrue Cam" App, connect to Wi-Fi, and enter Settings >
About > Detect New Version. The app will automatically detect whether
the its version is the latest version. If there is a new version of the app,
follow the prompts and upgrade the version.
3.7 App Upgrade
EN

The E1 dash cam has 3 function menus, which are: record settings, system
settings, and file browsing. You can set your dash cam according to your
requirements with these function setting.
Press the button, pause the video first, and then press the button
to enter the menu settings.
4. Basic Operation
4.1 Menu Settings
- 15 -
Record System Files
A. Record Setup
-Resolution: Press the Button to switch the resolutions: 2592x1944P
30FPS; 2560x1440P(HDR) 30FPS; 2560x1440P 30FPS; 1920x1080P 60FPS;
1920x1080P(HDR) 30FPS; 1920x1080P 30FPS; 1280x720P(HDR) 30FPS;
1280x720P 30FPS.
-Loop Recording: Default setting is 3 min. You can choose among 1/3/5
mins and OFF.
-G-Sensor: Select the level of G-sensor you need, then you can set 3
directions (Front + Back/Left + Right/Up + Down). The G-sensor value in
each direction can be selected as 1/2/3/4/5/Off. The higher the sensitivity
level, the easier it is to trigger emergency recording. G-sensor is most
sensitive when set to 5.
-Audio Recording: The default is ON. Set recording to on or off.
-Exposure: The default value is +0.0. Adjust the exposure of the lens.
EN
