Vantrue Element 2 User manual

English/Espanol/日本語/中文 Element 2
User Manual
122mmX130mm
70g
Voice-Controlled Dual Dash Cam
更新内容：
20230531图文翻译错误

Hey, find us here:
www.vantrue.net/contact facebook.com/vantrue.live
V5

CONTENTS
ÍNDICE
目次
󵱹󳌴
6
50
Installation
Instalación
取り付け方法
󲰈󷿙󱷷󱛔󵥌󸘒󳻛
3.
95
137
43
89
131
170
Warranty & Support
Garantía y soporte
保証とアフターサービス
售后服务
6.
42
88
130
169
Specifications
Especificaciones
製品仕様
产品规格参数
5.
Camera Overview
Descripción de la cámara
ドラレコの概要
机身部件说明
2
45
91
134
2.
18
62
107
148
Basic Operation
Operación básica
基本操作
功能亮点
4.
1
44
90
133
What’s in the box?
¿Qué hay en la caja?
同梱内容
盒内物品清单
1.

- 1 -
1. What’s in the Box?
H.
3M Adhesive
Stickers
Wireless Remote
Control L.
CPL Filter
A. Vantrue E2
Dash Cam
E.
GPS Adhesive
Mount
I.
M.
B. Rear Camera
G.
User Manual K.
D.
Crowbar C.
Type C Data Cable
(3.3ft, for transferring
files only)
F. Car Charger with
Built-in Type C
Cable(11.5ft)
Cable for Rear
Camera(20ft)
Warning Stickers
J.
Electrostatic
stickers
Optional Accessories
Element 2
User Manual
Voice-Controlled Dual Dash Cam
EN EN EN EN

- 2 -
2. Camera Overview
NO. DescriptionName
During video recording, you can long press to turn
off the screen, and short press to stop recording
and enter standby mode; you can confirm the
selected option in the menu; when playing back
a file, press the button to play/pause the file
1 Button
9
8
1 2 3 4
5
6
15
16
10 13 1412
11
17 18 19
7
ENEN

- 3 -
2 During video recording and standby, short press
to switch the video window; in menu setting and
file browsing, short press to display the previous
option, long press to scroll up to display options;
in playback mode, short press to fast forward; in
WiFi mode, press any key to exit WiFi
During video recording and standby, long press
to quickly enter parking mode, and short press to
turn on/off the microphone; in menu settings,
long press to scroll through menu options, and
short press to display the next menu option;
during file browsing, long press to scroll to display
file, short press to display the next file; in playback
mode, short press to pop up the delete file menu;
in WiFi mode, press any key to exit WiFi
During video recording, long press to turn on/off
WiFi; In standby state, short press to enter the
menu or return, and long press to turn on or off
WiFi; in WiFi mode, press any key to exit WiFi
Button
4
5
3 Button
Button
Serial Number Serial number for warranty registration
7 Speaker Delivers sound during video playback
6Microphone Records clear audio with the video footage
10 Screen 2.45” LCD Screen
11 REC Green light means the camera is powered on
8Front Camera Front facing camera for video recording road
events.
9Power Port Connects to Type C cable or car charger for
external power supply
12 Mount interface Location of the installing mount
EN EN EN EN

- 4 -
LED Indicator
13 Type C Port for
Rear Camera
Connects the rear camera into this Port; connects
the data cable for data transfer
14 Button
16 Reset Button Short press to restart the camera
17 Rear Camera Records road events behind the car
18 Indicators for
Rear Camera
A green light indicates that the rear camera is
connected to power
19 Rear Camera
connector
Connection port for rear camera cable
15 SD Card Slot Supports Micro SD Card up to 512GB in FAT32,
Class 10
DescriptionLED
Steady green light
Blinking green light
Instandbystatus, or the REC light is set to off
Camera is recording
During the video recording, short press will lock
the current video and take a picture, long press
to shut down; in standby mode, short press will
capture the picture, long press will shut down; in
WiFi state, short press to exit WiFi, long press to
shut down
LED Status
REC
ENEN
ENEN

- 5 -
EN EN EN EN
Screen Overview
1440P+1440P 30FPS
14:39:07 11-18-2022
00:00:37 MP/H
35
Mic is ON Mic is OFF
No memory card or the
card is not recognized
G-Sensor OFF
G-Sensor ON
Recorded Driving
Speed (KMH or MPH)
Video
Resolution
Snapshot
Time Lapse On
Collision Detection ON
Motion Detection ON
1080P Low Bitrate Recording ON 15FPS
720P Low Bitrate Recording ON 15FPS
Low Framerate Parking Mode
Wi-Fi is Turned off
2.4G Wi-Fi is On
5G Wi-Fi is On
2.4G Wi-Fi is Connected
5G Wi-Fi is Connected
MP/H
35
Memory card is working
properly
Parking Mode
Recording Time
(Current Clip)
Current Date and Time
Remote control is connected
Icons for Indicating Buttons
Loop recording off
Loop recording for 1 min
Loop recording for 3 mins
Loop recording for 5 mins
Voice control is off
Voice control is on
GPS Signal Connecting
GPS Signal Locked

- 6 -
Before using this card, please follow the steps below to format it properly:
If the camera is recording, please press the button to pause the
recording, then press the button to enter the menu, then enter
“System,” select " Format SD Card " , and confirm to format the memory
card until it prompts "Formatted successfully."
3. Installation
3.1 Installing a Memory Card (Recommended: Vantrue U3 high-speed
microSD card)
Please insert a memory card (memory card capacity: 32GB-512GB, card
speed: U3/Class10/A2). The dashcam has certain requirements on the
card speed of the memory card. For reliable operation, we recommend
using a VANTRUE SD card(sold separately).
Memory Card Installation: There is an icon indicating the insertion
direction of the memory card. Please push the memory card into the
card slot according to the direction indicated by this icon, until a "click"
sound is heard in the card slot, indicating that the memory card is
inserted properly.
ENEN

- 7 -
After inserting the memory card, if the screen prompts "Card error, please
format" (please note that the camera does not record at this time).
Please directly press the button to enter the menu and start the
formatting process.
We recommend formatting the card once a month to ensure the
normal operation of the dash cam.
Do not remove or insert the memory card during recording to avoid
losing important videos.
Please do not use bad cards or low-speed cards on the dash cam, as it
is easy to stop or lose the recording due to the failure of a memory card.
Before formatting the memory card, please check the event video
folder in the SD card to see if there are any videos that need to be
saved separately, so as not to delete important videos by mistake.
REMINDER:
1.
2.
3.
4.
EN EN EN EN

- 8 -

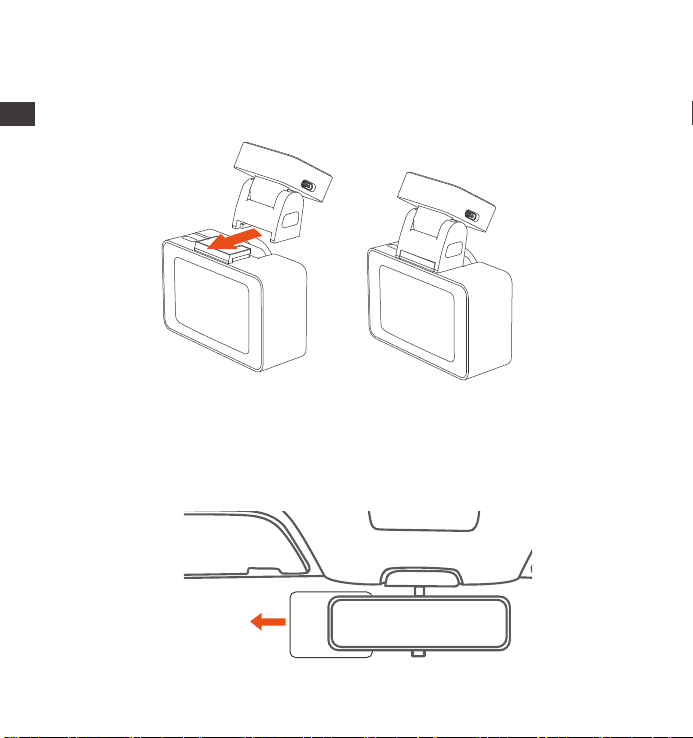

3.2 Installing the camera onto your windshield
Installation of camera mount: Align the mount with the dash cam
mount interface then push in until the mount is installed.
1.
Installation of electrostatic stickers: Thoroughly clean the windshield
with water or alcohol, then wipe it with a dry cloth. Stick the electro-
static sticker behind the rear-view mirror, which is the recommended
position to prevent blocking your view while driving.
2.
Electrostatic sticker
ENEN

- 9 -

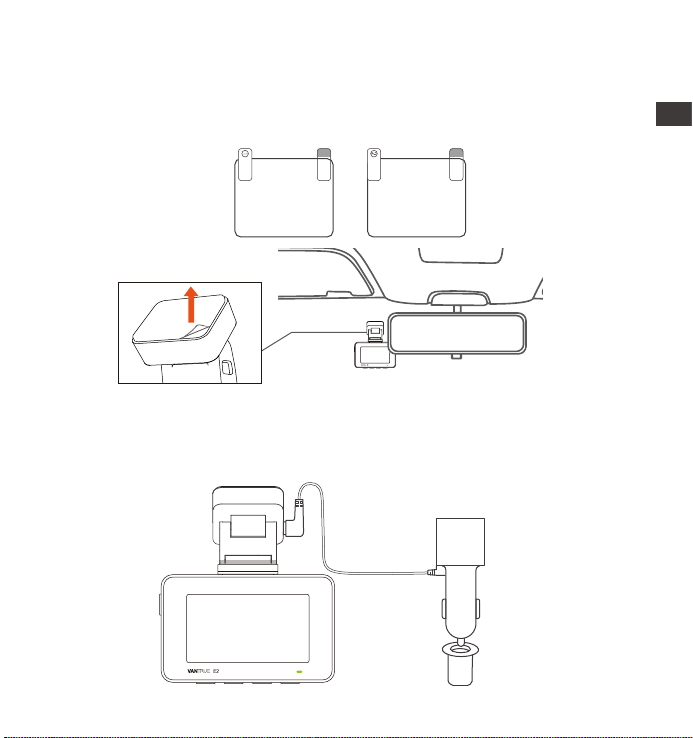

Installation of car charger: Connect one end of the car charger to the
car cigarette lighter and the other end to the Type C port on the front
camera GPS mount. When the green light of car charger is on, it
means it is powered on.
3.
Note: There are two protective films numbered 1 and 2. Please remove
the protective film from No. 1, paste the electrostatic sticker on the
windshield, and then remove the protective film from No.2. Remove
the 3M tape from the mount, then fix the mount and camera on the
electrostatics stickers.
Please peel off this mask
AFTER application completed
Please peel off this
mask BEFORE application
EN EN EN EN

- 10 -

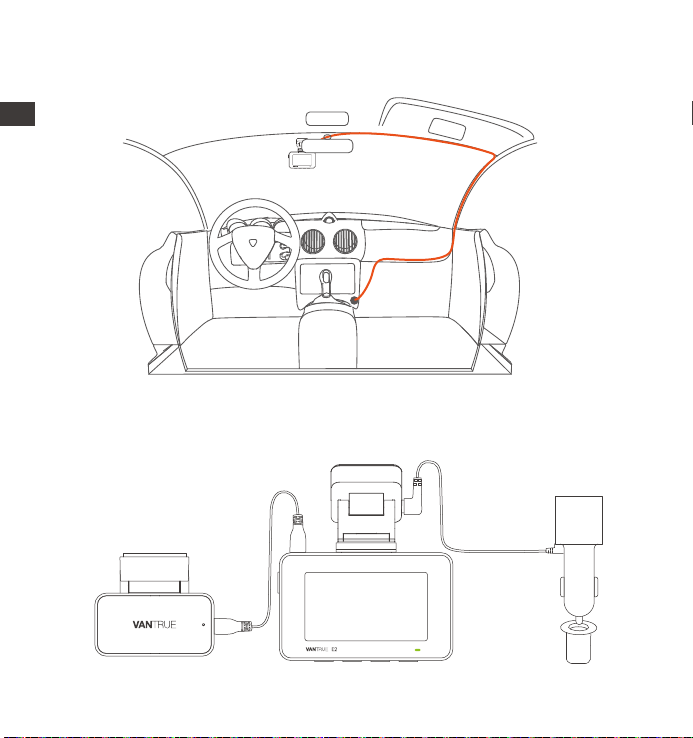

After installing the main camera and rear camera, please arrange the
car charger cable in the direction shown in the figure.
Take out the rear camera cable, connect the main camera and the
rear camera, and take out the car charger to connect it. After the
camera is powered on, choose a suitable location and install it.
4.
ENEN

- 11 -

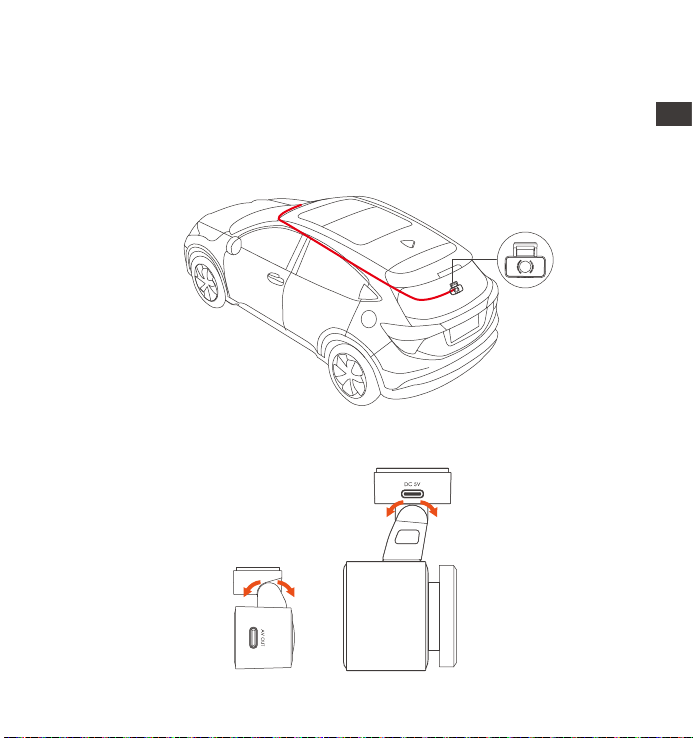

Rear Camera Installation : Please select the installation position on the
rear windshield. We recommend that you select a position close to the
center of the rear windshield, and avoid the defogging line on the rear
windshield, so as not to affect the video effect. Remove the protection
film of the sticky pad and rear camera lens. Fix the rear camera in the
selected position and adjust the angle, then use the rear camera
cable to connect the rear camera with the main front camera.
5.
The angle of the window glass of each model is different, please adjust
the recording angle of the main camera and rear camera up and
down according to actual needs.
6.
EN EN EN EN

- 12 -
3.3 APP Download
Please scan the QR code for the relevant version below to download the
app and install it.
Search for the "Vantrue" app in App Store or Google Play Store to find
the app and then download and install it on your phone.
Note: After this camera is successfully connected to your mobile phone
through WiFi, it can perform real-time video preview, change camera
settings, download files without internet connection, and play back
videos on the mobile phone. However, the GPS track playback and
video sharing functions will depend on the internet or telecom
value-added services ( requires you to turn off/disconnect the camera
WiFi).
ENEN

- 13 -
3.4 WiFi Connection
Turn on the WiFi function of the camera, enter the WiFi settings of the
mobile phone, then find the WiFi name, such as: E2_VANTRUE_XXXX, and
enter the WiFi default password: 12345678 to connect to WiFi.
EN EN EN EN

- 14 -
After the WiFi connection is successful, click "+" when opening the app
for the first time, add the camera model, and then the app will automati-
cally connect to the camera and display the current real-time recording
situation of the camera.
3.5 APP Connection
ENEN
Note:
If you do not connect to WiFi before opening the app, the app will
prompt you by saying "Please connect to WiFi first", and will automati-
cally jump to the WiFi settings. Please complete the steps to connect
to WiFi first.
If the WiFi is already connected, but the app jumps to the application
permissions of the APP after selecting the model, please check
whether the wireless network permission of the app are turned on.
1.
2.

- 15 -
EN EN EN EN
3.
4.
5.
The initial password for this device is only used for initial login. In order
to prevent potential security risks, please be sure to change the initial
password after the initial login to prevent others from logging into your
device without authorization or other adverse consequences.
If you forget the WiFi password, you can restore the default setting of
the device, and the Wi-Fi password of the device will also be restored
to the default password(12345678).
For Android system users, there is no need to jump to the Wi-Fi
interface of the mobile system to connect, just operates within the APP
interface.

- 16 -
3.5 App Operation
After entering the App’s real-time preview, you can perform the following
operations:
Video preview: After the app is successfully connected to the camera,
enter the real-time preview page, click the full-screen icon or place the
phone horizontally, and the real-time screen will automatically switch to
the full-screen preview mode. Click the window switch icon to switch the
front and rear video windows, but only multi-channel dash cams can use
this feature.
Video playback: The video and photo files recorded on the SD card can
be viewed in the app, and the video can be played back after clicking
the file.
ENEN
Camera Setting
Full-Screen icon
Front and Rear
Display Switch
Snapshot
Album
Stop Recording
icon
Microphone on/
off setting
Lens correction
line
Mileage Statistics
