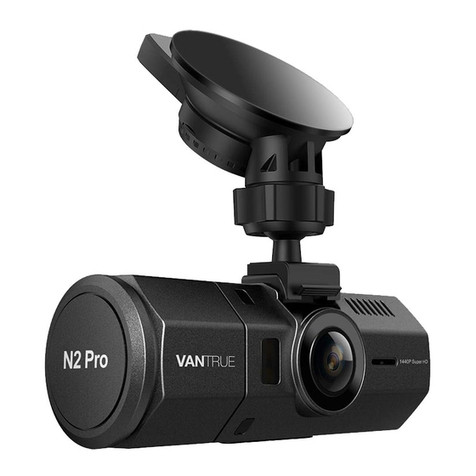

Vantrue OnDash N2 Pro User manual

User Manual
OnDash N2 ProDual Dash Cam
80G双胶纸

Always a surprise in Vantrue
Hey, find us here:
www.vantrue.net/contact facebook.com/vantrue.live

Whatʼsinthebox?
WasistinderBox?
同梱内容
Qu'ya-t-ildanslaboîte?
Coznajdziemywpudełku?
4
33
61
88
119
2
30
59
85
117
1
29
58
84
116
10
37
66
93
125
27
56
81
113
143
28
57
82
115
144
CameraOverview
DieÜbersichtüberKamera
ドラレコの概要
Vued'ensembledelacaméra
Budowawideorejestratora
GettingStarted
VorbereitungvordemEinschalten
使用準備／取り付け方法
Préparationavantlamiseenmarche
Pierwszeuruchomienie
BasicOperation
GrundlegendeOperation
基本操作
Opérationdebase
Podstawowefunkcje
Specifications
Spezifikationen
製品仕様
Spécification
Danetechniczne
Warranty&Support
GarantieundUnterstützung
保証とアフターサービス
Garantieetsupport
Gwarancja&wsparcie
1.
2.
3.
4.
5.
6.
CONTENTS
VERZEICHNIS
日本語作業マニュアル
CONTENU
SPIS TREŚCI

1. What’s in the box?
A.Dual Car Charger with
Built-in Type C USB Cable
(10ft)
B.
VANTRUE®N2 Pro
Dual Dash Cam
C.Suction Cup Mount
D.
USB Data Cable (3ft) E. N2 Pro Dual Dash
Cam User Manual
F. Quick Start Guide
A
B
D
F
CE
- 1 -

2. Camera Overview
NO. Name Description
1
2
Mount
Connector
3 Speaker
Front
Camera Lens
1 2 3 4 5 6 87
15
16
17
11
10 12 13 14
VTN2P8FXXXX
9
Connects to the Suction Cup
Mount.
Front Facing Camera for
video recording road events.
Delivers sound during video
playback.
5 OK Button
6 LCD Screen 1.5” TFT Color LCD Display.
4 Snapshot /
Emergency /
Parking Mode
Button
Snapshot: Manually locks the
currently recording video clip
following emergency or to
preserve important videos;
Long press to enter Parking
Mode.
Confirms the action; Stop/
Start the video recording.
- 2 -
1440P Super HD

11 Power Button
12 Up Button
13 Down Button
14 Menu Button Enter/exit setup menu.
Power ON/OFF; IR LED Light
Switch.
Move selector up; rewind;
Microphone on/off.
Move selector down;
fast forward; Turn off LCD screen.
10 Microphone
8
7 IR LED Lights
15 Type-C Port
16 Reset Button
17
Press to force reset the device.
9 Serial Number
LED Indicator
Camera is charging.
Camera is recording.
Records clear audio with the
video footage.
4 IR LED lights enhances the
night vision in car.
Rear Camera
Lens Rear facing camera for in-car video recording.
USB port for charging or
transferring data.
MicroSD
Card Slot Provides expandable storage (up to 256GB in FAT32, Class 10)
Serial Number for Warranty
Registration
Red light is visible on
the OK Button [5]
Blue light blinks on the
Emergency Button [4]
- 3 -

Screen overview
A. Charge using the supplied USB Car Charger
3. Getting Started
3.1 Before first use, charge the camera for 2-3 hours
Snapshot
01/01/2021
03:07:29
0:231080P+1080P
3
1080P+
1080P Video Resolution (Front cam+Rear cam)
Recording
Standby Status
Recording
Loop Recording Time
Time Lapse ON
Parking Mode On
Parking Mode OFF
GPS Signal Locked
GPS Signal
Connecting
Exposure value Current Date
(DD/MM/YY)
Current Battery
Level
Battery is
charging
MIC is ON
MIC is OFF
HDR Mode ON
G-Sensor ON
Recording Time
(current clip)
Emergency
File Lock
USB Charger
POWER BANK
1440P Super HD 1440P Super HD
Memory card
inserted or not
Time (24H)
Night mode off
Night mode auto
on/off
Night mode on
- 4 -

B. Ensure the Type C USB Cable and Car Charger
are well connected
NOTE:
The device has two USB ports available for charging –
the Type-C usb port on the camera or the type c usb
port via the suction cup mount.
When charging via a computer, please use the USB
port on the camera with Type-C usb cable. lf you use
the Type-C usb port on the camera, "Mass Storage"
and "Power On" will be displayed on the camera
screen, please select "Power On" to charge the dash
cam.
1.
2.
- 5 -
While charging, the LED
indicator light on the OK
Button will blink red.

3.2 Installing a Memory Card (Recommend VANTRUE
microSD Card).
Please use a genuine Micro SD memory card
from 32GB to 256GB with a speed rating of class
10 or Higher. We recommend use Vantrue Micro
SD Card (not include). Please insert the SD card
when dash cam is off. Carefully insert the
memory card into the camera’s card slot until it
clicks. To remove the card, power off the
camera first, then push the card into the slot until
it clicks again.
•
•
•
Press MENU to enter setup; if the camera is
recording video, press Confirm button to stop
the recording
Press the DOWN button to highlight the System
Setup option, press Confirm.
Press the DOWN button to highlight the Format
option, press Confirm followed by the DOWN
button to select YES.
Before using the card, please format it correctly
using these steps:
NOTE: If it says 'please insert TF card' or 'sd card error'
here, please press the recording button(OK button) and
press M button to access into the menu, go 'system
setup' and choose 'format'. Then the card will work well
on the camera.
(If you format it on computer, please search online on
"How to format a 64GB microSD card to FAT32".）
- 6 -

REMINDER:
Ideally, the MicroSD card should be formatted once a
month to maximize the lifetime of the memory card.
Please do not remove the card while the camera is
recording to prevent data loss/corruption.
1.
1.
2.
3.
2.
3.3 Installing the camera onto your windshield
Attach the Suction Mount to the camera’s
Mount Connector, pushing it in until it clicks.
- 7 -
Thoroughly clean the windshield using water or
alcohol, and wipe clean with a dry cloth.
Wipe the Suction Mounting Pad clean on the
Suction Mount.
N2 Pro

- 8 -
4.Securely attach the Suction Mount to the
windshield, and rotate the locking clamp on
the mount 90° upward until it clicks.
Carefully route the power cable around the
windscreen and tuck it under the trim.
5.

- 9 -
6.
7.
Vehicle’s cigarette
lighter port
8. Start the car.
9. The camera will auto power on and start recording.
With the Type C USB Cable, connect the supplied
Car Charger to the Camera Mount Base.
Insert the Car Charger into your vehicle’s
cigarette lighter port.

- 10 -
B. Automatically
When connected to the car charger, the
camera will auto-power ON after you start your
car and the battery charging will commence.
The camera will power OFF 5 seconds after you
turn off the car engine.
A. Manually
Single press the Power Button to power ON the
camera unit, long press the button to power it
OFF.
4. Basic Operation
4.1 There are two ways to power ON/OFF the camera:
4.2 Menu Settings
After powering ON the camera, press the MENU
button to enter the setup process.(If the camera
is recording video, press the OK button to stop
recording before pressing the MENU button.)
Record Setup System Setup

- 11 -
A. Record Setup
Press the DOWN button and highlight the Record
Setup option. Press the OK button to enter the
settings, and use the UP/DOWN buttons to
navigate the different options.
Resolution: By default (DUAL CAM RECORDING
mode), both cameras record at 1920x1080P
(30fps). In SINGLE FRONT CAM RECORDING
mode, 2560x1440P (30fps), 2304x1296P (30fps),
1920x1080P (60fps), 1920x1080P (30fps) options
are available.
Loop Recording: This is set to 3minutes per video
clip. Press OK to change the duration: 1,3, 5, or
OFF.
G-Sensor Set: Pressing OK gives the following
sensitivity options: 1, 2, 3, 4, 5(highest), OFF.
Audio Recording: Default is ON. Press OK and
DOWN button to toggle it OFF/ON.
Parking Monitor: Default is OFF. Press DOWN
followed by OK to toggle it OFF/ON.
Front Camera Exposure: Default is Default is 0.
Pressing OK gives the following options: 0, -1.0,
-2.0, +2.0, +1.0
Inside Camera Exposure: Default is Default is 0.
Pressing OK gives the following options: 0, -1.0,
-2.0, +2.0, +1.0
GPS Setup Files

- 12 -
Car Number Plate: Press UP/DOWN and OK to set
your car license number.
Stamp: Default is ON. Press OK to toggle it
OFF/ON. Stamp shows the date/time, logo, car
number, Speed and GPS Location information.
Rotate Display: Default is OFF. Press OK and
DOWN button to toggle it OFF/ON.
Time Lapse: Default is OFF. Press DOWN followed
by OK to set time interval: 1 Sec, 5 Sec, 10 Sec,
30Sec, 1Min, Off.
Power Off Delay: Default setting is ON, forcing the
camera to automatically end recording and turn
off after you power down the car. Press OK and
DOWN button to toggle it OFF/ON.To finish setup,
press the MENU button to exit.
B. System Setup
Language: Default is English. Press OK to select
between English, Simplified Chinese, German,
Japanese, Spanish, French, and Italian.
Format memory Card: Press OK, navigate DOWN
and select OK to format the microSD card.
Time & Date: Press UP/DOWN and OK button to
set the current date and time. Press the MENU
button to exit.
Auto LCD Off: If you choose 3 Min, it will turn off
the camera screen 3 minutes after recording
commences. If you choose OFF, the screen will
always stay on. Press the OK button to select the
duration in minutes: 1, 3, 5, or OFF to disable it.
Device Sound: Default is ON. Press the OK button
to toggle it ON/OFF.

- 13 -
C. GPS setup
NOTE: To use the GPS function requires the
purchase of an extra GPS mount for the camera.
GPS Setup: Default is ON. Press OK to toggle it
ON/OFF.
Speed Unit: Default is MPH. Press OK to select
either KM/H or MP/H.Press the MENU button to
exit and complete the setup.
D. Files
Review and delete images/videos stored in the
file folders.
Normal: Standard videos recorded.
Event: Critical event videos detected by G-Sen-
sor activity or manually locked by user.
Photo: Standard images.
All: All the standard videos, critical event videos
and standard imaged recorded.
Non-use Auto Power OFF: A default setting of 3
MIN means the camera is ON but not in use, it will
auto turn OFF after 3 minutes of inactivity. Press
OK to choose between 1, 2 minutes or 3 minutes,
or OFF to disable this feature.
Flicker Frequency: Press OK to toggle between
50Hz/60Hz.
System Info: Press OK to check the current
firmware version. (System Info)
Default Setting: Press OK and select OK to reset
the device back to stock factory settings.Press
the MENU button to exit and complete the setup.

- 14 -
4.3 Set Date/Time
Open the MENU interface, navigate to“System
Setup”>“Time & Date”, and press the OK button
to set the date/time. Navigate UP or DOWN to
select date and time values. Press OK to confirm
and proceed. To finish setup, just press the MENU
button to exit.
NOTE: Date format is DD/MM/YY with the time in 24 hour
format.
M
BACKENTER
0.33/59.11GB
Event
Normal
All
Files
OK
M
BACKENTER
Time&Date
OK
10 / 48 / 08
DD/MM/YY
03 / 05 / 2021

- 15 -
4.4 Switch Recording Mode/Resolution
By default (DUAL CAM RECORDING mode),
1080P+1080P resolution will show on the screen,
both cameras will capture road front and inside
cabin at dual 1920x1080P (30fps).
0
01/01/2021
03:07:29
0:231080P+1080P
3
It can be switched to SINGLE FRONT CAM
RECORDING mode with following steps:
- Go to “Record Setup”>“Resolution”, press OK
button, 2560x1440P (30fps), 2304x1296P
(30fps),1920x1080P (60fps), 1920x1080P (30fps)
options are available for single front recording
mode.
Dual1920x1080P30fps
2560x1440P30fps
2304x1296P30fps
1920x1080P30fps
Resolution
M
BACKENTER
OK

- 16 -
POK
Please go to System Setup to adjust this time to 1,
3, 5, or OFF to disable it so the LCD can always
stay on.
4.6 Loop Recording
After inserting a memory card, the camera will
(by default) immediately start loop recording
video when connected to a power source and
powered ON. If the device is not connected to a
power source, it will not immediately start
recording after you press the Power ON button –
press the OK button to start recording.
4.5 Auto LCD OFF
This feature avoids any chance of the screen
being a distraction in the vehicle, especially at
night when the illumination from the LED screen
can be a nuisance or even a hazard to the
driver. If you set the Auto LCD Off to 3 minutes,
the camera’s LCD will light off after 3 minutes but
recording will continue with blue light blinks on
the emergency button. You can press any
button to light on the screen.
