Varan Motors NEWCM-01 User manual

1
Wall cutting machine
Operating manual

2
This tool is suitable for the hard brick, concrete block, light brick, concrete
wall (ground) a forming slot and building materials such as granite, marble,
ceramic tile cutting work.
1. Technical Parameters
Voltage: 220V – 240V
Frequency: 50/60 Hz
Rated Input Power: 3000 W
Max Loading Power: 4800 W
No-load Speed: 6500 r/min
Max cutting capacity: 38 mm width × 36 mm depth
Machine net weight: 7.2 Kgs
Machine gross weight: 11.13 Kgs
2. Symbols
Warning signs: If any operation doesn’t according to
operation procedures, there will be personal injury or
machine broken

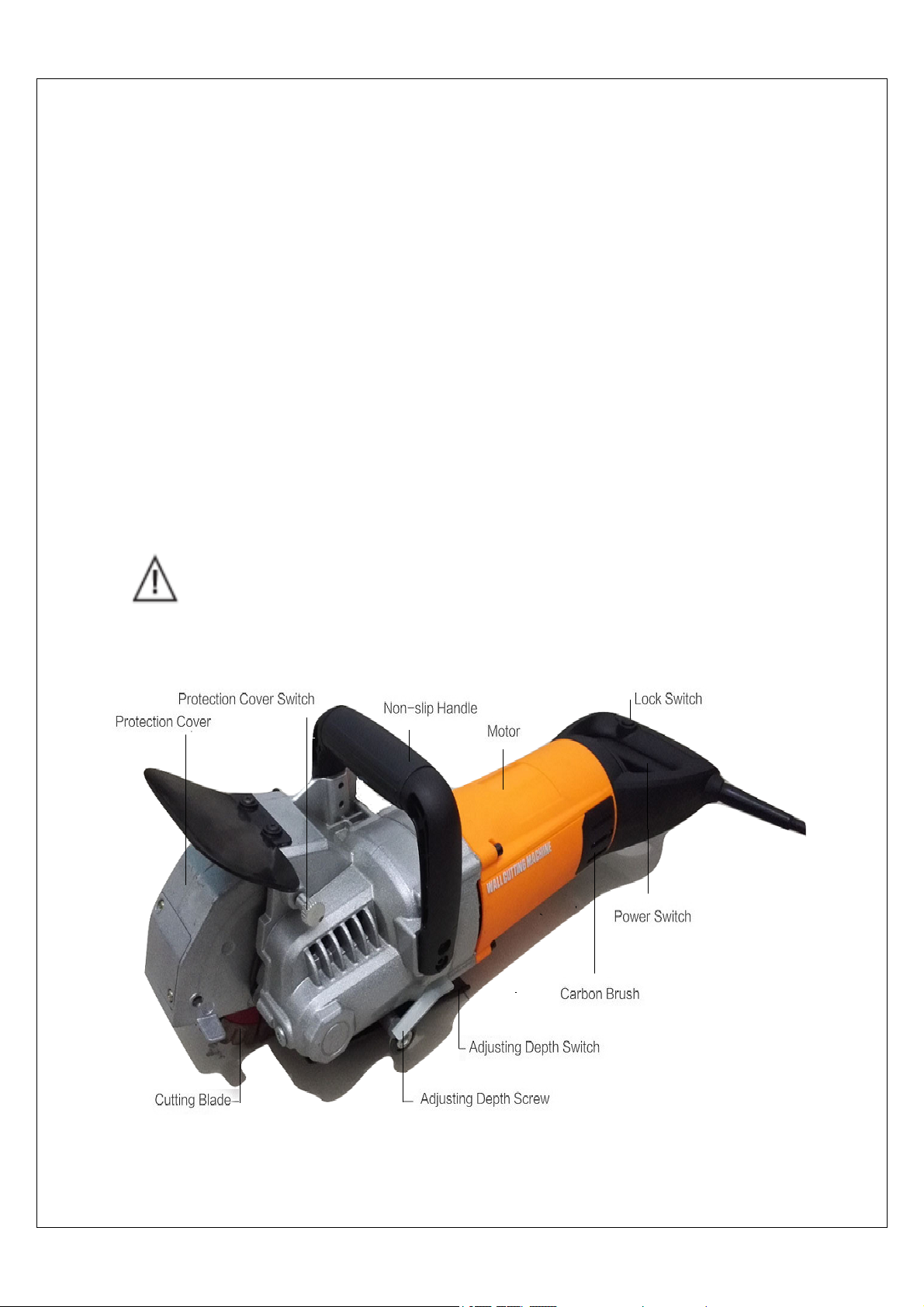

3. Machine’s photo

3
4. Safety instructions
a. Working environment
(1) The working area should be keep clean. Lighting and ventilation is good.
(2) Don't use this machine at flammable and explosive place.
(3) Machine at work, be sure to stay away from children, bystanders and
animals.
B.Electrical safety
(1) This machine have one electric leakage protection plug. Pls according to
warning label procedures to operate.
(2) Connect the power supply socket types should be provided with the
machine's plug. Don't change any.
(3) Don't use machine when outdoor raining day.
(4) Don't use power line to pull machine. Avoid to not work because the
poor contact.
(5) The power line should avoid contact with heat, oil, and moving parts.
(6) When use machine outside, pls use the outdoor extension 2 square
millimeter above the power cord.
(7) After starting, any part of the body should avoid contact with the wall
surface.
C.Personal safety
(1) When operating the machine, should be vigilant; do not in fatigue,
alcohol, drugs or medication use under the condition of the machine, in
order to avoid happening the accident caused by not concentration.
(2)
Operation, be sure to use protective equipment, such as dust
masks, goggles, ear protection cover, etc .In order to avoid
flying sand and dust contusion glasses hurt face, or because of
the strong noise damage hearing.
(3) To avoid accidental activation. Before turning on the power supply,
please make sure machine switch is closed. And confirmed after turning on
the power supply, don't immediately put finger on the switch button, to
prevent the occurrence of an accident.
(4) Before start the machine, should also check whether regulating lock
wrench and tools is out of the machine.
(5) Operation, the body should not extend excessive forward, please always
keep the balance of the body.
(6) Operation, please don't wear loose clothes, don't wear a
Bracelet, hair longer users should put hair into the protective
cap avoid to touch the moving parts when operating, easy
cause the happening of the accident.

4
5. Using attention
(1) Before use, first check the power supply security, bad socket and power
cord will cause poor contact, serious can cause electric shock, fire and other
accidents. .
(2) When slotting jobs should remain straight, uniform, so as to maximize
the cutting power.
(3) When working with water cut operators shall wear insulating gloves and
insulated shoes, which can avoid electric shock accidents.
(4) Down on the job guide line can improve the efficiency of the slot and
accuracy.
(5) In the process of the machine belongs to high power cutting tools, work
load is heavier, so before the use should check the connection parts of solid
and reliable to use.
(6) Dry cutting operations shall be equipped with dust removal equipment,
so as to ensure a good working environment.
(7) When machine meet the corner of the slot cutting work, should open the
cover and especially pay attention to fly sand protection. Unprotected
slotting operations is very dangerous, will cause serious personal injury.
6. Operation indicator diagram

5
7. Pump using
8. Connect with Vacuum Cleaner

6
9. Change the cutting blade
a. Tools b. Open the cover c. Take back cover and pull out
The lock pin
d. Loosen by counterclockwise e. Take out clamp and adjust blade
f. Lock clockwise and finish blade assemble.
10. Maintenance
Before the maintenance, pls turn off machine and pull out plug.
(1) This machine adopts the safety standards for manufacturing, if the
machine fails, please don't removed, be sure by qualified professional
maintenance personnel to repair. Otherwise it will bring you damage.
(2)
Requirement for maintenance: must use spare parts that original
company supply, otherwise it will cause the damage of the
machine or personal injury.
(3) The machine after each time using, be sure to clean up the sand, dust on
the machine, and keep the switch, plug and handle all parts to be drying.
Stored in the place children can't get, to maintain a dry place. In order to
avoid machine rust does not work or easy cause accident.

7

8

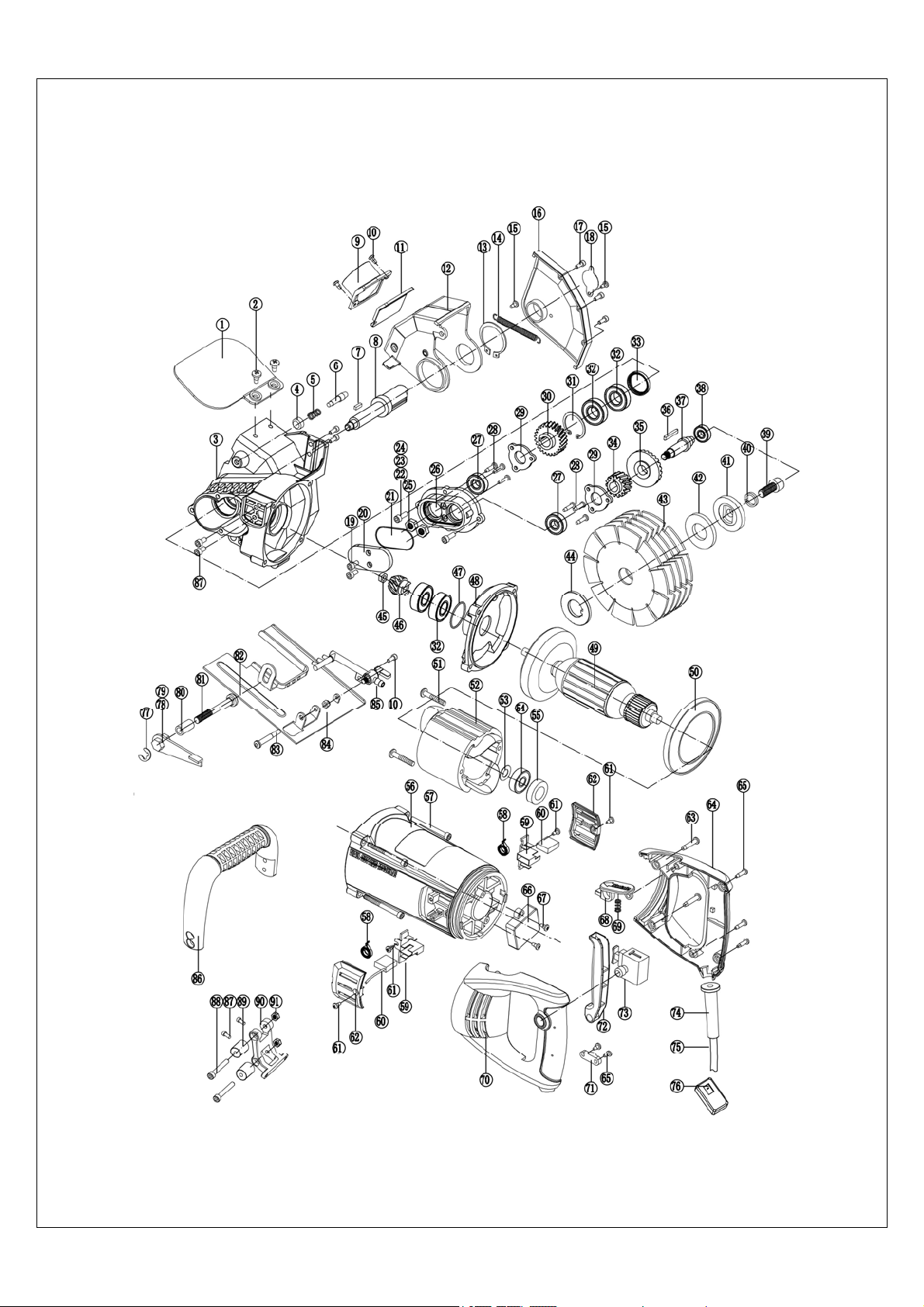

Spare parts list
Serial Discreption QTY Serial Discreption QTY
1 Fender 1 47 O-ring 1
2 Cross flat head screw 2 48 Middle cover 1
3 Gear box 1 49 Armature 1
4 Self-lock nut 1 50 Wind circle 1
5 Self-lock spring 1 51 Self-drilling screw 2
6 Self-lock pin 1 52 Stator 1
7 Flat key 1 53 Armature shim 1
8 Output axis 1 54 Bearing 1
9 Dust cover 1 55 Bearing sleeve 1
10 Cross pan head screw 4 56 Motor housing 1
11 Block dust cover 1 57 Inner hexagon screw 4
12 Move dust cover 1 58 Coil spring 2
13 Axis circlip 1 59 Brush hold 1
14 Spring shield 1 60 Carbon brush 1
15 Flat head screw 2 61 Cross pan head screw 6
16 Dust proof 1 62 Carbon brush side cover 2
17 Inner hexagon screw 3 63 Cross pan head self-drilling screw 5
18 Protective cover shim 1 64 Right handle 1
19 Cross pan head screw 2 65 Cross pan head self-drilling screw 2
20 Side cover 1 66 Speed control 1
21 O-ring 1 67 Cross pan head screw 2
22 Inner hexagon screw 5 68 Rotating button 1
23 Spring washer 9 69 Spring 1
24 Flat mat 9 70 Left handle 1
25 Hexagon screw 2 71 Line pressing board 1
26 Front cover 1 72 Switch button 1
27 Bearing 2 73 Switch 1
28 Cross pan head screw 6 74 Protecting bush 1
29 Bearing cover 2 75 Cable 1
30 Big gear 1 76 Protection 1
31 Hole circlip 1 77 Split washer 1
32 Bearing 2 78 Adjust wrench 1
33 Skeletion oil seal 1 79 Lock nut 1
34 Small gear 1 80 Space bush 1
35 Big cone gear 1 81 Carriage bolts 1
36 Flat key 1 82 Base board 1
37 Middle axis 1 83 Inner hexagon screw 1
38 Bearing 1 84 Lock nut 1
39 Inner hexagon screw 1 85 Water nozzle 1
40 Spring washer 1 86 Front handle 1
41 Top board 1 87 Inner hexagon screw 6
42 Medium plate 1 88 Inner hexagon screw 2
43 Blade 5 89 Small guide wheel 2
44 Press board 1 90 Follow rest 1
45 Lock nut 1 91 Lock nut 2
46 Small cone gear 1
