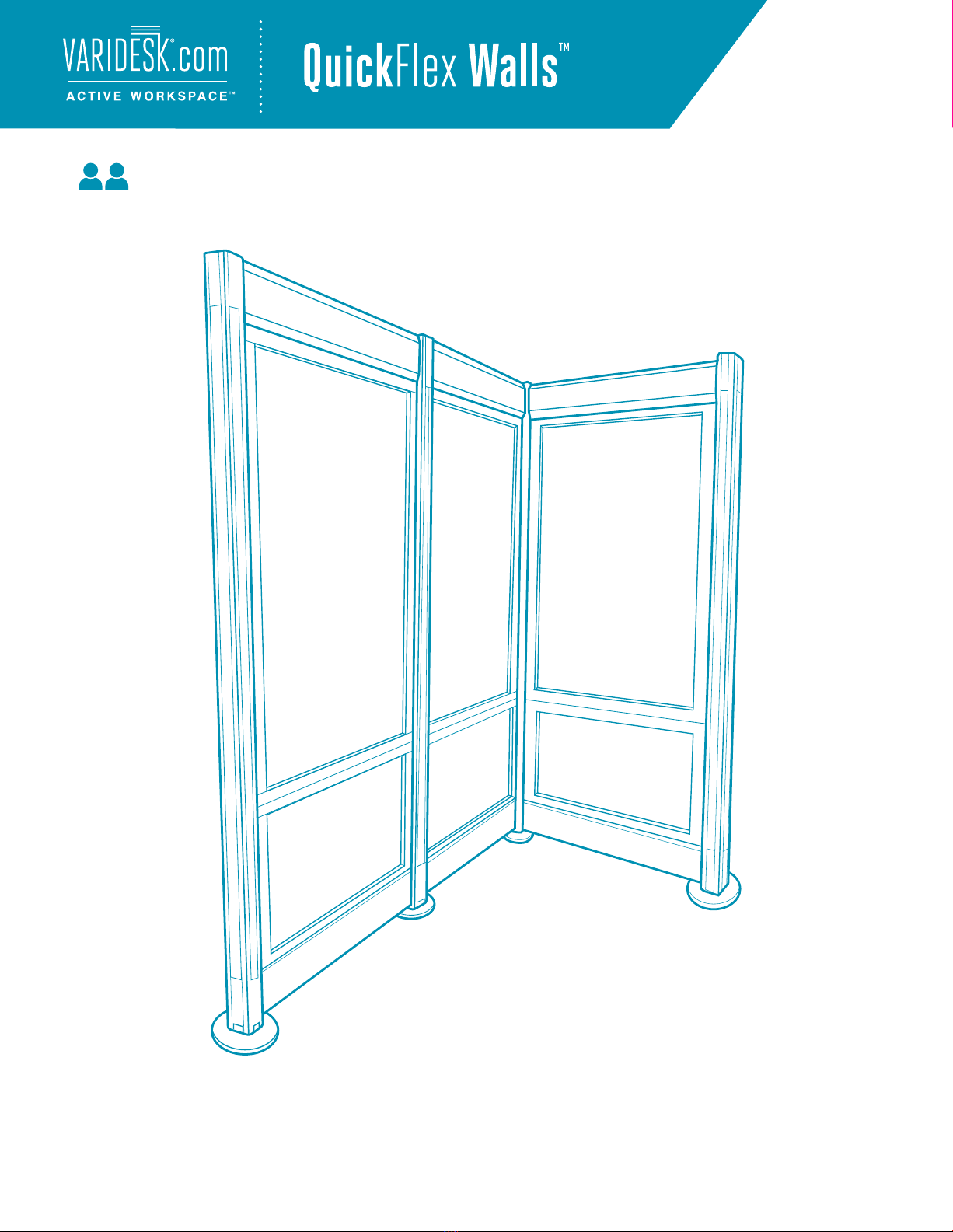

VARIDESK.com QuickFlex Walls User manual

Forpatentandtrademarkinformation,visitVARIDESK.com/patents©2018VARIDESK®.AllRightsReserved.
2PeopleRequired

1. STANDARD PANEL SET
• Panel Kit
• Post Kit
• Upper Panel
• Base Plate
2. END PANEL SET (AGAINST EXISTING WALL)
• Panel Kit
• Post Kit
• Upper Panel
• Small Base Plate
• Post Brace
3. INSTALLING A DOORWAY
• DoorlessSet
• SmallPanelKit
• PostKit
• DoorlessStretcherKit
• Small Upper Panel
• Base Plate
• DoorSet
• DoorPanelKit
• DoorKit
4. ANCHORING TO EXISTING WALL
• Top Cap - Wall Anchor
5. ANCHORING TO CEILING
• Top Cap - Ceiling Anchor
6. DISASSEMBLY
pg 1
pg 6
pg 11
pg 15
pg 16
pg 17

1.
Forpatentandtrademarkinformation,visitVARIDESK.com/patents©2018VARIDESK®.AllRightsReserved.
2PeopleRequired
x1
x4
x1
x1 x2
x2
STANDARD PANEL SET
LOWER PANEL
STRETCHER COVER
UPPER STRETCHER
x1
LOWER STRETCHER
UPPER PANEL
BASE PLATE POST

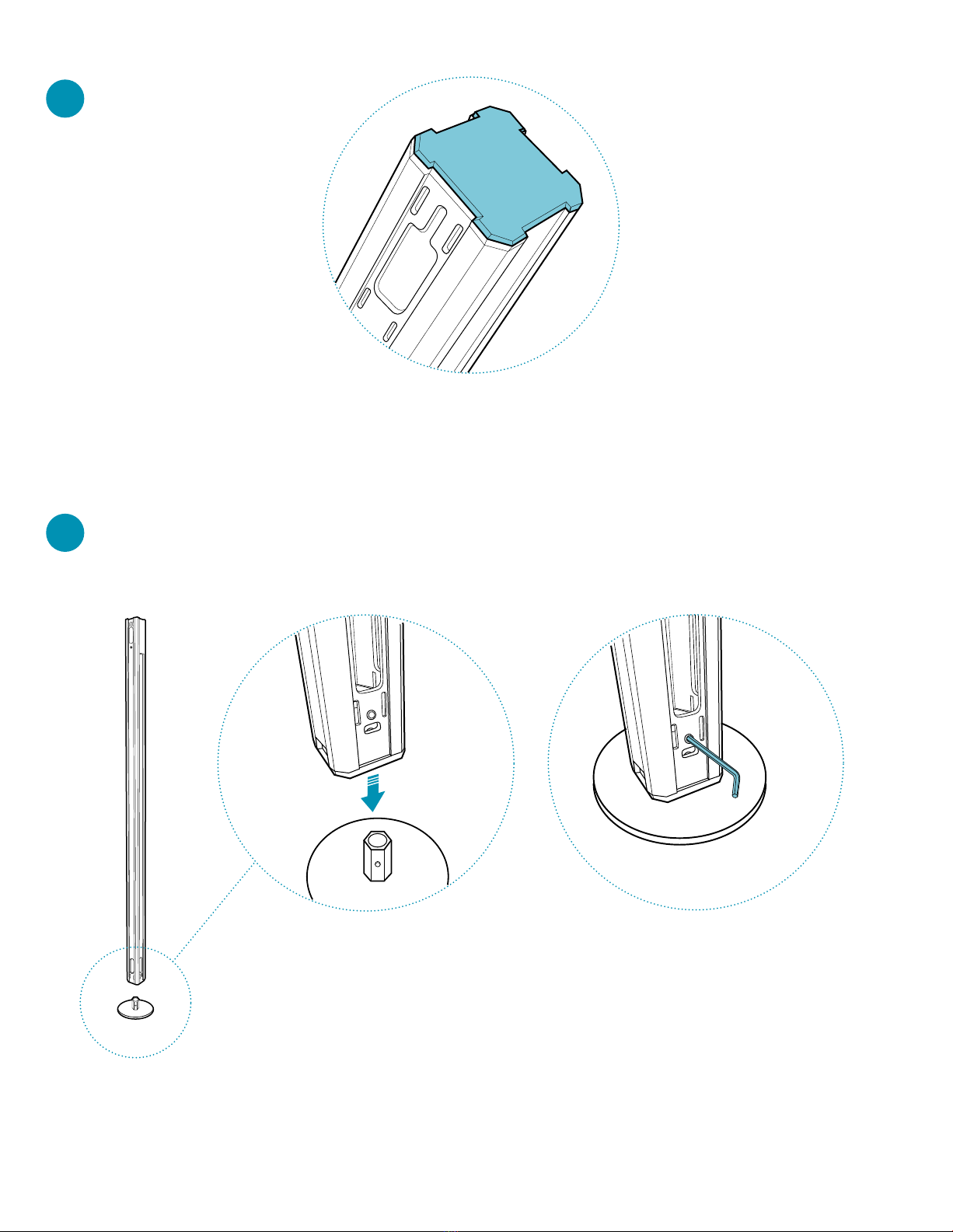

Posts come in one box. Make sure the top cap of post is attached, as these can come loose in transit.
Secure the post onto the base plate. Use the included Allen key to tighten both sides of the post into the base.
If the post will go up against a wall, make sure to use a small base plate. Refer to next section for installation
of end panel.
1
2
2.

Once the first 2 posts are assembled, place them where you want to assemble the first wall section. It’s
important to start building the walls at the highest floor point. There are upper and lower stretchers that
insert into posts. Make sure to insert and secure all upper and lower stretchers before placing in any panels.
For stability, have one person hold the post while another installs the stretchers. Install the lower
stretcher by inserting one side into one post and then the other side into the next post. Push down
until it clicks to lock.
LOWER STRETCHER
Similar to the lower stretcher, insert the upper stretcher into the anchor points at the top of each post.
Once in place, pull down until it clicks. Push up on draw latches to secure. Tighten the thread if needed.
3
4
3.
UPPER STRETCHER

Check level and connection of stretchers, making sure all stretchers are fully seated and secure before
installing any panels. Base plates can be adjusted to level if necessary. If you’re creating a corner with
your panels, you will need to change the position of the side caps to ensure that you can seat and secure
your stretchers.

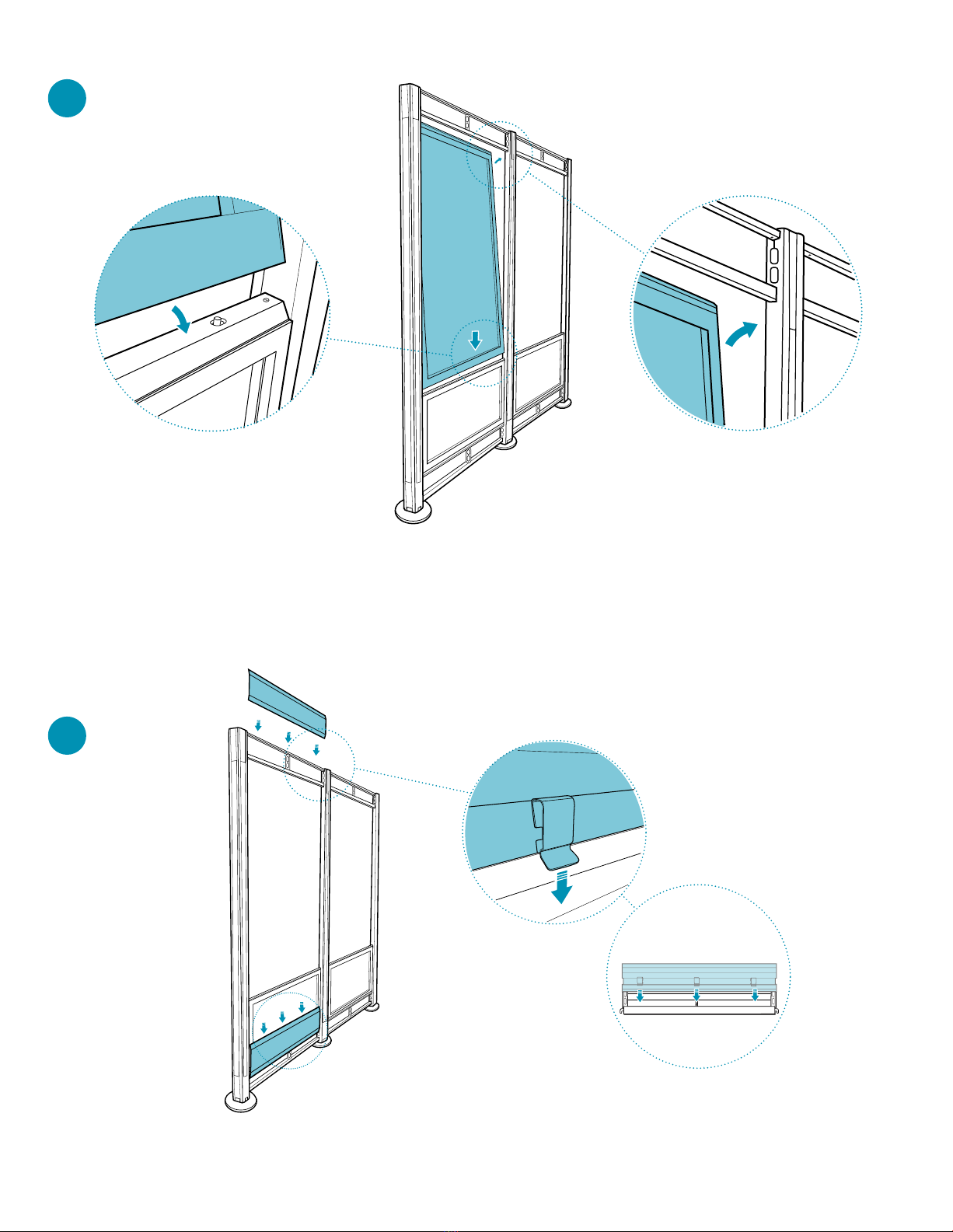

All panels should be installed with one person on each side. Align the channel on lower panel with lower
stretcher and then push panel in until it clicks in place. We recommend putting all lower panels in first
before moving to upper panels.
5
6
4.

Once all panels are installed, install the stretcher covers on both sides of the upper and lower stretchers.
Align cover with stretcher and slide down to clip in place.
To install the upper panel, ensure there is one person on each side of the panel. Similar to the lower panel,
align the bottom channel on the top panel with the lower panel and push down until the panel clicks into place.
7
8
5.

x2
6.
Forpatentandtrademarkinformation,visitVARIDESK.com/patents©2018VARIDESK®.AllRightsReserved.
2PeopleRequired
x1
x4
x1
x1 x2
x1
LOWER PANEL
STRETCHER COVER
UPPER STRETCHER
x1
LOWER STRETCHER
UPPER PANEL
SMALL BASE PLATE
POST BRACE
POST

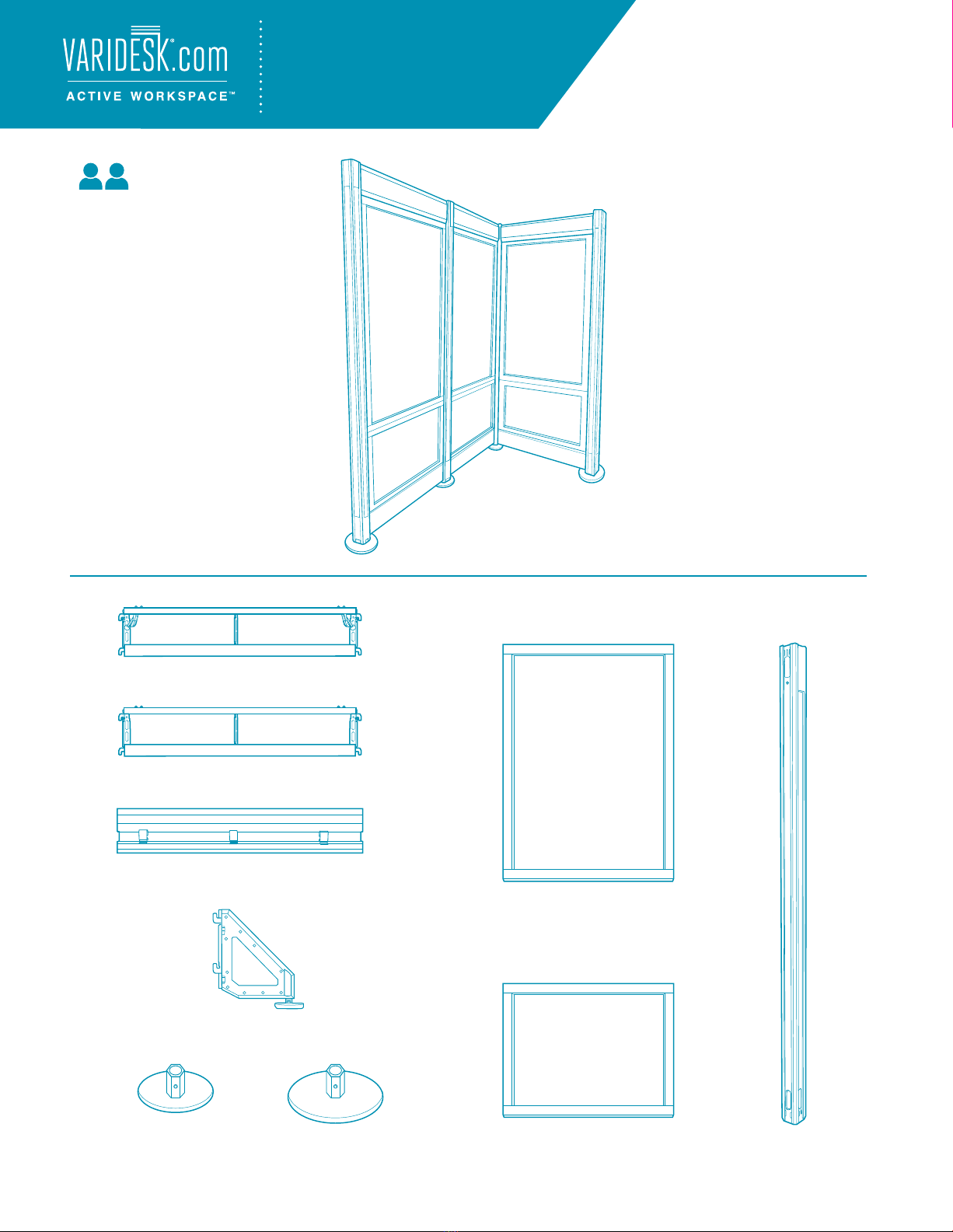

END PANEL SET
BASE PLATE
x1

Posts come in one box. Make sure the top cap of post is attached, as these can come loose in transit.
Secure the post onto the small base plate as close to the wall as possible. Use the included Allen key to
tighten both sides of the post into the base.
1
2
7.

For stability, have one person hold the post while another installs the stretchers. Install the lower stretcher by
inserting one side into one post and then the other side into the next post. Push down until it clicks to lock.
LOWER STRETCHER
Similar to the lower stretcher, insert the upper stretcher into the anchor points at the top of each post.
Once in place, pull down until it clicks. Push up on draw latch to secure. Tighten the thread if needed.
3
4
8.
UPPER STRETCHER

Remove side caps at the bottom of the post. Push the post brace in and up to lock on both sides of the
post. Adjust foot height to level. The post brace can be used against a wall in conjunction with a wall
anchor for additional stability (see page 15 for anchoring instructions). Check level and connection of
stretchers, making sure all stretchers are fully seated and secure before installing any panels. Base plates
can be adjusted to level if necessary.

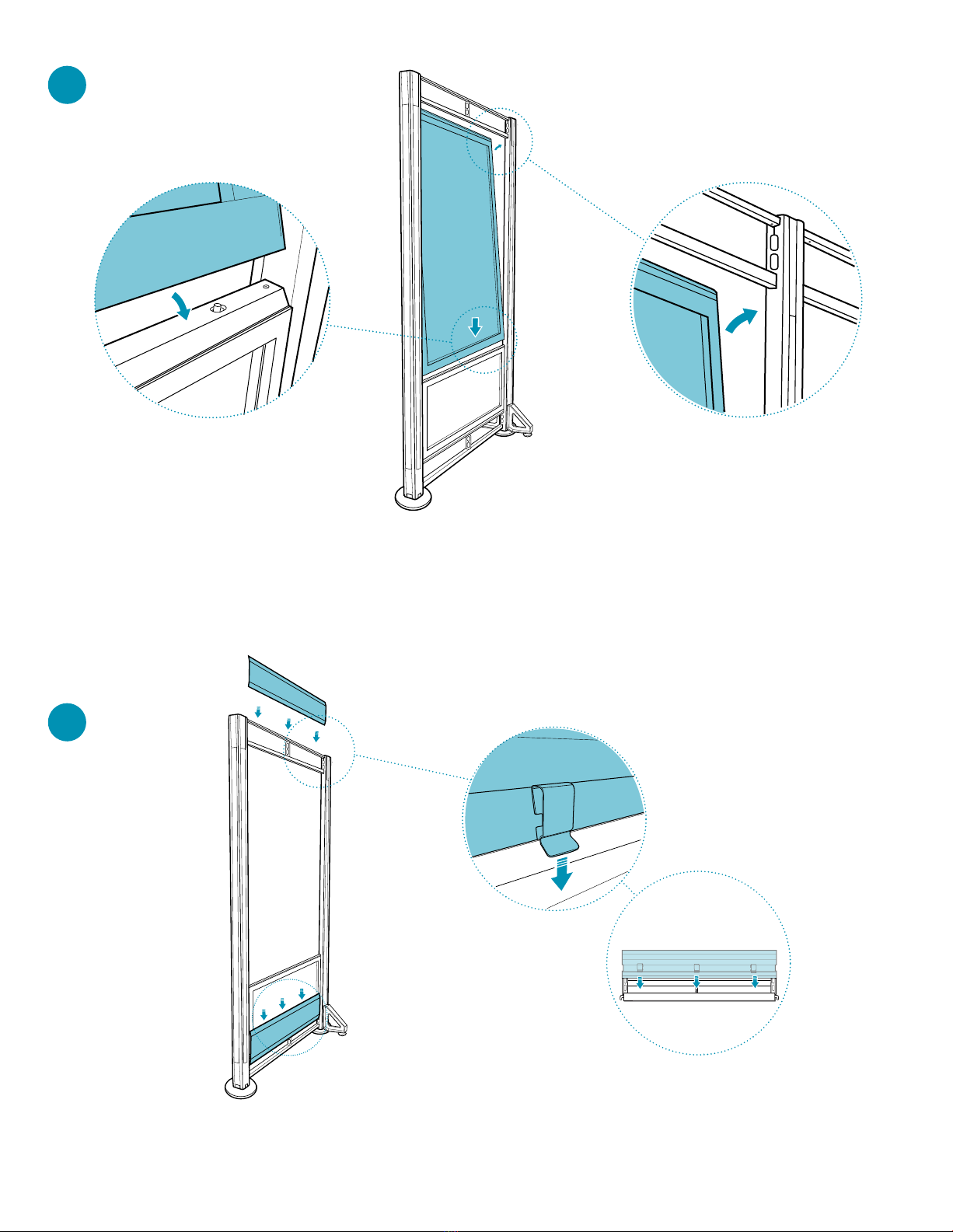

All panels should be installed with one person on each side. Align the channel on lower panel with the
lower stretcher and then push panel in until it clicks in place. We recommend putting all lower panels in
first before moving to upper panels.
5
6
9.

Once all panels are installed, install the stretcher covers on both sides of the upper and lower stretchers.
Align cover with stretcher and slide down to clip in place.
To install the upper panel, ensure there is one person on each side of the panel. Similar to the lower panel,
align the bottom channel on the top panel with the lower panel and push down until the panel clicks into place.
7
8
10.

Forpatentandtrademarkinformation,visitVARIDESK.com/patents©2018VARIDESK®.AllRightsReserved.
x1
x2
x2
x1 x3
DOOR FRAME
BASE PLATE
POST
x2
x3
x1
DOOR
DOOR HANDLE
KIT
11.
INSTALLING A DOORWAY
x1
x1
x1
x1
SMALL LOWER PANEL
DOOR STRETCHER COVER
SMALL STRETCHER COVER
x4
x2
x3
SMALL UPPER PANEL
SMALL UPPER STRETCHER
SMALL LOWER STRETCHER

For kits with a door to install, you will need to install the frame into the doorway. Frame and door are shipped
unassembled. Frame can be installed to allow for door to swing in or out. Do not install door until frame is installed
into wall system (wall system is assembled by following previous panel installation steps).
2
1

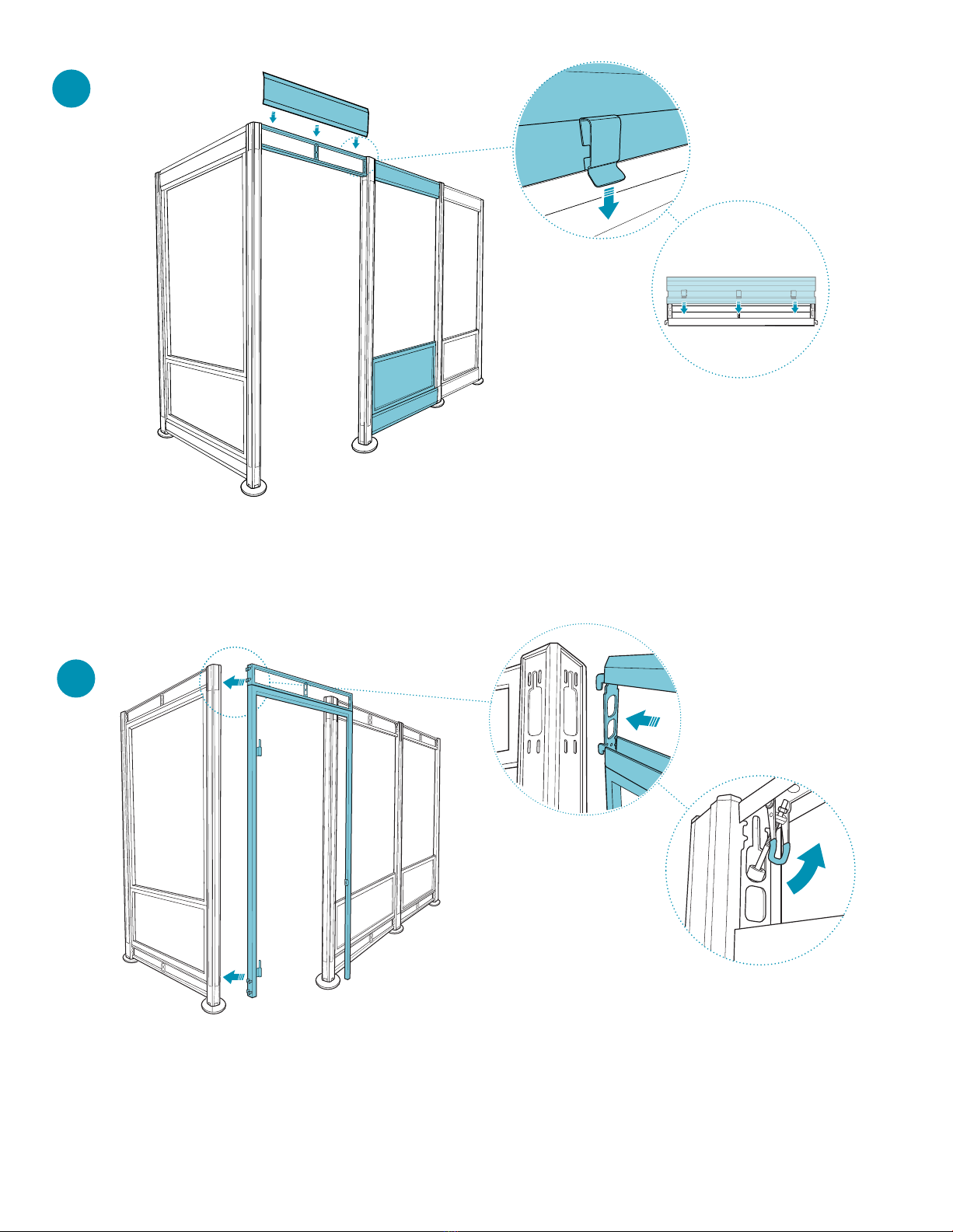

For kits designed to have a doorway with no hanging door, first decide where you want the doorway and install the
small panel next to where the doorway will be. Install the upper stretcher between doorway panels. Users with no
door are now done with their installation.
12.

3

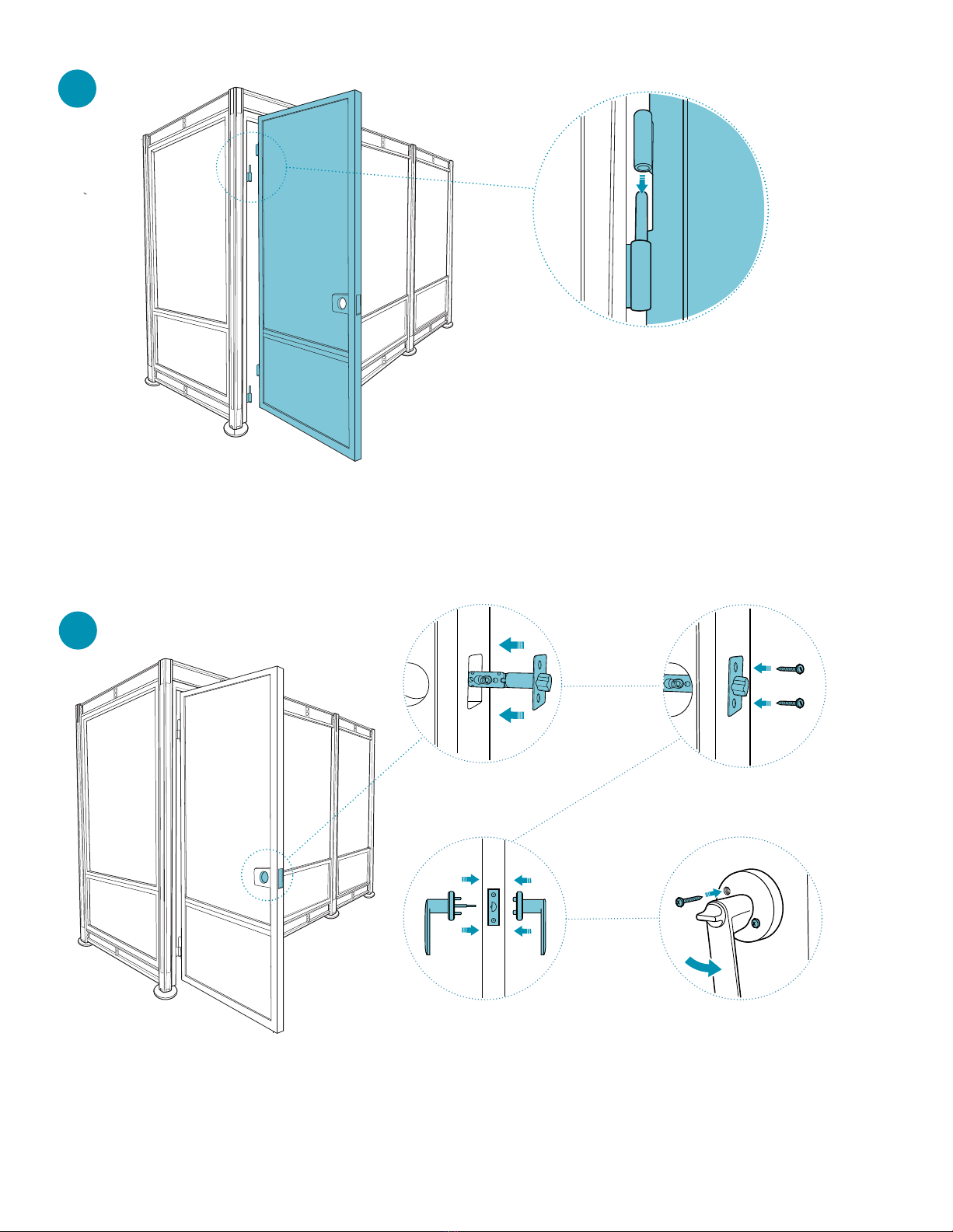

Align the door frame with the post. Insert into one post and then the other. Push down on the stretcher
and then push up on the draw latches to secure frame in place. Once installed, check level and spacing
of the door frame. Adjust the base plates on each side to ensure the frame for the door is level. Align the
door withthe top pin, then lower pin. Slide door frame onto brackets. Install the door at a 90-degree
angle from wall system to avoid pinching hands in the frame.
To install door handle, use the 3-piece handle plates included. You can also use any standard door
handle and follow the manufacturer’s installation instructions. To use the included handle, screw in
the lock mechanism with included screws. Do not over tighten. Push handle pieces onto each side
of door exterior. Use a screwdriver to secure screws on each side. Tighten lock plate screws.
4A B
C D
13.

5

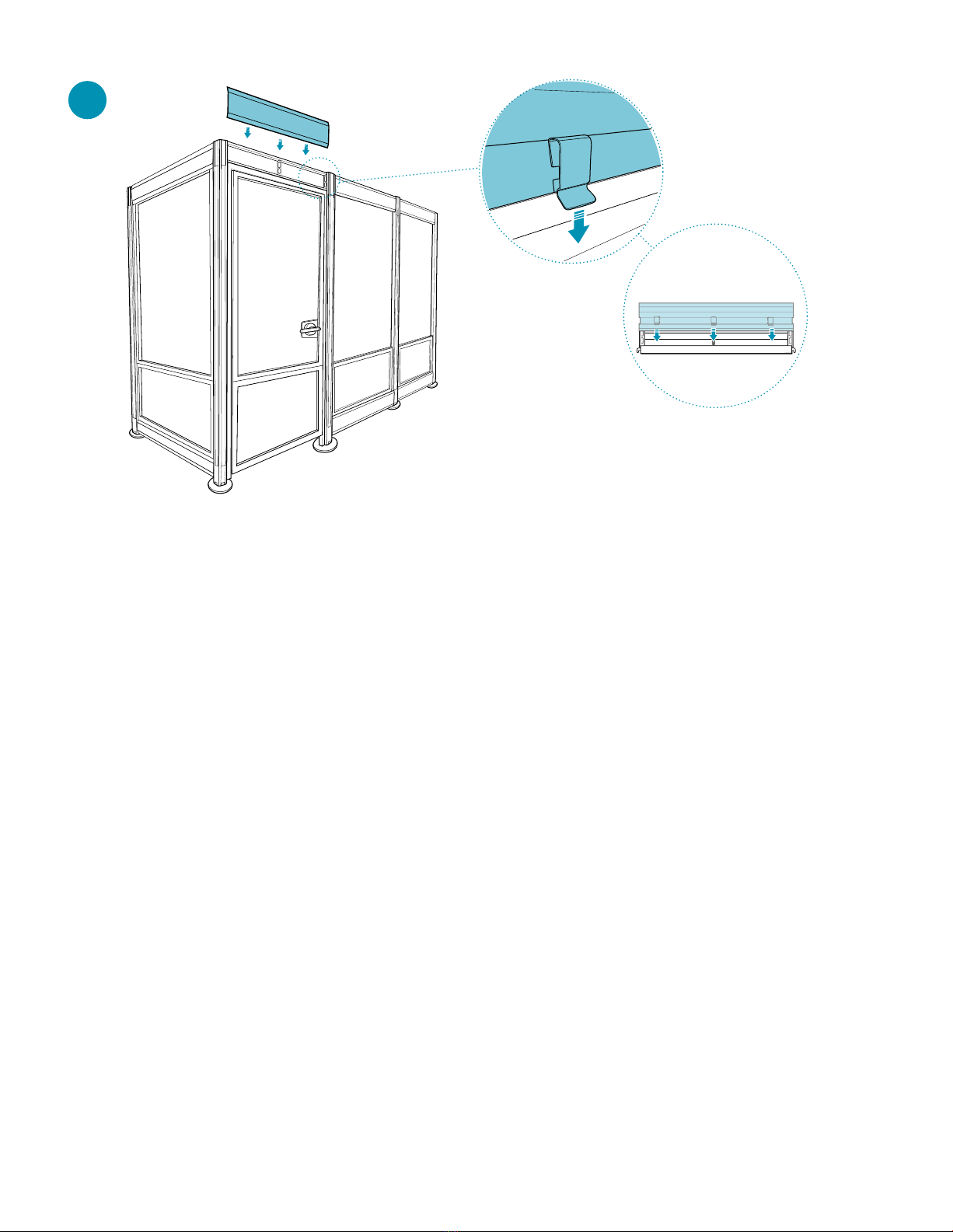

Once the door is installed, install the door stretcher cover on the door stretcher. Align cover with stretcher
and slide down to clip into place.
14.

x1 x1
x1

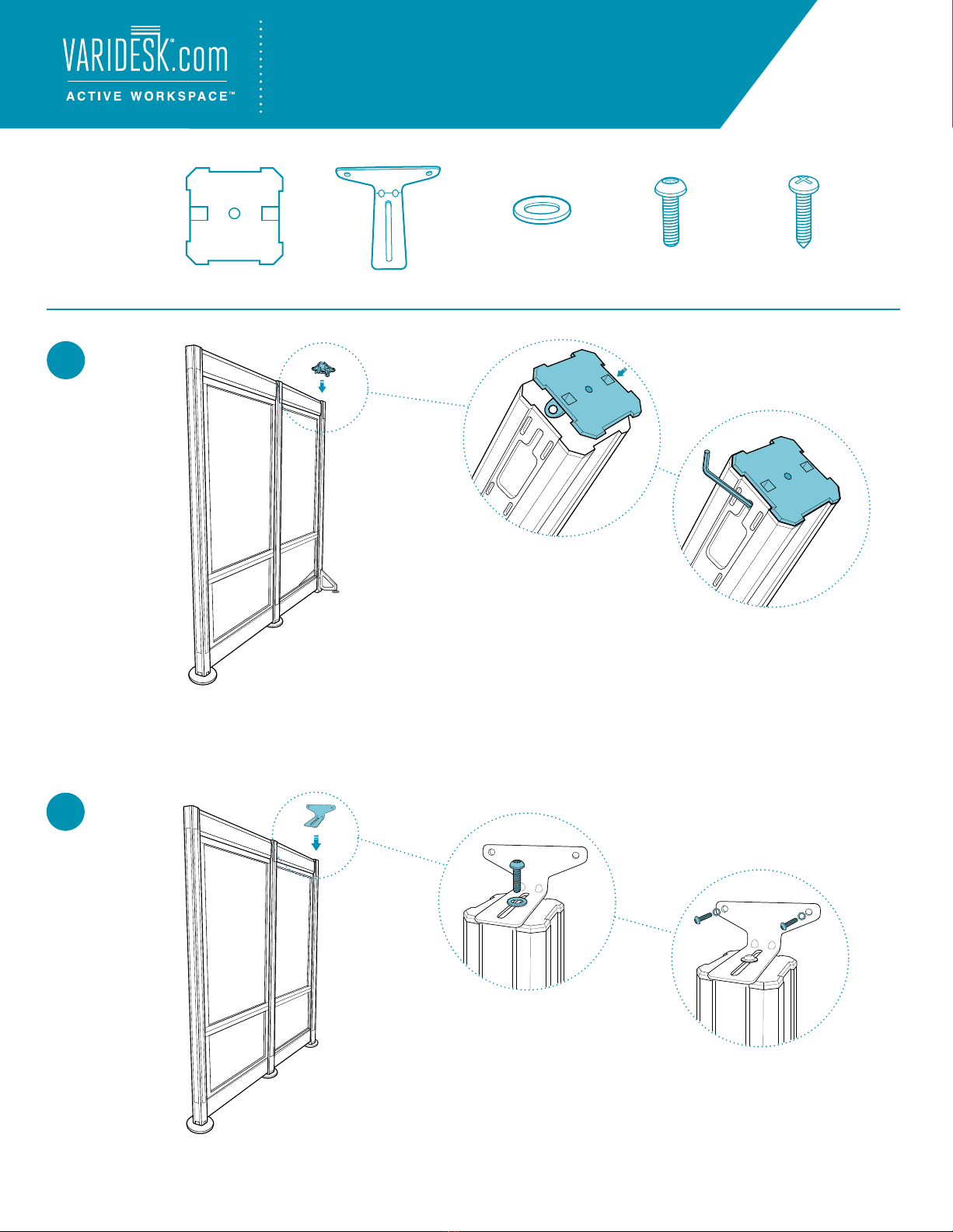

Pair the wall anchor with small base plate and post brace piece. Remove existing post cap and replace it with
anchor cap. Back screws out of the anchor bracket to be able to lock piece and fully secure into post.
Adjust the wall bracket to align with existing wall and use screws to anchor and secure.
1
KIT INCLUDES:
ANCHOR CAP WALL ANCHOR WASHER CAP BOLT
x2
WALL SCREW
2
15.
ANCHORING TO EXISTING WALL

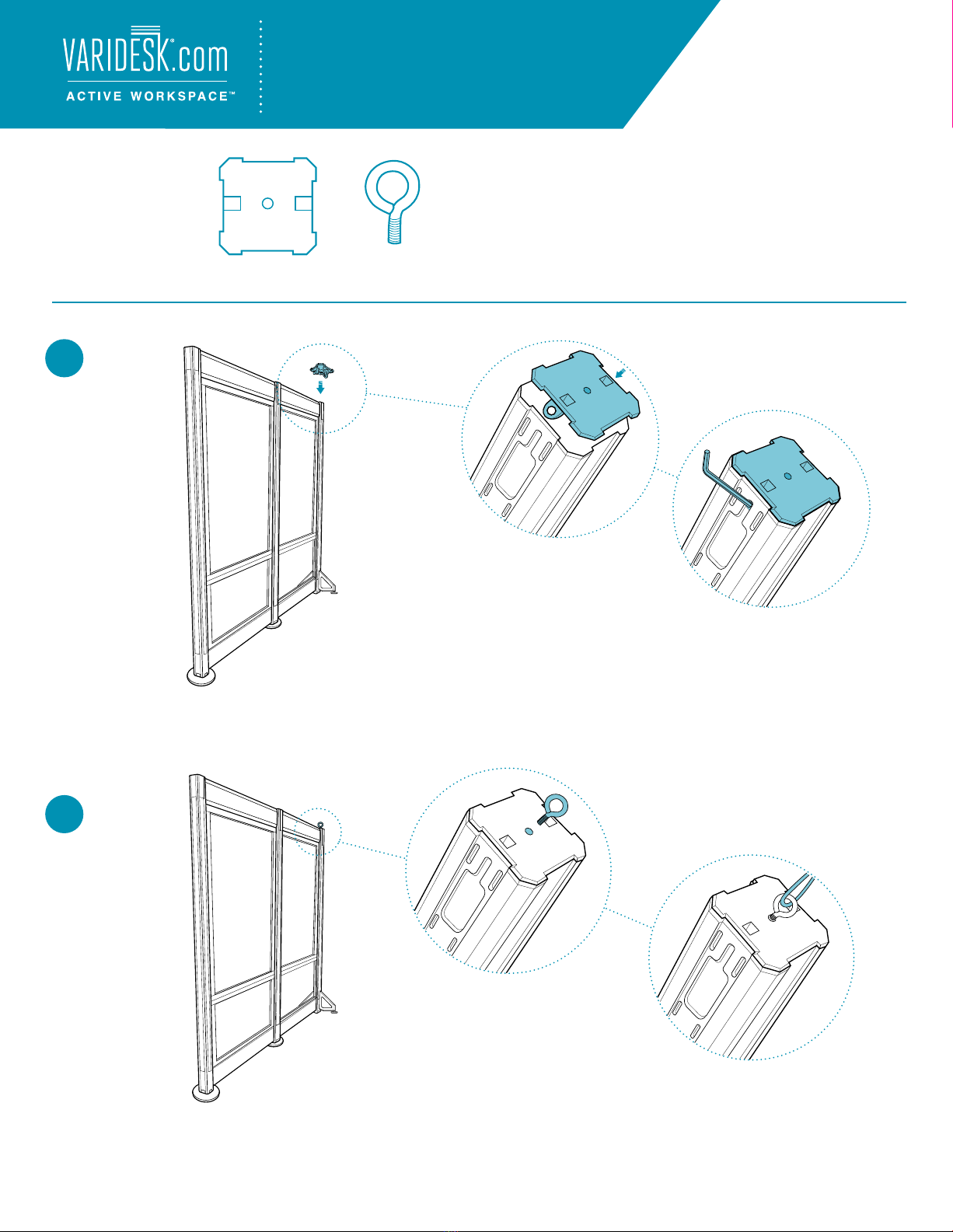

Remove existing post cap and replace it with anchor cap. Back screws partly out of the anchor cap to be able to
lock piece and fully secure into post.
1
2
KIT INCLUDES:
ANCHOR CAP ANCHOR
x1
Once the cap is installed, screw in the eyebolt and anchor to the ceiling. We recommend using a braided cable
to anchor.
16.
ANCHORING TO CEILING

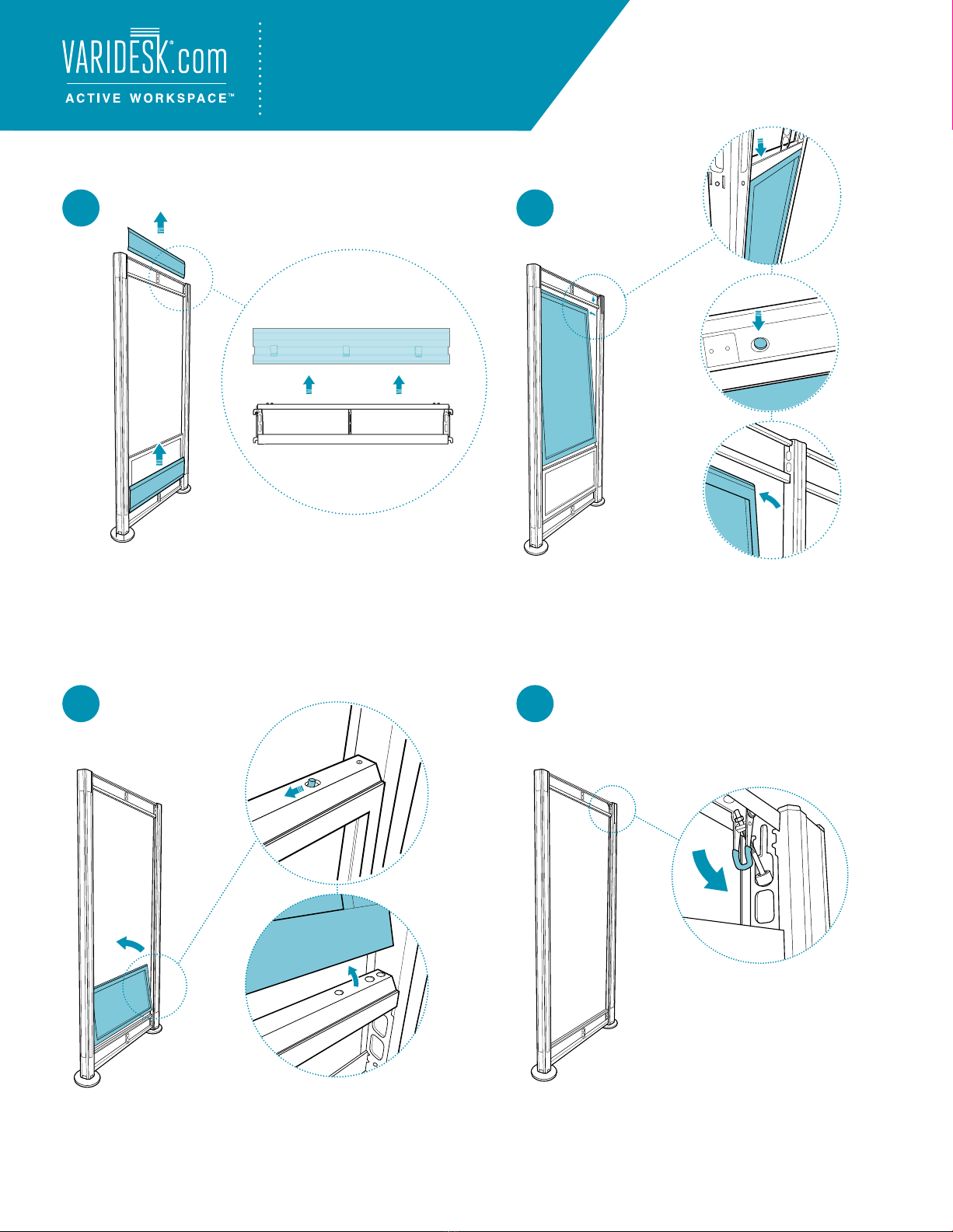

Pull off stretcher covers. With a person on both sides of upper panel, press
spring latch down to remove the upper panel.
Remove the lower panel by pulling in the tabs to
release the lower panel.
Undo draw latches and push up on the upper
stretchers to remove. Pull up on the vlower stretcher
to remove.
1
3
2
4
17.
DISASSEMBLY

WARNING: To prevent injuries and product failure,
do not use the wall partition for climbing or leaning.
Do not use if the product is damaged.
WARNING: This product is only intended to be used as
described in the instructions. Only use accessories and
attachments recommended by the manufacturer.
---
