1 General notes
This manual contains important instructions for the safe operation of the unit. Read
and follow the safety instructions and all other instructions. Keep the manual for
future reference. Make sure that it is available to all those using the device. If you sell
the unit please make sure that the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are
subject to change.
1.1 Further information
On our website (www.thomann.de) you will find lots of further information and
details on the following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the
topics of interest for you quickly.
Online guides Our online guides provide detailed information on technical
basics and terms.
Personal
consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’, ‘OFF’.
Letterings
Displays
General notes
4LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor
LED outdoor PAR

The individual steps of an instruction are numbered consecutively. The result of a
step is indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch off the device.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words
that are used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates
an immediate dangerous situation that will result in
death or serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates
a possible dangerous situation that can result in death
or serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates
a possible dangerous situation that can result in mate-
rial and environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – hot surface.
Warning – suspended load.
Warning – danger zone.
Instructions
General notes
LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor 5
LED outdoor PAR

2 Safety instructions
This device is intended to be used as an electronic illumination effect using LED tech-
nics. The device is designed for professional use and is not suitable for use in house-
holds. Use the device only as described in this user manual. Any other use or use
under other operating conditions is considered to be improper and may result in per-
sonal injury or property damage. No liability will be assumed for damages resulting
from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intel-
lectual abilities and having corresponding knowledge and experience. Other persons
may use this device only if they are supervised or instructed by a person who is
responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and
are not within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the
like) from the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result
in electric shock/death or fire. If in doubt, seek advice from a registered
electrician.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present.
Never remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are
missing or damaged.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
Intended use
Safety
Safety instructions
6LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor
LED outdoor PAR

WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive
persons should avoid looking at strobe lights.
WARNING!
Risk of burns
The surface of the device can become very hot during operation.
Do not touch the device with bare hands during operation, and after
switching off wait for at least 15 minutes.
NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any
direct heat source. Keep the device away from naked flames.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet)
matches the voltage rating of the device and that the AC outlet is pro-
tected by a residual current circuit breaker. Failure to do so could result
in damage to the device and possibly injure the user.
Unplug the device before electrical storms occur and when it is unused
for long periods of time to reduce the risk of electric shock or fire.
Safety instructions
LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor 7
LED outdoor PAR

3 Features
Due to its sturdy and weather-proof housing made of die-cast aluminium, the device
is especially suitable for outdoor use. With the very bright six-colour LEDs, it is partic-
ularly suitable for professional lighting tasks.
Special features of the device:
n12 × six-colour LEDs (RGBWAUV, each 10 W)
nControl via DMX and via buttons and display on the unit
nBuilt-in automatic show programmes
nMaster / Slave operation
nProtection class IP65
nSturdy double bracket for secure attachment to trusses or firm footing on the
ground
nConnections for power supply and DMX control by means of
– LED Typhoon PAR Outdoor 12x10 (item no. 386284): permanently connected
cables with splash-proof screwable and lockable plugs and couplings
– LED Typhoon True PAR 12x10 Outdoor (item no. 420255): splash-proof
screwable and lockable plugs and couplings
nMains power adapter with safety plug included
nRugged die-cast aluminium housing
nPressure compensation element (prevents condensation inside the device)
Equipment with protection class IP65 are dust-tight and completely protected
against contact (first code number). They are also protected against splash water
from any angle (second code digit). That is why this equipment can also be used out-
doors. Event technology equipment is generally only designed for temporary use
however (event lighting) and not for permanent use outdoors.
The specified protection class does not make a statement about the weather resist-
ance of the equipment (resistance to changing ambient conditions as well as against
the effects of sunlight and UV rays).
The seals and screw connections of the equipment must be checked regularly to
ensure a fault-free operation. In cases of doubt, consult a specialist workshop in due
time.
Information about protection class
IP65
Features
8LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor
LED outdoor PAR

4 Installation
Unpack and carefully check that there is no transportation damage before using the
unit. Keep the equipment packaging. To fully protect the device against vibration,
dust and moisture during transportation or storage use the original packaging or
your own packaging material suitable for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules
that apply in your country. Always secure the device with a secondary
safety attachment, such as a safety cable or a safety chain.
NOTICE!
Risk of overheating
Always ensure sufficient ventilation.
The ambient temperature must not exceed the limits stated in the
chapter Technical Specifications of the User Manual.
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a
safe and stable position and that the weight of the device does not
exceed the maximum permissible load capacity of the stand.
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not
use ordinary microphone cables.
Never connect the DMX input or output to audio devices such as mixers
or amplifiers.
NOTICE!
Possible damage due to moisture
Moisture entering into open connectors (plugs and couplers) of DMX or
power cords can cause short circuits.
Close unused connectors with end caps intended for this purpose
(www.thomann.de).
Installation
LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor 9
LED outdoor PAR

You can install the unit in hanging or standing position. When in use, the device must
always be attached to a solid surface or an approved truss. Use the openings pro-
vided on the two-piece bracket for attaching.
Always work from a stable platform whenever installing, moving or servicing the
unit. In doing so, the area underneath the unit must be cordoned off.
The safety cable must be attached to the bracket (with item no. 386284) or to the
safety eyelet (item no. 420255).
Please note that this device must not be connected to a dimmer.
Mounting options
Installation
10 LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor
LED outdoor PAR

5 Starting up
Create all connections while the device is off. Use the shortest possible high-quality
cables for all connections. Take care when running the cables to prevent tripping
hazards.
Connect the DMX input of the device to the DMX output of a DMX controller or
another DMX device. Connect the output of the first DMX device to the input of the
second one, and so on to form a daisy chain. Always ensure that the output of the
last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼W).
When you configure a group of devices in master/slave mode, the first unit will con-
trol the other units for an automatic, sound-activated, synchronized show. This func-
tion is ideal when you want to start a show immediately. Connect the DMX output of
the master device to the DMX input of the first slave device. Then connect the DMX
output of the first slave device to the DMX input of the second slave device and so
on.
Connections in DMX mode
Connections in master/slave mode
Starting up
LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor 11
LED outdoor PAR

6 Connections and controls
1 Display and keypad
The header displays the current operating mode, for example ‘DMX’ or ‘SLAVE’. The dot-shaped DMX indicator
lights green when a DMX signal is received and red when transmission is interrupted. The display shows the cur-
rent device temperature top right. If the maximum permissible temperature is exceeded, the text appears in
yellow.
In the middle of the display are selected menus and set values.
In the status bar at the bottom of the display, the message on the key lock appears. ‘Key lock open’ means that the
key lock function is off. ‘Key lock open’ means that the key lock function is on.
[MENU]
Activates the main menu and toggles between menu items.
[DOWN]
Decreases the displayed value by one.
[UP]
Increases the displayed value by one.
[ENTER]
Selects an option of the respective operating mode.
2[POWER OUT]
Connection supply voltage outgoing (Power Twist IP65)
3 Bracket adjustment knobs
4 Two-piece bracket for hanging or installation and for securing the safety cable
LED Typhoon PAR Outdoor 12x10
(item no. 386284)
Connections and controls
12 LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor
LED outdoor PAR

5[DMX OUT]
DMX output
6[DMX IN]
DMX input
7[POWER IN]
Connection supply voltage incoming (Power Twist IP65)
8 Pressure compensation element
Connections and controls
LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor 13
LED outdoor PAR

1 Display and keypad
The header displays the current operating mode, for example ‘DMX’ or ‘SLAVE’ . The dot-shaped DMX indicator
lights green when a DMX signal is received and red when transmission is interrupted. The display shows the cur-
rent device temperature top right. If the maximum permissible temperature is exceeded, the text appears in
yellow.
In the middle of the display are selected menus and set values.
In the status bar at the bottom of the display, the message on the key lock appears. ‘Key lock open’ means that the
key lock function is off. ‘Key lock open’ means that the key lock function is on.
[MENU]
Activates the main menu and toggles between menu items.
[DOWN]
Decreases the displayed value by one.
[UP]
Increases the displayed value by one.
[ENTER]
Selects an option of the respective operating mode.
2[DMX OUT]
DMX output, designed as 5-pin XLR chassis-mounted coupling
3 Bracket adjustment knobs
4 Two-piece bracket for hanging or floor setup
5 Safety cable eyelet.
LED Typhoon True PAR 12x10 Out-
door (item no. 420255)
Connections and controls
14 LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor
LED outdoor PAR

6[POWER OUT]
Connection supply voltage outgoing (Power Twist IP65)
7[POWER IN]
Connection supply voltage incoming (Power Twist IP65)
8[DMX IN]
DMX input, designed as 5-pin XLR chassis-mounted plug
9 Pressure compensation element
Connections and controls
LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor 15
LED outdoor PAR

7 Operating
7.1 Starting the device
Connect the device to the power supply to start operation. After a few seconds, the
display indicates that a reset is in progress. The device is then ready for use. The dis-
play shows the operating mode that was selected when the unit was last powered
off.
7.2 Main menu
Press [ENTER] to activate the main menu. Use the buttons [UP] or [DOWN] to select a
submenu. When the display shows the desired submenu, press [ENTER] to open it. To
close the main menu, press [MODE].
All previously made settings are retained even when you disconnect the device from
the power grid. To restart with default values, use the ‘RESET’ function.
The following table shows the setting options.
Main menu Menu level 2 Menu level 3 Menu level 4
Meaning
‘DMX ’ DMX mode selection and DMX address setting
‘CHANNEL 03’ 3-channel DMX mode
‘CHANNEL 06’ 6-channel DMX mode
‘CHANNEL 08’ 08-channel DMX mode
‘CHANNEL 10’ 10-channel DMX mode
‘CHANNEL 13’ 13-channel DMX mode
‘ADDRESS 001’…
‘ADDRESS 512’ Setting the DMX address
‘RUN MODE’ ‘DMX’ Operating mode ‘DMX’
‘SLAVE’ Operating mode ‘Slave’
‘SET UP’ ‘ID number’ Setting an individual device ID. This allows groups of devices with the same
DMX address to be controlled individually via DMX channel 13.
‘OFF’ No ID assigned
‘1’…‘66’ Individual device ID
‘Display Led’ Automatic display shutdown when not in use
‘ON’ Enabled
‘OFF’ Disabled
Operating
16 LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor
LED outdoor PAR

Main menu Menu level 2 Menu level 3 Menu level 4
Meaning
‘Key locks’ Key lock
‘OFF’ Off
‘ON’ Enabled
To unlock the keys, press successively [ENTER],
[DOWN], [UP], [DOWN], [UP] and [ENTER].
‘Max temp’ Maximum temperature whose exceeding is to be reported on the display
‘002’…‘120’ Temperature in °C
‘Dimmer RED’ ‘0’…‘255’ Maximum intensity red (0 % to 100 %)
‘Dimmer GREEN’ ‘0’…‘255’ Maximum intensity green (0 % to 100 %)
‘Dimmer BLUE’ ‘0’…‘255’ Maximum intensity blue (0 % to 100 %)
‘Dimmer WHITE’ ‘0’…‘255’ Maximum intensity white (0 % to 100 %)
‘Dimmer AMB’ ‘0’…‘255’ Maximum intensity amber (0 % to 100 %)
‘Dimmer UV’ ‘0’…‘255’ Maximum intensity UV (0 % to 100 %)
‘Dimmer ALL’ ‘0’…‘255’ Maximum overall brightness (0 % to 100 %)
‘INFORMATION’ ‘Software Vx.y.z’ Show firmware version of the device
‘Hardware Hx.y.z’ Show hardware version of the device
‘Fix times xh ym’ Operating hours display
‘AUTO’ Preprogrammed automatic show
‘SPEED’ ‘0’…‘31’
‘AUTO MODE’ ‘01’…‘21’ Selecting a preprogrammed automatic show
‘CUSTOMER’ Self-created automatic show
‘CUSTOM MODE’ ‘01’…‘11’ Selecting a self-created automatic show
‘CAL WHITE’ White balance
‘WHITE1’ …‘WHITE11’ Selection of white tone to be set
‘RED’ ‘0’…‘255’ Amount red (0 % to 100 %)
‘GREEN’ ‘0’…‘255’ Amount green (0 % to 100 %)
‘BLUE’ ‘0’…‘255’ Amount blue (0 % to 100 %)
‘WHITE’ ‘0’…‘255’ Amount white (0 % to 100 %)
‘AMB’ ‘0’…‘255’ Amount amber (0 % to 100 %)
‘UV’ ‘0’…‘255’ Amount UV (0 % to 100 %)
‘STAT COLOR’ Static colour
‘STAT RED’ ‘0’…‘255’ Amount red (0 % to 100 %)
Operating
LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor 17
LED outdoor PAR

Main menu Menu level 2 Menu level 3 Menu level 4
Meaning
‘STAT GREEN’ ‘0’ …‘255’ Amount green (0 % to 100 %)
‘STAT BLUE’ ‘0’…‘255’ Amount blue (0 % to 100 %)
‘STAT WHITE’ ‘0’…‘255’ Amount white (0 % to 100 %)
‘STAT AMB’ ‘0’…‘255’ Amount amber (0 % to 100 %)
‘STAT UV’ ‘0’…‘255’ Amount UV (0 % to 100 %)
‘SELET COLOR’ ‘01’…‘70’ Selecting a pre-defined colour
‘STAT STROB’ ‘01’…‘70’ Stroboscope effect with increasing speed
‘EDIT’ Defining self-created automatic shows
‘PRO1’…‘PRO11’ Selection of the show to be defined.
‘SC 01’…‘SC 32’ Selection of the scene as part of the show to be
defined. Complete the definition of each scene by
pressing [ENTER] for about 5 seconds.
‘RED’ ‘0’…‘255’ Amount red (0 % to
100 %)
‘GREEN’ ‘0’…‘255’ Amount green (0 % to
100 %)
‘BLUE’ ‘0’…‘255’ Amount blue (0 % to
100 %)
‘WHITE’ ‘0’…‘255’ Amount white (0 % to
100 %)
‘AMB’ ‘0’…‘255’ Amount amber (0 % to
100 %)
‘UV’ ‘0’…‘255’ Amount UV (0 % to
100 %)
‘FADE’ ‘00’…‘31’ Fade effect
‘FLASH’ ‘00’…‘50’ Flash effect
‘STRO’ ‘00’…‘31’ Strobe effect
‘TIME’ ‘00’…‘100’ Duration of scene
‘UPLOAD’ Distribution of self-created automatic shows from the master to slaves. Connect the devices config-
ured as slaves to the master and press [ENTER] to transmit the data.
‘RESET’ Reset to factory defaults. Press [ENTER] to start the reset.
Operating
18 LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor
LED outdoor PAR

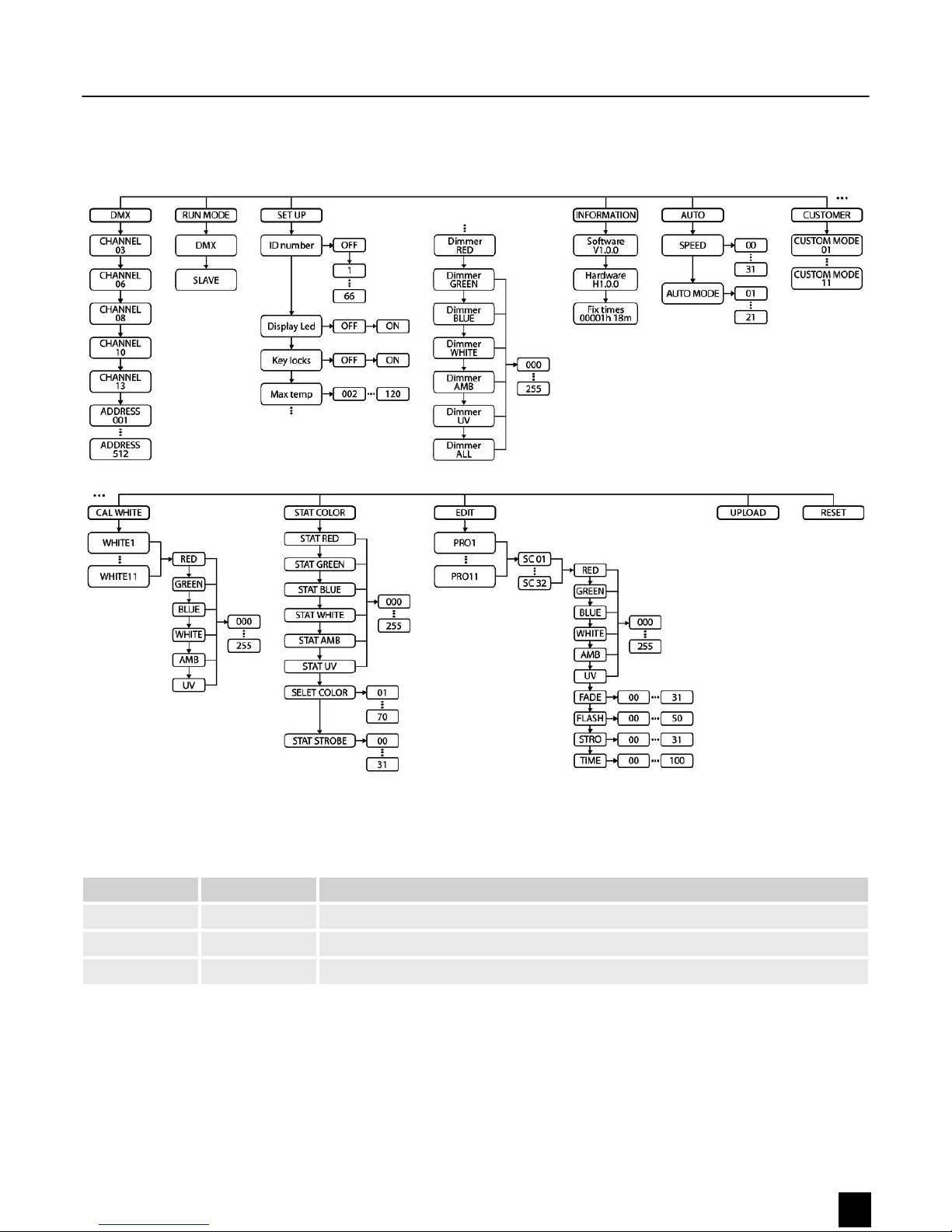

7.3 Menu overview
7.4 Functions in 3-channel DMX mode
Channel Value Function
1 0…255 Colour hue
2 0…255 Saturation (0 % to 100 %)
3 0…255 Brightness (0 % to 100 %)
Operating
LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor 19
LED outdoor PAR

7.5 Functions in 6-channel DMX mode
Channel Value Function
1 0…255 Intensity red (0 % to 100 %)
2 0…255 Intensity green (0 % to 100 %)
3 0…255 Intensity blue (0 % to 100 %)
4 0…255 Intensity white (0 % to 100 %)
5 0…255 Intensity amber (0 % to 100 %)
6 0…255 Intensity UV (0 % to 100 %)
7.6 Functions in 8-channel DMX mode
Channel Value Function
1 0…255 Brightness (0 % to 100 %)
2 0…255 Intensity red (0 % to 100 %)
3 0…255 Intensity green (0 % to 100 %)
4 0…255 Intensity blue (0 % to 100 %)
5 0…255 Intensity white (0 % to 100 %)
6 0…255 Intensity amber (0 % to 100 %)
7 0…255 Intensity UV (0 % to 100 %)
8 Dimmer curves with afterglow effect
0…49 Standard
50…99 Dimmer mode 1 (slight afterglow)
100…149 Dimmer mode 2
150…199 Dimmer mode 3
200…255 Dimmer mode 4 (strong afterglow)
7.7 Functions in 10-channel DMX mode
Channel Value Function
1 0…255 Brightness (0 % to 100 %)
2 0…255 Intensity red (0 % to 100 %)
Operating
20 LED Typhoon PAR Outdoor 12x10, LED Typhoon True PAR 12x10 Outdoor
LED outdoor PAR
