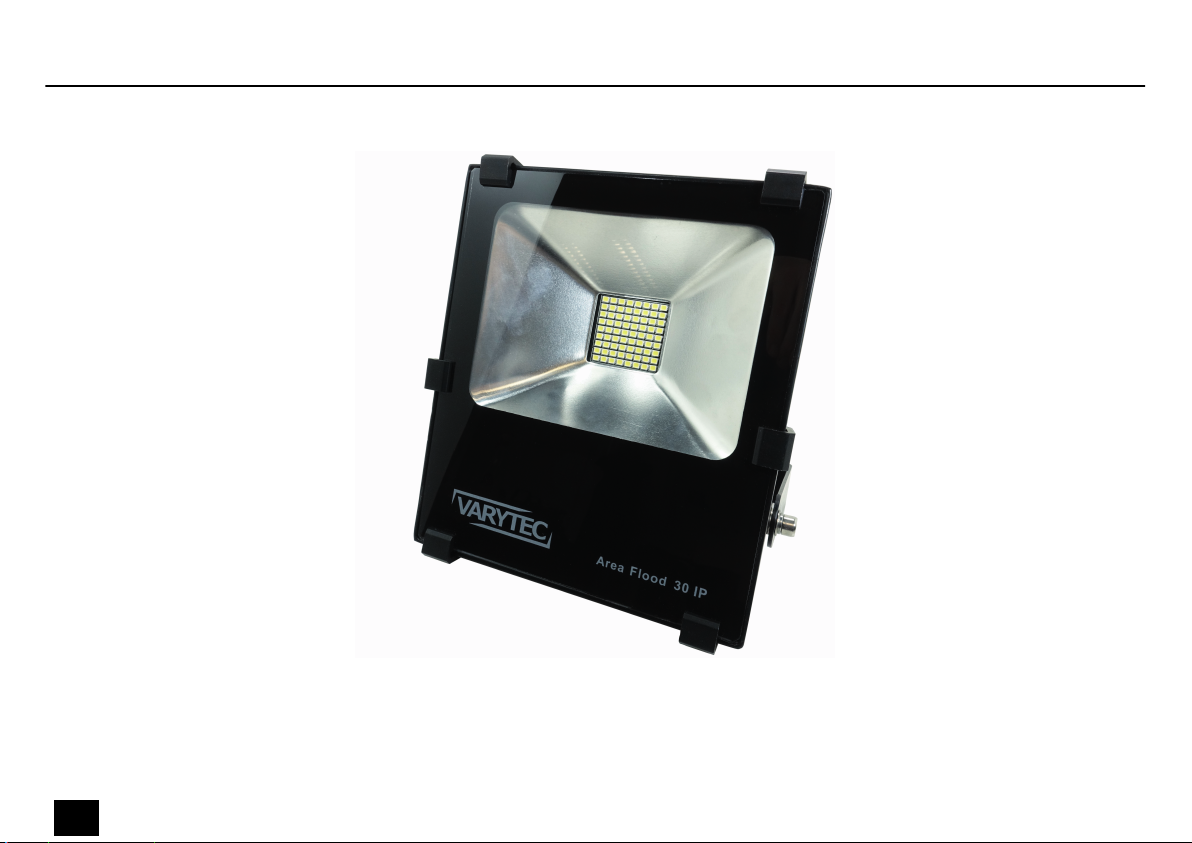

Varytec Area Flood 30 IP User manual

Area Flood 30 IP,
Area Flood 50 IP,
Area Flood 80 IP,
Area Flood 100 IP
LED oodlight
User manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
10.02.2020, ID: 472585, 472586, 472587, 472588

Table of contents
1 General information................................................................................................................................. 5
1.1 Further information........................................................................................................................... 6
1.2 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 13
4 Installation and starting up................................................................................................................ 15
5 Technical specications....................................................................................................................... 18
6 Cleaning....................................................................................................................................................... 26
7 Protecting the environment.............................................................................................................. 27
Table of contents
Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP 3
LED oodlight

4Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP
LED oodlight

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP 5
LED oodlight

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
6Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP
LED oodlight

1.2 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General information
Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP 7
LED oodlight

Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
Warning – suspended load.
Warning – danger zone.
General information
8Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP
LED oodlight

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the life of the device by regular breaks in operation and avoid switching it on and o
frequently. This device is not suitable for continuous use.
Intended use
Safety instructions
Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP 9
LED oodlight

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
Safety
Safety instructions
10 Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP
LED oodlight

DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or re. If in doubt, seek advice from a registered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
DANGER!
Possible danger caused by damaged front glass
Damaged front glass can result in injuries caused by falling glass fragments.
Furthermore moisture could penetrate into the device and cause short circuits or
irreparable damages of the device. Risk of re and loss of life.
Only use the device when the front glass is not damaged.
Safety instructions
Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP 11
LED oodlight

NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
NOTICE!
Voltage supply
Connect the device directly to the power grid. It must not be connected to a
dimmer.
Before connecting the device, you have to ensure that the rated voltage indicated
on the device matches the voltage of the power grid available in the operating
place. You must also take care that the power grid is protected by a residual cur‐
rent circuit breaker. Failure to do so can result in damage to the device and injury
to the user.
In case a thunderstorm is coming up or you're not going to use the device for a
longer period of time, disconnect it from the power grid to reduce the risk of elec‐
tric shock and re.
Safety instructions
12 Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP
LED oodlight

3 Features
The LED oodlight is particularly suitable for professional lighting tasks. The high-quality
reector ensures even illumination and maximum light output.
The device is characterized by:
nFlat, powder-coated housing
nSwivelling and lockable bracket (180 °)
nLarge and even illumination
nHigh luminous power with low power consumption
nOutdoor use due to protection class IP65
For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP 13
LED oodlight

Equipment with protection class IP65 are dust-tight and completely protected against contact
(rst code number). They are also protected against splash water from any angle (second code
digit). That is why this equipment can also be used outdoors. Event technology equipment is
generally only designed for temporary use however (event lighting) and not for permanent
use outdoors.
The specied protection class does not make a statement about the weather resistance of the
equipment (resistance to changing ambient conditions as well as against the eects of sun‐
light and UV rays).
The seals and screw connections of the equipment must be checked regularly to ensure a
fault-free operation. In cases of doubt, consult a specialist workshop in due time.
Information about protection
class IP65
Features
14 Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP
LED oodlight

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation and starting up
Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP 15
LED oodlight

NOTICE!
Risk of overheating
Always ensure sucient ventilation.
The ambient temperature must not exceed the limits stated in the chapter Tech‐
nical Specications of the User Manual.
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
You can install the unit in hanging or standing position. When in use, the device must always
be attached to a solid surface or an approved truss. Use the openings of the bracket provided
for mounting.
Mounting options
Installation and starting up
16 Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP
LED oodlight

Always work from a stable platform whenever installing, moving or servicing the unit. In doing
so, the area underneath the unit must be cordoned o.
The safety cable must be attached to the bracket.
Please note that this device must not be connected to a dimmer.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Installation and starting up
Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP 17
LED oodlight

5 Technical specications
Varytec Area Flood 30 IP (item no. 472585)
Light source 72 × OSRAM 2835 SMD LEDs, cold white, 0.5 W each
Light source properties Colour temperature 6000 K
Colour rendering index CRI > 80
Light output approx. 110 lm / watt
Lifetime LED chip approx. 20.000 hours
Optical properties Beam angle 120 °, symmetrical
Input connections Voltage supply Power cable with safety plug (120 cm)
Power consumption 30 W
Operating supply voltage 100 – 240 V 50/60 Hz
Protection class IP65
Mounting options hanging, standing
Technical specications
18 Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP
LED oodlight

Dimensions (W × H × D), bracket horizontal 192 mm × 172 mm × 92 mm
Weight 1.8 kg
Ambient conditions Temperature range –30 °C…50 °C
Relative humidity 50 %, non-condensing
Technical specications
Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP 19
LED oodlight

Varytec Area Flood 50 IP (item no. 472586)
Light source 120 × OSRAM 2835 SMD LEDs, cold white, 0.5 W each
Light source properties Colour temperature 6000 K
Colour rendering index CRI > 80
Light output approx. 110 lm / watt
Lifetime LED chip approx. 20.000 hours
Optical properties Beam angle 120 °, symmetrical
Input connections Voltage supply Power cable with safety plug (120 cm)
Power consumption 50 W
Operating supply voltage 100 – 240 V 50/60 Hz
Protection class IP65
Mounting options hanging, standing
Dimensions (W × H × D), bracket horizontal 235 mm × 200 mm × 117 mm
Weight 2.4 kg
Technical specications
20 Area Flood 30 IP, Area Flood 50 IP, Area Flood 80 IP, Area Flood 100 IP
LED oodlight
