Instruction Manual Please read carefully before using the cleaner.
Always fully extend the mains cable before use.

2
1. Safety Information
FOR HOUSEHOLD USE ONLY
When using the vacuum cleaner, basic safety
precautions should always be observed, including
the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
connecting or disconnecting from the mains
supply.
3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum
hose and accessories.
4. This appliance is not intended for use by
young or infirm persons unless they have
been adequately supervised by a responsible
person to ensure that they can use the
appliance safely.
Young children should be supervised to ensure
that they do not play with the appliance.
5. Use only as described in this manual.
Use only the manufacturer’s recommended
attachments.
6. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped
into water. Do not use the vacuum cleaner
with a damaged cord or plug. If the supply
cord or plug is damaged, return the vacuum
cleaner to a Vax Authorised Service Agent for
examination, repair or adjustment.
7. Do not pull or carry by the cord. Do not use
the cord as a handle, close a door on the
cord or pull the cord around sharp edges or
corners. Do not run the vacuum cleaner over
the cord. Keep the cord away from heated
surfaces.
8. Do not handle the plug or vacuum cleaner
with wet hands. Do not use outdoors or on
wet surfaces.
9. Do not put any objects into openings. Do not
use with any openings blocked and do not
restrict air flow. Keep all openings free of dust,
lint, hair or anything that may reduce airflow.
10. Keep hair, loose clothing, fingers and all parts
of the body away from openings and moving
parts.
11. Do not pick up hot coals, cigarette butts,
matches or any hot, smoking or burning
objects.
12. Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene, etc)
or use in the presence of explosive liquids or
vapours.
13. Do not vacuum up harmful or toxic material
(chlorine bleach, ammonia, drain cleaner,
etc).
14. Do not vacuum up hard or sharp objects such
as glass, nails, screws, coins, etc.
15. Do not use without the filters in place.
16. Take extra care when vacuuming on stairs.
17. Keep vacuuming area well lit.
18. Store the vacuum cleaner indoors in a cool,
dry area.
19. Turn off the on/off switch before unplugging
the vacuum cleaner.
20. Use only approved extension cords. Non-
approved extension cords may overheat.
Care should be taken to arrange the cord
so that the cord cannot be pulled or tripped
over.
WARNING: Always switch off and unplug
the vacuum cleaner from the electrical outlet
before assembling, opening or emptying the dirt
container, or before connecting/disconnecting the
attachments.
CAUTION: The vacuum cleaner is a very powerful
unit. Before plugging the cord into the electrical
outlet, make sure the switch is in the ‘off’ position.
Hold the vacuum cleaner firmly when starting.
IMPORTANT: If the inlet, hose or telescopic tube
is blocked, switch off the vacuum cleaner and
remove the blockage(s) before re-starting.
IMPORTANT: Washing filters assists in
maintaining vacuum performance. Make sure all
the filters are completely dry before inserting back
into the vacuum cleaner.
This vacuum cleaner is intended for household
use only and not for commercial or industrial use.
Motor Thermostat
IMPORTANT: The motor is equipped with a
thermal cut-out. If for any reason the vacuum
cleaner should over-heat, the thermostat will
automatically turn the unit off. Should this occur,
unplug the vacuum cleaner from the electrical
outlet and turn off the switch. Remove the dirt
container and empty. Clean or replace the filters.
Allow the cleaner to cool for approximately one (1)
hour before re-starting.
10. Troubleshooting
WARNING: To reduce the risk of personal injury, unplug the vacuum cleaner before performing
maintenance/troubleshooting checks.
PROBLEM: Vacuum cleaner won’t run
Cause: Not properly plugged into wall outlet.
Solution: Plug in securely.
Cause: No electricity in the electrical outlet.
Solution: Check fuse or breaker.
Cause: On/off switch not turned on.
Solution: Push on/off switch to on.
Cause: Motor thermostat has tripped.
Solution: Switch off and unplug the vacuum cleaner. Leave for one (1) hour before switching the
vacuum cleaner back on.
Cause: Blown fuse/tripped breaker.
Solution: Reset circuit breaker or replace fuse.
PROBLEM: Cleaner won’t pick up/loss of suction
Cause: Dirt container not installed properly.
Solution: Review dirt container replacement.
Cause: Dirt container full or blocked.
Solution: Empty dirt container.
Cause: Clogged filters.
Solution: Remove, clean and replace filters.
PROBLEM: Accessories won’t pick up
Cause: Accessories not attached correctly.
Solution: Refer to section 5.
PROBLEM: Dust escaping from the vacuum cleaner
Cause: Dirt container full.
Solution: Empty dirt container.
Cause: Dirt container not installed correctly.
Solution: Review dirt container replacement.
Cause: Filter not installed completely.
Solution: Remove, clean and replace filters.
11. VAXCARE Service & Help:
AUSTRALIA 1300 36 4040
NEW ZEALAND 0800 800 900
If you have any queries or concerns about using
your Vax, call VAXCARE. Please make a note
of the serial number and model number of the
appliance before calling.
(Aust only: Mon-Fri. 10.00am to 6.00pm. EST)
Calls are charged at the local rate.
An answerphone is available outside of these hours.
We will return your call the next working day.
There are over 300 approved Vax Service Agents
in Australia and New Zealand. For the nearest
Service Agent, please refer to your Vax warranty
or call VAXCARE or visit www.vax.com.au
12. Technical Specification
Voltage: 240V~50Hz
Wattage: 2000W
Capacity: 4 litres approx
Filters: Central filter - washable
Post-motor filter - washable
Cord length: 4.95m (approx)
Weight: 8.0 kg (machine weight)
Part No: 19000
Subject to technical change without notice.
7

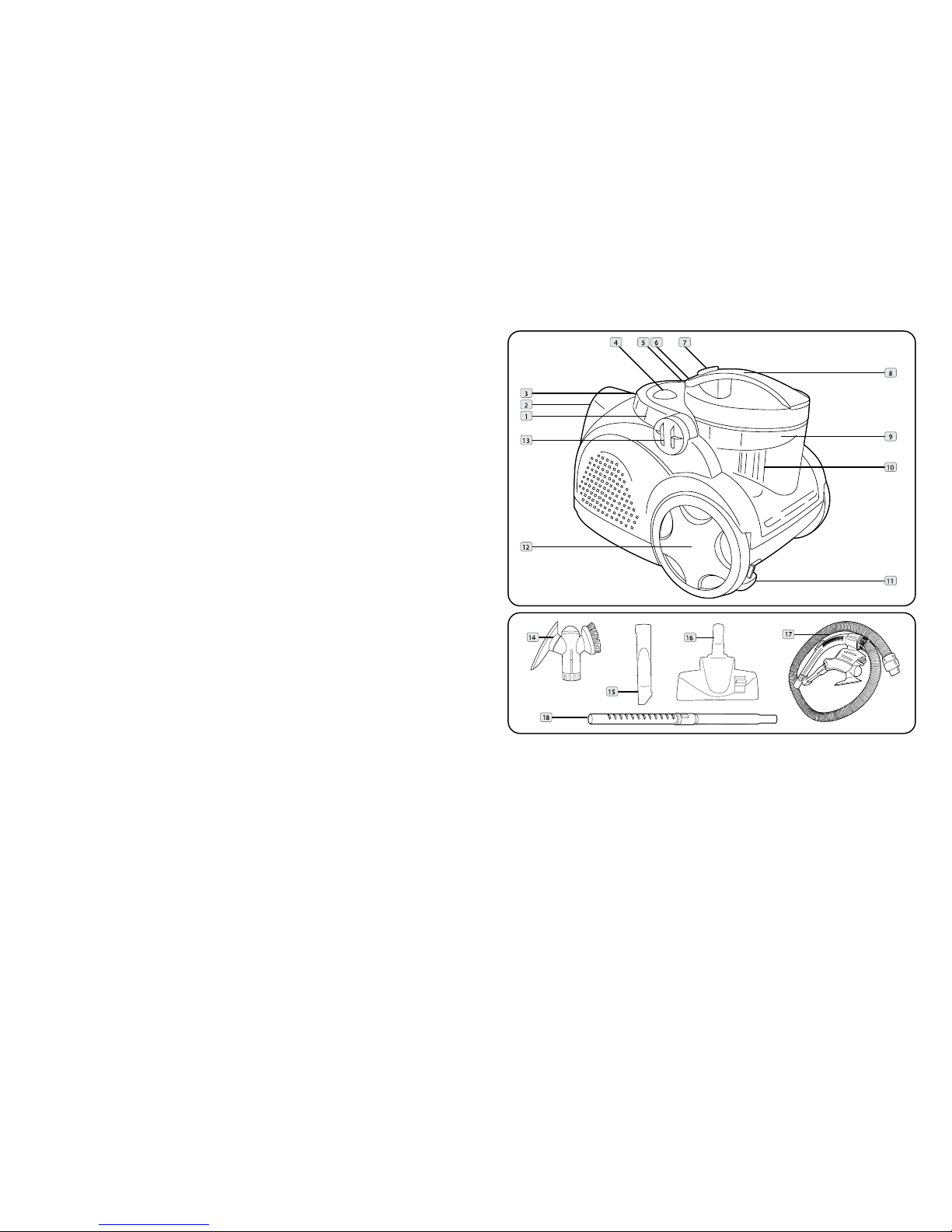

2. Parts Overview
1. Carry handle
2. Hose inlet
3. Auto cord rewind
4. On/off button
5. Variable power
6. Post-motor filter
7. Dirt container release button
8. Dirt container handle
9. Dirt container
10. Central filter
11. Plug
12. Wheel
13. Parking slot
Accesories
14. 2-in1 tool
15. Crevice tool
16. Combination floor tool
17. Flexible Hose
18. Telescopic Tube
3
Fig.2/1
7. Filters:
Removal & Replacement
IMPORTANT: Always unplug the vacuum
cleaner from the electrical outlet before removing
the dirt container.
Cleaning the Central HEPA Filter
1. Remove the dirt container as directed.
2. Remove the gauze shroud from over the
HEPA filter.
3. Rotate the central filter and pull away from
the dirt container.
4. Gently tap the filter against the side of a
rubbish bin to remove excess dirt.
5. The central HEPA filter and shroud can be
washed in warm water (max 400C). Allow to
air dry for 24 hours before replacing.
NOTE: Do NOT use any detergents or boiling
water to wash the filter. Vax recommends
washing the filter every time you empty the dust
container.
6. Return the central filter to the dirt container
and twist until the filter is secure.
7. Fit the gauze filter shroud over the central
HEPA filter and close the dust bin lid.
8. Return the dirt container to the vacuum
cleaner.
Post-motor Filter
NOTE: This is located on the right side of the
vacuum cleaner.
1. Release the post-motor filter cover by
pressing in the catch at the top of the cover.
2. Remove the filter by sliding it to the left and
pulling it out.
3. The post motor filter can be rinsed in warm
water (max 400C). Allow to air dry for 24
hours before replacing.
NOTE: Do NOT use any detergents or boiling
water to wash the filter. Vax recommends rinsing
the filter every 3-6 months.
4. Replace the post-motor filter and cover
before restarting the vacuum cleaner.
IMPORTANT: Do NOT use the vacuum cleaner
without ALL of the filters in place.
Replacement Filters
Replacement filters are available from your Vax
stockist or Vax direct. Phone Vaxcare or visit:
www.vax.com.au
8. Cleaning Blockages
WARNING: To reduce the risk of injury, the power
cord must be disconnected before performing
maintenance/troubleshooting checks.
1. Turn the vacuum cleaner off and unplug from
the electrical outlet.
2. The flexible hose can be disconnected
from the vacuum cleaner by pushing in the
buttons on the hose and pulling away from
the machine. Remove any blockages found
then reconnect the hose securely.
9. Storage
IMPORTANT: Always unplug the vacuum
cleaner from the electrical outlet and rewind the
power cord as directed before storing.
NOTE: Always store the vacuum cleaner base
down.
6

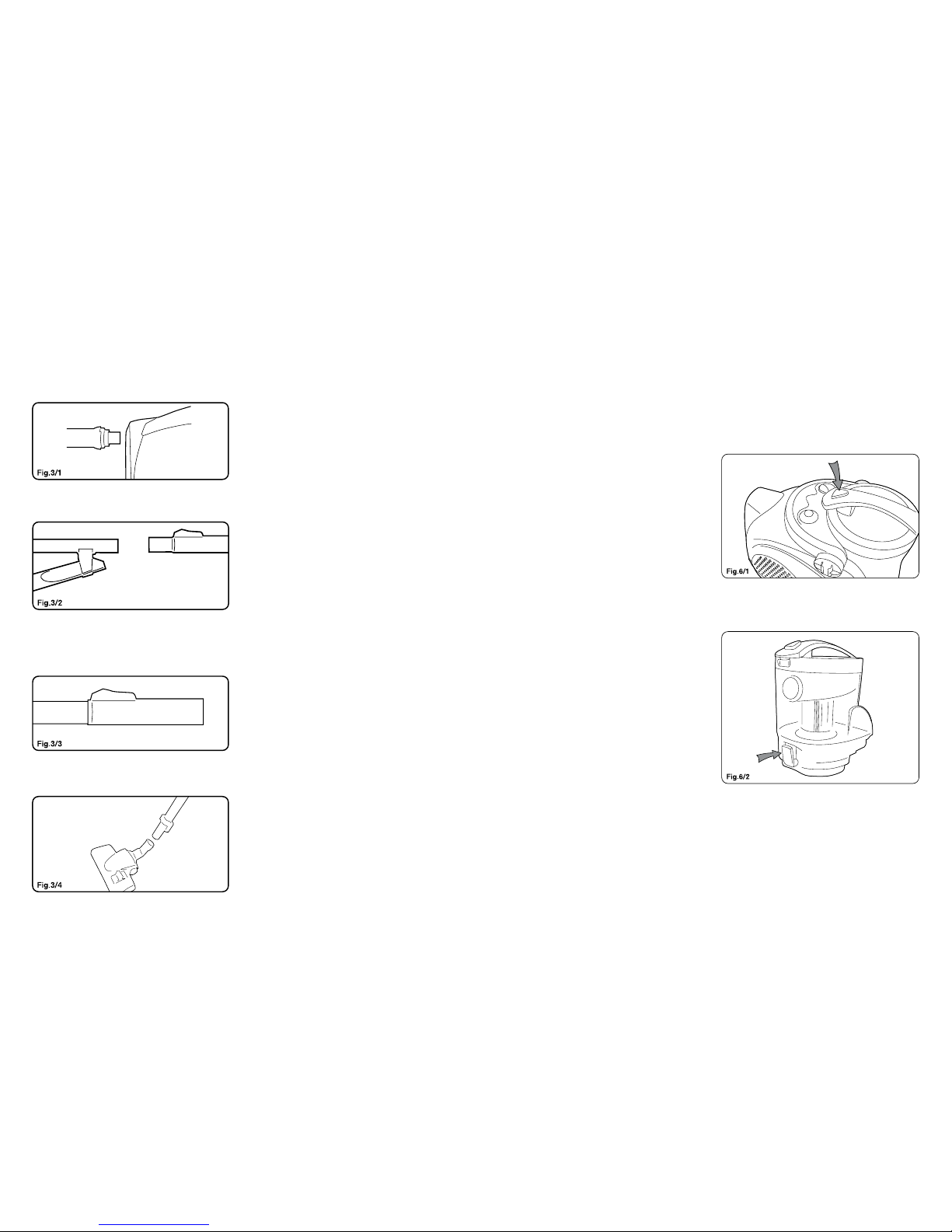

3. How to Assemble
IMPORTANT: Always unplug the vacuum
cleaner from the electrical outlet before
assembling or removing the accessories.
1. Insert the flexible hose into the inlet on the
main body of the vacuum cleaner. Push in
until it clicks into position (Fig.3/1).
2. Push the telescopic extension tube on to the
end of the handle (Fig.3/2).
3. The telescopic extension tube can be
lengthened or shortened by pushing the
button in and sliding the tube as required
(Fig.3/3).
4. Fit the combination floor head by pushing
onto the extension tube (Fig.3/4).
4. How to Operate
Cord Release
Fully unwind the power cord. A yellow
mark on the power cord indicates the
recommended cord length. Do not extend
the cord beyond this mark.
On/off Button
1. Insert the power plug into the electrical outlet.
Make sure the vacuum cleaner is switched
off.
2. Press the on/off button located on the top of
the vacuum cleaner, to switch on the vacuum
cleaner and press the button again to turn
the vacuum cleaner off.
Carpet Cleaning
For carpet and rug cleaning, press the rocker
switch on the combination floor head to raise
the brushes.
Hard Floor Cleaning
For hard floor cleaning, press the rocker switch
on the combination floor head to lower the
brushes.
Variable Power
Located opposite the on/off button there is a
variable power dial. Slide this clockwise and
anti-clockwise to adjust the suction power.
Floor Tool and Hose Storage
For convenience there is a slot located on either
side of the vacuum cleaner next to the carry
handle where the floor tool and hose can be
parked for carrying and storage.
Carry Handle
Use the carry handle located in the middle of the
vacuum cleaner (inc. auto cord rewind button)
to move from room to room.
Cord Rewind
To rewind the power cord, press the cord
rewind button located on the top of the
vacuum cleaner, and guide the power cord
with one hand. Rewind 1-11/2metres of
cord at a time. This will prevent the cord
from whipping which could cause damage
or injury.
4 5
5. Accessories
1. The accessories can be attached directly to
the handle by removing the telescopic tubes
and pushing in the desired accessory.
2. The accessories can also be attached to the
telescopic extension tube for extra reach.
Remove the combination floor head and
push on the desired accessory.
Crevice tool: for crevices, corners and cracks,
etc.
2-in-1 Tool
Dusting brush: for delicate surfaces.
Upholstery tool: for carpet, upholstery,
stairs, etc
6. Dirt Container Removal &
Replacement:
IMPORTANT: Always unplug the vacuum
cleaner from the electrical outlet before removing
the dirt container.
IMPORTANT: Do NOT use the vacuum cleaner
with ALL of the filters in place.
Emptying the Dirt Container
1. Press the button located on the dirt container
handle to pull out the dirt container (Fig.6/1)
2. Holding the dirt container over a rubbish bin
press the button on the side of the container
to release dirt (Fig.6/2)
3. After dirt is released, close the dirt container
flap and return the dirt container to the
vacuum cleaner.
