Vax Floormate Freedom V-122 User manual

www.vax.co.uk Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
Retain for future reference.
Vax careline
0870 6061248
instruction manual
Hard floor cleaner
Vax model number:
V-122
Vax V-122 User Guide.qxd 29/6/07 13:49 Page 1

V-122
1. Diagram
www.vax.co.uk
2parts overview
Fig.1/1
1Hand grip
2 Mode selector switch
3 Mode indicator
4Solution trigger
5Handle
6 Handle release button
7 Battery indicator light
8 Clean water tank cap
9Clean water tank release
10 Clean water tank
11 Dirty water tank lid and filter
12 Dirty water tank release
13 Dirty water tank
14 Nozzle release buttons
15 Nozzle
16 Squeegee
17 Battery compartment
18 Battery charger socket
19 Soft tread wheels
20 Battery charger
21 Storage tray
22 Hard floor cleaning solution
9
11
14
15
1
24
20
17
18
19
3
5
6
7
8
10
12
13
16
21
HARD FLOOR
CLEANING
SOLUTION
22
Vax V-122 User Guide.qxd 29/6/07 13:49 Page 2

3
Vax Careline 0870 606 1248
safety information
2. Safety Information
FOR HOUSEHOLD USE ONLY.
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Do not leave the hard floor cleaner unattended for
long periods of time when charging.
2. Do not use outdoors.
3. Not to be used as a toy. Children should be supervised to
ensure that they do not play with the appliance.
4. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a
person responsible for their safety.
5. Use only as described in this manual.
6. Do not use with a damaged cord or charger. If the
supply cordand/or charger is damaged, theymustbe
replaced by the manufacturer, a Vax Service Agent or
similarly qualified persons in order to avoid hazard.
7. Do not pull or carry the charger by the cord, use the
cordas a handle, allowthe cord to come into contact
with hotor sharp surfaces or close a door on the cord.
8. Do not unplug by pulling on the cord.
9. Do not handle the plug or hard floor cleaner with wet
hands.
10. Do notput any objects into openings or operate with
openings blocked, keep them free of anything that
may reduce airflow.
11. Keep hair,loose clothing, fingers and all parts of the
body awayfrom openings and moving parts.
12. Do not use the hard floor cleaner on any glowing,
burning or smoking particles.
13. Do notuse without the clean and dirty water tanks
in place.
14. Do not use the hard floor cleaner without the filter in
place.
15. Do not use to pick up flammable or combustible
liquids such as petrol, or use in areas where they may
be present.
16. Keep the unit on the floor.
17. Do not attempt to remove blockages with sharp
objects as theymay cause damage.
18. Store indoors put away after use to prevent tripping
accidents.
19. Using improper voltage may result in damage to the
motor and possible injury to the user. The correct
voltage is listed on the rating label.
20. To prevent dirty water from running into motor, do
not hold the appliance upside-down or lay on its side.
Use appliance in normal cleaning position.
21. Do not carry appliance while motor is running.
22. Only use the charger supplied with the unit.
23. Ensure the battery is removed before the appliance is
disposed.
24. Dispose of the battery safely and in accordance with
local authority guidelines.
25. The appliance must be disconnected from the mains
supply when removing the battery.
NOTE: The unit must be unplugged from the mains
socket outlet after use, and before cleaning or
maintaining the unit.
IMPORTANT: This unit is not intended for
commercial use.
PLEASE KEEP THESE INSTRUCTIONS
FOR FURTHER USE.
!
Vax V-122 User Guide.qxd 29/6/07 13:49 Page 3

www.vax.co.uk
4preparation
3. Getting Ready to Wash
Charging the Cleaner
With switch in OFF position, plug charger into electrical
outlet. Firmly press charger end into battery charger
socket, located on the back of the cleaner (Fig.3/1).
Press firmly on cleaner to ensure that end of cord is fully
connected. Your cleaner will begin charging. It is designed
tobe stored on charge and ready for use at all times.
NOTE: Charge battery for 16 hours before initial use.
NOTE: It is normal for the charger to feel warm when
the battery is charging. Never charge battery in
temperatures above 37°C or below 0°C.
NOTE: Charging light illuminates red when cleaner is
charging. When battery is at full charge, the charging
lightwill illuminate green.
NOTE: The cleaner can be on a constant charge so it is
always ready for use. Make sure it is in OFF position
before charging. However, if the cleaner will not be
used for several weeks atatime, unplugging it is
recommended.
Unfold Handle
Press the handle release button and raise handle to the
upright position until it locks in place (Fig.3/2).
For storage, press the handle release button and fold
handle to storage position (Fig.3/3).
Before you Begin Cleaning
Vacuum floor thoroughly.
IMPORTANT: Do NOT use the Vax Floormate as a dry
vacuum cleaner.
Your Vax Floormate can be used to wet clean non-
carpeted floor surfaces such as vinyl, tiles and wood.
NOTE: It is not intended for use on carpet or rugs.
CAUTION: To prevent damage to wood floors,
followthe flooring manufacturer’s cleaning
recommendations. If using the cleaner on wood floors,
inspect floor surface for worn finish, bare wood or
separated joints. Do notuse the Vax Floormate towet
wood floors if any of these conditions exist.
Filling the Clean Water Tank
Place cleaner handle in upright, locked position.
To remove tank, press down on the clean water tank
release button and pivot tank forward (Fig.3/4).
Rotate tank cap counter-clockwise and lift up to remove
cap (Fig.3/5).
Fig.3/1
Fig.3/3
Fig.3/2
Fig.3/4
!
Vax V-122 User Guide.qxd 29/6/07 13:49 Page 4

5
Vax Careline 0870 606 1248
preparation
Turn cap upside down to serve as a measuring cup . 30ml
of solution should be used for 1 litre of water. Therefore,
half a cap of solution should be used to a full tank
(Fig.3/6).
Vax floor cleaner has been specifically formulated to resist
excessive foaming and other undesirable effects when
used with the Floormate.
IMPORTANT: Do NOT use cleaning solutions that
contain pine or solvent based ingredients.
Pour cleaning solution into tank. Fill tank to fill line with
warm water (Max 40°C) (Fig.3/7).
Replace cap. Rotate cap clockwise until it locks in place.
Cap must be locked in place for proper performance and to
prevent leaking (Fig.3/8).
Automatic Shut-Off
An automatic suction shut-off is built into the dirty water
tank to prevent the tank from overflowing.
When the dirty water tank is full, the automatic shut-off
activates, and the cleaner will not pick up dirty solution
and the sound of the motor will change.
Fig.3/5
Fig.3/6
!
Fig.3/7
Fig.3/8
Vax V-122 User Guide.qxd 29/6/07 13:49 Page 5

www.vax.co.uk
6usage
4. Usage
Mode Selector Switch
The switch has three positions (Fig.4/1).
SCRUB -The rotating brushbar is ON. Suction will be OFF.
OFF -The cleaner is turned OFF.
PICK UP -The rotating brushbar is OFF. The cleaner’s
suction will pick up the dirty solution.
Before washing, thoroughly vacuum the floor.
Lower the handle to the operating position by pressing
gently ontothe frontnozzle.
Set mode selector switch to SCRUB. This will turn the
brushbar ON
To release solution, press the trigger (Fig 4/2).
Slowly move the cleaner forwards and backwards over the
area to be cleaned. Squeeze the trigger to release the
solution as needed.
NOTE: Overlapping strokes will help to prevent streaking.
After area is cleaned, move the mode selector to PICKUP.
This is turn the brushbar OFF and the unit will extract the
excess water and solution from the floor.
IMPORTANT: Do not overwet flooring. Always
ensure excess water and solution is extracted
immediately after washing.
To continue cleaning another area, move mode selector
switch to SCRUB and repeat previous steps.
NOTE: To extend battery charge, it is recommended
that a small area be cleaned completely in SCRUB
mode, then switch to PICKUP mode. Continue cleaning
in small areas, scrubbing first followed by pickup.
When switching between SCRUB and PICKUP, it is not
necessary to turn the cleaner off. Simply move the mode
selector switch back and forth between the two settings
How to Empty
Turn cleaner off.
To remove tank, press down on release button and pivot
tank forward(Fig.4/3).
Press down on tank lid latch and remove the tank lid.
Empty tank (Fig.4/4).
Fig.4/3
Fig.4/4
!
Fig.4/1
Fig.4/2
Vax V-122 User Guide.qxd 29/6/07 13:49 Page 6

7
Vax Careline 0870 606 1248
usage / maintenance

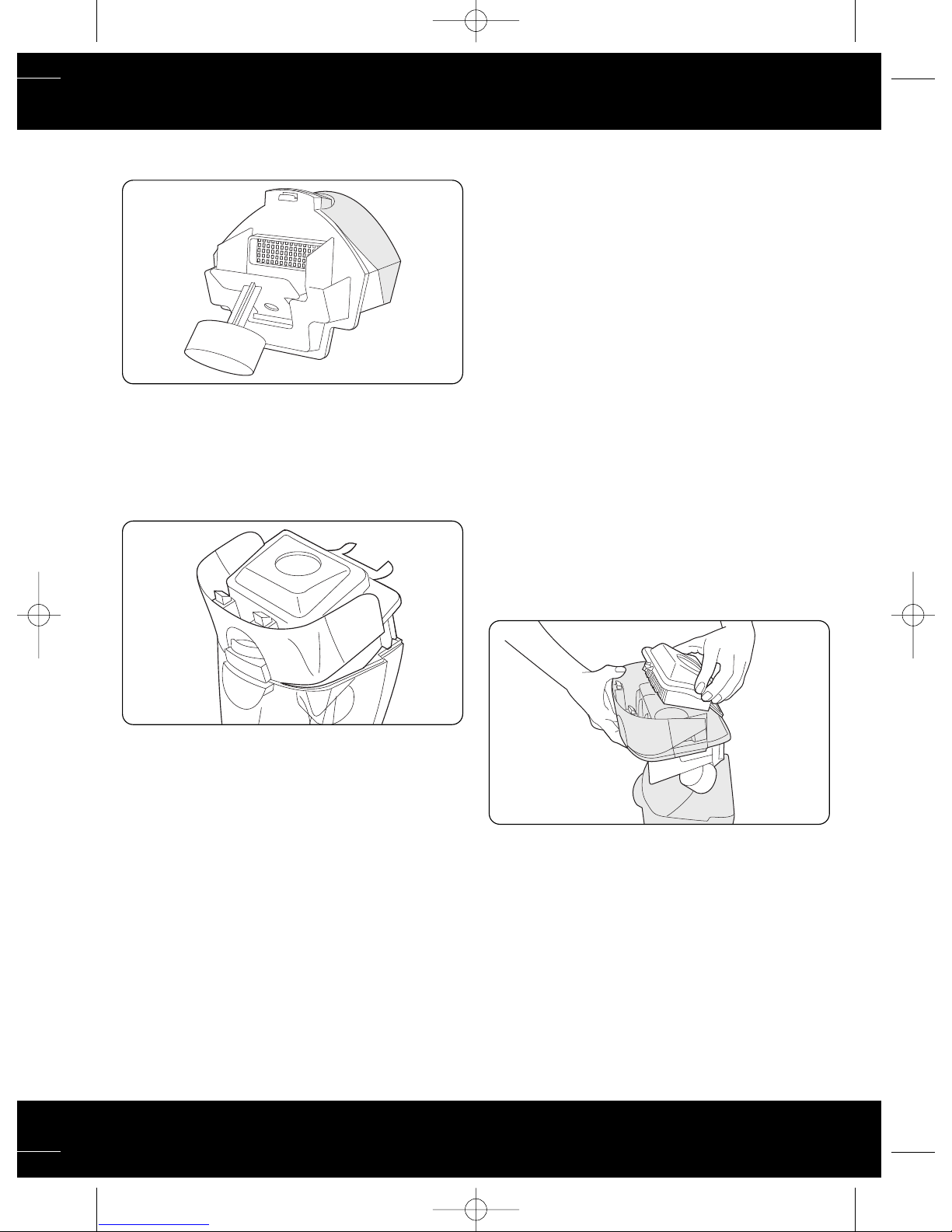

Dry or loose debris will also collect on the filter screen in
the tank lid (Fig.4/5).
Remove debris from screen. The filter screen may also be
cleaned by rinsing it under running water.
The tank lid contains a washable, reusable filter. Clean this
filter when suction is lowor reduced.
To replace lid, align tab on lid with hole on front of tank.
Snap latch over tabs on back of tank (Fig.4/6).
To replace tank, insert bottom of tank into cleaner and
pivot top portion until it is locked in place.
5. Maintenance
Battery Charging
The battery indicator has three colours.
•The indicator will be SOLID ORANGE when the unit is
plugged into the charger and there is no charge left on
the battery.
•The indicator light will be SOLID GREEN when the
battery is at full charge, and the cleaner is plugged into
the charger. During cleaner use, when the battery is low
and there is approximately two minutes of run time left,
the indicator light will flash.
•The indicator light will BLINK RED if the battery is low
and the cleaner is not plugged into the charger.
The cleaner can be on a constant charge so it is always
ready for use. However, if the cleaner will not be used for
several weeks at a time, unplugging it is recommended.
Refer to Section 3 for battery charging instructions.
Cleaning the Filter
Turn cleaner off.
Remove dirty water tank and lid (as Fig.4/3 - 4/4). Remove
filter lid, then removefilter (Fig.5/1).
Remove loose debris from filter by either brushing or
tapping the filter. The filter may also be rinsed (max water
temperature 40°C) for additional clearing. Allow filter to air
dry between uses.
Replace filter lid. Press down firmly to secure the seal.

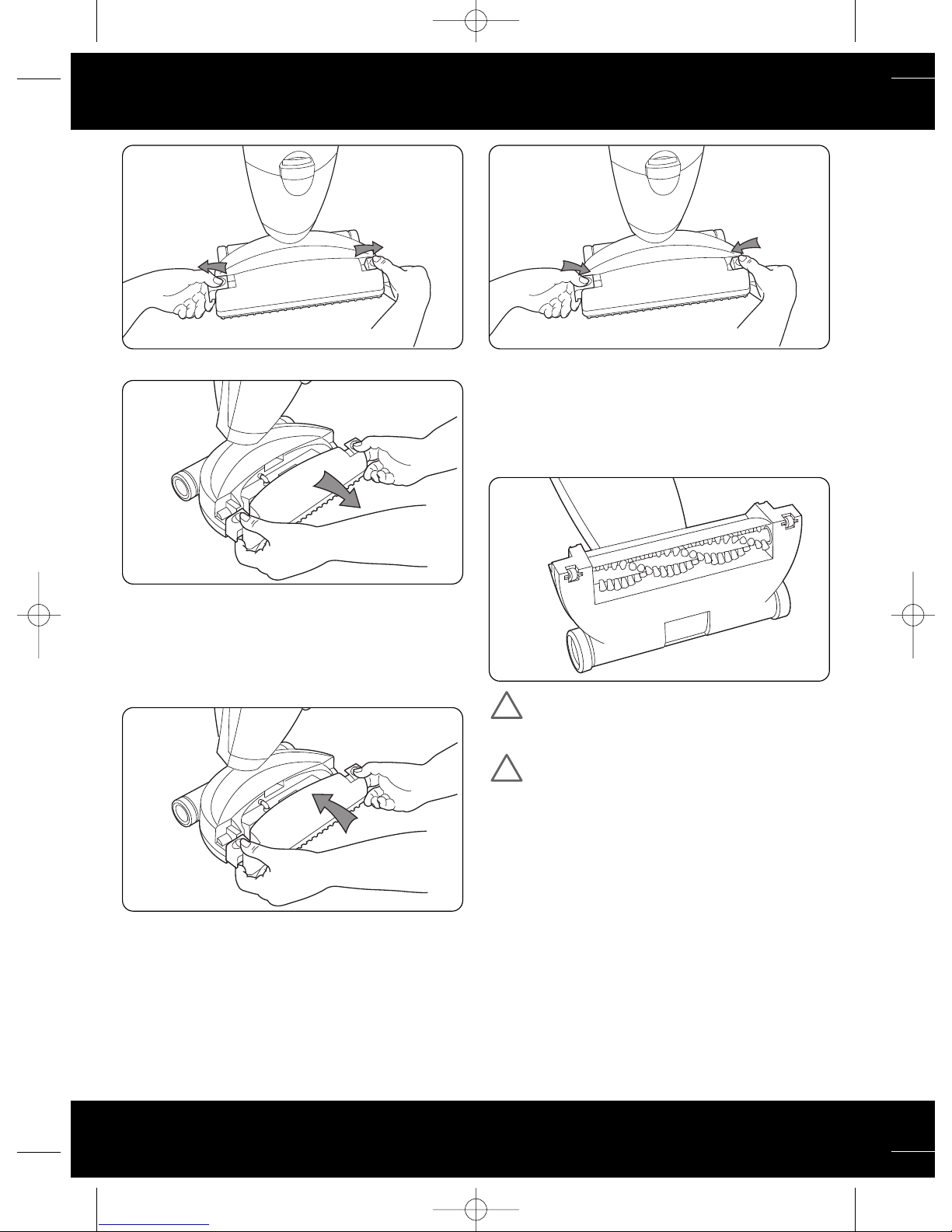

Cleaning the Nozzle
Turn cleaner OFF.
The cleaner’snozzle can be removed for easy cleaning.
Slide the two nozzle release latches outward (Fig.5/2).
Fig.5/1
Fig.4/6
Fig.4/5
Vax V-122 User Guide.qxd 29/6/07 13:49 Page 7

www.vax.co.uk
8maintenance
Remove nozzle by pulling straight out (Fig.5/3).
Rinse nozzle under running water. Remove debris from
squeegee at the front of the nozzle and wipe with a damp
cloth.
To replace nozzle, make sure latches are out. Cleaner
should be in the uprightposition for easier assembly ofthe
nozzle (Fig.5/4).
Align middle section of nozzle with opening on cleaner.
While holding nozzle in place, slide latches inward to lock in
place (Fig.5/5).
Cleaning the Brushes
Turn cleaner off.
Remove tanks to prevent possible leaks. Set tanks aside.
Turn cleaner over so that the bottom is facing up. Carefully
remove debris from the rotating brushbar (Fig.5/6).
WARNING: Rotating brushbar can start
suddenly. Extra care must be taken when
cleaning the rotating brushbar.
CAUTION: Any other servicing should be
performed by a Vax Authorised Service
Representative. The appliance has no user serviceable
parts.
Storage
Turn cleaner OFF. If battery needs charging, refer to the
“Battery Charging” section on page 4.
Empty and rinse clean and dirty water tanks. Allow to air
dry.
Allow filter in dirty water tank lid to dry.
Make sure that nothing is pressing on the nozzle
squeegee.
Do notstore cleaner on a wood surface unless cleaner is
completely dry.
Fig.5/2
Fig.5/4
Fig.5/5
Fig.5/6
Fig.5/3
!
!
Vax V-122 User Guide.qxd 29/6/07 13:49 Page 8

9
Vax Careline 0870 606 1248
maintenance

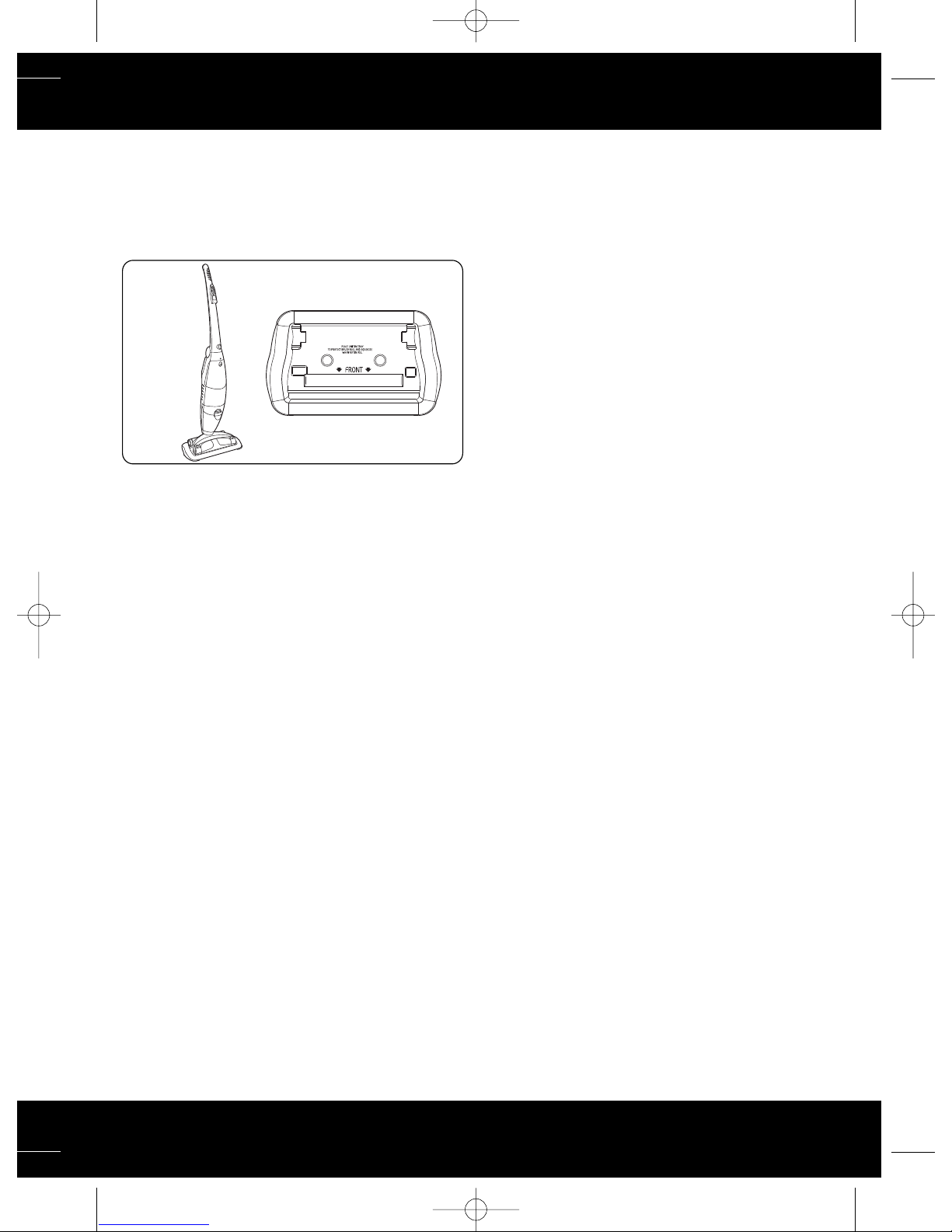

Storage tray
Aconvenient tray provides storage of your cleaner and
helps to protect the brushes and squeegee when not in
use. Place the cleaner in the tray with the wheels in the
recessed areas to the back and the nozzle to the front
(Fig.5/7).
Battery Failure
Please contact the Vax Helpline on 0870 606 1248 for
information regarding battery removal, disposal and
replacement.
NOTE: Do not attempt to remove the battery pack from
the cleaner.
Fig.5/7
Vax V-122 User Guide.qxd 29/6/07 13:49 Page 9

www.vax.co.uk
10
6. Troubleshooting
WARNING: To reduce the risk of personal injury,
unplug the vacuum cleaner before performing
maintenance or troubleshooting checks.
PROBLEM: Cleaner won't run
Cause: Battery not charged.
Solution: Recharge battery ensuring that the cleaner is
securely connected to the cord.
Cause: No electricity in the electrical outlet.
Solution: Check fuse or breaker.
Cause: Blown fuse/tripped breaker.
Solution: Reset circuit breaker or replace fuse.
PROBLEM: Cleaner won’t pick up/loss of suction.
Cause: Automatic shut-off activated.
Solution: Turn cleaner off and then on again or empty
the dirty water tank (See page 6).
Cause: Filter or filter lid missing or not positioned
correctly.
Solution: Ensuredirty water tank filter and filter lid are
positioned in the dirty water tank lid.
Cause: Dirty water tank or clean water tank not
positioned correctly.
Solution: Ensureboth tanks arelocked in place.
Cause: Filter is dirty.
Solution: Clean filter.
Cause: Nozzle not properly positioned.
Solution: Ensure nozzle is replaced properly and locked.
PROBLEM: Water puddling behind cleaner.
Cause: Excess cleaning solution foaming in tanks.
Solution: Use only Vax Floor Cleaner.
Cause: Clean water tank not correctly installed.
Solution: Ensuretank is installed correctly.
Cause: Dirty water tank is full.
Solution: Empty tank.
PROBLEM: Cleaner does not pick up dirty solution.
Cause: Cleaner not set to PICKUP.
Solution: Set mode selector switch to PICKUP.
Cause: Dirty water tank not properly installed.
Solution: Ensure that the dirty water tank is correctly
installed.
Cause: Dirty water tank full / Automatic shut-off
engaged.
Solution: Remove and empty the dirty water tank.
Cause: Filter or filter lid missing or not positioned
correctly.
Solution: Ensuredirty water tank filter and filter lid are
positioned in the dirty water tank lid.
PROBLEM: Cleaner solution won’t dispense.
Cause: Clean water tank not firmly in place.
Solution: Ensuretank is securely locked in position.
Cause: Clean water tank empty.
Solution: Refill clean water tank.
PROBLEM: Brushes won’t rotate.
Cause: Mode selector switch set to PICKUP.
Solution: Movemode selector switch toSCRUB position.
Cause: Circuit breaker inside cleaner is tripped.
Solution: To reset the breaker, slide the mode selector
to the OFF position. Wait one minute. Turn the
mode selector switch to SCRUB and continue
cleaning. If the brushes continue to stall and
the breaker trips again, clean the brushes to
removedebris.
PROBLEM: Charging light not lit when plugged in.
Cause: Charger not plugged in firmly.
Solution: Plug charger in firmly.
!
troubleshooting
Vax V-122 User Guide.qxd 29/6/07 13:49 Page 10

11
Vax Careline 0870 606 1248
7. UK Service & Help
Vax Care 0870 6061248
Monday-Friday 9.00am to 5.00pm.
An answerphone is available outside of these hours. Any
queries or concerns about using the Vax, call the Vax
Careline. Calls are charged at the UK national rate.
Please make a note of the serial number and model
number of the carpet cleaner before calling. There are
over 400 approved Vax Service Agents in the UK. For the
nearest Service Agent, please call the Vax Careline.
www.vax.co.uk
8. Technical Specification
Voltage: 230V ~50Hz
Capacity: 0.5 litres
Filters: Filter screen - washable
Main filter - washable
Weight: 4kg
Subject to technical change without notice.
uk service & help / technical specification
Vax V-122 User Guide.qxd 29/6/07 13:49 Page 11

---
EEC STATEMENT OF COMPLIANCE
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that
the V-122 Floormate Freedom is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 OQH, UK
email: inf[email protected]o.uk -website: www.vax.co.uk
Vax V-122 User Guide.qxd 29/6/07 13:49 Page 12
