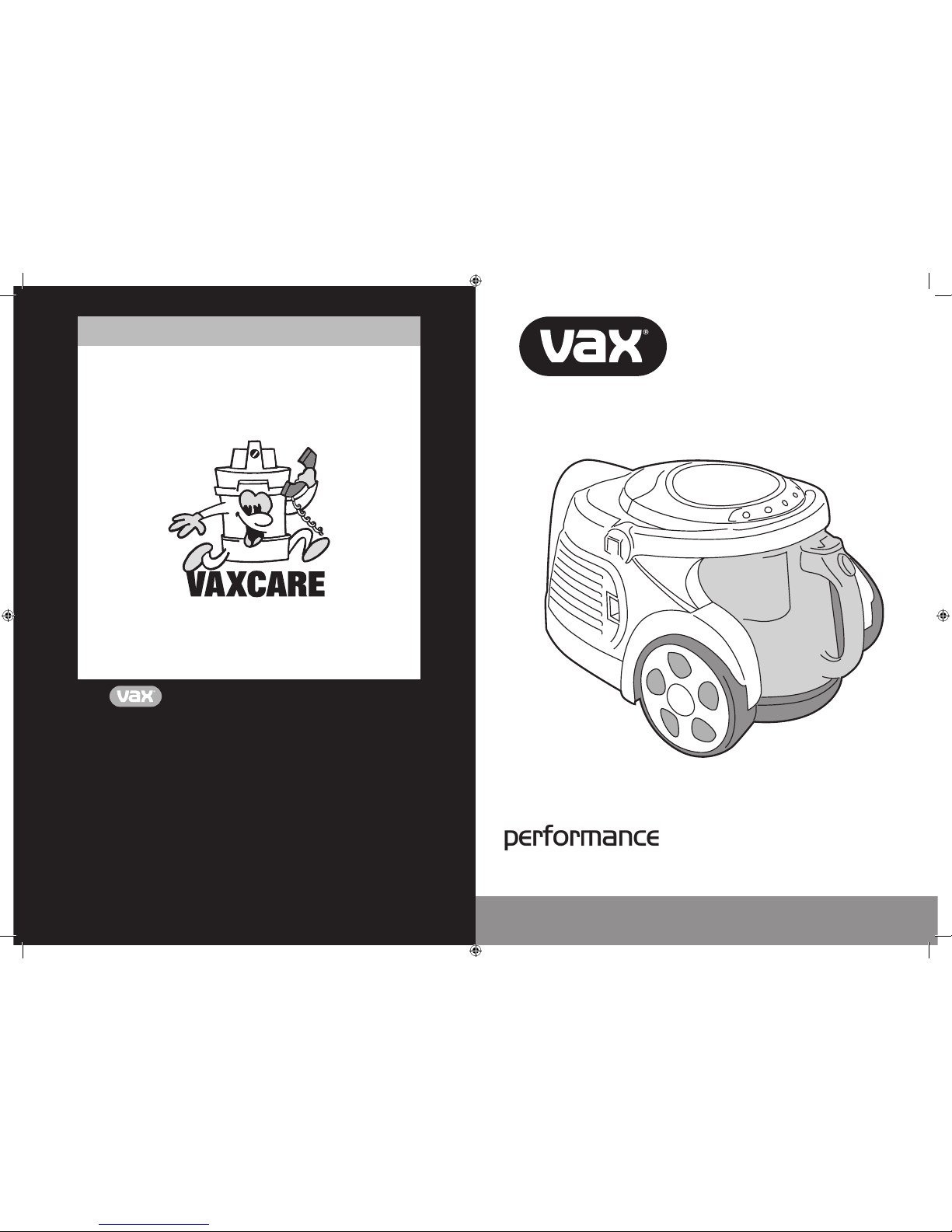

Vax V-091 User manual

V-091
BAGLESS CYLINDER VACUUM CLEANER
WITH HEPA FILTRATION
VaxCare:
AUST: 1300 36 4040
NZ: 0800 800 900
• NSW/ACT
Unit 2, 239 Beaconsfield St,
Milperra, NSW 2214
Telephone: [phone]
Facsimile: [phone]
• VICTORIA/TASMANIA
Unit 3, 46 Burgess Road,
Bayswater North, VIC 3153
Telephone: [phone]
Facsimile: [phone]
• SOUTH AUSTRALIA/
NORTHERN TERRITORY
Unit 3, 75-77 Grange Road,
Welland, SA 5007
Telephone: [phone]
Facsimile: [phone]
• QUEENSLAND
186 Kerry Road,
Archerfield, QLD 4108
Telephone: [phone]
Facsimile: [phone]
• WESTERN AUSTRALIA
296 Victoria Road,
Malaga, WA 6090
Telephone: [phone]
Facsimile: [phone]
• VAX APPLIANCES
NEW ZEALAND
27 Clemow Drive
Mt Wellington, Auckland
Telephone: [phone]
Facsimile: [phone]
Email: [email protected]
AUST. & NZ BRANCHES
Please register your warranty. Send in your completed Warranty Card.
If you require any further assistance or advice about any
VAX please call VAXCARE on
1300 36 4040 (Australia - cost of a local call)
and 0800 800 900 (NZ)
VAX Appliances (Australia) Pty Ltd
A.C.N. 009099736
296 Victoria Road Malaga Western Australia 6090.
EMAIL: [email protected]
WEBSITE: www.vax.com.au
VAXCARE
MODIFIED JUNE 2006 P/N 77410
www.vax.com.au
Please read carefully before using
the cleaner. Always fully extend
the mains cable before use.
Instruction Manual
V-091 performance user guide.ind1 1 19/4/06 12:10:26 PM

1. Components Diagram
1 Hose inlet
2 On/off button
3 Storage slot
4 Post-motor filter cover
5 Wheel
6 Cord rewind button
7 Variable power dial
8 5-stage LED display
9 Carry handle
10 Quick-release dirt container button
(located under safety latch)
11 Dirt container release button
12 Central HEPA filter
13 Dirt container handle
Accessories
1 Dusting brush/Upholstery tool
2 Crevice tool
3 Combination floor head
2 3
V-091 performance user guide.ind2 2 19/4/06 12:10:26 PM

2. Safety Information
FOR HOUSEHOLD USE ONLY
When using the vacuum cleaner, basic safety
precautions should always be observed, including
the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
connecting or disconnecting from the mains
supply.
3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose
and accessories.
4. This appliance is not intended for use by young or
infirm persons unless they have been adequately
supervised by a responsible person to ensure
that they can use the appliance safely.
Young children should be supervised to ensure
that they do not play with the appliance.
5. Use only as described in this manual. Use only
the manufacturer’s recommended attachments.
6. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped
into water. Do not use the vacuum cleaner with
a damaged cord or plug. If the supply cord or
plug is damaged, return the vacuum cleaner to
a Vax Authorised Service Agent for examination,
repair or adjustment.
7. Do not pull or carry by the cord. Do not use the
cord as a handle, close a door on the cord or
pull the cord around sharp edges or corners. Do
not run the vacuum cleaner over the cord. Keep
the cord away from heated surfaces.
8. Do not handle the plug or vacuum cleaner with
wet hands. Do not use outdoors or on wet
surfaces or to vacuum up fluids.
9. Do not put any objects into openings. Do not use
with any openings blocked and do not restrict air
flow. Keep all openings free of dust, lint, hair or
anything that may reduce airflow.
10. Keep hair, loose clothing, fingers and all parts
of the body away from openings and moving
parts.
11. Do not pick up hot coals, cigarette butts, matches
or any hot, smoking or burning objects.
12. Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene, etc)
or use in the presence of explosive liquids or
vapours.
13. Do not vacuum up harmful or toxic material
(chlorine bleach, ammonia, drain cleaner, etc).
14. Do not vacuum up hard or sharp objects such
as glass, nails, screws, coins, etc.
15. Do not use without the filters in place.
16. Take extra care when vacuuming on stairs.
17. Keep vacuuming area well lit.
18. Store the vacuum cleaner indoors in a cool, dry
area.
19. Turn off the on/off switch before unplugging the
vacuum cleaner.
20. Use only approved extension cords. Non-
approved extension cords may overheat. Care
should be taken to arrange the cord so that the
cord cannot be pulled or tripped over.
WARNING: Always switch off and unplug the vacuum
cleaner from the electrical outlet before assembling,
opening or emptying the dirt container, or before
connecting/disconnecting the attachments.
CAUTION: The vacuum cleaner is a very powerful
unit. Before plugging the cord into the electrical
outlet, make sure the switch is in the ‘off’ position.
Hold the vacuum cleaner firmly when starting and
in use.
IMPORTANT: If the inlet, hose or telescopic tube is
blocked, switch off the vacuum cleaner and remove
the blockage(s) before re-starting the vacuum
cleaner.
IMPORTANT: Regular washing and cleaning of
filters improves vacuum performance. Make sure all
the filters are completely dry before inserting back
into the vacuum cleaner.
This vacuum cleaner is intended for household use
only and not for commercial or industrial use.
Motor Thermostat
IMPORTANT: The motor is equipped with a thermal
cut-out. If for any reason, the vacuum cleaner should
over-heat, the thermostat will automatically turn
the unit off. Should this occur, unplug the vacuum
cleaner from the electrical outlet and turn the unit
off. Remove the dirt container and empty. Clean the
filters. Allow the cleaner to cool for approximately
one (1) hour. To re-start, plug into an electrical outlet
and switch back on.
Replacement Filters
Replacement filters are available from your Vax
stockist or Vax direct. Phone Vaxcare or visit:
www.vax.com.au
3. How to Assemble
IMPORTANT: Always unplug the vacuum cleaner
from the electrical outlet before assembling or
removing the accessories.
1. Insert the flexible hose into the inlet on the main
body of the vacuum cleaner. Push in until it clicks
into position (Fig.3/1).
2. Push the telescopic extension tube on to the end
of the handle (Fig.3/2).
3. The telescopic extension tube can be lengthened
or shortened by pushing the button in and sliding
the tube apart or together as required (Fig.3/3).
4. Fit the combination floor head by pushing onto
the extension tube (Fig.3/4).
4. How to Operate
Cord Release
Fully unwind the power cord. A yellow mark on
the power cord indicates the recommended
cord length. DO NOT EXTEND THE CORD
BEYOND THIS MARK.
On/off Button
1. Insert the power plug into the electrical outlet.
Make sure the vacuum cleaner is switched off.
2. Press the on/off switch, located on the top of the
vacuum cleaner, to switch on the vacuum cleaner
and press the button again to turn the vacuum
cleaner off.
Carpet Cleaning
For carpet and rug cleaning, press the rocker switch
on the combination floor head to raise the brushes.
Hard Floor Cleaning
For hard floor cleaning, press the rocker switch on
the combination floor head to lower the brushes.
Cord Rewind
To rewind the power cord, press the cord
rewind button, located on the top of the vacuum
cleaner, and guide the power cord with one
hand. Rewind 1-1
1
/
2
metres of cord at a time.
This will prevent the cord from whipping which
could cause damage or injury.
Variable Power
Located between the on/off and cord rewind buttons
there is a variable power dial. Slide this clockwise
and anti-clockwise to adjust the suction power. The
5-stage indicator lights suggest the suction power
for common tasks.
Carry Handle
Lift the carry handle located at the rear end of the
vacuum cleaner to move from room to room. Do not
pick vacuum cleaner up by dirt container handle.
Hose Storage
For convenience there is a slot located on either
side of the vacuum cleaner where the floor tool and
hose can be parked for carrying and storage.
5. Accessories
1. The accessories can be attached directly to the
handle by removing the telescopic tubes and
pushing in the desired accessory.
2. The accessories can also be attached to the
telescopic extension tube for extra reach.
Remove the combination floor head and push on
the desired accessory.
Crevice tool: for crevices, corners and cracks, etc.
Dusting brush: for delicate surfaces.
Upholstery tool: for carpet, upholstery, stairs, etc.
4 5
V-091 performance user guide.ind3 3 19/4/06 12:10:26 PM

6. Dirt Container & Filters:
Removal & Replacement
IMPORTANT: Always unplug the vacuum cleaner
from the electrical outlet before removing the dirt
container.
IMPORTANT: Do NOT use the vacuum cleaner
without ALL of the filters in place.

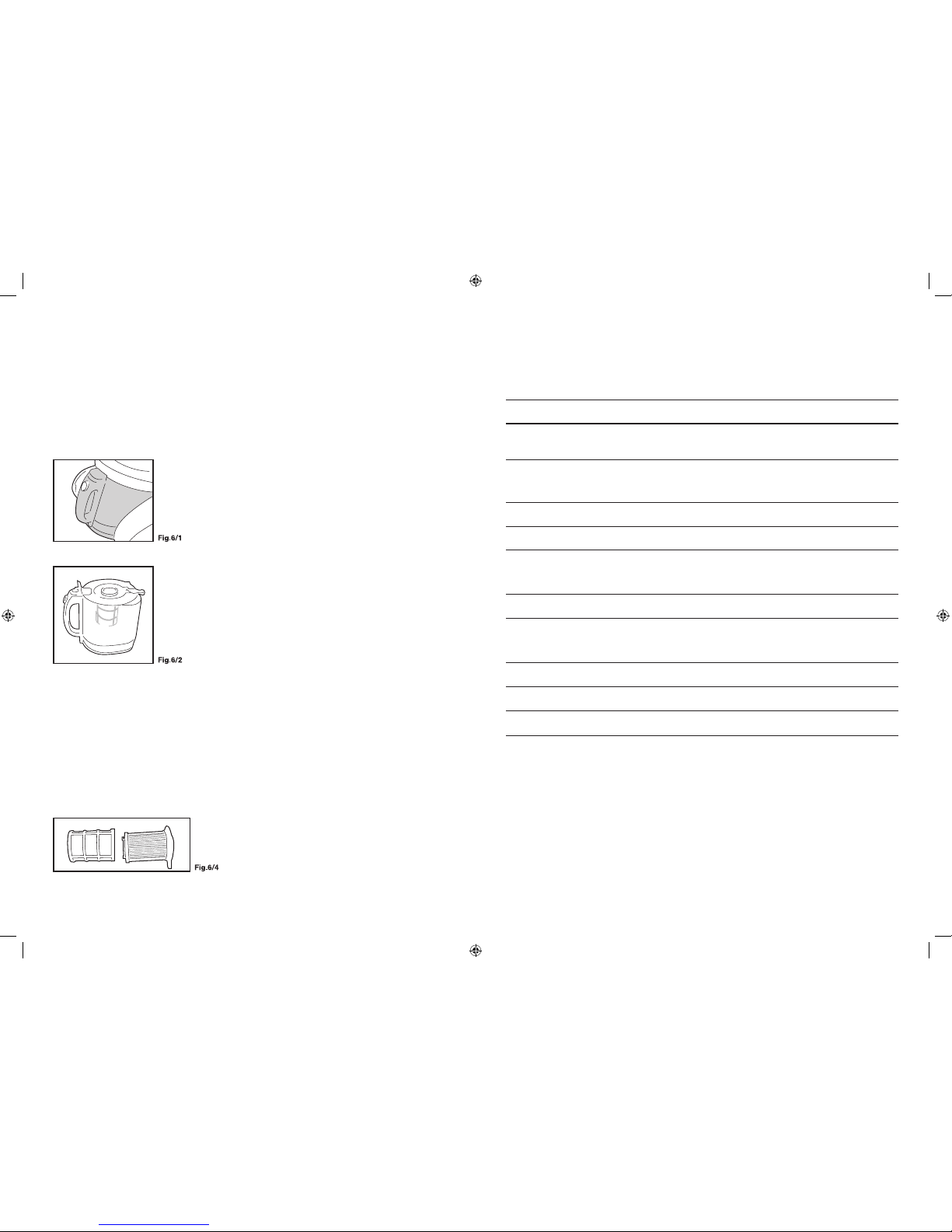

Emptying the Dirt Container
1. Press the button located on the dirt container
handle to pull out the dirt container (Fig.6/1)
2. Lift up the safety latch (Fig.6/2)
3. Press the button located under the safety latch to
empty the dirt into a rubbish bin. When all of the
dirt has fallen, close the dirt container flap, close
the safety latch and replace the dirt container.
Cleaning the Filter
1. Remove the dirt container as directed.
2. Release the filter safety latch located on top of
the dirt container and pull out the central filter
unit.
3. Remove the filter shroud by rotating it
anticlockwise and pulling away from the central
filter (Fig.6/4).
4. Gently tap the filter against the side of a rubbish
bin to remove excess dirt.
5. The central filter can be washed in warm water
(max 40
0
C). Allow to air dry completely before
replacing.
NOTE: Do NOT use any detergents or boiling
water to wash the filter. Vax recommends washing
the filter every time you empty the dust container.
6. Return the central filter to the filter shroud and
rotate clockwise to secure.
7. Replace the central filter unit to the dirt container
ensuring the filter safety catch has been reset.
8. Replace the dirt container as directed.
Post-motor Filter
NOTE: This is located behind cover on opposite
side to cord rewind on your vacuum cleaner.
1. Release the post-motor cover and remove the
filter by pressing in the catch on the left hand
side.
2. The post-motor filter can be washed in warm
water (max 40
0
C). Allow to air dry for 24 hours
before replacing.
NOTE: Do NOT use any detergents or boiling
water to wash the filter. Vax recommends washing
the filter every 9-12 months.
3. Replace the post-motor filter and cover before
re-starting the vacuum cleaner.
7. Cleaning Blockages
WARNING: To reduce the risk of personal injury, the
power cord must be disconnected before performing
maintenance/troubleshooting checks.
1. Turn the vacuum cleaner off and unplug from the
electrical outlet.
2. The flexible hose can be disconnected from the
vacuum cleaner by pushing in the button on
the hose and pulling away from the machine.
Remove any blockages found then reconnect the
hose securely.
8. Storage
IMPORTANT: Always unplug the vacuum cleaner
from the electrical outlet and rewind the power cord
as directed before storing.
NOTE: Always store the vacuum cleaner base
down.
9. Troubleshooting
WARNING: To reduce the risk of personal injury, unplug the vacuum cleaner before performing
maintenance/troubleshooting checks.
PROBLEM: Vacuum cleaner won’t run
Cause: Not properly plugged into wall outlet.
Solution: Plug in securely.
Cause: On/off switch not turned on.
Solution: Push on/off switch to on.
Cause: Motor thermostat has tripped.
Solution: Switch off and unplug the vacuum cleaner. Leave for one (1) hour before switching the vacuum
cleaner back on.
PROBLEM: Cleaner won’t pick up/loss of suction
Cause: Dirt container not installed properly.
Solution: Review dirt container replacement.
Cause: Dirt container full or blocked.
Solution: Empty dirt container.
Cause: Clogged filters.
Solution: Remove, clean and replace filters.
PROBLEM: Accessories won’t pick up
Cause: Accessories not attached correctly.
Solution: Refer to section 5.
Cause: Accessories clogged.
Solution: Remove blockage.
PROBLEM: Dust escaping from the vacuum cleaner
Cause: Dirt container full.
Solution: Empty dirt container.
Cause: Dirt container not installed correctly.
Solution: Review dirt container replacement.
Cause: Hose not installed correctly.
Solution: Review installation.
Cause: Filter not installed completely.
Solution: Remove, clean and replace filters.
10. VAXCARE Service & Help
AUSTRALIA 1300 36 4040
NEW ZEALAND 0800 800 900
If you have any queries or concerns about using
your Vax, call VAXCARE. Please make a note of the
serial number and model number of the appliance
before calling.
(Aust only: Mon-Fri. 10.00am to 6.00pm. EST)
Calls are charged at the local rate.
An answerphone is available outside of these hours.
We will return your call the next working day.
There are over 300 approved Vax Service Agents in
Australia and New Zealand. For the nearest Service
Agent, please refer to your Vax warranty or call
VAXCARE or visit www.vax.com.au
11. Technical Specification
Voltage: 220-240V~50Hz
Wattage: 2200W maximum
Capacity: 3 litres approx
Filters: Washable central HEPA filter [with
filter shroud]
Post-motor filter
Cord length: 6.0m (approx)
Weight: 6.0 kg (machine weight)
Part No.: 77000
Subject to technical change without notice.
6 7
V-091 performance user guide.ind4 4 19/4/06 12:10:27 PM
