Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
Retain for future reference.
VZ-302
Part Number: Z-8000
Bagless Cylinder

2
1. Safety Information
FOR HOUSEHOLD USE ONLY
When using the vacuum cleaner, basic safety
precautions should always be observed,
including the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
connecting or disconnecting from the mains
supply.
3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum
hose and accessories.
4. This appliance is not intended for use by
young or infirm persons unless they have
been adequately supervised by a responsible
person to ensure that they can use the
appliance safely.
Young children should be supervised
to ensure that they do not play with the
appliance.
5. Use only as described in this manual.
Use only the manufacturer’s recommended
attachments.
6. Do not use the vacuum cleaner if it has
been dropped, damaged, left outdoors or
dropped into water. Do not use the vacuum
cleaner with a damaged cord or plug. If the
supply cord or plug is damaged, return the
vacuum cleaner to a Vax Authorised Service
Agent for examination, repair or adjustment.
7. Do not pull or carry by the cord. Do not use
the cord as a handle, close a door on the
cord or pull the cord around sharp edges or
corners. Do not run the vacuum cleaner over
the cord. Keep the cord away from heated
surfaces.
8. Do not handle the plug or vacuum cleaner
with wet hands. Do not use outdoors or on
wet surfaces.
9. Do not put any objects into openings. Do
not use with any openings blocked and do
not restrict air flow. Keep all openings free of
dust, lint, hair or anything that may reduce
airflow.
10. Keep hair, loose clothing, fingers and all
parts of the body away from openings and
moving parts.
11. Do not pick up hot coals, cigarette butts,
matches or any hot, smoking or burning
objects.
12. Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene, etc)
or use in the presence of explosive liquids or
vapours.
13. Do not vacuum up harmful or toxic material
(chlorine bleach, ammonia, drain cleaner,
etc).
14. Do not vacuum up hard or sharp objects
such as glass, nails, screws, coins, etc.
15. Do not use without the filters in place.
16. Take extra care when vacuuming on stairs.
17. Keep vacuuming area well lit.
18. Store the vacuum cleaner indoors in a cool,
dry area.
19. Turn off the on/off switch before unplugging
the vacuum cleaner.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet before
assembling, opening or emptying the dirt
container, or before connecting/disconnecting
the attachments.
CAUTION: The vacuum cleaner is a very
powerful unit. Before plugging the cord into the
electrical outlet, make sure the switch is in the
‘off’ position.
IMPORTANT: If the inlet, hose or telescopic
tube is blocked, switch off the vacuum cleaner
and remove the blockage(s) before re-starting.
IMPORTANT: Washing filters improves vacuum
performance. Make sure all the filters are
completely dry before inserting back into the
vacuum cleaner.
This vacuum cleaner is intended for household
use only and not for commercial or industrial
use.
Motor Thermostat
IMPORTANT: The motor is equipped with a
thermal cut-out. If for any reason, the vacuum
cleaner should over-heat, the thermostat will
automatically turn the unit off. Should this occur,
unplug the vacuum cleaner from the electrical
outlet and turn off the switch. Remove the dirt
container and empty. Clean or replace the filters.
Allow the cleaner to cool for approximately one
(1) hour before restarting.
7
7. Cleaning Blockages
WARNING: To reduce the risk of injury, the
power cord must be disconnected before
performing maintenance / troubleshooting
checks.
1. Turn the vacuum cleaner off and unplug
from the electrical outlet.
2. The flexible hose can be disconnected
from the vacuum cleaner by pressing hose
release button and pulling hose away from
the machine. Remove any blockages found
then reconnect the hose securely.
8. Storage
IMPORTANT: Always unplug the vacuum
cleaner from the electrical outlet and rewind
the power cord as directed before storing.
NOTE: Always store the vacuum cleaner
base down.
Troubleshooting
WARNING: To reduce the risk of injury,
unplug vacuum cleaner before servicing.
PROBLEM: Vacuum cleaner won’t run
Cause: Not properly plugged into electrical
outlet.
Solution: Plug in firmly.
Cause: No electricity in the electrical outlet.
Solution: Check fuse or breaker.
Cause: On/off switch not turned on.
Solution: Push on/off switch to on.
Cause: Motor thermostat tripped.
Solution: Switch off and unplug the vacuum
cleaner. Leave for one (1) hour before
switching the vacuum cleaner back on.
Cause: Blown fuse/tripped breaker.
Solution: Reset house circuit breaker or
replace fuse.
PROBLEM: Cleaner won’t pick up/loss
of suction
Cause: Dirt container not installed properly.
Solution: Review dirt container replacement.
Cause: Dirt container full or blocked.
Solution: Empty dirt container.
Cause: Clogged filters.
Solution: Remove, clean and replace filters.
PROBLEM: Accessories won’t pick up
Cause: Accessories not attached correctly.
Solution: Refer to section 5.
PROBLEM: Dust escaping from the
vacuum cleaner
Cause: Dirt container full.
Solution: Empty dirt container.
Cause: Dirt container not installed correctly.
Solution: Review dirt container
replacement.
Cause: Filter not installed completely.
Solution: Remove, clean and replace filters.
VAXCARE Service & Help:
AUSTRALIA 1300 36 4040
NEW ZEALAND 0800 800 900
Any queries or concerns about using the
Vax, call VAXCARE.
Please make a note of the model number of
the appliance before calling.
(Aust only: Mon-Fri. 10.00am to 6.00pm. EST)
Calls are charged at the local rate.
An answerphone is available out of these
hours.
There are over 300 approved Vax Service Agents
in Australia and New Zealand. For the nearest
Service Agent, please refer to your Vax warranty
or call VAXCARE or visit www.vax.com.au
Technical Specification
Name: Zero Advance
Part No: Z8000
Model: VZ-302
Voltage: 220-240V~50Hz
Wattage: 1600W
Capacity: 2.5 litres approx
Filters: Cyclone separator - wipe clean
Pre-motor filter - washable
Post-motor filter - washable
Cord length: 6m (approx)
Weight: 8.55kg (approx)
Subject to technical change without notice.

3
2. Parts Overview
1 Hose inlet
2 Dirt container
3 Dirt container handle
4 Dirt container release button
5 Carry handle
6 Auto cord rewind button
7 On/off button
8 Pre-motor filter cover
9 Combination floor head park clip
10 Rubber moulded wheel
Accessories:
11 Telescopic tube
12 Combination floor head
13 Dusting tool
14 Crevice tool
15 Upholstery tool
16 Hose
6
Remove foam filter
Open the pre motor filter cover at the rear of
the machine and remove the foam filter with
the plastic housing (Fig.7/1).
Fig.7/1
Foam filter
Clean foam filter
Separate the filters by removing the foam
filter from its plastic housing. Tap the plastic
filter housing on the inside of a rubbish bin to
remove excess dust and dirt (Fig.7/2).
Fig.7/2
Filter housing
Wash foam filter
Hold foam filter under
running water to wash
(Fig.7/3). Squeeze
excess water out of
filter. Allow filter to
thoroughly air dry
before replacing.
Replace foam filter
Return foam filter with plastic housing to
cleaner and replace pre-motor filter cover into
place to secure.
Fig.7/3
Remove HEPA filter
The HEPA filter is located under the dust bin.
Remove the dust bin. Press tab on side of
filter cover and remove the cover to expose
HEPA filter. Lift out HEPA filter (Fig.7/4).
Fig.7/4
Exhaust
HEPA filter
Filter cover
Wash HEPA filter
The post-motor filter can be rinsed in warm
water (max 40°C). Allow to thoroughly air
dry before replacing.
NOTE: Do not use any detergents or boiling
water to wash the filters. Vax recommends
washing the filter every 9-12 months.
Replace the filter, filter cover and dust bin
before restarting the vacuum cleaner.
Clean HEPA filter
Tap the HEPA filter on the inside of a rubbish
bin to remove excess dust and dirt from filter
(Fig.7/5).
Fig.7/5

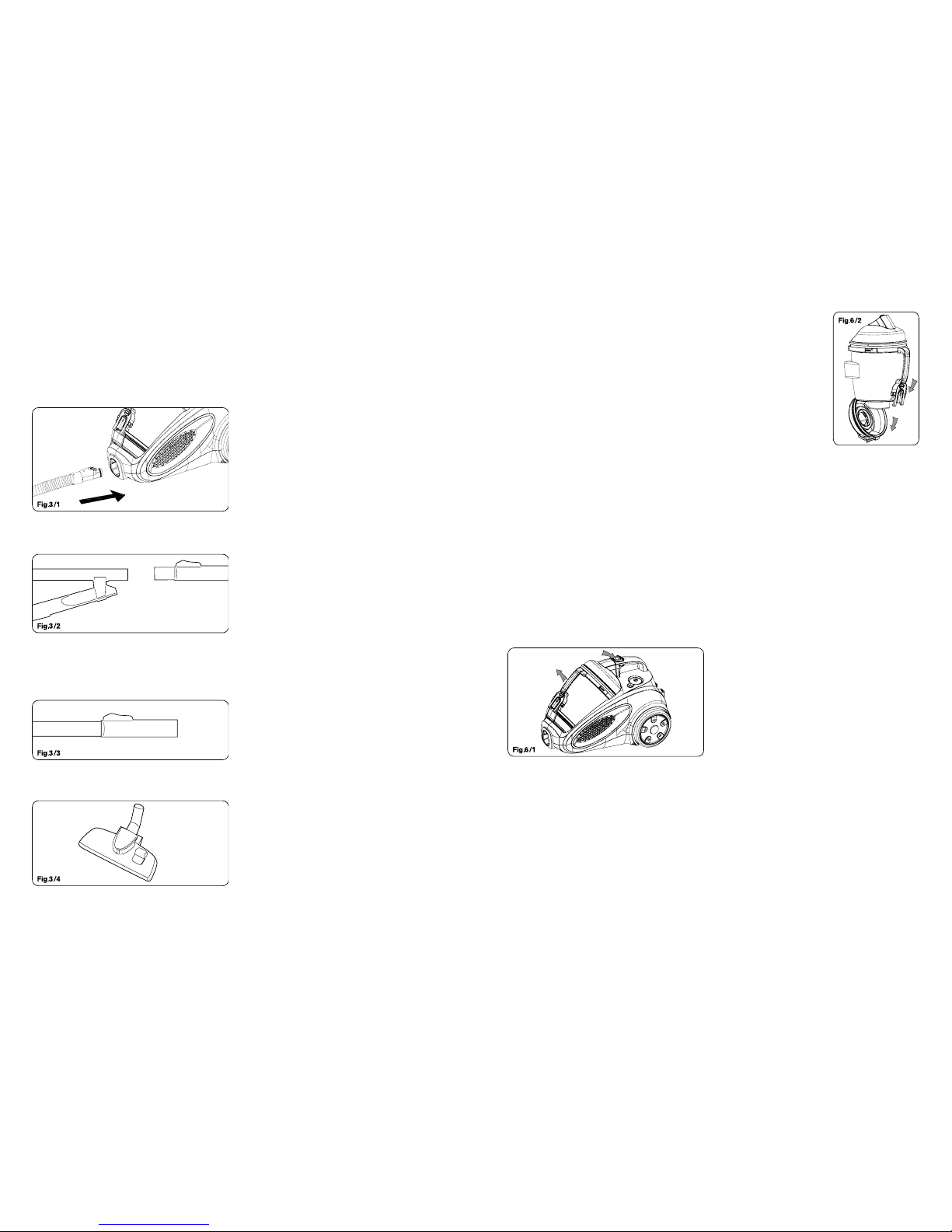

3. How to Assemble
IMPORTANT: Always unplug the vacuum
cleaner from the electrical outlet before
assembling or removing the accessories.
1. Insert the flexible hose (Fig.3/1) into the
inlet on the main body of the vacuum
cleaner until it clicks into lock position.
2. Push the telescopic extension tube on to
the end of the handle (Fig.3/2).
3. The telescopic tube can be lengthened
or shortened by pushing the button in
and sliding the tube apart or together as
required (Fig.3/3).
4. Fit the combination floor head by pushing
onto the extension tube (Fig.3/4).
4. How to Operate
Cord Release
Fully unwind the power cord. A yellow mark on
the power cord indicates the recommended
cord length. Do not exceed the cord length
beyond this mark.
On/off Button
1. Insert the plug into the electrical outlet.
2. Press the on/off switch located on the
top of the vacuum cleaner, to switch on
the vacuum cleaner and press the button
again to turn the vacuum cleaner off.
Carpet Cleaning
For carpet and rug cleaning, press the rocker
switch on the combination floor head to raise
the brushes.
Hard Floor Cleaning
For hard floor cleaning, press the rocker
switch on the combination floor head to lower
the brushes.
Cord Rewind
To rewind the power cord, press the cord
rewind button located on the top of the
vacuum cleaner, and guide the power cord
with one hand. Rewind 1-11/2metres of cord
at a time. This will prevent the cord from
whipping which could cause damage or
injury.
Carry Handle
Use the carry handle located at the rear end
of the vacuum cleaner to move from room to
room.
Hose Storage
For convenience there is a parking slot located
at the rear of the vacuum cleaner where the
floor tool and hose can be parked for carrying
and storage.
4 5
5. Accessories
1. The accessories can be attached directly to
the handle by removing the telescopic tube
and pushing in the desired accessory.
2. The accessories can also be attached to
the telescopic extension tube for extra
reach. Remove the combination floor head
and push on the desired accessory.
Dusting brush: for delicate surfaces
Upholstery tool: for carpet, upholstery and
stairs etc.
Crevice tool: for crevices, corners and
cracks, etc.
6. Dirt Container & Filters:
Removal & Replacement
IMPORTANT: Always unplug the vacuum
cleaner from the electrical outlet before
removing the dirt container.
IMPORTANT: Do NOT use the vacuum
cleaner without ALL of the filters in place.
Emptying the dirt container
1. Press down the dirt container release
button located on the top of the vacuum
and lift the dust container to remove.
2. Hold the dirt
container over a bin
and press the quick
release buttons to
empty the container
(Fig.6/2).
The top button
empties finer dust
& the bottom button
empties larger dirt.
3. Tap and shake the bin to remove all the
dust and dirt from this container.
4. Once all the dust is removed, carefully close
the dirt container flap. A click will be heard
when closed. Replace the dirt container.
Cleaning the cyclone separator
1. Twist and pull the dirt container bin off the
cyclonic separator. The dirt container bin
may be wiped clean.
2. The separator should be cleaned with a
soft brush and wiped with a damp cloth.
3. Leave the separator to dry completely
before replacing.
