VBC Racing Firebolt RM User manual

COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT
1/10 RWD ELECTRIC COMPETITION OFFROAD BUGGY CAR KIT
E
INSTRUCTIONS MANUAL
5
Thank you for purchasing VBC Racing product.
This VBC Racing kit is a high performance, racing grade car kit
intended for experienced racers. The kit compose of VBC
formulated composite materials, top quality 7075 aluminum
chassis and high grade full carbon fiber material which will give
you a competitive edge over the others.
Novice racer should seek advice from more experienced racer
before assembly.
Always keep this instruction manual handy at all times for quick
reference even after completing the assembly.
Before your assembly, sand the carbon fiber parts edges.
Things that we should remind you.
Sand the edges with #600 sand paper and apply CA glue to
the edges and counter sink holes.
Need help or support.
If you need help or you would like to leave us a comment,
please email to our support team: [email protected] or visit
our web site www.vbcracing.com

BAG MARKED
STEP1
Asssmbling the main Chassis
01© VBC Racing FIREBOLT RM
Side Guard, Right A-03-VBC-6017 x 1
Side Guard, Left A-03-VBC-6016 x 1
Firebolt RM 7075 Main Chassis B-02-P60180 x 1
M3x8 Flathead Screw C-02-SC-F0308 x 4
M3x8 Flathead
M3x8 Flathead
M3x8 Flathead
M3x8 Flathead

BAG MARKED
STEP2-3
2
02
© VBC Racing FIREBOLT RM
Firebolt Alum Front Suspension Brace B-02-VBC-6012 x 1
3x35mm Suspension Pin C-02-VBC-6015 x 2
Front Suspension Arm Mount A-03-VBC-6014 x 1
Front Suspension Arm, FL A-03-VBC-6045 x 1
Front Suspension Arm, FR A-03-VBC-6044 x 1
Front Suspension Assembling
Note the bottom markings of the front suspension
arm mount. The default setting is 25 towards
the front. You can change the kickup setting
to 30 by turning the 30 towards the front. The
set screws are to lock the suspension pins.
3x35mm Suspension Pin
3x35mm Suspension Pin
Front Suspension Arm, Left
Front Suspension Arm, Right
Front Suspension Arm Mount
Firebolt Alum Front Suspension Brace
M3x3 Set Screw C-02-SC-SS-0303 x 2
M3x3 Set Screw
M3x3 Set Screw

3
Front Suspension Assembly
03© VBC Racing FIREBOLT RM
STEP2-3
BAG MARKED
4.7x15mm Ball Connector C-02-VBC-6008 x 2
Firebolt Alum Front Camber link Mount B-02-VBC-6013 x 2
Firebolt Alum Front Camber link Mount
Front Center Bulkhead A-03-VBC-6046 x 1
Front Bumper A-03-VBC-6011 x 1
Firebolt Graphite Front Camber Link Plate A-01-VBC-6001 x 1
4.7x15mm Ball Connector
4.7x15mm Ball Connector
Front Center Bulkhead
Firebolt Graphite Front Camber Link Plate
M3x12 Flathead Screw C-02-SC-F0312 x 2
M3x14 Flathead Screw C-02-SC-F0314 x 2
M3x8 Roundhead Screw C-02-SC-R0308 x 1
M3x8 Roundhead Screw
M3x14 Flathead Screw
M3x12 Flathead Screw
Front Bumper

4
Front Steering Assembly
04© VBC Racing FIREBOLT RM
BAG MARKED
STEP4-6
Steering Center Bridge A-03-VBC-6022 x 1
Steering Arm A-03-VBC-6028 x 2
4.7x12mm Ball Connector B-02-VBC-5015 x 3
5x8 Ball Bearings C-02-BB-0805-B x 4
M3x10 Roundhead Screw C-02-SC-R0310 x 2
Steering Swivel Tube B-02-VBC-0033 x 2
Steering Swivel Tube
Steering Swivel Tube
5x8 Ball Bearings
5x8 Ball Bearings
5x8 Ball Bearings
5x8 Ball Bearings
4.7x12mm Ball Connector
M3x10 Roundhead Screw
M3x10 Roundhead Screw
4.7x12mm Ball Connector
Firebolt Alum Steering Post B-02-VBC-6011 x 2
M3x16 Roundhead Screw C-02-SC-R0316 x 2
Firebolt Alum Steering Post
Firebolt Alum Steering Post
M3x16 Roundhead Screw
6
Assembling Front Part
Servo Mount, Left A-03-VBC-6018 x 1 Servo Mount, Right A-03-VBC-6019 x 1
OR
Servo arm, Futaba (F) A-03-VBC-6034 x 1
OR
Servo arm, Sanwa/KO (A) A-03-VBC-6035 x 1
Ball Cup, Short A-03-VBC-6029 x 2 Ball Connector 4.7x12mm B-02-VBC-5015 x 1
M3x6x0.5 Spacer B-02-VBC-5093 x 4
M3x8 Roundhead Screw C-02-SC-R0308 x 4
M3x10 Set Screw C-02-SC-SS-0310 x 1
4.7x12mm Ball Connector
Servo arm, Futaba (F)
OR
Servo arm, Sanwa/KO (A)
Servo Mount, Left (A)
Servo Mount, Right (B)
Ball Connector 4.7x12mm
M3 Washer
Ball Cup, Short Ball Cup, Short
M3x10 Set Screw
AB
M3x6 Roundhead Screw C-02-SC-R0306 x 1
M3x6 Roundhead Screw
M3x8 Roundhead Screw
Front Upper Bulkhead A-03-VBC-6013

BAG MARKED
STEP4-6
05
© VBC Racing FIREBOLT RM
M3x20 Roundhead Screw C-02-SC-R0320 x 4
Front Damper Mount Assembly
Graphite Front Damper Mount A-01-VBC-6004 x 1
M3x8 Roundhead Screw C-02-SC-R0308 x 4
M3 Nut C-02-SC-FN03 x 2
STEP7-9
CA
*Not included in this kit
Sand the graphite shock tower
edges with #600 sand paper
and apply CA glue to the edges.
M3x18 Roundhead Screw C-02-SC-R0318 x 2
M3x20 Roundhead Screw
M3x18 Roundhead
M3x8 Roundhead Screw
M3x20 Roundhead Screw
M3 Nut
M3 Nut

BAG MARKED
06
© VBC Racing FIREBOLT RM
Front Knuckle Assembly
3 front caster angles
included in this kit.
We recommend
default 0deg.
C-hub, Left A-03-VBC-6020 x 1
5x10 Ball Bearing C-02-BB-1005-B x 4
Aluminium Front Axle Washer B-02-VBC-6005 x 2
Front Axle C-02-VBC-6006 x 2
C-hub, Right A-03-VBC-6021 x 1
Steering Knuckle, Right A-03-VBC-6025 x 1
M2x10 Shaft Pin B-02-VBC-0020 x 2
Steering Knuckle, Right
C-hub, Left
C-hub, Left
Front Axle
Front Axle
M2x10 Pin
M2x10 Pin
5x10 Ball Bearing
5x10 Ball Bearing
5x10 Ball Bearing
5x10 Ball Bearing
Aluminium Front Axle Washer
Aluminium Front Axle Washer
Steering Knuckle, Left A-03-VBC-6024 x 1
8
Ball Connector 4.7x15mm C-02-VBC-6008 x 4
3x6x2mm Plastic Spacer A-03-VBC-6056 x 2
0° caster adjuster A-03-VBC-6031 x 2
2.5x6x1mm Plastic Spacer A-03-VBC-6052 x 2
Front Wheel Adaptor A-03-VBC-6057 x 2
2.5x24.8mm Kingpin C-02-VBC-6018 x 2
M2x4 Roundhead Screw C-02-SC-R0204 x 2
Insert the Front Wheel Adaptor to
the Front Axle first and then
insert the 2x10mm Shaft Pin
Thread Lock
2.5° caster adjuster A-03-VBC-6032 x 2
5° caster adjuster A-03-VBC-6033 x 2
Thread Lock
Insert the Front Wheel Adaptor to
the Front Axle first and then
insert the 2x10mm Shaft Pin
3 front caster angles
included in this kit.
We recommend
default 0deg.
Left Assembly
Right Assembly
Ball Connector 4.7x15mm
Ball Connector 4.7x15mm
Ball Connector 4.7x15mm
Ball Connector 4.7x15mm
3x6x2mm Spacer
3x6x2mm Spacer
Steering Knuckle, Left
0° caster adjuster
2.5x6x1mm Spacer
2.5x6x1mm Spacer
0° caster adjuster
Front Wheel Adaptor
Front Wheel Adaptor
2.5x24.8mm Kingpin
2.5x24.8mm Kingpin
M2x4 Roundhead Screw
M2x4 Roundhead Screw
Insert the Kingpin
before put on the
M2x4 screw
Insert the Kingpin
before put on the
M2x4 screw
STEP7-9
M3x6 Flathead Screw C-02-SC-F0306 x 2
M3x6 Flathead
M3x6 Flathead

BAG MARKED
STEP7-9
9
Steering System Assembly
07
© VBC Racing FIREBOLT RM
Upper Camber Linkage Steering Tie Rod
M2x4 Roundhead Screw C-02-SC-R0204 x 2
2.5x6x1mm Plastic Spacer A-03-VBC-6052 x 2
3x52mm Hardened Turnbuckle
3x52mm Hardened Turnbuckle
32mm 32.5mm
Ball Cups,, Long
Ball Cups,, Long
3x52mm Hardened Turnbuckle
2.5x27.8mm Suspension Pin C-02-VBC-6016 x 2
Ball Cups,, Long A-03-VBC-6030 x 8
3x52mm Hardened Springsteel Turnbuckle C-02-VBC-6003 x 4
Upper Camber Linkage
Steering Tie Rod
Make Two
Make Two
M2x4 Roundhead Screw
2.5x6x1mm Plastic Spacer
Perform the same assembly on the other side
2.5mm Suspension Pin

BAG MARKED
STEP10
10
Rear Differentials Assembly
08
© VBC Racing FIREBOLT RM
FireboltDM Diff Joint A C-02-VBC-6012 x 1
FireboltDM Diff Joint B C-02-VBC-6013 x 1
Firebolt 52T Compsite Ball Diff Gear A-03-P60545 x 1
Firebolt Diff Ring C-02-VBC-6023 x 2
Diff Balls (2.4mm) C-03-VBC-6004 x 12
Ball Diff Screw C-02-VBC-6014 x 1
M2.6 Lock Nut C-02-VBC-6029 x 1
Diff Spring C-02-VBC-6024 x 1
Firebolt Thrust Balls Bearing Set C-03-VBC-6003 x 1
Ball Diff Nut A-03-VBC-6042 x 1
5x8 Ball Bearings C-02-BB-0805-B x 2
5x8 Ball Bearings
5x8 Ball Bearings
Firebolt 52T Ball Diff Gear
Firebolt Diff Ring
FireboltDM Diff Joint A
Diff Balls (2.4mm)
Ball Diff Screw
Firebolt Thrust
Balls Bearing
FireboltDM Diff Joint B
Diff Spring
Ball Diff Nut
Grease
Axle
M1.0x4x6 O-ring R-02-VBC-6036 x 1
Grease
Diff
M1.0x4 O-ring
Firebolt Diff Ring

BAG MARKED
STEP11-12
11
Installing gears
09
© VBC Racing FIREBOLT RM
12
Gearbox Assembly
Firebolt Gear Top Shaft C-02-VBC-6005 x 1
Firebolt Idler Shaft C-02-VBC-6002 x 2
Firebolt Composite Idler gear A-03-P60646 x 1
Idler Gear Spacer A-03-P60188 x 2
5x10 Ball Bearings C-02-BB-1005-B x 4
M3x35 Roundhead Screw C-02-SC-R0335 x 2
M3x40 Roundhead Screw C-02-SC-R0340 x 1
Firebolt Gear Top Shaft
Firebolt Idler Shaft
Gearbox Case, Left
A-03-VBC-6010
10x15 Ball Bearings C-02-BB-1510-P x 2
Firebolt Extreme Lightweight Aluminium Motor Plate
B-02-G60648
10x15 Ball Bearings
10x15 Ball Bearings
Gearbox Case, Right
A-03-VBC-6009
M3x35 Roundhead Screw
M3x35 Roundhead Screw
M3x40 Roundhead Screw
5x10x4mm Ball Bearings
5x10x4mm Ball Bearings
M2.5x12 Cap Screw C-02-SC-R2512 x 1
M2.5x12 Cap Screw
5x10x4mm Ball Bearings
5x10x4mm Ball Bearings
Idler Gear Spacer
Idler Gear Spacer

BAG MARKED
STEP13-19
13
Rear Bulkhead Assembly
10
© VBC Racing FIREBOLT RM
M3x20 Roundhead Screw C-02-SC-R0320 x 2
M3x12 Roundhead Screw C-02-SC-R0312 x 4
CA
*Not included in this kit
Sand the graphite shock tower
edges with #600 sand paper
and apply CA glue to the edges.
Firebolt RM Right Rear Bulkhead B-02-P60592
Firebolt RM Right Rear Bulkhead
Firebolt RM Left Rear Bulkhead
Firebolt RM Center Rear Bulkhead B-02-P60186
Firebolt RM Center Rear Bulkhead
Firebolt RM Left Rear Bulkhead B-02-P60185
M3x8 Roundhead Screw C-02-SC-R0308 x 8
M3x8 Roundhead Screw
M3x8 Roundhead Screw
M3x12 Roundhead Screw
M3x12 Roundhead Screw
M3x20 Roundhead Screw
M3x20 Roundhead Screw
M3 Hex Nut
M3 Hex Nut
RM Wing Stay Mount
Graphite Rear Damper Mount For RM
A-01-P60181
RM Wing Stay Mount A-03-P60182
4.7x15mm Ball Connector C-02-VBC-6008 x 2
4.7x15mm Ball Connector
M3 Hex Nut C-02-SC-FN03 x 2
14
Wing Stay Supporting Post A-03-P60183 X 2
M3x8 Roundhead Screw
M3x8 Roundhead Screw
3x6x2mm plastic spacer A-03-VBC-6056
M3x8 Roundhead Screw
M3x8 Roundhead Screw

BAG MARKED
STEP13-19
15
Installing the Gearbox
11
© VBC Racing FIREBOLT RM
M3x8 Flathead Screw C-02-SC-F0308 x 6
M3x8 Flathead
Firebolt Alum Rear Suspension Mount, RF B-02-VBC-6003 x 1
Rear RF Mount Spacer 1.5mm A-01-VBC-6081 x 1
3x6x1.2mm Plastic Spacer A-03-VBC-6055 x 4
3x44.5mm Suspension Pin B-02-VBC-0029 x 2
Arm Pin Pivot Ball B-02-VBC-0035 x 4
Firebolt Rear Suspension Arm, RL A-03-VBC-6026 x 1
Firebolt Rear Suspension Arm, RR A-03-VBC-6027 x 1
Firebolt Alum Rear Suspension Mount
Rear RF Mount Spacer 1.5mm
3x6x1.2mm Plastic Spacer
3x6x1.2mm Plastic Spacer
Arm Pin Pivot Ball
3x44.5mm Suspension Pin
Spacer Thickness Anti-Squat Angle
Without RF Mount Spacer
Rear RF Mount Spacer 0.5mm A-01-VBC-6083 (Optional)
Rear RF Mount Spacer 1.0mm A-01-VBC-6082 (Optional)
Rear RF Mount Spacer 1.5mm A-01-VBC-6081
0mm 0°
0.5mm 0.7°
1.0mm 1.4°
1.5mm 2.1°
Arm Pin Pivot Ball
Arm Pin Pivot Ball
RM RR Suspension Mount B-02-P60187 x 1
M3x8 Flathead

BAG MARKED
STEP13-19
16
Rear Bulkhead Assembly 2
12
© VBC Racing FIREBOLT RM
17
Gearbox Mount Spacer B-02-VBC-6078 x 1
M3x9 Roundhead Screw C-02-SC-R0309 x 2
M3x9 Roundhead Screw
M3x22 Flathead Screw C-02-SC-F0322 x 2
Gearbox Mount Spacer
M3x22 Flathead Screw
M3x10 Roundhead Screw
M3x10 Roundhead Screw
M3x16
Roundhead Screw
M3x16
Roundhead Screw
M3x38
Roundhead Screw
Motorguard supporting post
Motorguard supporting post
Rear Motor Guard Right
Rear Motor Guard Left
Motorguard supporting post B-02-P60556 x 2
M3x10 Roundhead Screw C-02-SC-R0310 x 2
M3x16 Roundhead Screw C-02-SC-R0316 x 2
M3x38 Roundhead Screw C-02-SC-R0338 x 1
M3x40 Roundhead Screw C-02-SC-R0340 x 2
M3x40 Roundhead Screw
M3 Lock Nut C-02-SC-NN03 x 2
M3 Lock Nut
M3 Lock Nut
M3x8 Flathead Screw C-02-SC-F0308 x 4
M3x8 Flathead
M3x8 Flathead

BAG MARKED
STEP13-19
18

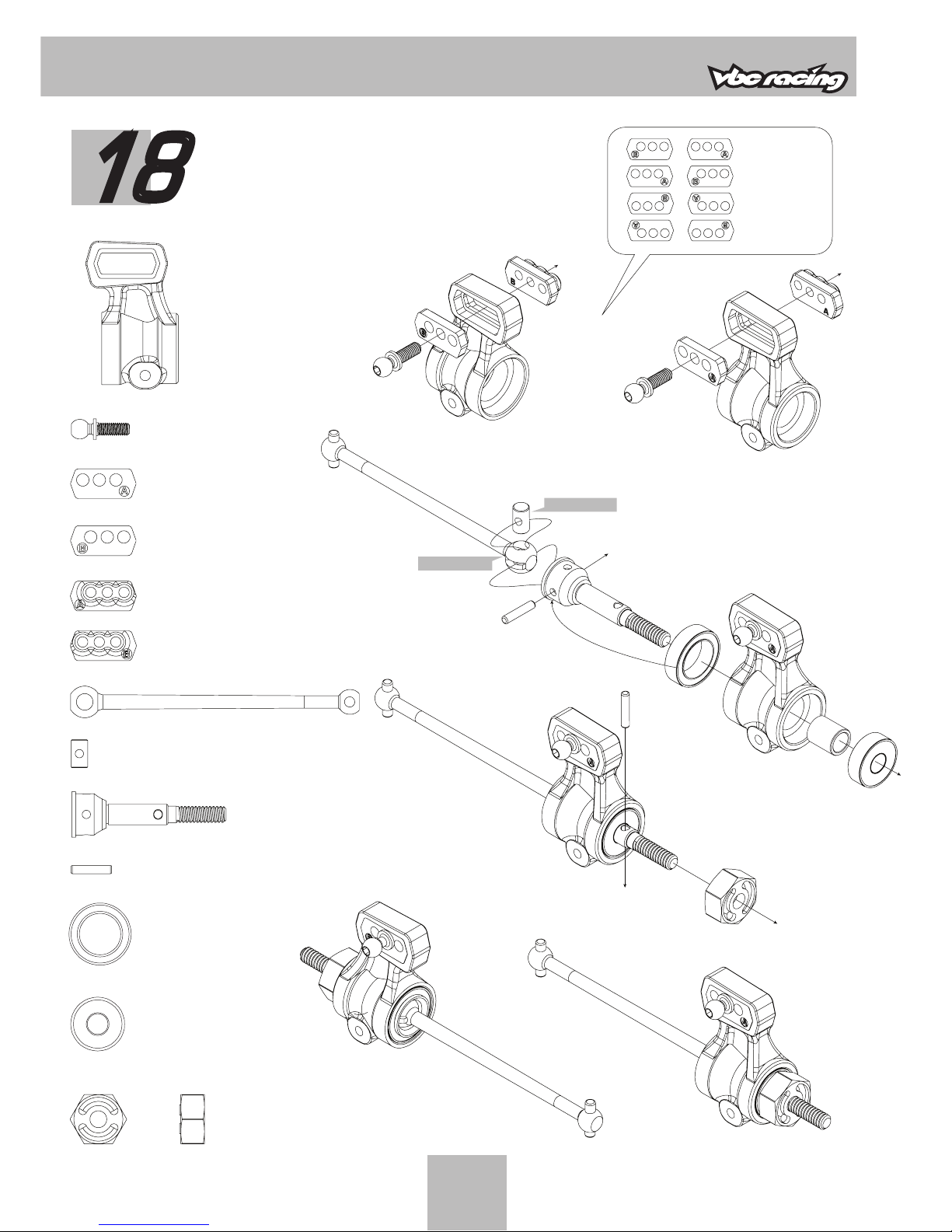

Rear Suspension Arm Assembly
13
© VBC Racing FIREBOLT RM
Firebolt Rear Upright A-03-VBC-6038 x 2
Left Rear Hub
Right Rear Hub
Multiple camber link
settings by placing
the camber link
holders into different
positions
Axle Grease
Axle Grease
4.7x14mm Ball Connector C-02-VBC-6034 x 2
Rear Camber Link Holder (A) A-03-VBC-6023 x 1
Rear Camber Link Holder (B) A-03-VBC-6049 x 1
Rear Camber Link Plate (A) A-03-VBC-6050 x 1
Rear Camber Link Plate (B) A-03-VBC-6051 x 1
Firebolt Rear CVD Inner Axle C-02-VBC-6010 x 2
Firebolt Rear CVD Inner Joint C-02-VBC-6011 x 2
Firebolt Rear CVD Outer Wheel Axle C-02-VBC-6009 x 2
10x15 Ball Bearings C-02-BB-1510-P x 2
6mm Rear Wheel Adapter A-03-VBC-6069 x 2
5x13mm Ball Bearings
C-02-BB-1305-B x 2
Firebolt Rear Upright
Firebolt Rear Upright
Rear Camber Link Holder (B)
Rear Camber Link Plate (B)
Rear Camber Link Holder (A)
Rear Camber Link Plate (A)
Firebolt Rear CVD Inner Axle
Firebolt Rear CVD Inner Joint
M2x10 Shaft Pin
M2x10 Shaft Pin B-02-VBC-0020 x 4
M2x10 Shaft Pin
6mm Rear Wheel Adapter
Firebolt Rear CVD Outer Wheel Axle
10x15 Ball Bearings
5x13mm Ball Bearings
Rear drive left and right drive axles
Firebolt RM 5.1 x 7 x 8.2mm Spacer
B02P60725

BAG MARKED
STEP13-19
19
14
© VBC Racing FIREBOLT RM
3x45mm Hardened Springsteel Turnbuckle C-02-VBC-6004 x 2
Ball Cup L Type, Long Right A-03-VBC-6047 x 1
Ball Cups, Long A-03-VBC-6030 x 2
Ball Cup L Type, Long Left A-03-VBC-6048 x 1
2.5x6x1mm Plastic Spacer A-03-VBC-6052 x 2
2.5x6x2mm Plastic Spacer A-03-VBC-6054 x 2
2.5x29.8mm Suspension Pin C-02-VBC-6017 x 2
M2x4 Roundhead Screw C-02-SC-R0204 x 2
M2x4 Roundhead Screw
2.5x29.8mm Suspension Pin
2.5x6x1mm Plastic Spacer
2.5x6x2mm Plastic Spacer
Right Rear Camber Link Assembly
Ball Cup L Type, Long Right
Ball Cups, Long
3x45mm Hardened Turnbuckle
27.5mm
Left Rear Camber Link Assembly
Ball Cups, Long
3x45mm Hardened Turnbuckle
Ball Cup L Type, Long Left
27.5mm
Left Rear Camber Link
Right Rear Camber Link

BAG MARKED
STEP20-22
20
Firebolt Suspension Shocks Assembly
15
© VBC Racing FIREBOLT RM
Front Firebolt Shock Shaft C-02-VBC-6019 x 2
Rear Firebolt Shock Shaft C-02-VBC-6020 x 2
M2 E-clip B-03-VBC-0129 x 8
Damper Inner Spacer A-03-VBC-6063 x 8
1.6x2 Holes Piston for Firebolt Shocks A-03-VBC-6004 x 2
1.7x2 Holes Piston for Firebolt Shocks A-03-VBC-6064 x 2
Firebolt Shaft Cap A-03-VBC-6066 x 4
Shock Shaft Guide A-03-VBC-0126 x 8
TBB Shaft Sealer O-Ring B-03-VBC-0012 x 8
M1.5x15x18 O-Ring (Shock Height Adjuster) R-02-VBC-6082 x 4
Spring Adjuster for Firebolt Shocks B-02-VBC-6020 x 4
Firebolt Shock O-Ring Cap B-02-VBC-6017 x 4
Firebolt Shock Body, Rear B-02-VBC-6019 x 2
Firebolt Shock Body, Front B-02-VBC-6018 x 2
Rear Firebolt Shock Shaft
Damper Inner Spacer
Damper Inner Spacer
1.7x2 Holes Piston
M2 E-clip
M2 E-clip
Damper Inner Spacer
Damper Inner Spacer
M2 E-clip
M2 E-clip
1.6x2 Holes Piston
Make 2 Front Piston Shafts
M1.5x15x18 O-Ring
Spring Adjuster for Firebolt Shocks
X2
Make 2 Rear Piston Shafts
X2
X4
X4
M1x13x15 O-ring R-02-VBC-6034 x 4
X4
X4
X4
Firebolt Shock Body, Rear x 2
Firebolt Shock Body, Front x 2
M1x13x15 O-ring
Spring Adjuster for Firebolt Shocks
M1x4x6 O-ring R-02-VBC-6036 x 4
M1x4x6 O-ring
Shock Shaft Guide
Shock Shaft Guide
TBB Shaft Sealer O-Ring
TBB Shaft Sealer O-Ring
Firebolt Shaft Cap
Firebolt Shock O-Ring Cap
Firebolt Shocks Ball Cups A-03-VBC-6001 x 4
6mm Damper End Pivot Ball A-03-VBC-6060 x 4
Firebolt Shocks Ball Cups
6mm Damper End Pivot Ball
Front Firebolt Shock Shaft

BAG MARKED
STEP20-22
21
Front Suspension Assembly Part1
16
© VBC Racing FIREBOLT RM
Firebolt Alum Shock Cap B-02-VBC-6021 x 4
Front Spring, Medium(Red) C-02-VBC-6021 x 2
Rear Spring, Medium(Red) C-02-VBC-6022 x 2
M1x1x3 O-ring R-02-VBC-6035 x 4
M2x4 Roundhead Screw C-02-SC-R0204 x 4
Fill supplied shock oil
and remove air by
moving the piston up
and down until air
bubbles disappears
M1x4x6 O-ring
M2x4 Roundhead Screw
Firebolt Shocks Spring Retainer A-03-VBC-6002 x 4
Front Spring, Medium(Red)
Rear Spring, Medium(Red)
Firebolt Shocks Spring Retainer
Repeat the above steps on the front and the rear shocks
VBC Racing Firebolt Shock Springs:
Front Spring, Med-Soft(Green) C-02-VBC-6033(Optional)
Front Spring, Medium(Red) C-02-VBC-6021
Front Spring, Med-Hard(Orange) C-02-VBC-6030(Optional)
Rear Spring, Med-Soft(Green) C-02-VBC-6031(Optional)
Rear Spring, Medium(Red) C-02-VBC-6022
Rear Spring, Med-Hard(Orange) C-02-VBC-6032(Optional)
Firebolt Alum Shock Cap

BAG MARKED
STEP20-22
22
Installing Front and Rear Suspension Shocks
17
© VBC Racing FIREBOLT RM
Damper Cap Shaft Pivot Ball A-03-VBC-6061 x 4
M3 Plastic Lock Nut A-03-VBC-6062 x 4
Suspension Arm Spacer T2(Composite) A-03-VBC-0052 x 2
M3x14 Roundhead Screw C-02-SC-R0314 x 2
M3x18 Roundhead Screw C-02-SC-R0318 x 2
M3 Plastic Lock Nut
Damper Cap Shaft Pivot Ball
M3x18 Roundhead Screw
M3 Plastic Lock Nut
Suspension Arm Spacer T2 M3x14 Roundhead Screw

BAG MARKED
STEP23-24
23
Battery Mount Assembly
18
© VBC Racing FIREBOLT R M
Firebolt Alum Battery Post, Short B-02-VBC-6008 x 4
M3x10 Set Screw C-02-SC-SS-0310 x 2
Firebolt Alum Battery Post, Short
Firebolt Alum Battery Post, Short
Firebolt Alum Battery Post, Short
M3x10 Set Screw
M3x10 Set Screw

BAG MARKED
STEP25-26
25
Installing the Slipper
19
© VBC Racing FIREBOLT RM
FireBolt Slipper Plate B-02-VBC-6023 x 2
M4 Flanged Wheel Nuts B-02-VBC-0086 x 1
FireBolt Slipper Spring C-03-VBC-6002 x 1
FireBolt Slipper Pad V2 C-03-P60619 x 2
48P 81T Spur Gear V2 A-03-P60618 x 1
FireBolt Slipper Pad V2
48P 81T Spur Gear
M4 Flanged Wheel Nuts
FireBolt Slipper Plate
FireBolt Slipper Plate
FireBolt Slipper Spring
FireBolt Slipper Pad V2
