The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008
The Next Equine DR system runs our new SmartDR software and utilizes the Varian 2530W
Autosense receptor panel, removing the need for cumbersome sync boxes and cables; making the
Next Equine DR system one of the easiest on the market to take from the box to acquisition.
Opening the Next Equine DR case reveals a sleek design coupled with an 18” Dell XPS
Touchscreen Tablet.
System Overview

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008

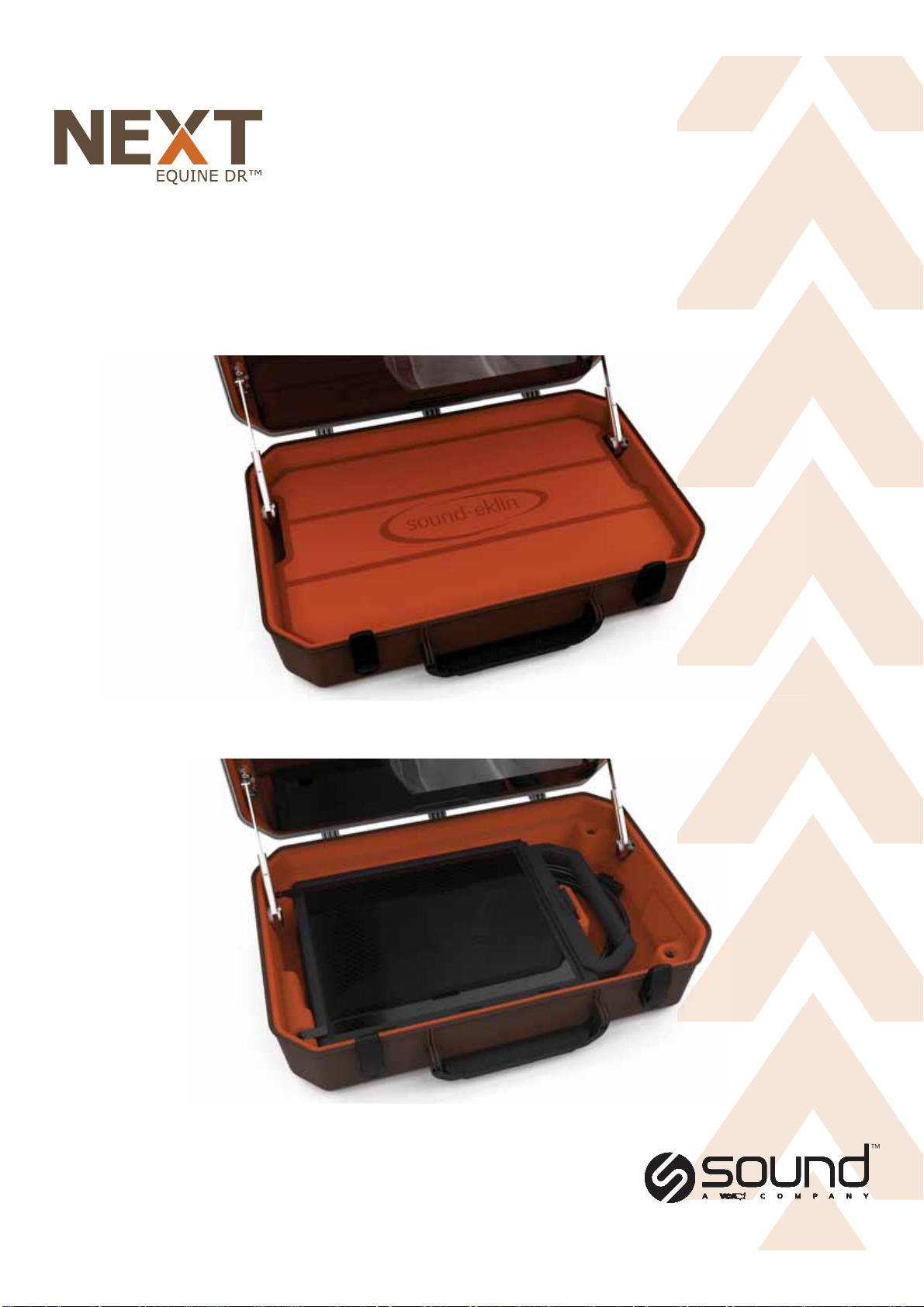

Opening the deck on the bottom of the Next Equine DR case reveals the Varian 2530W Autosense
receptor panel.
The Varian 2530W Autosense Receptor Panel
System Overview

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008

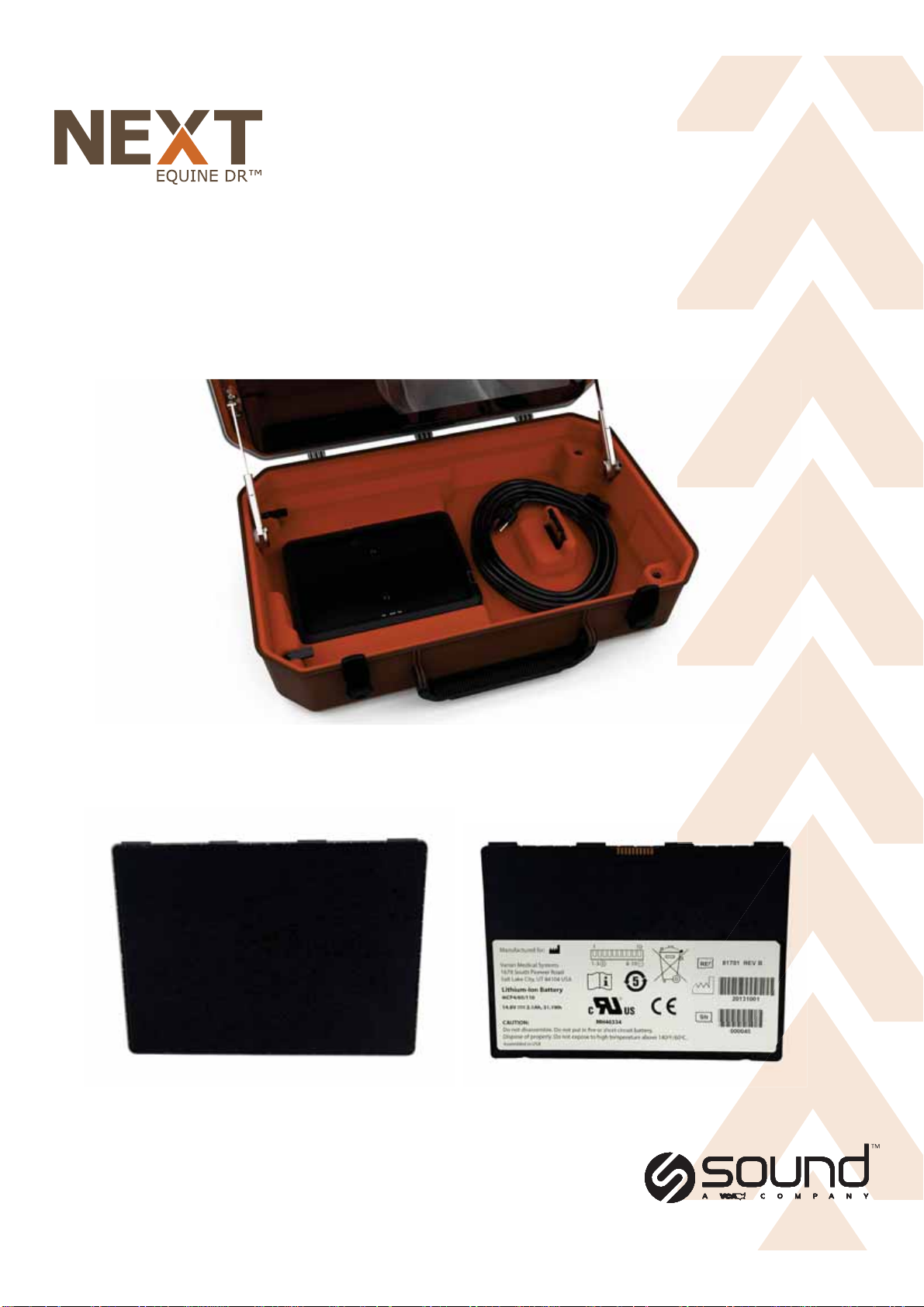

Removing the receptor panel reveals the power cord for the system and a charger for the receptor
panel’s battery, housing the second battery that comes with the system.
The rechargeable battery for the Varian 2530W Autosense Panel
System Overview

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008
ound 5810 Van Allen Way Carlsbad CA 92008

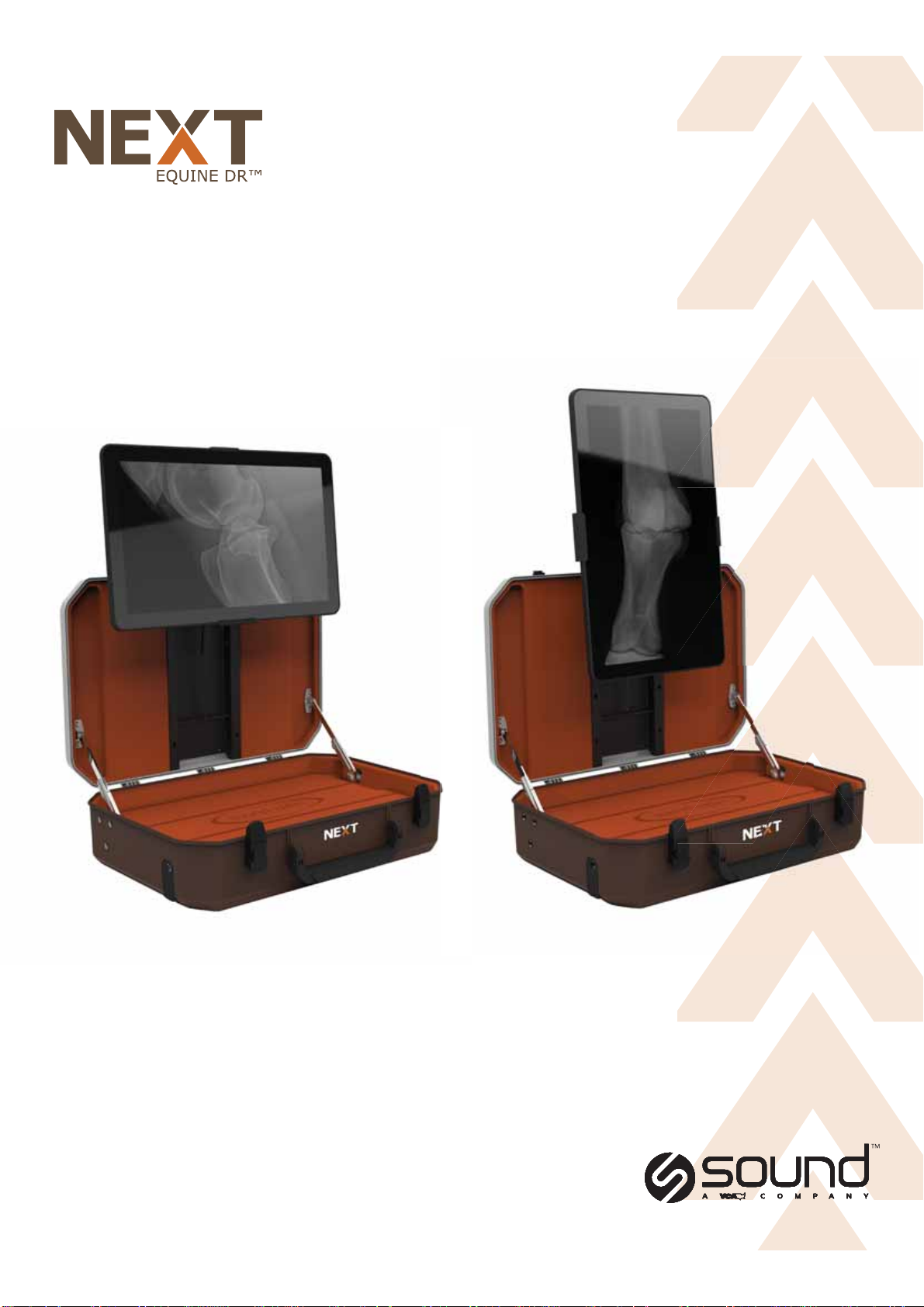

The Next Equine DR System’s XPS tablet is secured in a cradle attaching it to an extendable arm
with both tilt and rotational capabilities. This allows you to take advantage of the orientation
IHDWXUHIRXQGLQ6PDUW'5DQGSURYLGHVDQXPEHURIXVDEOHYLHZLQJFRQÀJXUDWLRQVIRUWKHV\VWHP
With both Portrait and Landscape modes, SmartDR and the Next Equine DR system provide industry
leading image viewing capabilities.
System Overview

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008

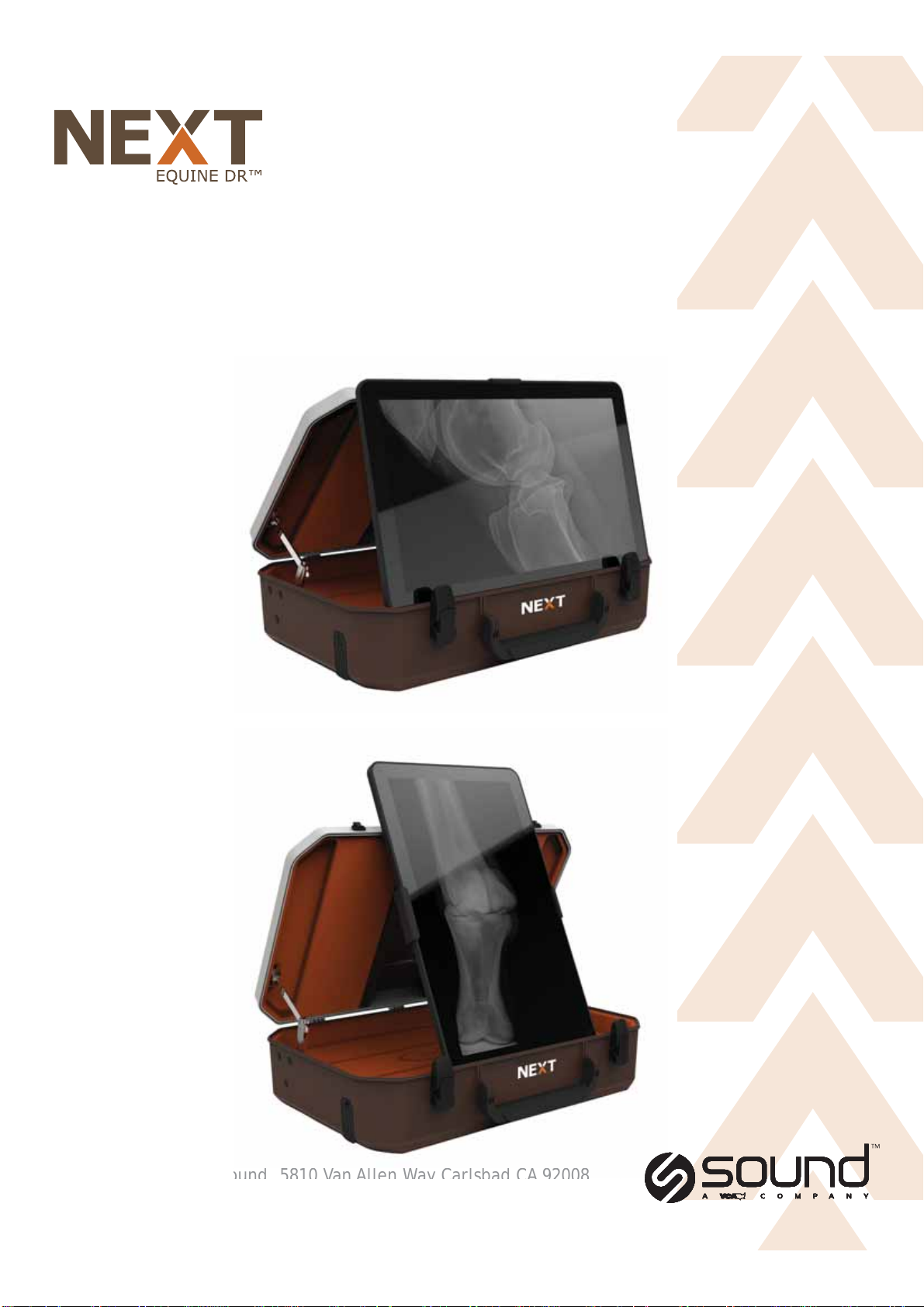

With the cradle arm extended, you can comfortably view images from different heights, making
the system convenient to use in a variety of conditions.
System Overview

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008
Hardware Manual
Sound 5810 Van All
e

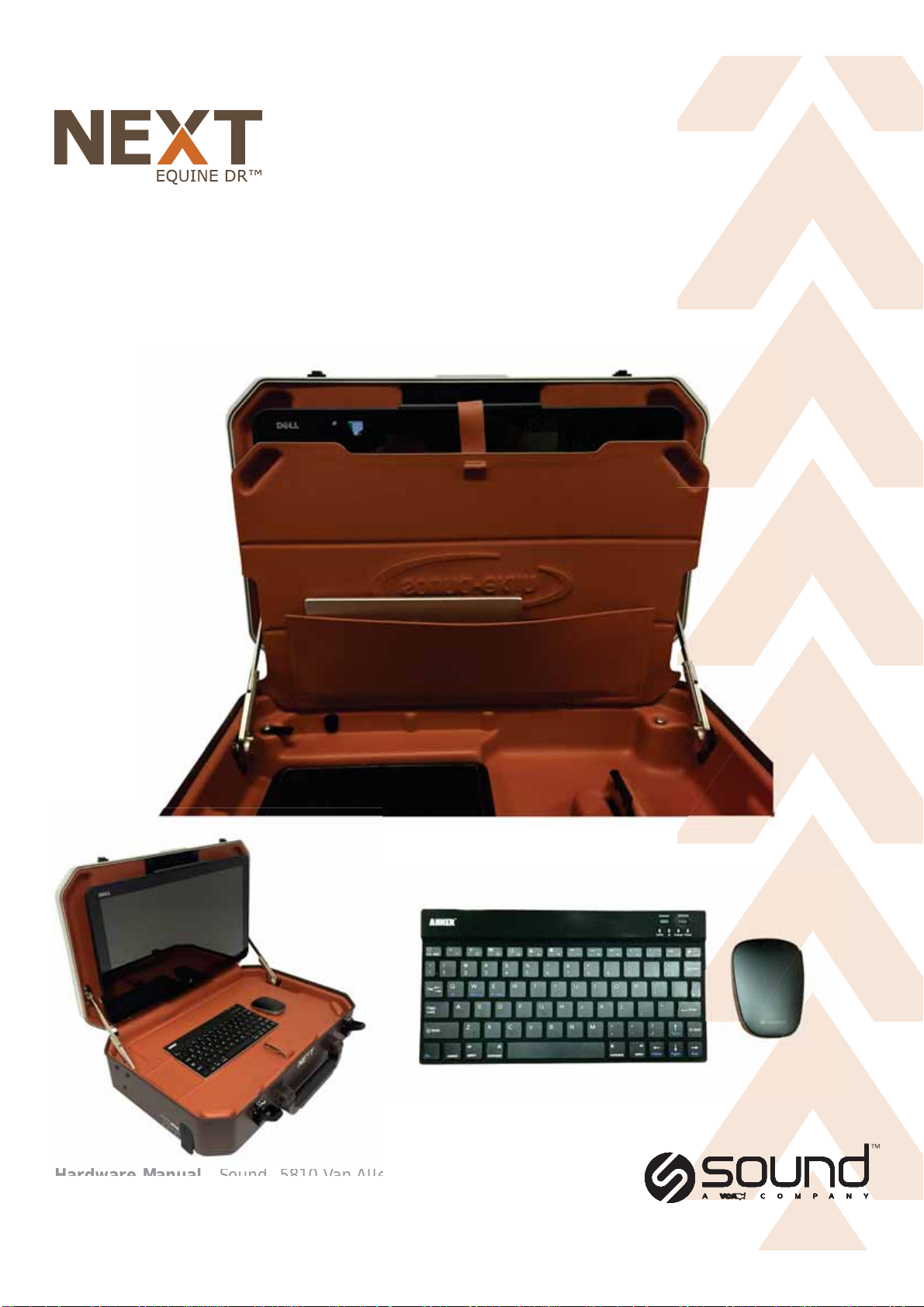

While the Next Equine DR System coupled with SmartDR is a touch optimized platform, we have
provided you with a sleek, portable Bluetooth keyboard and mouse for those users who prefer the
WDFWLOHIHHGEDFNRIDSK\VLFDOGHYLFHZKLOHLQWKHÀHOG7KHVHDUHORFDWHGLQDÁDSIRXQGEHQHDWK
the deck of the case.
System Overview

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008
The Dell XPS Tablet is easy to remove from the Next Equine DR case and the system comes
with a charging stand, a full sized keyboard and a mouse for convenient desktop usage.
System Overview

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008
This label is found on the Next Equine DR
System’s case next to the AC power inlet.
This label is found on the back of the
system’s Dell XPS Tablet.
Label Locations

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008

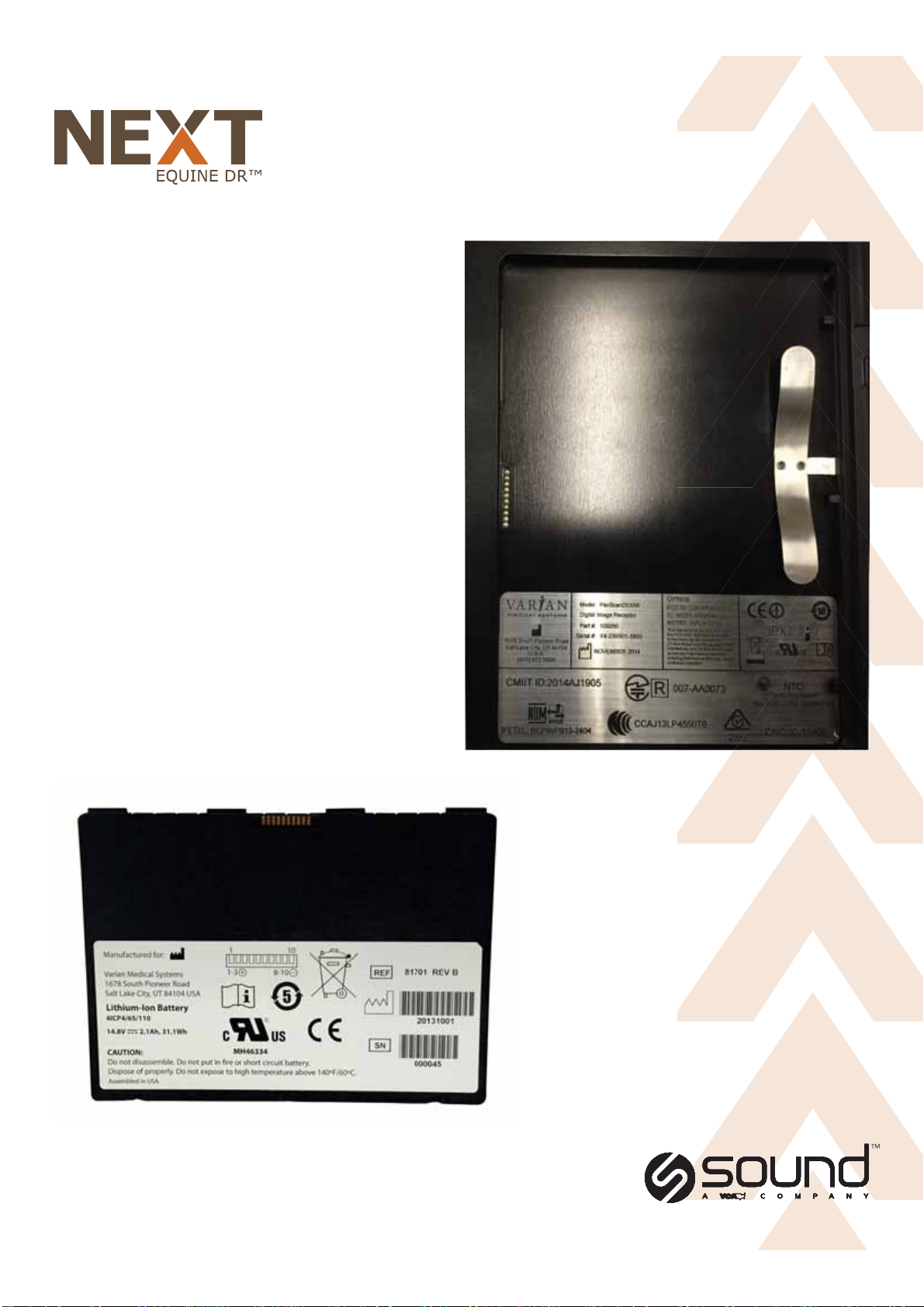

This label is found in the battery compartment
of the Varian 2530W Autosense Receptor Panel.
This label is found on the back of
the Varian 2530W Autosense Receptor
Panel’s battery.
Label Locations

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008

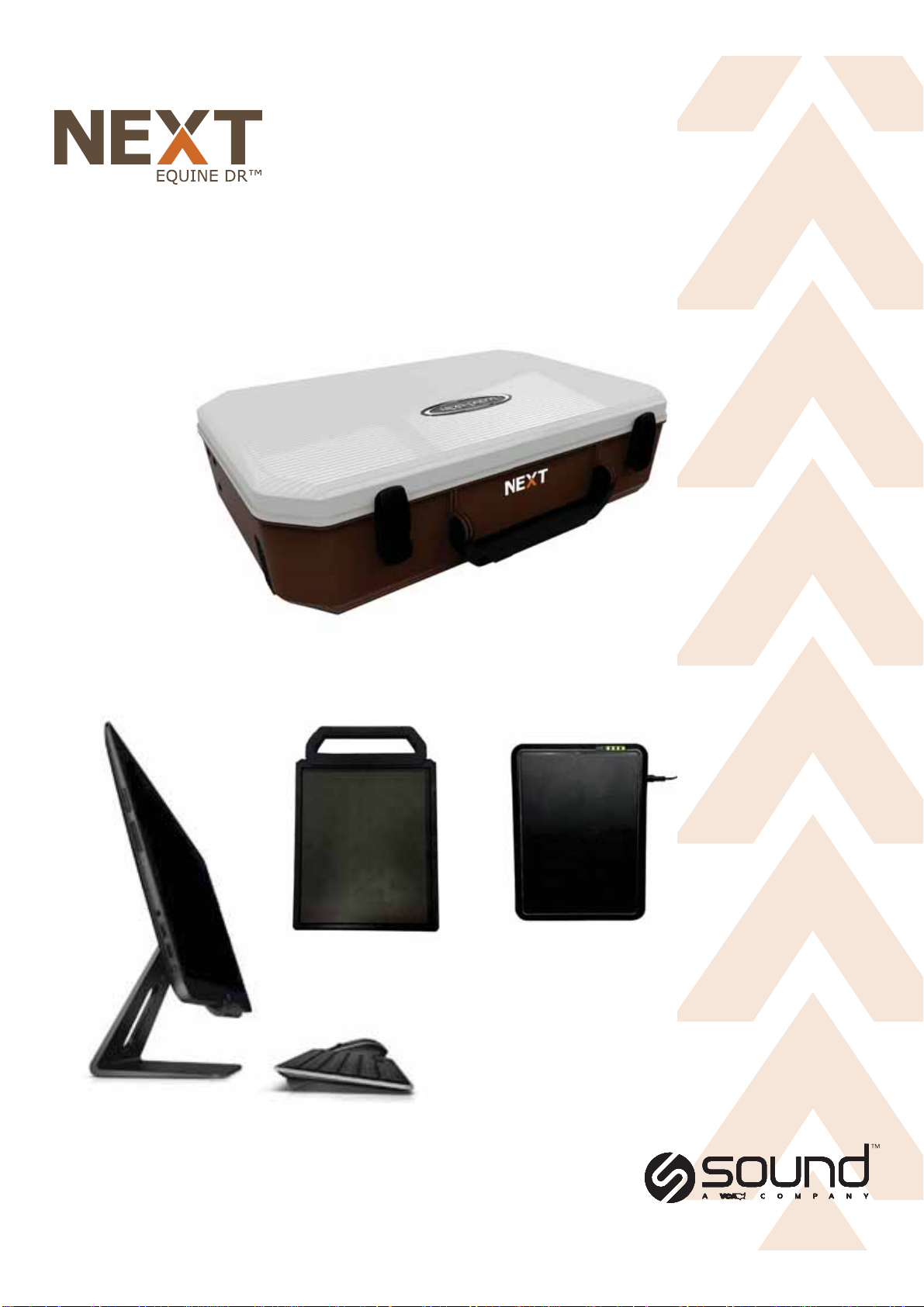

94-884
Next Equine DR System
34-868
Next Computer and Panel Hardware
Part Numbers

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008

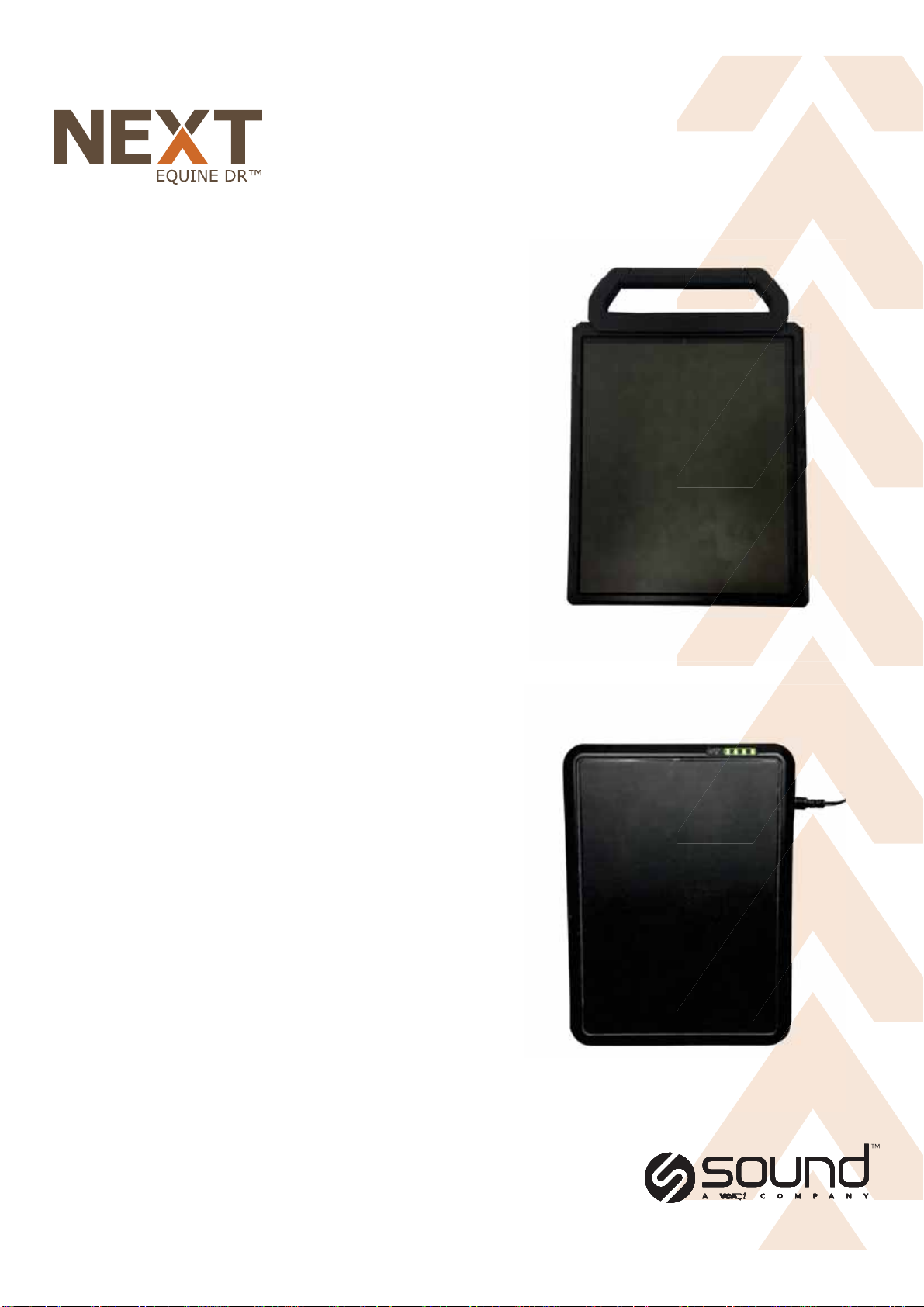

91-412
Varian Detector, 2530W, 10x12 with
34-873
Image Detector Frame Kit
10-270
Single Bay Battery Charger with Power Adapter
for Varian 2530W Receptor Panel
10-269
Rechargeable Battery (QTY-2) for Varian 2530W
Receptor Panel
Part Numbers

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008

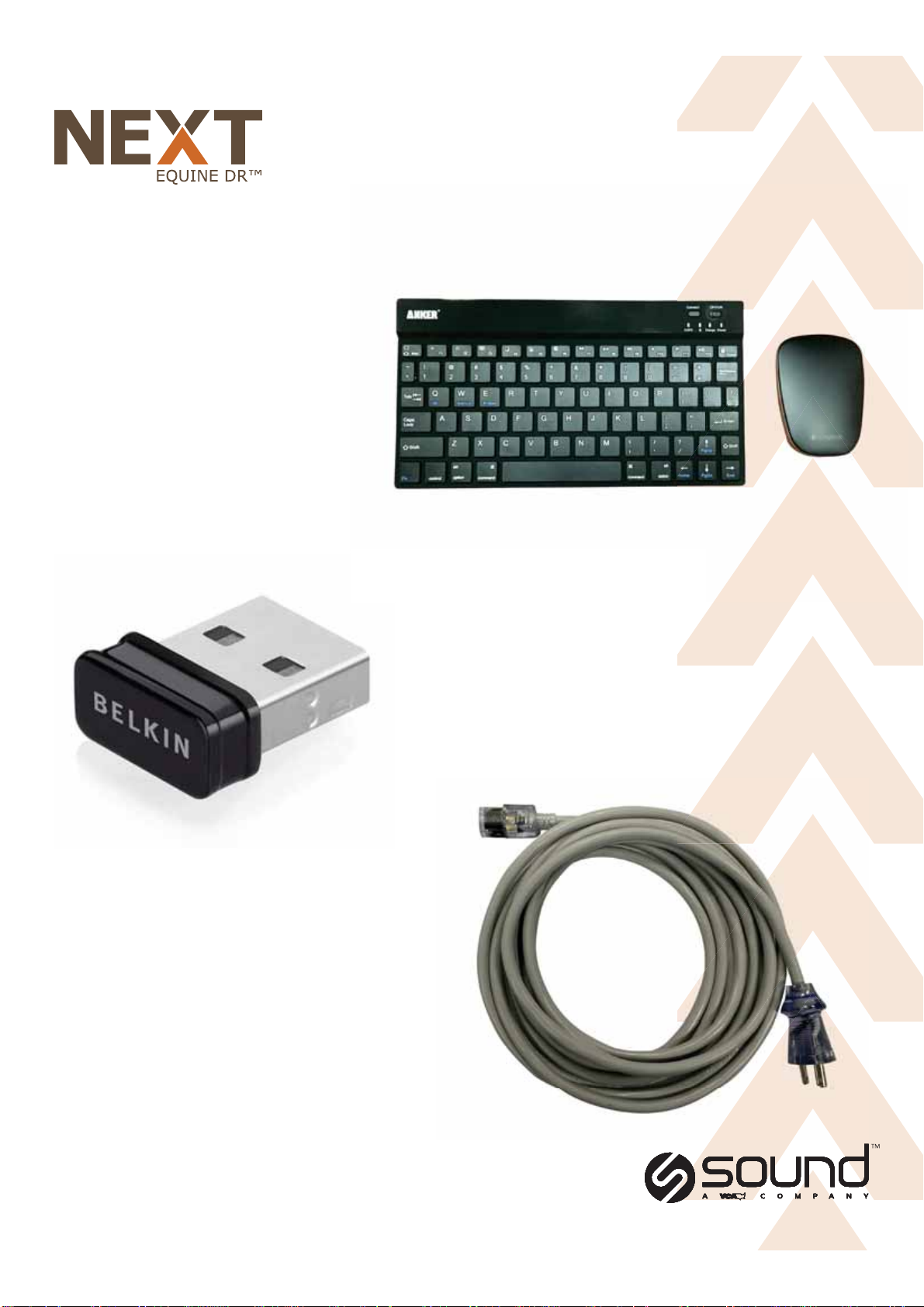

20-312
Ultrathin Wireless Bluetooth Keyboard
20-323
Logitech Bluetooth Touch Mouse
20-313
USB Belkin N150 Micro Wireless Adapter
10-274
15 foot IEC-NEMA Power Extension Cord
Part Numbers

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008

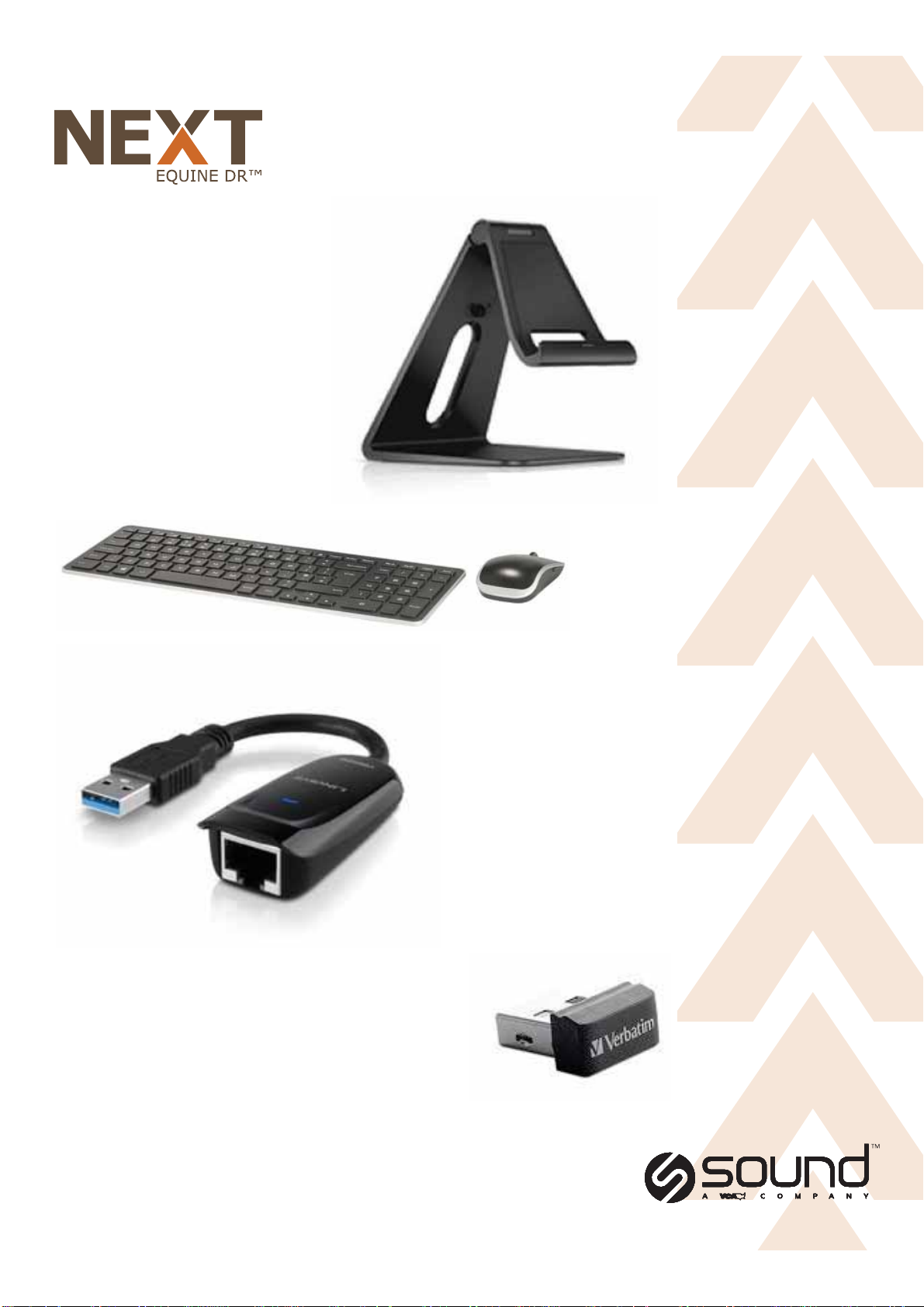

30-656
Dell XPS Charging Stand
(includes power supply for
Dell XPS Tablet)
Desktop Keyboard and Mouse
(included with Dell XPS Tablet)
20-248
USB3GIG USB Ethernet Adapter
Gigabit USB 3.0
Part Numbers

Verbatim USB Recovery Drive
(Included with each system)
The recovery drive should not be plugged into
the system unless directed to do so by our
support team.

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008

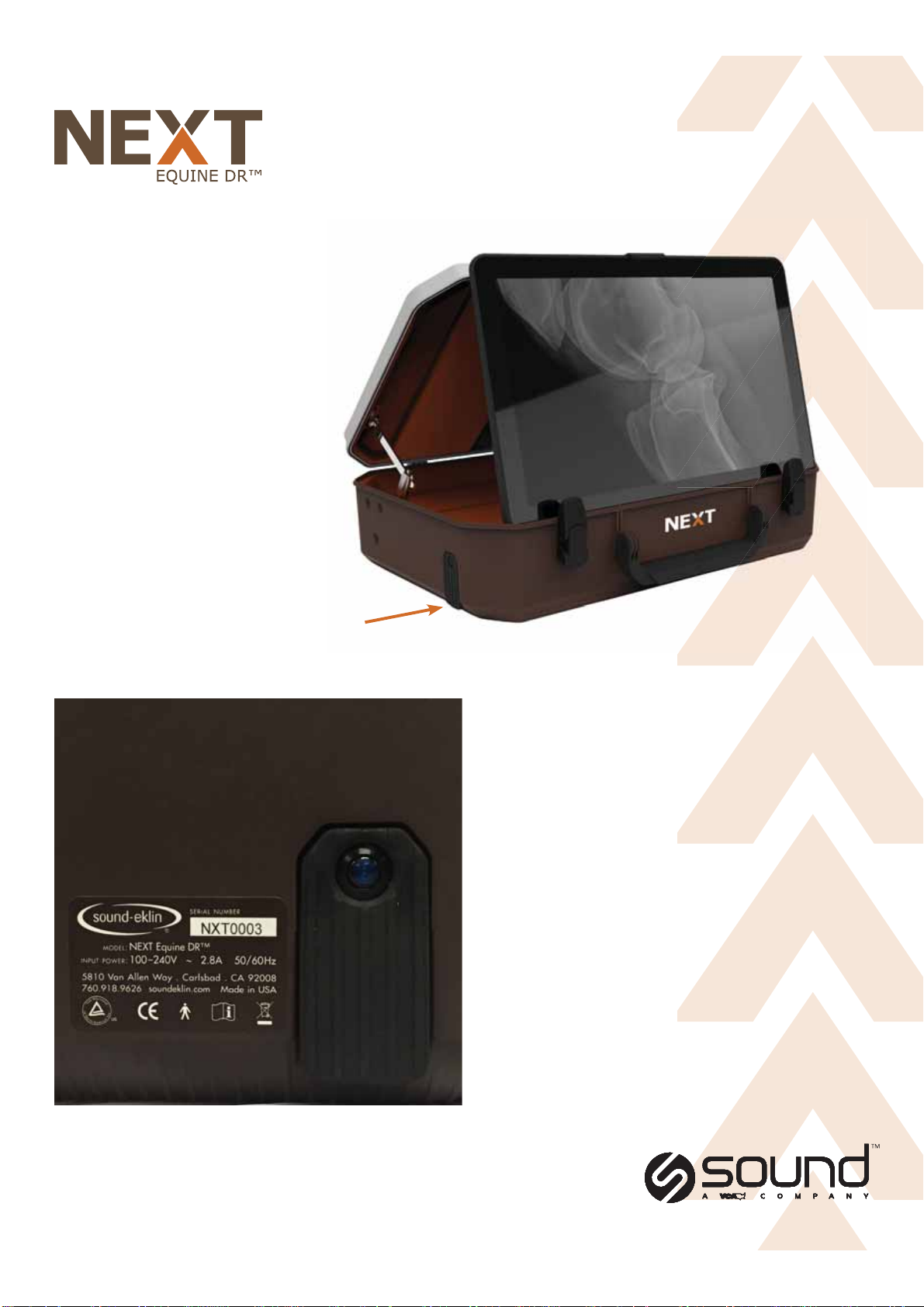

This is the AC power inlet for the system.
Here is a close up view of the system’s AC
SRZHULQOHW1RWHWKHÁH[LEOHUXEEHUFRYHU
which protects the port in the rough
environments encountered by mobile
veterinarians.
Powering Up
This cover is secured using a blue LED which
is continuously illuminated when AC power is
applied to the system.

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008

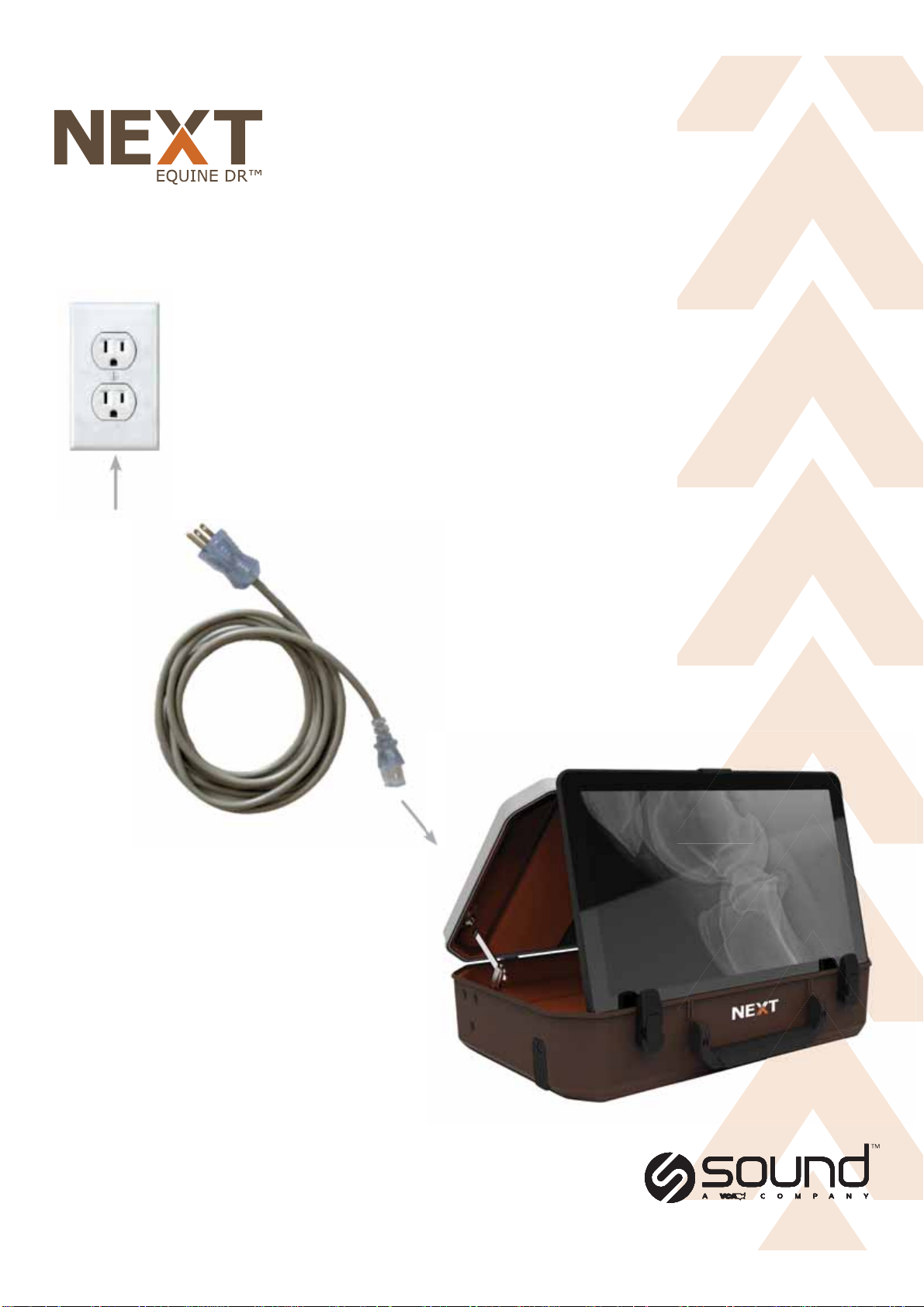

1. Plug the female end of the power cable into the power port on the Next Equine
DR System’s case.
2. With the power cable connected, follow the System Power-Up Procedure to
boot up the Next Equine DR System.
Powering Up

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008

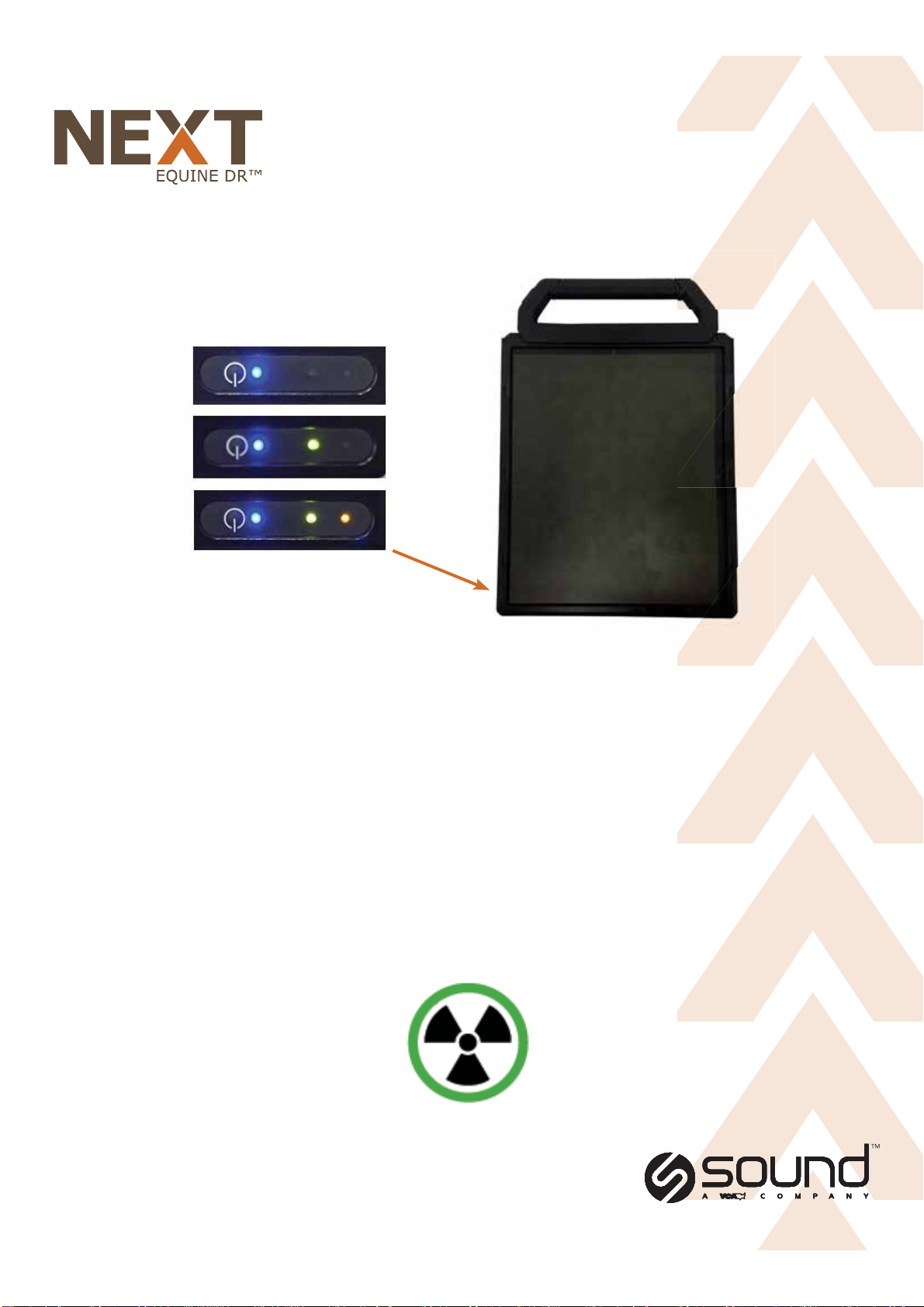

Power Up Procedure
1. Power on the Varian 2530W Autosense receptor panel. On the panel
\RXZLOOVHHWKHVWDWXVOLJKWVKRZQLQWKHÀUVWLPDJHDERYH
2. Power on the Dell XPS tablet.
3. Once the tablet boots, select your user name to login to the system.
SmartDR will auto launch once the operating system is up and running.
4. The Varian 2530W Autosense receptor panel will automatically connect
via Wi-Fi and you will see the status lights shown in the second image above.
5. Once SmartDR launches, it will communicate with the plate via the system’s
Wi-Fi connection. You will see the status lights shown in the third image
above when SmartDR successfully communicates with the panel. You will
also see a green Plate Connection Icon in SmartDR.


The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008

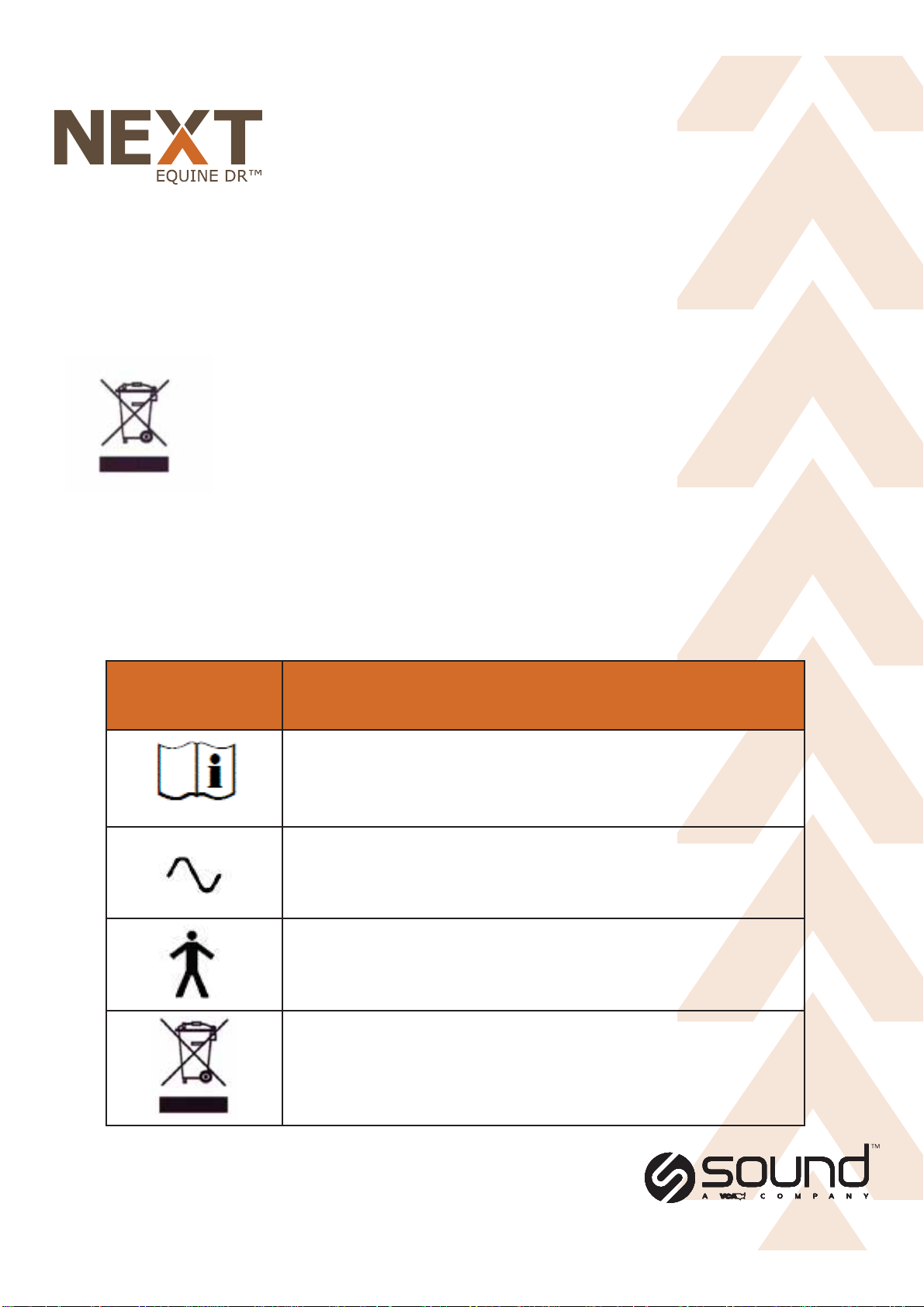

Disposal or Recycling
Follow local governing ordinance and recycling plans regarding the disposal or recycling of device
components and packaging.
This symbol indicates that this product shall not be treated as household
waste. Instead, it shall be handed over to the applicable collection point
for the recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise
be cause by inappropriate waste handling of this product. For more detailed
information about recycling this product, please refer to local governing
ordinances and recycling plans.
Marking and Labelling Symbols
Symbols Description
Consult Instruction for Use
Alternating Current
Type B Applied Part
The unit is rated to “IP64” per IEC60529
WEEE: Waste Electrical and Electronic Equipment

The First Stand-Up Portable DR
Hardware Manual - Sound, 5810 Van Allen Way Carlsbad CA 92008
Product Label and System Serial Number
SERIAL NUMBER will be in the form of “NXTxxxx”, where x = is a consecutive number (ie: NXT0001)
Technical Support
Use the following information for contacting customer support.
2IÀFH+RXUV  :HHNGD\V$0303DFLÀFWLPH
Emergency 24-hour support is available.
Toll Free 800-819-5538
Telephone [phone]
Fax [phone]
International +1.760.918.9626
Shipping Address Sound™
5810 Van Allen Way
Carlsbad, CA 92008
USA
Website www.soundvet.com
