VDP 14139.1110 User manual

Overhead Sport Bar
Storage Console by VDP
Installation Manual for ’87-Current Wrangler YJ/TJ/JK
#14139.1110
PARTS LIST:
A. STORAGE CONSOLE ASSEMBLY - QTY 1
B. COMPARTMENT LINER PADS - QTY 2
C. MOUNTING BRACKETS SPORT BAR - QTY 2
D. SCREW FOR MOUNTING BRACKETS - QTY 4
E. FLAT WASHER - QTY 4
F. 14.5” HOOK & LOOP STRAP - QTY 4
G. 11” HOOK & LOOP STRAP - QTY 4
REQUIRED TOOLS:
SAFETY GLASSES
P3 PHILLIPS HEAD SCREWDRIVER
1/2” OPEN END WRENCH
TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE:
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL INSTRUCTIONS
AND PROCEDURE NOTICES BEFORE ATTEMPTING TO INSTALL OR USE
THIS PRODUCT.
RISK OF EYE INJURY! SAFETY GLASSES MUST BE WORN AT ALL TIMES
WHILE INSTALLING OR MAINTAINING THIS PRODUCT.
A
BB
G
C
D
E
F
VDP_OVERHEAD_CONSOLE_LTR_Layout 1 3/8/13 10:42 AM Page 1
03082013104306

STEP 1: INSTALL COMPARTMENT
LINER PADS
Before you start, put on safety glasses.
Test fit the Liner Pad by centering it on
the compartment bottom floor. Then
remove the wax paper backer to reveal
the adhesive and CAREFULLY place
the pad into the desired position.
Repeat for the opposite side.
2
Overhead Storage Console Installation
STEP 2: AFFIX SPORT BAR
MOUNTING BRACKETS
Position a mounting bracket to the
storage console’s driver side mounting
flange as shown. Note the orientation of
the bracket as it sits on top of the con-
sole’s flange and not underneath it.
Insert a screw into each of the two fas-
tener holes and secure from the under-
side using a flat washer followed by a
lock nut for each.
Repeat for opposite
side of console.
Be sure to tighten
all 4 of the nuts.
Compartment Liner Pad
Mounting Bracket Underside view
Screw
1⁄2” Wrench
VDP_OVERHEAD_CONSOLE_LTR_Layout 1 3/8/13 10:42 AM Page 2
03082013104306

3
Overhead Storage Console Installation
Loop (Fuzzy)
Material shown
facing outward

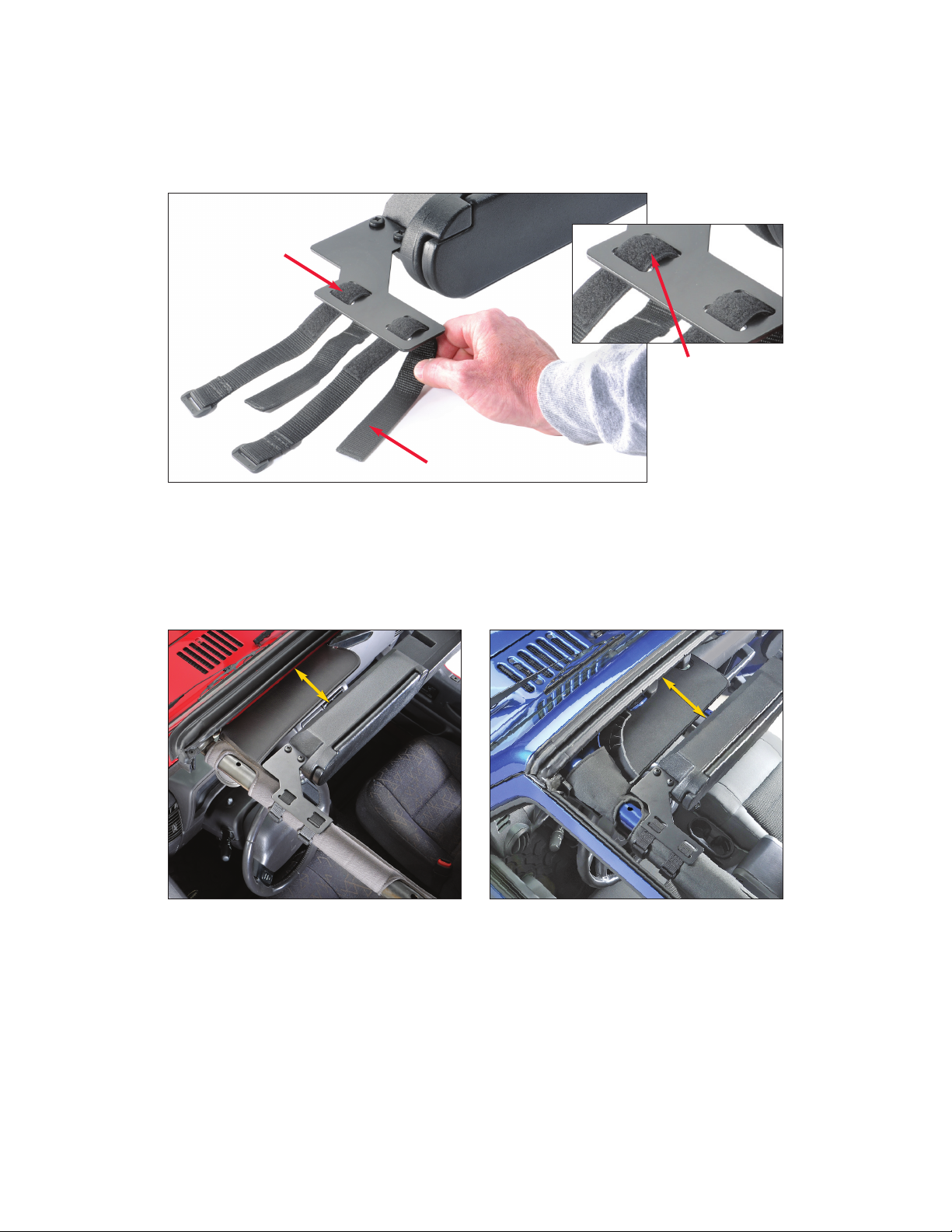

STEP 3: AFFIX HOOK & LOOP STRAPS
Install a mounting strap through the
Sport Bar Mounting Bracket slots as
shown. Use the 14.5” long straps for
2003-Current Wrangler TJ and JK
sport bar applications.
The 11” long straps are used for 1987-02
YJ and TJ Wrangler applications. Be
sure to have the Hook & Loop Materials
facing the outside as shown.
Install two straps per side.
Loop Material
Hook & Loop
Mounting Straps (2 per side)
Leave 5”
Spacing
for ’87-’06
YJ & TJ
14.5” Straps
for ’03-Current
11” Straps
for ’87-’02
Leave 5”
Spacing
for ’87-’06
YJ & TJ
Leave 7”
Spacing for
’07- Current JK
Leave 7”
Spacing for
’07- Current JK
STEP 4: POSITION THE CONSOLE
For ’87-’06 Wrangler YJ & TJ models, in-
stall the Console at least 5” away from
the windshield frame’s interior edge to
allow complete operation of sun-visors
and top latches.
For ’07-current JK models, the Console
should be placed approximately 7”
away from the windshield frame’s inte-
rior edge to allow complete operation
of sun-visors and top latches.
5”
5” 7”
7”
VDP_OVERHEAD_CONSOLE_LTR_Layout 1 3/8/13 10:42 AM Page 3
03082013104322

4
STEP 5: INSTALL CONSOLE
Positioned the correct distance away for
your vehicle’s windsheild frame, place
the completed Console assembly onto
the tops of the sport bars as shown.
Note: For JK hardtop applications, it is
necessary to temporarily remove the
Freedom Panels to install the Overhead
Console. For TJ and JK soft top applica-
tions, the removal of door surrounds will
simplify the installation.
Overhead Storage Console Installation
A cooperation by VDP and Quadratec Inc.
This product subject to VDP Warranty Terms.
©Quadratec, Inc. 2013. All Rights Reserved.
Instructions Part #12999.9015
Tighten each strap to a snug fit and
engage hook & loop straps to secure
Loop each strap around the sport bar
and through the buckle as shown
