Vector VEC061 Supplement

VEC061
OWNER’S MANUAL
& WARRANTY INFORMATION
THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING
SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT.
BEFORE USE, READ AND UNDERSTAND ALL CAUTIONS, WARNINGS,
INSTRUCTIONS AND PRODUCT LABELS, PLUS YOUR VEHICLE’S BATTERY
MANUFACTURER GUIDELINES. FAILURE TO DO SO COULD RESULT IN
INJURY AND/OR PROPERTY DAMAGE.
4140 SW 28TH WAY, FT. LAUDERDALE, FL 33312
TEL [phone] • FAX [phone]
www.vectormfg.com
350 WATT
POWER INVERTER
700 WATT
PEAK
NEW
SOFT START
TECHNOLOGY

2
2
IMPORTANT SAFETY INSTRUCTIONS
To ensure reliable service, your power inverter must be installed and used
properly. Please read the installation and operating instructions thoroughly
prior to installation and use. Pay particular attention to the WARNING and
CAUTION statements in this manual. The CAUTION statements advise
against certain conditions and practices that may result in damage to your
inverter. The WARNING statements identify conditions or practices that
may result in personal injury.
Read All Instructions Before Using This Power Inverter!
WARNINGS:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, EXPLOSION OR INJURY:
1. Do not connect to AC distribution wiring.
2. Remove appliance plug from outlet strip or turn off inverter before
working on the appliance. Multiple outlet power strips with switches and
circuit breakers only interrupt power to the "hot" receptacle terminals. The
"neutral" terminals remain powered with respect to the "ground"
terminals.
3. Do not make any electrical connections or disconnections in areas
designated as IGNITION PROTECTED. This includes DC cigarette lighter
type plug connections, and ring terminal connections.
4. This is not a toy - keep away from children.
CAUTIONS:
1. Do not use with positive ground electrical systems (the majority
of modern automobiles, RVs, trucks and boats are negative ground).
Reverse polarity connection will result in a blown fuse and may cause
permanent damage to the inverter and will void warranty.
2. This inverter will not operate high wattage appliances or equipment that
produce heat, such as hair dryers, microwave ovens and toasters.
3. Grounding the Neutral will cause the inverter to shut down. Do not operate
this inverter if it is wet. Do not install in engine compartment - install in a
well ventilated area.
4. This inverter is not tested for use with medical devices.
IMPORTANT CABLE INFORMATION
Substantial power loss and reduced battery operating time results from
inverters installed with cables that are not able to supply full power. Symptoms of
low battery power can result from cables that are either excessively long or an
insufficient gauge. Marine installations are also subjected to vibration and stresses
that exceed those of other mobile installations. Therefore, the installer/operator
should be especially aware of the requirements to maintain secure, tight, water-
resistant electrical connections and to provide for strain relief for DC cables and
appliance wiring. Cable insulation must be the appropriate type for the
environment.

3
CONTENTS
1. INTRODUCTION ..........................................................4
2. CONTROLS, INDICATORS AND CONNECTORS ..................4,5
3. HOW YOUR INVERTER WORKS ..............................................5
3.1 Principal of Operation ......................................................5
3.2 The Maxx 350SST Output Waveform ....................................6
4. INSTALLATION..............................................................6
4.1 Power Source Requirements ............................................6,7
4.2 Connection to Power Source............................................7,8
4.3 Connection to Load ........................................................8,9
4.4 Placement of Inverter ........................................................9
5. OPERATING TIPS ........................................................10
5.1 Rated Versus Actual Current Draw of Equipment................10
5.2 Battery Operating Time....................................................10
6. PROTECTIVE FEATURES OF INVERTER ........................11
7. COMMON PROBLEMS ..............................................12
8. TROUBLESHOOTING ............................................12,13
9. FUSE REPLACEMENT ..................................................13
10. SPECIFICATIONS ......................................................14
11. GOLD SEAL WARRANTY ................................14,15,16

4
4
1. INTRODUCTION
Your new Vector MAXX350SST inverter is one in a series of the most
advanced DC to AC inverters available today. With proper care and
appropriate usage, it will give you years of dependable service in your car,
truck, RV or boat.
The MAXX350SST supplies 350 watts of continuous power, with a 700
watt peak, in the form of two household-type outlets that are ready to
deliver 110 volt AC power whenever and wherever you need it! The heavy-
duty inverter has enough power to run most household or electronic
appliances, including color TVs (up to 25"), TV/VCR combinations, laptop
computers, camcorders, cellular phone, power tool chargers, lamps and
many more. It also comes equipped with battery clips to handle higher
amperage/load applications, such as; power tools, stereo amplifiers (up to
275 watt RMS), vacuums, etc. Added safety features include automatic
shutdown and a low battery alarm to prevent damage to your battery.
This Power Inverter is configured with the latest soft start technology (SST)
to improve inverter operation. Before introduction of soft-start, high startup
currents from large inductive loads could shut down the inverter. Three
major features are incorporated in SST. First, gradual voltage ramp-up
during inverter startup. This eliminates failed cold starts under load.
Second, output that momentarily dips in voltage and quickly recovers to
allow large motorized loads to start. This eliminates most shutdowns from
momentary overloads. Last, the inverter automatically re-starts when an
overload that caused inverter shutdown is removed. Previously, manual
reset was required.
This power inverter also incorporates a new cooling technology that
directly benefits our customers. The new design more efficiently cools the
power transistors and combined with soft start dramatically increases
reliability and the life of the product.
Given proper care and appropriate use, your inverter is covered by a
2-year initial warranty. You may extend the warranty by an additional two
full years by paying a small fee. See the Warranty Information at the end
of this manual.
2. CONTROLS, INDICATORS AND CONNECTORS
Figure 1 details the front panel of the inverter. The front panel provides two
LED indicators. A green LED shows proper operation when lit. The red LED
shows inverter shutdown from overload, over voltage or over temperature.
Power is supplied through two grounded standard North American outlets.

5
Outlets accommodate either two or three pin AC plugs. An On/Off Switch
turns the inverter circuitry On and Off. The switch is used to force reset of
inverter circuits if it is switched Off, then On.

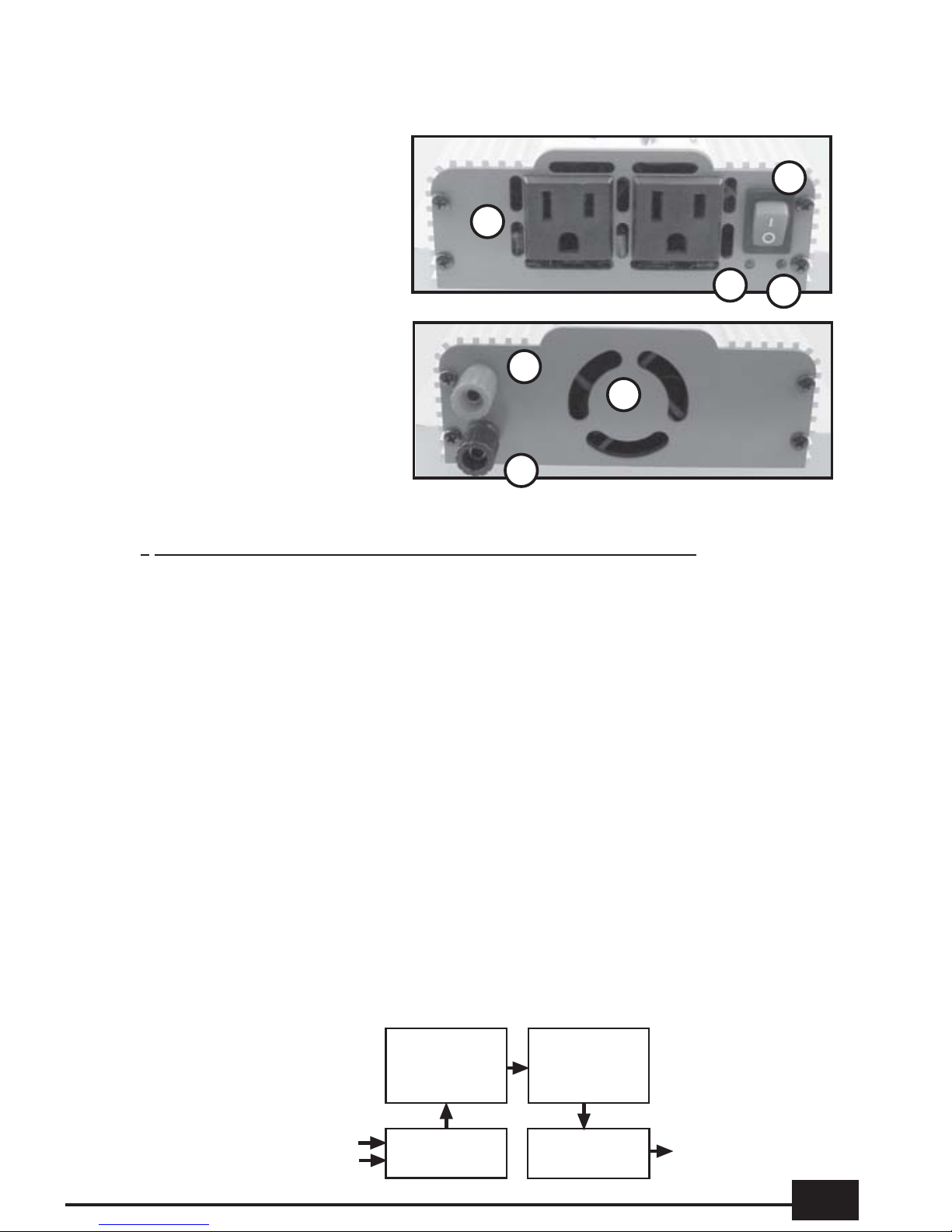

FIGURE 1
FIGURE 2
3. HOW YOUR VECTOR INVERTER WORKS
The inverter converts low voltage DC (direct current) from a battery or other
power source to standard 110 volt AC (alternating current) household
power.
3.1 PRINCIPLE OF OPERATION
The inverter converts power in two stages. The first stage is a DC-to-DC
conversion process that raises the low voltage DC at the inverter input to
145 volts DC. The second stage is the actual inverter stage that converts the
high voltage DC into 110 volts, 60 Hz AC.
The DC-to-DC converter stage uses modern high frequency power
conversion techniques that have replaced the bulky transformers found in
less technologically-advanced models. The inverter stage uses advanced
power MOSFET transistors in a full bridge configuration. This ensures
excellent overload capability and the ability to operate reactive loads like
lamp ballasts and small induction motors.
FIGURE 3
Principle of Operation
12VDC TO
145VDC
CONVERSION
145VDC TO
110VAC
CONVERSION
Internal
Fuses Two AC Outlets
12VDC
Input 110 VAC, 60Hz To AC Appliances
1. HIGH SPEED COOLING FAN
2. (+) DC POWER CONNECTIONS
3. (–) DC POWER CONNECTIONS
1. RED SHUT DOWN LED
2. GREEN OPERATING LED
3. 2 (110) RECEPTACLES
4. ON/OFF SWITCH
2
3
4
1
2
3
1

6
6
3.2 THE MAXX 350SST OUTPUT WAVEFORM
The AC output waveform of the MAXX350SST is known as “modified sine
wave”. It is a waveform that has characteristics similar to the sine wave
shape of utility power. This type of waveform is suitable for most AC loads,
including linear and switching power supplies used in electronic
equipment, transformers, and motors.
The modified sine wave produced by the MAXX350SST inverter has an
RMS (root mean square) voltage of 110 volts, which is the same as
standard household power. Most AC voltmeters (both digital and analog)
are sensitive to the average value of the waveform rather than the RMS
value. They are calibrated for RMS voltage under the assumption that the
waveform measured will be a pure sine wave. These meters will not read
the RMS voltage of a modified sine wave correctly. They will read about 20
to 30 volts low when measuring the output of the inverter. For accurate
measurement of the output voltage of this unit, use a true RMS reading
voltmeter such as a Fluke 87, Fluke 8060A, Fluke 77/99 series, Beckman
4410, or Triplett 4200.
FIGURE 4
Modified Sine Wave and Sine Wave Comparison
4. INSTALLATION
4.1 POWER SOURCE REQUIREMENTS
The power source must provide between 11 and 14.5 volts DC and must
be able to supply the necessary current to operate the load. The power
source may be a battery or a well-regulated DC power supply. To obtain a
rough estimate of the current (in amperes) the power source must deliver,
simply divide the power consumption of the load (in watts AC) by 10.
Example: If a load is rated at 350 watts AC, the power source must be able
to deliver: 350 divided by 10 = 40 amperes

7
CAUTION: The MAXX 350SST must be connected only to batteries with
a nominal output voltage of 12 volts. The unit will not operate from a 6
volt battery and will sustain permanent damage if connected to a 24
volt battery.
4.2 CONNECTION TO POWER SOURCE
The MAXX350SST comes equipped with a cigarette lighter plug and
battery clip cables for connection to the power source:
CAUTION: Do not use with positive ground electrical systems (the
majority of modern automobiles, RVs, and trucks are negative ground)
Connecting to Power Source Using Cigarette Lighter Plug:
The cigarette lighter plug is suitable for operating the inverter at
power outputs up to 150 watts. The tip of the plug is positive and
the side contact is negative. Connect the MAXX350SST to the power
source by inserting the cigarette lighter plug firmly into the
cigarette lighter socket of a vehicle or other DC power source.
CAUTION: Connect directly to power source with supplied battery clips
when operating above 150 Watts.
NOTE: Most automobile cigarette lighter circuits use fuses rated at 15 to
20 Amps or greater. To operate over 150 watt to a full 350 watt output,
either use the battery clip cables (supplied) or directly wire to the power
source with user-supplied wire and fuse. Caution: Reverse polarity
connection will
result in a blown fuse and may cause permanent damage
to the inverter and will void the warranty.
Connecting to a Power Source Using Provided Cables:
If the inverter is to be used for extended periods at power levels above 150
watts, direct connection to the power source is required. Use the provided
cables to connect the MAXX350SST directly to the 12 volt power source
using the following guidelines:
1. Check to be sure the MAXX350SST power switch is turned off and that
no flammable fumes are present.
2. Connect the black cable to the black post marked “(-)” on the back of
the inverter. Connect the battery clip to the negative terminal of the
battery.
3. Connect the red cable to the red post marked “(+)” on the back of the
inverter. Connect the battery clip to the positive terminal of the battery.

8
8
4. Check to be sure that all connections between battery clips and
terminals are secure.
Direct Hardwiring to Power Source:
Use #10 AWG wire if the inverter to power source connection is 14 feet or
less. For longer cable lengths use #8 AWG wire. In either case, protect the
positive (+) wire from shorts by installing a 50 Amp fuse or circuit breaker
close to the DC power source (battery) terminal.
1. Check to be sure the inverter’s power switch is turned off and that no
flammable fumes are present.
2. Identify the positive (+) and negative (-) DC power source (battery)
terminals.
3. Install a fuse holder or breaker close to the positive (+) terminal of the
DC source (battery).
4.
Connect a length of wire on one side of the fuse holder or circuit breaker.
Connect the other end if the wire to the Positive (+) terminal of the inverter.
5. Connect a length of wire between the inverter’s negative (-) terminal
and the DC power source negative (-) terminal.
6. Connect a short length of wire to the other terminal of the fuse holder
or circuit breaker. Mark it “POSITIVE” or “+”.
7. Connect the free end of the fuse or breaker wire to the positive terminal
of the DC power source (battery).
8. Insert a 50 Amp fuse in the fuse holder.
9. Test the inverter by turning it on and plugging in a 100 watt lamp or
equipment.
10. If the inverter is not properly operating, then refer to the trouble-
shooting sections of this manual.
CAUTION: Loose connectors may cause overheated wires and melted
insulation. Check to make sure you have not reversed the polarity.
Damage due to reversed polarity is not covered by our warranty.
4.3 CONNECTION TO LOAD
The MAXX350SST is equipped with dual standard North American AC
power receptacles. Plug the cord from the equipment you wish to operate

9
into the AC receptacle(s). The green LED indicator lights to indicate that the
inverter is functioning. Make sure the combined load requirement of your
equipment does not exceed 350SST watts.
The MAXX350SST is engineered to be connected directly to standard electrical
and electronic equipment in the manner described above. Do not connect the
Power Inverter to household or RV AC distribution wiring. Do not connect the
Power Inverter to any AC load circuit in which the neutral conductor is
connected to ground (earth) or to the negative of the DC (battery) source.
WARNING: Do not connect to AC distribution wiring
CAUTION: RECHARGEABLE APPLIANCES
Certain rechargeable devices are designed to be recharged by
plugging them directly into an AC receptacle. These devices may
damage the inverter. Do not use the inverter to recharge items that can
be plugged directly into an AC receptacle.
This problem does not occur with the majority of battery-operated
equipment. Most of these devices use a separate charger or transformer
that is plugged into an AC receptacle. The MAXX350SST is easily capable
of running most chargers and transformers.
4.4 PLACEMENT OF THE INVERTER
For best operating results, the inverter should be placed on a flat surface,
such as the ground, car floor or seat, or other solid surface. A power cord
measuring 3 feet (1.0 meter) has been provided for easy positioning of the
inverter. The inverter should only be used in locations that meet the
following criteria:
DRY - Do not allow water and/or other liquids to come into contact with
the MAXX350SST inverter.
COOL - Ambient air temperature should be between 30 degrees F (-1
degree C) non-condensing, and 105 degrees F (40 degrees C). Do not
place the inverter on or near a heating vent or any piece of equipment
which is generating heat above room temperature. Keep the inverter away
from direct sunlight, if at all possible.
VENTILATED - Keep the area surrounding the inverter clear to ensure free
air circulation around the unit. Do not place items on or over the inverter
during operation. A fan is helpful if the inverter is operating at maximum
power outputs for extended periods of time. The unit will shut down if the
internal temperature exceeds 90 degrees C. The unit will restart after it
cools.

10
10
WARNING - Do not use the inverter near flammable
materials or in any locations that may accumulate
flammable fumes or gases.
5. OPERATING TIPS
5.1 RATED VERSUS ACTUAL CURRENT DRAW OF EQUIPMENT
Most electrical tools, appliances and audio/video equipment have labels
that indicate the power consumption in amps or watts. Be sure that the
power consumption of the item you wish to operate is rated at 350 watts
or less (If the power consumption is rated in amps AC, simply multiply by
the AC volts (110) to determine the wattage). The inverter has overload
protection, so it is safe to try to operate equipment rated at 350 watts or
less. The inverter will shut down if it is overloaded. The overload must be
removed before the inverter will restart. Resistive loads are the easiest for
the MAXX350SST to run. However, larger resistive loads, such as electric
stoves or heaters, usually require more wattage than the MAXX350SST can
deliver on a continuous basis. Inductive loads, such as TV’s and stereos,
require more current to operate than do resistive loads of the same wattage
rating. Induction motors, as well as some televisions, may require 2 to 6
times their wattage rating to start up. The most demanding in this category
are those that start under load, such as compressors and pumps. Testing is
the only definitive way to determine whether a specific load can be started
and how long it can run. The unit will simply shut down if it is overloaded.
To restart the unit after a shutdown due to overloading, remove the
overload.
CAUTION: This inverter will not operate high wattage appliances or
equipment that produce heat, such as hair dryers, microwave ovens
and toasters.
5.2 BATTERY OPERATING TIME
With a typical vehicle battery, a minimum operating time of 2 to 3 hours
can be expected. In most instances, 5 to 10 hours of operating time is
achievable. However, Vector recommends that the operator start the vehicle
every 2 to 3 hours to recharge the battery system. This will guard against
any unexpected shut-down of the equipment and will ensure that there is
always sufficient battery capacity to start the vehicle’s engine. The inverter
will sound it’s alarm when DC voltage drops to 10.5V.
The inverter may be used whether or not the vehicle’s engine is running.
However, the inverter may not operate while the engine is starting since the
battery voltage can drop substantially during cranking.

11
The inverter draws less than 0.3 ampere from the battery when it is not
supplying power to a load. In most instances, the inverter can be left
connected to the battery when not in use since it draws so little current.
However, if the vehicle is to remain unused for several days, disconnect the
inverter from the battery.
6. PROTECTIVE FEATURES OF THE INVERTER
Your MAXX350SST monitors the following potentially hazardous
conditions:
Low Battery Voltage - This condition is not harmful to the inverter but could
damage the power source. An audible alarm will sound when input
voltage drops to 10.6. The MAXX350SST automatically shuts down when
input voltage drops to 10.0 volts. When the condition is corrected, the unit
may be restarted. Over Voltage Protection - The MAXX350SST will
automatically shut down when the input voltage exceeds 15 volts DC.
Short Circuit Protection - Reverse polarity or a short circuit condition will
usually result in an external fuse being blown.
Overload Protection - The inverter will automatically shut down when the
continuous draw exceeds 350SST watts.
Over Temperature Protection - When the temperature sensor inside the
MAXX350SST reaches 150 degrees F, the unit will automatically shut
down. Allow the unit to cool for at least 15 minutes before restarting after
a heat-related shutdown. Unplug unit while cooling.
Low Battery Alarm - An alarm will sound when the voltage from the battery
drops to 10.6 volts. This is an indication that the battery needs to be
recharged. The user should stop operation of the electronic device at this
time since the inverter will shut down automatically shortly thereafter, when
the battery voltage drops to 10 volts. Start your engine to recharge the
battery.
If the low voltage alarm sounds when the battery is fully charged, follow
the steps for solving lack of output power in the Troubleshooting Guide. The
alarm will sound when the inverter is overloaded, in thermal shutdown, or
if there is an excessive voltage drop between the battery and inverter.

12
12
NOTE: It is normal for the alarm to sound while the unit is being connected
to, or disconnected from, the power source. This is not indicative of a
problem.
7. COMMON PROBLEMS
“Buzzing” sound in audio systems:
Some inexpensive stereo systems and “boom boxes” emit a buzzing sound
from their speakers when operated from the MAXX350SST power inverter.
This occurs because the power supply in the electronic device does not
adequately filter the modified sine wave produced by the inverter. The only
solution to this problem is to use a higher quality sound system that
incorporates a higher quality power amplified supply.
Television Interference:
The Vector MAXX350SST is shielded to minimize interference with TV
signals. However, in some instances, some interference may still be visible,
particularly with weak TV signals. Try the following corrective measures:
• Position the inverter as far as possible from the television, the antenna
and the antenna cables. Use an extension cable, if necessary
• Adjust the orientation of the inverter, the antenna cables and the TV
power cord to minimize interference
• Make sure that the antenna feeding the television provides an adequate
(“snow free”) signal and that high quality, shielded antenna cable is
used

13
8. TROUBLESHOOTING GUIDE:
TABLE 1 - INVERTER POWER SWITCH TURNED ON
TROUBLE/ INDICATION POSSIBLE CAUSE SUGGESTED REMEDY
No AC output – DC input below 10 Volts Recharge or replace
red LED lit battery
No AC output – Excessive appliance Reduce load-wait for
red LED lit load-thermal shutdown inverter to cool.
No AC output Inverter cold Disconnect load from
inverter. Operate inverter
without load for a few
minutes. Reconnect load.
No AC output – Inverter fuses open Check unit for open
Green LED not lit Internal fuses.
Remove and replace with
same type & rating.
TROUBLE/ INDICATION POSSIBLE CAUSE SUGGESTED REMEDY
Low battery alarm Bad connection or wiring Tighten all DC
sounds continuously connections
Low battery Low battery voltage Recharge battery.
alarm sounds Remove load from
inverter while recharging
battery
Motorized power tool Excessive start-up load If appliance does not start,
won’t start then appliance is drawing
excessive wattage and will
not work with inverter
Motorized power tool Purely inductive load Make the load not purely
does not operate at inductive. Operate an
correct speed incandescent lamp at
same time as motor
Television/Radio Snow in picture, buzz Keep inverter and
interference in speaker antenna distant from
each other. Use shielded
antenna cable. Connect
antenna to amplifier

14
14
9. FUSE REPLACEMENT
If external fuses blow, (or breakers trip), then there is a short or overload
in the DC wiring. Find and fix the problem before replacing the fuses (or
resetting the breaker). After fuse replacement, reconnect the inverter.
This power inverter is equipped with multiple internal fuses. Normally,
these fuses will not blow unless there is a serious problem inside the unit.
Internal fuses are replaceable, however, only electronically knowledgeable
people should attempt fuse replacement. If the unit is damaged during fuse
replacement, the warranty may be voided. Vector recommends contacting
Vector Technical Support for guidance. Based on experience, it is best to
return the unit to Vector for repair. Vector Technical Support can be
reached by calling 954-584-4446, extension 19 or toll-free 866 584-
5504. You may also contact us by visiting our
[e-mail].
10. SPECIFICATIONS
Output Connection ..........Dual North American Standard Receptacles
Output Voltage......................................Approx 110 VAC RMS 60 Hz
Output Current ..................................................................3.2 Amps
Continuous Output Watts ............................................................350
Peak Output Watts ......................................................................700
Output Waveform ..................................Modified Sine Wave (filtered)
Input Voltage Range ..............................................10.5 to 14.7 VDC
Low Voltage Alarm ............................................................10.5 VDC
Low Voltage Shutdown........................................................10.0 VDC
No Load Input Current ........................................................0.4 Amps
Input Fuses ............................................................................Internal
Input Cables:..............................One Cig Light Plug (up to 150 Watts)
........................................................................
Battery Clip Cable (up to 350 watts)
Additional Protection ..........................Overload, Over volt, Over temp
Auto-Recover from shutdown ................................................Self reset
Weight..................................................................1.55 Lbs (0.70 kg)
Length ..................................................................4.5 in. (11.43 cm)
Width ..................................................................1.75 in. (4.45 cm)
Height ..................................................................4.5 in. (11.43 cm)

15
11. WARRANTY
2/4 YEAR GOLD SEAL LIMITED WARRANTY PROGRAM
This limited warranty program is the only one that applies to this product,
and it sets forth all the responsibilities of Vector Manufacturing, Ltd.,
regarding this product. There are no other warranties, other than those
described herein.
This Vector Manufacturing, Ltd. product is warranted, to the original
purchaser only, to be free of defects in materials and workmanship for two
years from the date of purchase without additional charge. This warranty
may be extended by two years (four years total) by paying an Extended
Warranty fee (see below). The warranty does not extend to subsequent
purchasers or users. Vector Manufacturing, Ltd. will not be responsible for
any amount of damage in excess of the retail purchase price of the product
under any circumstances. Incidental and consequential damages are
specifically excluded from coverage under this warranty.
This product is not intended for commercial use. This warranty does not
apply to accessories or damage to units from misuse or incorrect
installation. Misuse includes wiring or connecting to improper polarity
power sources.
RETURN/REPAIR POLICY: Defective products, other than accessories, may
be returned postage prepaid to Vector Manufacturing. Any defective
product, other than accessories, that is returned to Vector Manufacturing
within 30 days of the date of purchase will be replaced free of charge. If
such a product is returned more than 30 days but less than two years from
the purchase date, Vector Manufacturing will repair the unit or, at its
option, replace it free of charge. If The Extended Warranty was activated,
this repair or replacement period extends to four years from the purchase
date.
If the unit is repaired, new or reconditioned replacement parts may be
used, at Vector Manufacturing’s option. A unit may be replaced with a new
or reconditioned unit of the same or comparable design. The repaired or
replaced unit will then be warranted under the terms of the remainder of
the warranty period.
The customer is responsible for the shipping charges on all returned items.
During the warranty period, Vector Manufacturing, Ltd. will be responsible
for the return shipping charges.

© 2004 VECTOR MANUFACTURING, Ltd.
FT. LAUDERDALE, FL 33312
MADE IN CHINA
LIMITATIONS: This warranty does not cover accessories, bulbs, fuses and
batteries, defects resulting from normal wear and tear (including chips,
scratches, abrasions, discoloration or fading due to usage or exposure to
sunlight), accidents, damage during shipping to our service facility,
alterations, unauthorized use or repair, neglect, misuse, abuse, failure to
follow instructions for care and maintenance, fire, flood, and Acts of God.
If your problem is not covered by this warranty, call our Technical Support
Department at [phone] Ext 19 or www.vectormfg.com for general
repair information and charges if applicable.
STATE LAW RIGHTS: This warranty gives you specific legal rights. Some
states do not allow limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential damages, so the
exclusions or limitations stated herein may not apply. This warranty gives
the purchaser specific legal rights; other rights, which vary from state to
state, may apply.
TO REQUEST WARRANTY SERVICE FOR THIS PRODUCT: Contact Vector
Manufacturing Technical Support by telephone, fax or mail. We suggest
that you keep the original packaging in case you need to ship the unit.
When returning a product, include your name, address, phone number,
dated sales receipt (or copy), and a description of the reason for return and
product serial number. After replacing the unit, we will return it to you
within four weeks.
WARRANTY ACTIVATION: Please complete Warranty Activation Card and
mail to Vector Manufacturing. If activating Additional Extended Two Year
Warranty, (total two years) enclose check or money order for $20.00 Enter
“VEC061” as Model and Power Inverter as “Product Type”. All Vector
