Veesta World V-PM1000 Series User manual

Veesta World Co
User’s Manual
V-PM1000 Series
VP-1405A User’s Manual
Intelligent 48V Charger and Power Supply with
Monitoring System for Automation Purpose
Author: Veesta World Co., Engineering Department

TRADEMARKS
VEESTA and VEESTA WORLD are trademarks of Veesta World Co. Iran
V-PM1000 is trademarks of Power Module system of VEESTA WORLD Co.
NOTICE
The information in this document is subject to change without notice and should not
be construed as a commitment by VEESTA WORLD Co. Veesta World Co assumes
no responsibility for any errors that may appear in this document.
In no event shall Veesta World Co be liable for direct, indirect, special, incidental or
consequential damages of any nature or kind arising from the use of this document,
nor shall Veesta World Co be liable for incidental or consequential damages arising
from use of any software or hardware described in this document.
This document and parts thereof must not be reproduced or copied without
Veesta World Co’s written permission and the contents thereof must not be imparted
to a third party nor be used for any unauthorized purpose.

VP-1405A Advanced Power Document History
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 3 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
DOCUMENT HISTORY
Version Date Comment
1.0 2019/04/01 First issue
1.1 2020/05/05 Update connection diagrams
1.2 2020/07/01 Modifying AC Fuse rate, adding battery fuse diagram
1.3 2020/07/25 Correction of wiring schematics for AC line

VP-1405A Advanced Power Table of Content
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 4 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
TABLE OF CONTENT
Chapter 1 - Introduction..................................................................... 8
1.1 General Information...............................................................8
1.2 Features ................................................................................8
1.2.1 Characteristics ...........................................................9
1.2.2 Standard features ......................................................9
1.2.3 Metering Features....................................................10
1.2.4 Setting and Set-points..............................................10
1.2.5 Communications ......................................................10
1.3 VP-1405A Software Tools program.....................................11
Chapter 2 - System Overview .......................................................... 12
2.1 Overview .............................................................................12
2.2 Design Principals.................................................................12
Chapter 3 - Specifications................................................................ 14
3.1 VP-1405A Specifications.....................................................14
3.1.1 Main AC Power input ...............................................14
3.1.2 Output Specifications...............................................14
3.1.3 Protection Functions ................................................15
3.1.4 Communication Port ................................................16
3.1.5 Alarm outputs...........................................................16
3.1.6 General Specifications .............................................17
3.1.7 Environment.............................................................17
3.1.8 Dimension / Physical................................................17
Chapter 4 - Unit Installation ............................................................. 18
4.1 Unit Observation..................................................................18
4.2 Terminal Definitions.............................................................18
4.3 Mains Power Supply Connection.........................................20
4.4 Field Ground........................................................................20
4.5 Precautions in Installation....................................................21
4.6 RS485 Communication Wiring ............................................21
4.7 Wiring Diagram....................................................................24
4.8 Dimensions and Positions ...................................................25
Chapter 5 - Panel Operation ............................................................ 27
5.1 Overview .............................................................................27
5.2 Status Indications ................................................................29
5.2.1 Power LED...............................................................29

VP-1405A Advanced Power Table of Content
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 5 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
5.2.2 Charging LED ..........................................................29
5.2.3 Discharge LED.........................................................29
5.2.4 Activation LED .........................................................29
5.2.5 Undervoltage LED....................................................29
5.2.6 Failure LED..............................................................29
5.3 Key Button Functions ..........................................................29
5.3.1 Activation buttons.....................................................29
5.3.2 Battery buttons.........................................................29
Chapter 6 - Protocol and Communication ...................................... 31
6.1 PLC Modbus® Compatible..................................................31
6.2 Comprehensive System Integration ....................................31
6.3 Transmission Mode .............................................................31
6.3.1 Slave Address..........................................................32
6.3.2 Function Code .........................................................32
6.3.3 Data .........................................................................32
6.3.4 CRC .........................................................................32
6.3.5 Protocol....................................................................32
6.4 Modbus Framing .................................................................33
6.4.1 Address Field...........................................................33
6.4.2 Function Field ..........................................................33
6.4.3 Data field..................................................................33
6.4.4 Error Check filed ......................................................34
6.4.5 Error Detection.........................................................34
6.4.6 CRC-16 Algorithm....................................................35
6.5 Error responses...................................................................36
Chapter 7 - Register Map Profile ..................................................... 37
7.1 Introduction..........................................................................37
7.2 Summary of Data Conversion .............................................37
7.3 Memory Map Data Format...................................................37
7.4 Memory Map Register Table ...............................................40
Chapter 8 - Troubleshooting............................................................ 44
8.1 Introduction..........................................................................44

VP-1405A Advanced Power Table of Content
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 6 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
TABLE OF FIGURES
Figure 2-1: VP-1405A Design Principal.....................................................................13
Figure 4-1: VP-1405A Terminal Definitions ...............................................................18

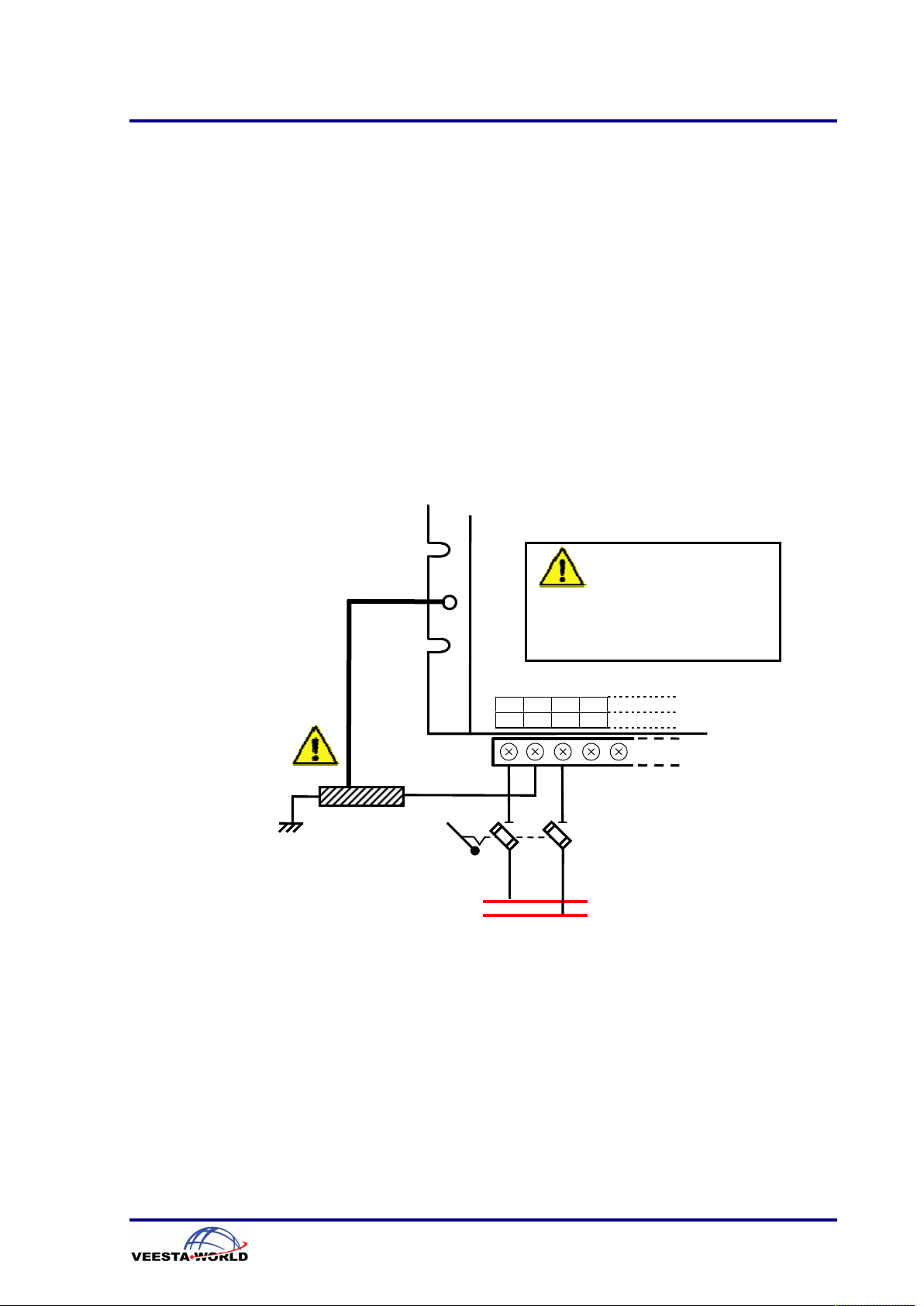

Figure 4-2: VP-1405A Power Supply & Field Ground................................................20
Figure 4-3: VP-1405A RS-485 Communication Wiring..............................................23
Figure 4-4: VP-1405A Wiring Diagram ......................................................................24
Figure 4-5: VP-1405A Dimensions ............................................................................25
Figure 4-6: VP-1405A Mounting holes & places........................................................26
Figure 5-1: VP-1405A Front Panel Descritions..........................................................27

VP-1405A Advanced Power Table of Content
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 7 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
INDEX OF TABELS
Table 4-1: VP-1405A Base Terminal Definitions .......................................................19
Table 6-1: VP-1405A Modbus conventions table ......................................................31
Table 6-2: VP-1405A Modbus Function Codes .........................................................33
Table 6-3: VP-1405A Modbus Exception Codes .......................................................36
Table 7-1: VP-1405A Data Format types ..................................................................38
Table 7-2: VP-1405A Input Registers, Read Only Data ............................................41
Table 7-3: VP-1405A Holding Registers, Read/Write Data .......................................43
Table 8-1: VP-1405A Troubleshooting ......................................................................44

VP-1405A Advanced Power Chapter 1 - Introduction
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 8 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
Chapter 1 - Introduction
1.1 General Information
This is technical information and user's manual of V-PM1000 Product
Series a product model of VP-1405A the intelligent battery charger
and power supply device from the Veesta World Company. This
document helps you to find about how V-PM1000 Series works and
designed for your purpose.
V-PM1000 Series consist of many power system and module device
from DC-DC converters, AC-DC converters, battery charger, power
supply system and other related power application for the power
electric system adopted for from very small function as like of power
supply from that can be used in as conventional power systems up to
very large function intelligent charger and supply system for un-
manned substation and automation stations and distribution in
electric or telecommunication and other facilities networks.
The VP-1405A power supply with battery backup system is an ideal
device to supply power source for the SCADA and automation
projects when continuous monitoring and control to system is
required.
1.2 Features
The VP-1405A provides not only power source in 48V system DC for
the automation products but also metering for current, voltage of load
as well as battery backup voltage and current value. Programmable
set-points and optional assignable output relays allow to have
monitoring device and your power supply and battery charger could
be controlled and monitored remotely by other system like Remote
Terminal Units or Programmable Logic Controller.
The provided measurement to DC load and battery load is a good
thing that any control center could gathering data and save historical
information and study over the main supply of power system
remotely as well as providing more reliability to the automation
applications.

VP-1405A Advanced Power Chapter 1 - Introduction
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 9 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
All above monitored values are available via digital communication
port RS485 running the ModBus® protocol. Also it is possible to
define the 4 alarm output relay to be interconnecting hard wiring 4
alarms of power supply and battery charger to the other system or
providing the alarm and indication annunciated.
The device has ability to be also configured some operation on relay
out put with alarm mapping to which alarm and status indication of
the intelligent power supply and battery charger.
The VP-1405A adopts connection realized by terminals that can be
pulled out and inserted, thus facilitating on-site wiring and
maintenance.
1.2.1 Characteristics
 Metering of DC output load current and voltage
 Metering of Charger voltage charge and current charge
 Metering of Battery discharge current and voltage
 Commercial, industrial, utility
 Independent battery charger
 High Isolation between mains AC input and outputs
 Flexible control for demand battery deactivation and battery
discharge activation
 4 controlled relay outputs for alarm and indication
 Programmable alarm and status indication
 LED display on module within the 4 operation push button
 RS485 serial port
 ModBus® RTU protocol
 Smart and compact design
1.2.2 Standard features
The VP-1405A is wall mount power supply for 48V DC system with
battery backup as called as DC-UPS system.
The change of power source of mains AC input will switch to back-up
battery connected to system in zero switching time.
The device can carry out 5.6A continues current and also 13A
current in a time smaller than 30 seconds for driving any motor or
actuator in the automation projects.

VP-1405A Advanced Power Chapter 1 - Introduction
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 10 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
1.2.3 Metering Features
The VP-1405A provide the metering of output load current, voltage
and also the battery load and voltage in good accuracy which whelp
users to maintain the operation of their system load and also the
battery life. This information is available via the ModbusRTU protocol
by RS485 communication network.
 Output load Voltage metering
 Output load Current metering
 Battery Voltage metering
 Battery Current metering
 Battery Charge/Discharge metering
A keyboard and light contrast LED display also provided to do some
urgent case operation or status monitoring.
1.2.4 Setting and Set-points
In VP-1405A there is a feature that you can provide some settings
regarding the change default configuration or apply new setting for
operation as like as any of the assignable output relays may be used
to trigger and alarm for specific applications and status.
You can also assign and change some threshold like alarm of under
voltage or change of shutdown output load regarding the current
situation of battery voltage and etc.
1.2.5 Communications
Integrate process, instrumentation and electrical requirements in a
plant automation system by connecting VP-1405A power system
together to a DCS or SCADA system. A PC running the VP-1405A
can change system set-points, monitor values, status and alarms.
Continuous monitoring minimizes process downtime by immediately
identifying potential problems due to faults or changes from growth.
 RS485 ModBus® 2,400; 9600; 19,200; 38,400 bps
 RTU SCADA system component
 Measure actual values
 Read status
 Issue control commands
 Load all set-points
 Change individual set-points

VP-1405A Advanced Power Chapter 1 - Introduction
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 11 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
1.3 VP-1405A Software Tools program
The "VP-1000 Software Tool" is PC program in Windows based
program for the VP-1405A. It can be used to enter set-points, read
metered values, monitor status and evaluate power quality. All data
continuously gathered by the VP-1405A can be transferred to a third
party software program for display, control or analysis via the
communications interface.
Once all set-points have been entered they can be downloaded into
any VP-1405A or stored in a file with a tag name for later reference.
Screens are available for monitoring all measured values such as
current, voltage or power. Status of alarms and control settings can
also be displayed.

VP-1405A Advanced Power Chapter 2 - System Overview
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 12 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
Chapter 2 - System Overview
2.1 Overview
In places that need reliable power supply and also backup power via
battery is important and is an important issue for any engineer or
consultant or user, the unique design charger of the VP-1405A from
V-PM1000 Product Series of Veesta World Company along with its
quality construction will be a complete and convincing answer for
everyone.
In this chapter you will found how this product has been designed
and how it can help you.
2.2 Design Principals
The VP-1405A can work after inputting AC power. The power supply
will power the load, and at the same time, the battery is charged by
constant current and constant voltage (CC/CV mode). When the
battery is finished charging, the power supply automatically switches
to the floating state. Meanwhile the power supply provides floating
charging voltage and current to supplement the normal self-
discharge of the battery.
When the AC is powered off, the battery is continuously providing the
power to the load in zero switching time. When the battery is
discharged to the under-voltage alarm point, the battery under-
voltage warning signal is on. When the battery discharge is lower
than the under-voltage protection point, the power is automatically
turned off. These points are programmable and also can be set
Modbus RTU. We do not recommend changing values of these
points.
If it is need to turn off the battery output in advance, it can be done
manually by press the battery OFF button for 5 seconds or remotely
control the relay controlled by the CPU to short-circuit the battery
remote control terminal or also by remote Modbus RTU command,
then the battery will be shut down in advance.
Note: The battery early exit function is forbidden when the battery is
activated; otherwise the load will be powered off for a short time.
When the battery exits early and the load is cut off, the power can be
restored only manually or when the AC is restored.

VP-1405A Advanced Power Chapter 2 - System Overview
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 13 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
When the load requires a large inrush current and exceeds the
maximum current supplied by the power supply, the power supply will
be protected and turned off by itself. Then the load current is
completely provided by the battery. When the load current is less
than the maximum current supplied by the power supply, the power
supply automatically starts working.
For more information please see the internal circuit of VP-1405A on
the bellow picture:
Figure 2-1: VP-1405A Design Principal
L
LOAD
19, 20
-
+
Isolated
RS485
Modbus RTU
48V System
21, 22
VO+
VO
-
N
FG
Alarm Outputs
A+ (D+)
B- (D-)
Battery Pack
48V
1 2 3 6
Input
EMC Filter
High Voltage
Rectification Filter
P.W.M Controller
Section
Output
Rectification Filter
Output Detection
and Protection
Key Function
Status Display
Volt & Current
Adjustment
Centralized
Processing
Controller
Battery
Input/Output
Protection
6
A+ (D+)
B- (D-)
RJ-45
Connector
Alarm: 1 2 3 4
7
8
9
5
10
C1 C2 C3
Battery Disc
harge
Management
Battery Charge
Management
System Monitoring
and Supervisory
Battery
Activation
Management
Isolation
Barrier
P
P
o
o
w
w
e
e
r
r
C
Co on nv ve er rs si io on n
220VAC
Input
1
2
3
11 12 14
15, 16
17, 18

VP-1405A Advanced Power Chapter 3 - Specifications
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 14 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
Chapter 3 - Specifications
3.1 VP-1405A Specifications
3.1.1 Main AC Power input
1. Phase & Wires : 2 wires Line & Neutral
2. Input Voltage Range : 165 to 265 VAC, Typical 220 VAC
200 to 375 VDC, Typical 300 VDC
3. Frequency ( AC Input ) : 50 Hz ( 40 to 60 Hz)
3.1.2 Output Specifications
1. Output Voltage :
Full AC Input range
Typical: 53.5 V
Minimum: 53.2 V
Maximum: 53.8 V
2. Output Voltage :
(AC Fail, Battery Power)
Minimum: 42.0 V
Maximum: 53.8 V
3. Typical Output Current : Minimum: 0 A
Typical: 5.6 A
Full Input range exclude the charge current
4. Boost Output Current : Maximum: 13.0 A
Boost transient current applicable for time ≤ 30s
seconds (when no battery connected)
5. Ripple & Noise : ≤ 200 mV peak to peak in full output load and full
input ranges

VP-1405A Advanced Power Chapter 3 - Specifications
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 15 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
6. Source Effect : ± 0.1 % in full input range
7. Load Effect : ± 0.2 % in load range from 0.5A to 5.6A
8. Battery Float Voltage : Typical: 53.5 V
Minimum: 53.2 V
Maximum: 53.8 V
Full input range, Output load 5.6A, Charge 0.01A
9. Battery Constant Charge :
Current
Typical: 1.3 A
Minimum: 1.0 A
Maximum: 1.4 A
10. Low Battery Power :
Warning
Typical: 45.2 V
Activation threshold minimum: 44.0 V
Deactivation threshold maximum: 46.0 V
11. Battery Discharge Cut-off :
Power Point
Typical: 43.0 V
Activation threshold minimum: 42.0 V
Deactivation threshold maximum: 44.0 V
12. Battery Discharge :
Resistance
50 milliohm
13. Maximum Output Current : 15 Ampere
3.1.3 Protection Functions
1. Output Over Current :
Protection
15.3 A
Shutdown output
2. Output Short Circuit :
Protection
Turn off output, Cancel Auto-Restart
3. Output Over Voltage :
Protection
Activate on 60.5 V
Threshold between 59 – 61 V
4. Battery Reverse :
Connection Protection
Activate Shutdown
Return to work after normal wiring
5. Input Over Current :
Protection
Should be applied by External 4A/250VAC Fuse
in series of input line connector.

VP-1405A Advanced Power Chapter 3 - Specifications
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 16 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
3.1.4 Communication Port
1. Rear Panel port : RS-485 Network 2 wires for networking to master
Baud-rate: 2400, 9600, 19200, 38400 bps
Parity: None, Odd, Even
Start/Stop: 1 bit, 2 bits
2. Port Specifications : RJ-45 Connection Port
Isolated 2500V communication port
3. Communication Protocol : ModBus RTU Protocol
Slave Address: 1~247
Function Support: 03/04/06/16
Factory Defaults: 9600 bps
4. Factory Defaults : Baud rate: 9600 bps
Parity: None
Start/Stop: 1 bit
Slave Address ID: 200
3.1.5 Alarm outputs
1. Relay Outputs : 4x Configurable Alarm Output Relays
Default Alarms:
- Alarm Out 1: AC Input Power OK Status
- Alarm Out 2: Any Failure Alarm
- Alarm Out 3: Battery Fail/Under voltage Alarm
- Alarm Out 4: Battery Disconnect Alarm
2. Contact Switching Current : 1.0 A
3. Contact Rating Voltage : 250 VAC
4. Contact / Coil Isolation :
Voltage
3 kV
5. Contact Short Circuit :
Protection
Activate on maximum 1.1 A
Auto-resettable Fuse

VP-1405A Advanced Power Chapter 3 - Specifications
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 17 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
3.1.6 General Specifications
1. Efficiency : 84% in typical AC input, 5A output, full battery
2. Temperature Coefficient : ± 0.02 % per degree of centigrade (ºC)
In typical input voltage, 5A output
3. Indicators : 6 LEDs
4 Keys
4. Insulation Resistance :
(Test Voltage 500 VDC)
Input to Output: 80 MΩ
Input to Case: 80 MΩ
Output to Case: 80 MΩ
5. Isolation Voltage : Input to Output: 2250 VAC / 5mA / 1 min
Input to Case: 2250 VAC / 5mA / 1 min
Output to Case: 500 VDC / 5mA / 1 min
Alarm contact to coil: 3000 VAC / 5mA / 1 min
RS485 port to system: 2500 VAC / 5mA / 1 min
3.1.7 Environment
1. Operating Condition : Temperature range: -25 to +60°C
Ambient temperature over +55°C should position
module heat sink in air cooled position that case
temperature should not exceed of +85°C
2. Storage Condition : Temperature range: -40 to +100°C
3. Humidity Condition : RH: 5-90% non-condensed
3.1.8 Dimension / Physical
1. Dimension : Width: 170mm
Length: 120mm
Height: 45mm
2. Mounting : Wall mount with flange holders
3. Weight : Approx. 1.4 kg.

VP-1405A Advanced Power Chapter 4 - Unit Installation
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 18 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
Chapter 4 - Unit Installation
4.1 Unit Observation
The VP-1405A is a wall mount device that install on the any place in
cubicles, control cubicles and normally in the place that have good
air-cooled conditions. It is recommended that assure the good air-
cooled position for the VP-1405A module.
4.2 Terminal Definitions
The VP-1405A consists of attachable terminal block. It is
recommended detach terminal block and do wiring based on the
instructions on this manual. Afterwards attach terminal wires to the
base unit.
The warranty of system is based on correct wiring of device, if any
wrong wiring it may damage the device and it is out of scope of
warranty.
Figure 4-1: VP-1405A Terminal Definitions
Terminal
1
Terminal
22
FG
Terminal

VP-1405A Advanced Power Chapter 4 - Unit Installation
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 19 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
In regarding the terminals numbered from 1 up to 22, please pay
attention that terminal with code (--) tagged as NC (Not Connect), so
you should leave this terminal float and disconnect to any wiring.
You can find in bellow table for 22 terminals which number from left
to right on basis of front view of module:
Table 4-1: VP-1405A Base Terminal Definitions
No. Code Definition
1 L+ Line Input of power supply
2 PE Earth protection Field Ground System
3 N- Neutral input of power supply
4 -- No electrical connection leave open and not connected
5 AM Common input of output contact alarms
6 A1 Alarm 1 Output (Default AC Input OK Status)
7 A2 Alarm 2 Output (Default Any Failure Alarm)
8 A3 Alarm 3 Output (Default Battery Under voltage Alarm)
9 A4 Alarm 4 Output (Default Battery Fail Alarm)
10 C1 Remote Activation Start Command
11 C2 Remote Activation Exit Command
12 C3 Remote Battery Exit Command
13 -- No electrical connection leave open and not connected
14 CM Common return wire of C1,C2,C3 Command
15 VO- Load Output Negative
16 VO- Load Output Negative
17 VO+ Load Output Positive
18 VO+ Load Output Positive
19 B+ Battery Connection Positive
20 B+ Battery Connection Positive
21 B- Battery Connection Negative
22 B- Battery Connection Negative
Note:
Terminals of VO+ and VO- and B+ and B- consist of two pins that
you should use for each pin connection of 25mm wire size that
system able to drive enough output currents.

VP-1405A Advanced Power Chapter 4 - Unit Installation
V-PM1000 Series, Veesta Power Module Product Series
48V Power Supply & Charger Instructions & User's Manual
Page 20 of 46
All rights reserved. Passing on and copying of this document, use and communication of its contents not permitted without written authorization.
4.3 Mains Power Supply Connection
A power supply to the VP-1405A can be in two options which should
be selected one of them during ordering the component.
The power supply input of VP-1405A is a universal AC / DC voltage
with range 165~265VAC, 40~60Hz, and 200~375VDC. This should
be connecting to the field mains power via 4A/250VAC fuse to
protection.
Extensive filtering with transient protection is built into the V4-1405A
to ensure reliable operation. Transient energy must be suppressed
and conducted back to the source through filter ground terminal PE
and also FG screw pins on the chassis.
Figure 4-2: VP-1405A Power Supply & Field Ground
4.4 Field Ground
The PE terminal input and chassis FG terminal screw on the module
VP-1405A are required to use ground cable and connect to the
switchgear or your System Ground Bus.
Control power supplied
to the VP-1405A must
match the allowable range. If
applied voltage does not
match, damage may occur.
Field Mains AC Power
Switchgear
Ground Bus 4A / 250VAC Fuse
L/+ PE N/- NC
1 2 3 4
2.5 mm wire size
4.0 mm wire size
