Vega B63-48 User manual

Operating Instructions
Overvoltage protection in two-wire
technology
B63-48, B63-32
For 4 … 20 mA/HART, Probus PA and
Foundation Fieldbus circuits
Document ID: 33012

2
Contents
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
Contents
1 About this document ............................................................................................................... 3
1.1 Function ........................................................................................................................... 3
1.2 Target group ..................................................................................................................... 3
1.3 Symbols used................................................................................................................... 3
2 For your safety ......................................................................................................................... 4
2.1 Authorised personnel ....................................................................................................... 4
2.2 Appropriate use................................................................................................................ 4
2.3 Warning about incorrect use............................................................................................. 4
2.4 General safety instructions............................................................................................... 4
2.5 Safety label on the instrument .......................................................................................... 5
2.6 EU conformity................................................................................................................... 5
2.7 Installation and operation in the USA and Canada ........................................................... 5
2.8 Environmental instructions ............................................................................................... 5
3 Product description ................................................................................................................. 6
3.1 Conguration.................................................................................................................... 6
3.2 Principle of operation........................................................................................................ 6
3.3 Packaging, transport and storage..................................................................................... 7
4 Mounting instructions ............................................................................................................. 8
5 Connecting to power supply................................................................................................... 9
5.1 Preparing the connection ................................................................................................. 9
5.2 Connection procedure...................................................................................................... 9
5.3 Wiring plan ..................................................................................................................... 11
6 Maintenanceandfaultrectication...................................................................................... 12
6.1 Maintenance .................................................................................................................. 12
6.2 Rectify faults................................................................................................................... 12
6.3 How to proceed if a repair is necessary.......................................................................... 12
7 Dismount................................................................................................................................. 13
7.1 Dismounting steps.......................................................................................................... 13
7.2 Disposal ......................................................................................................................... 13
8 Supplement ............................................................................................................................ 14
8.1 Technical data ................................................................................................................ 14
8.2 Dimensions .................................................................................................................... 15
Safety instructions for Ex areas
Take note of the Ex specic safety instructions for Ex applications.
These instructions are attached as documents to each instrument
with Ex approval and are part of the operating instructions.
Editing status: 2019-09-04

3
1 About this document
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
1 About this document
1.1 Function
This operating instructions provides all the information you need for
mounting, connection and setup as well as important instructions for
maintenance, fault rectication, the exchange of parts and the safety
of the user. Please read this information before putting the instrument
into operation and keep this manual accessible in the immediate
vicinity of the device.
1.2 Target group
This operating instructions manual is directed to trained personnel.
The contents of this manual must be made available to the qualied
personnel and implemented.
1.3 Symbols used
Document ID
This symbol on the front page of this instruction refers to the Docu-
ment ID. By entering the Document ID on www.vega.com you will
reach the document download.
Information, tip, note
This symbol indicates helpful additional information.
Caution: If this warning is ignored, faults or malfunctions can result.
Warning: If this warning is ignored, injury to persons and/or serious
damage to the instrument can result.
Danger: If this warning is ignored, serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
SIL applications
This symbol indicates instructions for functional safety which must be
taken into account particularly for safety-relevant applications.
• List
The dot set in front indicates a list with no implied sequence.
→ Action
This arrow indicates a single action.
1 Sequence of actions
Numbers set in front indicate successive steps in a procedure.
Battery disposal
This symbol indicates special information about the disposal of bat-
teries and accumulators.

4
2 For your safety
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
2 For your safety
2.1 Authorised personnel
All operations described in this documentation must be carried out
only by trained, qualied personnel authorised by the plant operator.
During work on and with the device, the required personal protective
equipment must always be worn.
2.2 Appropriate use
B63-48, B63-32 are overvoltage arresters in two-wire technology for
installation in VEGA sensors of the plics® family.
You can nd detailed information about the area of application in
chapter "Product description".
2.3 Warning about incorrect use
Inappropriate or incorrect use of this product can give rise to applica-
tion-specic hazards, e.g. vessel overll through incorrect mounting
or adjustment. Damage to property and persons or environmental
contamination can result. Also, the protective characteristics of the
instrument can be impaired.
2.4 General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and directives. The instrument must only be operated in a
technically awless and reliable condition. The operator is responsi-
ble for the trouble-free operation of the instrument. When measuring
aggressive or corrosive media that can cause a dangerous situation
if the instrument malfunctions, the operator has to implement suitable
measures to make sure the instrument is functioning properly.
During the entire duration of use, the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new regula-
tions.
The safety instructions in this operating instructions manual, the na-
tional installation standards as well as the valid safety regulations and
accident prevention rules must be observed by the user.
For safety and warranty reasons, any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbi-
trary conversions or modications are explicitly forbidden. For safety
reasons, only the accessory specied by the manufacturer must be
used.
To avoid any danger, the safety approval markings and safety tips on
the device must also be observed and their meaning read in this oper-
ating instructions manual.

5
2 For your safety
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
2.5 Safety label on the instrument
The safety approval markings and safety tips on the device must be
observed.
2.6 EU conformity
The device fulls the legal requirements of the applicable EU direc-
tives. By axing the CE marking, we conrm successful testing of the
product.
You can nd the CE Certicate of Conformity in the download section
under "www.vega.com".
2.7 Installation and operation in the USA and
Canada
This information is only valid for USA and Canada. Hence the follow-
ing text is only available in the English language.
Installations in the US shall comply with the relevant requirements of
the National Electrical Code (ANSI/NFPA 70).
Installations in Canada shall comply with the relevant requirements of
the Canadian Electrical Code.
2.8 Environmental instructions
Protection of the environment is one of our most important duties.
That is why we have introduced an environment management system
with the goal of continuously improving company environmental pro-
tection. The environment management system is certied according
to DIN EN ISO 14001.
Please help us full this obligation by observing the environmental
instructions in this manual:
• Chapter "Packaging, transport and storage"
• Chapter "Disposal"

6
3 Product description
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
3 Product description
3.1 Conguration
The scope of delivery encompasses:
• Overvoltage arrester B63-48, B63-32
• O-ring seal1)
• Documentation
– This operating instructions manual
– Ex specic safety instructions and, if necessary, further certi-
cates
The following illustration shows the structure of B63-48, B63-32:

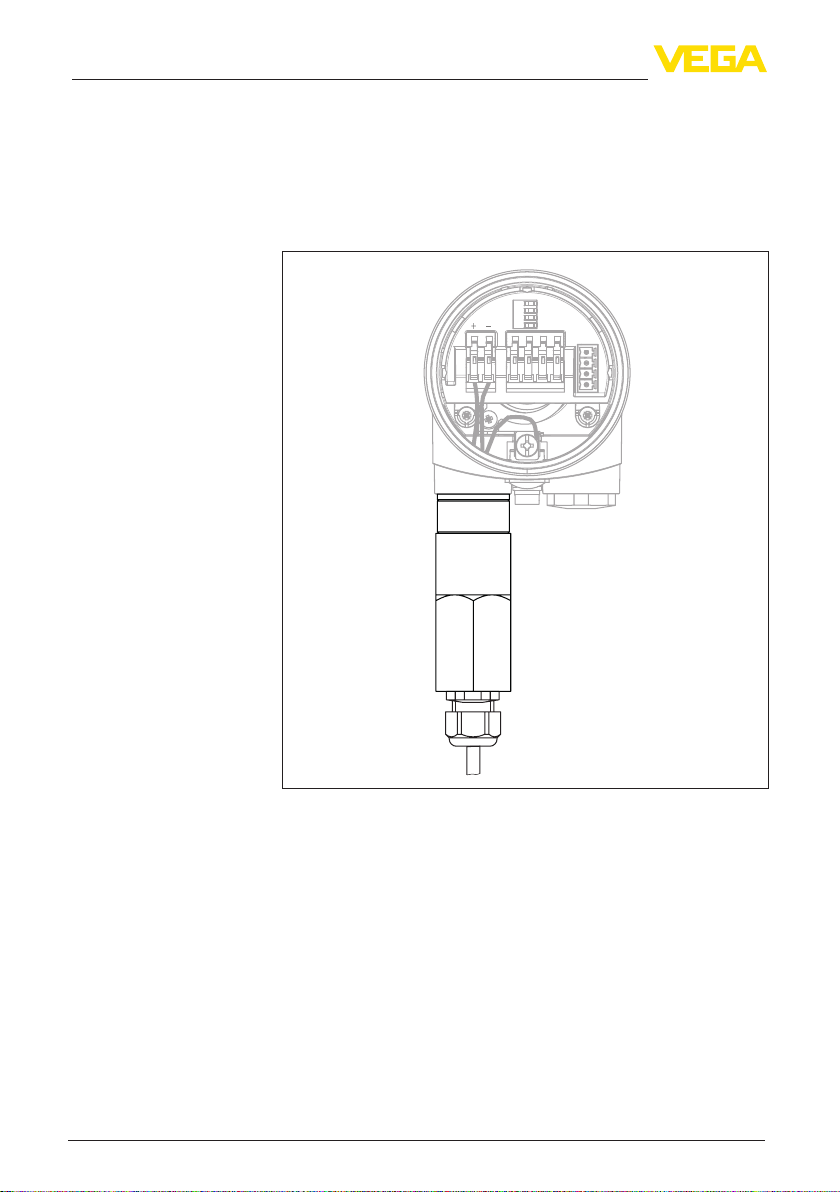

1
2
3
Fig. 1: Conguration of B63-48, B63-32
1 Terminals for the signal cable input (unprotected side)
2 B63-48, B63-32
3 Signal cable output to the sensor (protected side)
3.2 Principle of operation
The overvoltage arresters B63-48, B63-32 are completely enclosed in
a stainless steel housing. They can be used for VEGA sensors of the
plics® family.
• Type B63-48 for 4 … 20 mA and 4 … 20 mA/HART sensors
• Type B63-32 for Probus PA and Foundation Fieldbus sensors
B63-48, B63-32 overvoltage arresters reduce any voltage surges that
may reach the signal cables to a harmless level. The devices contain
voltage-limiting components as well as gas conductors for bleeding
o impulses of up to 10 kA to ground.
Scope of delivery
Constituent parts
Application area
Functional principle
1) Is only used with version thread M20 x 1.5

7
3 Product description
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
3.3 Packaging, transport and storage
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
based on ISO 4180.
The packaging of standard instruments consists of environment-
friendly, recyclable cardboard. For special versions, PE foam or PE
foil is also used. Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out in due consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt. Ascertained transit damage or con-
cealed defects must be appropriately dealt with.
Up to the time of installation, the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated, the packages must be stored only under
the following conditions:
• Not in the open
• Dry and dust free
• Not exposed to corrosive media
• Protected against solar radiation
• Avoiding mechanical shock and vibration
• Storage and transport temperature see chapter "Supplement -
Technical data - Ambient conditions"
• Relative humidity 20 … 85 %
With instrument weights of more than 18 kg (39.68 lbs) suitable and
approved equipment must be used for lifting and carrying.
Packaging
Transport
Transport inspection
Storage
Storage and transport
temperature
Lifting and carrying

8
4 Mounting instructions
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
4 Mounting instructions
B63-48, B63-32 overvoltage arresters are screwed into the position
of the cable gland on the sensor housing. The thread of the overvolt-
age arrester must match with the thread on the sensor housing. The
cable gland of the sensor is screwed into the overvoltage arrester. No
further assembling necessary.
Note:
The attached O-ring seal must be used to reach the housing protec-
tion rating of the sensor with version M20 x 1.5.
Note:
In order to reach the housing protection rating of the sensor, PTFE
gasket strip must be used with the ½ NPT version. First of all, screw in
by hand; if necessary, use grease and nally tighten with a ½ turn with
a SW 27 wrench.2).
2) Do not use any grease for sensors with plastic housing

9
5 Connecting to power supply
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
5 Connecting to power supply
5.1 Preparing the connection
Always keep in mind the following safety instructions:
• Connect only in the complete absence of line voltage
Danger:
The stainless steel housing of B63-48, B63-32 has no electrical
function and therefore provides no internal or external connection to
ground or potential equalization.
The plant operator is responsible for ensuring an adequate connec-
tion, for example within the context of protective grounding, depend-
ing on the installation and protection rating.
The B63-48, B63-32 exhibit a voltage resistance of 0.5 kV for one
minute in the signal circuit with respect to the stainless steel housing,
but not with respect to the green/yellow cable in the sensor circuit.
This must be taken into account for the electrical installation.
Before starting setup make sure that the power supply corresponds to
the specications on the type label.
5.2 Connection procedure
Proceed as follows:
1. Unscrew housing cover of the sensor
2. If a display and adjustment module is present, remove it accord-
ing to the operating instructions of the sensor
3. Unscrew the cable gland
4. Push the connection cables through the cable gland into the sen-
sor
5. Screw B63-48, B63-32 into the opening of the cable gland ac-
cording to the description under "Mounting instructions"
6. Shorten the connection cables of B63-48, B63-32 to the suitable
length, strip o the wire ends approx. 1 cm (0.4 in)
Note:
To ensure an eective overvoltage protection, the connection cables
should be as short as possible. Unnecessary cable should not be
wound up and placed inside the sensor housing. This could inuence
the protective function of B63-48, B63-32.
7. Connect wire ends red and black according to chapter "Wiring
plan" and operating instructions of the respective sensor
8. Connect wire end green/yellow to the internal ground terminal in
the sensor housing, connect external ground terminal to potential
equalisation
9. Pull out terminal block inside B63-48, B63-32 with pliers
10. Push signal cables and screen through the cable gland and con-
nect according to chapter "Wiring plan" to the terminals
Note safety instructions

10
5 Connecting to power supply
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
11. Check all cable connections, especially the ground connection, to
make sure they are tightened suciently
12. Insert terminal block into its position by using the pliers. A me-
chanical coding ensures the correct position
13. Screw cable gland into the thread of B63-48, B63-32, tighten
compression nut. The seal ring must completely encircle the
cable
I2C
Display
12 5678
Fig. 2: Overvoltage protection B63-48, B63-32 after installation and connection
14. Screw the housing lid back on
The electrical connection is nished.

11
5 Connecting to power supply
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
5.3 Wiring plan
4
3
2
1
5
12
+
( ) (-)
678
4...20mA
-
E
+
+
-
Fig. 3: Wiring schematic B63-32, B63-48
1 Sensor
2 Overvoltage protection
3 Controller/PLC
4 Potential equalisation
Terminals sensor Wire colour/Polarity
1Red (+)
2Black (-)
Ground terminal Green/Yellow
Wiring plan

12
6 Maintenance and fault rectication
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
6 Maintenanceandfaultrectication
6.1 Maintenance
If the device is used properly, no special maintenance is required in
normal operation.
6.2 Rectify faults
The operator of the system is responsible for taking suitable meas-
ures to rectify faults.
The rst measure to be taken is to check the input/output signal as
well as the power supply. In many cases, the causes can be deter-
mined and faults can be quickly rectied.
On-site repair of B63-48, B63-32 is not possible.
Should these measures not be successful, please call in urgent cases
the VEGA service hotline under the phone no. [phone].
The hotline is manned 7 days a week round-the-clock. Since we oer
this service worldwide, the support is only available in the English
language. The service is free, only standard call charges are incurred.
Depending on the reason for the fault and the measures taken, the
steps described in chapter "Set up" may have to be carried out again.
6.3 How to proceed if a repair is necessary
You can nd an instrument return form as well as detailed informa-
tion about the procedure in the download area of our homepage:
www.vega.com.
By doing this you help us carry out the repair quickly and without hav-
ing to call back for needed information.
If a repair is necessary, please proceed as follows:
• Print and ll out one form per instrument
• Clean the instrument and pack it damage-proof
• Attach the completed form and, if need be, also a safety data
sheet outside on the packaging
• Please contact the agency serving you to get the address for
the return shipment. You can nd the agency on our home page
www.vega.com.
Reaction when malfunc-
tion occurs
Faultrectication
24 hour service hotline
Reaction after fault recti-
cation

13
7 Dismount
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
7 Dismount
7.1 Dismounting steps
Take note of chapters "Mounting" and "Connecting to voltage supply"
and carry out the listed steps in reverse order.
7.2 Disposal
The instrument consists of materials which can be recycled by spe-
cialised recycling companies. We use recyclable materials and have
designed the electronics to be easily separable.
WEEE directive
The instrument does not fall in the scope of the EU WEEE directive.
Article 2 of this Directive exempts electrical and electronic equipment
from this requirement if it is part of another instrument that does not
fall in the scope of the Directive. These include stationary industrial
plants.
Pass the instrument directly on to a specialised recycling company
and do not use the municipal collecting points.
If you have no way to dispose of the old instrument properly, please
contact us concerning return and disposal.

14
8 Supplement
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
8 Supplement
8.1 Technical data
Note for approved instruments
The technical data in the respective safety instructions are valid for approved instruments (e.g. with
Ex approval). These data can dier from the data listed herein, for example regarding the process
conditions or the voltage supply.
General data
Version The device can be screwed into the sensor housing
instead of the cable gland
Housing material 316Ti
Weight approx. 175 g (0.385 lbs)
Electrical characteristics3)
Operating voltage/Signal
ƲB63-48 9 … 48 V DC/4 … 20 mA/HART
ƲB63-32 9 … 32 V DC/Probus PA, Foundation Fieldbus
Leakage current at nominal voltage < 10 µA
Max. permissible current 1 A
Internal resistance 1 Ω
Response voltage (1 kV/µs) < 76 V
Response time < 1 µs
Discharge current < 10 kA (8/20 µs)
Band width 1 MHz
Electromechanical data
Screw terminals for cable cross-section < 1 mm2 (AWG 18)
Number of wires two signal cables, one ground cable
Wire cross-section 1.5 mm2 (AWG 14)
Cable length 250 mm (9.843 in)
Ambient conditions
Ambient temperature -40 … +85 °C (-40 … +185 °F)
Storage and transport temperature -40 … +85 °C (-40 … +185 °F)
Moisture 5 … +95 °% (non-condensing)
Electrical protective measures
Protection in assembled and connected
state
IP 66/67
Approvals
Instruments with approvals can have dierent technical specications depending on the version.
3) Reference temperature 25 °C (77 °F).

15
8 Supplement
B63-48, B63-32 • For 4 … 20 mA/HART, Probus PA and Foundation Fieldbus circuits
33012-EN-190904
For that reason the associated approval documents of these instruments have to be carefully
noted. They are part of the delivery or can be downloaded under "www.vega.com", "Instrument
search (serial number)" as well as via "Downloads" and "Approvals".
8.2 Dimensions
76 mm
(2.99")
SW 27 mm
(1.06")
56 mm
(2.21")
300 mm
(11.81")
12 mm
(0.47")
76 mm
(2.99")
56 mm
(2.21")
300 mm
(11.81")
1
2
E
-
+
Fig. 4: Dimensions B63-48, B63-32
1 Thread M20 x 1.5
2 Thread ½ NPT

Printing date:
VEGA Grieshaber KG
Am Hohenstein 113
77761 Schiltach
Germany
33012-EN-190904
All statements concerning scope of delivery, application, practical use and operat-
ing conditions of the sensors and processing systems correspond to the information
available at the time of printing.
Subject to change without prior notice
© VEGA Grieshaber KG, Schiltach/Germany 2019
Phone [phone]
Fax [phone]
E-mail: [email protected]
www.vega.com
