Velex VX600D User manual

Quick Start Guide
VX600D Instruction Manual
Not all features listed in this QSG
are available on all models.
www.velextech.com
THIS PACKAGE CONTAINS
Power/Speaker Harness x 1
Mounting Screws x 4
x 1
User's Manual x 1
Screw Covers

Installation the radio
Mounting the unit
Important! If any modification to the vessel is required, such as drilling holes, Velex
recommends that you consult with your boat dealer or manufacturer beforehand.
1.Create mounting hole for product and drill screw pilot holes. Refer to mounting
template included.
2.Fit mounting gasket.
3.Insert the unit into the mounting hole.
4.Use the supplied 4 x self tapping screws, to fix the unit into position.
5.Attach screw covers.
Note: Appropriate mounting is very important to ensure correct operation. Select a
location that allows both free/ open airflow around rear of chassis, whilst minimizing
exposure to moisture. Allow adequate room at the rear of the unit for the cable
looms (approx. 50mm or 2”)
The heatsink must not be mounted on more than a 45 degree angle from the
horizontal plain. Failure to following restrictions could void your warranty.

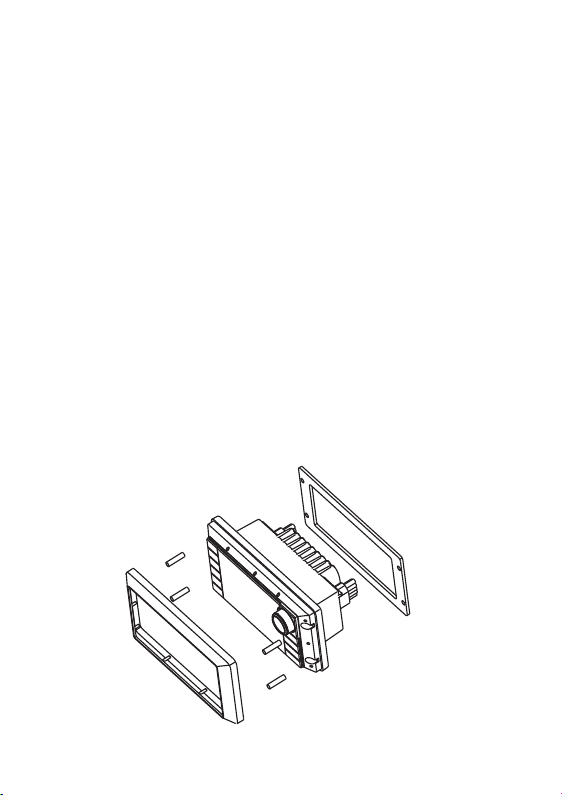

Figure 1 – Locating the VX600D unit into the mounting panel

Mounting Cut Out Diagram
Caution! The VX600D is designed for vessel with 12V DC negative ground electrical system.
Ensure the marine vessel's +12V lead is removed from the battery before any equipment is
connected.
Investigate the marine vessel's fuel tanks and electrical wiring locations before you begin
installation.
Ensure all wiring is protected to avoid damage.
When wiring the VX600D, ensure that the wires are away from sharp objects and that rubber
grommets and insulated bungs are used when routing the wiring. Ensure that when
connecting the wires to the speakers and audio system. The terminals and connections are
protected from shorting to each other.
Note: Ensure the Aerial cable is routed away from any power cables, and is the minimal
length, as long cable runs will affect AM reception performance.
For optimum radio reception, please ensure you use an independent FM marine antenna
and a separate DAB+ antenna with SMB connector (FM and DAB+ antenna are not included).
Caution! These images are not to scale, Dimension are shown in millimeters(mm)
and inches(“).
Figure 3- Cutting size diagram for installing the VX600D unit ( not to scale)
A 1:1 scale mounting diagram is provided in the box.
INSTALLION WARNING
117.28
107.68
74.10
29.60
167.70
159.70
136.20
84.70 51.00 51.00

WIRING DIAGRAM
Connections and cables on the VX600D are described below.
RADIO ANTENNA
AUX IN
BLACK
GREEN
BLACK
1
4
7
10
2
5
8
11
3
6
9
12
SECTION A-A
1
4
7
10
2
5
8
11
3
6
9
12
SECTION B-B
SPEAKER REAR LEFT (+)
ACC (+12V)
REMOTE (+)
1
RED
7
12
11
10
9
8
4
5
6
3
2
BLACK GROUND (-)
PURPLE/BLACK
YELLOW
PURPLE
GREEN/BLACK
GREEN
GREY/BLACK
GREY
WHITE/BLACK
WHITE
PIN NO. WIRE COLOR WIRE DEFINITION
ORIENTATION
SPEAKER REAR LEFT (-)
SPEAKER FRONT LEFT (+)
SPEAKER FRONT LEFT (-)
SPEAKER FRONT RIGHT (+)
SPEAKER FRONT RIGHT (-)
SPEAKER REAR RIGHT (+)
SPEAKER REAR RIGHT (-)
AWG
20
16
16
20
20
20
20
20
20
20
20
WHITE
WHITE/BLACK
GREEN/BLACK
RED
GREEN
B
GREY/BLACK
PURPLE/BLACK
YELLOW
BLACK
PURPLE
B
GREEN SUB-W OUT
GREY
GREY RED REAR LINE OUT R
BLUE AUTO ANT
WHITE REAR LINE OUT L
20
IN
OUT
3A FUSE
FILTER &
FUSE BOX
BROWN
YELLOW VIDEO OUT
BLACK
YELLOW VIDEO IN
USB
BLACK
BLUE
IN
OUT
10A FUSE
FILTER &
FUSE BOX
DAB ANTENNA (SMB)

Control Locations - Receiver
1Source / Power
2
3
4
5
MUTE
Auto Programming Station (Radio) / Button Backlight dim
Previous Preset Stations (Radio –AM/FM/DAB+)
Next Preset Stations ( Radio –AM/ FM/DAB+ )
6BAND
7
8
9
10
VOL Knob (Rotate) / Confirm (Press)
MENU / Return
Tune UP / Next Track
Tune Down / Previous Track
1
7
13
11 Play / Pause | Band (Radio) | Video I/O Switch (Press
and Hold While Playing Video)
12
2
3
4
5
6
8
9
10
11
12
13
TFT Display
Infra red wireless remote

General Operation
Power on/off – Press the '' button to turn the unit on. Press and hold '' to turn unit off.
Changing Modes – Press 'SRC' button to switch between Radio, AUX IN, Bluetooth
Music, Media (USB)，DAB+ modes. .

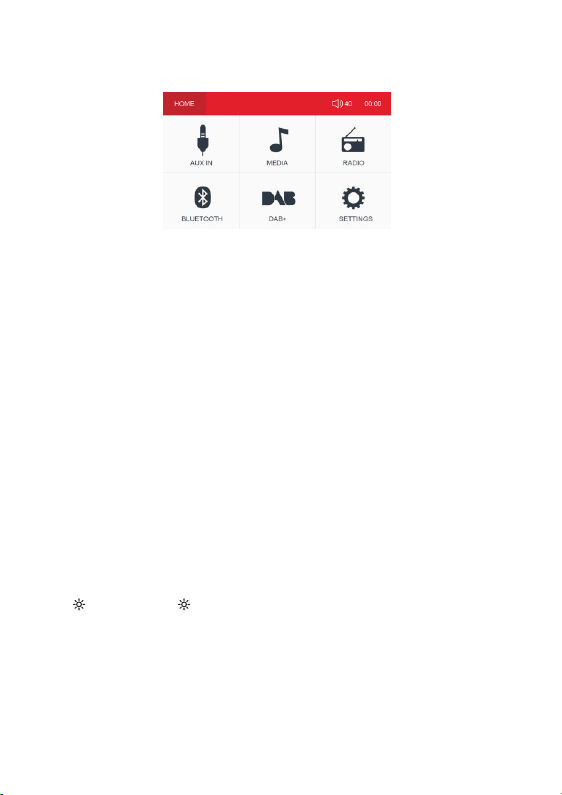

MENU – Press MENU button and use the Volume Knob to select between MEDIA,
RADIO, BLUETOOTH, AUX IN, SETTINGS. Short Press the Volume Knob to confirm
the selection.
Settings – Select 'SETTINGS' from MENU to set System time, Time format (12/24
hours), Language, Radio Region (Europe/American), Restore Factory Setting,
Software Version.
Volume – Rotate the Volume Knob to adjust volume (AUX IN/MEDIA/RADIO/BT
/DAB+ modes)
When the volume level interface is still on display, quick press the Volume Knob to
enter settings for BAS, MID, TREB, BAL, FAD, SUB, LOUD OFF, EQ in sequence,
then rotate the Volume Knob to set the required level. Use MENU/RETURN button to
quit setting or wait for time out to return to the previous status.
AMS / ' Press 'AMS/ ' to dim/resume the back light

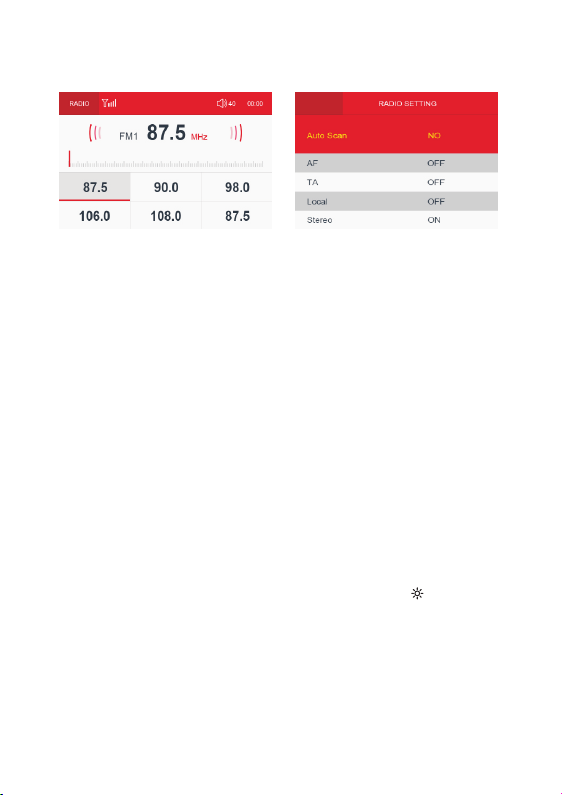

Radio Operation
Seek Tuning – Press and hold << or >> for more than 1 second to seek the next
strong station.
Manual Tuning – Press << or >> momentarily to move radio frequency up or down
one step at a time.
Long press VOL button to save to PRESET.
Long press ‘MENU’ button to active Radio Setting (AUT O SCAN, AF, TA, LOCAL,
STEREO)
RDS AF/TA function
AF on/off ON: The unit will search for another station with stronger signal, but
with the same program identification as the current station
automatically.
OFF: Turn off AF function
TA on/off ON: When there is traffic announcement, unit will automatically
switch to tuner mode (regardless of the current mode) and
begins to broadcast the announcement
OFF: Traffic announcement doesn not cut in;
Auto Programming of Radio Station – Press and hold 'AMS/ ' button for 1
second, VX600D will commence searching the band for radio stations and
automatically stored in the available preset memory location. The new stations
will replace any stations previously stored in that band.
Band – Press BND >II to select between FM1, FM2, FM3. Up to six presets can
be programmed for each band. Enabling up to 18FM stations to be stored in
memory.
Recalling Presets – Press the CH+/CH- button to cycle through the 1-6 presets in
the current band.

MP3 / WMA Operation
When an USB stick is plugged in, VX600D start to play the audios from the first
location.
If user want to play MOVIE/PHOTO on the USB stick, press MENU then enter
MEDIA selection, MUSIC/MOVIE/PHOTO will be displayed on LCD screen,
rotate the VOL Knob to make choice.
Pause – To pause the audio/video, press the >II button once.
Press the >II buttonagain to resume playing.
Track Select – Press >> to skip to the beginning of the next song.
– Press << to skip to the beginning of the previous song.
Short press VOL Knob and the song list will be displayed on the screen, rotate
the Vol Knob to select the desired song and press 'VOL' to confirm the selection.
Rotate the Volume Knob to adjust volume, when the volume level interface is
still on display, quick press the Volume Knob to enter settings for BAS, MID,
TREB, BAL, FAD, SUB, LOUD OFF, EQ in sequence, then rotate the Volume
Knob to set the required level. Use MENU/RETURN button to quit setting, or
wait for time out to return to the previous status.
Fast Forward and Reverse – Press and hold >> or << to fast forward or reverse
a track.
FOLDER SELECT
When playing music, short press VOL knob, the song list of current folder will
be displayed on the screen, rotate the VOL knob and select your favorite song,
short press VOL knob to confirm the selection.
When the song list is displayed, short press ‘MENU/RETURN’ button to show
all the available folders in the USB sticks, rotate VOL knob to select the wanted
folder and confirm the selection.
Long press MENU button, activate the REPEAT (ONE,FOLDER,ALL,OFF),
RANDOM, INT option.

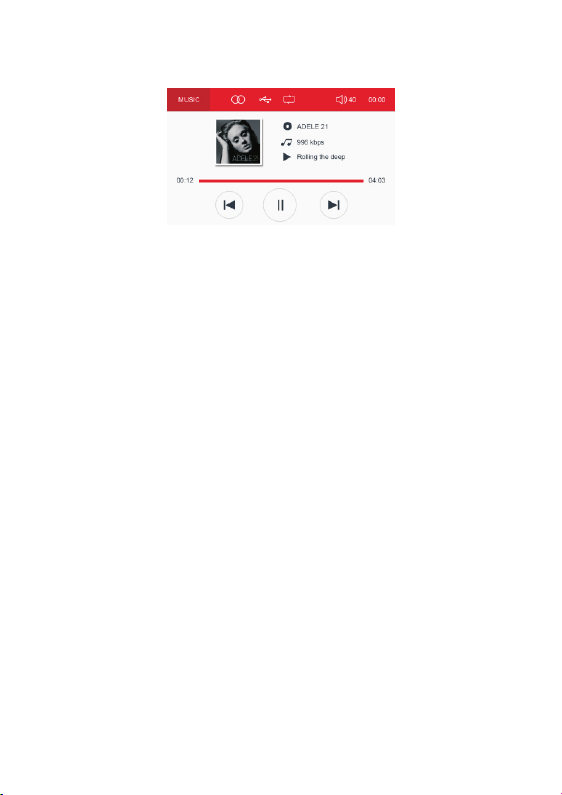

MUSIC/VIDEO/PHOTO Operation
When an USB stick is plugged in, VX600D will auto detect the audio files and start
to play from the first location.
When VX600D is playing audio, press and hold the VOL knob for 1 second, MUSIC
/VIDEO/PHOTO selection will be toggled, rotate and press the VOL Knob to confirm
the selection.
Or press MENU button and select MEDIA, MUSIC/VIDEO/PHOTO selection will
be toggled, rotate and press the VOL knob to confirm the selection.
When VIDEO is selected, short press VOL knob and the video list will be displayed
on the screen, rotate the VOL knob to select the desired video and press 'VOL' to
confirm the selection.
Rotate the Volume Knob to adjust volume, when the volume level interface is still
on display, quick press the Volume Knob to enter settings for BAS, MID, TREB,
BAL, FAD, SUB, LOUD OFF, EQ in sequence, then rotate the Volume Knob to set
the required level. Use MENU/RETURN button to quit setting, or wait for time out
to return to the previous status.
Rear Camera for easy reversing - If you've got a rear camera installed, you can
use it to help your park.
Rear view camera installation, plug the camera video in cable to the rear 'CAMERA
IN' fly lead (Yellow Cap), connect the Green 'CAMERA' reverse cable to reverse
gear.
Whenever you put your vehicle in reverse, you will instantly bring the video feed
up on screen. The on screen guidelines help you to back in smoothly and safely.
When PHOTO is selected, VX600D will automatically display the photos by slide
show.
Long press ‘MENU’ button to activate MEDIA setting (REPEAT/RANDOM/INT for
MUSIC and Movie, Back Ground Music on/off and slide show time setting for Photo).

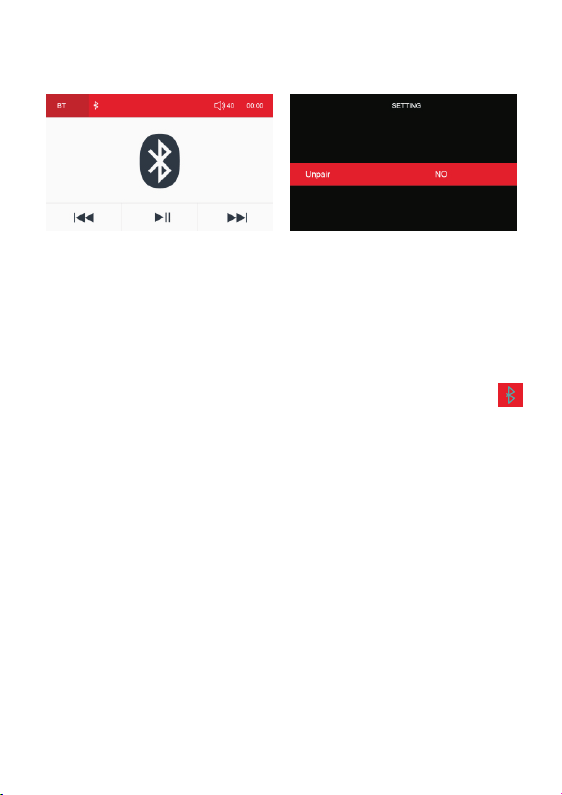

Bluetooth Operation
Preparation – Before using a Bluetooth device, it must be paired and connected.
Ensure that Bluetooth is activated on your device before beginning the pairing
process.
Activate the Bluetooth on your smartphone to search for new devices. Connect
with the device name 'VX600' when founded. Once pairing is successful, ' '
icon on the top title will change into blue color which means 'device paired'.
Note: The head unit can be in any mode of operation when pairing is performed.
After paired, select BT mode from MENU, BT music interface will be displayed
on screen, now select and play your desired music on your smart phone or media
player.
The head unit supports A2DP wireless streaming audio from a Bluetooth mobile
device directly to your head unit. The following function can be used to control the
music:
Press >> to skip to the next available audio track.
Press << to skip to the previous audio track.
Press >/II to toggle between play and pause during playback
Long press ‘MENU’ button to activate the ‘UNPAIR’ setting, which enable to unpair
the current Bluetooth..

Trouble Shooting
ISSUE OPTIONS
Cause: Yellow/red wire not connected or incorrect voltage
Action: Check connections for proper voltage (11-16V DC)
Cause: Black wire not connected
Action: Check connection to ground
Cause: Fuse blown
Action: Replace the fuse
Cause: Speaker wire not connected
Action: Check connections at speakers
Unit will not turn
on (no power)
Unit has power
(but no sound)
Unit blows fuses
Cause: One or more speaker wires touching each other
or touching chassis ground
Action: Insulate all bare speaker wires from each other
and chassis ground
Cause: Yellow/red wire touching chassis ground
Action: Check for pinched wire
Cause: Speaker wires touching chassis ground
Action: Check for pinched wire
Cause: Incorrect fuse rating
Action: Use fuse with correct rating
DAB+ Operation
Select DAB+ from MENU or press SRC button to switch to DAB+ mode, VX600D
will automatically scan for local digital stations. This process may take a few
seconds depending on the numbers of stations available. As DAB+ stations are
found, they will be automatically stored into the DAB band memories. Once
scanning is complete, VX600D will begin playing the station stored in the first
memory location. And the station info will be displayed on the screen.
Tuning DAB stations
Press CH+ or CH- button to tune to next/previous DAB station.
Auto Programming Station
Press and hold 'AMS/ ' button to manually force a search for new stations.
Long press ‘MENU’ button to activate the ‘DAB+’ setting. (AUTO SCAN)

Specifications
General
Power supply requirements: DC 12V Negative Ground
Load impedance: 4 Ohms/channel
Maximum output power: 40W x 4 (CH)
Operate temperature: -10-50℃
MUTLIMEDIA SUPPORT
AUDIO FORMAT: MP3/WMA/OGG/FLAC/APE/AAC/AC3
VIDEO FORMAT: MPEG 1/ MPEG 2/ MPEG 4-XVID/DIVX/H.264/H.263/WMV9/RMVB
PHOTO: JPEG/BMP
FM Tuner: Tuning range: 87.9MHz-107.9MHz (USA)
87.5MHz-108MHZ (EUR)
DAB+: Tuning rage: BAND III 174-240 MHz
USB playback
Signal to Noise Ratio: 55dB
Frequency Response: 20Hz- 20KHz
A/D Conversion Filter: 16BIT
USB Storage Capacity: 16GB Max
Bluetooth
Version: 4.0
*Note: Specification may change without notice.
