Velleman-Kit K6706B User manual

Total solder points: 65
Difficulty level:
beginner 1o2o3o4þ 5oadvanced
K6706B/G
Two channel codelock transmitter
ILLUSTRATED ASSEMBLY MANUAL H6706BIP-2
þEasy to construct, no adjustment necessary
þCan operate two K6707 receivers remotely
þCan operate K6727 two channel receiver or K8022 remote
volume
þCan work together with the old adjustable transmitter type
K6706 and K6706A
þFor operating car door locks or alarm systems (K3511/K3504)
þCan be used on the garage door
þWireless operation of indoor or outdoor lighting
þRemote opening and closing of electric door locks
Features:
Specifications :
•Fixed 433.92 MHz transmitter frequency, as required by law
•SAW resonator
•Approved design (report BLC/96-0452 according to I-ETS
300 220)
•Two code channels
•8,748 possible codes
•On/off LED and battery indicator
•Custom “design” Keychain enclosure
•Supply: 12V battery type V23GA, GP23A, etc
•Dimensions: WxHxD 39x15x57 mm
* modifications reserved.

2
VELLEMAN Components NV
Legen Heirweg 33
9890 Gavere
Belgium Europe
www.velleman.be
www.velleman-kit.com

3
1. Assembly (Skipping this can lead to troubles ! )
Ok, so we have your attention. These hints will help you to make this project success-
ful. Read them carefully.

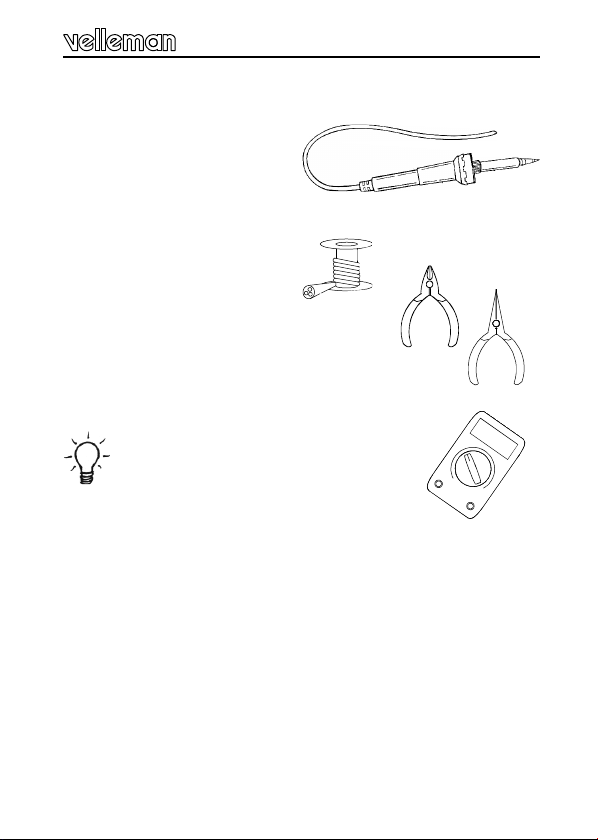

1.1 Make sure you have the right tools:
•A good quality soldering iron (25-
40W) with a small tip.
•Wipe it often on a wet sponge or cloth, to keep it clean; then apply solder to the
tip, to give it a wet look. This is called ‘thinning’ and will protect the tip, and en-
ables you to make good connections. When solder rolls off the tip,
it needs cleaning.
•Thin raisin-core solder. Do not use
any flux or grease.
•A diagonal cutter to trim excess wires. To avoid injury
when cutting excess leads, hold the lead so they
cannot fly towards the eyes.
•Needle nose pliers, for bending leads, or to hold components in
place.
•Small blade and Phillips screwdrivers. A basic range is fine.
For some projects, a basic multi-meter is required, or
might be handy
1.2 Assembly Hints :
⇒Make sure the skill level matches your experience, to avoid disappointments.
⇒Follow the instructions carefully. Read and understand the entire step before you
perform each operation.
⇒Perform the assembly in the correct order as stated in this manual
⇒Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.
⇒Values on the circuit diagram are subject to changes.
⇒Values in this assembly guide are correct*
⇒Use the check-boxes to mark your progress.
⇒Please read the included information on safety and customer service
* Typographical inaccuracies excluded. Always look for possible last minute manual
updates, indicated as ‘NOTE’ on a separate leaflet.
0.000
Assembly hints

4
1.3 Soldering Hints :
Mount the component against the PCB surface and carefully solder the
leads
Make sure the solder joints are cone-shaped and shiny
Trim excess leads as close as possible to the solder joint
REMOVE THEM FROM THE TAPE
ONE AT A TIME !
Velleman hereby certifies that the device K6706B/G meets
the essential requirements and all other relevant stipulations of directive
1999/5/EG and 1995/5/EC.
For the complete conformity declaration check out :
Http://www.velleman.be/downloads/doC/CE_K6706B.pdf
Http://www.velleman.be/downloads/doC/CE_K6706G.pdf
AXIAL COMPONENTS ARE TAPED IN THE CORRECT
MOUNTING SEQUENCE !
Assembly hints

IPESF SDK NDGB FNL
C
O
D
E
CODICE
COLORE
CODIGO
DE CORES
CODIGO
DE COL-
ORES
VÄRI
KOODI
FÄRG
SCHEMA
FARVE-
KODE
FARGE-
KODE
FARB
KODE
COLOUR
CODE
CODIFI-
CATION
DES COU-
LEURS
KLEUR
KODE
C
O
D
E
0Nero Preto Negro Musta Svart Sort Sort Schwarz Black Noir Zwart 0
1Marrone Castanho Marrón Ruskea Brun Brun Brun Braun Brown Brun Bruin 1
2Rosso Encarnado Rojo Punainen Röd Rød Rød Rot Red Rouge Rood 2
3Aranciato Laranja Naranjado Oranssi Orange Orange Orange Orange Orange Orange Oranje 3
4Giallo Amarelo Amarillo Keltainen Gul Gul Gul Gelb Yellow Jaune Geel 4
5Verde Verde Verde Vihreä Grön Grøn Grønn Grün Green Vert Groen 5
6Blu Azul Azul Sininen Blå Blå Blå Blau Blue Bleu Blauw 6
7Viola Violeta Morado Purppura Lila Violet Violet Violet Purple Violet Paars 7
8Grigio Cinzento Gris Harmaa Grå Grå Grå Grau Grey Gris Grijs 8
9Bianco Branco Blanco Valkoinen Vit Hvid Hvidt Weiss White Blanc Wit 9
AArgento Prateado Plata Hopea Silver Sølv Sølv Silber Silver Argent Zilver A
BOro Dourado Oro Kulta Guld Guld Guldl Gold Gold Or Goud B
5%
4K7= ( 4 - 7 - 2 - B )
1%
4K7= ( 4 - 7 - 0 - 1 - 1 )
COLOR= 2… 5
COLOR= 2...5

6
Construction
qR1: 33K (3-3-3)
qR2: 47 (4-7-0)
qR3: 220 (2-2-1)
qR4: 33K (3-3-3)
qR5: 100K (1-0-4)
3. 1/8W Resistors
R...
qJ
qJ
1. Jumper wires
qD1 : BAT85
qD2 : BAT85
2. Diodes
Watch the polarity !
D...
CATHODE
qX1 : SAW433
4. SAW resonator
(check the position of the notch)
X...
qSW1: KRS0611
qSW2: KRS0611
5. Pushbuttons.
Check for good attachment of
the solder to the contacts
6. Battery contacts

7
Construction
qLD1: 3mm (2)
Use the supplied spacer
(see enclosure package)
9. LED’s.
Watch the polarity !
COLOR= 2...5
LD...
CATHODE
qT1 : MPSH10
Check the minimum height ! :
8. Transistors.
qC1 : 100p (101)
qC2 : 1pF
qC3 : 56pF
qC4 : 4,7pF (104p7, 4.7)
qC5 : 56pF
qC6 : 470pF (104p7, 4.7)
A 1pf capacitor should
normally be left over,
which should be used on
certain receivers (see set-
up).
7. Capacitors
7mm
A simple air core coil has to be
made as shown in the diagram
using the jumper lead supplied
qL1: 1 turn
10. Coil
5mm
qIC1: UM3758
11. IC, Check the posi-
tion of the notch !

8

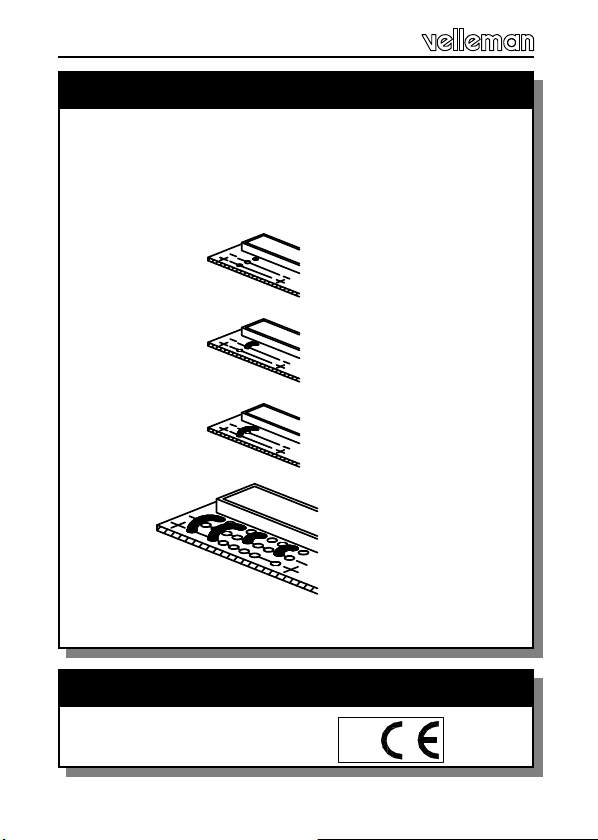

Your own individual code can be set for a transmitter/receiver combina-
tion. There is a row of nine code pads that are the closest to IC1. The
code can be set by linking one or more code pads to a neighbouring "-"
pad or "+" pad by using a jumper lead.
Note: two code connections cannot be connected to the "+" line, this
is normal
Construction
12. Create your code
d) Example of a possible code
c) Code connection to '+'
b) Code connection to '-'
a) No connection
Affix the supplied sticker to the housing.
13. Sticker
Velleman
SRFCE
433,92 MHz

9
IMPORTANT:
•Before mounting the PCB into the enclosure, be sure to
trim all the leads !
•Bend C6 like in the drawing:
•For adjusting the receiver, a completely plastic tuning
screwdriver is needed. This is supplied with the receiver.
•The transmitter must be in its housing with cover on, and
fitted with a new battery type V23GA or GP23A. Check the
polarity which is shown in the enclosure.
•The receiver may not be in the vicinity of a metal object.
•The transmitter and receiver must have the same code.
•On the receiver K6707, either jumper lead CH1 has to be
mounted in order to be operated by button SW1 (big) of the
transmitter, or jumper lead CH2 has to be mounted for op-
eration by button SW2 (small).
Test and set-up
Test & set-up
C6

10
1) Use of the new transmitter with the K6707 receiver or
car alarm type K3511
•Replace C1 on the receiver with a 1pF capacitor. This
capacitor is supplied with the transmitter.
•Set the tuning capacitor of the receiver to around its mid
position (see fig. 17 in the receiver handbook). Check
that the tuning LED of the receiver is not lit or is only
just lit up, if not set the capacitor slightly differently. Do
not touch the circuit with your hand.
•Activate the transmitter and turn the tuning capacitor on
the receiver until the receiver tuning LED lights up. If all
is well, the relay should switch if the transmitter and
receiver codes are the same.
•For more precise tuning, get someone else to activate
the transmitter from a few metres away and then fine-
tune the receiver.
Once the receiver has been set to a transmitter, then it will
also be set for other transmitters of the new type.
Test & set-up

11

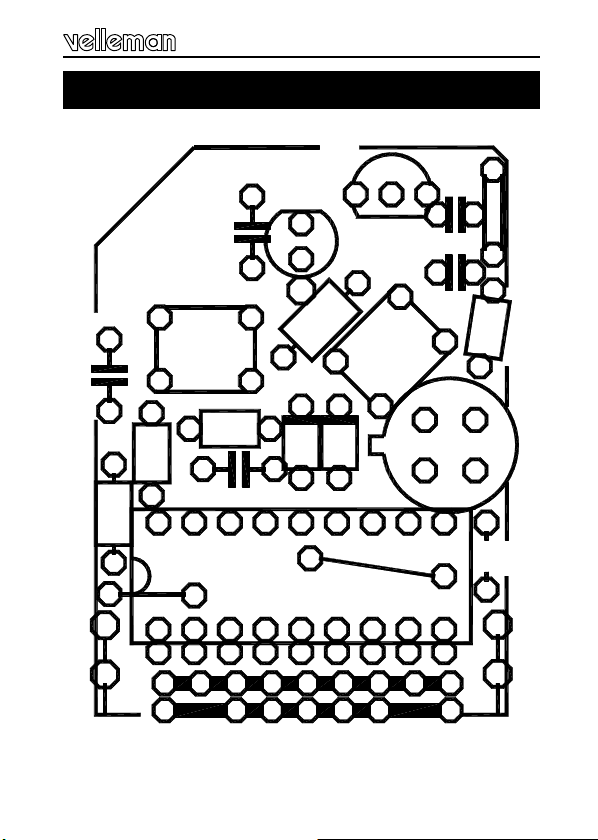

PCB layout.
PCB
P6706'5
SW1
IC1
1
J
T1
VELLEMAN
C5
SW2
L1
X1
C1
LD1
C3
C4
C2
D1
D2
R5
R4
R3
R1
R2
C6
J

12
Modifications and typographical errors reserved
© Velleman Components nv.
H6706BIP -2002 -ED2

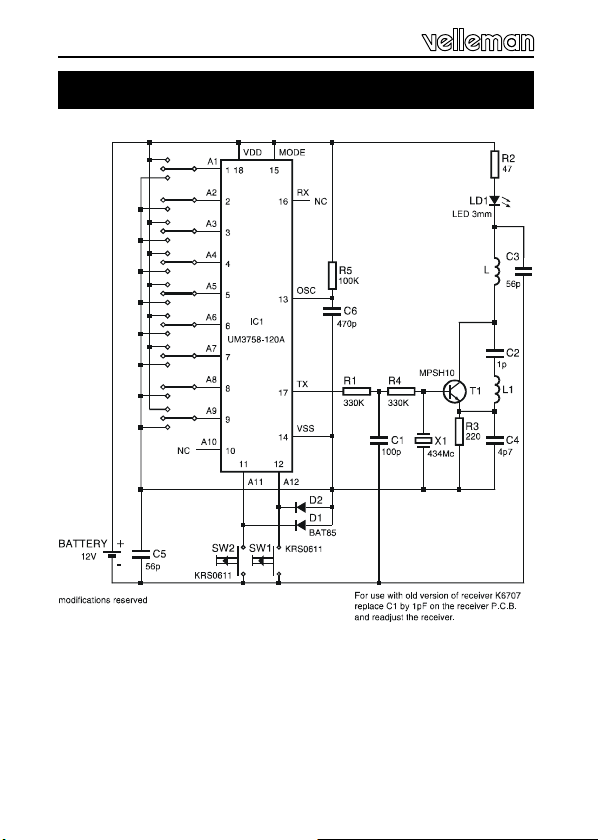

Diagram
