Velvet Mini Power Series User manual

V
velvetlight.tv
SERIES USER MANUAL
VELVET Mini Power
RAINPROOF HIGH POWER PANELS
made to last
VELVET

2
www.velvetlight.tv
The total or partial reproduction of this guide is prohibited without the express written
permission of VELVETLight.
VELVETLight technology is protected under Spanish license laws with international patents
pending.
Information and specifications in this document are subject to change without notice.
2018 © Copyright VELVETLight. All rights reserved.
2018 © Copyright VELVETLight. All rights reserved.
For your own safety, please read and follow all safety instructions and
warnings.
VELVETLight (THELIGHT Luminary for cinema and TV, S.L.) does not
assume any responsibility for lighting failures caused by malfunction of this
product.
The
The manufacturer disclaims liability for any damage to persons or property
caused by inappropriate operation, damage of this kind lies in the
responsibility of the operator.
This product is manufactured to local specifications and the warranty is
valid within the country of purchase. Should the product fail or malfunction
while you are abroad, the manufacturer assumes no responsibility for
servicing the product locally or bearing the expenditure incurred thereof.
This guide provides information about how to use the product functions to
illuminate with this equipment as well as warnings on his use.
These are products of professional use for exterior and interior locations or
studio and must be operated only by qualified technical personnel.
To
To obtain the maximum features, please read the following operating
instructions very carefully before using this fixture for the first time. Please
keep these operating instructions for you and subsequent users to
reference in the future.
THELIGHT Luminary for cine and TV, S.L.
INTRODUCTION

3
This equipment has been checked and meets the requirements of general
safety for electronic devices. These requirements are specified to provide
a reasonable protection against electromagnetic interferences when the
equipment is used in commercial environments.
This
This equipment generates, uses and can emit waves of radio frequency,
and if not properly used following the instructions of this manual can
produce interferences in radio communications. The use of this equipment
in residential areas can produce interference, the user will be the only
responsible of correcting them.
Though
Though the light generated by LED does not produce any heat, for what his
use turns out to be very comfortable for the actors, the lamp head acts as
a heat sink through its back part.
Surface can reach a temperature between the 20 ºC and the 60 ºC. Please
use protective gloves if you touch the lamp head at the heat sink.
CE
Possible risk of injury or damage to equipment
Do not attempt to open any of the device or component housings. To
reduce the risk of electric shock, do not remove LED panel side covers or
front plastic diffuser. No user-serviceable parts inside. Maintenance and
repair work to be carried out only by VELVETLight Service Centre.
Do
Do not cover the aluminium lamp head heat sink while using it. Proper
ventilation must be provided. Avoid exposing the lamp head to the heat
radiation of other light fixtures.
The lamp head is equipped with mid power LED. Due to their high
light-output intensity don’t stare directly into the light source
This symbol indicates the risk of electric shock or fire danger that could
result in injury or damage to equipment.
In
In order to protect against risk of electric shock, the installation should be
properly grounded. Defeating the purpose of the grounding type plug will
expose you to the risk of electric shock.
Various symbols are used throughout this instruction manual and on the
product to prevent physical harm to you or other people and damage to
property.
The symbols and their meanings are explained below.
SAFETY PRECAUTIONS

4
VELVET Mini 1 & 2 Power STUDIO
IP51 DUSTPROOF/DMX
VELVET Mini 1 & 2 Power
IP54 WEATHERPROOF/DMX
TABLE OF CONTENTS

5
VELVET Mini Power are LED panels housing best quality selected BIN
high-power LED. They had been specially designed and their colorimetry
calibrated for professional photography, cinematography and television
industry use.
Weatherproof impact-resistant aluminum body
Long throw concentrated 35º light beam
Compact, portable and lightweight
Dedicated 3200K/5600K quick-shift button
2700K to 6500K in precise 100K digital steps
Smooth dimming with no color shift
innovations
MAIN FEATURES

6
RAINPROOF/DMX
Ref: VL2-IP54-MINI-Power
VELVET Mini 2 Power
RAINPROOF/DMX
Ref: VL2-MINI-STUDIO-AC-Power
VELVET Mini 2 Power STUDIO
RAINPROOF/DMX
Ref: VL1-IP54-MINI-Power
VELVET Mini 1 Power
DUSTPROOF/DMX.
Ref: VL1-MINI-STUDIO-AC-Power
VELVET Mini 1 Power STUDIO
Panoramic 1 foot (Mini 1) and 2 feet (Mini 2) rainproof LED panels made of
aluminum housing 56 and 112 high-power selected BIN LED.
VELVET Mini 1 Power draw: 70W/0,63 Amps at 110 VAC
VELVET Mini 2 Power draw: 120W/0,92 Amps at 110 VAC
Every VELVET Mini Power LED panel includes a digital control on board.
RANGE MODELS

7
VELVET MINI Vlock to XLR3 angle
Ref VL-MINI-Vlock-Angle
VELVET Mini 2 Power
STANDARD
VELVET Mini Vlock to XLR3 IP54
Ref VL-MINI-Vlock-IP54
VELVET Mini 2 Power
STANDARD
90-246V AC 50/60 Hz Smart Gold
Power supply+Power cable
Ref VL2-VL3-MINI-GOLD-PSU
VELVET Mini 1/2 Power
STANDARD
90-246V AC 50/60 Hz Smart Vlock
Power supply+Power cable
Ref VL2-VL3-MINI-VLOCK-PSU
VELVET Mini 1/2 Power
STANDARD
ACCESORIES/POWER OPTIONS

8
PowerCon TRUE1 to PowerCon TRUE1
daisy chain cable 4 m/ 13 feet
Ref PWC-PWC4m-TRUE1
VELVET Mini 1/2 Power
STUDIO
XLR-3 4,5 meters Extension cable
Ref XLR3-DCC4.5m
VELVET Mini 2 Power
STANDARD
VELVET MINI Gold to XLR3 angle
Ref VL-MINI-Gold-Angle
VELVET Mini 2 Power
STANDARD
VELVET Mini Gold to XLR3 IP54
Ref VL-MINI-Gold-IP54
VELVET Mini 2 Power
STANDARD
POWER OPTIONS

9
Foldable Snapgrid 40º for Snapbag
Ref VL2-MINI-S-Ç G-for SB
Ref VL3-MINI-S-Ç G-for SB
VELVET Mini 2 Power
STANDARD/STUDIO
Foldable Snapgrid 40º
Ref VL2-MINI-SBag
Ref VL3-MINI-SBag
VELVET Mini 2 Power
STANDARD/STUDIO
Foldable Snapgrid 40º
Ref VL2-MINI-SGrid
Ref VL3-MINI-SGrid
VELVET Mini 1/2 Power
STANDARD/STUDIO
Removable Barndoors
Ref VL2-MINI-RB
Ref VL3-MINI-RB
VELVET Mini 1/2 Power
STANDARDT/STUDIO
BEAM CONTROL

10

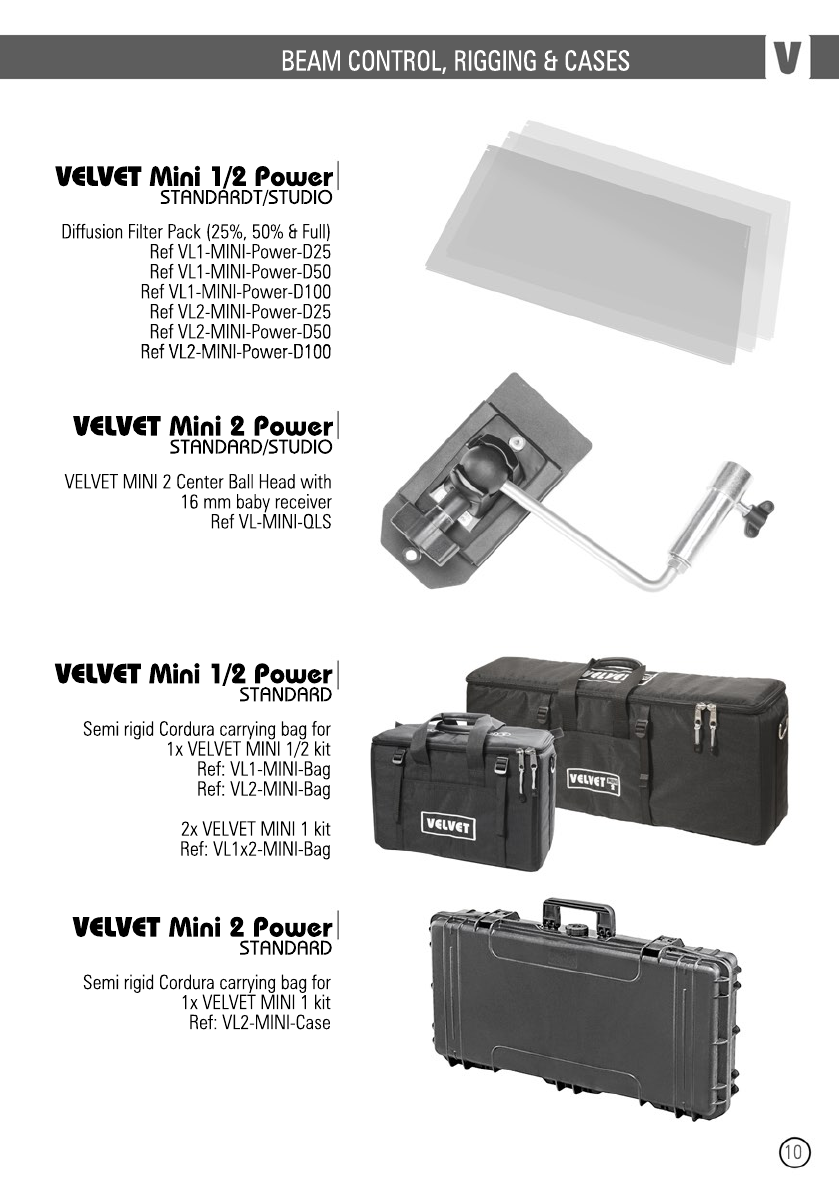

Semi rigid Cordura carrying bag for
1x VELVET MINI 1 kit
Ref: VL2-MINI-Case
VELVET Mini 2 Power
STANDARD
Semi rigid Cordura carrying bag for
1x VELVET MINI 1/2 kit
Ref: VL1-MINI-Bag
Ref: VL2-MINI-Bag
2x VELVET MINI 1 kit
Ref: VL1x2-MINI-Bag
VELVET Mini 1/2 Power
STANDARD
VELVET MINI 2 Center Ball Head with
16 mm baby receiver
Ref VL-MINI-QLS
VELVET Mini 2 Power
STANDARD/STUDIO
Diffusion Filter Pack (25%, 50% & Full)
Ref VL1-MINI-Power-D25
Ref VL1-MINI-Power-D50
Ref VL1-MINI-Power-D100
Ref VL2-MINI-Power-D25
Ref VL2-MINI-Power-D50
Ref VL2-MINI-Power-D100
Ref VL2-MINI-Power-D100
VELVET Mini 1/2 Power
STANDARDT/STUDIO
BEAM CONTROL, RIGGING & CASES

11
XLR-5 DMX Male/Female cable
3 m/ 10 feet
Ref DMX-DMX-3m
VELVET Mini 1/2 Power
STANDARD/STUDIO
Universal Wireless DMX transmitter
portable desk (8xfader/512Ch)
+ 1 Antenna and 1 AC Adapter
Ref Cinelex-DESK-TX8
VELVET Mini 1/2 Power
STANDARD/STUDIO
XLR-5 DMX Aerial splitter IN/OUT
Ref THE-VL-DMXinout
VELVET Mini 1/2 Power
STANDARD
XLR-5 Remote control
Ref VL-RC
VELVET Mini 1/2 Power
STANDARD/STUDIO
DMX CONTROL

12

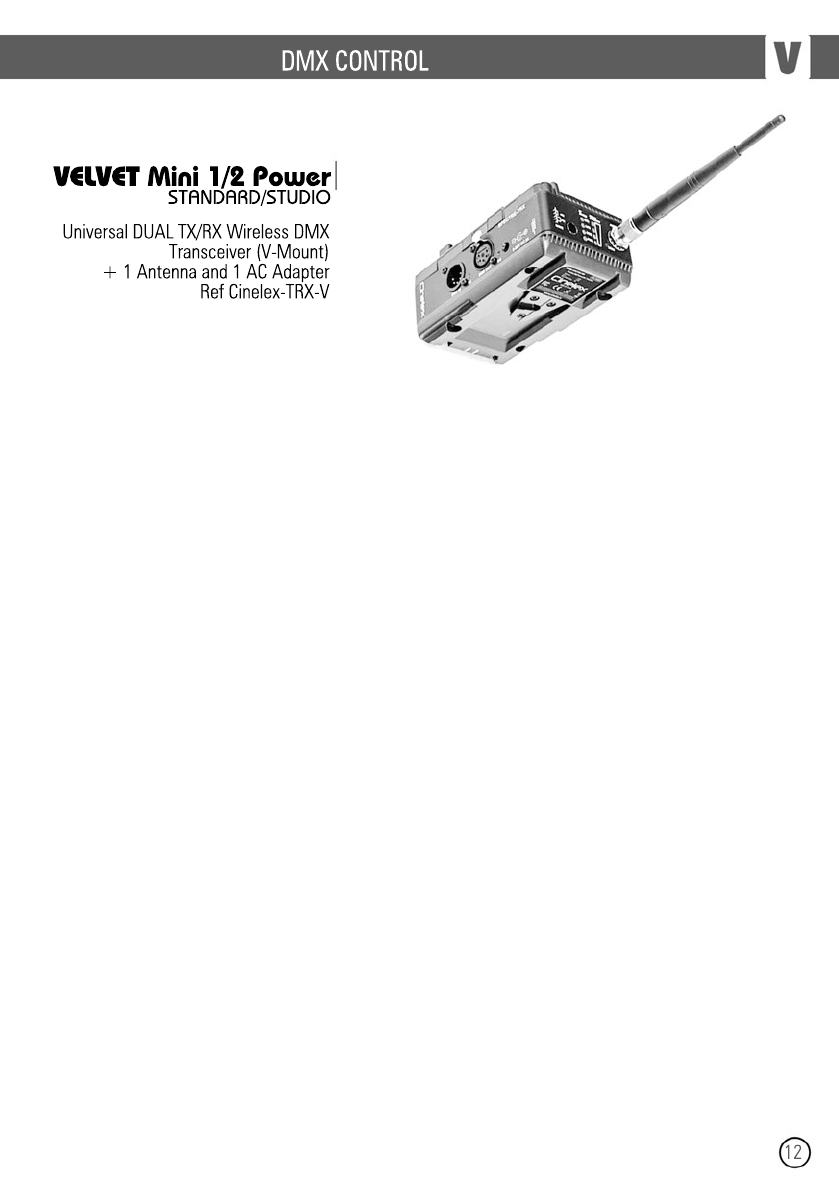

Universal DUAL TX/RX Wireless DMX
Transceiver (V-Mount)
+ 1 Antenna and 1 AC Adapter
Ref Cinelex-TRX-V
VELVET Mini 1/2 Power
STANDARD/STUDIO
DMX CONTROL

13
Adjustable from 2700K a 6500K (100K increments)
Dimmable 0 to 100 (smooth and flicker-free)
95 CRI typical, 90 CRI minimum
95 TLCI typical, 90 minimum
345 x 190 x 90 mm / 13.6” x 7.5“ x 3.5” (panel)
2 kgs / 4,4 lbs (panel)
70 W70 W
12-35 VDC through Vlock or Gold battery mount plate
90-264 VAC, 50/60Hz through SMART Vlock or Gold AC Adapter
35º
5000 lux / 463 fc at 1m / 3 feet 600 lux / 55 fc at 3m / 10 feet
More than 50.000 L70
XLR-5 IN/OUT connector
Docking plate Vlock or Gold mounts
Docking plate Vlock or Gold mounts
16KHz (Flicker-free over 1000 fps)
From -20ºC to +40ºC
No-noise, fan-free passive cooling
IP54 RAINPROOF, indoor or outdoor use
Selected BIN LED core unit + custom optics + CPU software control
Aluminum
Aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, four
sliding threads 1/4“ for riggings located on VELVET Mini 1 panel sides, double baby pin
for diagonal or vertical position using the standard yoke.
Smart Vlock AC power adapter, Filters (1/4, 1/2 and Full hard diffusion)VELVET DMX
remote control, foldable Snapgrid, removable barn doors, cordura soft bag, hard case.
Black powdercoated extruded sheet aluminum.eet aluminum
07
06
05
0403
02
01
01
02
03
04
05
06
07
07
SPECIFICATIONS/ VELVET Mini 1 Power

14
Adjustable from 2700K a 6500K (100K increments)
Dimmable 0 to 100 (smooth and flicker-free)
95 CRI typical, 90 CRI minimum
95 TLCI typical, 90 minimum
607 x 190 x 90 mm / 24” x 7.5“ x 3.5” (panel)
3 kgs / 6.5 lbs (panel)
120 W120 W
12-35 VDC through XLR-3 connector Vock or Gold battery quick link mount
90-264 VAC, 50/60Hz through SMART Vlock or Gold Power Adapter
35º
9000 lux / 833 fc at 1m / 3 feet 1200 lux / 110 fc at 3m / 10 feet
More than 50.000 L70
XLR-5 IN/OUT connector
Docking plate + XLR-3 + Vlock or Gold mounts
Docking plate + XLR-3 + Vlock or Gold mounts
16KHz (Flicker-free over 1000 fps)
From -20ºC to +40ºC
No-noise, fan-free passive cooling
IP54 RAINPROOF, indoor or outdoor use
Selected BIN LED core unit + custom optics + CPU software control
Aluminum
Aluminum yoke with 16mm baby receptacle combined with 28mm junior pin, four
sliding threads 1/4“ for riggings located on VELVET Mini 1 panel sides, double baby pin
for diagonal or vertical position using the standard yoke.
Smart Vlock AC power adapter, Filters (1/4, 1/2 and Full hard diffusion)VELVET DMX
remote control, foldable Snapgrid, foldable Snapbag, removable barn doors, cordura
soft bag, hard case.
Black powdercoated extruded sheet aluminum.eet aluminum
et aluminum
et aluminum
08
07
06
0504
0302
01
01
02
03
04
05
06
07
07
08
SPECIFICATIONS/ VELVET Mini 2 Power

15
Connect any battery from 12 to 35 VDC to the XLR3 (only VELVET Mini
Power 2) connector located at the back of the panel
When powering VELVET from an external battery through the XLR3
connector check the proper polarity as shown in the picture at the side of
the panel.
To
To ensure maximum performance of the equipment use only high-load
capacity batteries with a high continuous draw meaning a Discharge
Current of at least 7A.
VELVET Mini power 2 needs to be powered exclusively with high-load
capacity batteries with a Continuous Discharge Current of at least 9 Amps
In
In VELVET Mini Power 2, attach the quick link Vlock or Gold plate by
aligning the center pin of the mounting plate to the center hole on the
panel docking plate.
Rotate the Vlock or Gold plate clockwise until the four shoulder rivets drop
into their receptacles. A locking pin will snap into place when the plate is
properly locked.
Connect the XLR3 to the connector located on the back of the panel.
To
To avoid electric shocks and/or damages in the equipment the power
switch located at the back of the LED panel must be off before connecting
or disconnecting cables.
POWER OPTIONS/ VELVET Mini Power 1 & 2

16
PLACING INTO OPERATION

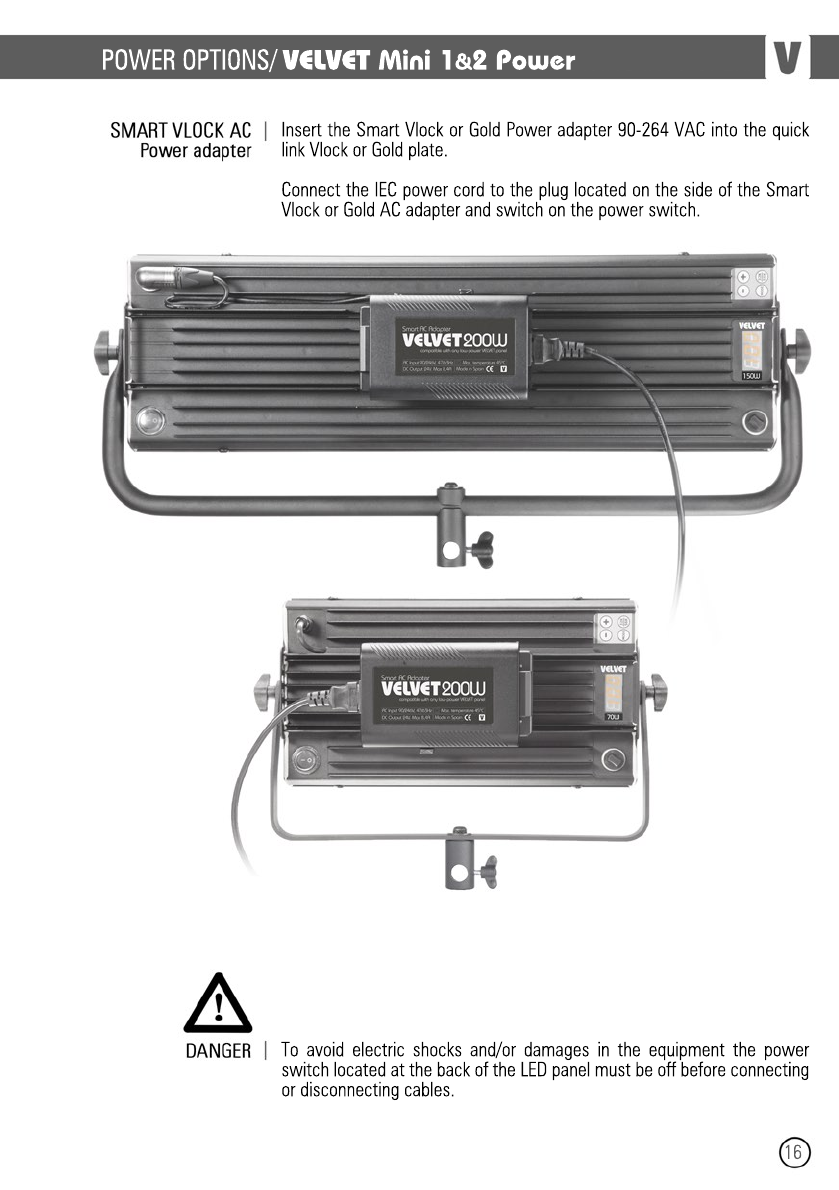

Insert the Smart Vlock or Gold Power adapter 90-264 VAC into the quick
link Vlock or Gold plate.
Connect the IEC power cord to the plug located on the side of the Smart
Vlock or Gold AC adapter and switch on the power switch.
To avoid electric shocks and/or damages in the equipment the power
switch located at the back of the LED panel must be off before connecting
or disconnecting cables.
POWER OPTIONS/ VELVET Mini 1 & 2 Power

17

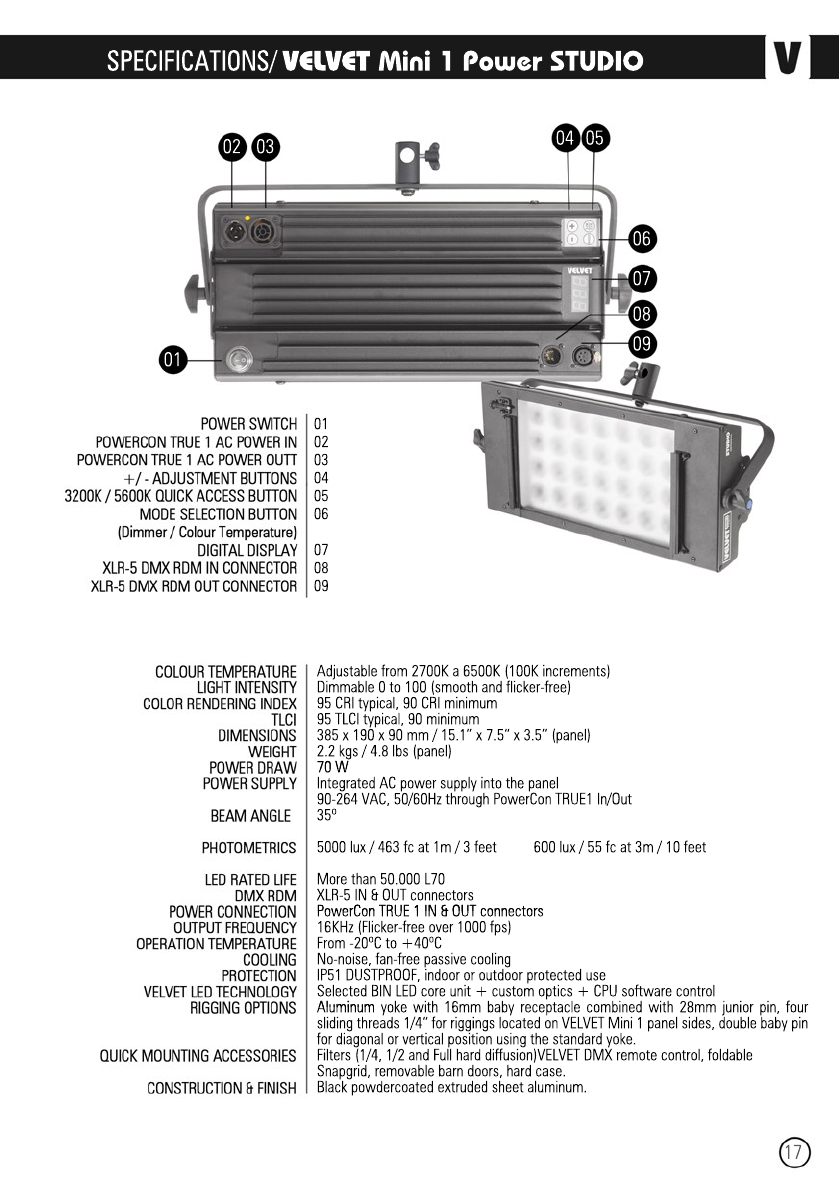

Adjustable from 2700K a 6500K (100K increments)
Dimmable 0 to 100 (smooth and flicker-free)
95 CRI typical, 90 CRI minimum
95 TLCI typical, 90 minimum
385 x 190 x 90 mm / 15.1” x 7.5“ x 3.5” (panel)
2.2 kgs / 4.8 lbs (panel)
70 W
70 W
Integrated AC power supply into the panel
90-264 VAC, 50/60Hz through PowerCon TRUE1 In/Out
35º
5000 lux / 463 fc at 1m / 3 feet 600 lux / 55 fc at 3m / 10 feet
More than 50.000 L70
XLR-5 IN & OUT connectors
PowerCon TRUE 1 IN & OUT connectors
PowerCon TRUE 1 IN & OUT connectors
16KHz (Flicker-free over 1000 fps)
From -20ºC to +40ºC
No-noise, fan-free passive cooling
IP51 DUSTPROOF, indoor or outdoor protected use
Selected BIN LED core unit + custom optics + CPU software control
AluminumAluminum yoke with 16mm baby receptacle combined with 28mm junior pin, four
sliding threads 1/4“ for riggings located on VELVET Mini 1 panel sides, double baby pin
for diagonal or vertical position using the standard yoke.
Filters (1/4, 1/2 and Full hard diffusion)VELVET DMX remote control, foldable
Snapgrid, removable barn doors, hard case.
Black powdercoated extruded sheet aluminum.eet aluminum
09
08
07
06
0504
0302
01
01
02
03
04
05
06
07
07
08
09
SPECIFICATIONS/ VELVET Mini 1 Power STUDIO

18

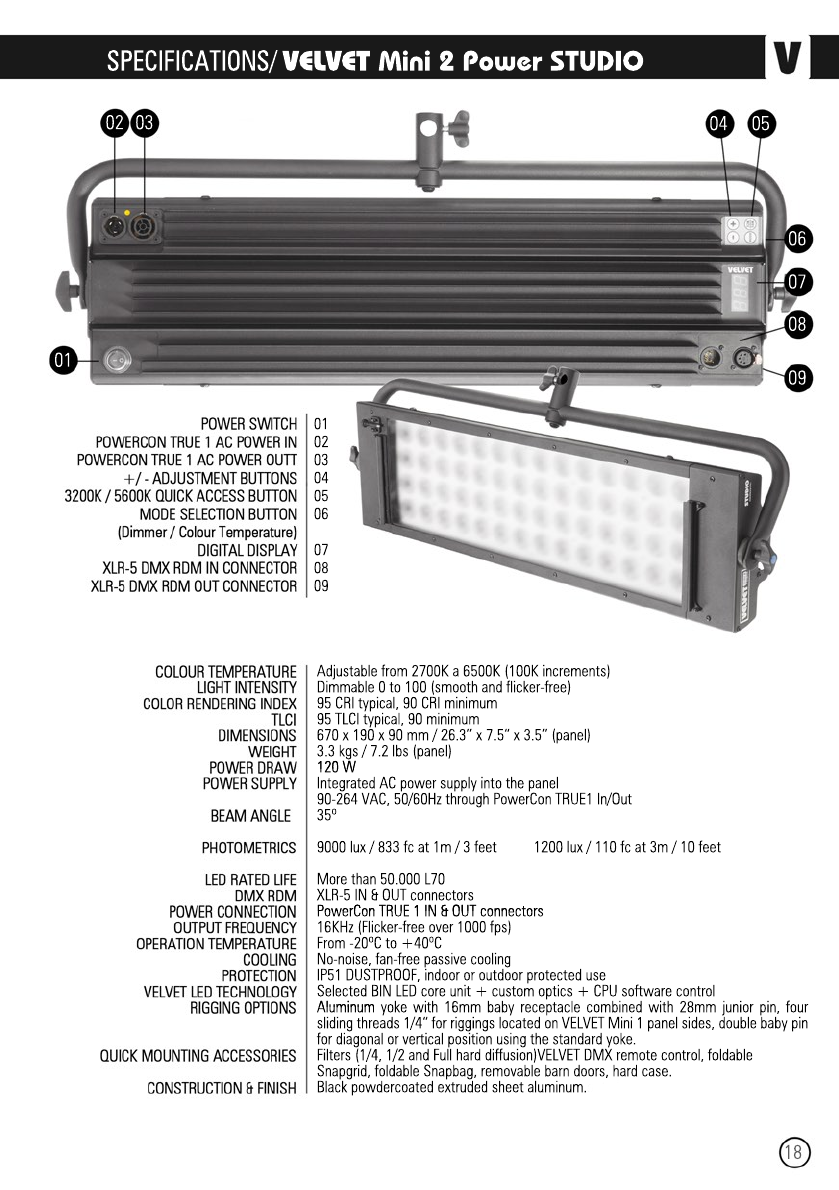

Adjustable from 2700K a 6500K (100K increments)
Dimmable 0 to 100 (smooth and flicker-free)
95 CRI typical, 90 CRI minimum
95 TLCI typical, 90 minimum
670 x 190 x 90 mm / 26.3” x 7.5“ x 3.5” (panel)
3.3 kgs / 7.2 lbs (panel)
120 W
120 W
Integrated AC power supply into the panel
90-264 VAC, 50/60Hz through PowerCon TRUE1 In/Out
35º
9000 lux / 833 fc at 1m / 3 feet 1200 lux / 110 fc at 3m / 10 feet
More than 50.000 L70
XLR-5 IN & OUT connectors
PowerCon TRUE 1 IN & OUT connectors
PowerCon TRUE 1 IN & OUT connectors
16KHz (Flicker-free over 1000 fps)
From -20ºC to +40ºC
No-noise, fan-free passive cooling
IP51 DUSTPROOF, indoor or outdoor protected use
Selected BIN LED core unit + custom optics + CPU software control
AluminumAluminum yoke with 16mm baby receptacle combined with 28mm junior pin, four
sliding threads 1/4“ for riggings located on VELVET Mini 1 panel sides, double baby pin
for diagonal or vertical position using the standard yoke.
Filters (1/4, 1/2 and Full hard diffusion)VELVET DMX remote control, foldable
Snapgrid, foldable Snapbag, removable barn doors, hard case.
Black powdercoated extruded sheet aluminum.eet alu
09
08
07
06
0504
0302
01
01
02
03
04
05
06
07
07
08
09
SPECIFICATIONS/ VELVET Mini 2 Power STUDIO

19
PLACING INTO OPERATION
VELVET Mini 1 & 2 Power STUDIO are thin and compact panels with the AC
power supply integrated and protected into the panel dustproof housing.
They have been designed to be easily installed and hidden on small studios
or low ceiling rooms.
Rigging and cabling can be reduced to a minimum thanks to the compact
yoke and the in&out PowerCon TRUE1 AC power connector and the in &
out XLR-5 DMX-RDM connectors.
VELVETLight
VELVETLight recommends to daisy chain power and DMX-RDM remote
control.
T
To avoid electric shocks and/or damages in the equipment the power
switch located at the back of the LED panel must be off before connecting
or disconnecting cables.
UP TO 20 FIXTURES ON THE SAME LINE
POWER OPTIONS/ VELVET Mini 1 & 2 Power STUDIO

20
Align the adjustable Yoke with the VELVET Mini panel panel as shown in
the picture.
Assemble the Yoke to the LED panel by using the mounting kit of bolts,
washers and adjustable handle. First mount the handles with the metric
M8 metal washer then insert the thick rubber washers between the Yoke
and the LED panel.
It
It is mandatory to mount the rubber washers between the Yoke and the
panel to warranty the rainproof IP54.
OPERATION/YOKE INSTALLATION
