VEMAG ROBOT HP7E User manual

Vacuum ller
ROBOT HP7E (from 160.0215)
ROBOT HP10E (from 161.0312)
ROBOT HP12E (from 165.0234)
ROBOT HP15E (from 162.0241)
ROBOT HP20E (from 163.0300)
Operating instructions

The copying, distribution and utilization of this document as well as the
communication of its contents to others without expressed authorization
is prohibited. Offenders will be held liable for the payment of damages.
All rights reserved in the event of the grant of a patent, utility model or
ornamental design registration.
We reserve the right to make technical modications
Issue: 04/10
Version: 3.1 EN (Original operating instructions)
Software Version: 00.02.000
© VEMAG Maschinenbau GmbH • Postfach 1620 • D-27266 Verden
Phone: [phone] • Fax: [phone]
E-Mail: [email protected]
http://www.vemag.de

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E Index
i© VEMAG 2010
Index
Declaration of conformity
0. Foreword 0-1
1. Safety instructions 1-1
1.1 Sphere of application 1-1
1.2 Use in accordance with purpose 1-1
1.3 Explanation of symbols 1-2
1.4 General safety instructions 1-3
1.5 Special safety instructions 1-4
2. Description 2-1
2.1 Overview ROBOT HP7E / HP10E / HP12E / HP15E / HP20E 2-1
2.2 Brief description 2-1
2.2.1 Hopper 2-1
2.2.2 Feed screw 2-2
2.2.3 Double screws 2-2
2.2.4 Filling horn holder 2-3
2.2.5 Linking gear (optional) 2-3
2.2.6 Controls 2-4
2.2.7 Knee lever 2-7
2.2.8 Step 2-7
2.2.9 Adjustable feet 2-7
2.2.10 Front door 2-7
2.2.11 Lifting/tipping device (optional) 2-7
3. Installation and commissioning 3-1
3.1 Transporting the machine 3-1
3.2 Setting up the machine 3-3
3.3 Electrical connection 3-4
3.4 Checking direction of rotation 3-5
3.5 Levelling the lifting/tipping device (optional) 3-6
4. Setting up 4-1
4.1 General information 4-1
4.2 Fitting the double screw housing 4-1
4.3 Fitting the double screws 4-3
4.4 Fitting the lling horn 4-4
4.5 Locking the linking gear (optional) 4-5
4.6 Fitting the linking horn (optional) 4-6
4.7 Setting the vacuum 4-8
4.7.1 Filling raw and cooked sausage 4-8
4.7.2 Filling liquid product 4-8
4.8 Fitting the scraper 4-9
4.9 Adjusting the knee lever 4-10
5. Operation 5-1
5.1 Working with the machine 5-1
5.2 Working with provisional drive 5-4
6. Graphical control 6-1
6.1 Control panel 6-3
6.2 Screen 6-5
6.2.1 Header 6-5
6.2.2 Program and mode 6-5
6.2.3 Basic parameters 6-5
6.2.4 Supplementary parameters 6-5
6.2.5 Footer 6-5
6.3 Keypad 6-7
6.3.1 Numerical keypad 6-7
6.3.2 Key C (Cancel) 6-7
6.3.3 Screen up/down keys 6-7
6.3.4 Padlock key 6-7

ROBOT HP7E / HP10E / HP12E / HP15E / HP20EIndex
ii © VEMAG 2010
6.3.5 Plus/minus keys 6-7
6.3.6 Cursor keys 6-7
6.3.7 Enter key 6-7
6.4 Status and error messages 6-8
6.5 Principles of operation 6-9
6.5.1 Select and edit programs 6-11
6.5.2 Importing and exporting programs using a USB stick 6-13
6.5.3 Select mode group, mode and view 6-15
6.5.4 Select start/stop method 6-17
6.5.5 Make settings (language, date/time, password) 6-19
6.5.6 Set up userkey 6-21
6.6. Mode groups, modes, start/stop methods and parameters 6-23
6.6.1 Mode groups, modes and views 6-24
6.6.2 Start/stop methods 6-24
6.6.2.1 Knee I 6-24
6.6.2.2 Knee II 6-24
6.6.2.3 Remote end 6-24
6.6.2.4 Remote stop 6-24
6.6.3 Basic parameters 6-25
6.6.3.1 Weight 6-25
6.6.3.2 First portion 6-26
6.6.3.3 Total weight (only for weight groups) 6-26
6.6.3.4 Pause 6-27
6.6.3.5 Linking/clip time/knife/output signal 6-27
6.6.3.6 Speed 6-28
6.6.3.7 Back suction 6-29
6.6.3.8 LPG belt speed 6-29
6.6.3.9 Portions per minute 6-29
6.6.3.10 Pressure control 6-30
6.6.4 Supplementary parameters 6-31
General applications 6-31
6.6.4.1 Speed of feed unit screw 6-31
6.6.4.2 Feed unit run-on 6-31
6.6.4.3 First link 6-31
6.6.4.4 Link offset/clip offset/knife offset (minced meat line) 6-32
6.6.4.5 Select double screw (HP series only) 6-32
6.6.4.6 Select pumping system 6-33
6.6.4.7 Stop counter 6-33
6.6.4.8 Soft start-up 6-33
6.6.4.9 Metal detection 6-34
6.6.4.10 Vacuum control 6-34
6.6.4.11 Synchronizing the machine using an external signal 6-35
Working with the length portioning machine 6-36
6.6.4.12 Product type 6-36
6.6.4.13 Last portion 6-36
6.6.4.14 Split casing tolerance 6-36
6.6.4.14 Remaining portions 6-37
6.6.4.16 Run-on 6-37
Working with the hanging machine 6-38
6.6.4.17 Calibre and sausage length 6-38
6.6.4.18 Distance from LPV 802 6-38
6.6.4.19 Sausages before rst hook 6-38
6.6.4.20 Sausages per hook 6-39
6.6.4.21Catch position 6-39
6.6.4.22 Sausages per stick 6-39
6.6.4.23 End of stick 6-40
6.6.4.24 End of portioning (LPV 802 and DHV 841 only) 6-40

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E Index
iii© VEMAG 2010
6.6.4.25 Extra hook 6-40
6.6.4.26 Permitted deviation 6-41
Working with the automatic separation valve 6-42
6.6.4.27 Separation valve 6-42
6.6.4.28 Separation interval 6-42
6.6.4.29 Valve offset 6-42
6.6.4.30 Separation valve open 6-43
6.6.4.31 Separation valve closed 6-43
Working with the minced meat line and forming machine 6-44
6.6.4.32 Weight groups 6-44
6.6.4.33 Group position 6-44
6.6.4.34 Group portions 6-45
6.6.4.35 Group pause 6-45
6.6.4.36 Belt control (analog output 1) 6-46
6.6.4.37 Belt control (analog output 2) 6-46
Working with the scale 6-47
6.6.4.38 Number of samples
(VEMAG Scale 877 / Bizerba ST) 6-47
6.6.4.39 Print report (VEMAG Scale 877) 6-47
6.6.4.40 Tendency control (e.g. Process Check) 6-47
Working with special devices 6-48
6.6.4.41 Type of special control 6-48
6.6.4.42 Portion delay 6-48
6.6.4.43 Knife (cutter) 6-48
6.6.4.44 Maximum lling pressure
(pressure monitoring on grinding system) 6-49
6.6.4.45 Maximum temperature
(temperature monitoring for the grinding system) 6-49
6.6.4.46 Hopper mode 6-50
6.6.4.47 Hopper vacuum 6-50
6.6.4.48 Hopper level 6-51
6.6.4.49 Hopper level (optional) 6-52
6.6.4.50 Speed limit 6-53
6.6.4.51 External portioning 6-53
6.7 Service 6-55
6.7.1 Service pages 6-57
6.8 Messages 6-58
6.8.1 List of messages 6-58
7. Cleaning 7-1
7.1 General information 7-1
7.2 Removing parts to be cleaned 7-1
7.2.1 Filling horn and lling horn holder 7-1
7.2.2 Linking horn (optional) 7-2
7.2.3 Linking gear (optional) 7-2
7.2.4 Double screws 7-3
7.2.5 Double screw housing 7-3
7.2.6 Hopper 7-6
7.2.7 Scraper 7-7
7.2.8 Vacuum system 7-8
7.3 Cleaning the machine 7-10
7.4 Cleaning schedule 7-11
7.4.1 General recommendations 7-11
7.4.2 Chlorine-free alkaline cleaning agents 7-11
7.4.3 Chlorine-containing alkaline cleaning agents 7-13
7.4.4 Specialist cleaning agent for machine interior 7-14
7.5 Lubrication and assembly 7-15
7.5.1 Hopper 7-15

ROBOT HP7E / HP10E / HP12E / HP15E / HP20EIndex
iv © VEMAG 2010
8. Maintenance 8-1
8.1 General information 8-1
8.2 Grease gun 8-5
8.3 First-time maintenance work 8-6
8.4 Maintenance schedule 8-7
8.5 Daily maintenance 8-8
8.5.1 Feed unit seals (lubrication) 8-8
8.6 Weekly maintenance 8-10
8.6.1 Feed unit drive (lubrication) 8-10
8.6.2 Intake (air lter) 8-11
8.6.3 Vacuum pump (air lter) 8-12
8.6.4 Vacuum pump 16 m³ and 40 m³ (optional) 8-12
8.7 Monthly maintenance 8-13
8.7.1 Double screw drive (oil level and seals) 8-13
8.7.2 Vacuum pump 16 m³ and 40 m³ (optional) 8-13
8.8 Six-monthly maintenance 8-14
8.8.1 Feed unit seals 8-14
8.8.2 Hydraulic unit (oil level) 8-14
8.8.3 Vacuum pump 16 m³ and 40 m³ (optional) 8-14
8.9 Annual maintenance 8-15
8.9.1 Feed unit drive and feed unit seals 8-15
8.9.2 Hydraulic unit (oil change) 8-15
8.9.3 Vacuum pump 16 m³ and 40 m³ (optional) 8-16
8.10 Biennial maintenance 8-20
8.10.1 Double screw drive (oil change) 8-20
8.11 Three-yearly maintenance 8-21
8.11.1 Feed drive (oil change) 8-21
9. Troubleshooting 9-1
9.1 General information 9-1
9.2 Troubleshooting table 9-1
10. Appendix 10-1
10.1 General information 10-1
10.2 Technical data ROBOT HP7E / HP10E / HP12E / HP15E /
HP20E 10-2
10.3 Dimensional drawings ROBOT HP7E / HP10E / HP12E /
HP15E / HP20E 10-3
10.3.1 Hopper 250 l 10-3
10.3.2 Hopper 350 l 10-3
10.4 Electrical control panel (service hatch, right-hand side) 10-5
10.5 Drive controller ROBOT HP7E (front door) 10-7
10.6 Drive controller ROBOT HP10E / HP12E (front door) 10-9
10.8 Hydraulic plan 10-12
10.9 Lubricants 10-13
10.9.1 Double screw drive 10-13
10.9.2 Feed drive 10-13
10.9.3 Hydraulic unit lifting and tipping device (optional) 10-13
10.9.4 Vacuum pump 10-13
10.9.5 Feed unit seals and feed unit drive 10-13
10.9.6 Individual parts 10-13
10.10 Accessories 10-14
10.10.1 Double screw selection 10-14
10.10.2 Filling horn selection 10-14
10.10.3 Linking horns 10-15
10.10.4 Miscellaneous accessories 10-15
10.10.5 Tools 10-15

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E Declaration of conformity
© VEMAG 2010
Declaration of conformity
reecting the intention of EC Machinery Directive 2006/42/EC, Annex IIA
We
VEMAG Maschinenbau GmbH
Weserstraße 32
27283 Verden (Aller)
hereby declare that the
Continuous vacuum ller
ROBOT HP7E type 160
ROBOT HP10E type 161
ROBOT HP12E type 165
ROBOT HP15E type 162
ROBOT HP20E type 163
Machine no. 16x.xxxx
complies with all of the relevant provisions of the EC Machinery Directive 2006/42/EC.
Particular consideration was given to
the standard EN 12463:2004(D) Food Processing Machinery - Filling machines and auxiliary machines -
Safety and hygiene requirements
The notied German authority
Prüf- und Zertizierungsstelle im BG-PRÜFZERT
Fachausschuß Fleischwirtschaft
Lortzingstraße 2, 55127 Mainz
performed a prototype test for this series of llers. The number of the inspection document issued on
29.12.2009 is FW 09117.
Authorised documentation representative:
Dr. Michael Gerretz
Tel.: [phone]
Fax: [phone]
[email protected]

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E 0. Foreword
0-1© VEMAG 2010
0. Foreword
These operating instructions cover all the information required to operate
the vacuum ller. Two versions of the machine are available:
• ROBOT HP7E / HP10E / HP12E / HP15E / HP20E in the form of a
portioning machine
• ROBOT HP7E / HP10E / HP12E / HP15E / HP20E in the form of a
portioning and linking machine (optional)
Operating and maintenance instructions for any attachments (optional)
can be found in the appropriate separate operating instructions.
If you have any questions which cannot be answered by this manual,
please contact VEMAG Customer Service at any time. Our staff will be
please to hear your suggestions.
Read the safety instructions (Section 1) rst, before starting up the ma-
chine. You must follow all safety instructions to prevent injury to people
and damage to the machine.
You must follow all instructions on cleaning (Section 7) and maintenance
(Section 8). This is the only way to ensure reliable operation, high perfor-
mance and a long service life of your machine.

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E0. Foreword
0-2 © VEMAG 2010

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E 1. Safety instructions
1-1© VEMAG 2010
1. Safety instructions
1.1 Sphere of application
Two versions of the continuous vacuum ller are available:
• ROBOT HP7E / HP10E / HP12E / HP15E / HP20E in the form of a por-
tioning machine
• ROBOT HP7E / HP10E / HP12E / HP15E / HP20E in the form of a
portioning and linking machine (optional)
It can also be tted with special attachments (optional).
1.2 Use in accordance with purpose
The ROBOT HP7E / HP10E / HP12E / HP15E / HP20E continuous vacu-
um ller is designed and built for lling, portioning and linking sausages in
natural, collagen and cellulose casings. Standard sausage meats are sui-
table as the product for lling to make fresh sausage, salamis and boiled
sausage. The ller can also be used for grinding and separating meat
for processing. Other products may only be processed with the express
agreement of VEMAG.
The vacuum ller is designed for industrial applications.
The vacuum ller may not be used in an explosive atmosphere.
Raw materials may be processed at a temperature of between -4 °C and
+ 50 °C.
The vacuum ller requires ambient temperatures between +0.5 °C and
+25 °C.
The vacuum ller is designed for one operator. The operator must have
been trained on site by VEMAG specialists or one of their representa-
tives.
The vacuum ller may only be cleaned by trained cleaning staff.
The vacuum ller may only be serviced by trained maintenance staff
(tters or electricians).
The manufacturer’s assembly, commissioning, operating and mainte-
nance instructions must be followed to satisfy the conditions of ”use in
accordance with purpose”.
The ROBOT HP7E / HP10E / HP12E / HP15E / HP20E continuous vacu-
um ller is built in accordance with the state of the art and, in the conditi-
on in which it is delivered, complies with machinery directive 2006/42/EC.
Nevertheless, the machine may present residual hazards if it:
• is not used in accordance with purpose
• is not used in accordance with these operating instructions,
• is used by untrained staff
• is not carefully cleaned and maintained to specication.

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E1. Safety instructions
1-2 © VEMAG 2010
1.3 Explanation of symbols
The following symbols appear in these operating instructions, indicating
residual hazards when operating the machine or referring the reader to
other important information.
Danger!
This warning symbol refers to important instructions which must be follo-
wed to prevent faulty operation which could pose a threat to human life or
lead to injury.
Warning!
This warning symbol refers to important instructions which must be
followed to prevent faulty operation which could result in damage to the
machine or installation or which could jeopardise production.
This arrow symbol indicates additional information at another point in the
manual or in other documentation.

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E 1. Safety instructions
1-3© VEMAG 2010
1.4 General safety instructions
• Any person working on or with the machine must have read and un-
derstood these operating instructions, in particular the safety instruc-
tions.
• The machine may be used only by trained and authorised staff.
• Responsibilities during operation must be clearly assigned and obser-
ved.
• The machine may only be serviced by trained staff authorized to do
so.
• The machine may only be used if it is in perfect working order. In the
event of changes, such as loss of oil or unusual noises starting, the
machine should be stopped immediately and your in-house mainte-
nance department or VEMAG Customer Service informed.
• The machine may not be operated without the housing cover.
• Route mains cables and data cables (e.g. remote control cable) so as
to avoid tripping hazards.
• Sockets which are not being used must be rmly sealed with the
appropriate protective cap to prevent the penetration of moisture.
Corrosion at the contacts can lead to switching errors.
• It is prohibited to remove, switch off or override safety devices. In the
event of damage to safety devices, inform VEMAG Customer Service
immediately.
• Warning signs on the machine may not be removed or painted over.
• Conversions, attachments and other modications to the machine not
approved by VEMAG are not permitted.
• In all cases, generally-applicable and in-house safety and accident
prevention regulations apply in addition to these safety instructions.

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E1. Safety instructions
1-4 © VEMAG 2010
1.5 Special safety instructions
Danger!
To prevent injury, switch off the machine before any work (assembly, dis-
mantling, cleaning, maintenance, repair). Then switch off the main switch
to disconnect the machine from the mains.
Danger!
To prevent injury in the area of the double screws, switch off the machine
before undoing the locking nut. Then switch off the main switch to dis-
connect the machine from the mains. The lling horn holder or linking
gear (optional) may only be tted or removed with the machine switched
off.
Before starting up the machine, always perform the following steps:
• Check that the machine is in proper condition. Leaking oil indicates
leaks which must be eliminated immediately. In this case, inform your
in-house maintenance department or VEMAG Customer Service
immediately.
• Check that the safety devices on the hopper and lling horn holder are
working properly.
Section 5
If you notice any damage, inform VEMAG Customer Service immedi-
ately.
Danger!
To prevent injury, switch off the machine before doing any work on the
hopper. Then switch off the main switch to disconnect the machine from
the mains. Do not climb onto the machine to check the hopper/hopper
contents, use only the step provided. Under no circumstances use a lad-
der or other aid to get at the hopper of the machine.
Danger!
No-one may stand in the area of the lifting/tipping device (optional). Do
not put any objects in this area. Only trolleys to DIN 9797 with a capacity
of 200 l or 300 l (optional) are permitted.

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E 2. Description
2-1© VEMAG 2010
2. Description

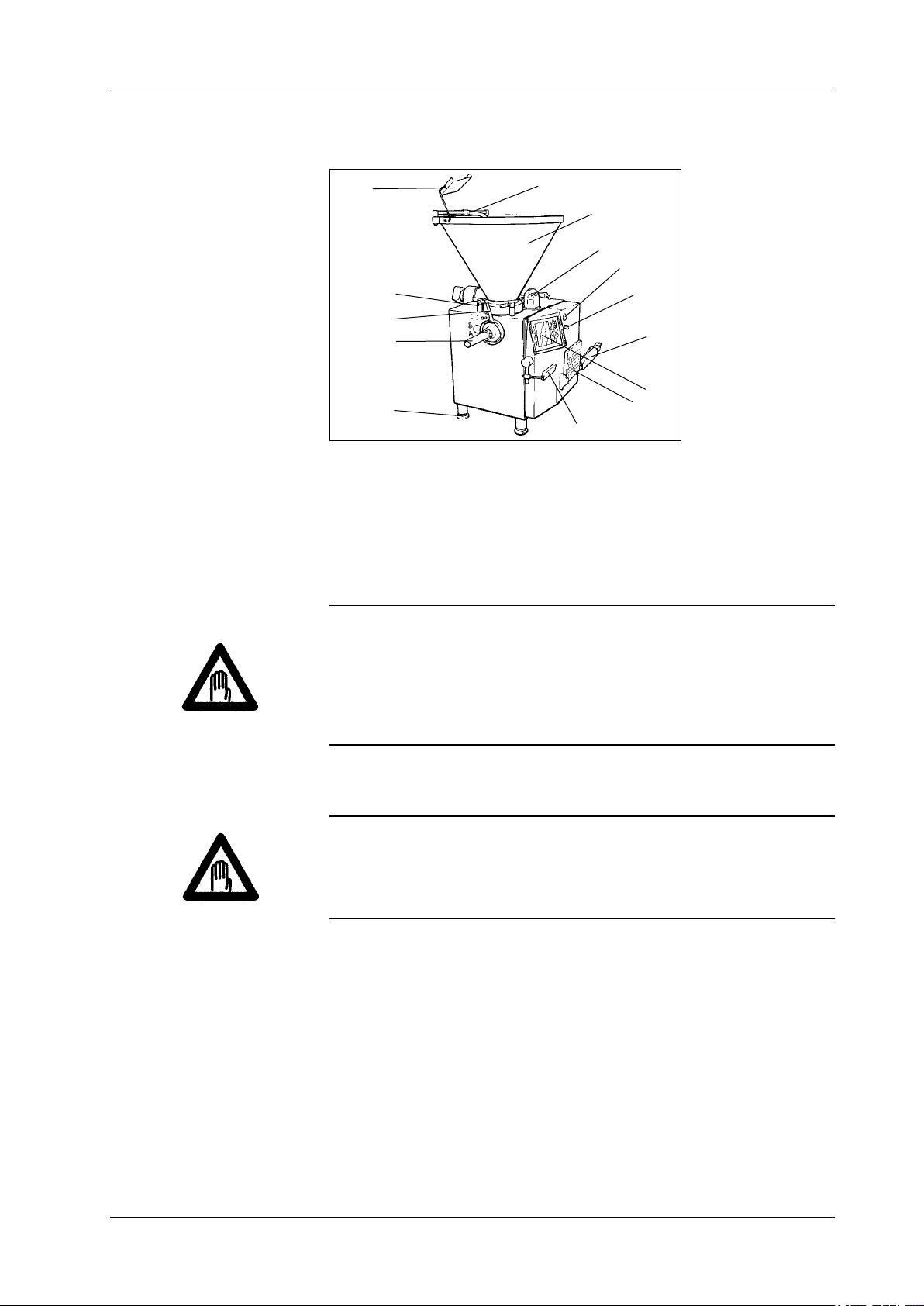

2.1 Overview ROBOT HP7E / HP10E / HP12E / HP15E / HP20E
1 Hopper
2 Vacuum pot
3 Vacuum display
4 Vacuum control valve
5 Lifting/tipping device
(optional)
6 Control panel
7 Adjustable feet
8 Step
9 Knee lever
10 Filling horn
11 Locking nut
12 Hopper release mechanism
13 Mirror
14 Stopper
Fig. 2-1
Machine with lling horn
1
2
4
5
3
6
8
9
7
10
11
12
13 14
2.2 Brief description
2.2.1 Hopper
The ller is equipped with a hopper for pouring in product for lling. The
hopper is tted with a safety device which switches off the machine when
the hopper is open. A mirror attached to the hopper allows the contents to
be checked.
Danger!
To prevent injury, switch off the machine before doing any work on the
hopper. Then switch off the main switch to disconnect the machine from
the mains. Do not climb onto the machine to check the hopper/hopper
contents or for cleaning and maintenance purposes, use only the step
provided. Under no circumstances use a ladder or other aid to get at the
hopper of the machine.
The hopper is tted with cushioning as a partial counterweight to prevent
the hopper falling shut under its own weight.
Danger!
Proceed especially carefully when opening and closing the hopper to
prevent injury (risk of crushing). Grasp the hopper only at the ange to tip
it over carefully. Do not open the hopper as long as the lifting and tipping
device (optional) is in its top limit position.

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E2. Description
2-2 © VEMAG 2010
2.2.2 Feed screw
The product is compressed in the hopper by the feed screw (1) and fed to
the thread of the double screws with the aid of the vacuum. Spiral stopper
(2) improves product feed. The scraper (3) attached to the feed screw
completely empties the hopper. The scraper is easy to remove for clea-
ning.
1 Feed screw
2 Spiral stopper
3 Scraper
Fig. 2-2
Feed screw
1
2
3
2.2.3 Double screws
The double screws ensure that the product is conveyed gently and evenly
to the outlet. The same volume is conveyed with each rotation of the dou-
ble screws. In this process, the proportion of air in the product for lling is
reduced by the vacuum applied. The double screws feed until completely
empty. The speed of the double screws and thus the quantity of product
portioned can be innitely adjusted.
The product for lling can be portioned either continuously or in individual
portions. If portioning individually, the number of double screw rotations is
a measure of the weight of the individual portion. Individual portions can
be linked in the pauses between individual portions.
Fig. 2-3
Double screws

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E 2. Description
2-3© VEMAG 2010
2.2.4 Filling horn holder

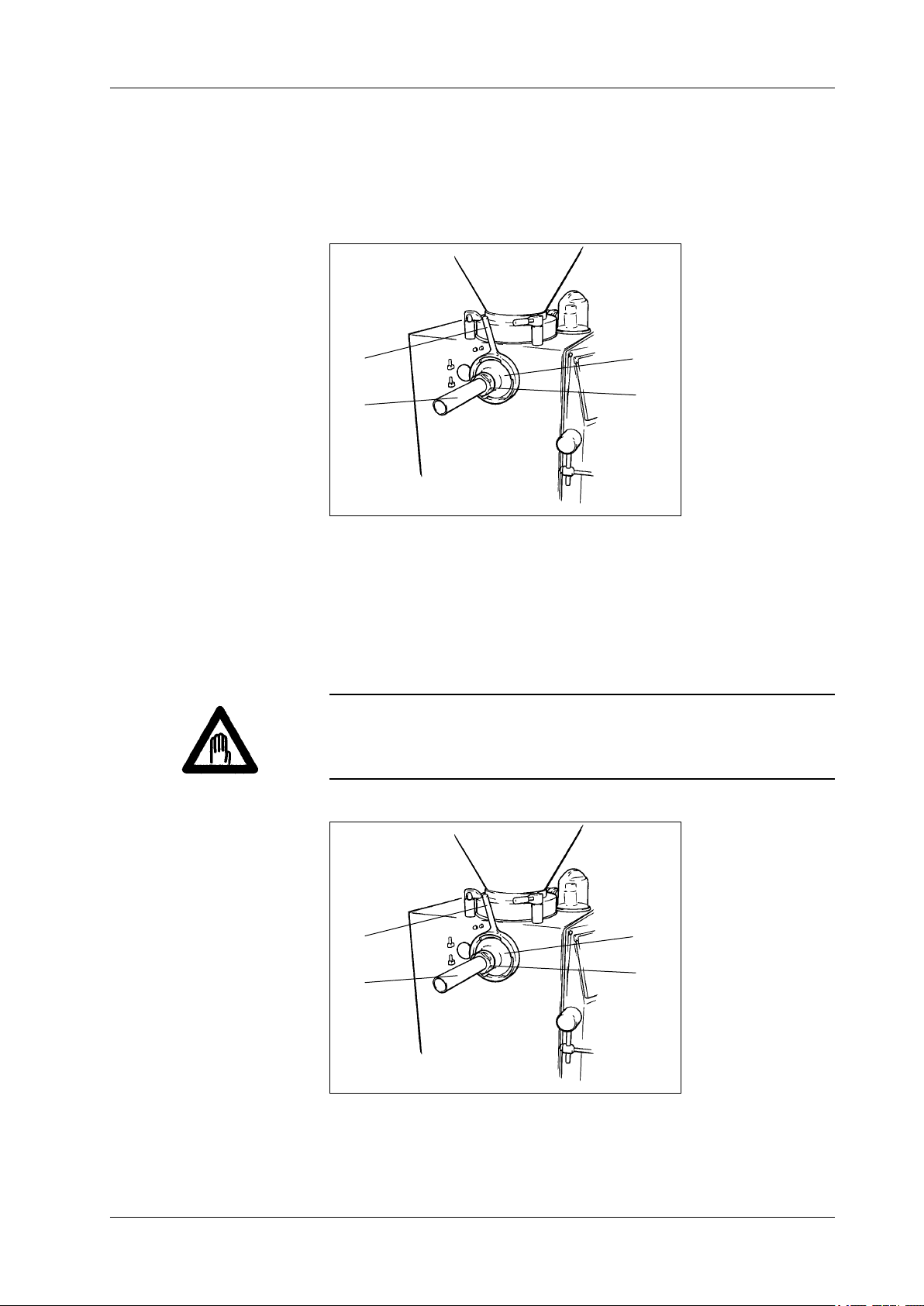

The machine is tted with a lling horn holder (1) at the outlet as standard
and this is locked at the outlet by the locking nut (2). The lling horn (3)
is attached to the lling horn holder with the aid of the lling horn nut (4).
The product is ejected through the lling horn by the double screws.
1 Filling horn holder
2 Locking nut
3 Filling horn
4 Filling horn nut
Fig. 2-4
Machine with lling horn
holder
1
2
34
2.2.5 Linking gear (optional)
The linking gear (1) is attached to the housing of the machine with the aid
of two bearing journals (2) and swivelled in front of the outlet. It is locked
in position at the outlet with the locking nut (3) like the lling horn holder.
The linking horn (4) is attached to the linking gear with the aid of linking
nut (5).
Danger!
To prevent injury, do not use linking horns with sprung heads. Use only
completely straight, undamaged linking horns and use the appropriate
test program to check the linking horn selected before starting production.
1 Linking gear
2 Bearing journals
3 Locking nut
4 Linking horn
5 Linking nut
Fig. 2-5
Machine with linking gear
(optional)
1
2
34

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E2. Description
2-4 © VEMAG 2010
2.2.6 Controls

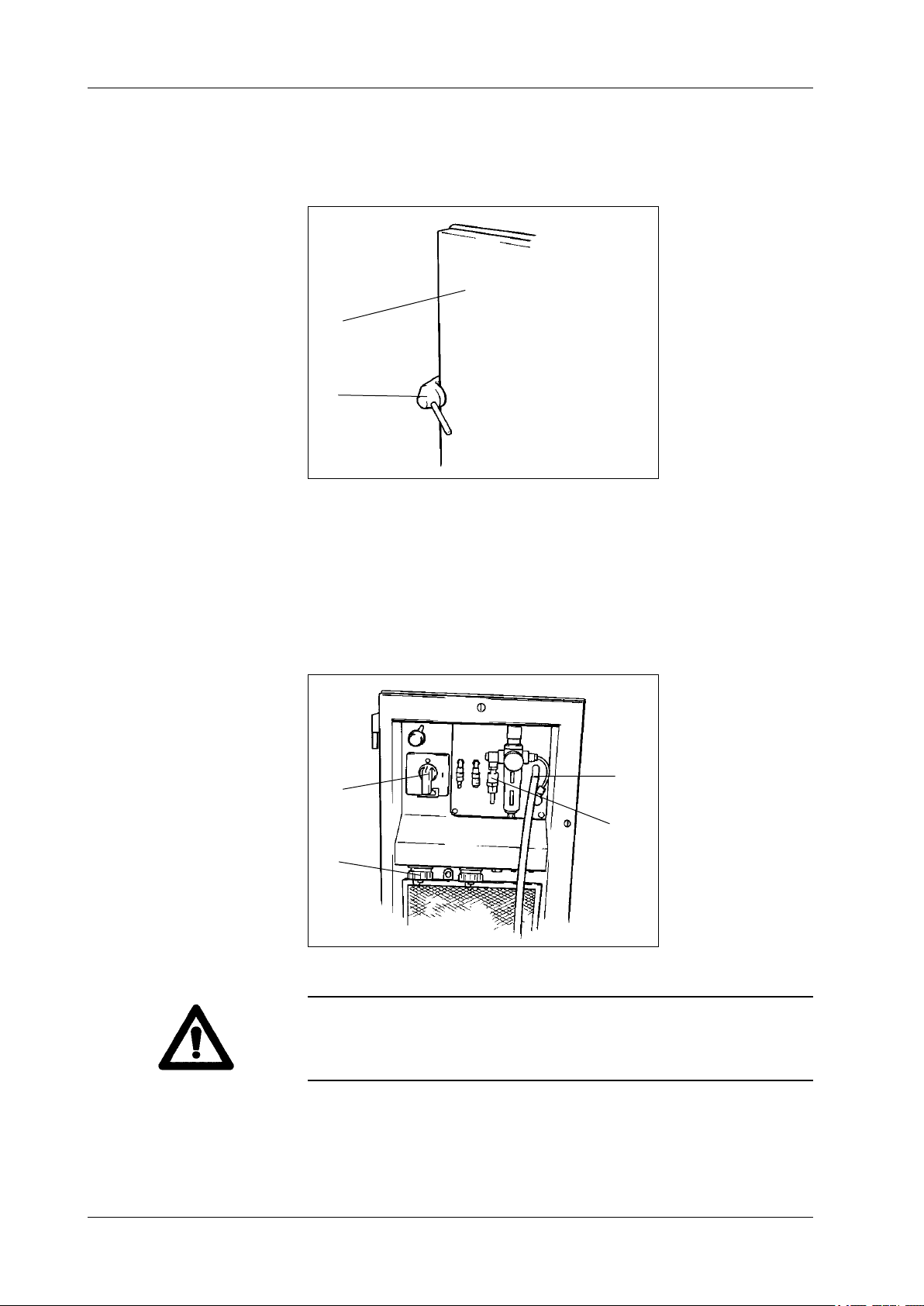

The controls on the rear of the machine are protected by a cover (1)
which is latched with the aid of a toggle (2).
1 Cover
2 Toggle
Fig. 2-6
Controls
1
2
Behind the cover is main switch (1) which is used to switch the power
supply to the machine on and off.
Attachments and additional devices (optional) can be connected to the
power supply of the machine via equipment socket (2). Instead of blind
covers, further sockets can be provided for supplementary equipment like
coextrusion systems (optional), for example.
1 Main switch
2 Equipment socket
3 Compressed air con-
nection for automatic
separation valve
(optional)
4 Pressure monitoring
for separation grinder
982 or separation
attachment 801
(optional)
Fig. 2-7
Controls
1
2
4
3
Warning!
Always seal off unused sockets with the appropriate protective cap to
prevent moisture and dirt penetrating. Corrosion on the contacts can lead
to switching faults.

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E 2. Description
2-5© VEMAG 2010
The following controls are arranged on the control panel on the front of
the machine next to the portioning computer:
• ON switch (1)
• OFF switch (2)
• UP key (3) for lifting/tipping device (optional)
• STOP key (4) for lifting/tipping device (optional)
• DOWN key (5) for lifting/tipping device (optional)
• Vacuum display (6)
• Vacuum control valve (7)
1 ON switch
2 OFF switch
3 UP key (optional)
4 STOP key (optional)
5 DOWN key (optional)
6 Vacuum display
7 Vacuum control valve
Fig. 2-8
Machine control panel
1
2
4
3
6
7
5
ON key
This key switches on the drive of the machine.
OFF key
This key switches off the drive of the machine.
UP key (optional)
This key raises the trolley hoist of the lifting/tipping device (optional). In
the top end position above the hopper, the trolley is automatically tipped
and emptied. After 30 seconds have elapsed, the trolley hoist can be
lowered again using the DOWN key. If it is to be lowered before that, the
STOP key has to be pressed rst.
STOP key (optional)
This key stops the trolley hoist of the lifting/tipping device (optional).

ROBOT HP7E / HP10E / HP12E / HP15E / HP20E2. Description
2-6 © VEMAG 2010
DOWN key (optional)
This key lowers the trolley hoist of the lifting/tipping device (optional). The
trolley hoist stops automatically as soon as the trolley is 500 mm abo-
ve the ground. To move it into its bottom end position, the key must be
pressed again and held down until the nal position is reached.
Vacuum display
The vacuum set by the vacuum control valve can be read off in per cent
(0 - 100 %) at the vacuum display.
Vacuum control valve
The desired vacuum for evacuating the product can be set using the va-
cuum control valve. Turning clockwise (+) increases the vacuum, turning
anti-clockwise (-) reduces the vacuum.
A second set of buttons for operating the lifting and tipping device (optio-
nal) is located on the right-hand side of the front door.
Fig. 2-9
Buttons for lifting and
tipping device (optional)
Danger!
When lowering the lifting/tipping device (optional), ensure that there is no-
one in this area. Do not deposit any objects in this area.
